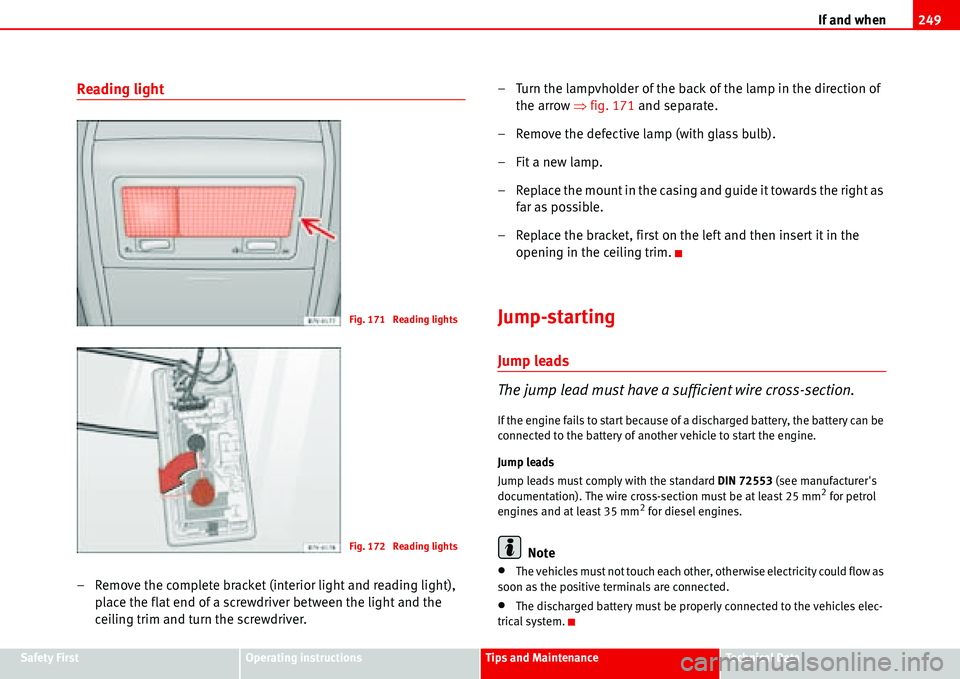

Reading light
– Remove the complete bracket (interior light and reading light),
place the flat end of a screwdriver between the light and the
ceiling trim and turn the screwdriver.– Turn the lampvholder of the back of the lamp in the direction of
the arrow Ÿfig. 171 and separate.
– Remove the defective lamp (with glass bulb).
– Fit a new lamp.
– Replace the mount in the casing and guide it towards the right as
far as possible.
– Replace the bracket, first on the left and then insert it in the
opening in the ceiling trim.
Jump-starting
Jump leads
The jump lead must have a sufficient wire cross-section.
If the engine fails to start because of a discharged battery, the battery can be
connected to the battery of another vehicle to start the engine.
Jump leads
Jump leads must comply with the standard DIN 72553 (see manufacturer's
documentation). The wire cross-section must be at least 25 mm
2 for petrol
engines and at least 35 mm2 for diesel engines.
Note
•The vehicles must not touch each other, otherwise electricity could flow as
soon as the positive terminals are connected.
•The discharged battery must be properly connected to the vehicles elec-
trical system.
Fig. 171 Reading lights
Fig. 172 Reading lights

If and when 250
How to jump start
In Ÿfig. 173, the flat battery is and the charged battery .
Jump lead terminal connections
– Switch off the ignition on both vehicles Ÿ.
1. Connect one end of the red jump lead to the positive Ÿfig. 173
terminal of the vehicle with the flat battery Ÿ.
2. Connect the other end of the red jump lead to the positive
terminal in the vehicle providing assistance.
3. Connect one end of the black jump lead to the negative terminal
on the battery of the vehicle providing assistance.4. Connect the other end of the black jump lead to a solid metal
component which is bolted on to the engine block, or onto the
engine block itself of the vehicle with the flat battery. Do not
connect it to a point near the battery Ÿ.
5. Position the leads in such a way that they cannot come into
contact with any moving parts in the engine compartment.
Starting
6. Start the engine of the vehicle with the boosting battery and let
it run at idling speed.
7. Start the engine of the car with the flat battery and wait one or
two minutes until the engine is “running”.
Removing the jump leads
8. Before you remove the jump leads, switch off the headlights (if
they are switched on).
9. Turn on the heater blower and rear window heater in the vehicle
with the flat battery. This helps minimise voltage peaks that are
generated when the leads are disconnected.
10. When the engine is running, disconnect the leads in reverse
order to the details given above.
Connect the battery clamps so they have good metal-to-metal contact with
the battery terminals.
If the engine fails to start, switch off the starter after about 10 seconds and
try again after about half a minute.
Fig. 173 How to connect
the jump leads
AAAB
A+
A+
A-
AX

If and when251
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
WARNING
•Please note the safety warnings referring to working in the engine
compartment Ÿpage 209, “Working in the engine compartment”.
•The battery providing assistance must have the same voltage as the flat
battery (12V) and approximately the same capacity (see imprint on
battery). Failure to comply could result in an explosion.
•Never use jump leads when one of the batteries is frozen. Danger of
explosion! Even after the battery has thawed, battery acid could leak and
cause chemical burns. If a battery freezes, it should be replaced.
•Keep sparks, flames and lighted cigarettes away from batteries, danger
of explosion. Failure to comply could result in an explosion.
•Observe the instructions provided by the manufacturer of the jump
leads.
•Do not connect the negative cable from the other vehicle directly to the
negative terminal of the flat battery. The gas emitted from the battery could
be ignited by sparks. Danger of explosion.
•Do not attach the negative cable from the other vehicle to parts of the
fuel system or to the brake line.
•The non-insulated parts of the battery clamps must not be allowed to
touch. The jump lead attached to the positive battery terminal must not
touch metal parts of the vehicle, this can cause a short circuit.
•Position the leads in such a way that they cannot come into contact
with any moving parts in the engine compartment.
•Do not bend over the batteries. This could result in chemical burns.
Note
The vehicles must not touch each other, otherwise electricity could flow as
soon as the positive terminals are connected.
Towing and tow-starting
Tow-starting*
The use of jump leads is preferable to tow-starting.
We recommend that you do not tow-start your vehicle. Jump-starting
is preferable Ÿpage 249.
However, if your vehicle has to be tow-started:
– Engage the 2
nd or the 3rd gear.
– Keep the clutch pressed down.
– Switch on the ignition.
– Once both vehicles are moving, release the clutch.
– As soon as the engine starts, press the clutch and move the gear
lever into neutral. This helps to prevent driving into the towing
vehicle.
WARNING
The risk of accidents is high when tow-starting. The vehicle being towed
can easily collide with the towing vehicle.
Caution
When tow-starting, fuel could enter the catalytic converter and damage it.

If and when 252

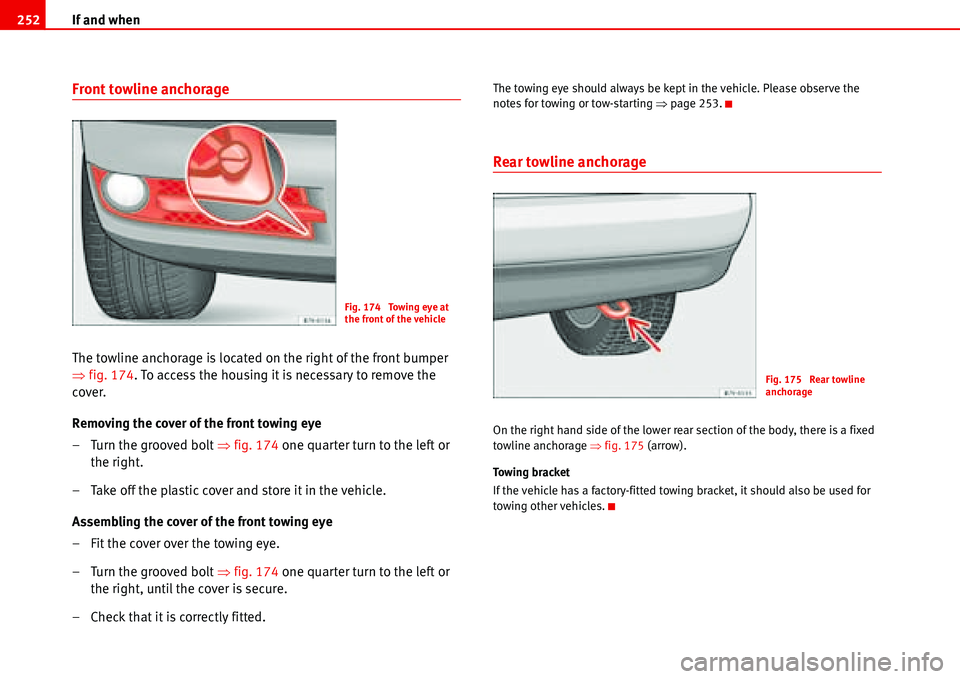

Front towline anchorage
The towline anchorage is located on the right of the front bumper
Ÿfig. 174. To access the housing it is necessary to remove the
cover.
Removing the cover of the front towing eye
– Turn the grooved bolt Ÿfig. 174 one quarter turn to the left or
the right.
– Take off the plastic cover and store it in the vehicle.
Assembling the cover of the front towing eye
– Fit the cover over the towing eye.
– Turn the grooved bolt Ÿfig. 174 one quarter turn to the left or
the right, until the cover is secure.
– Check that it is correctly fitted.
The towing eye should always be kept in the vehicle. Please observe the
notes for towing or tow-starting Ÿpage 253.
Rear towline anchorage
On the right hand side of the lower rear section of the body, there is a fixed
towline anchorage Ÿfig. 175 (arrow).
Towing bracket
If the vehicle has a factory-fitted towing bracket, it should also be used for
towing other vehicles.
Fig. 174 Towing eye at
the front of the vehicle
Fig. 175 Rear towline
anchorage

If and when253
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a

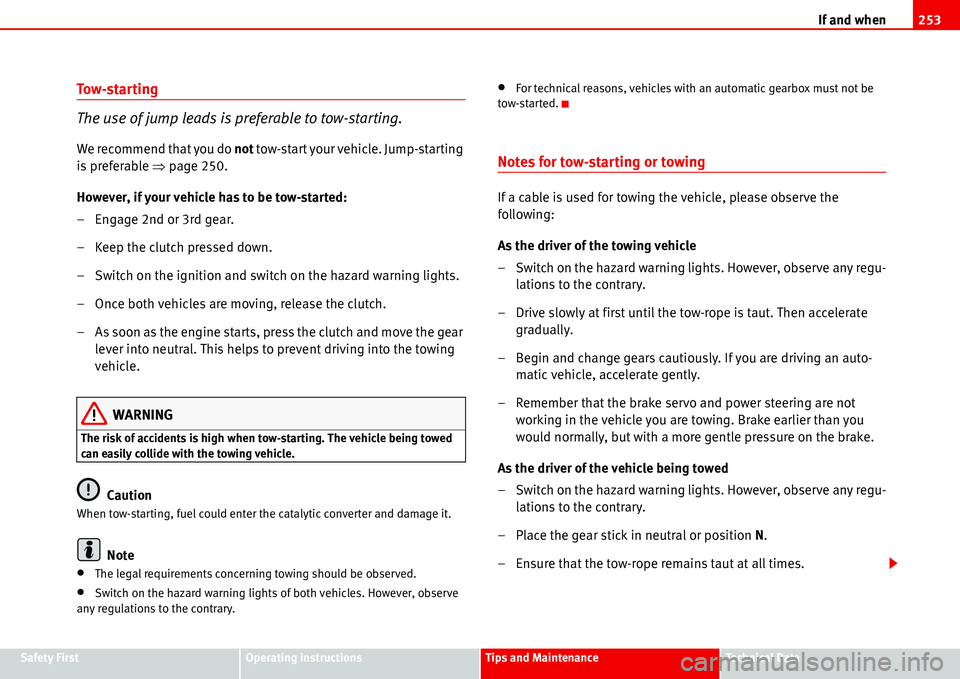

Tow-starting
The use of jump leads is preferable to tow-starting.
We recommend that you do not tow-start your vehicle. Jump-starting
is preferable Ÿpage 250.
However, if your vehicle has to be tow-started:
– Engage 2nd or 3rd gear.
– Keep the clutch pressed down.
– Switch on the ignition and switch on the hazard warning lights.
– Once both vehicles are moving, release the clutch.
– As soon as the engine starts, press the clutch and move the gear
lever into neutral. This helps to prevent driving into the towing
vehicle.
WARNING
The risk of accidents is high when tow-starting. The vehicle being towed
can easily collide with the towing vehicle.
Caution
When tow-starting, fuel could enter the catalytic converter and damage it.
Note
•The legal requirements concerning towing should be observed.
•Switch on the hazard warning lights of both vehicles. However, observe
any regulations to the contrary.
•For technical reasons, vehicles with an automatic gearbox must not be
tow-started.
Notes for tow-starting or towing
If a cable is used for towing the vehicle, please observe the
following:
As the driver of the towing vehicle
– Switch on the hazard warning lights. However, observe any regu-
lations to the contrary.
– Drive slowly at first until the tow-rope is taut. Then accelerate
gradually.
– Begin and change gears cautiously. If you are driving an auto-
matic vehicle, accelerate gently.
– Remember that the brake servo and power steering are not
working in the vehicle you are towing. Brake earlier than you
would normally, but with a more gentle pressure on the brake.
As the driver of the vehicle being towed
– Switch on the hazard warning lights. However, observe any regu-
lations to the contrary.
– Place the gear stick in neutral or position N.
– Ensure that the tow-rope remains taut at all times.

If and when 254
Tow-rope or tow-bar
It is easier and safer to tow a vehicle with a tow-bar. You should only use a
tow-rope if you do not have a tow-bar.
A tow-rope should be slightly elastic to reduce the loading on both vehicles.
It is advisable to use a tow-rope made of synthetic fibre or similarly elastic
material.
Attach the tow-rope or the tow-bar only to the towing eyes provided or a
towing bracket.
Driving tips
Towing requires some experience, especially when using a tow-rope. Both
drivers should be familiar with the technique required for towing. Inexperi-
enced drivers should not attempt to tow-start or tow away another vehicle.
Do not pull too hard with the towing vehicle and take care to avoid jerking the
tow-rope. When towing on an unpaved road, there is always a risk of over-
loading and damaging the anchorage points.
The ignition of the vehicle being towed must be switched on to prevent the
steering wheel from locking and also to allow the use of the turn signals,
horn, windscreen wipers and washers.
If the vehicle is towed, with the hazard warning lights on and the ignition
switched on, the turn signal may be used to indicate that you are going to
change direction. Move the turn signal lever accordingly. Meanwhile, the
hazard warning lights will go off. When the turn signal lever is returned to the
rest position, the hazard warning lights will automatically reconnect.
The brake servo works only when the engine is running. In this case the pedal
has to be pressed harder.
As the power assisted steering does not work if the engine is not running, you
will need more strength to steer than you normally would.
Towing vehicles with an automatic gearbox
•Move the selector lever to N.
•Do not drive faster than 50 km/h when towing a vehicle.
•Do not tow further than 50 km.
•If a breakdown truck is used, the vehicle must be towed with the front
wheels raised.
WARNING
The braking behaviour and capacity of a vehicle changes when being towed
or when you are trying to start the vehicle by pulling. Please observe the
following notes in order to prevent injury and accident:
•Inexperienced drivers should refrain from trying in order to avoid acci-
dent.
•Notes for the driver of the towed vehicle
−The brake must be depressed must harder as the brake servo does
not operate. Take care not to bump into the towing vehicle.
−More strength is required at the steering wheel as the power
steering does not operate when the engine is switched off.
•Notes for the driver of the towing vehicle
−Accelerate smoothly and avoid any sudden movement.
−Brake more in advance than usual and brake gently.
Caution
When tow-starting, fuel could enter the catalytic converter and damage it
Ÿpage 251
Note
•Observe legal requirements when towing or tow-starting.
•For technical reasons, vehicles with an automatic gearbox must not be
tow-started.

If and when255
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
•If, due to a breakdown, the gearbox does not have lubricant, the vehicle
should be towed with the drive wheels suspended.
•If it is necessary to tow a vehicle with an automatic gearbox for more than
50 km, it should be towed by qualified personnel and with the drive wheels
suspended.
Lifting the vehicle
Vehicle lifting points
Your vehicle may only be lifted by a lifting platform at the points shown in the
illustrations Ÿfig. 176 and Ÿfig. 177Ÿ.
Use the jack to lift the vehicle Ÿpage 239.
To prevent damage to the underside of the vehicle when lifting the vehicle,
rubber pads must be used.
Before driving onto a lifting platform, you must check there is sufficient clear-
ance between low parts of the vehicle and the lifting platform.
WARNING
If the lifting platform is inappropriate or the vehicle is lifted incorrectly,
accidents or injuries may be caused. The vehicle could even fall from the
lifting platform.
•All occupants should leave the vehicle before it is lifted.
•The vehicle must only be lifted at the points indicated in the diagrams
Ÿfig. 176 and Ÿfig. 177. If the vehicle is not lifted at the indicated
points, it may fall from the platform while the engine or gearbox is being
dismounted, for example.
Fig. 176 Lifting with the
lifting platform: lifting
point at front left
Fig. 177 Lifting with the
lifting platform: lifting
point at rear left

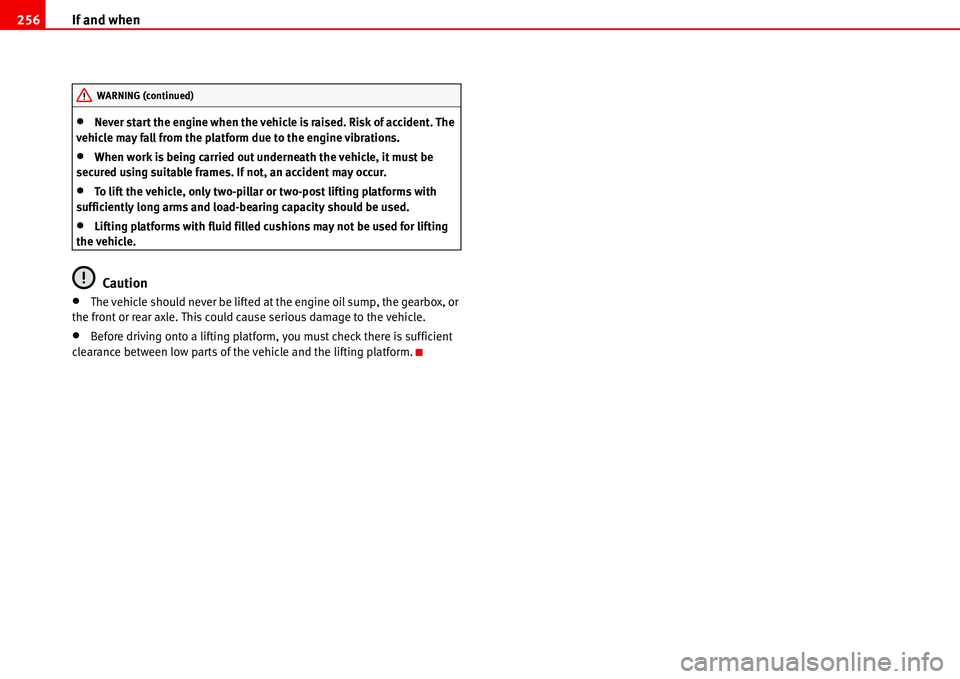

If and when 256
•Never start the engine when the vehicle is raised. Risk of accident. The
vehicle may fall from the platform due to the engine vibrations.
•When work is being carried out underneath the vehicle, it must be
secured using suitable frames. If not, an accident may occur.
•To lift the vehicle, only two-pillar or two-post lifting platforms with
sufficiently long arms and load-bearing capacity should be used.
•Lifting platforms with fluid filled cushions may not be used for lifting
the vehicle.
Caution
•The vehicle should never be lifted at the engine oil sump, the gearbox, or
the front or rear axle. This could cause serious damage to the vehicle.
•Before driving onto a lifting platform, you must check there is sufficient
clearance between low parts of the vehicle and the lifting platform.
WARNING (continued)

General notes on the technical data257
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
Te c h n i c a l D a t a
General notes on the technical data
What you should be aware of
General notes
All data in the official vehicle documents take precedence over this data.
All data in these documents are valid for the basic model as offered in Spain.
The vehicle data card included in the inspection and maintenance schedule
in the vehicles registration documents show which engine is installed in the
vehicle.The figures may be different if additional equipment is fitted, for different
models, for special vehicles and for other countries.
Abbreviations used in this paragraph of the Technical Data
Abbreviation Meaning
kW Kilowatt, engine power measurement.
bhp Brake horse power, formerly used to denote engine power
at rpm Revolutions per minute - engine speed.
Nm Newton metres, unit of engine torque.
l/100 km Fuel consumption in litres per 100 kilometres
g/km Carbon dioxide emissions in grams per kilometre.
CO
2Carbon dioxide
CN Cetane number, indication of the ignition quality of the diesel.
RON Research octane number, indication of the knock resistance of petrol.

General notes on the technical data 258
Vehicle identification data
Vehicle identification number
The vehicle identification number (chassis number) can be read from outside
the vehicle through a viewer in the windscreen. This is located on the left-
hand side of the vehicle in the lower area of the windscreen. It is also located
on the right hand side of the engine compartment.
Type plate
The type plate is located on the left rib inside the engine compartment.
Vehicle data
The data sticker is placed on the inside of the spare wheel recess in the
luggage compartment.
The following information can be found in the vehicle information:
•Vehicle identification number (chassis number)
•Vehicle type / engine power / gearbox type
•Engine and gearbox code / paint number / interior equipment
•Optional extras / PR numbers
This data also appears in the inspection and maintenance plan.
