Seat Alhambra 2006 Owner's Manual

Technical Data269
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
Petrol engine 2.8l VR6 150 kW (204 bhp) 6 gear
General engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km) Power output in kW (bhp)rpm 150 (204)/6200
Maximum torquein Nm at rpm 265/3400
No. of cylinders, capacity
in cm
36/ 2792
Compression 10,75 ± 0,25
Fuel
Super 98 RON
a)/Super 95 RONb)
a)Research-Octane-Number = Measure of the predetonation power of the petrol.b)With a slight power loss
Maximum speedin km/h 217
Acceleration from 0-49.71 mi/h in sec. 7,2
Acceleration from 0-100 km/hin sec. 9,9
Urban cycle14,5/348 14,6/350 14,7/353 14,8/355
Extra urban cycle8,2/197 8,3/199 8,4/202 8,5/204
Combined10,5/252 10,6/254 10,7/257 10,8/259

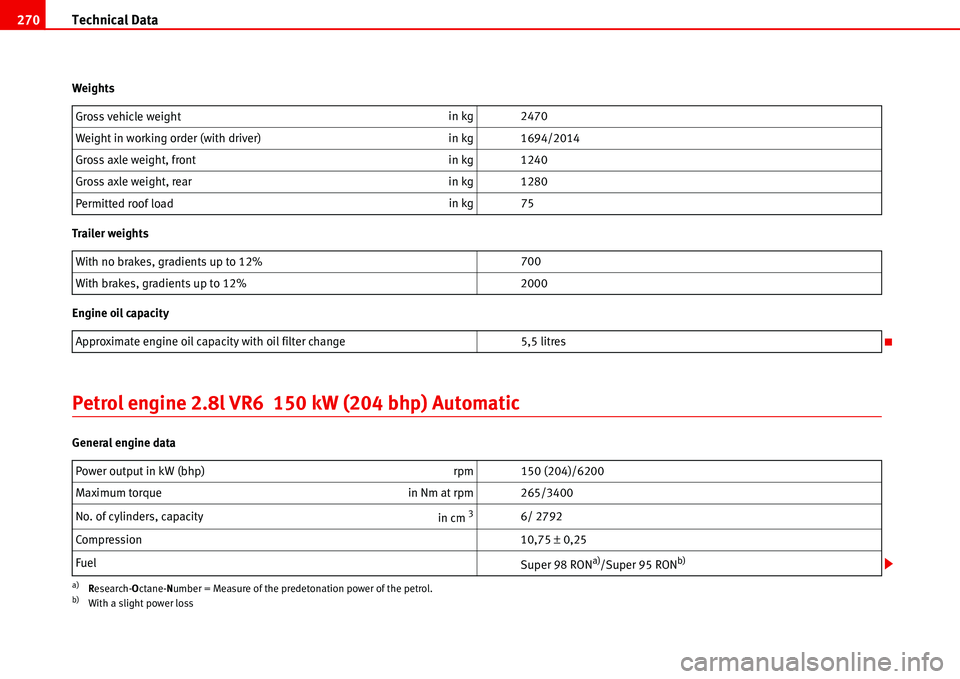

Technical Data 270
Weights
Trailer weights
Engine oil capacity
Petrol engine 2.8l VR6 150 kW (204 bhp) Automatic
General engine dataGross vehicle weightin kg 2470
Weight in working order (with driver)in kg 1694/2014
Gross axle weight, frontin kg 1240
Gross axle weight, rearin kg 1280
Permitted roof loadin kg 75
With no brakes, gradients up to 12%700
With brakes, gradients up to 12%2000
Approximate engine oil capacity with oil filter change 5,5 litres
Power output in kW (bhp)rpm 150 (204)/6200
Maximum torquein Nm at rpm 265/3400
No. of cylinders, capacity
in cm
36/ 2792
Compression 10,75 ± 0,25
Fuel
Super 98 RON
a)/Super 95 RONb)
a)Research-Octane-Number = Measure of the predetonation power of the petrol.b)With a slight power loss

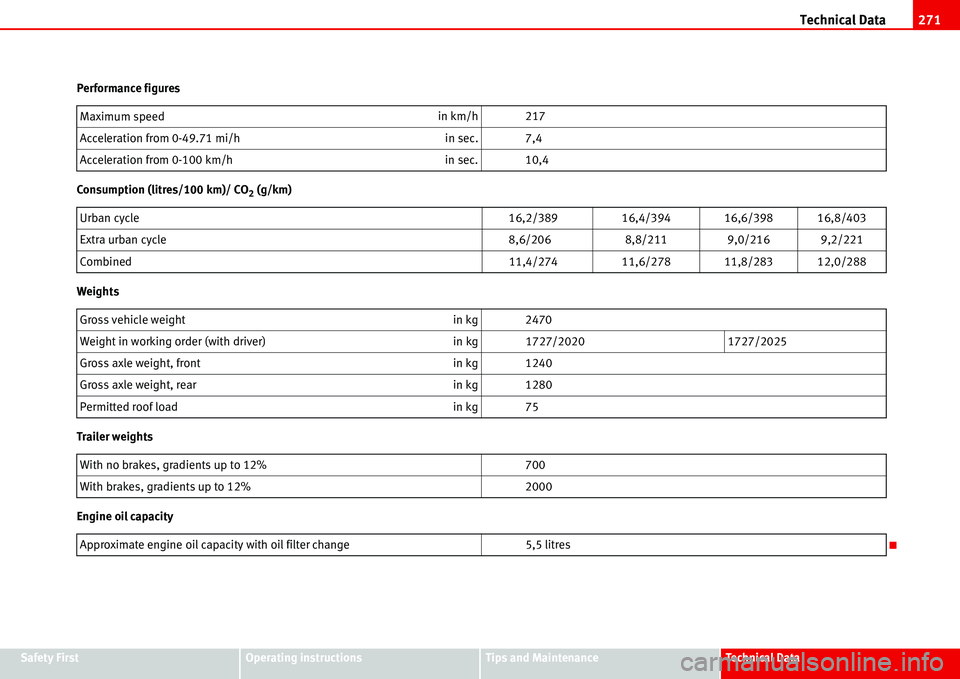

Technical Data271
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Weights
Trailer weights
Engine oil capacityMaximum speedin km/h 217
Acceleration from 0-49.71 mi/h in sec. 7,4
Acceleration from 0-100 km/hin sec. 10,4
Urban cycle16,2/389 16,4/394 16,6/398 16,8/403
Extra urban cycle8,6/206 8,8/211 9,0/216 9,2/221
Combined11,4/274 11,6/278 11,8/283 12,0/288
Gross vehicle weightin kg 2470
Weight in working order (with driver)in kg 1727/2020 1727/2025
Gross axle weight, frontin kg 1240
Gross axle weight, rearin kg 1280
Permitted roof loadin kg 75
With no brakes, gradients up to 12%700
With brakes, gradients up to 12%2000
Approximate engine oil capacity with oil filter change5,5 litres

Technical Data 272
Petrol engine 2.8l VR6 150 kW (204 bhp) 6 gear four-wheel drive
General engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km) Power output in kW (bhp)rpm 150 (204)/6200
Maximum torquein Nm at rpm 265/3400
No. of cylinders, capacity
in cm
36/ 2792
Compression 10,75 ± 0,25
Fuel
Super 98 RON
a)/Super 95 RONb)
a)Research-Octane-Number = Measure of the predetonation power of the petrol.b)With a slight power loss
Maximum speedin km/h 214
Acceleration from 0-49.71 mi/hin sec. 7,4
Acceleration from 0-100 km/hin sec. 10,3
Urban cycle14,9/358 15,1/362 15,3/367 15,5/372
Extra urban cycle8,7/209 8,9/214 9,1/218 9,3/223
Combined11,0/264 11,2/269 11,4/274 11,6/278

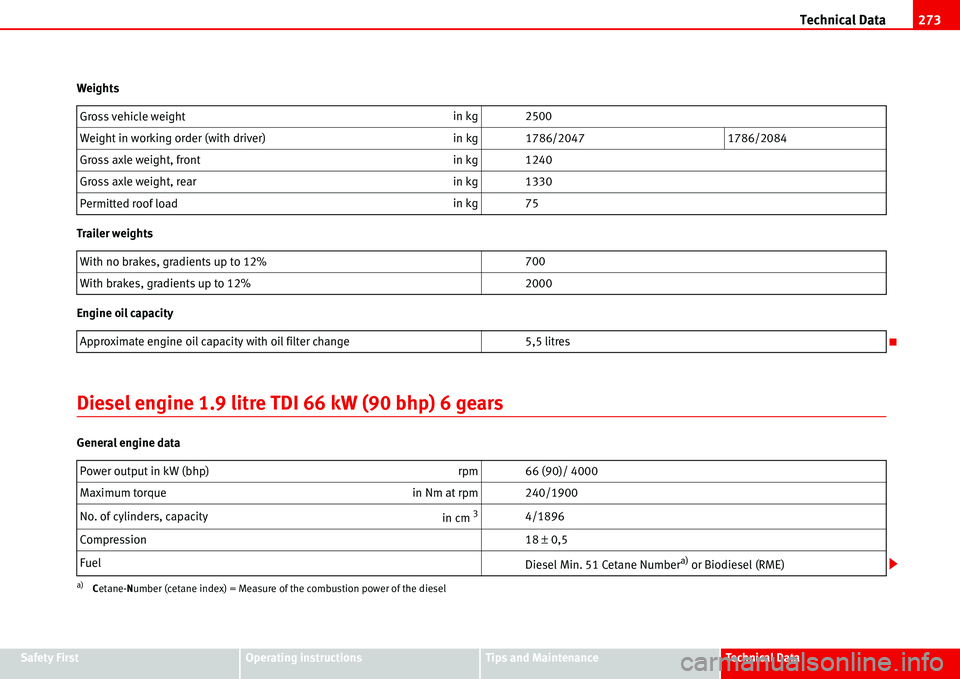

Technical Data273
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a Weights
Trailer weights
Engine oil capacity
Diesel engine 1.9 litre TDI 66 kW (90 bhp) 6 gears
General engine dataGross vehicle weightin kg 2500
Weight in working order (with driver)in kg 1786/2047 1786/2084
Gross axle weight, frontin kg 1240
Gross axle weight, rearin kg 1330
Permitted roof loadin kg 75
With no brakes, gradients up to 12%700
With brakes, gradients up to 12%2000
Approximate engine oil capacity with oil filter change 5,5 litres
Power output in kW (bhp)rpm 66 (90)/ 4000
Maximum torquein Nm at rpm 240/1900
No. of cylinders, capacity
in cm
34/1896
Compression 18 ± 0,5
Fuel
Diesel Min. 51 Cetane Number
a) or Biodiesel (RME)
a)Cetane-Number (cetane index) = Measure of the combustion power of the diesel

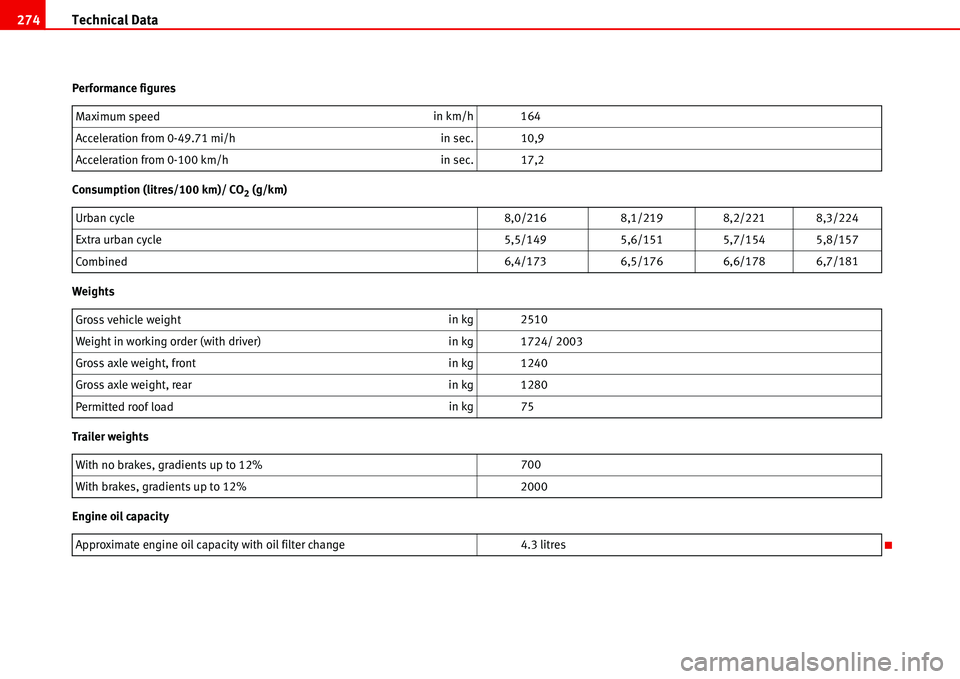

Technical Data 274
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Weights
Trailer weights
Engine oil capacityMaximum speedin km/h 164
Acceleration from 0-49.71 mi/hin sec. 10,9
Acceleration from 0-100 km/hin sec. 17,2
Urban cycle8,0/216 8,1/219 8,2/221 8,3/224
Extra urban cycle5,5/149 5,6/151 5,7/154 5,8/157
Combined6,4/173 6,5/176 6,6/178 6,7/181
Gross vehicle weightin kg 2510
Weight in working order (with driver)in kg 1724/ 2003
Gross axle weight, frontin kg 1240
Gross axle weight, rearin kg 1280
Permitted roof loadin kg 75
With no brakes, gradients up to 12%700
With brakes, gradients up to 12%2000
Approximate engine oil capacity with oil filter change4.3 litres

Technical Data275
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
Diesel engine 1.9 litre TDI 85 kW (115 bhp) 6 gears
General engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km) Power output in kW (bhp)rpm 85 (115)/ 4000
Maximum torquein Nm at rpm 310/1900
No. of cylinders, capacity
in cm
34/1896
Compression 18 ± 0,5
Fuel
Diesel Min. 51 Cetane Number
a) or Biodiesel (RME)
a)Cetane-Number (cetane index) = Measure of the combustion power of the diesel.
Maximum speedin km/h 181
Acceleration from 0-49.71 mi/h in sec. 9,1
Acceleration from 0-100 km/hin sec. 13,7
Urban cycle8,0/216 8,1/219 8,3/221 8,3/224
Extra urban cycle5,5/149 5,6/151 5,7/154 5,8/157
Combined6,4/173 6,5/176 6,6/178 6,7/181

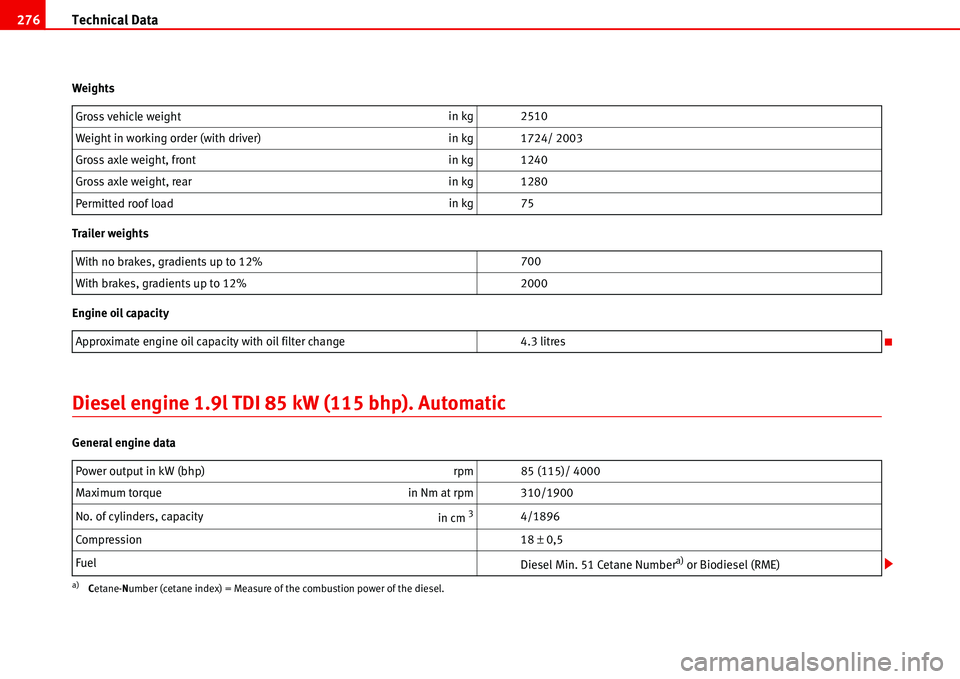

Technical Data 276
Weights
Trailer weights
Engine oil capacity
Diesel engine 1.9l TDI 85 kW (115 bhp). Automatic
General engine dataGross vehicle weightin kg 2510
Weight in working order (with driver)in kg 1724/ 2003
Gross axle weight, frontin kg 1240
Gross axle weight, rearin kg 1280
Permitted roof loadin kg 75
With no brakes, gradients up to 12%700
With brakes, gradients up to 12%2000
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (bhp)rpm 85 (115)/ 4000
Maximum torquein Nm at rpm 310/1900
No. of cylinders, capacity
in cm
34/1896
Compression 18 ± 0,5
Fuel
Diesel Min. 51 Cetane Number
a) or Biodiesel (RME)
a)Cetane-Number (cetane index) = Measure of the combustion power of the diesel.

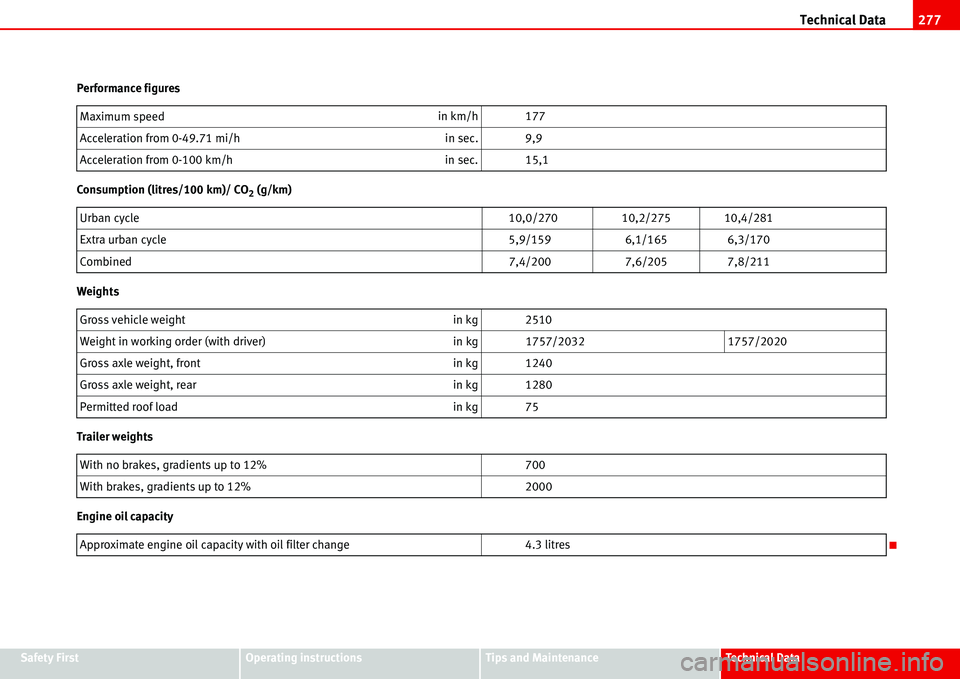

Technical Data277
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Weights
Trailer weights
Engine oil capacityMaximum speedin km/h 177
Acceleration from 0-49.71 mi/h in sec. 9,9
Acceleration from 0-100 km/hin sec. 15,1
Urban cycle10,0/270 10,2/275 10,4/281
Extra urban cycle5,9/159 6,1/165 6,3/170
Combined7,4/200 7,6/205 7,8/211
Gross vehicle weightin kg 2510
Weight in working order (with driver)in kg 1757/2032 1757/2020
Gross axle weight, frontin kg 1240
Gross axle weight, rearin kg 1280
Permitted roof loadin kg 75
With no brakes, gradients up to 12%700
With brakes, gradients up to 12%2000
Approximate engine oil capacity with oil filter change4.3 litres

Technical Data 278
Diesel engine 1.9l TDI 85 kW (115 bhp) 6 gears four-wheel drive
General engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km) Power output in kW (bhp)rpm 85 (115)/ 4000
Maximum torquein Nm at rpm 310/1900
No. of cylinders, capacity
in cm
34/1896
Compression 18 ± 0,5
Fuel
Diesel Min. 51 Cetane Number
a) or Biodiesel
a)Cetane-Number (cetane index) = Measure of the combustion power of the diesel.
Maximum speedin km/h 178
Acceleration from 0-49.71 mi/hin sec. 9,3
Acceleration from 0-100 km/hin sec. 14,7
Urban cycle9,7/262 9,1/246 9,3/251 9,5/257
Extra urban cycle6,5/176 5,9/159 6,1/165 6,3/170
Combined7,7/208 7,1/192 7,3/197 7,5/203
