Technical Data279
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a Weights

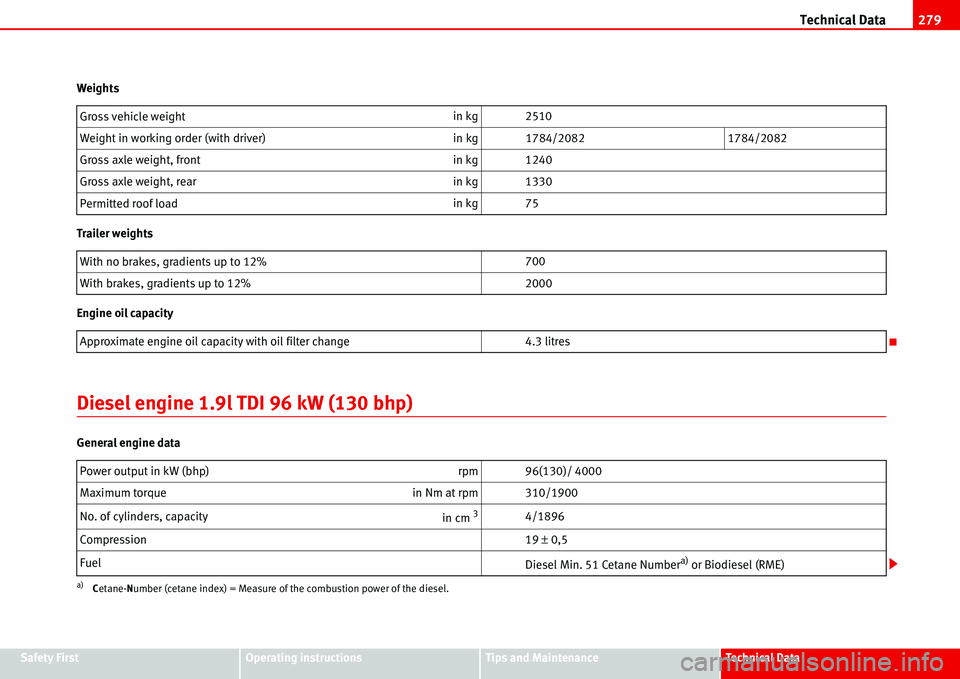

Trailer weights
Engine oil capacity
Diesel engine 1.9l TDI 96 kW (130 bhp)
General engine dataGross vehicle weightin kg 2510
Weight in working order (with driver)in kg 1784/2082 1784/2082
Gross axle weight, frontin kg 1240
Gross axle weight, rearin kg 1330
Permitted roof loadin kg 75
With no brakes, gradients up to 12%700
With brakes, gradients up to 12%2000
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (bhp)rpm 96(130)/ 4000
Maximum torquein Nm at rpm 310/1900
No. of cylinders, capacity
in cm
34/1896
Compression 19 ± 0,5
Fuel
Diesel Min. 51 Cetane Number
a) or Biodiesel (RME)
a)Cetane-Number (cetane index) = Measure of the combustion power of the diesel.
Page 282 of 299
Technical Data 280

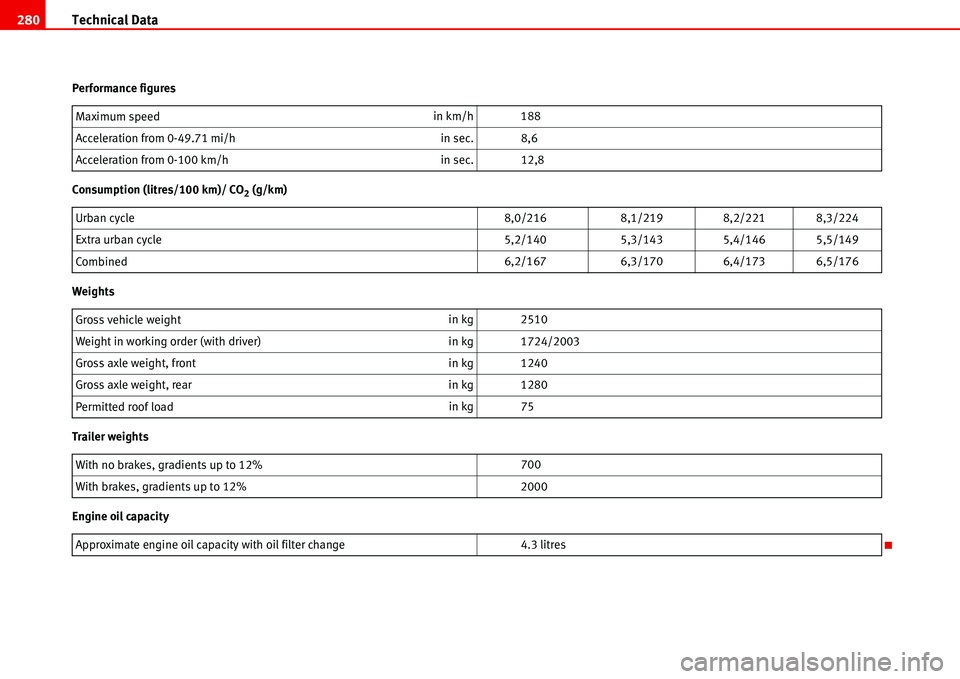

Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Weights
Trailer weights
Engine oil capacityMaximum speedin km/h 188
Acceleration from 0-49.71 mi/hin sec. 8,6
Acceleration from 0-100 km/hin sec. 12,8
Urban cycle8,0/216 8,1/219 8,2/221 8,3/224
Extra urban cycle5,2/140 5,3/143 5,4/146 5,5/149
Combined6,2/167 6,3/170 6,4/173 6,5/176
Gross vehicle weightin kg 2510
Weight in working order (with driver)in kg 1724/2003
Gross axle weight, frontin kg 1240
Gross axle weight, rearin kg 1280
Permitted roof loadin kg 75
With no brakes, gradients up to 12%700
With brakes, gradients up to 12%2000
Approximate engine oil capacity with oil filter change4.3 litres
Page 283 of 299
Technical Data281
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
Diesel engine 1.9 litre TDI 110 kW (150 bhp) 6 gears
General engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km) Power output in kW (bhp)rpm 110(150)/ 4000
Maximum torquein Nm at rpm 310/1900
No. of cylinders, capacity
in cm
34/1896
Compression 19 -0,5
Fuel
Diesel Min. 51 Cetane Number
a) or Biodiesel
a)Cetane-Number (cetane index) = Measure of the combustion power of the diesel.
Maximum speedin km/h 199
Acceleration from 0-49.71 mi/h in sec. 8,4
Acceleration from 0-100 km/hin sec. 11,9
Urban cycle8,1/219 8,2/221 8,3/224 8,4/227
Extra urban cycle5,2/140 5,3/143 5,4/146 5,5/149
Combined6,3/170 6,4/173 6,5/176 6,6/178
Page 284 of 299
Technical Data 282

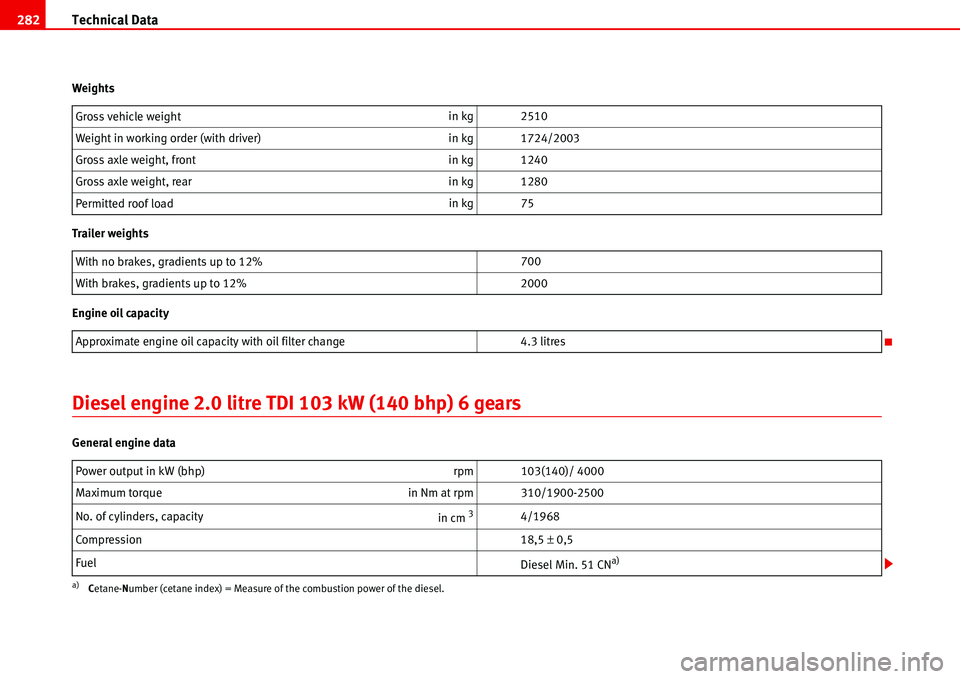

Weights
Trailer weights
Engine oil capacity
Diesel engine 2.0 litre TDI 103 kW (140 bhp) 6 gears
General engine dataGross vehicle weightin kg 2510
Weight in working order (with driver)in kg 1724/2003
Gross axle weight, frontin kg 1240
Gross axle weight, rearin kg 1280
Permitted roof loadin kg 75
With no brakes, gradients up to 12%700
With brakes, gradients up to 12%2000
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (bhp)rpm 103(140)/ 4000
Maximum torquein Nm at rpm 310/1900-2500
No. of cylinders, capacity
in cm
34/1968
Compression 18,5 ± 0,5
Fuel
Diesel Min. 51 CN
a)
a)Cetane-Number (cetane index) = Measure of the combustion power of the diesel.
Page 285 of 299
Technical Data283
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a Performance figures

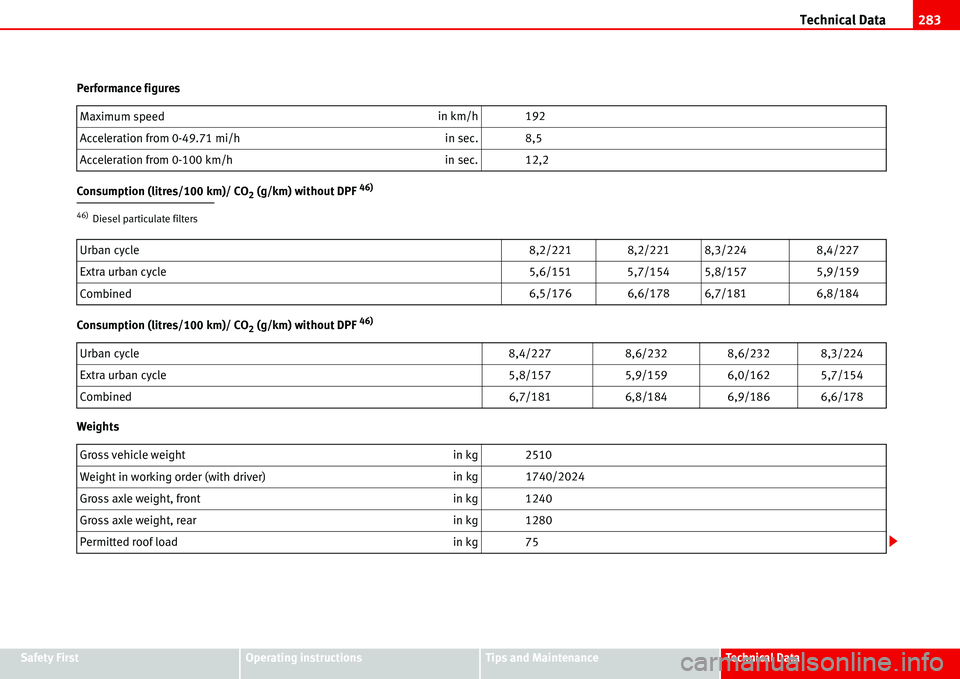

Consumption (litres/100 km)/ CO
2 (g/km) without DPF 46)
Consumption (litres/100 km)/ CO2 (g/km) without DPF 46)
WeightsMaximum speedin km/h 192
Acceleration from 0-49.71 mi/h in sec. 8,5
Acceleration from 0-100 km/hin sec. 12,2
46)Diesel particulate filters
Urban cycle8,2/221 8,2/221 8,3/224 8,4/227
Extra urban cycle5,6/151 5,7/154 5,8/157 5,9/159
Combined6,5/176 6,6/178 6,7/181 6,8/184
Urban cycle8,4/227 8,6/232 8,6/232 8,3/224
Extra urban cycle5,8/157 5,9/159 6,0/162 5,7/154
Combined6,7/181 6,8/184 6,9/186 6,6/178
Gross vehicle weightin kg 2510
Weight in working order (with driver)in kg 1740/2024
Gross axle weight, frontin kg 1240
Gross axle weight, rearin kg 1280
Permitted roof loadin kg 75
Page 286 of 299
Technical Data 284

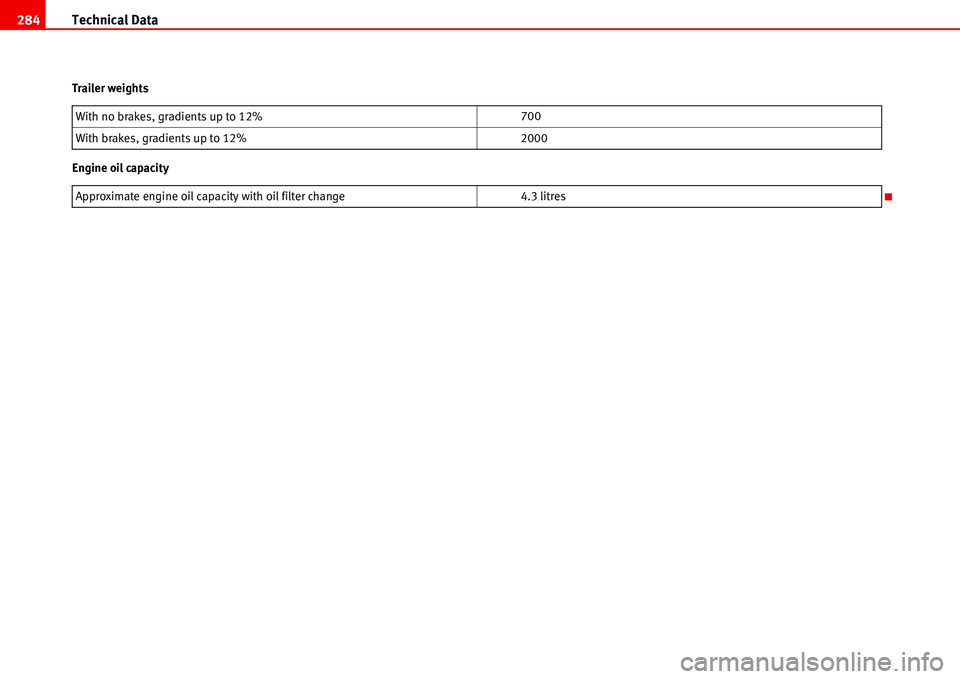

Trailer weights
Engine oil capacityWith no brakes, gradients up to 12%700
With brakes, gradients up to 12%2000
Approximate engine oil capacity with oil filter change4.3 litres
Page 287 of 299
Technical Data285
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a

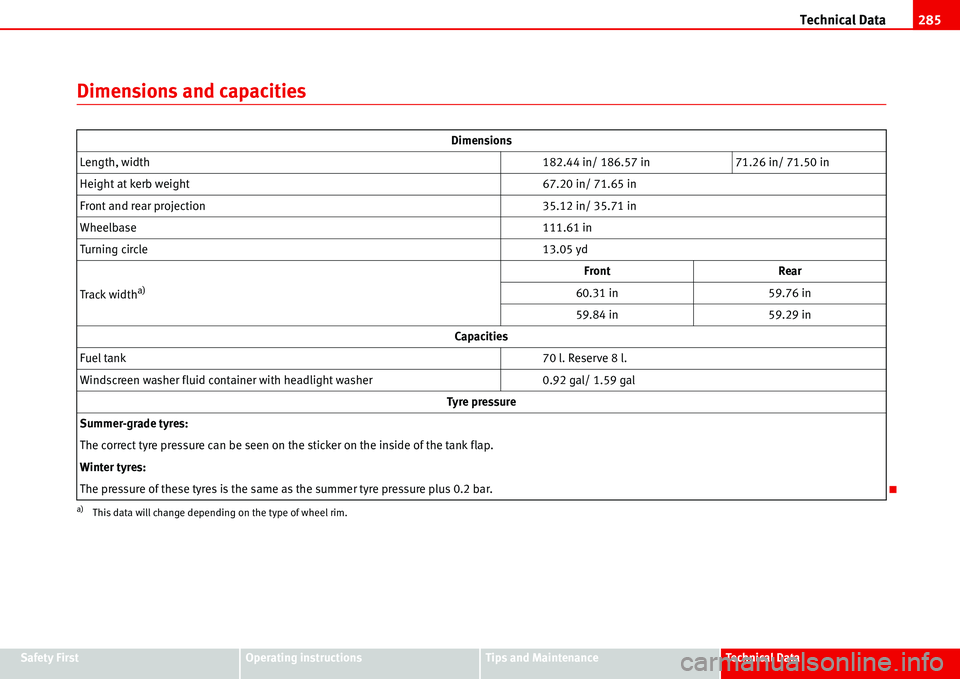

Dimensions and capacities
Dimensions
Length, width182.44 in/ 186.57 in 71.26 in/ 71.50 in
Height at kerb weight67.20 in/ 71.65 in
Front and rear projection35.12 in/ 35.71 in
Wheelbase111.61 in
Turning circle13.05 yd
Track width
a)
a)This data will change depending on the type of wheel rim.
Front Rear
60.31 in 59.76 in
59.84 in 59.29 in
Capacities
Fuel tank70 l. Reserve 8 l.
Windscreen washer fluid container with headlight washer 0.92 gal/ 1.59 gal
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
Page 288 of 299
Page 289 of 299
