Seats and storage
WARNING
The folding table must not be folded down while the vehicle is in motion
to avoid the risk of injuries.

Portable waste bin*

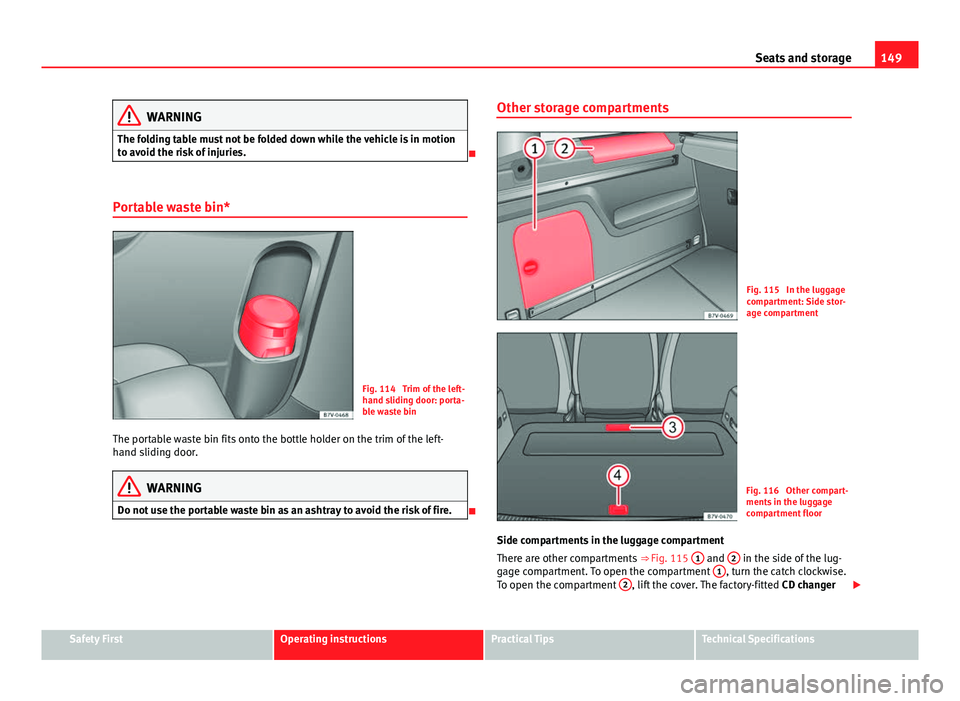

Fig. 114 Trim of the left-
hand sliding door: porta-
ble waste bin
The portable waste bin fits onto the bottle holder on the trim of the left-
hand sliding door.
WARNING
Do not use the portable waste bin as an ashtray to avoid the risk of fire.
 Other storage compartments
Fig. 115 In the luggage
compartment: Side stor-
age compartment
Fig. 116 Other compart-
ments in the luggage
compartment floor
Side compartments in the luggage compartment
There are other compartments ⇒ Fig. 115 1
and 2 in the side of the lug-
gage compartment. To open the compartment 1, turn the catch clockwise.
To open the compartment 2, lift the cover. The factory-fitted
CD changer
Safety FirstOperating instructionsPractical TipsTechnical Specifications

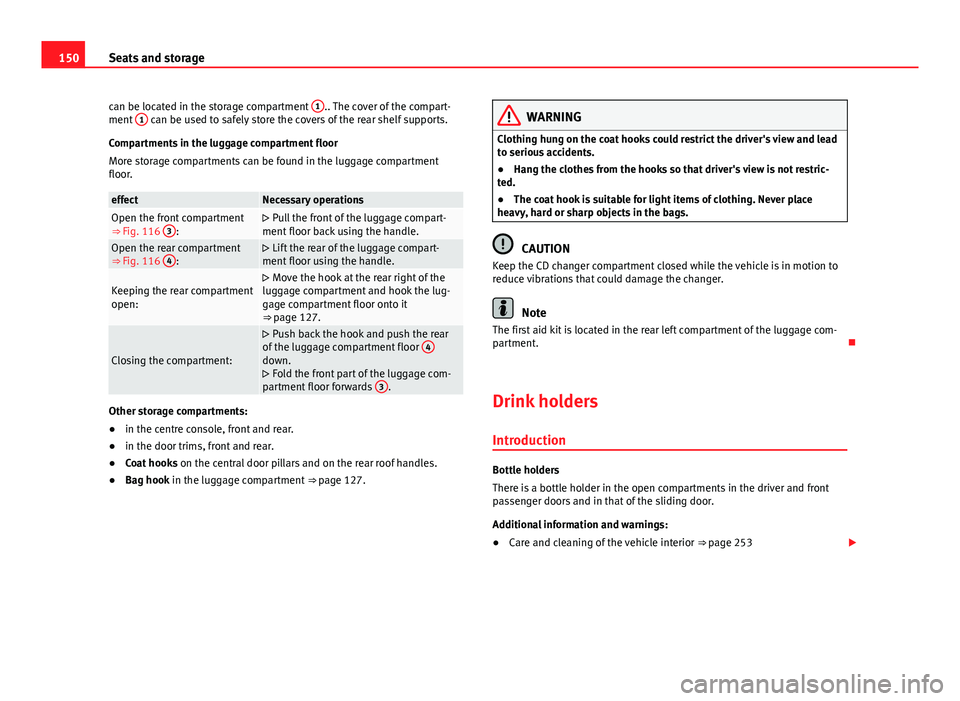

150Seats and storage
can be located in the storage compartment 1
.. The cover of the compart-
ment 1 can be used to safely store the covers of the rear shelf supports.
Compartments in the luggage compartment floor
More storage compartments can be found in the luggage compartment
floor.
effectNecessary operationsOpen the front compartment
⇒ Fig. 116 3:
Pull the front of the luggage compart-
ment floor back using the handle.
Open the rear compartment
⇒ Fig. 116 4:
Lift the rear of the luggage compart-
ment floor using the handle.
Keeping the rear compartment
open: Move the hook at the rear right of the
luggage compartment and hook the lug-
gage compartment floor onto it
⇒ page 127.
Closing the compartment:
 Push back the hook and push the rear
of the luggage compartment floor 4
down.

Fold the front part of the luggage com-
partment floor forwards 3
.
Other storage compartments:
●
in the centre console, front and rear.
● in the door trims, front and rear.
● Coat hooks on the central door pillars and on the rear roof handles.
● Bag hook in the luggage compartment ⇒ page 127.
WARNING
Clothing hung on the coat hooks could restrict the driver's view and lead
to serious accidents.
● Hang the clothes from the hooks so that driver's view is not restric-
ted.
● The coat hook is suitable for light items of clothing. Never place
heavy, hard or sharp objects in the bags.
CAUTION
Keep the CD changer compartment closed while the vehicle is in motion to
reduce vibrations that could damage the changer.
Note
The first aid kit is located in the rear left compartment of the luggage com-
partment. 
Drink holders Introduction
Bottle holders
There is a bottle holder in the open compartments in the driver and front
passenger doors and in that of the sliding door.
Additional information and warnings:
● Care and cleaning of the vehicle interior ⇒ page 253

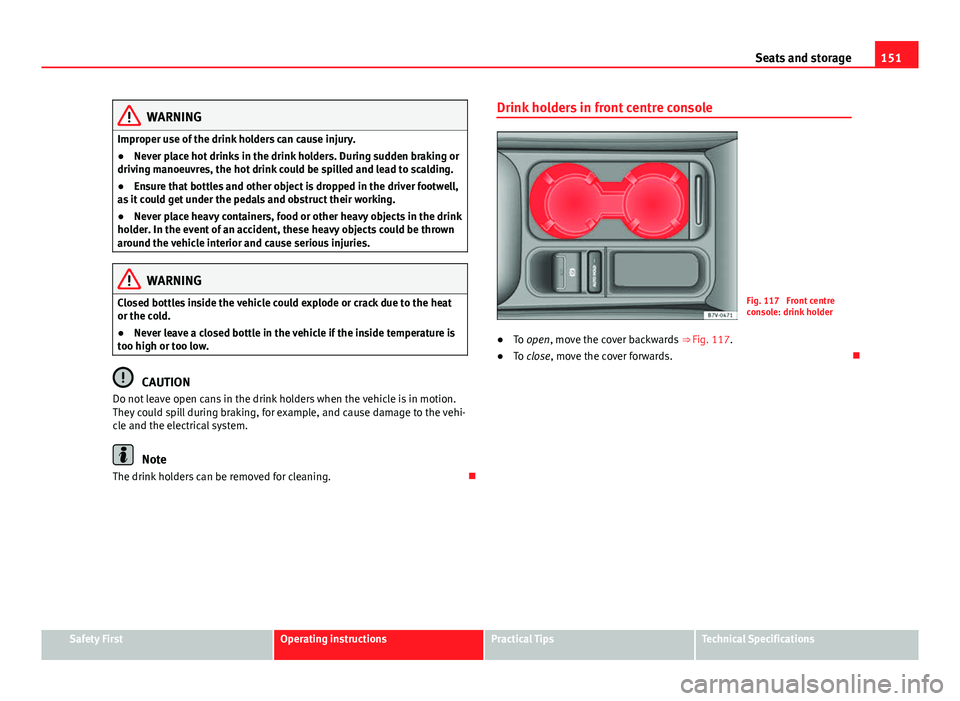

151
Seats and storage
WARNING
Improper use of the drink holders can cause injury.
● Never place hot drinks in the drink holders. During sudden braking or
driving manoeuvres, the hot drink could be spilled and lead to scalding.
● Ensure that bottles and other object is dropped in the driver footwell,
as it could get under the pedals and obstruct their working.
● Never place heavy containers, food or other heavy objects in the drink
holder. In the event of an accident, these heavy objects could be thrown
around the vehicle interior and cause serious injuries.
WARNING
Closed bottles inside the vehicle could explode or crack due to the heat
or the cold.
● Never leave a closed bottle in the vehicle if the inside temperature is
too high or too low.
CAUTION
Do not leave open cans in the drink holders when the vehicle is in motion.
They could spill during braking, for example, and cause damage to the vehi-
cle and the electrical system.
Note
The drink holders can be removed for cleaning. Drink holders in front centre console
Fig. 117 Front centre
console: drink holder
● To open, move the cover backwards ⇒ Fig. 117.
● To close, move the cover forwards. 
Safety FirstOperating instructionsPractical TipsTechnical Specifications

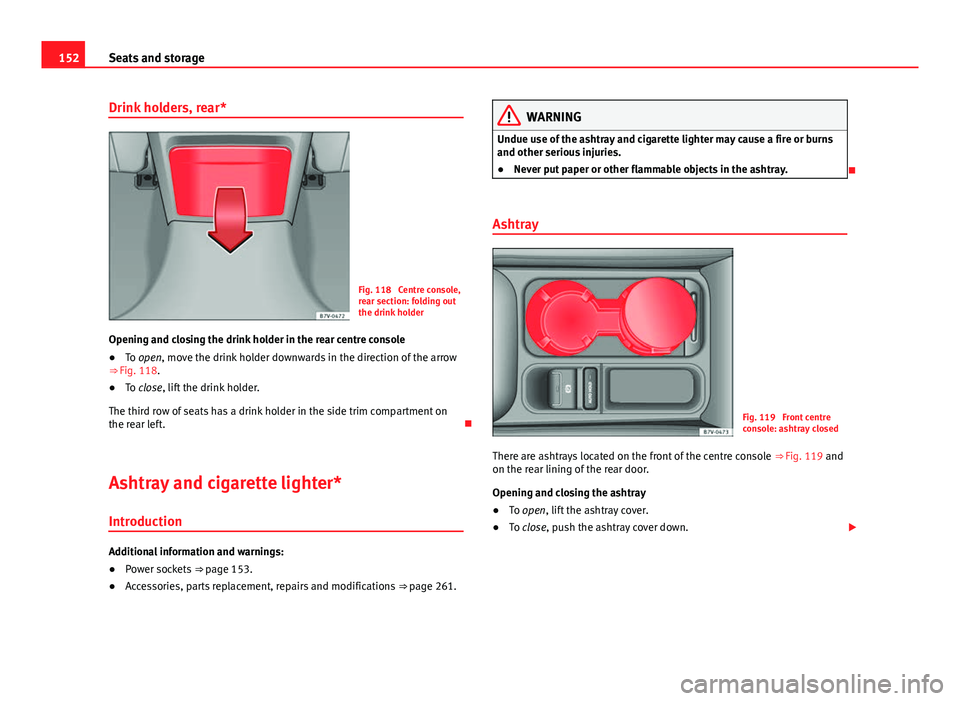

152Seats and storage
Drink holders, rear*
Fig. 118 Centre console,
rear section: folding out
the drink holder
Opening and closing the drink holder in the rear centre console
● To open, move the drink holder downwards in the direction of the arrow
⇒  Fig. 118.
● To close, lift the drink holder.
The third row of seats has a drink holder in the side trim compartment on
the rear left. 
Ashtray and cigarette lighter*
Introduction
Additional information and warnings:
● Power sockets
⇒ page 153.
● Accessories, parts replacement, repairs and modifications
⇒ page 261.
WARNING
Undue use of the ashtray and cigarette lighter may cause a fire or burns
and other serious injuries.
● Never put paper or other flammable objects in the ashtray.

Ashtray
Fig. 119 Front centre
console: ashtray closed
There are ashtrays located on the front of the centre console ⇒ Fig. 119 and
on the rear lining of the rear door.
Opening and closing the ashtray
● To open, lift the ashtray cover.
● To close, push the ashtray cover down. 

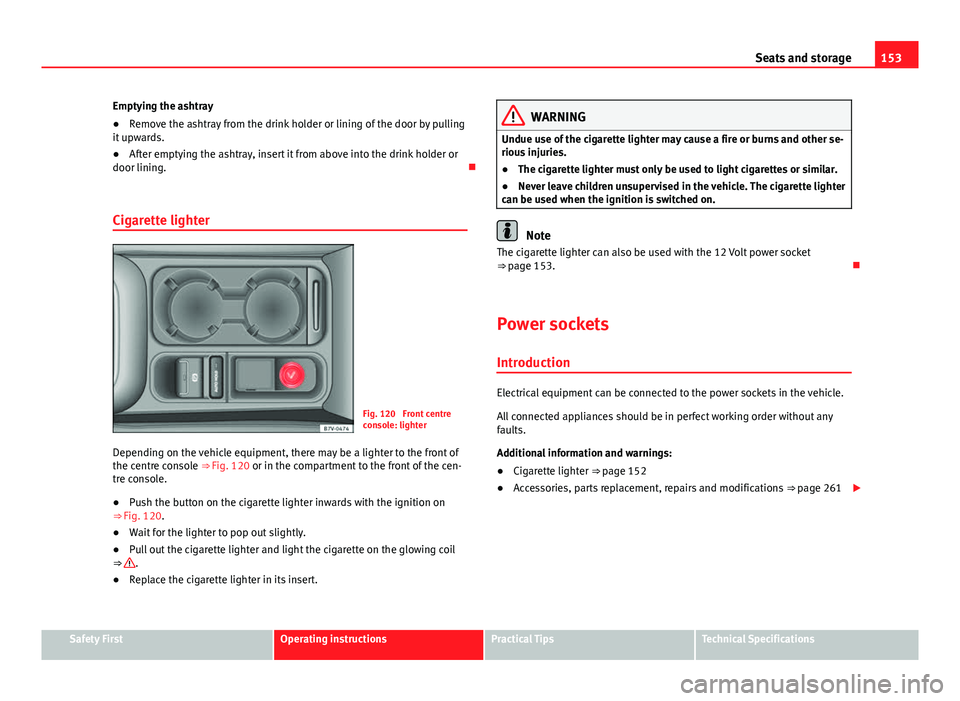

153
Seats and storage
Emptying the ashtray
● Remove the ashtray from the drink holder or lining of the door by pulling
it upwards.
● After emptying the ashtray, insert it from above into the drink holder or
door lining. 
Cigarette lighter
Fig. 120 Front centre
console: lighter
Depending on the vehicle equipment, there may be a lighter to the front of
the centre console ⇒ Fig. 120 or in the compartment to the front of the cen-
tre console.
● Push the button on the cigarette lighter inwards with the ignition on
⇒  Fig. 120.
● Wait for the lighter to pop out slightly.
● Pull out the cigarette lighter and light the cigarette on the glowing coil
⇒ 
.
● Replace the cigarette lighter in its insert.
WARNING
Undue use of the cigarette lighter may cause a fire or burns and other se-
rious injuries.
● The cigarette lighter must only be used to light cigarettes or similar.
● Never leave children unsupervised in the vehicle. The cigarette lighter
can be used when the ignition is switched on.
Note
The cigarette lighter can also be used with the 12 Volt power socket
⇒ page 153. 
Power sockets Introduction
Electrical equipment can be connected to the power sockets in the vehicle.
All connected appliances should be in perfect working order without any
faults.
Additional information and warnings:
● Cigarette lighter
⇒ page 152
● Accessories, parts replacement, repairs and modifications
⇒ page 261

Safety FirstOperating instructionsPractical TipsTechnical Specifications

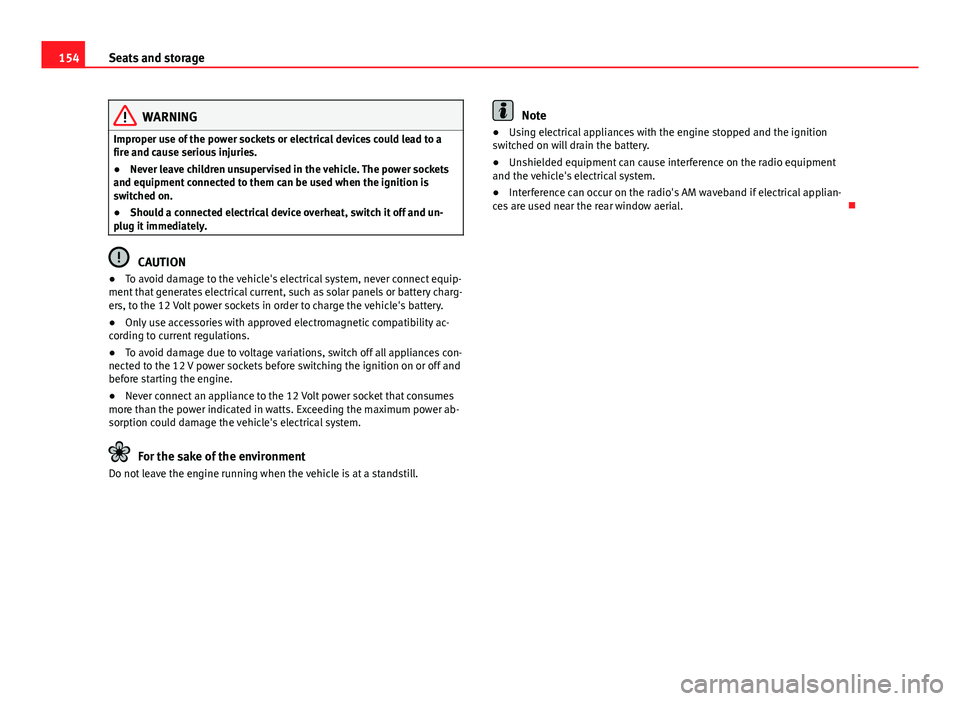

154Seats and storage
WARNING
Improper use of the power sockets or electrical devices could lead to a
fire and cause serious injuries.
● Never leave children unsupervised in the vehicle. The power sockets
and equipment connected to them can be used when the ignition is
switched on.
● Should a connected electrical device overheat, switch it off and un-
plug it immediately.
CAUTION
● To avoid damage to the vehicle's electrical system, never connect equip-
ment that generates electrical current, such as solar panels or battery charg-
ers, to the 12 Volt power sockets in order to charge the vehicle's battery.
● Only use accessories with approved electromagnetic compatibility ac-
cording to current regulations.
● To avoid damage due to voltage variations, switch off all appliances con-
nected to the 12 V power sockets before switching the ignition on or off and
before starting the engine.
● Never connect an appliance to the 12 Volt power socket that consumes
more than the power indicated in watts. Exceeding the maximum power ab-
sorption could damage the vehicle's electrical system.
For the sake of the environment
Do not leave the engine running when the vehicle is at a standstill.
Note
● Using electrical appliances with the engine stopped and the ignition
switched on will drain the battery.
● Unshielded equipment can cause interference on the radio equipment
and the vehicle's electrical system.
● Interference can occur on the radio's AM waveband if electrical applian-
ces are used near the rear window aerial. 

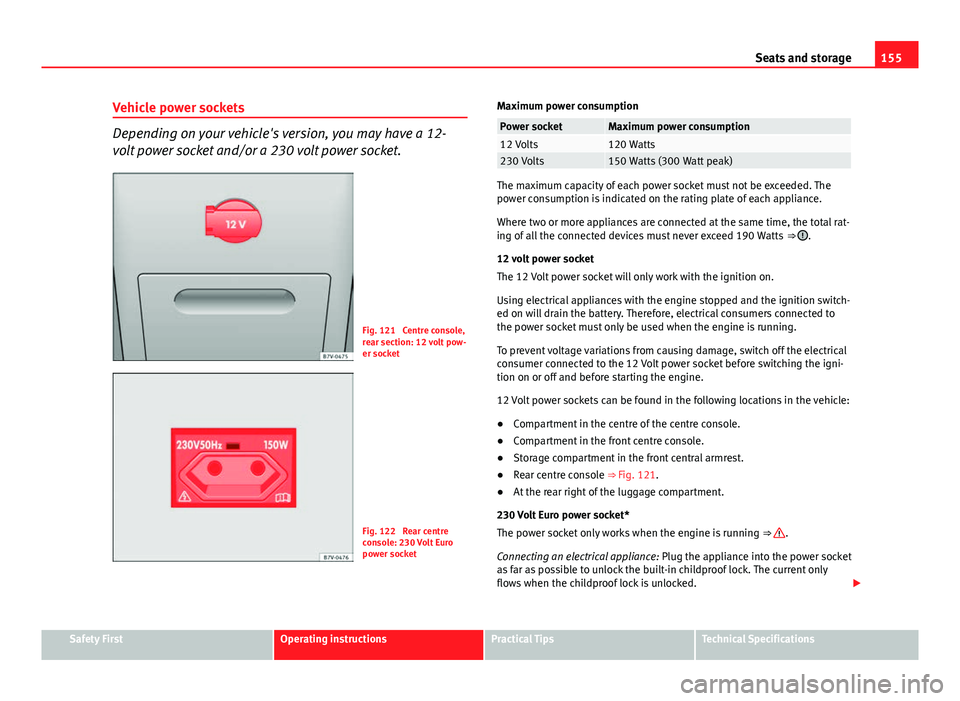

155
Seats and storage
Vehicle power sockets
Depending on your vehicle's version, you may have a 12-
volt power socket and/or a 230 volt power socket.
Fig. 121 Centre console,
rear section: 12 volt pow-
er socket
Fig. 122 Rear centre
console: 230 Volt Euro
power socket Maximum power consumption
Power socketMaximum power consumption12 Volts120 Watts230 Volts150 Watts (300 Watt peak)
The maximum capacity of each power socket must not be exceeded. The
power consumption is indicated on the rating plate of each appliance.
Where two or more appliances are connected at the same time, the total rat-
ing of all the connected devices must never exceed 190 Watts
⇒ 
.
12 volt power socket
The 12 Volt power socket will only work with the ignition on.
Using electrical appliances with the engine stopped and the ignition switch-
ed on will drain the battery. Therefore, electrical consumers connected to
the power socket must only be used when the engine is running.
To prevent voltage variations from causing damage, switch off the electrical
consumer connected to the 12 Volt power socket before switching the igni-
tion on or off and before starting the engine.
12 Volt power sockets can be found in the following locations in the vehicle:
● Compartment in the centre of the centre console.
● Compartment in the front centre console.
● Storage compartment in the front central armrest.
● Rear centre console ⇒ Fig. 121.
● At the rear right of the luggage compartment.
230 Volt Euro power socket*
The power socket only works when the engine is running ⇒ 
.
Connecting an electrical appliance: Plug the appliance into the power socket
as far as possible to unlock the built-in childproof lock. The current only
flows when the childproof lock is unlocked. 
Safety FirstOperating instructionsPractical TipsTechnical Specifications

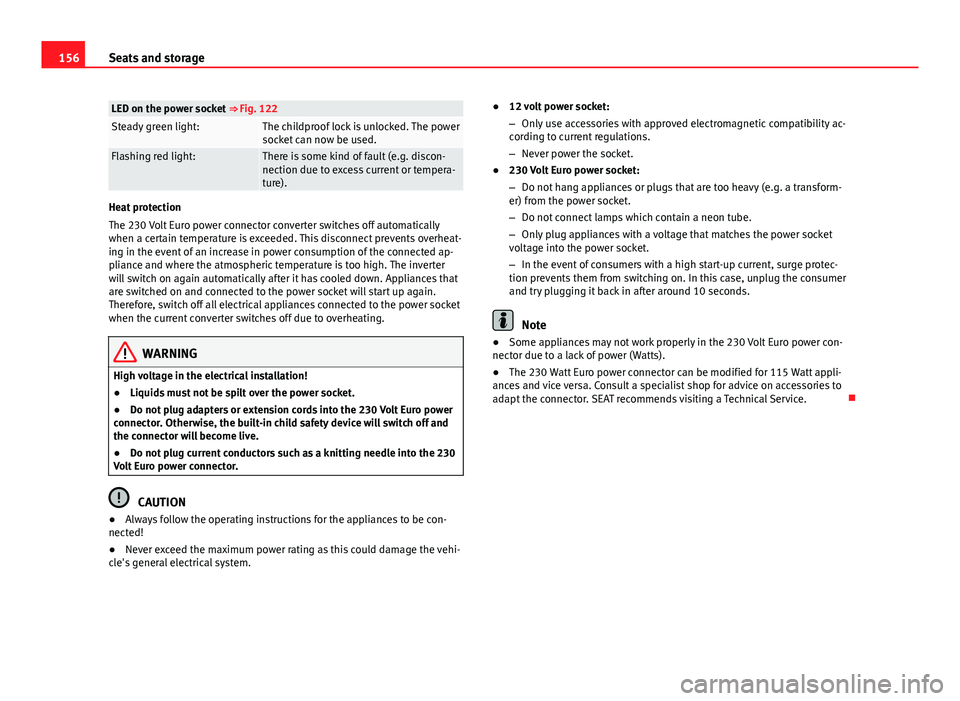

156Seats and storage
LED on the power socket ⇒ Fig. 122Steady green light:The childproof lock is unlocked. The power
socket can now be used.
Flashing red light:There is some kind of fault (e.g. discon-
nection due to excess current or tempera-
ture).
Heat protection
The 230 Volt Euro power connector converter switches off automatically
when a certain temperature is exceeded. This disconnect prevents overheat-
ing in the event of an increase in power consumption of the connected ap-
pliance and where the atmospheric temperature is too high. The inverter
will switch on again automatically after it has cooled down. Appliances that
are switched on and connected to the power socket will start up again.
Therefore, switch off all electrical appliances connected to the power socket
when the current converter switches off due to overheating.
WARNING
High voltage in the electrical installation!
● Liquids must not be spilt over the power socket.
● Do not plug adapters or extension cords into the 230 Volt Euro power
connector. Otherwise, the built-in child safety device will switch off and
the connector will become live.
● Do not plug current conductors such as a knitting needle into the 230
Volt Euro power connector.
CAUTION
● Always follow the operating instructions for the appliances to be con-
nected!
● Never exceed the maximum power rating as this could damage the vehi-
cle's general electrical system. ●
12 volt power socket:
– Only use accessories with approved electromagnetic compatibility ac-
cording to current regulations.
– Never power the socket.
● 230 Volt Euro power socket:
– Do not hang appliances or plugs that are too heavy (e.g. a transform-
er) from the power socket.
– Do not connect lamps which contain a neon tube.
– Only plug appliances with a voltage that matches the power socket
voltage into the power socket.
– In the event of consumers with a high start-up current, surge protec-
tion prevents them from switching on. In this case, unplug the consumer
and try plugging it back in after around 10 seconds.
Note
● Some appliances may not work properly in the 230 Volt Euro power con-
nector due to a lack of power (Watts).
● The 230 Watt Euro power connector can be modified for 115 Watt appli-
ances and vice versa. Consult a specialist shop for advice on accessories to
adapt the connector. SEAT recommends visiting a Technical Service. 

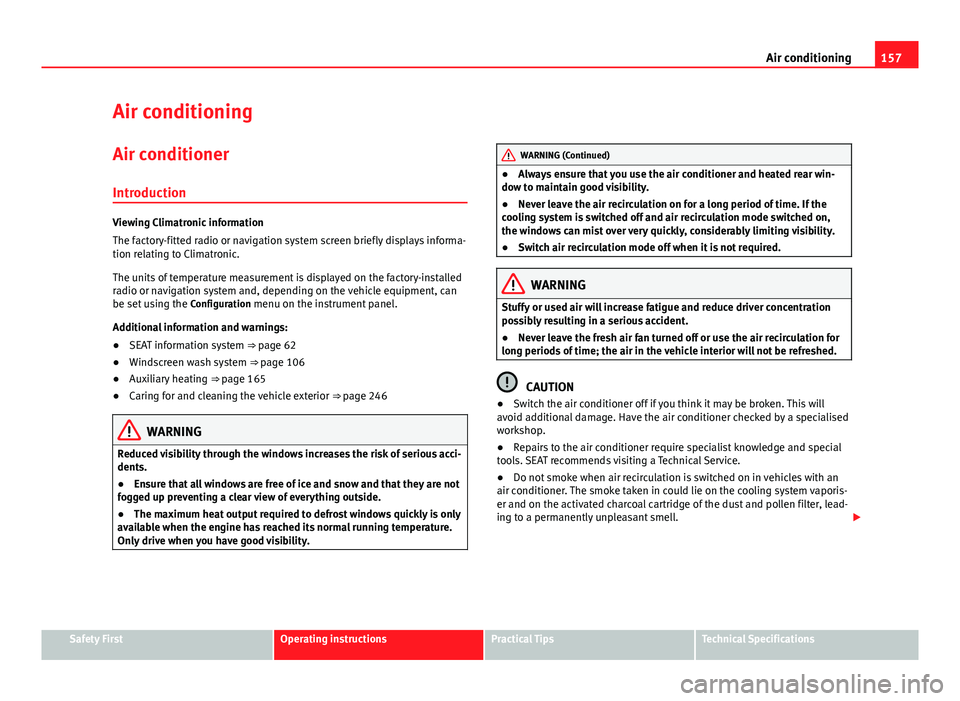

157
Air conditioning
Air conditioning Air conditioner
Introduction
Viewing Climatronic information
The factory-fitted radio or navigation system screen briefly displays informa-
tion relating to Climatronic.
The units of temperature measurement is displayed on the factory-installed
radio or navigation system and, depending on the vehicle equipment, can
be set using the Configuration menu on the instrument panel.
Additional information and warnings:
● SEAT information system ⇒ page 62
● Windscreen wash system ⇒ page 106
● Auxiliary heating ⇒ page 165
● Caring for and cleaning the vehicle exterior ⇒ page 246
WARNING
Reduced visibility through the windows increases the risk of serious acci-
dents.
● Ensure that all windows are free of ice and snow and that they are not
fogged up preventing a clear view of everything outside.
● The maximum heat output required to defrost windows quickly is only
available when the engine has reached its normal running temperature.
Only drive when you have good visibility.
WARNING (Continued)
● Always ensure that you use the air conditioner and heated rear win-
dow to maintain good visibility.
● Never leave the air recirculation on for a long period of time. If the
cooling system is switched off and air recirculation mode switched on,
the windows can mist over very quickly, considerably limiting visibility.
● Switch air recirculation mode off when it is not required.
WARNING
Stuffy or used air will increase fatigue and reduce driver concentration
possibly resulting in a serious accident.
● Never leave the fresh air fan turned off or use the air recirculation for
long periods of time; the air in the vehicle interior will not be refreshed.
CAUTION
● Switch the air conditioner off if you think it may be broken. This will
avoid additional damage. Have the air conditioner checked by a specialised
workshop.
● Repairs to the air conditioner require specialist knowledge and special
tools. SEAT recommends visiting a Technical Service.
● Do not smoke when air recirculation is switched on in vehicles with an
air conditioner. The smoke taken in could lie on the cooling system vaporis-
er and on the activated charcoal cartridge of the dust and pollen filter, lead-
ing to a permanently unpleasant smell. 
Safety FirstOperating instructionsPractical TipsTechnical Specifications

158Air conditioning

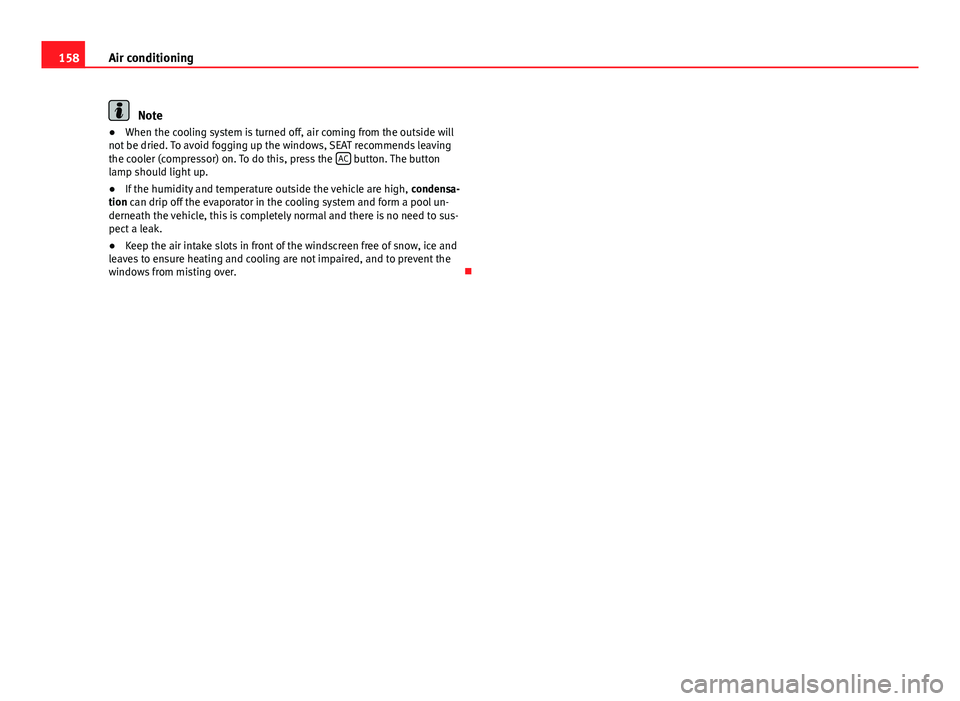

Note
● When the cooling system is turned off, air coming from the outside will
not be dried. To avoid fogging up the windows, SEAT recommends leaving
the cooler (compressor) on. To do this, press the AC
button. The button
lamp should light up.
● If the humidity and temperature outside the vehicle are high, condensa-
tion can drip off the evaporator in the cooling system and form a pool un-
derneath the vehicle, this is completely normal and there is no need to sus-
pect a leak.
● Keep the air intake slots in front of the windscreen free of snow, ice and
leaves to ensure heating and cooling are not impaired, and to prevent the
windows from misting over. 
