Seat Alhambra 2014 Owner's Manual

119
Seats and storage
effectAction ⇒ Fig. 79, ⇒ Fig. 80To switch system on:Press button . Seat heating is switched on fully.Adjusting the heating
output:Keep pressing button  until the required intensi-
ty is set.
To switch system off:Keep pressing button  until all of the lights are
switched off ⇒ Fig. 79, ⇒ Fig. 80.
WARNING
People whose pain and temperature threshold has been affected by some
kind of medicine, paraplegia or chronic illness (e.g. diabetes) may sus-
tain burns to the back, buttocks and legs from use of the seat heating
that may lead to a long healing process or that may never completely
heal. Seek medical advice if you have doubts regarding your health.
● People with a limit pain and temperature threshold must never use
seat heating.
CAUTION
● To avoid damaging the heating elements of the seat heating, please do
not kneel on the seat or apply sharp pressure at a single point to the seat
cushion and backrest.
● Liquids, sharp objects and insulating materials on the seat could dam-
age the seat heating.
● In the event of smells, switch off the seat heating immediately and have
the unit inspected by a specialised workshop.
For the sake of the environment
The seat heating should remain on only when needed. Otherwise, it is an
unnecessary fuel waste. Seat with position memory*
Fig. 81 Memory buttons
on the outside of the
driver seat
Memory buttons
Individual settings for the driver seat and the exterior mirror can be as-
signed to each memory button.
Storing exterior mirror settings for driving forwards
● Connect the automatic parking brake.
● Move the gear lever to neutral.
● Switch the ignition on.
● Adjust the front seat and the exterior mirrors.
● Keep the SET
button held down for more than one second
⇒ Fig. 81.
● Press the required memory button for the following 10 seconds. An au-
dible warning confirms the settings have been stored.
Storing front passenger exterior mirror settings for driving in reverse gear
● Connect the automatic parking brake.
● Move the gear lever to neutral.
● Switch the ignition on. 
Safety FirstOperating instructionsPractical TipsTechnical Specifications

120Seats and storage
● Press the required memory button.
● Select reverse gear.
● Adjust the front passenger side exterior mirror so that you can see, for
example, the kerb area.
● The new position of the mirror will be stored automatically and allocated
to the vehicle key that was used to unlock the vehicle.
Activating exterior mirror settings
● With the driver door open and the ignition turned off, push the memory
button of the corresponding door briefly.
● OR: With the ignition switched on, hold in the corresponding memory
button until the memorised position is reached.
To activate the memory function of the vehicle key
Important: a position must be memorised in the memory.
● Open the driver-side door.
● Press and hold any memory button.
● Within the following three seconds, push the button 
to open the vehi-
cle on the vehicle key. An audible warning confirms the settings have been
activated.
Adjusting the wing mirrors for driving and assigning driver seat settings to
a vehicle key
● Activate the memory function of the vehicle key
● Adjust the front seat and the exterior mirrors.
● Lock the vehicle. The settings are assigned to the vehicle key.
To deactivate the memory function of the vehicle key
Important: a position must be memorised in the memory.
● Press and hold the SET
button.
● Within the following ten seconds, push the button  to open the vehi-
cle on the vehicle key. An audible warning confirms the settings have been
deactivated. Initialising the seat position memory
The position memory system must be initialised if, for example, the driver
seat has been changed.
Initialisation deletes all memories and assignments for the seat with posi-
tion memory. The memory buttons can then be reprogrammed and the vehi-
cle keys re-assigned.
●
Open the driver door and do not get into the vehicle.
● Operating the seat settings from outside the vehicle.
● Move the angle of the seat backrest completely forwards.
● Release the control to set the angle and then press again until an audi-
ble warning is heard.
Note
The front passenger side exterior mirror automatically changes from the po-
sition stored for reversing as soon as the vehicle moves forward at a speed
of at least 15 km/h (9 mph) or when the gear selection lever is changed to a
position other than R. 

121
Seats and storage
Convenient entry function for the third row of seats
Fig. 82 Second row of
seats: convenient entry
function controls
The outer seats of the second row can be folded to make it easier to get in
and out of the third row of seats.
Folding down the seat of the second row
● If necessary, open the belt loop and wind up the seat belt by hand.
● If necessary, remove the side head restraint of the integrated child seat
⇒ page 45.
● If necessary, raise the armrests.
● Remove any objects located in the footwell of the second row of seats,
where applicable ⇒ 
.
● Push the head restraint down as far as it will go ⇒ page 10.
● Push the lever ⇒ Fig. 82 1
forwards and fold the seat backrest of the
rear seat. The seat can still be moved forwards when rear seat is folded
completely forwards ⇒ 
.
● Always take care when entering and leaving the vehicle ⇒ .Repositioning the seat of the second row
●
Lift the seat backrest of the rear seat in an upright position. The entire
seat folds backwards ⇒ 
.
● Make sure that the rear seat is securely engaged so that the seat belts
can provide proper protection in the rear seats. The red mark ⇒ Fig. 82 2
should no longer be visible
⇒  in Folding down rear seats to create load
space on page 130.
Emergency exit function
If the lever ⇒ Fig. 82 1
does not work, e.g. after an accident, the seats on
the second row can be folded forwards from the third row to allow vehicle
occupants of the third row of seats to get out of the vehicle ⇒ 
.
● Pull handle ⇒ Fig. 82 3
back and fold the seat backrest of the rear seat.
The complete rear seat folds forward ⇒ .
WARNING
Careless or uncontrolled use of the convenient entry assistant may result
in severe injury and accident.
● Never use the convenient entry function when the vehicle is in mo-
tion.
● Avoid trapping or damaging the seat belt when folding the rear seats
back.
● Keep your hands, fingers, feet and other body parts out of the hinges
and the seat locking mechanism when folding and unfolding.
● Mats or other objects can be caught in the hinges of the seat backr-
ests or rear seat. This could prevent the seat backrest from locking safely
when positioned upright. 
Safety FirstOperating instructionsPractical TipsTechnical Specifications

122Seats and storage
WARNING (Continued)
● All seat backrests must engage correctly for the seat belts on the rear
seats to work properly. When the seat backrest of an occupied seat is not
correctly locked in place, the passenger can be thrust forward with the
seat backrest in case of sudden braking, sudden manoeuvres or an acci-
dent.
● A red mark on the side of the seat ⇒ Fig. 82 2
indicates that the seat
backrest is not engaged. The mark is no longer visible when the seat
backrest is correctly engaged.
● If the seat backrest or seat are folded down and are not correctly
locked in place, no passenger should use them.
● When getting in or out, never lean or hold onto the folded seat on the
second row of seats.
WARNING
If child seats are fitted to all the seats in the second row then it is possi-
ble that the seats of this row cannot be folded down from the third row of
seats in case of an accident. In case of an emergency, passengers in the
third row of seats will not be able to leave the vehicle or to help them-
selves.
● Child seats should not occupy all the seats of the second row if other
passengers are to occupy the third row of seats.
CAUTION
● Before folding down the rear seat backrest for returning it to its position,
adjust the front seats so that the head restraints and seat backrests do not
hit off each other when folding and unfolding.
● Any objects located in the footwell of the second row of seats may be
damaged on folding the rear seat forwards. Remove any objects before fold-
ing the seat down. Folding the seat backrest of the front passenger seat*
Fig. 83 Folding the seat
backrest of the front pas-
senger seat
Fig. 84 Unlocking the
folding seat backrest of
the front passenger seat
The seat backrest of the front passenger seat can be folded and locked hori-
zontally.
The front passenger front airbag must be disabled ⇒ page 31 if objects are
being transported on the folded front passenger seat. 

123
Seats and storage
Folding the seat backrest of the front passenger seat
● Remove any objects from the front passenger seat cushion ⇒ 
.
● Adjust the front passenger seat to its lowest position ⇒ page 10.
● Push the head restraint down as far as it will go ⇒ page 10.
● Unlock the seat backrest of the front passenger seat in the direction of
the arrow ⇒ Fig. 83 1
.
● Fold the seat backrest of the front passenger seat forwards in the direc-
tion of the arrow ⇒ Fig. 83 2
until it is horizontal.
● The seat backrest of the front passenger seat must engage safely in its
folded position.
Lifting the seat backrest of the front passenger seat
● Check that there are no objects or parts of the body in the hinge area.
● Lift the seat backrest of the front passenger seat by first unlocking it
again ⇒ Fig. 84.
● Lift the seat backrest of the front passenger seat until it is upright. The
seat backrest must be engaged.
● The upright seat backrest of the front passenger seat must safely en-
gage.
WARNING
Folding and lifting the seat backrest of the front passenger seat uncon-
trollably or without paying attention may lead to severe injuries.
● Only fold and lift the seat backrest of the front passenger seat when
the vehicle is stationary.
● While the seat backrest of the front passenger seat is folded, the
front airbag must remain disabled and the PASSENGER AIRBAG OFF 
light on.
● Keep your hands, fingers, feet and other body parts out of the hinges
and the seat locking mechanism when folding and unfolding.
WARNING (Continued)
● Mats or other objects can be caught in the hinges of the seat backrest
of the front passenger seat. This could prevent the seat backrest from
locking safely when positioned upright.
● The upright seat backrest of the front passenger seat must engage. If
the seat backrest of the front passenger seat is not locked, it may sud-
denly move and cause severe injuries.
WARNING
Seat anchors and hinges exposed when the seat backrest of the front
passenger seat is folded may lead to severe injuries in the event of an ac-
cident or sudden braking.
● Never carry people or children on the front passenger seat when the
seat backrest is folded.
● When the seat backrest of the front passenger seat is folded, only the
outer seat behind the driver on the second row of seats may be occupied.
This also applies to children sitting in a child seat.

Safety FirstOperating instructionsPractical TipsTechnical Specifications

124Seats and storage
Head restraints
Adjusting the head restraints
Fig. 85 A: Adjust the head restraints with no possibili-
ty of lengthways direction adjustment, B: Adjust the
head restraints with lengthways direction adjustment
Fig. 86 Adjust the head
restraints in the second
or third row of seats
All seats are equipped with a head restraint. Adjusting height
●
Raise the head restraint in the direction of the arrow or lower it ⇒ Fig. 85
or ⇒ Fig. 86 1
with the button pressed ⇒ .
● The head restraint must engage securely in position. There are three
possible positions on the second row of seats and two possible positions
on the third row of seats.
Adjusting the front head restraints
● Push the head restraint forward in the direction of the arrow or backward
⇒ Fig. 85 1

with the button pressed.
● The head restraint must engage securely in position.
Correct adjustment of head restraints
Adjust the head restraint so that its upper edge is at the same level as the
top of your head, or as close as possible to the same level as the top of your 

125
Seats and storage
head and under no circumstances below eye level. Keep the back of your
neck as close as possible to the head restraint.
Adjusting the head restraint for short people
Lower the head restraint completely, even if your head is below its upper
edge. When the head restraint is at its lowest, it is possible that a small gap
remains between it and the seat backrest.
Adjusting the head restraint for tall people
Raise the head restraint completely.
WARNING
Travelling with the head restraints removed or improperly adjusted in-
creases the risk of severe or fatal injuries in the event of accidents and
sudden braking or manoeuvres.
● Always fit and adjust the head restraint properly whenever a person
is occupying a seat.
● All vehicle occupants must correctly adjust the head restraint accord-
ing to their height to reduce the risk of back injuries in the event of an
accident. The upper edge of the head restraint must be as close as possi-
ble to the same level as the top of your head and under no circumstances
below eye level. Keep the back of your neck as close as possible to the
head restraint.
● Never adjust the head restraint while the vehicle is in motion.

Removing and fitting the head restraints

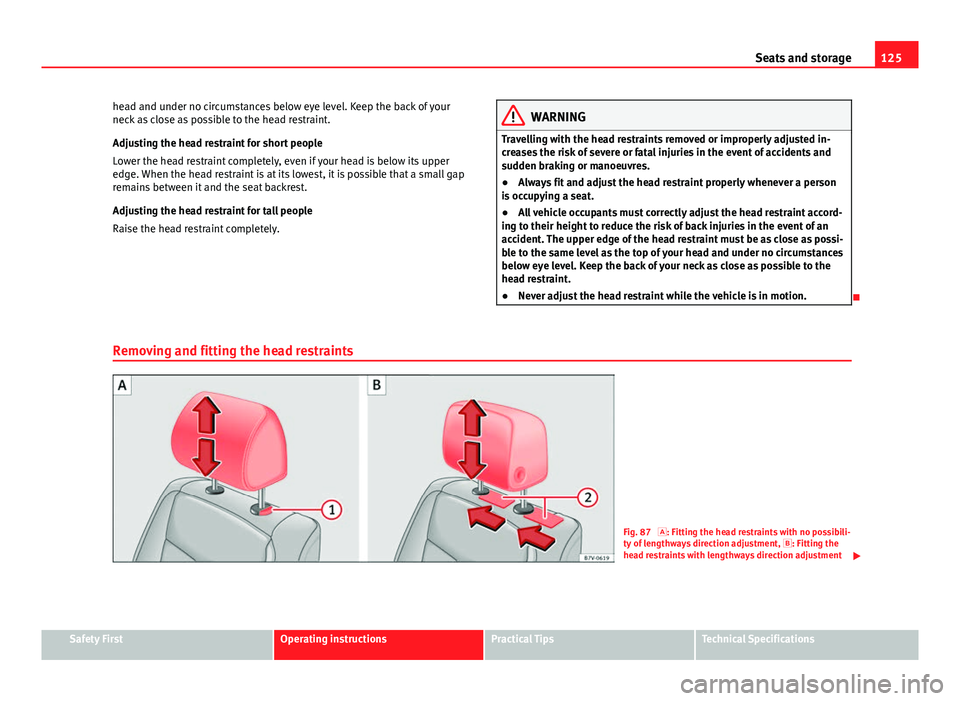

Fig. 87 : Fitting the head restraints with no possibili-
ty of lengthways direction adjustment, : Fitting the
head restraints with lengthways direction adjustment 
Safety FirstOperating instructionsPractical TipsTechnical Specifications

126Seats and storage
Fig. 88 Fitting the head
restraints in the second
or third row of seats
All seats are equipped with a head restraint.
Removing the front head restraints in vehicles without the lengthways
direction adjustment of the head restraints
● If necessary, adjust the seat backrest so that the head restraint can be
fitted.
● Push the head restraint up as far as it will go
⇒ 
.
● Pull out the head restraint pressing the button completely
⇒ Fig. 87 1
.
Fitting the front head restraints in vehicles without the lengthways
direction adjustment of the head restraints
●
Correctly place the head restraint into the guides on the seat backrest
and insert it.
● Completely press the button 1
 and push the head restraint down-
wards.
● Adjust the head restraint according to the correct seat position and se-
cure it ⇒ page 124. Removing the front head restraints in vehicles with the lengthways
direction adjustment of the head restraints
●
If necessary, adjust the seat backrest so that the head restraint can be
fitted.
● Push the head restraint up and backward as far as it will go ⇒ 
.
● Place a flat object, e.g. a plastic card 2 , on both sides between the
seat backrest cover and the end protector of the seat backrest retaining bar
and unlock the retaining bars with a little pressure.
● Completely pull out the head restraint.
Fitting the front head restraints in vehicles with the lengthways direction
adjustment of the head restraints
● Pull out the two retaining bars from the head restraint as far as possible.
● Correctly place the head restraint into the guides on the seat backrest
and insert it.
● Push the head restraint down as far as possible until the two retaining
bars are secured.
● Adjust the head restraint according to the correct seat position and se-
cure it ⇒ page 124.
Removing the head restraints from the second and third row of seats
● Fold the seat backrest of the rear seat forwards ⇒ page 127.
● Push the head restraint up as far as it will go ⇒ 
.
● Pull out the head restraint ⇒ Fig. 88 1 with the button pressed.
● Fold the seat backrest of the rear seat backwards until it is engaged.
Installing the head restraints for the second and third row of seats
● Fold the seat backrest of the rear seat forwards ⇒ page 127.
● Insert the head restraint into the guides on the seat backrest.
● Push the head restraint down while pressing the button 1
.
● Fold the seat backrest of the rear seat backwards until it is engaged.
● Adjust the head restraint to the correct position ⇒ page 124.

127
Seats and storage
WARNING
Travelling with the head restraints removed or improperly adjusted in-
creases the risk of severe or fatal injuries in the event of accidents and
sudden braking or manoeuvres.
● Always fit and adjust the head restraint properly whenever a person
is occupying a seat.
● Refit any removed head restraints immediately so that passengers
are properly protected.
CAUTION
On removing and fitting the head restraint, make sure the head restraint
does not hit the interior roof of the vehicle or the seat backrest of the front
seat. This could damage the interior roof and other parts of the vehicle. 
Centre armrest
Fig. 89 Front centre arm-
rest To lift the central armrest, lift it upwards in the direction of the arrow
⇒ Fig. 89, setting by setting.
To lower the centre armrest, pull it downwards. Then lower the centre arm-
rest.
WARNING
The centre armrest may limit the freedom of movement of the driver's
arm and cause a serious accident.
● Keep the centre armrest compartments closed while the vehicle is in
motion.
● The centre armrest is not designed for children to sit on! Sitting in
this incorrect position can cause severe injuries.

Loading luggage compartment Introduction
Always transport heavy loads in the luggage compartment and place the
seat backs in a vertical position. Always use the fastening rings with suita-
ble rope or straps. Never overload the vehicle. Both the carrying capacity as
well as the distribution of the load in the vehicle have effects on the driving
behaviour and braking ability ⇒ 
.
Additional information and warnings:
● Airbag system ⇒ page 31
● Light ⇒ page 96
● Transporting ⇒ page 13
● Towing mode ⇒ page 237
● Wheels and tyres ⇒ page 297 
Safety FirstOperating instructionsPractical TipsTechnical Specifications

128Seats and storage
WARNING
When the vehicle is not in use or being watched, always lock the doors
and the rear lid to reduce the risk of serious injury or death.
● Do not leave children unwatched, especially when the rear lid is open.
Children could climb into the luggage compartment, close the rear lid
from inside and be unable to escape themselves. This could lead to seri-
ous injury or death.
● Never allow children to play in or around the vehicle.
● Never transport people in the luggage compartment.
WARNING
Unsecured or incorrectly secured objects can cause serious injury in case
of a sudden manoeuvring or breaking or in case of an accident. This is es-
pecially true when objects are struck by a detonating airbag and fired
through the vehicle interior. To reduce the risks, please note the follow-
ing:
● Secure all objects in the vehicle. Always keep equipment and heavy
objects in the luggage compartment.
● Always secure objects with suitable rope or straps so that they can-
not enter the areas around the front or side airbags in case of sudden
braking or an accident.
● While driving, always keep object compartments closed.
WARNING (Continued)
● Do not place hard, heavy or sharp objects inside the vehicle interior,
in open storage compartments, the rear shelf or on the dash panel.
● Remove hard, heavy and sharp objects from clothes and pockets in-
side the vehicle and store securely.
WARNING
The transport of heavy object changes vehicle handling and increases
braking distance. Heavy loads that have not been stored or secured cor-
rectly could cause loss of control and result in serious injury.
● The vehicle handling changes when transporting heavy objects due
to a change in the centre of gravity.
● Distribute the load as uniformly and as low down on the vehicle as
possible.
● Store heavy objects in the luggage compartment as far from the rear
axle as possible.
CAUTION
● Hard objects on the rear shelf could chafe the wires of the heating ele-
ment and antenna of the rear window and cause damage.
● The side window antenna could be damaged due to chafing from ob-
jects.
Note
The ventilating slits between the heated rear window and the shelf must not
be covered so that used air can escape from the vehicle. 
