The essentials

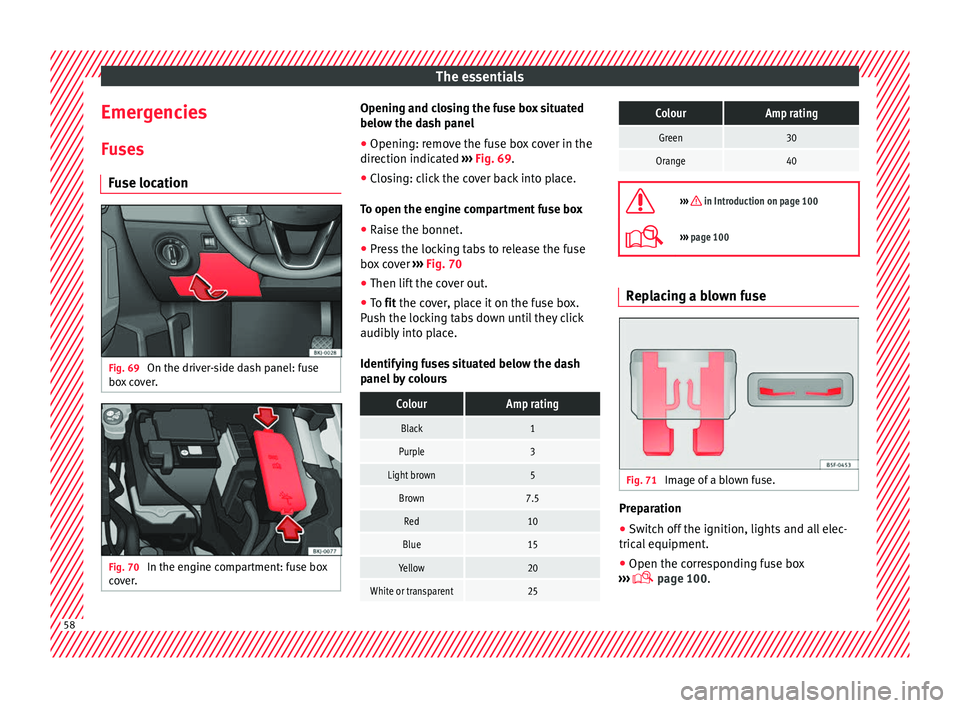

Emergencies F u
se
s
Fuse location Fig. 69
On the driver-side dash panel: fuse
bo x
c

over. Fig. 70
In the engine compartment: fuse box
c o
v

er. Opening and closing the fuse box situated
belo
w the d a

sh panel
● Opening: remove the fuse box cover in the
direction indicat
ed ››› Fig. 69.
● Closing: click the cover back into place.
To open the engine c
ompartment fuse box
● Raise the bonnet.
● Press the locking tabs to release the fuse
box c
over ››› Fig. 70
● Then lift the cover out.
● To fit the cover, place it on the fuse box.
Pu
sh the locking tabs down until they click
audibly into place.
Identifying fuses situated below the dash
panel by colours
ColourAmp rating
Black1
Purple3
Light brown5
Brown7.5
Red10
Blue15
Yellow20
White or transparent25
ColourAmp rating
Green30
Orange40 
››› in Introduction on page 100
›››
page 100 Replacing a blown fuse
Fig. 71
Image of a blown fuse. Preparation
●
Switch off the ignition, lights and all elec-
tric al
equipment

.
● Open the corresponding fuse box
›››
 page 100.58

The essentials

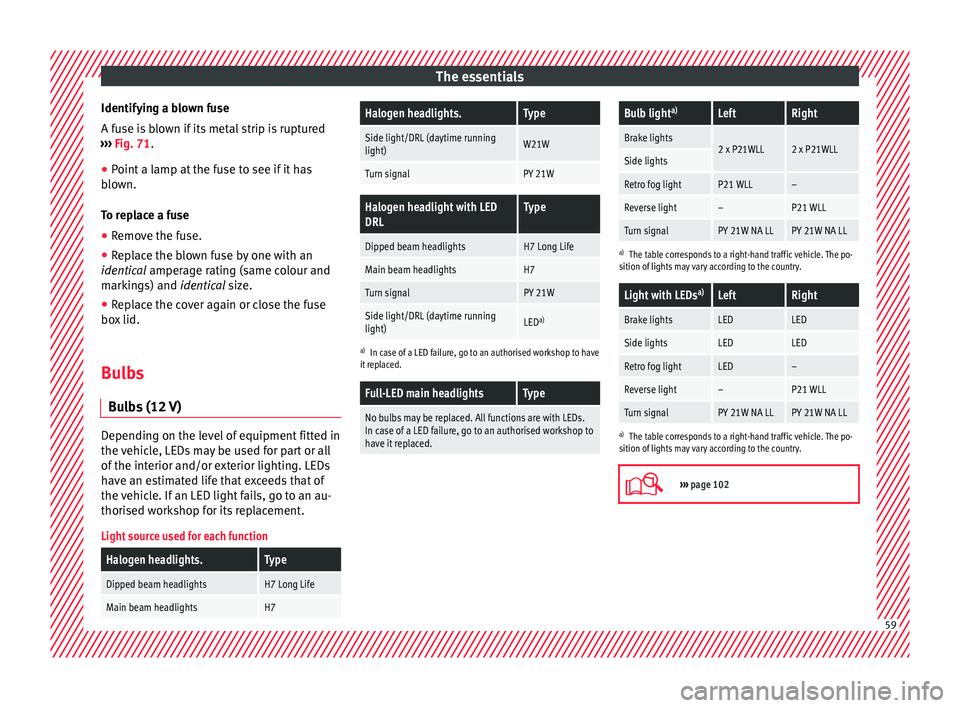

Identifying a blown fuse
A f u
se i
s blown if its metal strip is ruptured
››› Fig. 71.
● Point a lamp at the fuse to see if it has
blown.
T

o replace a fuse
● Remove the fuse.
● Replace the blown fuse by one with an
identica
l amperage rating (same colour and
markings) and identical size.
● Replace the cover again or close the fuse
box lid.
B

ulbs
Bul
bs (12 V) Depending on the level of equipment fitted in
the
v
ehic

le, LEDs may be used for part or all
of the interior and/or exterior lighting. LEDs
have an estimated life that exceeds that of
the vehicle. If an LED light fails, go to an au-
thorised workshop for its replacement.
Light source used for each function
Halogen headlights.Type
Dipped beam headlightsH7 Long Life
Main beam headlightsH7
Halogen headlights.Type
Side light/DRL (daytime running
light)W21W
Turn signalPY 21W
Halogen headlight with LED
DRLType
Dipped beam headlightsH7 Long Life
Main beam headlightsH7
Turn signalPY 21W
Side light/DRL (daytime running
light)LED a)
a)
In case of a LED failure, go to an authorised workshop to have
it replaced.
Full-LED main headlightsType
No bulbs may be replaced. All functions are with LEDs.
In case of a LED failure, go to an authorised workshop to
have it replaced.
Bulb light a)LeftRight
Brake lights2 x P21WLL2 x P21WLLSide lights
Retro fog lightP21 WLL–
Reverse light–P21 WLL
Turn signalPY 21W NA LLPY 21W NA LL
a)
The table corresponds to a right-hand traffic vehicle. The po-
sition of lights may vary according to the country.
Light with LEDs a)LeftRight
Brake lightsLEDLED
Side lightsLEDLED
Retro fog lightLED–
Reverse light–P21 WLL
Turn signalPY 21W NA LLPY 21W NA LL
a)
The table corresponds to a right-hand traffic vehicle. The po-
sition of lights may vary according to the country.
››› page 102 59

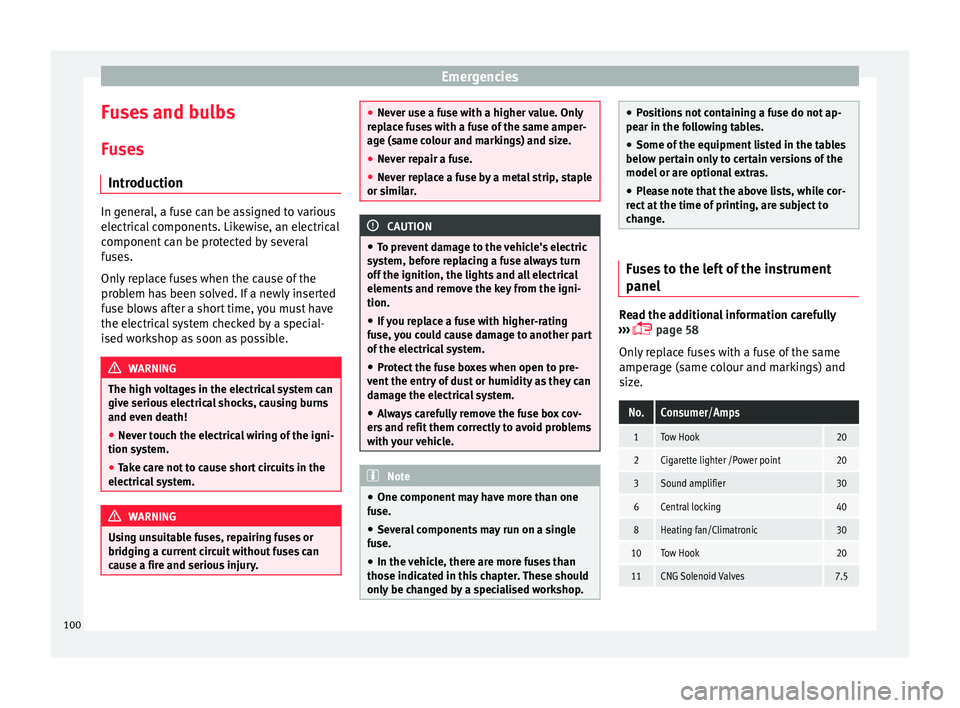

Emergencies
Fuses and bulbs F u
se
s
Introduction In general, a fuse can be assigned to various
electric
al

components. Likewise, an electrical
component can be protected by several
fuses.
Only replace fuses when the cause of the
problem has been solved. If a newly inserted
fuse blows after a short time, you must have
the electrical system checked by a special-
ised workshop as soon as possible. WARNING
The high voltages in the electrical system can
give seriou s

electrical shocks, causing burns
and even death!
● Never touch the electrical wiring of the igni-
tion syst
em.
● Take care not to cause short circuits in the
electrica
l system. WARNING
Using unsuitable fuses, repairing fuses or
bridging a c urr

ent circuit without fuses can
cause a fire and serious injury. ●
Never u se a f

use with a higher value. Only
replace fuses with a fuse of the same amper-
age (same colour and markings) and size.
● Never repair a fuse.
● Never replace a fuse by a metal strip, staple
or simil
ar. CAUTION
● To pr ev

ent damage to the vehicle's electric
system, before replacing a fuse always turn
off the ignition, the lights and all electrical
elements and remove the key from the igni-
tion.
● If you replace a fuse with higher-rating
fuse,
you could cause damage to another part
of the electrical system.
● Protect the fuse boxes when open to pre-
vent the entr
y of dust or humidity as they can
damage the electrical system.
● Always carefully remove the fuse box cov-
ers and r
efit them correctly to avoid problems
with your vehicle. Note
● One component m

ay have more than one
fuse.
● Several components may run on a single
fuse.
● In the

vehicle, there are more fuses than
those indicat
ed in this chapter. These should
only be changed by a specialised workshop. ●
Po s

itions not containing a fuse do not ap-
pear in the following tables.
● Some of the equipment listed in the tables
below pert
ain only to certain versions of the
model or are optional extras.
● Please note that the above lists, while cor-
rect at
the time of printing, are subject to
change. Fuses to the left of the instrument
panel
Read the additional information carefully
› ›
›

 page 58
Only replace fuses with a fuse of the same
amperage (same colour and markings) and
size.
No.Consumer/Amps
1Tow Hook20
2Cigarette lighter /Power point20
3Sound amplifier30
6Central locking40
8Heating fan/Climatronic30
10Tow Hook20
11CNG Solenoid Valves7.5 100

Fuses and bulbsNo.Consumer/Amps
13Lights switch, steering column LSS
and SMLS, diagnostic port, rain/light
sensor7.5
14steering column LSS: wiper controls10
15Instrument panel7.5
16Right Lights Power Supply40
17Right Door Window Control30
18Windscreen wipers30
19Radio, Multimedia System25
20Heated Rear Window30
21SCR Control Unit30
23Rear View Camera7.5
24Connectivity Box, external audio
source wiring (Double USB-Aux IN),
telephone amplifier, MIB display5
25Steering Column Electronics (MFL)7.5
26Gateway7.5
27Active Suspension Control Unit7.5
28DWA Sensor7.5
29DWA Horn7.5
319AA/9AB climate control unit7.5
9AK Climatronic control unit15
32Steering Column LSS, without Kessy7.5
No.Consumer/Amps
33Left Door Window Control30
35Left Lights Power Supply40
36Signal Horn20
37Heated seats control unit30
38BCM Power C6330
39BSD, PDC, MRR10
40
Lights switch, diagnostic port, head-
light range control, steering column
LSS: Lights, halogen headlights, re-
verse light switch
7.5
41Electrochromic mirror, regulation of
unfolded rear view mirrors, RKA with-
out radio7.5
42Clutch pedal, ignition relays, CNG re-
lay coil7.5
43DWP relay coil, rear window wiper mo-
tor15
44Airbag7.5
45Leimo Plus left headlight7.5
46Leimo Plus right headlight7.5
48Steering Column Lock, Kessy Control
Unit7.5
49SCR Relay Coil7.5
51AA Pressure Sensor, heated jets7.5
No.Consumer/Amps
53Automatic gearbox lever, ZSS7.5
58Double Water Pump7.5
59Heated rear view mirrors10
60Tow Hook30
61Tow Hook30
Fuse arrangement in engine compart-
ment
Read the additional information carefully
› ›
›

 page 58
Only replace fuses with a fuse of the same
amperage (same colour and markings) and
size.
No.Consumer/Amps
1Engine Injection Module30
2
Fuel metering valve (TJ4/T6P/TJ7), Low
temperature coolant pump
(TJ4/T6P/TJ7); Oil Pressure Regulating
Valve (TJ1), Coolant Valve AGR (TJ1),
High and Low Water Bumps (TJ1), SCR
relay coil
7.5
3Lambda probes15
4Petrol engine pump relay (MPI), Gauge
control unit (TSI and Diesel)15» 101
Technical data
Advice
Operation
Emergencies
Safety

Controls and displays
Operation
C ontr
o
ls and displays
General instrument panel Electric window controls*
. . . . . . . . .135
Door release lever
Contr o

l for adjusting electric exteri-
or mirrors* . . . . . . . . . . . . . . . . . . . . . . . 145
Air vents
Lev er f

or:
– Turn signals/main beam head-
lights . . . . . . . . . . . . . . . . . . . . . . . . . . 139
– Crui se c

ontrol* . . . . . . . . . . . . . . . . . 198
Depending on equipment fitted:
– Lev er f

or cruise control . . . . . . . . . .198
Steering wheel with horn and – Driver airbag . . . . . . . . . . . . . . . . . . . 82
– On-boar d c

omputer controls . . . .35
– Contro
ls for radio, telephone,
navigation and speech dialogue
system ›››
Booklet Radio
– Paddle levers for tiptronic gear-
shift (automatic gearbox) . . . . . . .185
Instrument panel and warning
lamp s:
– In

struments . . . . . . . . . . . . . . . . . . . . 113
1 2
3
4
5
6
7
8 –
Warnin
g and indic

ation lamps . . .45
Lever for:
– Winds

creen wipers and washer . .143
– Window w
asher-wiper system* . .143
– Multi-f
unction display control* . .35
Infotainment system:
Hazard w
arning lights . . . . . . . . . . . . 141
Depending on the equipment,
glove c
ompartment with: . . . . . . . . .150
– CD pla
yer* and/or SD card*
››› Booklet Radio
Passenger airbag* . . . . . . . . . . . . . . . . 21
Front passenger airbag disconnec-
tion switc
h* . . . . . . . . . . . . . . . . . . . . . . 86
Switches for:
– Heating and

ventilation . . . . . . . . . 161
– Air conditionin g* . . . . . . . . . . . . . . . 163
– C

limatr
onic* . . . . . . . . . . . . . . . . . . . . 165
Front passenger seat heating con-
tro l* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Ge

ar lever
– Manual g

earbox . . . . . . . . . . . . . . . . 183
– Autom atic

gearbox . . . . . . . . . . . . . 183
Depending on the equipment, but-
ton s

for:
– Central locking* . . . . . . . . . . . . . . . . 128
– Star t

-Stop operation button . . . . .196
– SEAT Driv
e Profile . . . . . . . . . . . . . . . 225
9
10
11
12
13
14
15
16
17
18 –
Park
a

ssist system . . . . . . . . . . . . . . 228
– Tyr
e pressure monitoring* . . . . . . .282
Handbrake lever . . . . . . . . . . . . . . . . . . 174
Starter button (Keyless Access lock-
ing and ignition sys
tem) . . . . . . . . . . 171
Depending on the equipment:
– USB/AUX-IN inp

ut . . . . . . . . . . . . . . 123
– Connectivity
Box/Wireless Charg-
er* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Driver seat heating control* . . . . . . .148
Ignition lock (vehicles without Key-
les
s Access) . . . . . . . . . . . . . . . . . . . . . . 168
Steering column control lever* . . . .20
Fuse housing . . . . . . . . . . . . . . . . . . . . . 100
Bonnet release lever . . . . . . . . . . . . . .268
Headlight range control* . . . . . . . . . .142
Light switch . . . . . . . . . . . . . . . . . . . . . . 138 Note
● Some of the equipment li

sted in this sec-
tion is only fitted on certain models or are op-
tional extras.
● A separate Instructions Manual is enclosed
if the v
ehicle is equipped with a factory-fitted
radio, CD player, AUX IN connection or navi-
gation system.
● The arrangement of switches and controls
on right-hand driv
e models* may be slightly
different from the layout shown in » 19
20
21
22
23
24
25
26
27
28
111
Technical data
Advice
Operation
Emergencies
Safety

Driving
Switching the ignition or the glow plug sys-
t em on 2 Turn the ignition key to this position and re-
l
e
a
se it. If the key cannot be turned or it is
difficult to turn from position 1 to position
2 , move the steering wheel from one side to
the other; thi s
w

ill release it.
Starting 3The engine is started when the key is in this
po
s
ition. El

ectrical devices with high power
consumption are switched off temporarily at
the same time.
Each time that the vehicle is restarted, the ig-
nition key must be turned to position 1 . The
r epetitiv
e s

tart prevention lock of the igni-
tion prevents possible damage to the starter
motor if the engine is already running. WARNING
● The ignition key mu

st NOT be removed from
the lock until the vehicle comes to a stand-
still. Otherwise, the steering could be imme-
diately blocked- Risk of accident!
● Always remove the key from the ignition
when leav
ing the vehicle, even if only for a
short period. This is especially important if
children or disabled people are left alone in
the vehicle. They could accidentally start the
engine or work electrical equipment such as
the electric windows, resulting in an acci-
dent. ●
Uns uper

vised use of the key could start the
engine or any electrical system, such as the
electric windows. This could result in serious
injury. CAUTION
The starter motor will only work when the en-
gine i s s

topped (ignition key position 3 ).
Electronic immobiliser “SAFE”
The electronic immobiliser prevents unau-
thori
sed per
son

s from driving the vehicle.
Inside the key there is a chip that deactivates
the electronic immobiliser automatically
when the key is inserted into the ignition.
The electronic immobiliser will be activated
again automatically as soon as you pull the
key out of the ignition lock.
The engine can only be started using a genu-
ine SEAT key with its correct code.
If the following message* is shown on the in-
strument panel display: SAFE, the vehicle
cannot be started.
The engine can, however, be started if the
appropriate coded SEAT genuine key is used. Note
A perfect operation of the vehicle is ensured
if g enuine

SEAT keys are used. Starting petrol engines
The engine can only be started using a genu-
ine S
EA

T key with its correct code.
– Move the gearbox lever to the neutral posi-
tion and depres

s the clutch pedal thor-
oughly and hold it in this position for the
starter to turn the engine on.
– Turn the ignition key to the starting posi-
tion ››
›

page 168.
– Let go of the ignition key as soon as the en-
gine star

ts; the starter motor must not run
on with the engine.
After starting a very hot engine, you may
need to slightly press down the accelerator.
When starting a cold engine, it may be a little
noisy for the first few seconds until oil pres-
sure has built up in the hydraulic valve com-
pensators. This is quite normal, and no cause
for concern.
If the engine does not start immediately,
switch the starter off after 10 seconds and try
again after half a minute. If the engine still
does not start, the fuel pump fuse should be
checked ›››
page 100, Fuses. »
169
Technical data
Advice
Operation
Emergencies
Safety

Operation

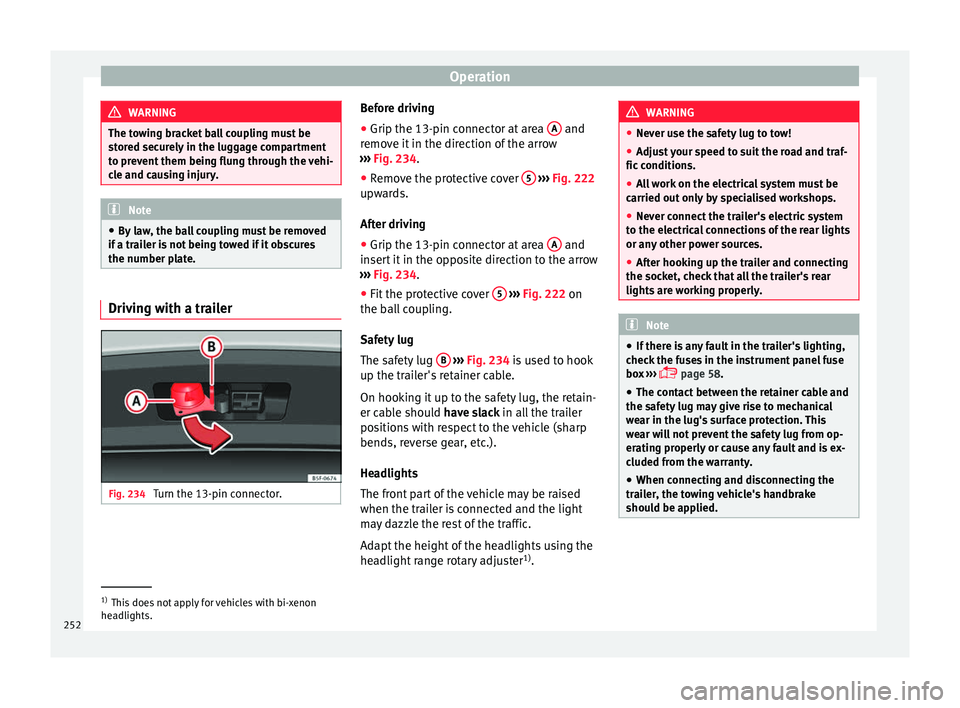

WARNING
The towing bracket ball coupling must be
st or
ed securely in the luggage compartment
to prevent them being flung through the vehi-
cle and causing injury. Note
● By l

aw, the ball coupling must be removed
if a trailer is not being towed if it obscures
the number plate. Driving with a trailer
Fig. 234
Turn the 13-pin connector. Before driving
●
Grip the 13-pin connector at area A and
r emo
v

e it in the direction of the arrow
››› Fig. 234.
● Remove the protective cover 5
› ››
Fig. 222
up w

ards.
After driving
● Grip the 13-pin connector at area A and
in ser
t

it in the opposite direction to the arrow
››› Fig. 234.
● Fit the protective cover 5
› ›
› Fig. 222
on
the ball coupling.
Safety lug
The safety lug B
› ›
› Fig. 234
is used to hook
up the trailer's retainer cable.
On hooking it up to the safety lug, the retain-
er cable should have slack in all the trailer
positions with respect to the vehicle (sharp
bends, reverse gear, etc.).
Headlights
The front part of the vehicle may be raised
when the trailer is connected and the light
may dazzle the rest of the traffic.
Adapt the height of the headlights using the
headlight range rotary adjuster 1)
. WARNING
● Never u se the s

afety lug to tow!
● Adjust your speed to suit the road and traf-
fic condition
s.
● All work on the electrical system must be
carried out on
ly by specialised workshops.
● Never connect the trailer's electric system
to the electric
al connections of the rear lights
or any other power sources.
● After hooking up the trailer and connecting
the socket, c
heck that all the trailer's rear
lights are working properly. Note
● If ther e i

s any fault in the trailer's lighting,
check the fuses in the instrument panel fuse
box ›››
 page 58.
● The contact between the retainer cable and
the safety
lug may give rise to mechanical
wear in the lug's surface protection. This
wear will not prevent the safety lug from op-
erating properly or cause any fault and is ex-
cluded from the warranty.
● When connecting and disconnecting the
trail
er, the towing vehicle's handbrake
should be applied. 1)
This does not apply for vehicles with bi-xenon
hea dlights.
252

Index
Driver information system ad
dition
al electrical appliances . . . . . . . . . . . . 40
assist systems . . . . . . . . . . . . . . . . . . . . . . . . . . 38
bonnet, rear lid and doors open . . . . . . . . . . . . 38
engine oil temperature . . . . . . . . . . . . . . . . . . . . 40
gear-change indicator . . . . . . . . . . . . . . . . . . . . 39
journey data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
outside temperature . . . . . . . . . . . . . . . . . . . . . . 39
saving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
service intervals . . . . . . . . . . . . . . . . . . . . . . . . . 41
speed warning . . . . . . . . . . . . . . . . . . . . . . . . . . 40
warning and information messages . . . . . . . . . 39
Driving driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . 195
driving through water . . . . . . . . . . . . . . . . . . . . 195
economical driving . . . . . . . . . . . . . . . . . . . . . . 192
with a trailer . . . . . . . . . . . . . . 245, 250, 252, 253
Driving abroad headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Driving data data summary . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Driving mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Driving on flooded roads . . . . . . . . . . . . . . . . . . . 195
Driving profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Driving safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
DSG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Duplicate keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Dust and pollen filter . . . . . . . . . . . . . . . . . . . . . . 158
Dynamic lights range control . . . . . . . . . . . . . . . . 141
E E10 see Ethanol (fuel) . . . . . . . . . . . . . . . . . . . . . . . 265
Easy Connect . . . . . . . . . . . . . . . . . . . . . . . . 33, 118 EDL
see Electronic differential lock . . . . . . . . . . . . . 179
EDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Efficiency programme additional electrical appliances . . . . . . . . . . . . 40
saving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Electrical power socket . . . . . . . . . . . . . . . . . . . . 151
Electrical socket trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Electric windows . . . . . . . . . . . . . . . . . . . . . . 18, 135 convenience opening and closing . . . . . . . . . 136
Electrolyte . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
Electronic differential lock . . . . . . . . . . . . . 177, 179 control lamp . . . . . . . . . . . . . . . . . . . . . . 180, 181
Electronic differential lock (XDS) . . . . . . . . . . . . . 181
Electronic immobiliser . . . . . . . . . . . . . . . . . 15, 169
Electronic Stability Control (ESC) . . . . . . . 177, 179
Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93 automatic gearbox backup programme . . . . . 189
bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . 61
changing the battery . . . . . . . . . . . . . . . . . . . . 278
emergency towing of the vehicle . . . . . . . . . . . . 66
emergency warning triangle . . . . . . . . . . . . . . . 93
fire extinguisher . . . . . . . . . . . . . . . . . . . . . . . . . 93
first-aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
hazard warning lights . . . . . . . . . . . . . . . . . . . 141
jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
puncture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
replacing a blown fuse . . . . . . . . . . . . . . . . . . . . 58
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
vehicle tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Emergency operation front passenger door . . . . . . . . . . . . . . . . . . . . . 16
selector lever . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Emergency warning triangle . . . . . . . . . . . . . . . . . 93 Emission control system
contro l lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Emissions data . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Engine assisted starting . . . . . . . . . . . . . . . . . . . . . . . . . 67
noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
running in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Start-Stop system . . . . . . . . . . . . . . . . . . . . . . . 196
Engine and ignition automatic ignition switch-off . . . . . . . . . . . . . . 172My Beat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
preheating the engine . . . . . . . . . . . . . . . . . . . 173
starting the engine . . . . . . . . . . . . . . . . . . . . . . 173
starting the engine with Press & Drive . . . . . . 173 stopping the engine . . . . . . . . . . . . . . . . . . . . . 174
Engine compartment . . . . . . . . . . . . . . 17, 267, 270 battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276
brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
coolant . . . . . . . . . . . . . . . . . . . . . . . . . . 273, 274
engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
windscreen washer liquid . . . . . . . . . . . . . . . . 276
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 checking level . . . . . . . . . . . . . . . . . . . . . . . . . . 273
G12 plus-plus . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
G13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Engine data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Engine fault control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Engine management . . . . . . . . . . . . . . . . . . . . . . 193 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 55, 270 changing . . . . . . . . . . . . . . . . . . . . . . . . . 270, 273
check oil level . . . . . . . . . . . . . . . . . . . . . . . . . . 272
296

Index
consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
die sel
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
en
gine oil dipstick . . . . . . . . . . . . . . . . . . . . . . 272
inspection service . . . . . . . . . . . . . . . . . . . . . . 270
maintenance intervals . . . . . . . . . . . . . . . . . . . 270
oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 270
temperature display . . . . . . . . . . . . . . . . . . . . . . 40
topping up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
Engine oil pressure control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
Environment ecological driving . . . . . . . . . . . . . . . . . . . . . . . 192
environmental compatibility . . . . . . . . . . . . . . 191
Environmental tips refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
ESC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177 electronic stability control . . . . . . . . . . . 177, 179
Sport Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
see also Electronic Stability Control (ESC) . . . 177
Ethanol (fuel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
Event Data Recorder . . . . . . . . . . . . . . . . . . . . . . . . 92
Exhaust gas emission control system . . . . . . . . . 193
Exhaust gas purification system catalytic converter . . . . . . . . . . . . . . . . . . . . . . 193
diesel particulate filter . . . . . . . . . . . . . . . . . . . 193
Exiting a parking space with Park Assist . . . . . . 235
Extending the luggage compartment . . . . . . . . . . . . . . . . 149
Exterior lighting changing the bulbs . . . . . . . . . . . . . . . . . . . . . 102
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . 144 adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
folding in electrically . . . . . . . . . . . . . . . . . . . . 145 folding in manually . . . . . . . . . . . . . . . . . . . . . 144
heated
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7, 8
External aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
F Fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Fatigue detection . . . . . . . . . . . . . . . . . . . . . . . . . 227
Fault in electronic differential lock (EDL) control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Faulty bulbs changing the bulbs . . . . . . . . . . . . . . . . . . . . . 102
Filling the tank . . . . . . . . . . . . . . . . . . . . . . . . . . . 265 fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Fire extinguisher . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
First-aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Fluid Level control . . . . . . . . . . . . . . . . . . . . . . . . . 54
Fog light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 21, 84 safety instructions . . . . . . . . . . . . . . . . . . . . . . . 84
Front Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203 City Emergency braking function . . . . . . . . . . . 207
malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
on-screen messages . . . . . . . . . . . . . . . . . . . . 205
operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
radar sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
switching off temporarily . . . . . . . . . . . . . . . . . 207
system limitations . . . . . . . . . . . . . . . . . . . . . . 207
see also Front Assist monitoring system . . . . . 203
Front Assist monitoring system City Emergency braking function . . . . . . . . . . . 207
malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
on-screen messages . . . . . . . . . . . . . . . . . . . . 205
operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
radar sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . 205 switching off temporarily . . . . . . . . . . . . . . . . . 207
syst
em limitations . . . . . . . . . . . . . . . . . . . . . . 207
Front drink holder . . . . . . . . . . . . . . . . . . . . . . . . . 151
Front passenger front airbag control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
deactivation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Front seat manual adjustment . . . . . . . . . . . . . . . . . . . . . . 18
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54, 265 consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . 286
diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
ethanol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Fuel consumption . . . . . . . . . . . . . . . . . . . . . . . . . 192 why does fuel consumption increase? . . . . . . 193
Fuel tank cap opening and closing . . . . . . . . . . . . . . . . . . . . . 54
Fuel tank flap opening and closing . . . . . . . . . . . . . . . . . . . . . 54
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58, 100 fuse box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
identifying blown fuses . . . . . . . . . . . . . . . . . . . 59
identifying by colours . . . . . . . . . . . . . . . . . . . . . 58
preparation before replacing . . . . . . . . . . . . . . . 58
replacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
G
Gear-change indicator . . . . . . . . . . . . . . . . . 39, 190
Gearbox DSG see Automatic gearbox . . . . . . . . . . . . . . . . . . . 183
Gearbox lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Gear change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
changing gears (manual gearbox) . . . . . . . . . 183
Kick-down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
297
