Page 111 of 303
Unlocking and locking109
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Sliding/Tilting
The sun roof will create less wind noise if it is opened in the
comfort setting.Comfort setting
– Turn the control until it engages at position ⇒fig. 80 . The sun
roof will now only open as far as the comfort setting which means
there is less wind noise.
Opening completely
– Turn the switch to position and hold it until the sun roof reaches the desired position. This position can cause more wind
noise.
Tilting open
– Turn the control to position . – With the control in position 0, press the control
briefly to make
the roof tilt open all the way.
– To open the roof as far as an intermediate setting, press and hold
the control until the roof has moved to the desired position.
When you release the switch it will auto matically spring back from position
to position .
The sliding sun blind in the headliner automatically opens when the sunroof
is slid open. If required, it can be closed by hand when the sunroof is closed.
It is advisable to close the sun blind when the vehicle is left standing in the
sun. It is important to remember to close the sunroof when parking the
vehicle or if it suddenly starts raining – especially when the sun blind is
extended.
For further information on the automatic close function, see ⇒page 110.ClosingClosing
–Turn the control to position ⇒ fig. 80 to close the sunroof
⇒ .
Closing the sunroof from the tilt position
– Pull the specially formed rear end of the control and hold it until
the sunroof has moved down to the desired position.
–Pull the switch briefly to lower the sunroof automatically to the
fully closed position. If required, the sunroof can be stopped in
any position by briefly pulling the control again ⇒.
Fig. 80 Details of head-
liner: Rotary sun roof
controlA1
A2A0
A2
A1
A0
Exeo_EN.book Seite 109 Freitag, 17. Oktober 2008 11:24 11

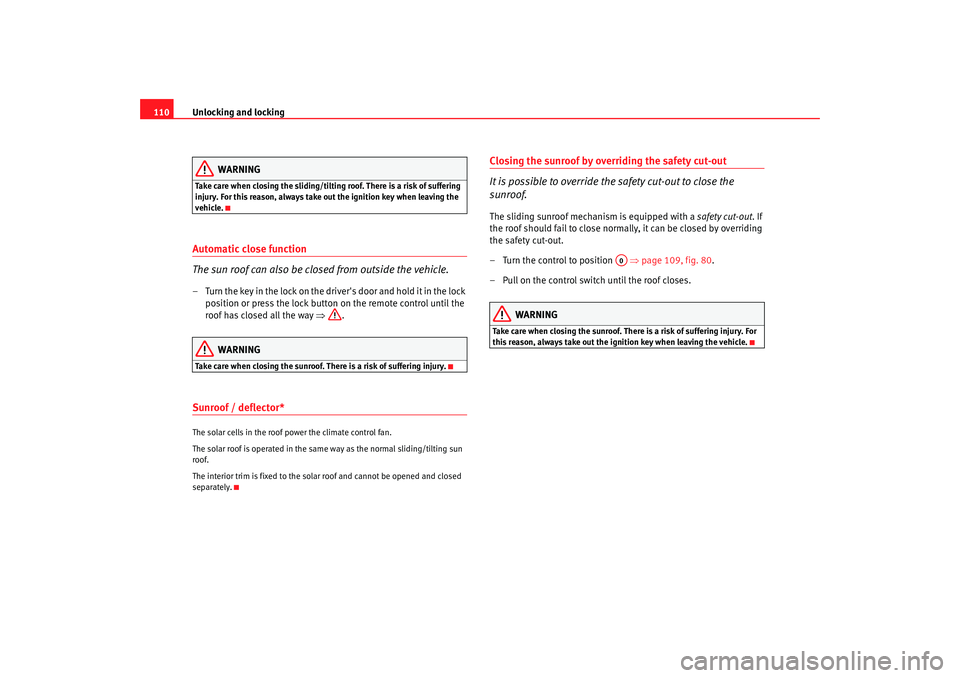

Page 112 of 303
Unlocking and locking
110
WARNING
Take care when closing the sliding/tilting roof. There is a risk of suffering
injury. For this reason, always take out the ignition key when leaving the
vehicle.Automatic close function
The sun roof can also be closed from outside the vehicle.– Turn the key in the lock on the driver's door and hold it in the lock
position or press the lock button on the remote control until the
roof has closed all the way ⇒.
WARNING
Take care when closing the sunroof. There is a risk of suffering injury.Sunroof / deflector*The solar cells in the roof power the climate control fan.
The solar roof is operated in the same way as the normal sliding/tilting sun
roof.
The interior trim is fixed to the solar roof and cannot be opened and closed
separately.
Closing the sunroof by overriding the safety cut-out
It is possible to override the safety cut-out to close the
sunroof.The sliding sunroof mechanism is equipped with a safety cut-out. If
the roof should fail to close normally, it can be closed by overriding
the safety cut-out.
– Turn the control to position ⇒page 109, fig. 80 .
– Pull on the control switch until the roof closes.
WARNING
Take care when closing the sunroof. There is a risk of suffering injury. For
this reason, always take out the ignition key when leaving the vehicle.
A0
Exeo_EN.book Seite 110 Freitag, 17. Oktober 2008 11:24 11
Page 113 of 303
Unlocking and locking111
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Closing the sunroof manually
The sunroof can be closed by hand if the electrical system
should fail to operate.
– Carefully insert the flat end of a screwdriver (from the car's tool
kit) at the rear of the glass cover on the interior light ⇒fig. 81 .
– Carefully lever off the glass cover.
–Take the crank handle from its moun ting on the inside of the fuse
box cover ⇒page 247.
– Insert the crank handle all the way into the hexagonal socket ⇒ fig. 82 .
– Hold the crank handle in position and turn it to close the sun roof.
– Reinstall the glass cover: insert the plastic lugs first and then press the cover upwards.
– Have the fault repaired.
NoteYou can use the screwdriver handle to make it easier to turn the crank. Detach
the handle from the screwdriver and then fit the handle onto the crank.
Fig. 81 Details of head-
liner: Points for applying
screwdriverFig. 82 Details of head-
liner: Crank handle for
manual operations
A1
A2
Exeo_EN.book Seite 111 Freitag, 17. Oktober 2008 11:24 11

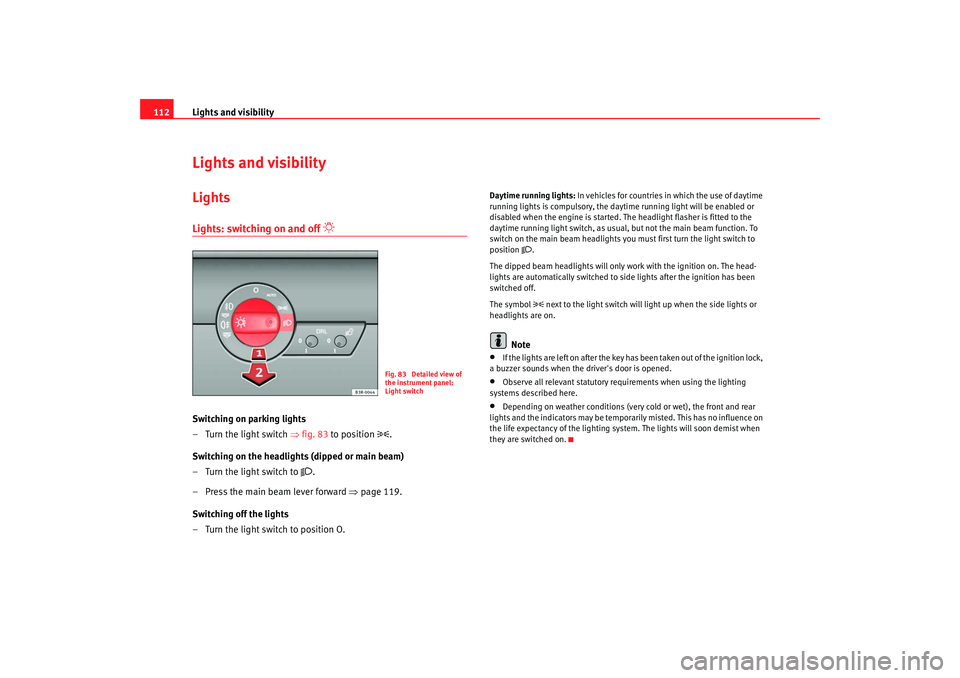

Page 114 of 303
Lights and visibility
112Lights and visibilityLightsLights: switching on and off
Switching on parking lights
– Turn the light switch ⇒fig. 83 to position
.
Switching on the headlights (dipped or main beam)
– Turn the light switch to
.
– Press the main beam lever forward ⇒page 119.
Switching off the lights
– Turn the light switch to position O.
Daytime running lights: In vehicles for countries in which the use of daytime
running lights is compulsory, the dayt ime running light will be enabled or
disabled when the engine is started. The headlight flasher is fitted to the
daytime running light switch, as usual, but not the main beam function. To
switch on the main beam headlights you must first turn the light switch to
position
.
The dipped beam headlights will only work with the ignition on. The head-
lights are automatically switched to side lights after the ignition has been
switched off.
The symbol next to the light switch will light up when the side lights or
headlights are on.
Note
•
If the lights are left on after the key has been taken out of the ignition lock,
a buzzer sounds when the driver's door is opened.
•
Observe all relevant statutory requirements when using the lighting
systems described here.
•
Depending on weather conditions (very cold or wet), the front and rear
lights and the indicators may be tempor arily misted. This has no influence on
the life expectancy of the lighting syst em. The lights will soon demist when
they are switched on.
Fig. 83 Detailed view of
the instrument panel:
Light switch
Exeo_EN.book Seite 112 Freitag, 17. Oktober 2008 11:24 11
Page 115 of 303
Lights and visibility113
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Automatic (sensor-controlled) headlights*
If you set the switch to “AUTO”, the headlights will come on
and switch off automatically according to the ambient light
level.The sensor-controlled dipped beam headlights have the same prop-
erties as the main beam headlights ⇒page 112.
Enabling the headlights
– Turn the light switch ⇒ fig. 84 to the AUTO position.
Disabling the headlights
– Turn the light switch to position O.The symbol on the switch lights up when the switch is in the AUTO position.
The dipped beams, side lights, rear li ghts and number plate lights come on
together when the headlights are switched on automatically. When you are using the automatic headlights, you can also operate the main
beam headlights, however, please note the following: If you enable the main
beam headlights while using the automatic headlights function
during the
day (e.g. when driving through a tunnel), but do not disable them again, only
the dipped beam headlights will come on the next time the lights are auto-
matically switched on. To be able to use the main beam headlights again, you
must first pull the main beam lever back to the "off" position and then push
it forward again to "on".
The side lights, headlights, fog lights and rear fog light can still be switched
on manually in the normal way by using the light switch ⇒page 112.
The mirror inside the vehicle is fitted with sensors that measure the ambient
light. The headlights will be switched on automatically if the available light
drops below a preset value (for instance when driving through a tunnel, etc.).
The headlights switch off again automatically when the light level increases
⇒ .
WARNING
•
The automatic headlights are only intended to assist the driver. The
driver must always ensure that the headlights are used when required and
may have to switch them on manually when the light conditions or visibility
are poor. The light sensors are, for example, unable to detect rain and fog
- you should therefore always switch on the headlights
in these condi-
tions and when driving after dark.
•
Observe all relevant legal requirements when using the signalling and
lighting systems described here.Note
•
When the automatic headlights have been enabled, the dipped-beam
headlights will go out when the ignition is switched off and the side lights will
go out when the key is removed.
Fig. 84 Detailed view of
instrument panel: Light
switch
Exeo_EN.book Seite 113 Freitag, 17. Oktober 2008 11:24 11
Page 116 of 303
Lights and visibility
114•
If you have to attach any type of sticker on the windscreen, do not do so
in front of the sensors. Doing so c ould prevent the automatic headlight or
anti-dazzle function from working correctly or even from working at all.
•
The warning symbol
will appear on the inst rument panel if a malfunc-
tion occurs ⇒page 79.
•
Observe all relevant legal requirements when using the signalling and
lighting systems described here.
Front fog lights
The light switch can also be used to turn on the front fog
lights.Switching on the front fog lights
–Do
⇒ page 112, fig. 83 not turn the light switch to the symbol
.
– First turn the light switch to the position
or
.
– Then pull the light switch out to the first stop .
The front fog light symbol
next to the switch will light up when the front fog
lights are on.
Rear fog light
The light switch can also be used to turn on the rear fog light.–Do
⇒ page 112, fig. 83 not turn the light switch to the symbol
. – First turn the light switch
⇒ page 112, fig. 83 to the position
or
.
– Then pull out the light switch to the second stop to switch on the rear fog light.
The symbols
and
next to the switch will light up when the rear fog light
is switched on.
If you are towing a trailer or caravan equipped with a rear fog light on a vehicle
with a factory-fitted towing bracket*, only the rear fog light on the trailer or
caravan will light up.
Caution
To avoid dazzling the traffic behind you, the rear fog light should only be used
in accordance with legal regulations.
A1
A2
Exeo_EN.book Seite 114 Freitag, 17. Oktober 2008 11:24 11
Page 117 of 303
Lights and visibility115
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Coming home and leaving home functions*
The coming home and leaving home functions are used to
light up the surroundings in th e dark. The front fog lights, the
rear side lights and the number plate light switch on.Enabling the functions
– Briefly press the knob ⇒fig. 85 to release it from its set position.
– Turn the knob to position 1.
– Press the knob in again to prevent the setting from being changed unintentionally.
Disabling the functions
– Briefly press the knob ⇒fig. 85 to release it from its set position.
– Turn the knob to position 0. – Press the knob in again to prevent the setting from being
changed unintentionally.
The coming home and leaving home functions are controlled by light sensors
in the rear view mirror housing. The sy stem will function when the following
requirements are met:•
The knob is set to position 1.
•
The headlights and the ignition are switched off.
•
Dark conditions; the sensors register little or no light.
Coming home
When the system is enabled and it is dark, the corresponding exterior lights
switch on as soon as the driver's door is opened.
The exterior lights will stay on for up to a maximum of 2 minutes as long as
one of the doors or the tailgate is open.
The exterior lights stay on for about 30 seconds to light up the area in front of
the car after all the doors and the tailgate have been closed.
This time interval is factory-set, but you can have it changed by a specialist
garage to suit your own requirements (max. setting is 60 seconds).
Leaving home
The exterior lights are switched on wh en the vehicle is unlocked with the
button on the remote control key.
The exterior lights go out when the dr iver's door is opened or after 60
seconds when the vehicle locks itself again automatically ⇒page 102.
WARNING
Before leaving the vehicle, remove the key from the ignition, as the lights
will not go out if the coming home is enabled. This will lead to battery
discharge and vehicle breakdown.
Fig. 85 Detailed view of
the instrument panel:
Coming home and leaving
home functions
Exeo_EN.book Seite 115 Freitag, 17. Oktober 2008 11:24 11
Page 118 of 303
Lights and visibility
116
Note•
If you always wish to use the coming home and leaving home functions,
you can leave them permanently switched on. As the system is controlled via
a light sensor, it will only work in dark conditions.
•
Permanent use of the coming home and leaving home functions, particu-
larly o n sho r t jo urneys, will increase the load o n the batter y. To make su re the
battery is always sufficiently charged, occasionally drive longer distances.
•
If the fog lights have been switched on by the coming home and leaving
home functions, they will always be switched off when you switch on the igni-
tion.
•
Observe all relevant legal requirements when using the signalling and
lighting systems described here.
Instrument lighting
The brightness of the instrument lighting, displays and
centre console lighting can be varied as required.
– Press the button to increase the brightness.
– Press the button to reduce the brightness.With the ignition switched on
The lighting of the digital displays will adjust automatically, depending on
the enveloping light.
With the vehicle's lights switched on
When the vehicle's lights are switched on, the brightness of the instrument
lighting, displays and centre console li ghting can be varied by pressing the
and buttons.Headlight range control
When the dipped beam headlights are switched on, the range
of the headlights can be adjusted to suit the load being
carried.
Fig. 86 Instrument panel
lighting
+-
+
-
Fig. 87 Headlight range
control
Exeo_EN.book Seite 116 Freitag, 17. Oktober 2008 11:24 11

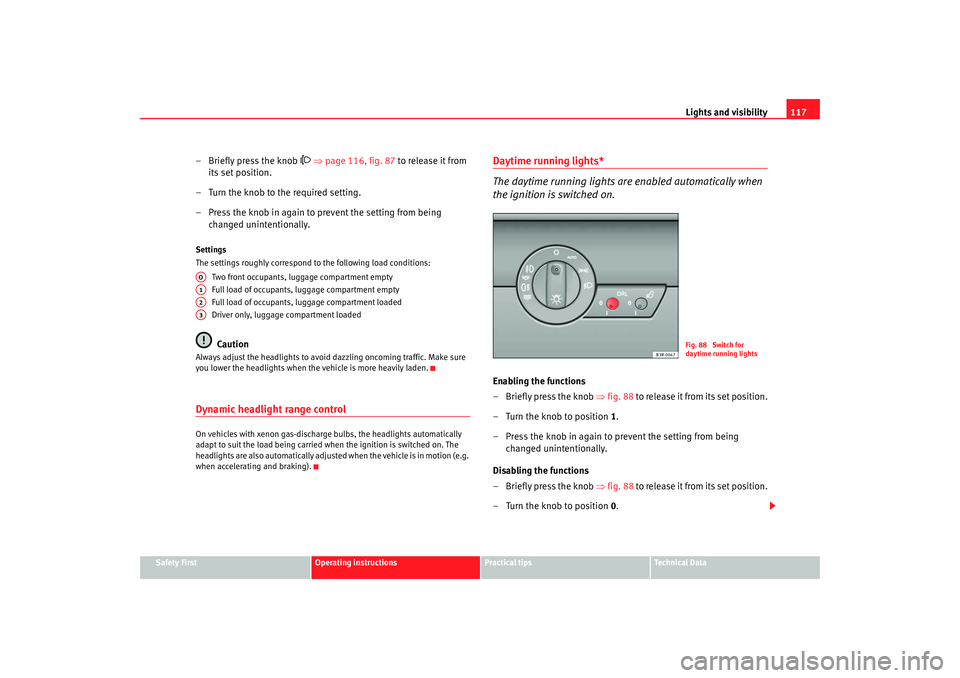

Page 119 of 303
Lights and visibility117
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
– Briefly press the knob
⇒ page 116, fig. 87 to release it from
its set position.
– Turn the knob to the required setting.
– Press the knob in again to prevent the setting from being changed unintentionally.
Settings
The settings roughly correspond to the following load conditions:
Two front occupants, luggage compartment empty
Full load of occupants, lug gage compartment empty
Full load of occupants, luggage compartment loaded
Driver only, luggage compartment loaded
Caution
Always adjust the headlights to avoid dazzling oncoming traffic. Make sure
you lower the headlights when the vehicle is more heavily laden.Dynamic headlight range controlOn vehicles with xenon gas-discharge bulbs, the headlights automatically
adapt to suit the load being carried when the ignition is switched on. The
headlights are also automatically adjusted when the vehicle is in motion (e.g.
when accelerating and braking).
Daytime running lights*
The daytime running lights are enabled automatically when
the ignition is switched on.Enabling the functions
– Briefly press the knob ⇒fig. 88 to release it from its set position.
– Turn the knob to position 1.
– Press the knob in again to prevent the setting from being changed unintentionally.
Disabling the functions
– Briefly press the knob ⇒fig. 88 to release it from its set position.
– Turn the knob to position 0.
AOA1A2A3
Fig. 88 Switch for
daytime running lights
Exeo_EN.book Seite 117 Freitag, 17. Oktober 2008 11:24 11

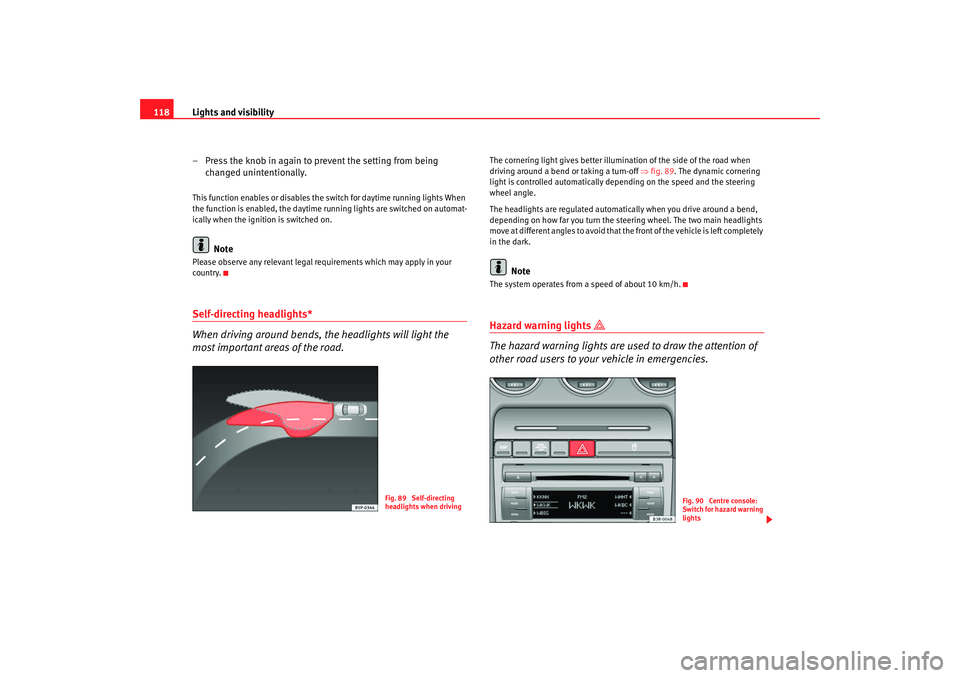

Page 120 of 303
Lights and visibility
118
– Press the knob in again to prevent the setting from being changed unintentionally.This function enables or disables the switch for daytime running lights When
the function is enabled, the daytime ru nning lights are switched on automat-
ically when the ignition is switched on.
Note
Please observe any relevant legal requirements which may apply in your
country.Self-directing headlights*
When driving around bends, the headlights will light the
most important areas of the road.
The cornering light gives better illumination of the side of the road when
driving around a bend or taking a turn-off ⇒fig. 89 . The dynamic cornering
light is controlled automatically depending on the speed and the steering
wheel angle.
The headlights are regulated automatically when you drive around a bend,
depending on how far you turn the steering wheel. The two main headlights
move at different angles to avoid that the front of the vehicle is left completely
in the dark.
Note
The system operates from a speed of about 10 km/h.Hazard warning lights
The hazard warning lights are used to draw the attention of
other road users to your vehicle in emergencies.
Fig. 89 Self-directing
headlights when driving
Fig. 90 Centre console:
Switch for hazard warning
lights
Exeo_EN.book Seite 118 Freitag, 17. Oktober 2008 11:24 11
