Seat Exeo 2008 Owner's manual

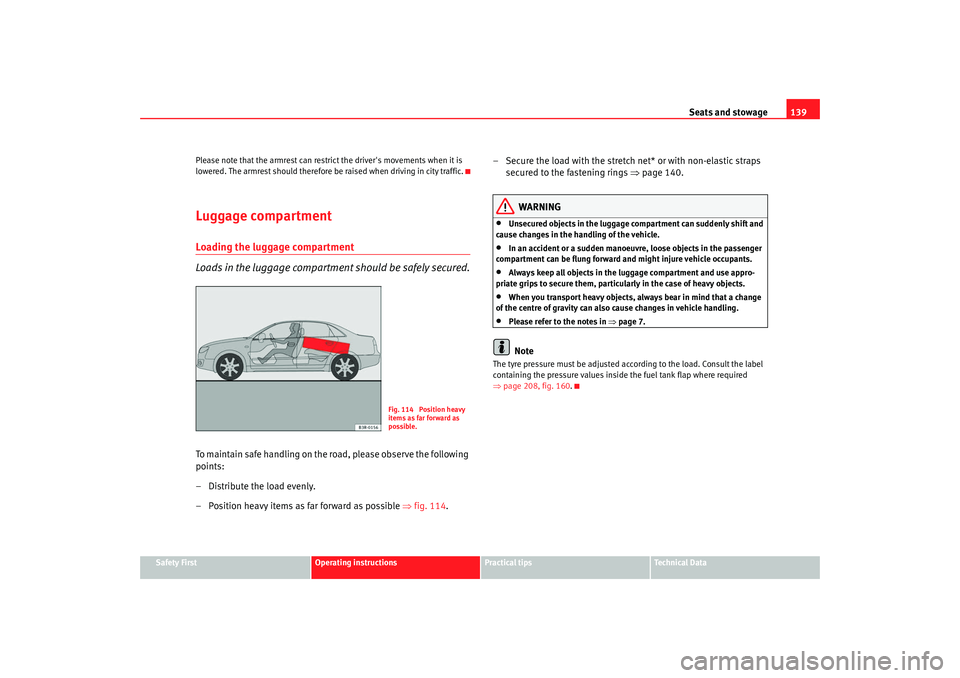

Seats and stowage139
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Please note that the armrest can restrict the driver's movements when it is
lowered. The armrest should therefore be raised when driving in city traffic.
Luggage compartmentLoading the luggage compartment
Loads in the luggage compartment should be safely secured.To maintain safe handling on the road, please observe the following
points:
– Distribute the load evenly.
– Position heavy items as far forward as possible ⇒
fig. 114.– Secure the load with the stretch net* or with non-elastic straps
secured to the fastening rings ⇒page 140.
WARNING
•
Unsecured objects in the luggage compartment can suddenly shift and
cause changes in the ha ndling of the vehicle.
•
In an accident or a sudden manoeuvre, loose objects in the passenger
compartment can be flung forward and might injure vehicle occupants.
•
Always keep all objects in the luggage compartment and use appro-
priate grips to secure them, particularly in the case of heavy objects.
•
When you transport heavy objects, always bear in mind that a change
of the centre of gravity can also cause changes in vehicle handling.
•
Please refer to the notes in ⇒page 7.Note
The tyre pressure must be adjusted according to the load. Consult the label
containing the pressure values inside the fuel tank flap where required
⇒ page 208, fig. 160 .
Fig. 114 Position heavy
items as far forward as
possible.
Exeo_EN.book Seite 139 Freitag, 17. Oktober 2008 11:24 11

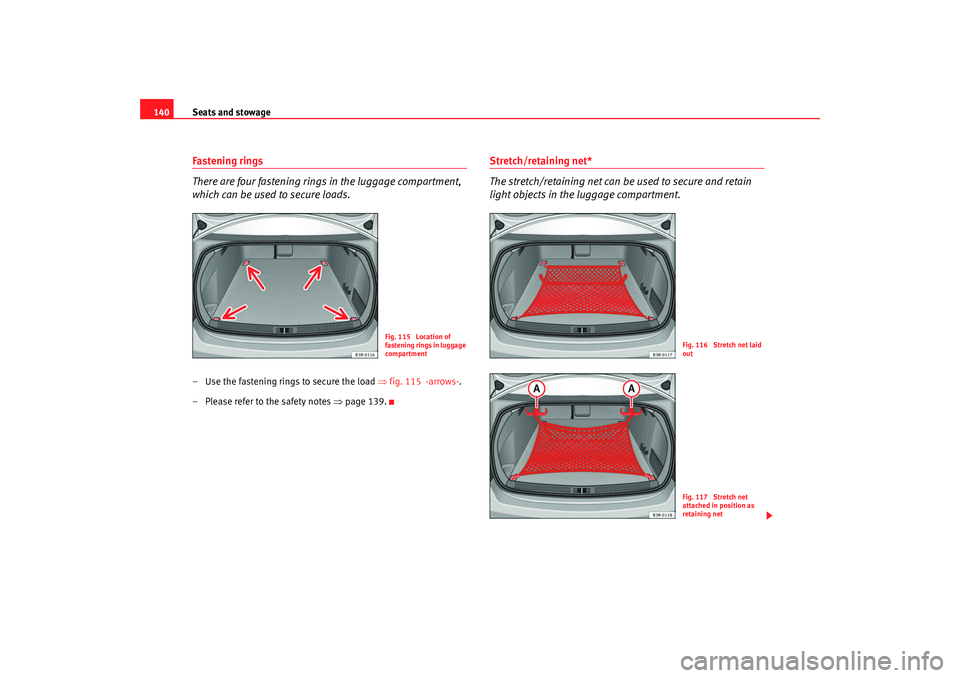

Seats and stowage
140Fastening rings
There are four fastening rings in the luggage compartment,
which can be used to secure loads.– Use the fastening rings to secure the load ⇒fig. 115 -arrows- .
– Please refer to the safety notes ⇒page 139.
Stretch/retaining net*
The stretch/retaining net can be used to secure and retain
light objects in the luggage compartment.
Fig. 115 Location of
fastening rings in luggage
compartment
Fig. 116 Stretch net laid
outFig. 117 Stretch net
attached in position as
retaining net
Exeo_EN.book Seite 140 Freitag, 17. Oktober 2008 11:24 11

Seats and stowage141
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

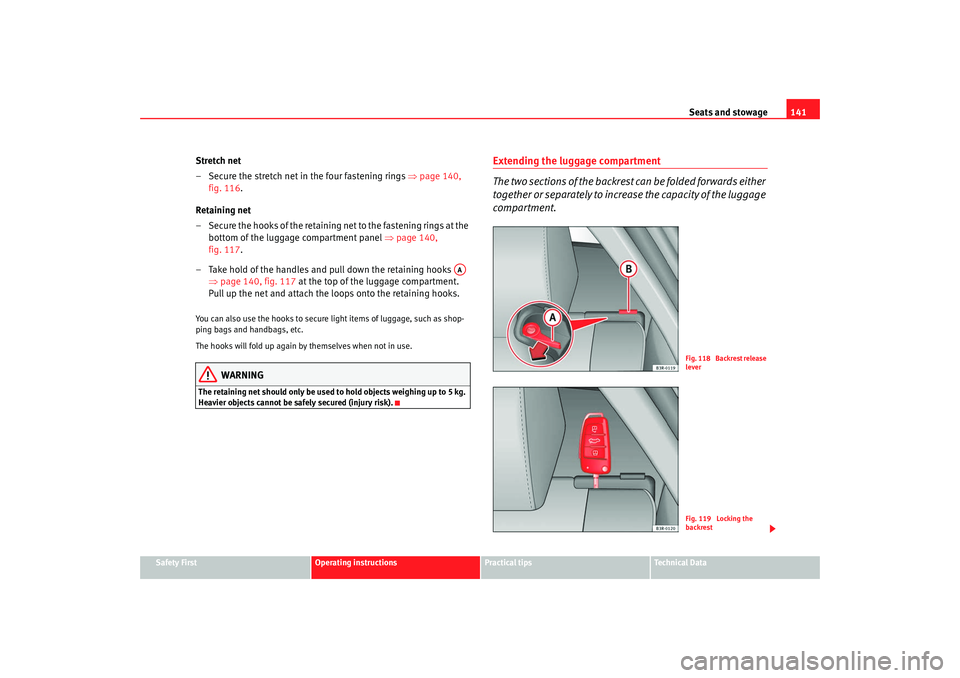

Stretch net
– Secure the stretch net in the four fastening rings ⇒page 140,
fig. 116.
Retaining net
– Secure the hooks of the retaining net to the fastening rings at the bottom of the luggage compartment panel ⇒page 140,
fig. 117.
– Take hold of the handles and pull down the retaining hooks ⇒page 140, fig. 117 at the top of the luggage compartment.
Pull up the net and attach the loops onto the retaining hooks.You can also use the hooks to secure light items of luggage, such as shop-
ping bags and handbags, etc.
The hooks will fold up again by themselves when not in use.
WARNING
The retaining net should only be used to hold objects weighing up to 5 kg.
Heavier objects cannot be safely secured (injury risk).
Extending the luggage compartment
The two sections of the backrest can be folded forwards either
together or separately to increase the capacity of the luggage
compartment.
AA
Fig. 118 Backrest release
leverFig. 119 Locking the
backrest
Exeo_EN.book Seite 141 Freitag, 17. Oktober 2008 11:24 11

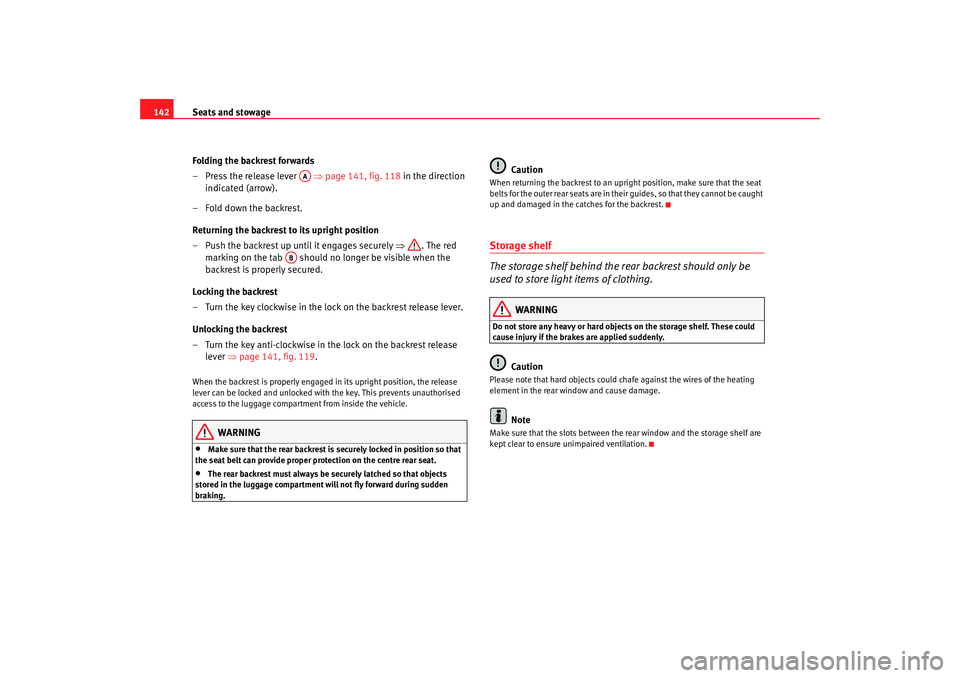

Seats and stowage
142
Folding the backrest forwards
– Press the release lever ⇒ page 141, fig. 118 in the direction
indicated (arrow).
– Fold down the backrest.
Returning the backrest to its upright position
– Push the backrest up until it engages securely ⇒. The red
marking on the tab should no longer be visible when the
backrest is properly secured.
Locking the backrest
– Turn the key clockwise in the lock on the backrest release lever.
Unlocking the backrest
– Turn the key anti-clockwise in the lock on the backrest release lever ⇒page 141, fig. 119 .When the backrest is properly engage d in its upright position, the release
lever can be locked and unlocked with the key. This prevents unauthorised
access to the luggage compartment from inside the vehicle.
WARNING
•
Make sure that the rear backrest is securely locked in position so that
the seat belt can provide proper protection on the centre rear seat.
•
The rear backrest must always be securely latched so that objects
stored in the luggage compartment will not fly forward during sudden
braking.
Caution
When returning the backrest to an upright position, make sure that the seat
belts for the outer rear seats are in their guides, so that they cannot be caught
up and damaged in the catches for the backrest.Storage shelf
The storage shelf behind the rear backrest should only be
used to store light items of clothing.
WARNING
Do not store any heavy or hard objects on the storage shelf. These could
cause injury if the brakes are applied suddenly.
Caution
Please note that hard objects could chafe against the wires of the heating
element in the rear window and cause damage.
Note
Make sure that the slots between the rear window and the storage shelf are
kept clear to ensure unimpaired ventilation.
AA
AB
Exeo_EN.book Seite 142 Freitag, 17. Oktober 2008 11:24 11

Seats and stowage143
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

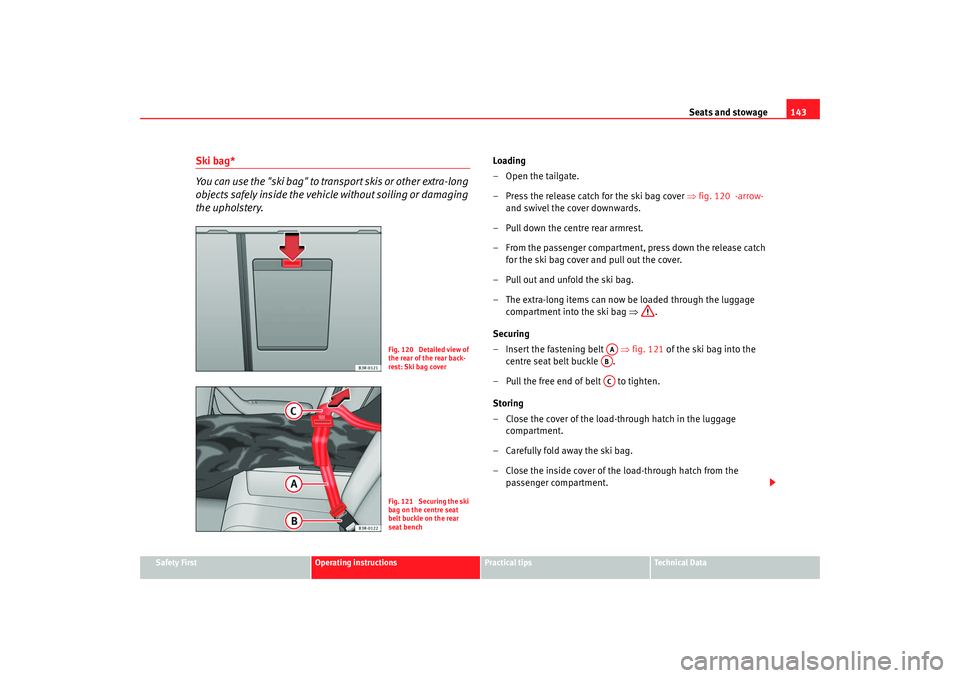

Ski bag*
You can use the "ski bag" to transport skis or other extra-long
objects safely inside the vehicle without soiling or damaging
the upholstery.
Loading
–Open the tailgate.
– Press the release catch for the ski bag cover ⇒fig. 120 -arrow-
and swivel the cover downwards.
– Pull down the centre rear armrest.
– From the passenger compartment, press down the release catch for the ski bag cover and pull out the cover.
–Pull out and unfold the ski bag.
– The extra-long items can now be loaded through the luggage compartment into the ski bag ⇒.
Securing
– Insert the fastening belt ⇒fig. 121 of the ski bag into the
centre seat belt buckle .
– Pull the free end of belt to tighten.
Storing
– Close the cover of the load-t hrough hatch in the luggage
compartment.
– Carefully fold away the ski bag.
– Close the inside cover of the load-through hatch from the passenger compartment.
Fig. 120 Detailed view of
the rear of the rear back-
rest: Ski bag coverFig. 121 Securing the ski
bag on the centre seat
belt buckle on the rear
seat bench
AAABAC
Exeo_EN.book Seite 143 Freitag, 17. Oktober 2008 11:24 11

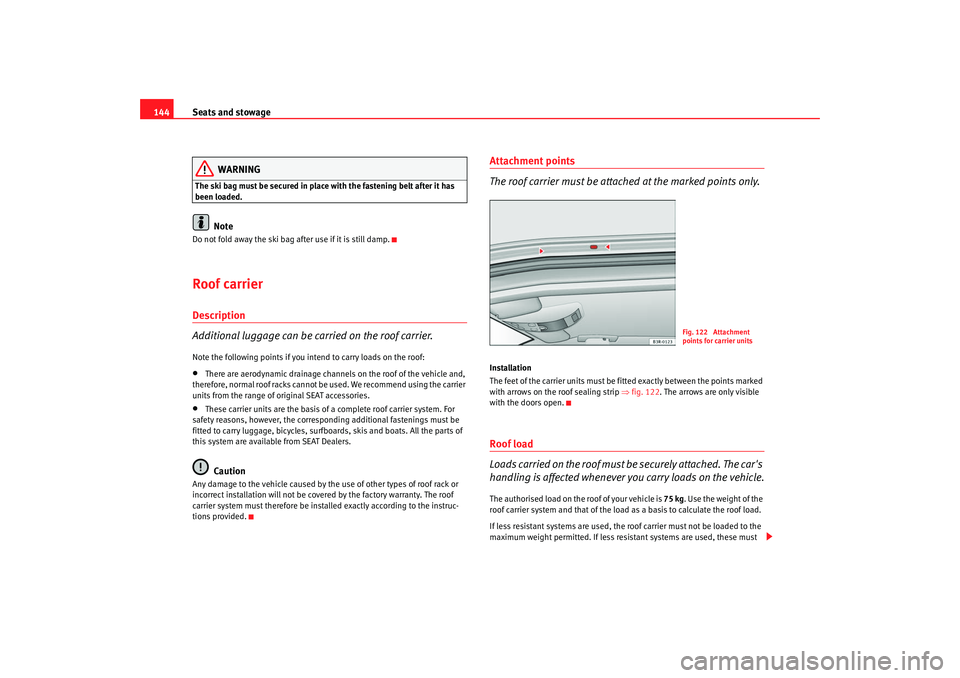

Seats and stowage
144
WARNING
The ski bag must be secured in place with the fastening belt after it has
been loaded.
Note
Do not fold away the ski bag after use if it is still damp.Roof carrierDescription
Additional luggage can be ca rried on the roof carrier.Note the following points if you intend to carry loads on the roof:•
There are aerodynamic drainage channels on the roof of the vehicle and,
therefore, normal roof racks cannot be used. We recommend using the carrier
units from the range of original SEAT accessories.
•
These carrier units are the basis of a complete roof carrier system. For
safety reasons, however, the corresponding additional fastenings must be
fitted to carry luggage, bicycles, surfboards, skis and boats. All the parts of
this system are available from SEAT Dealers.Caution
Any damage to the vehicle caused by the use of other types of roof rack or
incorrect installation will not be covered by the factory warranty. The roof
carrier system must therefore be installed exactly according to the instruc-
tions provided.
Attachment points
The roof carrier must be attached at the marked points only.Installation
The feet of the carrier units must be fitted exactly between the points marked
with arrows on the roof sealing strip ⇒fig. 122 . The arrows are only visible
with the doors open.Roof load
Loads carried on the roof must be securely attached. The car's
handling is affected whenever you carry loads on the vehicle.The authorised load on the roof of your vehicle is 75 kg. Use the weight of the
roof carrier system and that of the load as a basis to calculate the roof load.
If less resistant systems are used, the roof carrier must not be loaded to the
maximum weight permitted. If less resistant systems are used, these must
Fig. 122 Attachment
points for carrier units
Exeo_EN.book Seite 144 Freitag, 17. Oktober 2008 11:24 11

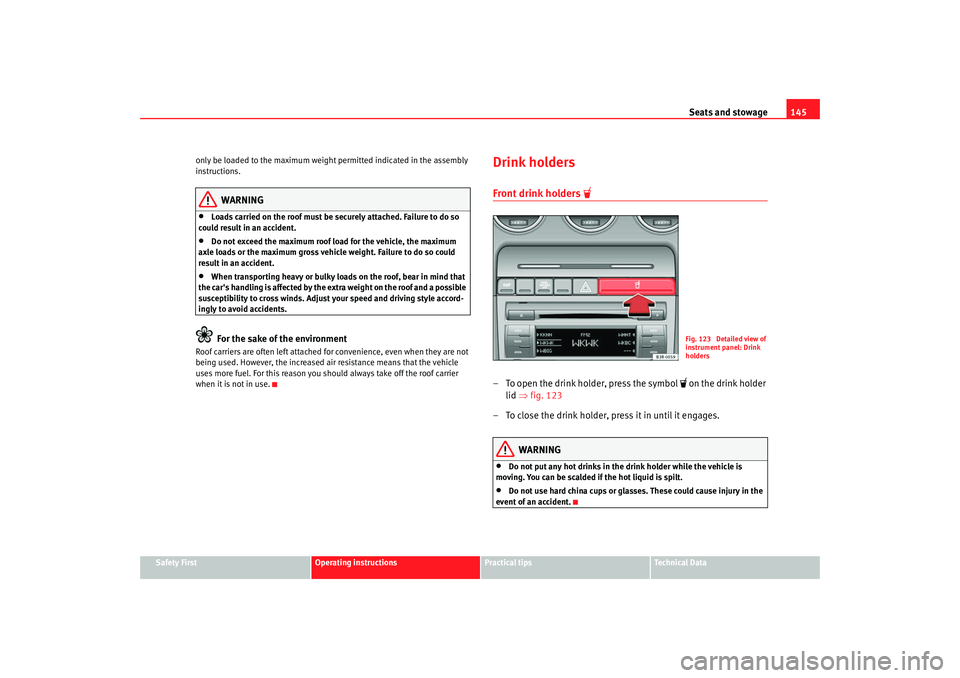

Seats and stowage145
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
only be loaded to the maximum weight
permitted indicated in the assembly
instructions.
WARNING
•
Loads carried on the roof must be securely attached. Failure to do so
could result in an accident.
•
Do not exceed the maximum roof load for the vehicle, the maximum
axle loads or the maximum gross vehi cle weight. Failure to do so could
result in an accident.
•
When transporting heavy or bulky lo ads on the roof, bear in mind that
the car's handling is affected by the extra weight on the roof and a possible
susceptibility to cross winds. Adjust your speed and driving style accord-
ingly to avoid accidents.For the sake of the environment
Roof carriers are often left attached for convenience, even when they are not
being used. However, the increased air resistance means that the vehicle
uses more fuel. For this reason you should always take off the roof carrier
when it is not in use.
Drink holdersFront drink holders

– To open the drink holder, press the symbol
 on the drink holder
lid ⇒fig. 123
– To close the drink holder, press it in until it engages.
WARNING
•
Do not put any hot drinks in the drink holder while the vehicle is
moving. You can be scalded if the hot liquid is spilt.
•
Do not use hard china cups or glasses. These could cause injury in the
event of an accident.
Fig. 123 Detailed view of
instrument panel: Drink
holders
Exeo_EN.book Seite 145 Freitag, 17. Oktober 2008 11:24 11

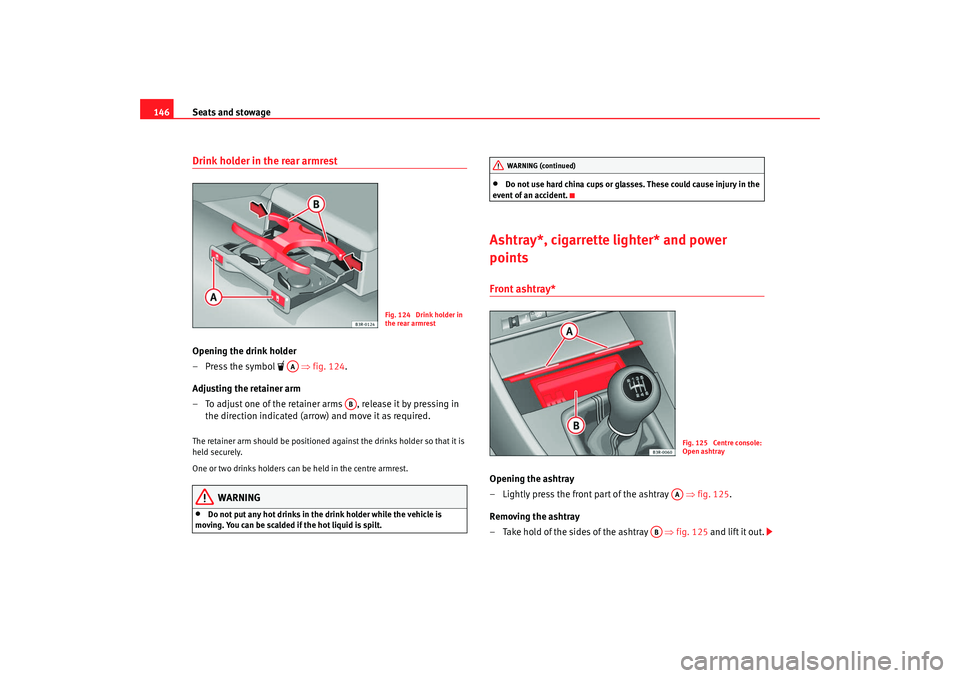

Seats and stowage
146Drink holder in the rear armrestOpening the drink holder
– Press the symbol
 ⇒fig. 124 .
Adjusting the retainer arm
– To adjust one of the retainer arms , release it by pressing in the direction indicated (arrow) and move it as required.
The retainer arm should be positioned against the drinks holder so that it is
held securely.
One or two drinks holders can be held in the centre armrest.
WARNING
•
Do not put any hot drinks in the drink holder while the vehicle is
moving. You can be scalded if the hot liquid is spilt.
•
Do not use hard china cups or glasses. These could cause injury in the
event of an accident.
Ashtray*, cigarrette lighter* and power
pointsFront ashtray*Opening the ashtray
– Lightly press the front part of the ashtray ⇒fig. 125.
Removing the ashtray
– Take hold of the sides of the ashtray ⇒fig. 125 and lift it out.
Fig. 124 Drink holder in
the rear armrest
AA
AB
WARNING (continued)
Fig. 125 Centre console:
Open ashtrayAA
AB
Exeo_EN.book Seite 146 Freitag, 17. Oktober 2008 11:24 11

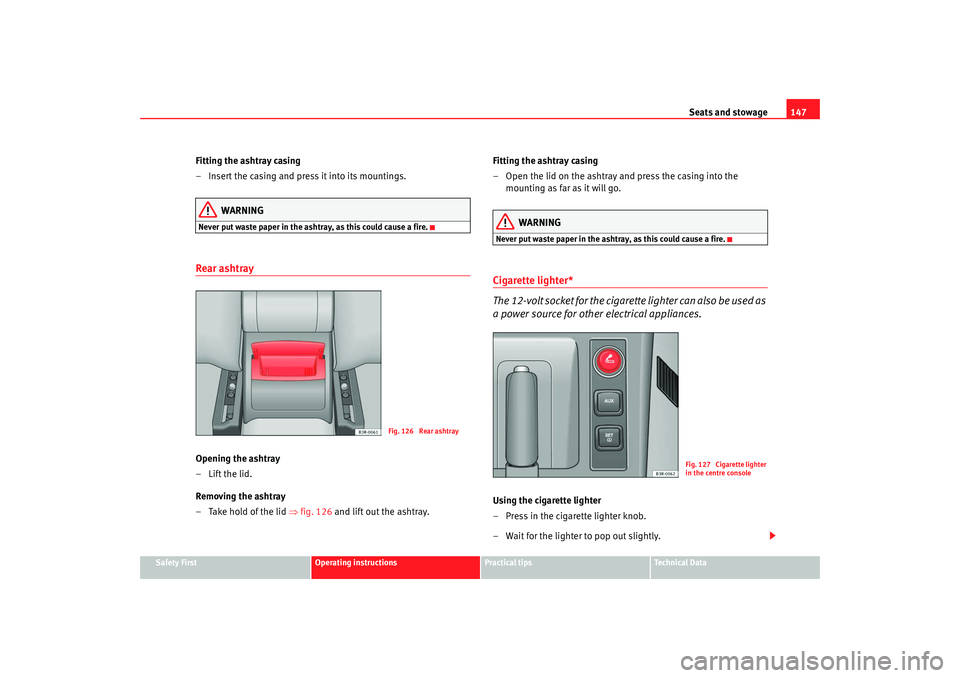

Seats and stowage147
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Fitting the ashtray casing
– Insert the casing and press it into its mountings.
WARNING
Never put waste paper in the ashtray, as this could cause a fire.Rear ashtrayOpening the ashtray
– Lift the lid.
Removing the ashtray
–Take hold of the lid ⇒fig. 126 and lift out the ashtray. Fitting the ashtray casing
– Open the lid on the ashtray and press the casing into the
mounting as far as it will go.
WARNING
Never put waste paper in the ashtray, as this could cause a fire.Cigarette lighter*
T h e 1 2 - v o l t s o c ke t f o r t h e c i g a re t t e l i g h t e r c a n a l s o b e u s e d a s
a power source for other electrical appliances.Using the cigarette lighter
– Press in the cigarette lighter knob.
– Wait for the lighter to pop out slightly.
Fig. 126 Rear ashtray
Fig. 127 Cigarette lighter
in the centre console
Exeo_EN.book Seite 147 Freitag, 17. Oktober 2008 11:24 11

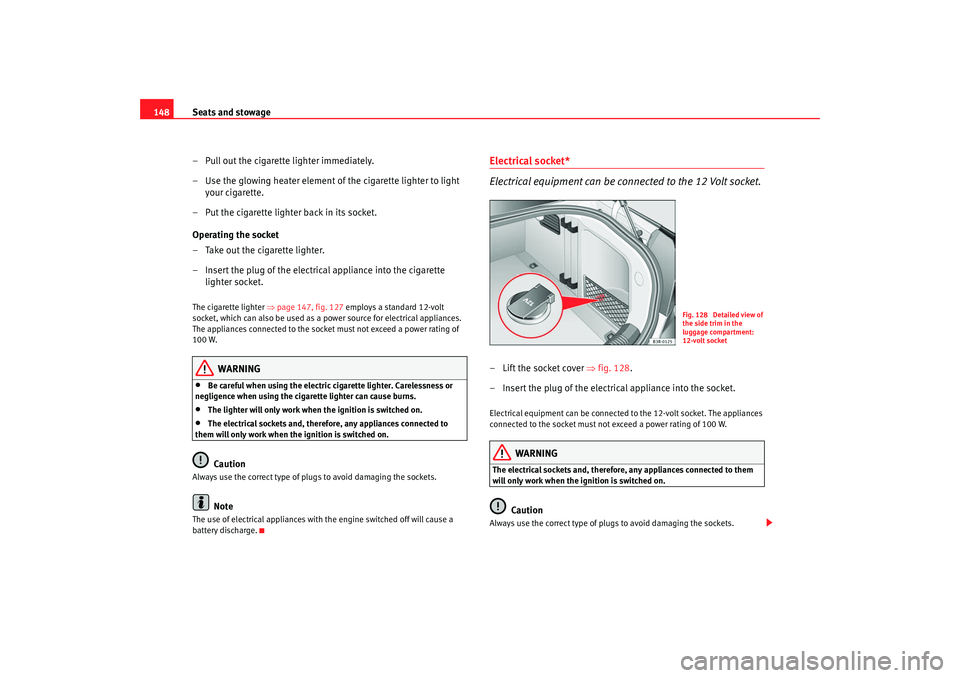

Seats and stowage
148
– Pull out the cigarette lighter immediately.
– Use the glowing heater element of the cigarette lighter to light your cigarette.
– Put the cigarette lighter back in its socket.
Operating the socket
– Take out the cigarette lighter.
– Insert the plug of the electrical appliance into the cigarette lighter socket.The cigarette lighter ⇒page 147, fig. 127 employs a standard 12-volt
socket, which can also be used as a power source for electrical appliances.
The appliances connected to the socket must not exceed a power rating of
100 W.
WARNING
•
Be careful when using the electric cigarette lighter. Carelessness or
negligence when using the cigarette lighter can cause burns.
•
The lighter will only work when the ignition is switched on.
•
The electrical sockets and, therefore, any appliances connected to
them will only work when the ignition is switched on.Caution
Always use the correct type of plugs to avoid damaging the sockets.
Note
The use of electrical appliances with the engine switched off will cause a
battery discharge.
Electrical socket*
Electrical equipment can be connected to the 12 Volt socket.– Lift the socket cover ⇒fig. 128 .
– Insert the plug of the electrical appliance into the socket.Electrical equipment can be connected to the 12-volt socket. The appliances
connected to the socket must not exceed a power rating of 100 W.
WARNING
The electrical sockets and, therefore, any appliances connected to them
will only work when the ignition is switched on.
Caution
Always use the correct type of plugs to avoid damaging the sockets.
Fig. 128 Detailed view of
the side trim in the
luggage compartment:
12-volt socket
Exeo_EN.book Seite 148 Freitag, 17. Oktober 2008 11:24 11
