Note

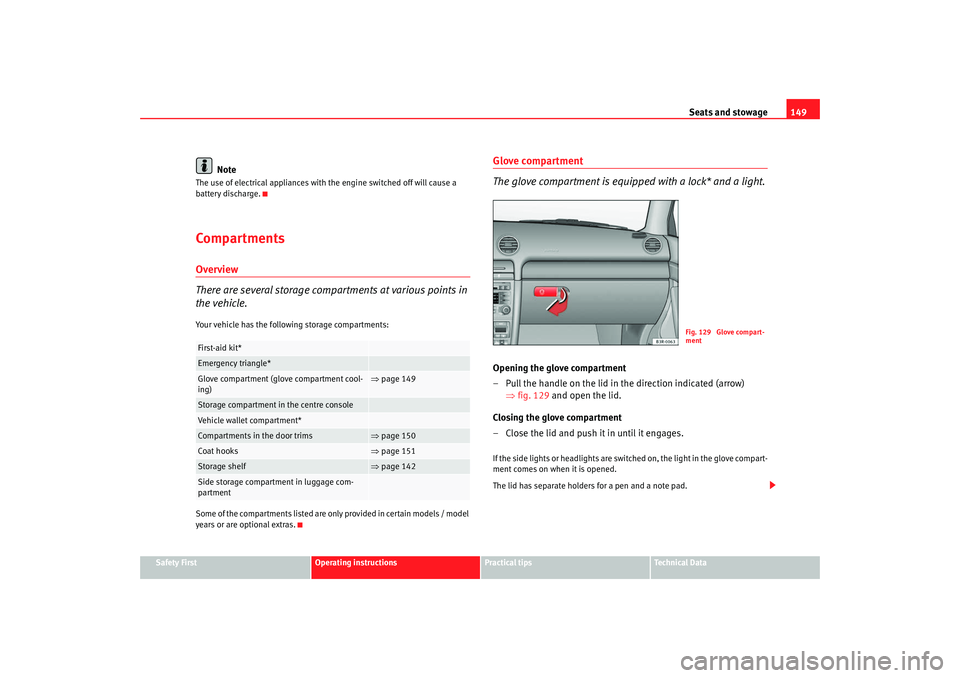

The use of electrical appliances with the engine switched off will cause a
battery discharge.CompartmentsOverview
There are several storage compartments at various points in
the vehicle.Your vehicle has the following storage compartments:
Some of the compartments listed are only provided in certain models / model
years or are optional extras.
Glove compartment
The glove compartment is equipped with a lock* and a light.Opening the glove compartment
– Pull the handle on the lid in the direction indicated (arrow)
⇒fig. 129 and open the lid.
Closing the glove compartment
– Close the lid and push it in until it engages.If the side lights or headlights are sw itched on, the light in the glove compart-
ment comes on when it is opened.
The lid has separate holders for a pen and a note pad.
First-aid kit*Emergency triangle*Glove compartment (glove compartment cool-
ing)
⇒ page 149
Storage compartment in the centre consoleVehicle wallet compartment*Compartments in the door trims
⇒page 150
Coat hooks
⇒page 151
Storage shelf
⇒page 142
Side storage compartment in luggage com-
partment
Fig. 129 Glove compart-
ment
Exeo_EN.book Seite 149 Freitag, 17. Oktober 2008 11:24 11
Page 152 of 303
Seats and stowage
150
WARNING

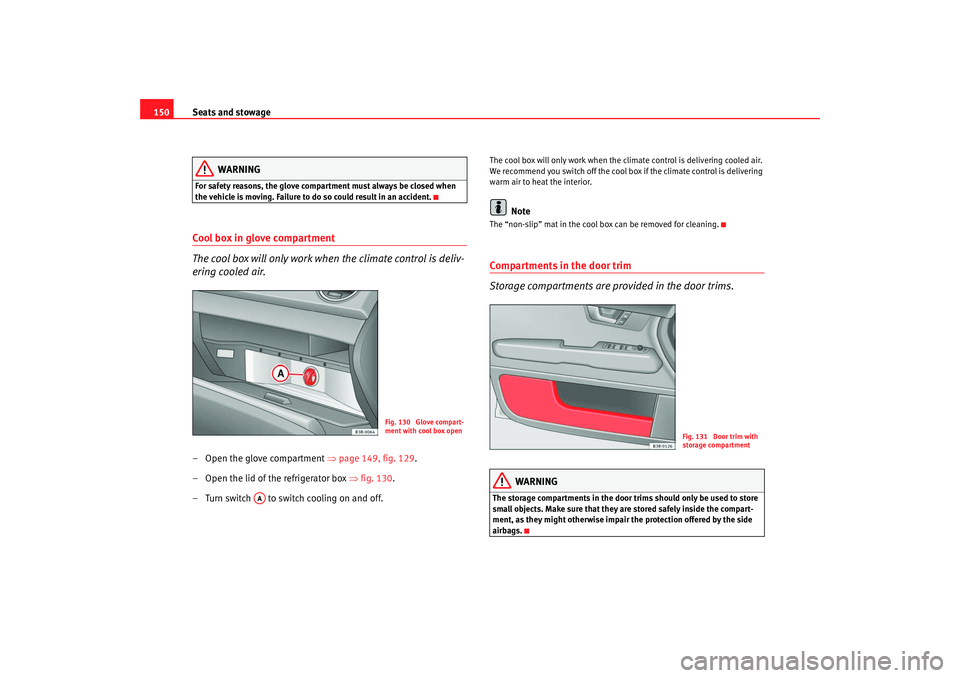

For safety reasons, the glove compartment must always be closed when
the vehicle is moving. Failure to do so could result in an accident.Cool box in glove compartment
The cool box will only work when the climate control is deliv-
ering cooled air.– Open the glove compartment ⇒page 149, fig. 129 .
– Open the lid of the refrigerator box ⇒fig. 130 .
– Turn switch to switch cooling on and off.
The cool box will only work when the climate control is delivering cooled air.
We recommend you switch off the cool box if the climate control is delivering
warm air to heat the interior.
Note
The “non-slip” mat in the cool box can be removed for cleaning.Compartments in the door trim
Storage compartments are provided in the door trims.
WARNING
The storage compartments in the door trims should only be used to store
small objects. Make sure that they are stored safely inside the compart-
ment, as they might otherwise impair the protection offered by the side
airbags.
Fig. 130 Glove compart-
ment with cool box open
AA
Fig. 131 Door trim with
storage compartment
Exeo_EN.book Seite 150 Freitag, 17. Oktober 2008 11:24 11
Page 153 of 303
Seats and stowage151
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Coat hooks

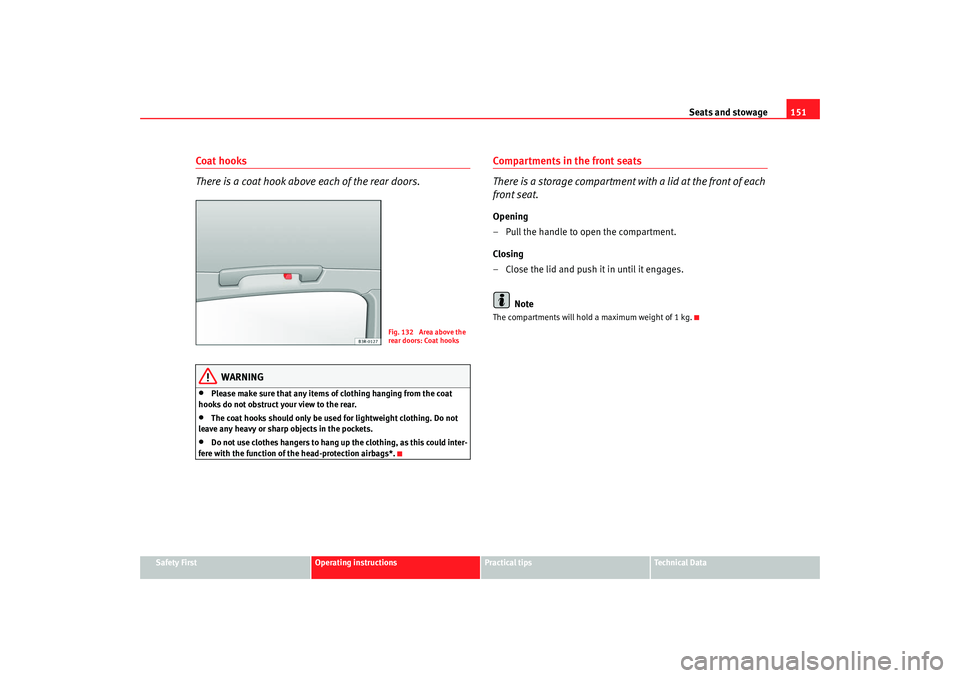

There is a coat hook above each of the rear doors.
WARNING
•
Please make sure that any items of clothing hanging from the coat
hooks do not obstruct your view to the rear.
•
The coat hooks should only be used for lightweight clothing. Do not
leave any heavy or sharp objects in the pockets.
•
Do not use clothes hangers to hang up the clothing, as this could inter-
fere with the function of the head-protection airbags*.
Compartments in the front seats
There is a storage compartment with a lid at the front of each
front seat.Opening
– Pull the handle to open the compartment.
Closing
– Close the lid and push it in until it engages.
NoteThe compartments will hold a maximum weight of 1 kg.
Fig. 132 Area above the
rear doors: Coat hooks
Exeo_EN.book Seite 151 Freitag, 17. Oktober 2008 11:24 11
Page 154 of 303
Heating, Ventilation and Air conditioning
152Heating, Ventilation and Air conditioning2C-ClimatronicDescription
The climate control is designed to automatically keep the
passenger compartment at the temperature you find most
comfortable at all times of the year.Recommended settings:
– Set the temperature to 22°C (71°F).
– Press the ⇒page 154, fig. 133 button.The following setting quickly provides a comfortable temperature inside the
vehicle. We therefore recommend you do not modify the setting unless you
find this temperature uncomfortable or where circumstances require as such.
The climate control provides heating and ventilation and also cools and
dehumidifies the air inside the vehicle.
The climate control is fully automatic and will constantly maintain the temper-
ature which has been set. To achieve this, the temperature of the air supplied
to the interior, the blower speed (volume of air delivery) and the air distribu-
tion are regulated automatically. The sy stem also takes solar radiation into
account and, therefore, no subsequent manual readjustments are required.
Therefore, automatic mode ⇒ page 155 should be used for the comfort of all
the passengers in virtually all conditions throughout the year.
Please note the following points:
The humidity of the air is automatically reduced when the system cools the
interior of the vehicle. This helps to prevent condensation on the windows. If the humidity and temperature outside the vehicle are high,
condensation
can drip off the evaporator in the air cooling system and form a pool under-
neath the vehicle. This is normal and does not indicate a leak.
If the outside temperature is low, the blower normally only switches to a
higher speed once the coolant has warm ed up sufficiently (this does not
apply to the defrost setting).
In order to achieve maximum engine power, the air conditioning compressor
is temporarily switched off when pulling away from standstill with full throttle.
The compressor also switches off if the coolant temperature is excessively
high to ensure adequate engine cooling under extreme loads.
Pollution filter
The pollution filter (a combined particle filter and activated charcoal filter)
serves as a barrier against impurities in the outside air, including dust and
pollen.
For the climate control to work with maximum efficiency, the pollution filter
element must be replaced at the intervals specified in the Service Schedule.
If the vehicle is driven in areas with a high level of air pollution and the filter
is no longer fully effective, it may be necessary to change the filter element
more frequently.
Caution
•
If you suspect that the climate control system is damaged, switch over to
ECON mode to prevent further damage and have the system checked by a
specialist garage.
•
Repairs to the climate control require specialist knowledge and special
tools. For this reason, please contact a specialist garage if the system is not
working properly.
AUTO
Exeo_EN.book Seite 152 Freitag, 17. Oktober 2008 11:24 11
Page 155 of 303
Heating, Ventilation and Air conditioning 153
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Note
•

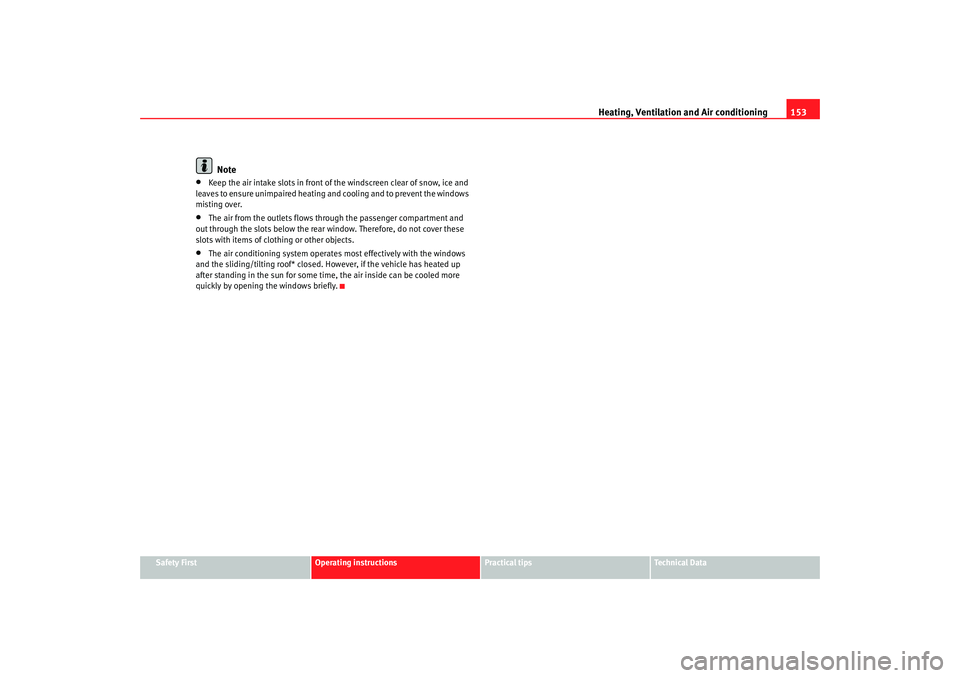

Keep the air intake slots in front of the windscreen clear of snow, ice and
leaves to ensure unimpaired heating and cooling and to prevent the windows
misting over.
•
The air from the outlets flows through the passenger compartment and
out through the slots below the rear window. Therefore, do not cover these
slots with items of clot hing or other objects.
•
The air conditioning system operates most effectively with the windows
and the sliding/tilting roof* closed. However, if the vehicle has heated up
after standing in the sun for some time , the air inside can be cooled more
quickly by opening the windows briefly.
Exeo_EN.book Seite 153 Freitag, 17. Oktober 2008 11:24 11
Page 156 of 303
Heating, Ventilation and Air conditioning
154Controls
This overview will help you become quickly fami liar with the controls for the climate control.The left-hand display shows the temperature selected for the left-hand side
and the right-hand display the temperature for the right-hand side.
The functions can be switched on or off by briefly pressing the buttons. The
diode on the buttons lights up when the function is enabled.
The grille between buttons and must be kept clear, as the tempera-
ture sensors are located behind the grille.•
Do not cover the grille.
•
Do not clean the grille with a vacuum cleaner, as this could damage the
temperature sensors located behind the grille.
Fig. 133 Climate control controls
Button(s)
MeaningAutomatic mode
(left and right
sides)
Temperature selection for the left
and right sidesDefrostManual air recirculation modeSwitches off air coolingSwitches off climate control (instead of )Automatic air recirculation mode (instead of )
AUTO-+ECONOFF
OFF
Exeo_EN.book Seite 154 Freitag, 17. Oktober 2008 11:24 11
Page 157 of 303
Heating, Ventilation and Air conditioning 155
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
The , and buttons (which regulate air distribution) can either be
selected individually or in combination.
Automatic mode
Standard setting for all seasons.Switching on automatic mode
– Select a temperature between +18°C (64°F) and +29°C (86°F).
– Press the button
⇒page 154, fig. 133 .The automatic mode maintains a constant temperature inside the vehicle and
dehumidifies the air. Air temperature, air delivery and air distribution are
regulated automatically to reach the desired interior temperature as quickly
as possible, and then to maintain this temperature. The system automatically
compensates for any variations in the outside temperature and for the effect
of direct sunlight.
The automatic temperature regulation only operates at temperature settings
between +18°C and +29°C. If a tem perature below +18°C is selected, LO
appears on the display. If a temperature is selected which is higher than
+29°C, the display will show HI. In the two extreme settings, the climate
control operates continuously with maxi mum cooling or heating output and the temperature is not regulated automatically. The temperature is not regu-
lated.
Note
By keeping the button on the driver's side pressed for several seconds,
the temperature of the passenger's side can be set to the temperature of the
driver's side or vice versa. The display indicates the new temperature value.Selecting the temperature
Separate temperatures can be selected for the driver's and
front passenger's side.– Press the or buttons below the displays
⇒page 154,
fig. 133 until the desired temperature is selected for the driver's
side or front passenger's side.The currently selected temperature setting is shown in the display above the
buttons.
By keeping the button on the driver's side pressed for several seconds,
the temperature of the passenger's side can be set to the temperature of the
driver's side or vice versa. The display indicates the new temperature value.
The previous temperature setting can be restored by resetting the display on
the driver's or passenger's side as required.
(centre buttons)
Adjusts blower speedAir to the windowsAir from the dashboard outletsAir to the footwells
Button(s)
Meaning
-+
AUTO
AUTO
AUTO
-+
-
+
AUTO
Exeo_EN.book Seite 155 Freitag, 17. Oktober 2008 11:24 11
Page 158 of 303
Heating, Ventilation and Air conditioning
156Defrosting

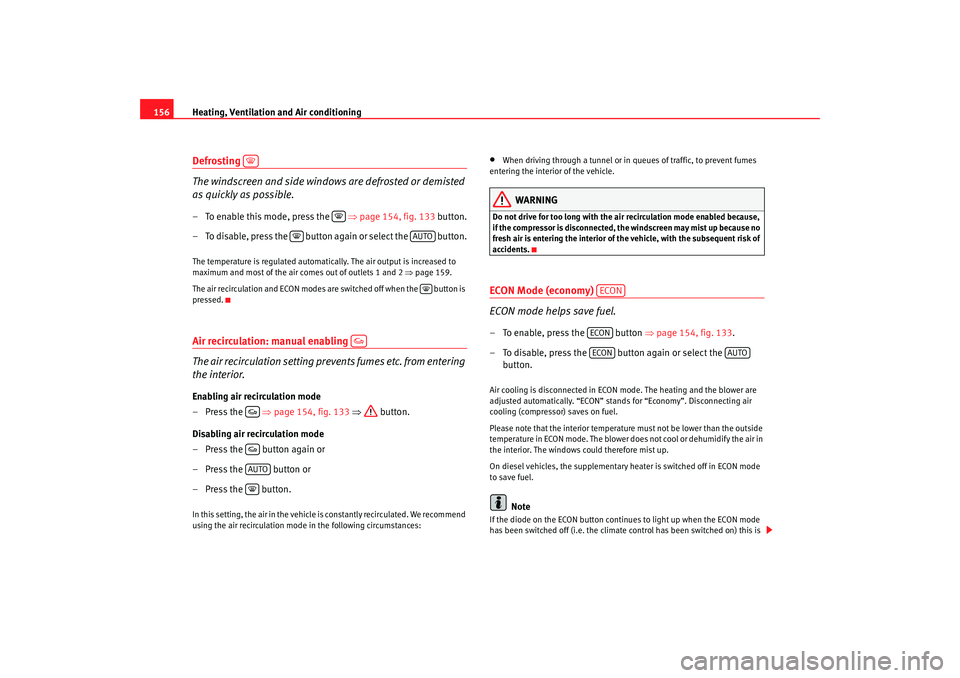

The windscreen and side windows are defrosted or demisted
as quickly as possible.– To enable this mode, press the ⇒page 154, fig. 133 button.
– To disable, press the button again or select the button.The temperature is regulated automatically. The air output is increased to
maximum and most of the air comes out of outlets 1 and 2 ⇒page 159.
The air recirculation and ECON modes ar e switched off when the button is
pressed.Air recirculation: manual enabling
The air recirculation setting prevents fumes etc. from entering
the interior.Enabling air recirculation mode
– Press the ⇒page 154, fig. 133 ⇒ button.
Disabling air recirculation mode
– Press the button again or
– Press the button or
– Press the button.In this setting, the air in the vehicle is constantly recirculated. We recommend
using the air recirculation mode in the following circumstances:
•
When driving through a tunnel or in queues of traffic, to prevent fumes
entering the interior of the vehicle.
WARNING
Do not drive for too long with the ai r recirculation mode enabled because,
if the compressor is disconnected, the windscreen may mist up because no
fresh air is entering the interior of the vehicle, with the subsequent risk of
accidents.ECON Mode (economy)
ECON mode helps save fuel.– To enable, press the button ⇒page 154, fig. 133 .
– To disable, press the button again or select the button.Air cooling is disconnected in ECON mode. The heating and the blower are
adjusted automatically. “ECON” stan ds for “Economy”. Disconnecting air
cooling (compressor) saves on fuel.
Please note that the interior temperature must not be lower than the outside
temperature in ECON mode. The blower does not cool or dehumidify the air in
the interior. The windows could therefore mist up.
On diesel vehicles, the supplementary heater is switched off in ECON mode
to save fuel.
Note
If the diode on the ECON button contin ues to light up when the ECON mode
has been switched off (i.e. the climate control has been switched on) this is
AUTO
AUTO
ECONECONECON
AUTO
Exeo_EN.book Seite 156 Freitag, 17. Oktober 2008 11:24 11
Page 159 of 303
Heating, Ventilation and Air conditioning 157
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
due to a defect in one of the climat
e control components. If a malfunction
should occur, please contact a specialist garage.
Air recirculation: automatic activation*
If the outside air is polluted by diesel and petrol emissions,
an air purity sensor in the vehicle will automatically switch on
the air recirculation.Enabling air recirculation mode
– Press the button ⇒fig. 134 .
Disabling air recirculation mode
– Press the button again or
– Press the button or – Press button .
The automatic air recirculation mode should
normally be left switched on at
all times.
The system is ready to operate approx. 30 seconds after the engine ignition
key has been turned. During this initia l period, fresh air is fed into the car.
If the air purity sensor in the air conditioning system detects a certain
concentration of fumes in the outside air, the control unit will either pass the
incoming air through the pollution filter or automatically switch on the air
recirculation. If there is a high concentration of pollution in the outside air,
the climate control automatically switches to air recirculation and the supply
of air from the outside is cut off. As soon as the level of pollution decreases,
air is fed into the vehicle from the outside again.
The automatic air recirculation operates for a maximum period of 12 minutes.
If the windows mist up when the automatic air recirculation is on, press the
button immediately.
The automatic air recirculation switches itself off under certain circumstances
(for instance if or is selected). In “ECON” and at temperature of below
approx. 8°C below zero, the automatic ai r recirculation mode is limited to 12
seconds.Switching the temperature display from °C to °F and vice versa
The temperature display can be switched from °C (degrees
Celsius) to °F (degrees Fahrenheit) and vice versa.– Press and hold the button for recirculation mode and briefly press the plus button of the left-hand temperature selector
⇒page 154, fig. 133 .
Fig. 134 Button for auto-
matic air recirculation
AUTO
Exeo_EN.book Seite 157 Freitag, 17. Oktober 2008 11:24 11
Page 160 of 303
Heating, Ventilation and Air conditioning
158Switching the climate control on/offSwitching the climate control off: models with an button
– Press the button. The climate control is switched off and the
supply of air from outside the car is cut off.
Switching the climate control off: models with a button
– Keep pressing the button for the blower until the display segment is empty. The climate control is switched off and the
supply of air from outside the car is cut off.
Switching the climate control on: models with an button
– Press the button again, or
– Press the button or
– Press one of the air distribution buttons , or .
Switching the climate control on: models with a button
– Press the button for the blower, or
– Press the button or
– Press one of the air distribution buttons , or .The climate control also starts to operate if one of the blower or temperature
selector buttons is pressed.
Blower speed
The automatically selected blower speed can be reduced or
increased manually.– Press the and buttons in the centre of the control panel ⇒page 154, fig. 133 to set the blower to the desired speed (and
regulate the volume of air delivery).The climate control system automatically regulates the blower speed
according to the interior temperature. However, you can also adjust the air
delivery manually. The current blower setting is illustrated by a bar in the
middle display (above the buttons).Automatic change of passenger temperatureIn order to set automatically the passenger temperature like the driver
temperature, press the button on the driver's side for 2 seconds
approximately. In order to set automatically the driver temperature like the
passenger's temperature, press the button on the passenger's side for
2 seconds approximately.
OFF
OFF
-
OFF
OFFAUTO
+AUTO
-+
-
+AUTO
AUTO
Exeo_EN.book Seite 158 Freitag, 17. Oktober 2008 11:24 11
