Seat Exeo 2008 Owner's manual

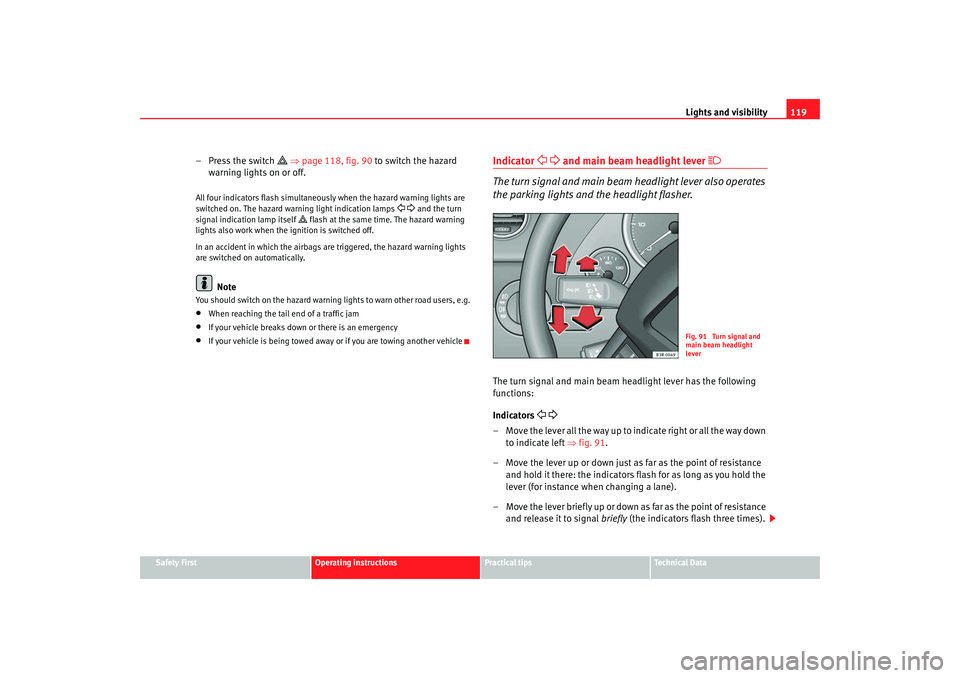

Lights and visibility119
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
–Press the switch
 ⇒ page 118, fig. 90 to switch the hazard
warning lights on or off.
All four indicators flash simultaneously when the hazard warning lights are
switched on. The hazard warning light indication lamps
  and the turn
signal indication lamp itself
 flash at the same time. The hazard warning
lights also work when the ignition is switched off.
In an accident in which the airbags ar e triggered, the hazard warning lights
are switched on automatically.
Note
You should switch on the hazard warning lights to warn other road users, e.g.•
When reaching the tail end of a traffic jam
•
If your vehicle breaks down or there is an emergency
•
If your vehicle is being towed away or if you are towing another vehicle
Indicator
  and main beam headlight lever

The turn signal and main beam headlight lever also operates
the parking lights and the headlight flasher.The turn signal and main beam headlight lever has the following
functions:
Indicators
 
– Move the lever all the way up to indicate right or all the way down to indicate left ⇒fig. 91 .
–Move the lever up or down just as far as the point of resistance
and hold it there: the indicators flash for as long as you hold the
lever (for instance when changing a lane).
– Move the lever briefly up or down as far as the point of resistance and release it to signal briefly (the indicators flash three times).
Fig. 91 Turn signal and
main beam headlight
lever
Exeo_EN.book Seite 119 Freitag, 17. Oktober 2008 11:24 11

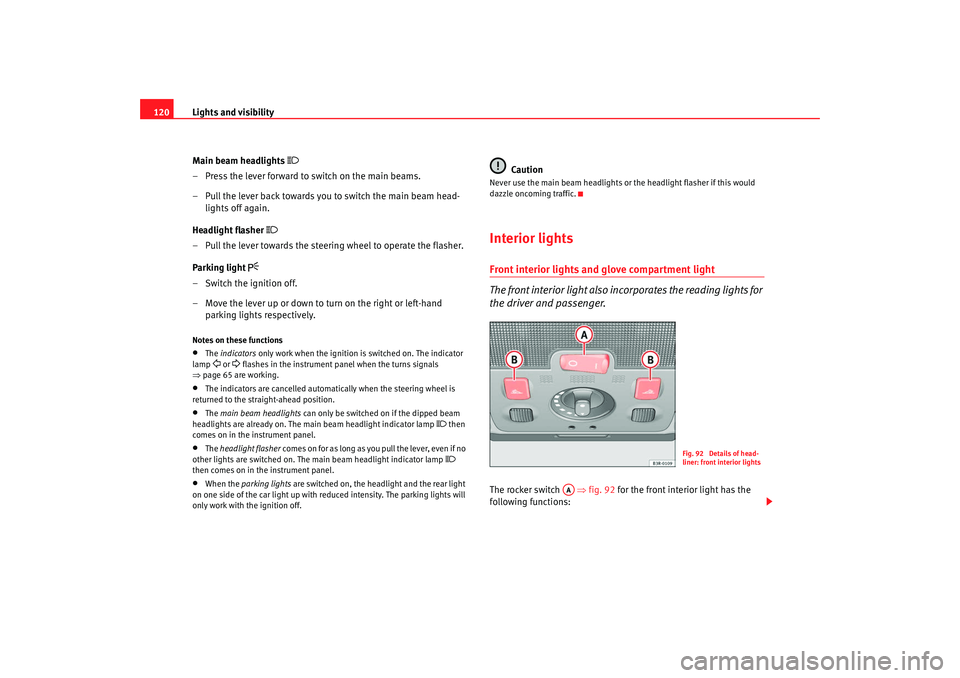

Lights and visibility
120
Main beam headlights

– Press the lever forward to switch on the main beams.
– Pull the lever back towards you to switch the main beam head-lights off again.
Headlight flasher

– Pull the lever towards the steering wheel to operate the flasher.
Parking light

– Switch the ignition off.
– Move the lever up or down to turn on the right or left-hand parking lights respectively.Notes on these functions•
The indicators only work when the ignition is switched on. The indicator
lamp  or  flashes in the instrument panel when the turns signals
⇒ page 65 are working.
•
The indicators are cancelled automatically when the steering wheel is
returned to the straight-ahead position.
•
The main beam headlights can only be switched on if the dipped beam
headlights are already on. The main beam headlight indicator lamp
 then
comes on in the instrument panel.
•
The headlight flasher comes on for as long as you pull the lever, even if no
other lights are switched on. The main beam headlight indicator lamp

then comes on in the instrument panel.
•
When the parking lights are switched on, the headlight and the rear light
on one side of the car light up with re duced intensity. The parking lights will
only work with the ignition off.
Caution
Never use the main beam headlights or the headlight flasher if this would
dazzle oncoming traffic.Interior lightsFront interior lights and glove compartment light
The front interior light also incorporates the reading lights for
the driver and passenger.The rocker switch ⇒fig. 92 for the front interior light has the
following functions:
Fig. 92 Details of head-
liner: front interior lights
AA
Exeo_EN.book Seite 120 Freitag, 17. Oktober 2008 11:24 11

Lights and visibility121
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Door light position
– Move switch to the centre position.
Interior light switched on
–Move switch to position I.
Interior light switched off
–Move switch to position O.
Front reading lights

– Press one of the switches to turn the left and right reading
lights on and off.
Glove compartment light
– Open the glove compartment on the front passenger's side. The glove compartment light will come on automatically if the side
lights or headlights are switched on, and will go out again when
the glove compartment is closed.
Footwell and door lighting
– This is switched on when the doors are opened and off when they are closed.If the switch is in the courtesy light po sition, the interior light comes on auto-
matically when the vehicle is unlocked or the doors are opened. The light also
comes on when the key is pulled out of the ignition. The light turns off about
30 seconds after closing the doors. The interior light is switched off immedi-
ately when the vehicle is locked or when the ignition is switched on.
If a door is left open, the light is switched off after about 10 minutes to
prevent the battery from running flat. The brightness of the lights is automatically adjusted by a dimmer when they
are switched on.
Background lighting
The background lighting illu
minates a number of minor
controls.The lights in the door handles come on automatically when the ignition is
switched on.
The lighting above the windscreen also comes on when the side lights or
headlights are switched on. The centre console is illuminated from above.
The background lighting cannot be switched off manually.
AAAAAA
AB
Fig. 93 Details of head-
liner: background lighting
Exeo_EN.book Seite 121 Freitag, 17. Oktober 2008 11:24 11

Lights and visibility

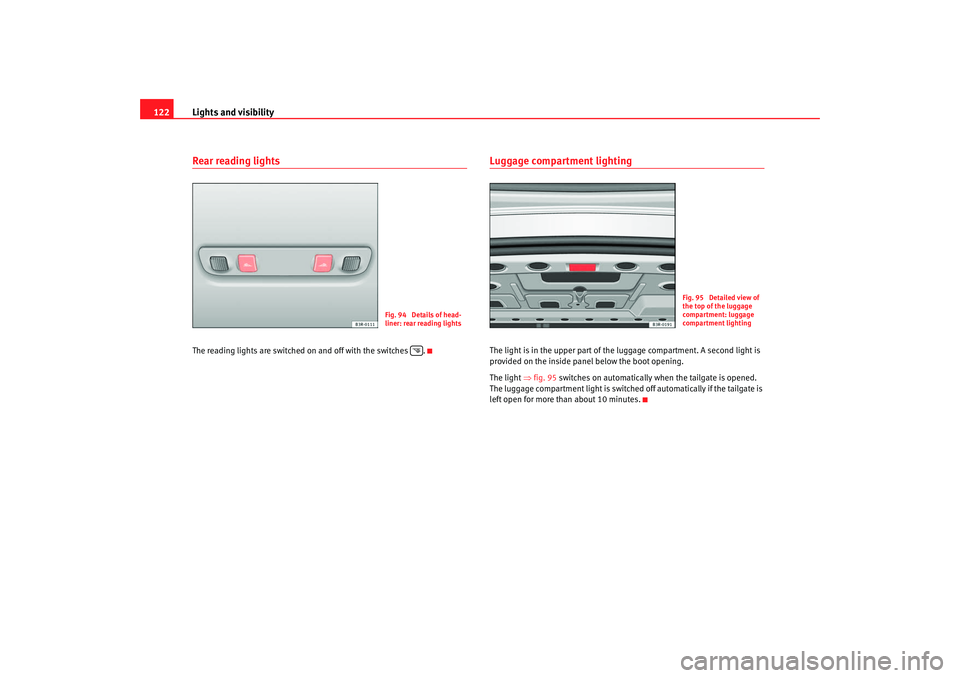

122Rear reading lightsThe reading lights are switched on and off with the switches .
Luggage compartment lightingThe light is in the upper part of the luggage compartment. A second light is
provided on the inside panel below the boot opening.
The light ⇒ fig. 95 switches on automatically when the tailgate is opened.
The luggage compartment light is switched off automatically if the tailgate is
left open for more than about 10 minutes.
Fig. 94 Details of head-
liner: rear reading lights

Fig. 95 Detailed view of
the top of the luggage
compartment: luggage
compartment lighting
Exeo_EN.book Seite 122 Freitag, 17. Oktober 2008 11:24 11

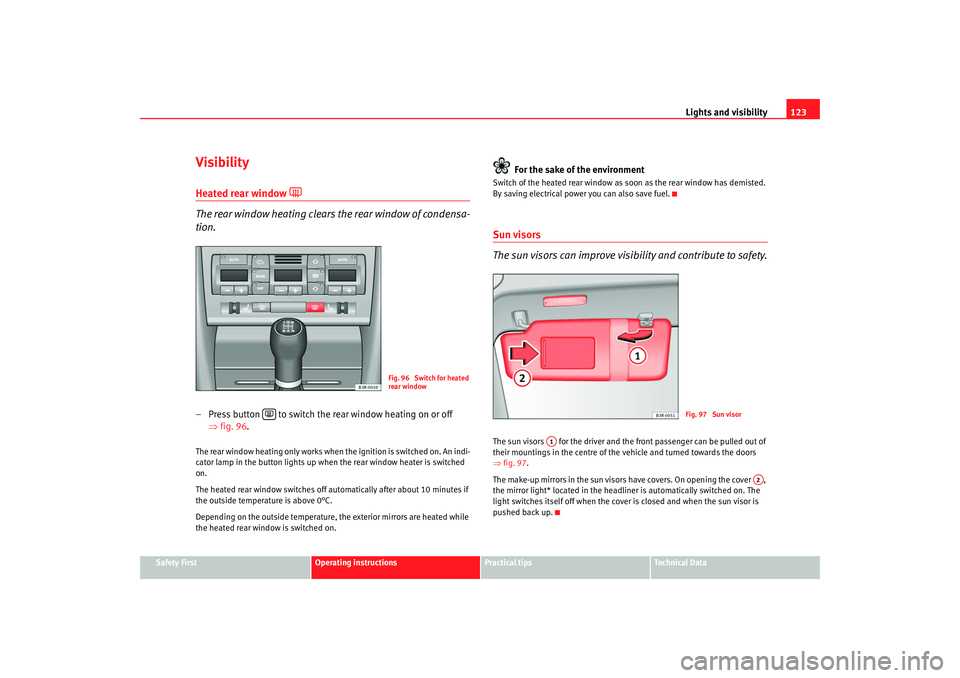

Lights and visibility123
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
VisibilityHeated rear window

The rear window heating clears the rear window of condensa-
tion.– Press button to switch the rear window heating on or off
⇒fig. 96 .The rear window heating only works when the ignition is switched on. An indi-
cator lamp in the button lights up when the rear window heater is switched
on.
The heated rear window switches off automatically after about 10 minutes if
the outside temperature is above 0°C.
Depending on the outside temperature, the exterior mirrors are heated while
the heated rear window is switched on.
For the sake of the environment
Switch of the heated rear window as soon as the rear window has demisted.
By saving electrical power you can also save fuel.Sun visors
The sun visors can improve visibility and contribute to safety.The sun visors for the driver and the front passenger can be pulled out of
their mountings in the centre of th e vehicle and turned towards the doors
⇒ fig. 97 .
The make-up mirrors in the sun visors have covers. On opening the cover ,
the mirror light* located in the headli ner is automatically switched on. The
light switches itself off when the cover is closed and when the sun visor is
pushed back up.
Fig. 96 Switch for heated
rear window

Fig. 97 Sun visor
A1
A2
Exeo_EN.book Seite 123 Freitag, 17. Oktober 2008 11:24 11

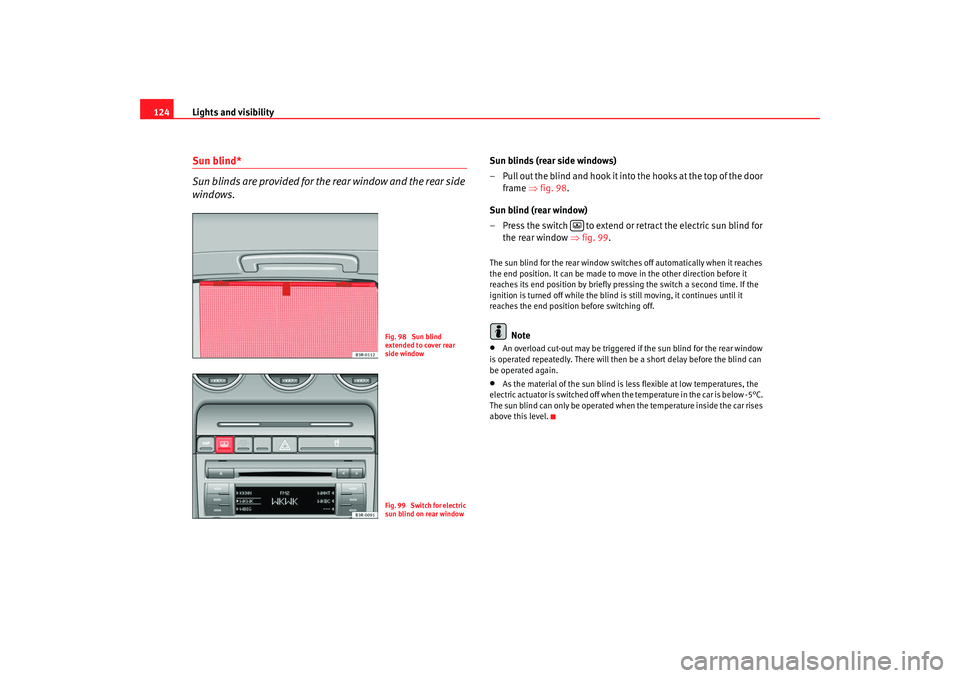

Lights and visibility
124Sun blind*
Sun blinds are provided for the rear window and the rear side
windows.
Sun blinds (rear side windows)
– Pull out the blind and hook it into the hooks at the top of the door
frame ⇒fig. 98 .
Sun blind (rear window)
– Press the switch to extend or retract the electric sun blind for the rear window ⇒ fig. 99.The sun blind for the rear window switches off automatically when it reaches
the end position. It can be made to mo ve in the other direction before it
reaches its end position by briefly pressing the switch a second time. If the
ignition is turned off while the blind is still moving, it continues until it
reaches the end position before switching off.
Note
•
An overload cut-out may be triggered if the sun blind for the rear window
is operated repeatedly. There will then be a short delay before the blind can
be operated again.
•
As the material of the sun blind is less flexible at low temperatures, the
electric actuator is switch ed off when the temperature in the car is below -5°C.
The sun blind can only be operated when the temperature inside the car rises
above this level.
Fig. 98 Sun blind
extended to cover rear
side windowFig. 99 Switch for electric
sun blind on rear window

Exeo_EN.book Seite 124 Freitag, 17. Oktober 2008 11:24 11

Lights and visibility125
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Windscreen wipersWindscreen wipers

The windscreen wiper lever controls the windscreen wipers
and the automatic wash and wipe.The windscreen wiper lever ⇒fig. 100 has the following settings:
Brief wipe
– Move the lever down to position to give the windscreen a brief
wipe.
Intermittent wipe

/ Rain sensor* (enabling)
– Move the lever up to position .
– Move the switch up or down to set the wiper intervals. – On vehicles equipped with a rain sensor*, you can move the
switch up and down to set the sensitivity of the rain sensor.
Slow wipe
– Move the lever up to position .
Continuous wipe
– Move the lever up to position .
Automatic wash and wipe
– Pull the lever towards the steering wheel, , so that the wind- screen washer is activated.
– Release the lever. The washer will stop and the wipers will keep running for approximately 4 seconds.
Disabling the windscreen wiper
– Pull the lever to basic position .
General notes
The washers and wipers will work only when the ignition is switched on.
If you stop briefly, e.g. at traffic lights , the wiper speed will automatically be
reduced. The rain sensor* will automatically be set to the intermittent wipe
function.
The windscreen washer jets are heated when the ignition is switched on.
The wiper intervals in the intermittent wipe setting are also varied automati-
cally according to the road speed (in addition to the manual delay setting).
When the lights are switched on you should only pull the lever briefly to wash
the windscreen, otherwise the headlight washers* will also be enabled. This
will use an unnecessary amount of fluid from the reservoir.
Fig. 100 Windscreen
wiper lever
A1
A2
AA
AA
A3A4
A5
A0
Exeo_EN.book Seite 125 Freitag, 17. Oktober 2008 11:24 11

Lights and visibility
126Rain sensor
The rain sensor* will only function in the intermittent wipe position. The inter-
mittent wipe function is enabled automatically when it starts to rain.
Before you reach a road speed of 6 km/h ,you will have to enable the rain
sensor manually by switching it off and back on again.
Use control to set the sensitivity of the rain sensor*.
If you have selected a high sensitivity level for the rain sensor the windscreen
wipers will react sooner to any moisture on the windscreen.
The wiper intervals in the intermittent wipe setting are also varied automati-
cally according to the road speed (in addition to the sensitivity setting).
WARNING
•
For correct visibility and safe driving, the wiper must be in perfect
condition ⇒page 201. Failure to do so could result in an accident.
•
The rain sensor* is only intended to a ssist the driver. The driver is still
obliged to manually operate the windscreen wipers as required depending
on visibility.
•
Do not use water-repellent coatings on the windscreen. In bad visibility
conditions such as light rain, low sun or when driving at night, these coat-
ings can cause increased dazzle, whic h is a serious safety hazard. Such
coatings can also cause the wiper blades to judder.Caution
•
In the event of frost, check that the wiper blade has not frozen before
enabling the windscreen wipers. Should the windscreen wiper system be
enabled when the blade is frozen, this could damage it or even the wind-
screen wiper system motor.
•
Make sure you switch off the windscreen wiper system (lever in position
0) before you use an automatic car wash. This will avoid inadvertent trig-
gering of the wipers and possible damage to the wiper system.
Note
•
Check that the washer fluid reservoir is full before starting a long journey.
Fill the reservoir ⇒page 220.
•
Worn or dirty wiper blades can cause smearing on the glass which can
also impair the effectiveness of the ra in sensor*. Check the condition of wind-
screen wiper blades at regular intervals.
Headlight washer systemWith the lights switched on, operate the automatic wash and wipe
⇒ page 125, fig. 100 , and keep the lever pulled towards you for
at least 1 second.The headlight washer jets come out of the bumper automatically (under water
pressure) ⇒fig. 101 .
AA
Fig. 101 Headlight with
extended washer jet
A5
Exeo_EN.book Seite 126 Freitag, 17. Oktober 2008 11:24 11

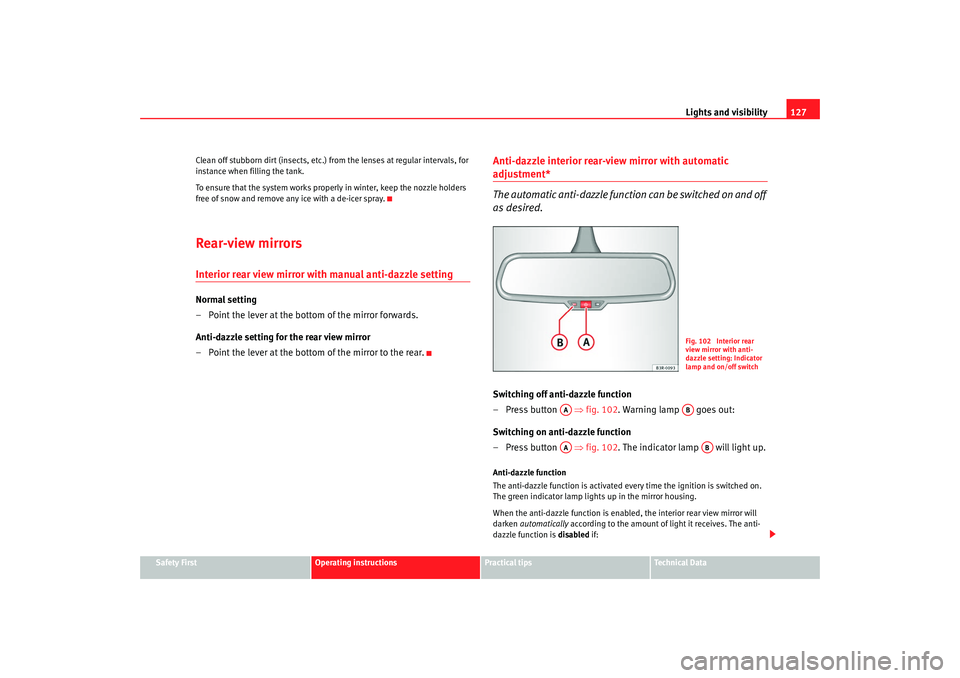

Lights and visibility127
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Clean off stubborn dirt (insects, etc.) from the lenses at regular intervals, for
instance when filling the tank.
To ensure that the system works properly in winter, keep the nozzle holders
free of snow and remove any ice with a de-icer spray.
Rear-view mirrorsInterior rear view mirror with manual anti-dazzle settingNormal setting
– Point the lever at the bottom of the mirror forwards.
Anti-dazzle setting for the rear view mirror
– Point the lever at the bottom of the mirror to the rear.
Anti-dazzle interior rear-view mirror with automatic adjustment*
The automatic anti-da
zzle function can be switched on and off
as desired.Switching off anti-dazzle function
– Press button ⇒ fig. 102. Warning lamp goes out:
Switching on anti-dazzle function
– Press button ⇒ fig. 102. The indicator lamp will light up.Anti-dazzle function
The anti-dazzle function is activated every time the ignition is switched on.
The green indicator lamp ligh ts up in the mirror housing.
When the anti-dazzle function is enabled, the interior rear view mirror will
darken automatically according to the amount of light it receives. The anti-
dazzle function is disabled if:
Fig. 102 Interior rear
view mirror with anti-
dazzle setting: Indicator
lamp and on/off switch
AA
AB
AA
AB
Exeo_EN.book Seite 127 Freitag, 17. Oktober 2008 11:24 11

Lights and visibility
128•
the interior lighting is switched on
•
reverse gear is engaged
Sensors for automatic headlights*
When the light switch is set to the AUTO position, the dipped beam head-
lights are switched on and off automatically according to the ambient light
level with the aid of the sensors located in the interior rear view mirror
⇒ page 113.
WARNING
Electrolyte fluid can leak from a broken mirror. This fluid can cause irrita-
tion to the skin, eyes and respiratory organs. Wash thoroughly with clean
water should you come into contact with this fluid. Seek medical assist-
ance if needed!
Caution
Electrolyte fluid leaking from a broken mirror can cause damage to plastic
surfaces. Use a sponge or similar to remove the fluid as soon as possible.
Note
•
The rear-view mirrors automatic anti-dazzle function* will only work prop-
erly if the sun blind* for the rear window is rolled down and if there are no
other objects preventing light fr om reaching the interior mirror.
•
If you have to stick any type of sticker on the windscreen, do not do so in
front of the sensors. Doing so could pr event the automatic headlight or anti-
dazzle function from working correctly or even from working at all.
Exterior mirrors
The exterior mirrors are adjusted electrically.Adjusting the exterior mirrors
– Turn the adjuster knob to position ⇒fig. 103 (left exterior
mirror) or position (right exterior mirror).
– Move the knob as required to adjust the exterior mirror for a good view behind you.
Retracting both exterior mirrors
– Turn the knob to position .It is advisable to fold the exterior mirrors, for example when parking or when
driving along narrow spaces.
Fig. 103 Detailed view of
the armrest: Adjuster
knobAL
AR
AA
Exeo_EN.book Seite 128 Freitag, 17. Oktober 2008 11:24 11
