Seat Ibiza 5D 2006 Owner's manual

Technical Data239
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Petrol engine 1.2 litre 51 kW (69 bhp)General engine data
Performance figures
WeightsPower output in kW (bhp)
rpm 51 (69)/ 5400
Maximum torque in Nm at rpm 112/ 3000
No. of cylinders, capacity in cm
3
3/ 1198
Compression 10,5 +/- 0,3
Fuel Super 95 RON
a)/Normal 91 RON
b)
a)Research- Octane- Number = Measure of the predetonation power of the petrol.b)With a slight power lossMaximum speed in km/h 170
Acceleration from 0-80 km/h in sec. 9,3
Acceleration from 0-100 km/h in sec. 14,2
3 doors 5 doors
Gross vehicle weight in kg 15371560
Weight in working order (with driver) in kg 11021127
Gross axle weight, front in kg 809814
Gross axle weight, rear in kg 778800
Permitted roof load in kg 7575
ibiza_angles_0706_DEF Seite 239 Freitag, 1. September 2006 1:18 13

Technical Data
240Trailer weights
Engine oil capacityPetrol engine 1.4 litre 63 kW (86 bhp)General engine data
Performance figures With no brakes, gradients up to 12%
500
With brakes, gradients up to 12% 800
Approximate engine oil capacity with oil filter change 3,2 litres
Power output in kW (bhp) rpm 63 (86)/ 5000
Maximum torque in Nm at rpm 132/ 3800
No. of cylinders, capacity in cm
3
4/ 1390
Compression 10,5 +/- 0,3
Fuel Super 95 RON
a)/Normal 91 RON
b)
a)Research- Octane- Number = Measure of the predetonation power of the petrol.b)Slight power lossMaximum speed in km/h 180
Acceleration from 0-80 km/h in sec. 8,1
Acceleration from 0-100 km/h in sec. 11,9
ibiza_angles_0706_DEF Seite 240 Freitag, 1. September 2006 1:18 13

Technical Data241
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Weights
Trailer weights
Engine oil capacity
Petrol engine 1.4 litre 55 kW (75 hp). AutomaticGeneral engine data
3 doors
5 doors
Gross vehicle weight in kg 15421567
Weight in working order (with driver) in kg 11031128
Gross axle weight, front in kg 815820
Gross axle weight, rear in kg 775795
Permitted roof load in kg 7575
With no brakes, gradients up to 12% 600
With brakes, gradients up to 12% 1000
Approximate engine oil capacity with oil filter change 3,2 litres
Power output in kW (bhp) rpm 55 (75)/ 5000
Maximum torque in Nm at rpm 126/ 3800
No. of cylinders, capacity in cm
3
4/ 1390
Compression 10,5
Fuel Super 95 RON
a)/Normal 91 RON
b)
a)Research- Octane- Number = Measure of the predetonation power of the petrol.
ibiza_angles_0706_DEF Seite 241 Freitag, 1. September 2006 1:18 13
b)Slight power loss

Technical Data
242Performance figures
Weights
Trailer weights
Engine oil capacity Maximum speed
in km/h 169
Acceleration from 0-80 km/h in sec. 10,1
Acceleration from 0-100 km/h in sec. 15,6
3 doors 5 doors
Gross vehicle weight in kg 15621589
Weight in working order (with driver) in kg 11421169
Gross axle weight, front in kg 855860
Gross axle weight, rear in kg 770795
Permitted roof load in kg 7575
With no brakes, gradients up to 12% 500
With brakes, gradients up to 12% 800
Approximate engine oil capacity with oil filter change 3,5 litres
ibiza_angles_0706_DEF Seite 242 Freitag, 1. September 2006 1:18 13

Technical Data243
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Petrol engine 1.4 litre 74 kW (100 bhp)General engine data
Performance figures
WeightsPower output in kW (bhp)
rpm 74 (100)/ 6000
Maximum torque in Nm at rpm 126/ 4400
No. of cylinders, capacity in cm
3
4/ 1390
Compression 10,5
Fuel 98 RON
a)/ 95 RON
b)
a)Research- Octane- Number = Measure of the predetonation power of the petrol.b)Slight power lossMaximum speed in km/h 190
Acceleration from 0-80 km/h in sec. 7,3
Acceleration from 0-100 km/h in sec. 11,2
3 doors 5 doors
Gross vehicle weight in kg 15431568
Weight in working order (with driver) in kg 11041129
Gross axle weight, front in kg 814820
Gross axle weight, rear in kg 778798
Permitted roof load in kg 7575
ibiza_angles_0706_DEF Seite 243 Freitag, 1. September 2006 1:18 13

Technical Data
244Trailer weights
Engine oil capacityPetrol engine 1.6 litre 77 kW (105 bhp)General engine data
Performance figures With no brakes, gradients up to 12%
500
With brakes, gradients up to 12% 1000
Approximate engine oil capacity with oil filter change 3,5 litres
Power output in kW (bhp) rpm 77 (105)/5 600
Maximum torque in Nm at rpm 153/ 3800
No. of cylinders, capacity in cm
3
4/ 1598
Compression 10,5+/- 0,2
Fuel 95 super RON
a)
a)Research- Octane- Number = Measure of the predetonation power of the petrol.Maximum speed in km/h 192
Acceleration from 0-80 km/h in sec. 7,2
Acceleration from 0-100 km/h in sec. 11,0
ibiza_angles_0706_DEF Seite 244 Freitag, 1. September 2006 1:18 13

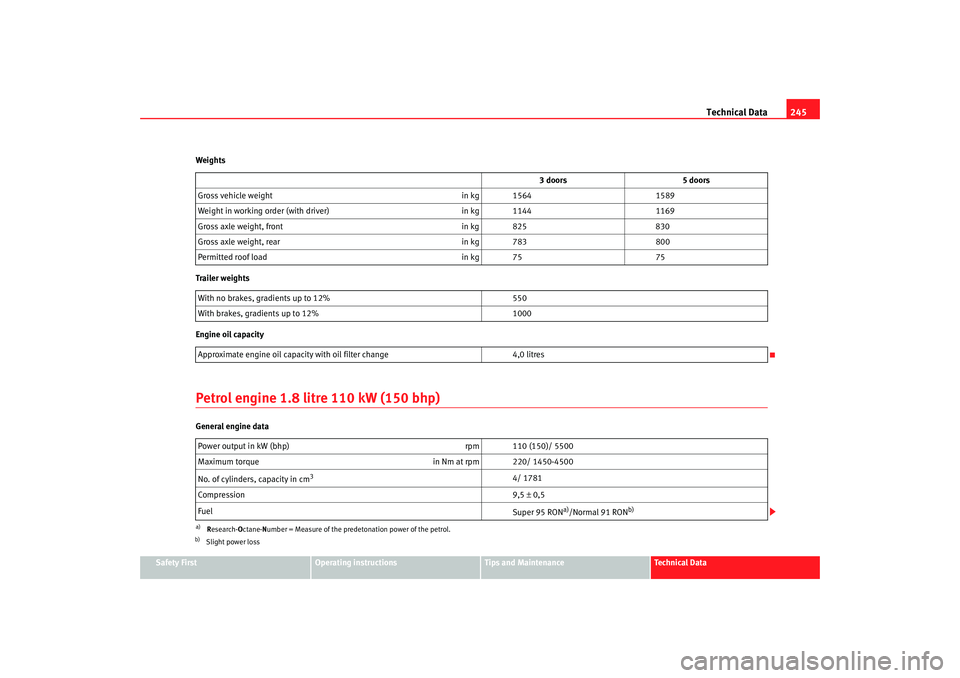

Technical Data245
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Weights
Trailer weights
Engine oil capacity
Petrol engine 1.8 litre 110 kW (150 bhp)General engine data
3 doors
5 doors
Gross vehicle weight in kg 15641589
Weight in working order (with driver) in kg 11441169
Gross axle weight, front in kg 825830
Gross axle weight, rear in kg 783800
Permitted roof load in kg 7575
With no brakes, gradients up to 12% 550
With brakes, gradients up to 12% 1000
Approximate engine oil capacity with oil filter change 4,0 litres
Power output in kW (bhp) rpm 110 (150)/ 5500
Maximum torque in Nm at rpm 220/ 1450-4500
No. of cylinders, capacity in cm
3
4/ 1781
Compression 9,5 ± 0,5
Fuel Super 95 RON
a)/Normal 91 RON
b)
a)Research- Octane- Number = Measure of the predetonation power of the petrol.
ibiza_angles_0706_DEF Seite 245 Freitag, 1. September 2006 1:18 13
b)Slight power loss

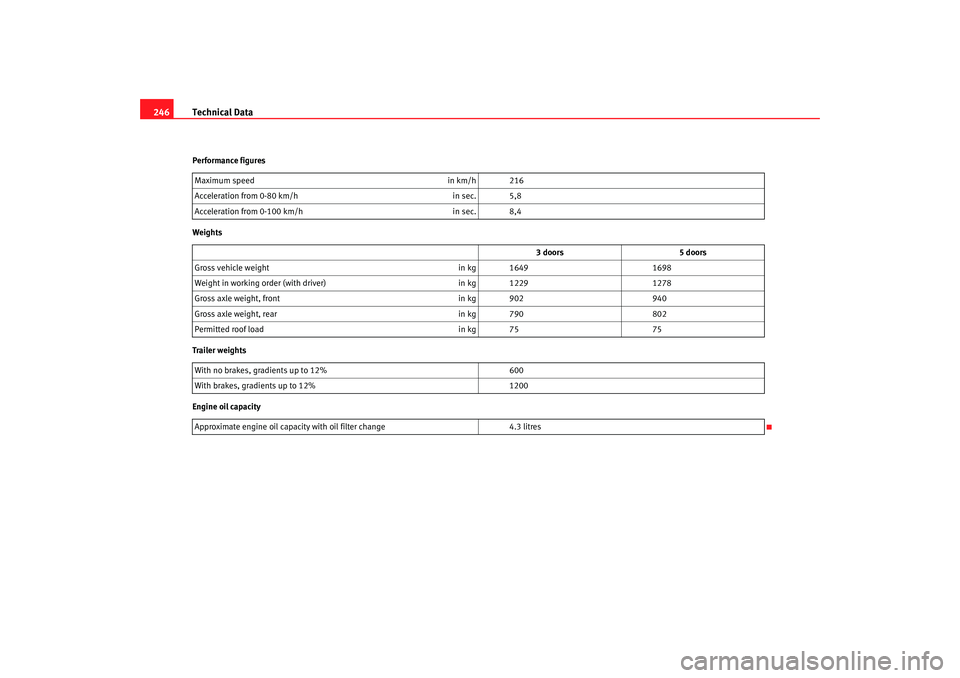

Technical Data
246Performance figures
Weights
Trailer weights
Engine oil capacity Maximum speed
in km/h 216
Acceleration from 0-80 km/h in sec. 5,8
Acceleration from 0-100 km/h in sec. 8,4
3 doors 5 doors
Gross vehicle weight in kg 16491698
Weight in working order (with driver) in kg 12291278
Gross axle weight, front in kg 902940
Gross axle weight, rear in kg 790802
Permitted roof load in kg 7575
With no brakes, gradients up to 12% 600
With brakes, gradients up to 12% 1200
Approximate engine oil capacity with oil filter change 4.3 litres
ibiza_angles_0706_DEF Seite 246 Freitag, 1. September 2006 1:18 13

Technical Data247
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Petrol engine 1.8 litre 132 kW (180 bhp)General engine data
Performance figures
Weights
Engine oil filling capacityPower output in kW (bhp)
rpm 132 (180)/5800
Maximum torque in Nm at rpm 245/2000
No. of cylinders / capacity in cm
3
4/1781
Compression 9,5
Fuel 98 RON
a) Lead free
b)
a)Research- Octane- Number = Measure of the predetonation power of the petrol.b)If the described fuel is not availabl e then fuel conforming to the standard 95 RON1 lead free may be used. Maximum speed in km/h 229,7
Acceleration from 0-80 km/h in sec. 5,14
Acceleration from 0-100 km/h in sec. 7,29
Gross vehicle weight in kg 1649
Weight in working order (with driver) in kg 1252
Gross axle weight, front in kg 902
Gross axle weight, rear in kg 790
Permitted roof load in kg 75
Approximate engine oil capacity with oil filter change 5,3 litres
ibiza_angles_0706_DEF Seite 247 Freitag, 1. September 2006 1:18 13

Technical Data
248Diesel engine 1.4 litre TDI 51 kW (70 bhp)General engine data
Performance figures
Weights Power output in kW (bhp)
rpm 51 (70)/ 4000
Maximum torque in Nm at rpm 195/2200
No. of cylinders, capacity in cm
3
3/1422
Compression 19,5 ± 0,5
Fuel Min 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the dieselMaximum speed in km/h 166
Acceleration from 0-80 km/h in sec. 9,6
Acceleration from 0-100 km/h in sec. 14,8
3 doors 5 doors
Gross vehicle weight in kg 16201644
Weight in working order (with driver) in kg 11811206
Gross axle weight, front in kg 890897
Gross axle weight, rear in kg 775795
Permitted roof load in kg 7575
