Seat Ibiza 5D 2006 Owner's manual

Technical Data249
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Trailer weights
Engine oil filling capacity
Diesel engine 1.4 litre TDI 59 kW (80 bhp)General engine data
Performance figures
With no brakes, gradients up to 12%
600
With brakes, gradients up to 12% 1000
Approximate engine oil capacity with oil filter change 3,8 litres
Power output in kW (bhp) rpm 59 (80)/ 4000
Maximum torque in Nm at rpm 195/ 2200
No. of cylinders, capacity in cm
3
3/ 1492
Compression 19,5 ± 0,5
Fuel Min 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the dieselMaximum speed in km/h 176
Acceleration from 0-80 km/h in sec. 8,7
Acceleration from 0-100 km/h in sec. 12,9
ibiza_angles_0706_DEF Seite 249 Freitag, 1. September 2006 1:18 13

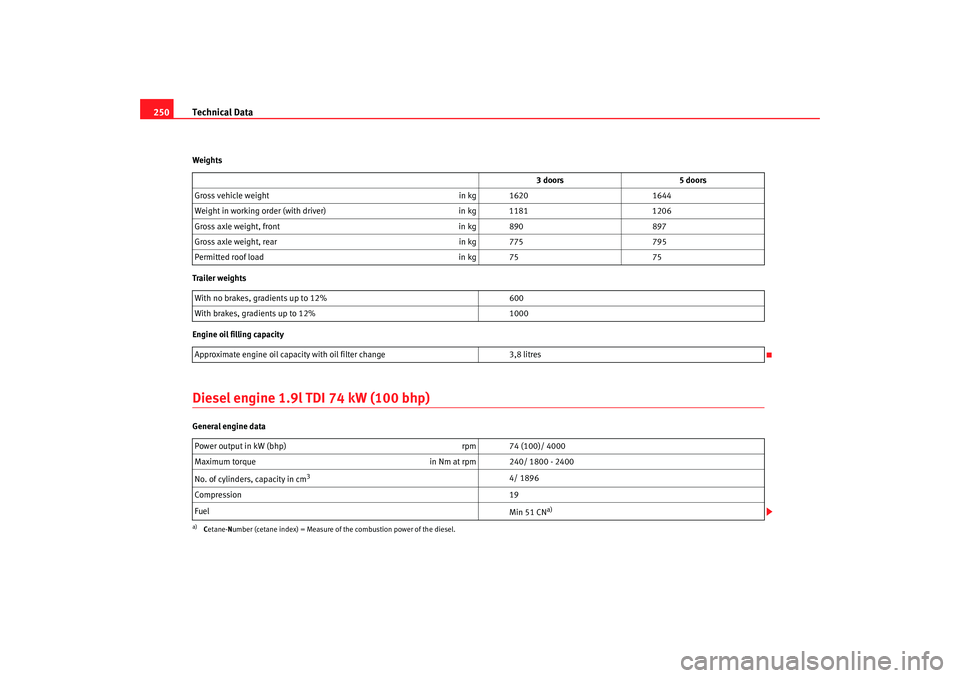

Technical Data
250Weights
Trailer weights
Engine oil filling capacityDiesel engine 1.9l TDI 74 kW (100 bhp)General engine data 3 doors
5 doors
Gross vehicle weight in kg 16201644
Weight in working order (with driver) in kg 11811206
Gross axle weight, front in kg 890897
Gross axle weight, rear in kg 775795
Permitted roof load in kg 7575
With no brakes, gradients up to 12% 600
With brakes, gradients up to 12% 1000
Approximate engine oil capacity with oil filter change 3,8 litres
Power output in kW (bhp) rpm 74 (100)/ 4000
Maximum torque in Nm at rpm 240/ 1800 - 2400
No. of cylinders, capacity in cm
3
4/ 1896
Compression 19
Fuel Min 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the diesel.
ibiza_angles_0706_DEF Seite 250 Freitag, 1. September 2006 1:18 13

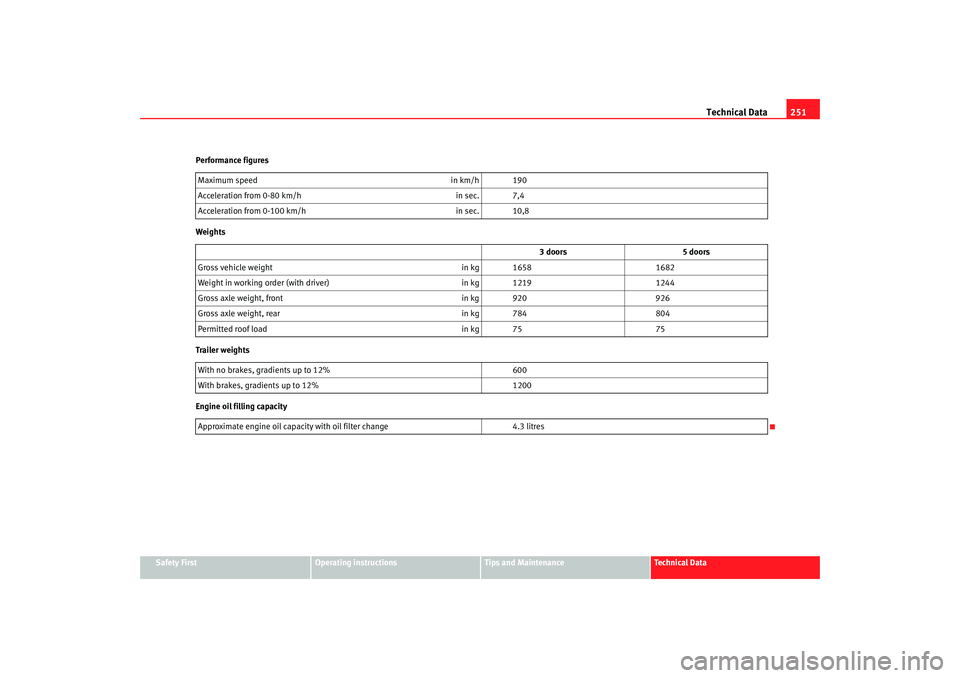

Technical Data251
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Performance figures
Weights
Trailer weights
Engine oil filling capacity
Maximum speed
in km/h 190
Acceleration from 0-80 km/h in sec. 7,4
Acceleration from 0-100 km/h in sec. 10,8
3 doors 5 doors
Gross vehicle weight in kg 16581682
Weight in working order (with driver) in kg 12191244
Gross axle weight, front in kg 920926
Gross axle weight, rear in kg 784804
Permitted roof load in kg 7575
With no brakes, gradients up to 12% 600
With brakes, gradients up to 12% 1200
Approximate engine oil capacity with oil filter change 4.3 litres
ibiza_angles_0706_DEF Seite 251 Freitag, 1. September 2006 1:18 13

Technical Data
252Diesel engine 1.9l TDI 96 kW (131 bhp)General engine data
Performance figures
Weights Power output in kW (bhp)
rpm 96(131)/ 4000
Maximum torque in Nm at rpm 310/ 1900
No. of cylinders, capacity in cm
3
4/ 1896
Compression 19
Fuel Min 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the diesel.Maximum speed in km/h 208
Acceleration from 0-80 km/h in sec. 6,4
Acceleration from 0-100 km/h in sec. 9,3
3 doors 5 doors
Gross vehicle weight in kg 16751693
Weight in working order (with driver) in kg 12491252
Gross axle weight, front in kg 935940
Gross axle weight, rear in kg 783810
Permitted roof load in kg 7575
ibiza_angles_0706_DEF Seite 252 Freitag, 1. September 2006 1:18 13

Technical Data253
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Trailer weights
Engine oil filling capacity
Diesel engine 1.9 TDI 118kW (160 bhp)General engine data
Performance figures
With no brakes, gradients up to 12%
600
With brakes, gradients up to 12% 1200
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (bhp) rpm 118 (160)/3750
Maximum torque in Nm at rpm 330/2000
No. of cylinders / capacity in cm
3
4/1896
Compression 18,5
Fuel
a)
a)BIODIESEL is NOT suitable as fuel for this engine.
Min 51 CN
b)
b)Cetane- Number (cetane index) = Measure of the combustion power of the dieselMaximum speed in km/h 220,2
Acceleration from 0-80 km/h in sec. 5,25
Acceleration from 0-100 km/h in sec. 7,6
ibiza_angles_0706_DEF Seite 253 Freitag, 1. September 2006 1:18 13

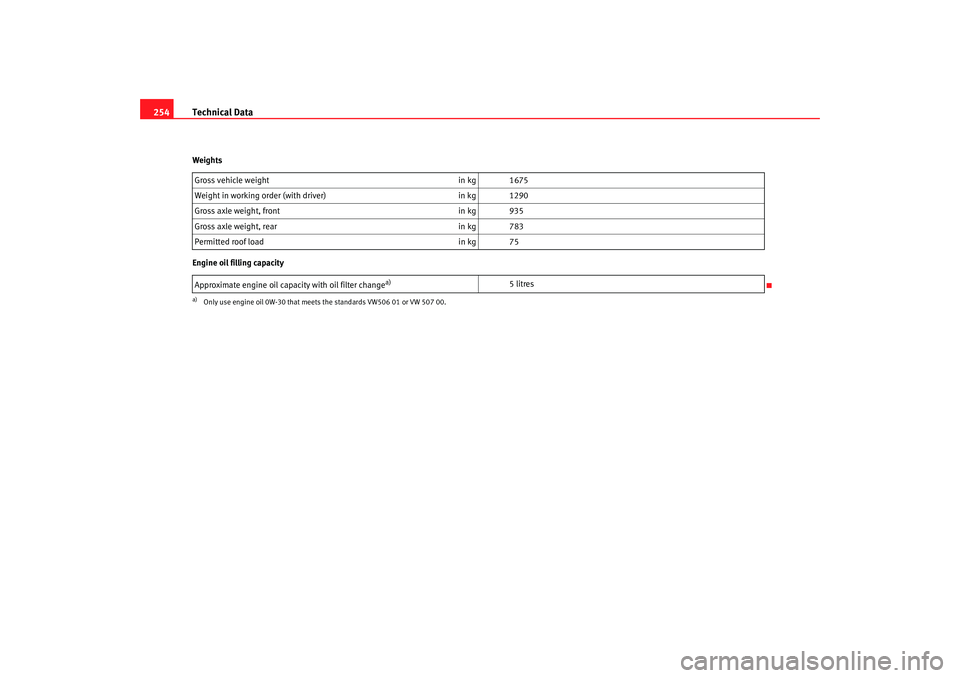

Technical Data
254Weights
Engine oil filling capacity Gross vehicle weight
in kg 1675
Weight in working order (with driver) in kg 1290
Gross axle weight, front in kg 935
Gross axle weight, rear in kg 783
Permitted roof load in kg 75
Approximate engine oil capacity with oil filter change
a)
a)Only use engine oil 0W-30 that meets the standards VW506 01 or VW 507 00.
5 litres
ibiza_angles_0706_DEF Seite 254 Freitag, 1. September 2006 1:18 13

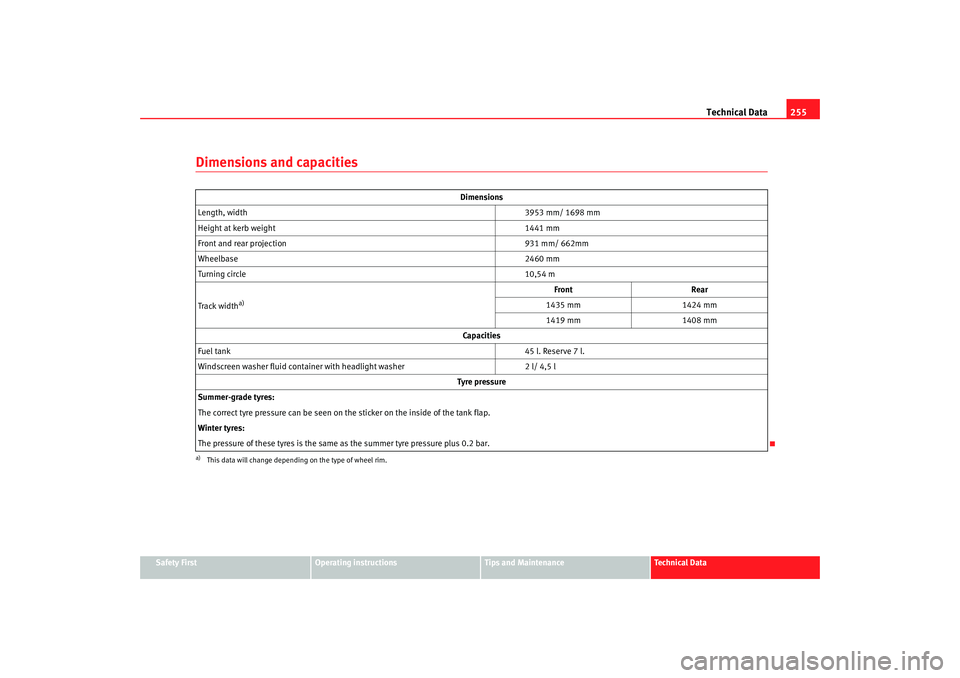

Technical Data255
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Dimensions and capacities
Dimensions
Length, width 3953 mm/ 1698 mm
Height at kerb weight 1441 mm
Front and rear projection 931 mm/ 662mm
Wheelbase 2460 mm
Turning circle 10,54 m
Track width
a)
a)This data will change depending on the type of wheel rim.
Front Rear
1435 mm 1424 mm
1419 mm 1408 mm
Capacities
Fuel tank 45 l. Reserve 7 l.
Windscreen washer fluid container with headlight washer 2 l/ 4,5 l
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
ibiza_angles_0706_DEF Seite 255 Freitag, 1. September 2006 1:18 13

ibiza_angles_0706_DEF Seite 256 Freitag, 1. September 2006 1:18 13

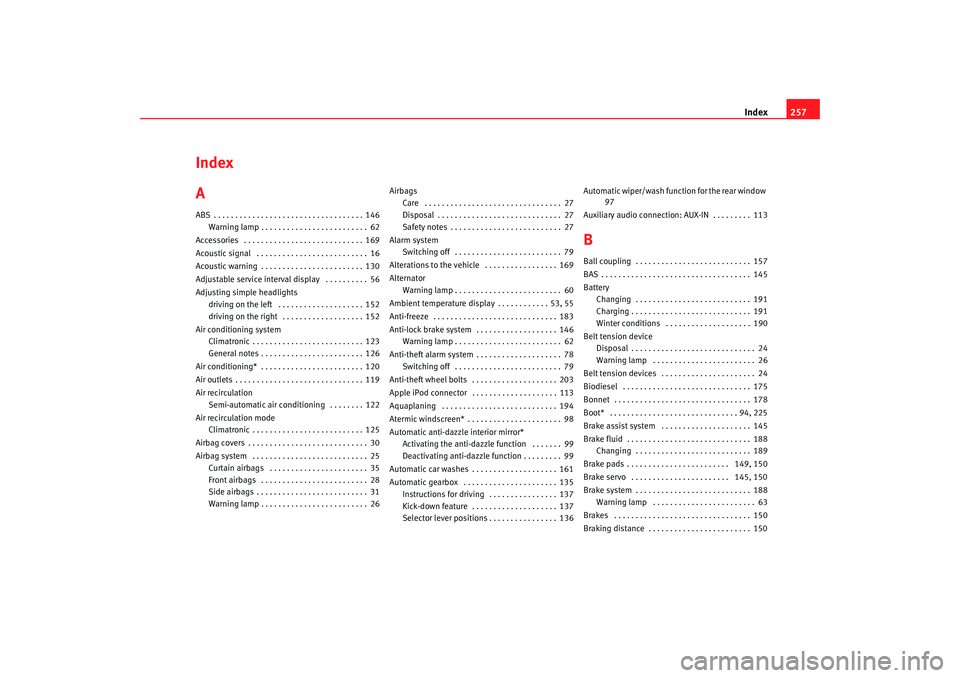

Index257
Index
AABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 62
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Acoustic signal . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Acoustic warning . . . . . . . . . . . . . . . . . . . . . . . . 130
Adjustable service interval display . . . . . . . . . . 56
Adjusting simp le headlights
driving on the left . . . . . . . . . . . . . . . . . . . . 152
driving on the right . . . . . . . . . . . . . . . . . . . 152
Air conditioning system Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . 123
General notes . . . . . . . . . . . . . . . . . . . . . . . . 126
Air conditioning* . . . . . . . . . . . . . . . . . . . . . . . . 120
Air outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Air recirculation Semi-automatic air conditi oning . . . . . . . . 122
Air recirculation mode Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Airbag covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 35
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . 28
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 26 Airbags
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Alarm system Switching off . . . . . . . . . . . . . . . . . . . . . . . . . 79
Alterations to the vehicle . . . . . . . . . . . . . . . . . 169
Alternator Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 60
Ambient temperature display . . . . . . . . . . . . 53, 55
Anti-freeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Anti-lock brake system . . . . . . . . . . . . . . . . . . . 146 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 62
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . . 78 Switching off . . . . . . . . . . . . . . . . . . . . . . . . . 79
Anti-theft wheel bolts . . . . . . . . . . . . . . . . . . . . 203
Apple iPod connector . . . . . . . . . . . . . . . . . . . . 113
Aquaplaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Atermic windscreen* . . . . . . . . . . . . . . . . . . . . . . 98
Automatic anti-dazzle interior mirror* Activating the anti-dazzle function . . . . . . . 99
Deactivating anti-dazzle function . . . . . . . . . 99
Automatic car washes . . . . . . . . . . . . . . . . . . . . 161
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . 135 Instructions for driving . . . . . . . . . . . . . . . . 137
Kick-down feature . . . . . . . . . . . . . . . . . . . . 137
Selector lever positions . . . . . . . . . . . . . . . . 136 Automatic wiper/wash function for the rear window
97
Auxiliary audio connection: AUX-IN . . . . . . . . . 113
BBall coupling . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
BAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Battery Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Winter conditions . . . . . . . . . . . . . . . . . . . . 190
Belt tension device Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 26
Belt tension devices . . . . . . . . . . . . . . . . . . . . . . 24
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Boot* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94, 225
Brake assist system . . . . . . . . . . . . . . . . . . . . . 145
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Brake pads . . . . . . . . . . . . . . . . . . . . . . . . 149, 150
Brake servo . . . . . . . . . . . . . . . . . . . . . . . 145, 150
Brake system . . . . . . . . . . . . . . . . . . . . . . . . . . . 188 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 63
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Braking distance . . . . . . . . . . . . . . . . . . . . . . . . 150
ibiza_angles_0706_DEF Seite 257 Freitag, 1. September 2006 1:18 13

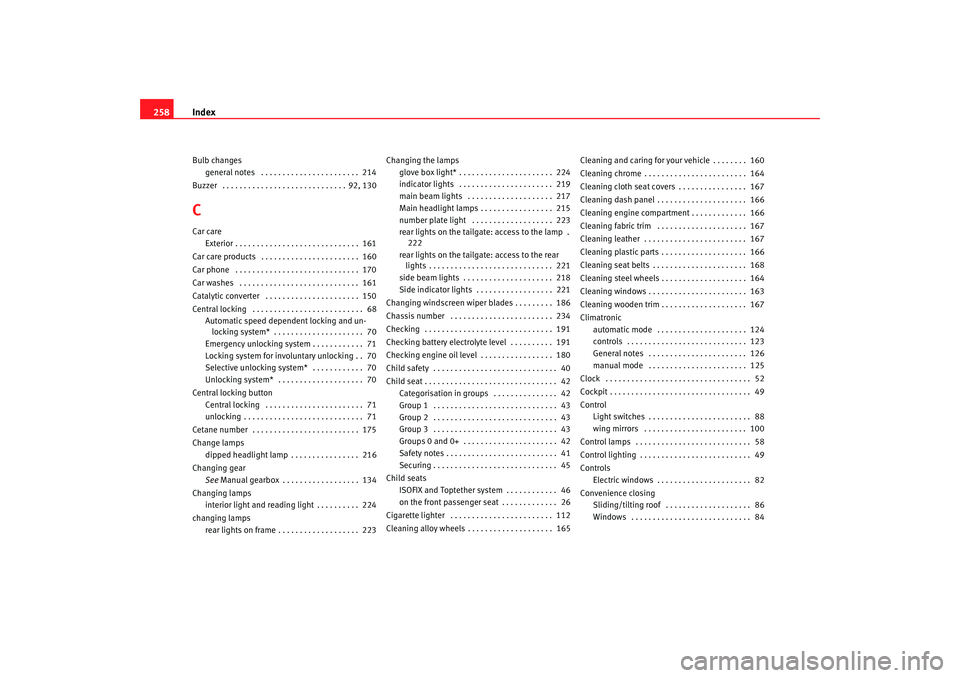

Index
258Bulb changes
general notes . . . . . . . . . . . . . . . . . . . . . . . 214
Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92, 130CCar care Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Car care products . . . . . . . . . . . . . . . . . . . . . . . 160
Car phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Car washes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . 150
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . 68 Automatic speed dependent locking and un-locking system* . . . . . . . . . . . . . . . . . . . . . 70
Emergency unlocking system . . . . . . . . . . . . 71
Locking system for invo luntary unlocking . . 70
Selective unlocking system* . . . . . . . . . . . . 70
Unlocking system* . . . . . . . . . . . . . . . . . . . . 70
Central locking button Central locking . . . . . . . . . . . . . . . . . . . . . . . 71
unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Cetane number . . . . . . . . . . . . . . . . . . . . . . . . . 175
Change lamps dipped headlight lamp . . . . . . . . . . . . . . . . 216
Changing gear See Manual gearbox . . . . . . . . . . . . . . . . . . 134
Changing lamps interior light and reading light . . . . . . . . . . 224
changing lamps rear lights on frame . . . . . . . . . . . . . . . . . . . 223 Changing the lamps
glove box light* . . . . . . . . . . . . . . . . . . . . . . 224
indicator lights . . . . . . . . . . . . . . . . . . . . . . 219
main beam lights . . . . . . . . . . . . . . . . . . . . 217
Main headlight lamps . . . . . . . . . . . . . . . . . 215
number plate light . . . . . . . . . . . . . . . . . . . 223
rear lights on the tailgate: access to the lamp .222
rear lights on the tailgate: access to the rear lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
side beam lights . . . . . . . . . . . . . . . . . . . . . 218
Side indicator lights . . . . . . . . . . . . . . . . . . 221
Changing windscreen wiper blades . . . . . . . . . 186
Chassis number . . . . . . . . . . . . . . . . . . . . . . . . 234
Checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Checking battery electrolyte level . . . . . . . . . . 191
Checking engine oil level . . . . . . . . . . . . . . . . . 180
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Categorisation in groups . . . . . . . . . . . . . . . 42
Group 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Group 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Group 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Groups 0 and 0+ . . . . . . . . . . . . . . . . . . . . . . 42
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Child seats ISOFIX and Toptether system . . . . . . . . . . . . 46
on the front passenger seat . . . . . . . . . . . . . 26
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . 112
Cleaning alloy wheels . . . . . . . . . . . . . . . . . . . . 165 Cleaning and caring for your vehicle . . . . . . . . 160
Cleaning chrome . . . . . . . . . . . . . . . . . . . . . . . . 164
Cleaning cloth seat covers . . . . . . . . . . . . . . . . 167
Cleaning dash panel . . . . . . . . . . . . . . . . . . . . . 166
Cleaning engine compartment . . . . . . . . . . . . . 166
Cleaning fabric trim . . . . . . . . . . . . . . . . . . . . . 167
Cleaning leather . . . . . . . . . . . . . . . . . . . . . . . . 167
Cleaning plastic parts . . . . . . . . . . . . . . . . . . . . 166
Cleaning seat belts . . . . . . . . . . . . . . . . . . . . . . 168
Cleaning steel wheels . . . . . . . . . . . . . . . . . . . . 164
Cleaning windows . . . . . . . . . . . . . . . . . . . . . . . 163
Cleaning wooden trim . . . . . . . . . . . . . . . . . . . . 167
Climatronic
automatic mode . . . . . . . . . . . . . . . . . . . . . 124
controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
General notes . . . . . . . . . . . . . . . . . . . . . . . 126
manual mode . . . . . . . . . . . . . . . . . . . . . . . 125
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Control Light switches . . . . . . . . . . . . . . . . . . . . . . . . 88
wing mirrors . . . . . . . . . . . . . . . . . . . . . . . . 100
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Control lighting . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Controls Electric windows . . . . . . . . . . . . . . . . . . . . . . 82
Convenience closing Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . 86
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
ibiza_angles_0706_DEF Seite 258 Freitag, 1. September 2006 1:18 13
