steering wheel on the right the fuses are
on the right-hand side of the instru-
ment panel, behind a cover.
The electric windows are protected by circuit breakers. These reset automat-
ically after a few seconds when the overload (caused for example by frozen
windows) has been corrected.
Colour coding of fuses
WARNING
Never “repair” damaged fuses and never replace them with fuses with a
higher rating. Failure to comply could result in fire. This could also cause
damage to other parts of the electrical system.
Note
•
If a newly replaced fuse blows again after a short time, the electrical
system must be checked by a qualified workshop as soon as possible.
•
If you replace a fuse with a stronger fuse, you could cause damage to
another location in the electrical system.
•
Always keep some spare fuses in the vehicle. These are available from
SEAT dealers. Colour
Amperes
Beige 5
Brown 7,5
red 10
blue 15
yellow 20
natural (white) 25
green 30
ibiza_angles_0706_DEF Seite 209 Freitag, 1. September 2006 1:18 13

If and when

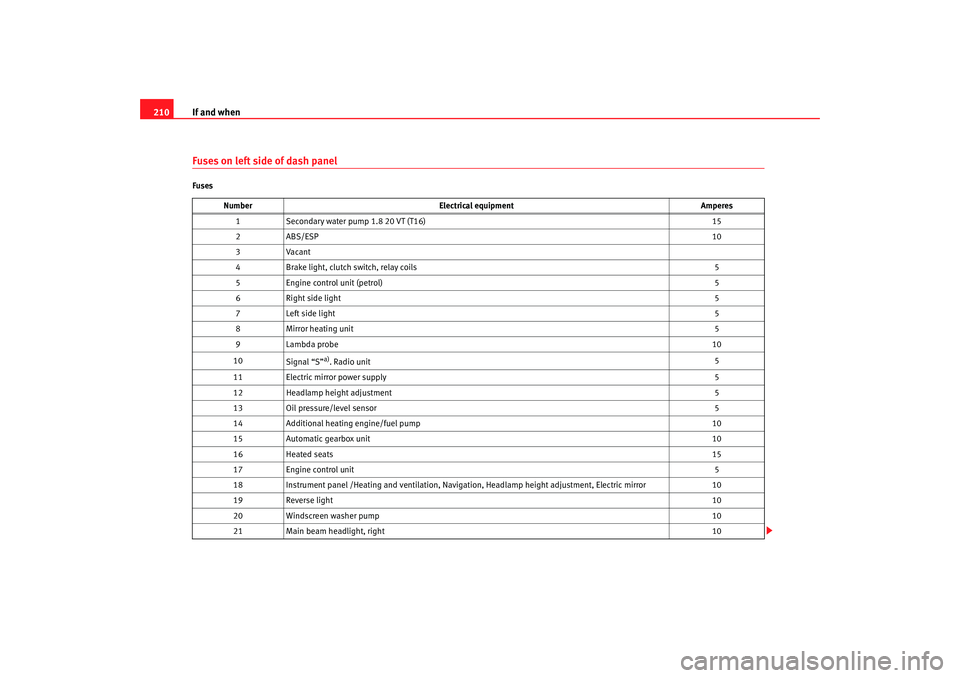

210Fuses on left side of dash panelFuses
Number Electrical equipment Amperes
1 Secondary water pump 1.8 20 VT (T16) 15
2A BS/E S P 10
3 Vacant
4 Brake light, clutch switch, relay coils 5
5 Engine control unit (petrol) 5
6R ig h t s id e lig h t 5
7L eft s id e lig ht 5
8 Mirror heating unit 5
9 Lambda probe 10
10 Signal “S”
a). Radio unit 5
11 Electric mirror power supply 5
12 Headlamp height adjustment 5
13 Oil pressure/level sensor 5
14 Additional heati ng engine/fuel pump 10
15 Automatic gearbox unit 10
16 Heated seats 15
17 Engine control unit 5
18 Instrument panel /Heating and vent ilation, Navigation, Headlamp height adjustment, Electric mirror 10
19 Reverse light 10
20 Windscreen washer pump 10
21 Main beam headlight, right 10
ibiza_angles_0706_DEF Seite 210 Freitag, 1. September 2006 1:18 13

If and when211
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
22
Main beam headlight, left 10
23 Number plate light/si de light indicator 5
24 Rear windscreen wiper 10
25 Injectors(fuel) 10
26 Brake light switch /ESP (Turn sensor) 10
27 Instrument panel/Diagnosis 5
28 Unit: glove box light, boot light, interior light 10
29 Climatronic 5
30 Power supply central locking unit 5
31 Left front window control 25
32 Vacant
33 Self powered alarm horn 15
34 Engine control unit 15
35 Sunroof 20
36 Engine ventilator heating /blower 25
37 Headlight washer pump 20
38 Front and rear fog lights 15
39 Engine control unit (petrol) 15
40 Engine control unit diesel + SDI Fuel pump 30
41 Fuel gauge 15
42 Ignition transformer+ E ngine control unit T70 15
43 Dipped headlight (right side) 15
44 Left rear window control 25
45 Front right window control 25
Number
Electrical equipment Amperes
ibiza_angles_0706_DEF Seite 211 Freitag, 1. September 2006 1:18 13

If and when

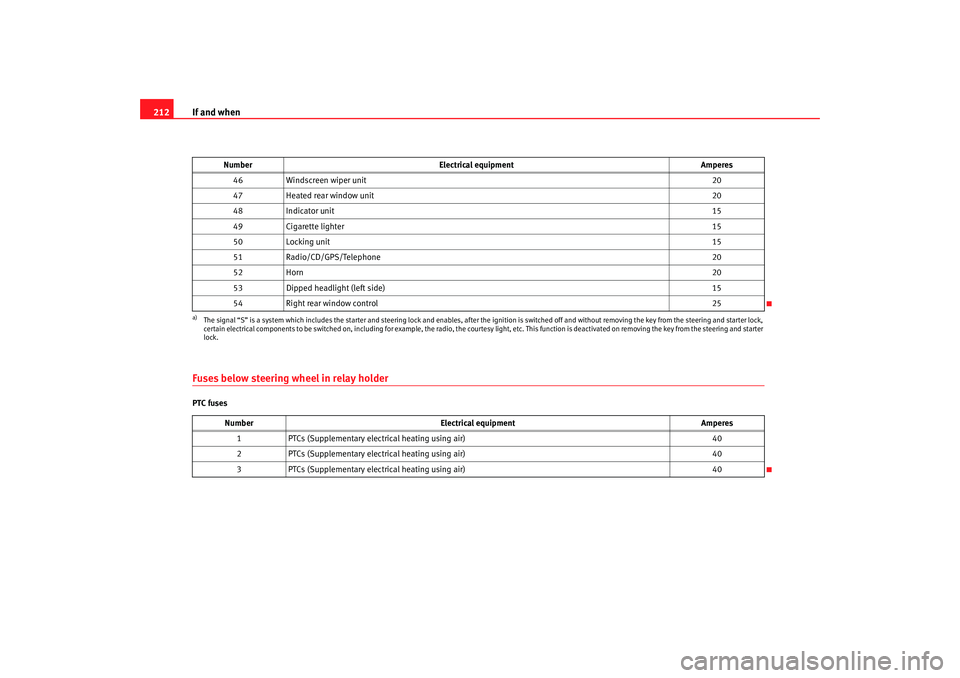

212Fuses below steering wheel in relay holderPTC fuses 46
Windscreen wiper unit 20
47 Heated rear window unit 20
48 Indicator unit 15
49 Cigarette lighter 15
50 Locking unit 15
51 Radio/CD/GPS/Telephone 20
52 Horn 20
53 Dipped headlight (left side) 15
54 Right rear window control 25a)The signal “S” is a system which includes the starter and steering lock and enables, after the ignition is switched off and wit hout removing the key from the steering and starter lock,
certain electrical components to be switched on, including for example, the radio, the courtesy light, etc. This function is de activated on removing the key from the steering and starter
lock.
Number Electrical equipment Amperes
1 PTCs (Supplementary electrical heating using air) 40
2 PTCs (Supplementary electrical heating using air) 40
3 PTCs (Supplementary electrical heating using air) 40
Number
Electrical equipment Amperes
ibiza_angles_0706_DEF Seite 212 Freitag, 1. September 2006 1:18 13

If and when213
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Fuses in engine compartment above battery
Metal fuses
9)
Non-metal fuses

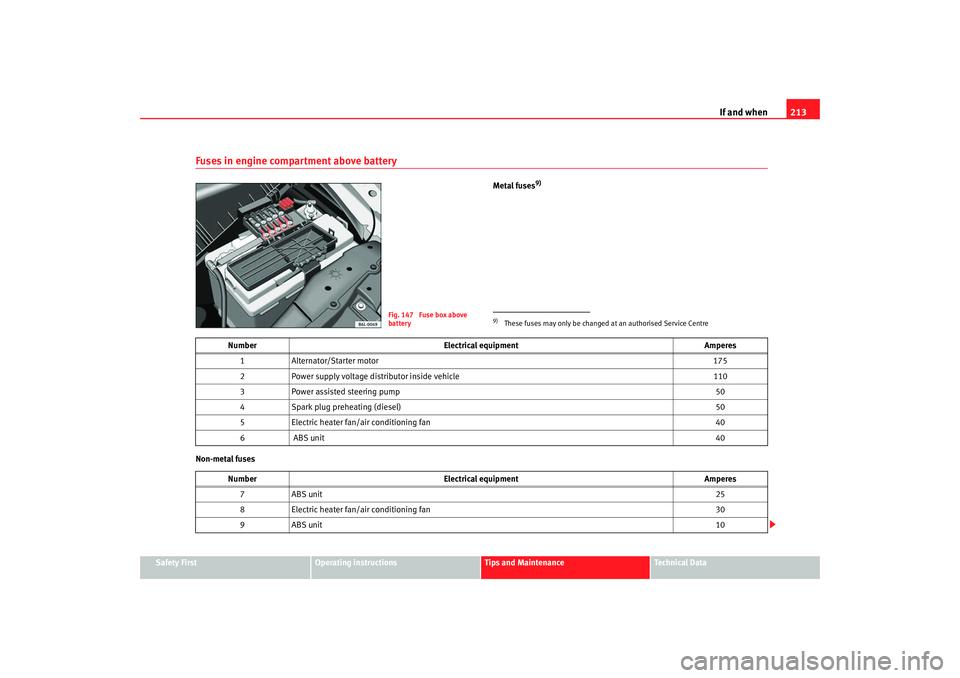

Fig. 147 Fuse box above
battery
9)These fuses may only be changed at an authorised Service Centre
Number Electrical equipment Amperes
1 Alternator/Starter motor 175
2 Power supply voltage distributor inside vehicle 110
3 Power assisted steering pump 50
4 Spark plug preheating (diesel) 50
5 Electric heater fan/ air conditioning fan 40
6 A BS u nit 40
Number Electrical equipment Amperes
7A BS u nit 25
8 Electric heater fan/ air conditioning fan 30
9A BS u nit 10
ibiza_angles_0706_DEF Seite 213 Freitag, 1. September 2006 1:18 13

If and when
214Some of the electrical items listed in the table are only fitted on certain
models or are optional extras.
Please note that the above list, while corr ect at the time of printing, is subject

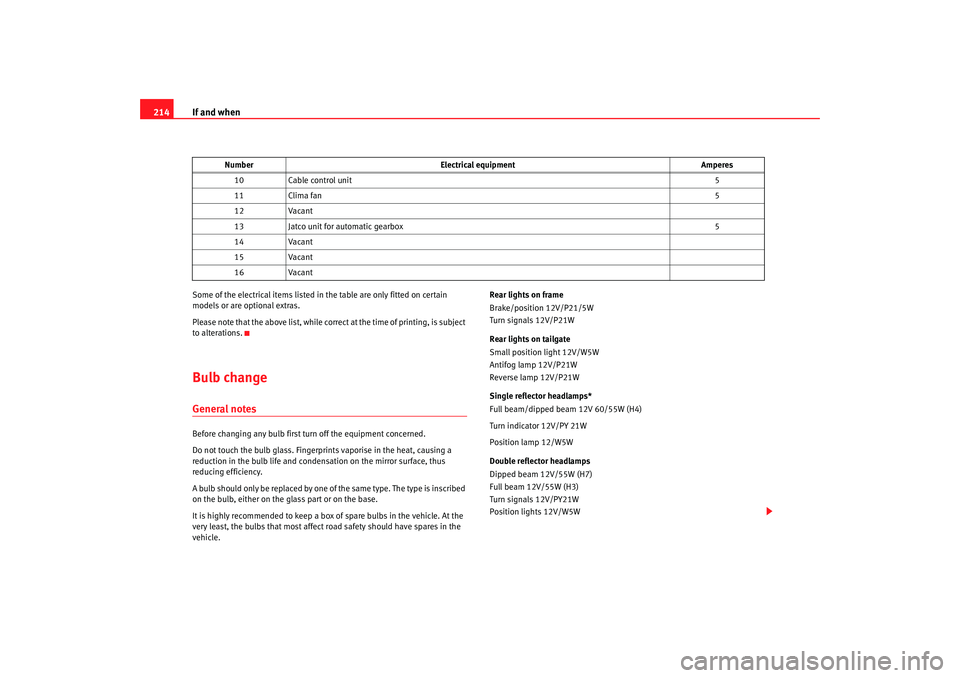

to alterations.Bulb changeGeneral notesBefore changing any bulb first turn off the equipment concerned.
Do not touch the bulb glass. Fingerprints vaporise in the heat, causing a
reduction in the bulb life and conden sation on the mirror surface, thus
reducing efficiency.
A bulb should only be replaced by one of the same type. The type is inscribed
on the bulb, either on the glass part or on the base.
It is highly recommended to keep a box of spare bulbs in the vehicle. At the
very least, the bulbs that most affect road safety should have spares in the
vehicle. Rear lights on frame
Brake/position 12V/P21/5W
Turn signals 12V/P21W
Rear lights on tailgate
Small position light 12V/W5W
Antifog lamp 12V/P21W
Reverse lamp 12V/P21W
Single reflector headlamps*
Full beam/dipped beam 12V 60/55W (H4)
Turn indicator 12V/PY 21W
Position lamp 12/W5W
Double reflector headlamps
Dipped beam 12V/55W (H7)
Full beam 12V/55W (H3)
Turn signals 12V/PY21W
Position lights 12V/W5W
10
Cable control unit 5
11 Clima fan 5
12 Vacant
13 Jatco unit for automatic gearbox 5
14 Vacant
15 Vacant
16 Vacant
Number
Electrical equipment Amperes
ibiza_angles_0706_DEF Seite 214 Freitag, 1. September 2006 1:18 13

If and when215
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Xenon headlights
10)
Dipped beam 12V/35W (D1S)
11)
Full beam 12V/55W (H7)
Turn signals 12V/PY21W
Position lights 12V/W5W
Fog lights*
Fog lights 12V/55W (H3)
Registration plate light
Registration plate light - C5W
Caution
•
The halogen lamps (H3, H7...) are pressurised and might explode on
changing them.
•
Therefore protective gloves and glasses should be worn when changing a
halogen lamp.Note
•
Due to the difficulty in accessing the lamps, any replacement work should
be done by a SEAT dealer. However, we shall explain how to change these
lamps, except for the xenon lights*.
Main headlight lamps
Dipped headlights
Main beam headlights
10)On this type of headlight, the bulb changes must be made by the SEAT dealer, given
that complex elements must be removed from the vehicle and a reset must be made
on the automatic control system incorporated.11)The Xenon bulbs discharge 2.5 times the light flux and have an average lifespan of 5
times more than that of halogen bulbs, this means that, except due to unusual circum-
stances, there is no need to change the bulbs for the whole life of the vehicle.

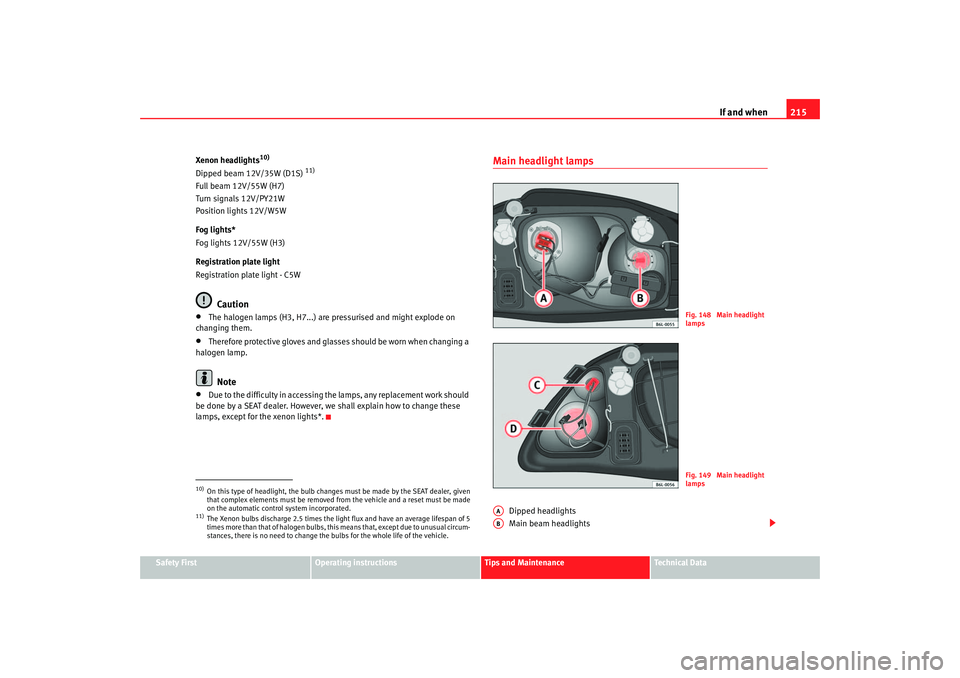

Fig. 148 Main headlight
lampsFig. 149 Main headlight
lamps
AAAB
ibiza_angles_0706_DEF Seite 215 Freitag, 1. September 2006 1:18 13

If and when
216
Side lights
Indicator lights
Dipped headlight lamp
–Raise the bonnet.
– Remove the loops ⇒fig. 150 outwards in the direction of the
arrow and remove the cover.
– Remove the lamp cable connector ⇒fig. 151 .
– Undo the retainer spring and remove.
– Remove the lamp and fit the new lamp in the same position, making sure it sits correctly.
– Press the retaining spring on the lamp base and clip on.
– Plug in the connector.
– Fit the plastic cover and replace the loops ⇒fig. 150.
– Check the headlight adjustment.
ACAD

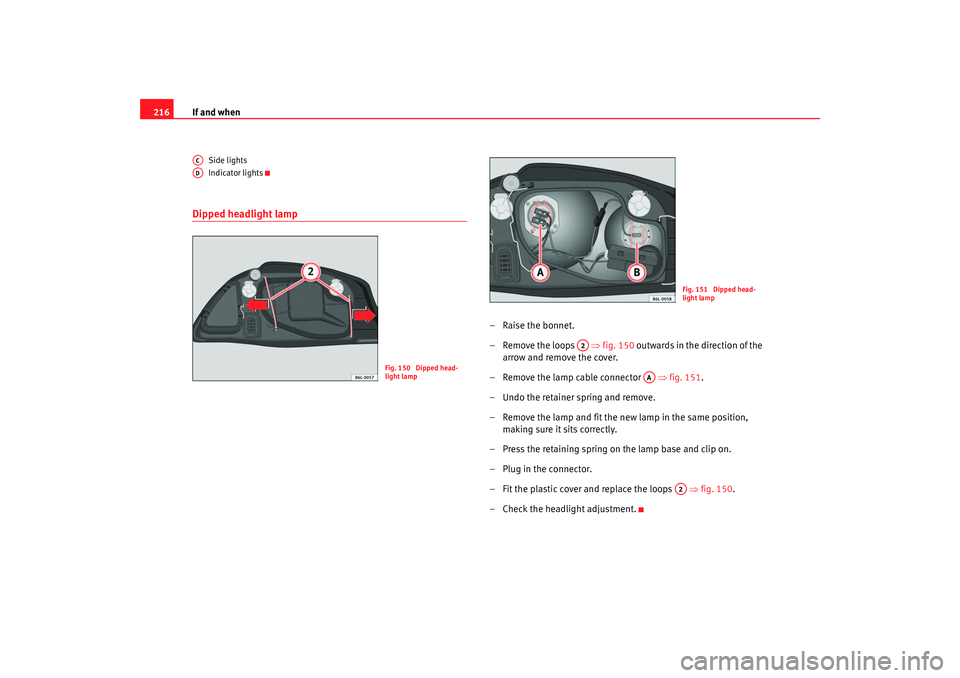

Fig. 150 Dipped head-
light lamp
Fig. 151 Dipped head-
light lamp
A2
AA
A2
ibiza_angles_0706_DEF Seite 216 Freitag, 1. September 2006 1:18 13

If and when217
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Main beam lights–Raise the bonnet. – Remove the loops
⇒fig. 152 outwards in the direction of the
arrow and remove the cover.
– Remove the lamp cable connector ⇒fig. 153.
– Undo the retainer spring and remove.
– Remove the lamp and fit the new lamp in the same position, making sure it sits correctly.
– Press the retaining spring on the lamp base and clip on.
– Plug in the connection cable.
– Fit the plastic cover and replace the loops ⇒fig. 152 .
– Check the headlight adjustment.

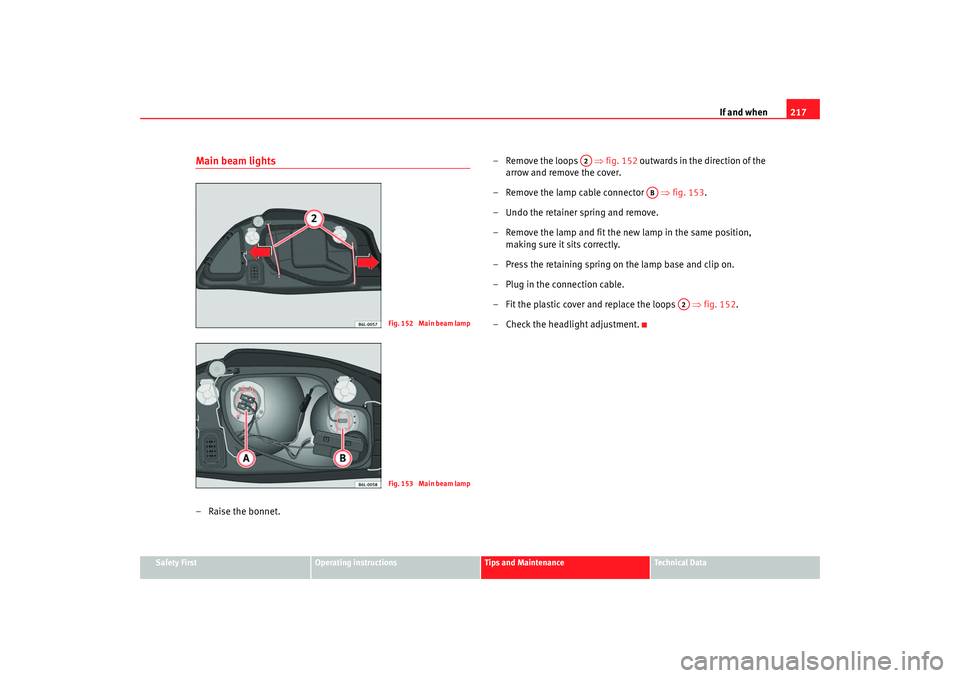

Fig. 152 Main beam lampFig. 153 Main beam lamp
A2
AB
A2
ibiza_angles_0706_DEF Seite 217 Freitag, 1. September 2006 1:18 13

If and when
218Side beam lights– Raise the bonnet. – Remove the loops
⇒fig. 154 in the direction of the arrow and
remove the cover.
– Pull on the cables to release the lamp holder from the casing ⇒fig. 155.
–Pull on the lamp and replace.
– To assemble proceed in reverse order.
– Fit the plastic cover and secure the loop.

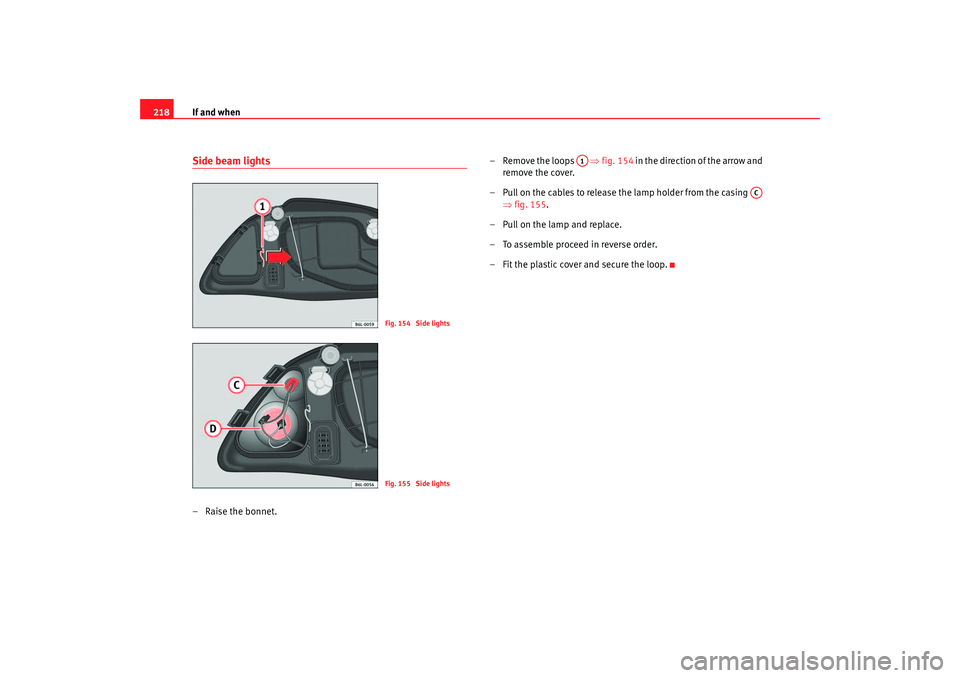

Fig. 154 Side lightsFig. 155 Side lights
