Seat Ibiza 5D 2012 Owner's manual

229
If and when

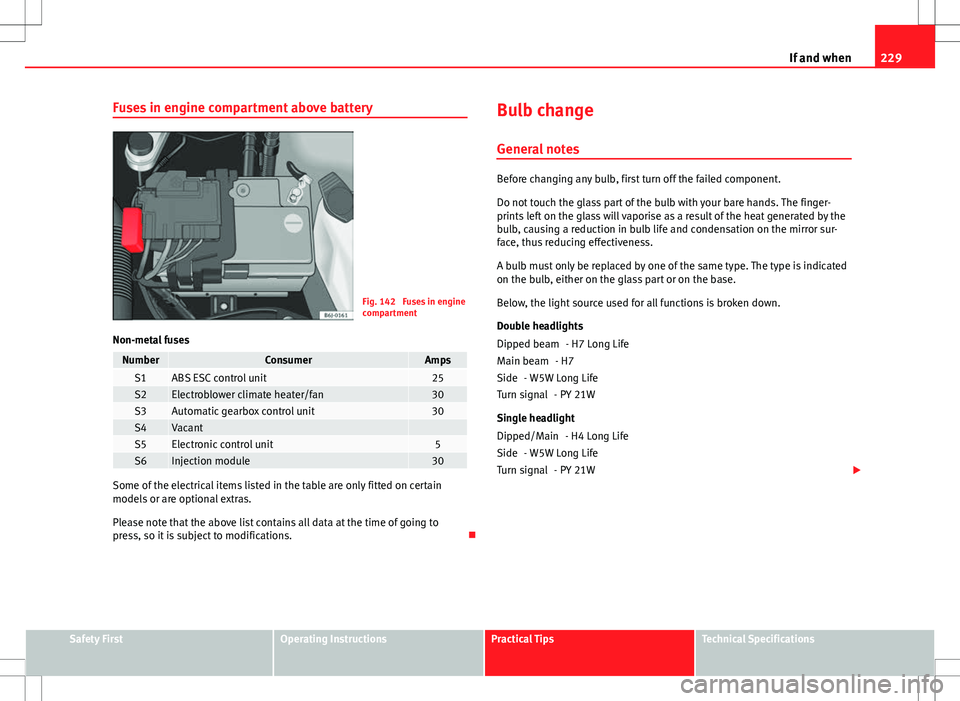

Fuses in engine compartment above battery
Fig. 142 Fuses in engine
compartment
Non-metal fuses
NumberConsumerAmpsS1ABS ESC control unit25S2Electroblower climate heater/fan30S3Automatic gearbox control unit30S4Vacant S5Electronic control unit5S6Injection module30
Some of the electrical items listed in the table are only fitted on certain
models or are optional extras.
Please note that the above list contains all data at the time of going to
press, so it is subject to modifications. Bulb change
General notes
Before changing any bulb, first turn off the failed component.
Do not touch the glass part of the bulb with your bare hands. The finger-
prints left on the glass will vaporise as a result of the heat generated by the
bulb, causing a reduction in bulb life and condensation on the mirror sur-
face, thus reducing effectiveness.
A bulb must only be replaced by one of the same type. The type is indicated
on the bulb, either on the glass part or on the base.
Below, the light source used for all functions is broken down.
Double headlights - H7 Long Life
- H7
- W5W Long Life - PY 21W
Single headlight - H4 Long Life
- W5W Long Life - PY 21W 
Dipped beam
Main beam
Side
Turn signal
Dipped/Main
Side
Turn signal
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

230If and when
Xenon 1)
//adaptive headlights*
- D1S2)
- LED 3)
- LED3)
- PY 21W
Fog light - H11
WARNING
● Take particular care when working on components in the engine com-
partment if the engine is warm. Risk of burns.
● Bulbs are highly sensitive to pressure. The glass can break when you
touch the bulb, causing injury.
● The high voltage element of gas discharge bulbs* (xenon light) must
be handled correctly. Otherwise, there is a risk of death.
● When changing bulbs, please take care not to injure yourself on sharp
parts in the headlight housing.
CAUTION
● Remove the ignition key before working on the electric system. Other-
wise, a short circuit could occur.
● Switch off the lights or parking lights before you change a bulb.
Dipped and full beam
Side
DRL (day light)
Turn signals
Fog light/cornering
For the sake of the environment
Please ask your specialist retailer how to dispose of used bulbs in the prop-
er manner.
Note
● Depending on weather conditions (cold or wet), the front lights, the fog
lights, the tail lights and the turn signals may be temporarily misted. This
has no influence on the useful life of the lighting system. By switching on
the lights, the area through which the beam of light is projected will quickly
be demisted. However, the edges may continue to be misted.
● Please check at regular intervals that all lighting (especially the exterior
lighting) on your vehicle is functioning properly. This is not only in the inter-
est of your own safety, but also that of all other road users.
● Before changing a bulb, make sure you have the correct new bulb.
● Do not touch the glass part of the bulb with your bare hands, use a cloth
or paper towel instead. Otherwise, the fingerprints left on the glass will va-
porise as a result of the heat generated by the bulb, they will be deposited
on the reflector and will impair its surface. 
1)
With this type of headlight, the user can replace the turn signal bulb. Replacement of the
dipped/main beam bulb must be done by a Technical Service, given that complex elements
must be removed from the vehicle and the automatic control system that incorporates it
must be reset.
2) The Xenon bulbs discharge 2.5 times the light flux and have an average lifespan of 5 times
more than that of halogen bulbs, this means that, except due to unusual circumstances,
there is no need to change the bulbs for the whole life of the vehicle.
3) In the event that there is a fault in the LEDs, the complete headlight must be replaced.

231
If and when

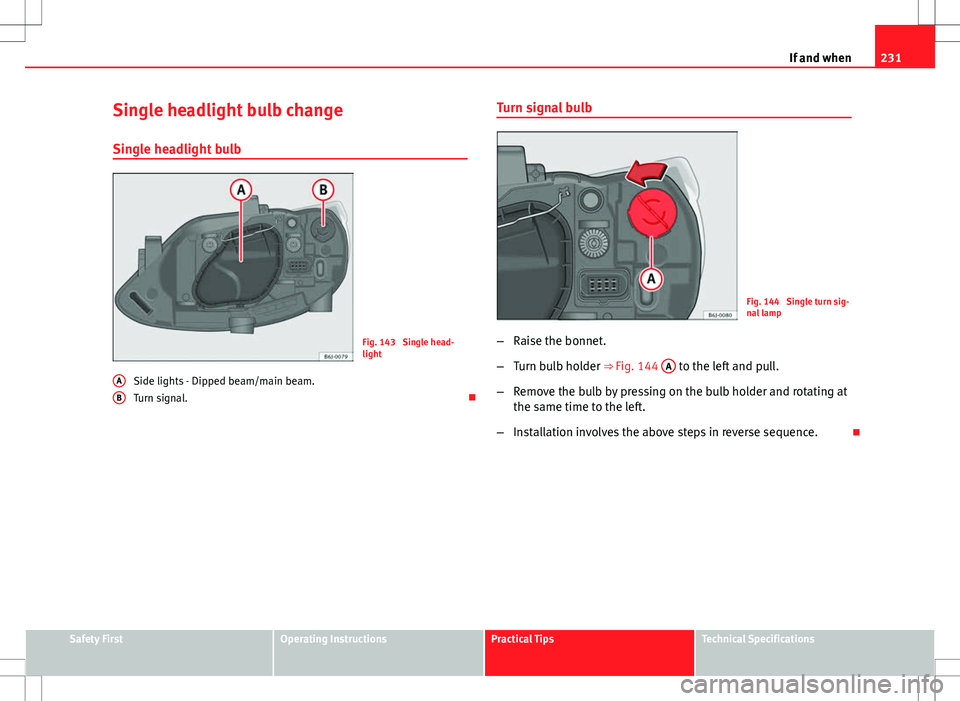

Single headlight bulb change
Single headlight bulb
Fig. 143 Single head-
light
Side lights - Dipped beam/main beam.
Turn signal. 
A
B
Turn signal bulb
Fig. 144 Single turn sig-
nal lamp
– Raise the bonnet.
– Turn bulb holder ⇒ Fig. 144 A
to the left and pull.
– Remove the bulb by pressing on the bulb holder and rotating at
the same time to the left.
– Installation involves the above steps in reverse sequence. 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

232If and when

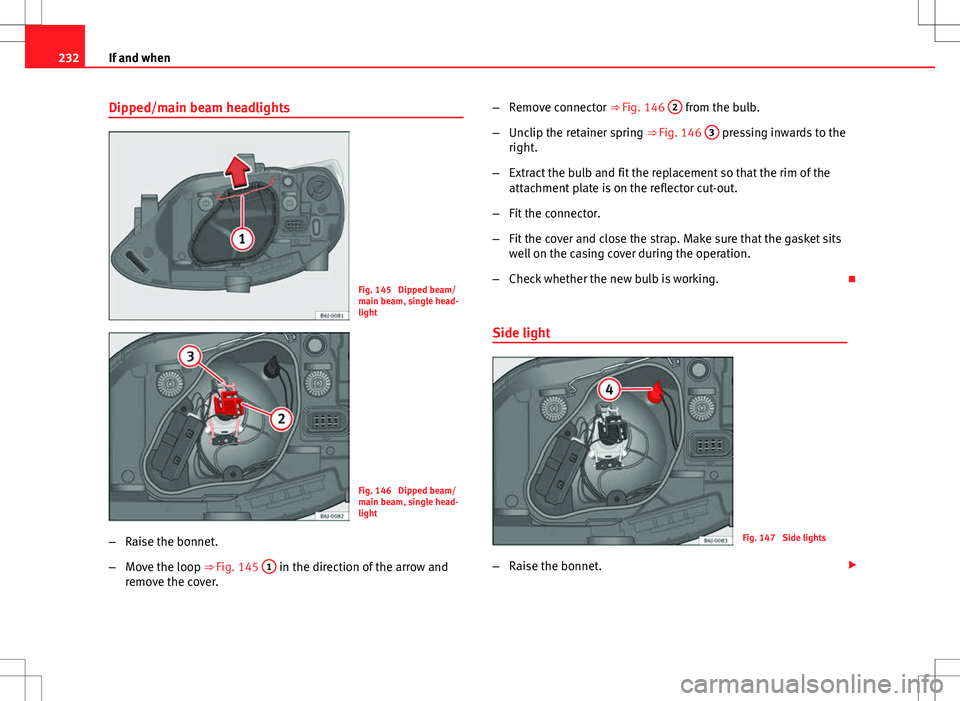

Dipped/main beam headlights
Fig. 145 Dipped beam/
main beam, single head-
light
Fig. 146 Dipped beam/
main beam, single head-
light
– Raise the bonnet.
– Move the loop ⇒ Fig. 145 1
in the direction of the arrow and
remove the cover. –
Remove connector ⇒ Fig. 146 2
from the bulb.
– Unclip the retainer spring ⇒ Fig. 146 3
pressing inwards to the
right.
– Extract the bulb and fit the replacement so that the rim of the
attachment plate is on the reflector cut-out.
– Fit the connector.
– Fit the cover and close the strap. Make sure that the gasket sits
well on the casing cover during the operation.
– Check whether the new bulb is working. 
Side light
Fig. 147 Side lights
– Raise the bonnet. 

233
If and when
– Move the loop ⇒ Fig. 145 1
in the direction of the arrow and
remove the cover.
– Remove the bulb holder 4
⇒ Fig. 147 outwards.
– Replace the bulb by pulling it out and inserting the replace-
ment.
– Installation is done in the reverse order. 
Double headlight bulb change Double headlight
Fig. 148 Double head-
lights
Side lights
Main beam headlights
A
B
Dipped beam headlights
Turn signal lights

Side light
Fig. 149 Side lights
Fig. 150 Side lights 
C
D
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

234If and when
–Raise the bonnet.
– Move the loop 1
in the direction of the arrow and remove the
cover ⇒ Fig. 149.
– Remove connector ⇒ Fig. 150 2
by pulling outward.
– Remove the bulb by pulling it out and fitting the new one.
– Installation involves the above steps in reverse sequence.
– Fit the cover and close the strap. Make sure that the gasket sits
well on the casing cover during the operation.
– Check whether the new bulb is working. 

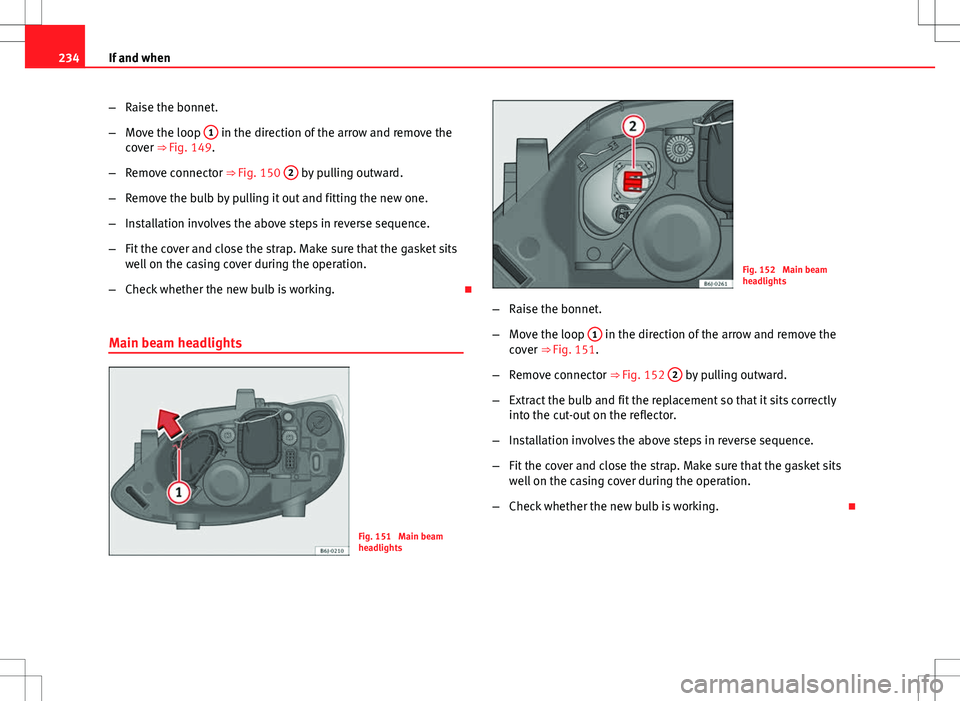

Main beam headlights
Fig. 151 Main beam
headlights
Fig. 152 Main beam
headlights
– Raise the bonnet.
– Move the loop 1
in the direction of the arrow and remove the
cover ⇒ Fig. 151.
– Remove connector ⇒ Fig. 152 2
by pulling outward.
– Extract the bulb and fit the replacement so that it sits correctly
into the cut-out on the reflector.
– Installation involves the above steps in reverse sequence.
– Fit the cover and close the strap. Make sure that the gasket sits
well on the casing cover during the operation.
– Check whether the new bulb is working. 

235
If and when

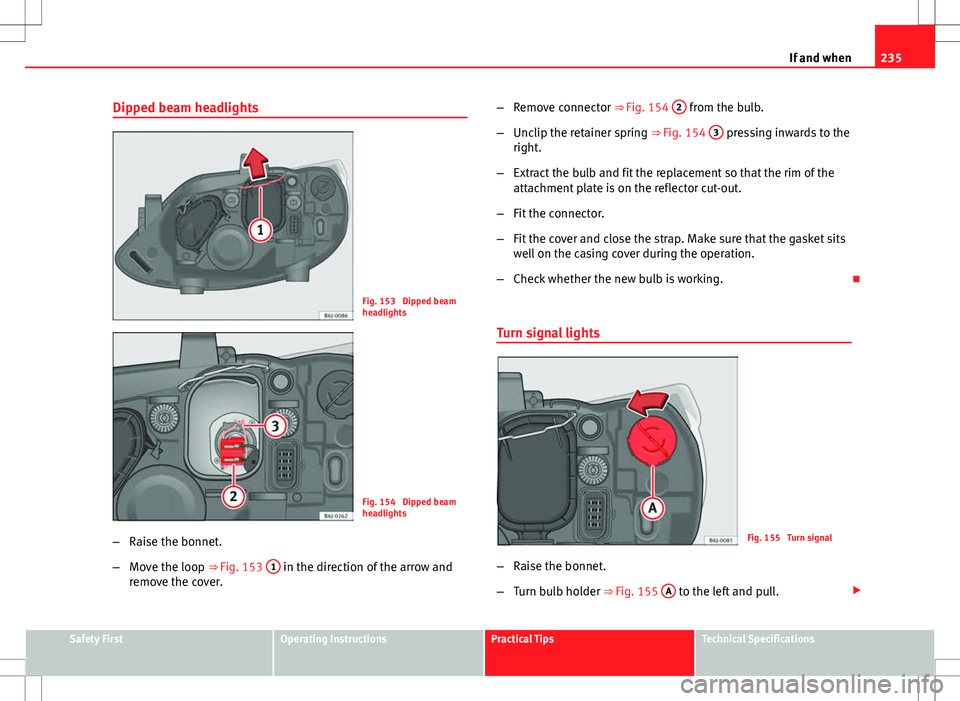

Dipped beam headlights
Fig. 153 Dipped beam
headlights
Fig. 154 Dipped beam
headlights
– Raise the bonnet.
– Move the loop ⇒ Fig. 153 1
in the direction of the arrow and
remove the cover. –
Remove connector ⇒ Fig. 154 2
from the bulb.
– Unclip the retainer spring ⇒ Fig. 154 3
pressing inwards to the
right.
– Extract the bulb and fit the replacement so that the rim of the
attachment plate is on the reflector cut-out.
– Fit the connector.
– Fit the cover and close the strap. Make sure that the gasket sits
well on the casing cover during the operation.
– Check whether the new bulb is working. 
Turn signal lights
Fig. 155 Turn signal
– Raise the bonnet.
– Turn bulb holder ⇒ Fig. 155 A
to the left and pull. 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

236If and when

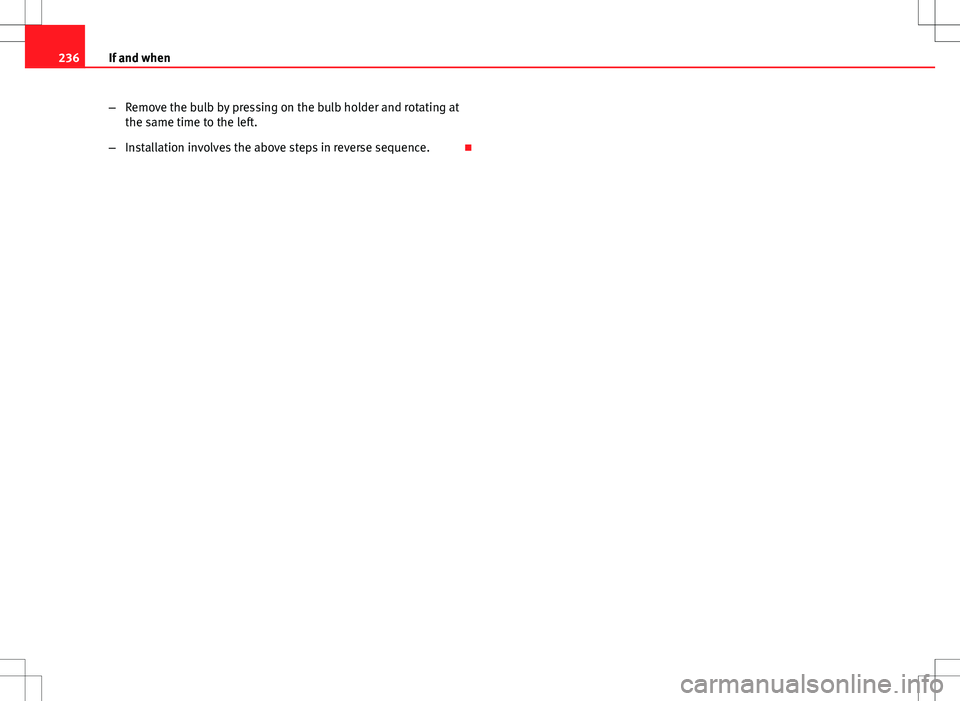

–Remove the bulb by pressing on the bulb holder and rotating at
the same time to the left.
– Installation involves the above steps in reverse sequence. 

237
If and when

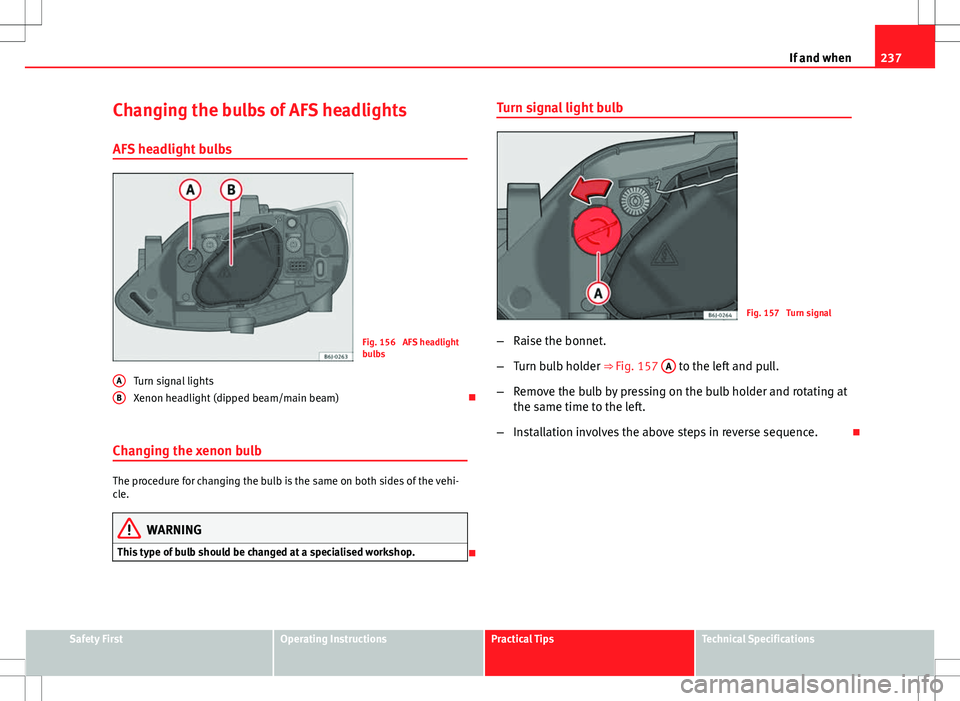

Changing the bulbs of AFS headlights
AFS headlight bulbs
Fig. 156 AFS headlight
bulbs
Turn signal lights
Xenon headlight (dipped beam/main beam) 
Changing the xenon bulb
The procedure for changing the bulb is the same on both sides of the vehi-
cle.
WARNING
This type of bulb should be changed at a specialised workshop.

A
B
Turn signal light bulb
Fig. 157 Turn signal
– Raise the bonnet.
– Turn bulb holder ⇒ Fig. 157 A
to the left and pull.
– Remove the bulb by pressing on the bulb holder and rotating at
the same time to the left.
– Installation involves the above steps in reverse sequence. 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

238If and when

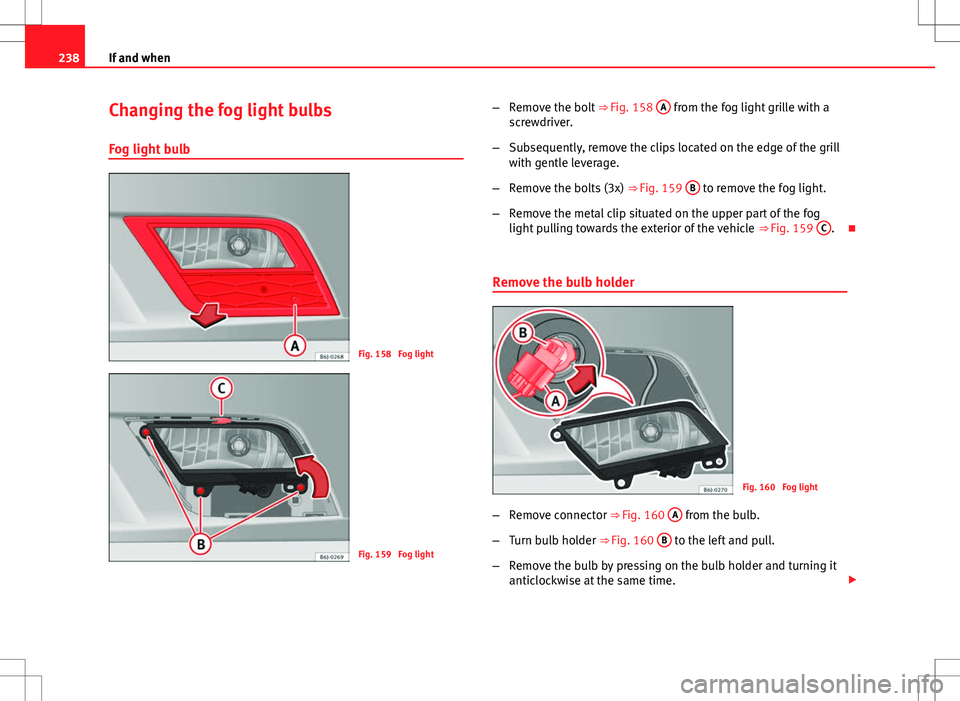

Changing the fog light bulbs
Fog light bulb
Fig. 158 Fog light
Fig. 159 Fog light –
Remove the bolt ⇒ Fig. 158 A
from the fog light grille with a
screwdriver.
– Subsequently, remove the clips located on the edge of the grill
with gentle leverage.
– Remove the bolts (3x) ⇒ Fig. 159 B
to remove the fog light.
– Remove the metal clip situated on the upper part of the fog
light pulling towards the exterior of the vehicle ⇒ Fig. 159 C
.
Remove the bulb holder
Fig. 160 Fog light
– Remove connector ⇒ Fig. 160 A
from the bulb.
– Turn bulb holder ⇒ Fig. 160 B
to the left and pull.
– Remove the bulb by pressing on the bulb holder and turning it
anticlockwise at the same time. 
