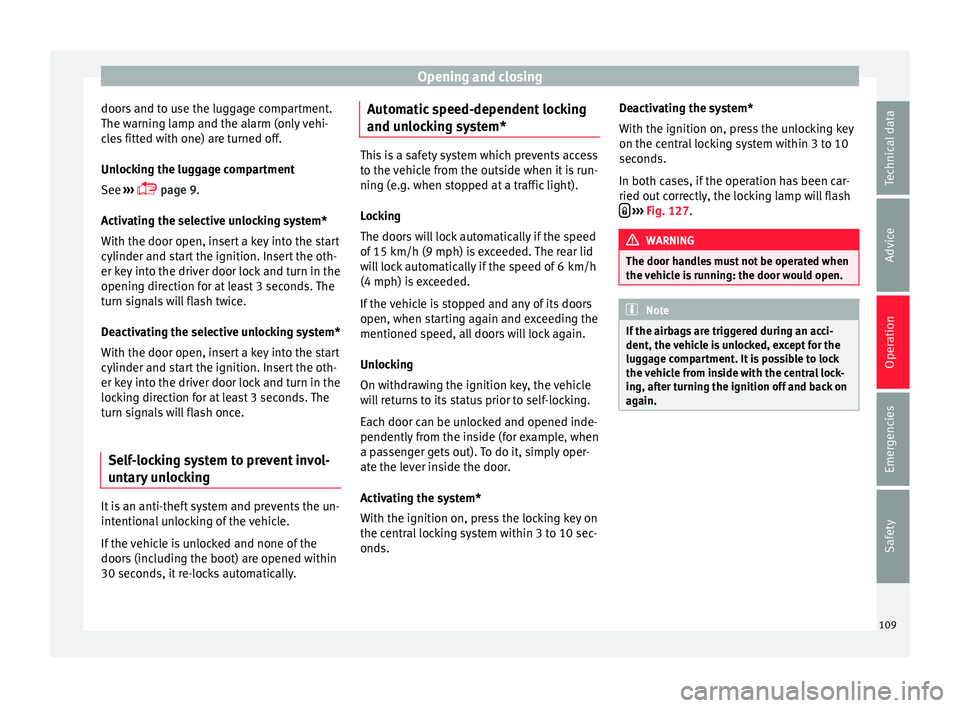

Seat Ibiza ST 2016 Owner's manual

Opening and closing
doors and to use the luggage compartment.
The w arnin
g lamp and the al
arm (only vehi-
cles fitted with one) are turned off.
Unlocking the luggage compartment
See ›››
 page 9.
Activating the selective unlocking system*
With the door open, insert a key into the start
cylinder and start the ignition. Insert the oth-
er key into the driver door lock and turn in the
opening direction for at least 3 seconds. The
turn signals will flash twice.
Deactivating the selective unlocking system*
With the door open, insert a key into the start
cylinder and start the ignition. Insert the oth-
er key into the driver door lock and turn in the
locking direction for at least 3 seconds. The
turn signals will flash once.
Self-locking system to prevent invol-
untary
unlocking It is an anti-theft system and prevents the un-
int
ention
al u

nlocking of the vehicle.
If the vehicle is unlocked and none of the
doors (including the boot) are opened within
30 seconds, it re-locks automatically. Automatic speed-dependent locking
and unlock

ing system* This is a safety system which prevents access
to the v
ehic

le from the outside when it is run-
ning (e.g. when stopped at a traffic light).
Locking
The doors will lock automatically if the speed
of 15 km/h (9 mph) is exceeded. The rear lid
will lock automatically if the speed of 6 km/h
(4 mph) is exceeded.
If the vehicle is stopped and any of its doors
open, when starting again and exceeding the
mentioned speed, all doors will lock again.
Unlocking
On withdrawing the ignition key, the vehicle
will returns to its status prior to self-locking.
Each door can be unlocked and opened inde-
pendently from the inside (for example, when
a passenger gets out). To do it, simply oper-
ate the lever inside the door.
Activating the system*
With the ignition on, press the locking key on
the central locking system within 3 to 10 sec-
onds. Deactivating the system*
With the ignition on, pre
s

s the unlocking key
on the central locking system within 3 to 10
seconds.
In both cases, if the operation has been car-
ried out correctly, the locking lamp will flash 
› ››
Fig. 127
. WARNING
The door handles must not be operated when
the vehic l

e is running: the door would open. Note
If the airbags are triggered during an acci-
dent, the vehic l

e is unlocked, except for the
luggage compartment. It is possible to lock
the vehicle from inside with the central lock-
ing, after turning the ignition off and back on
again. 109
Technical data
Advice
Operation
Emergencies
Safety

Operation

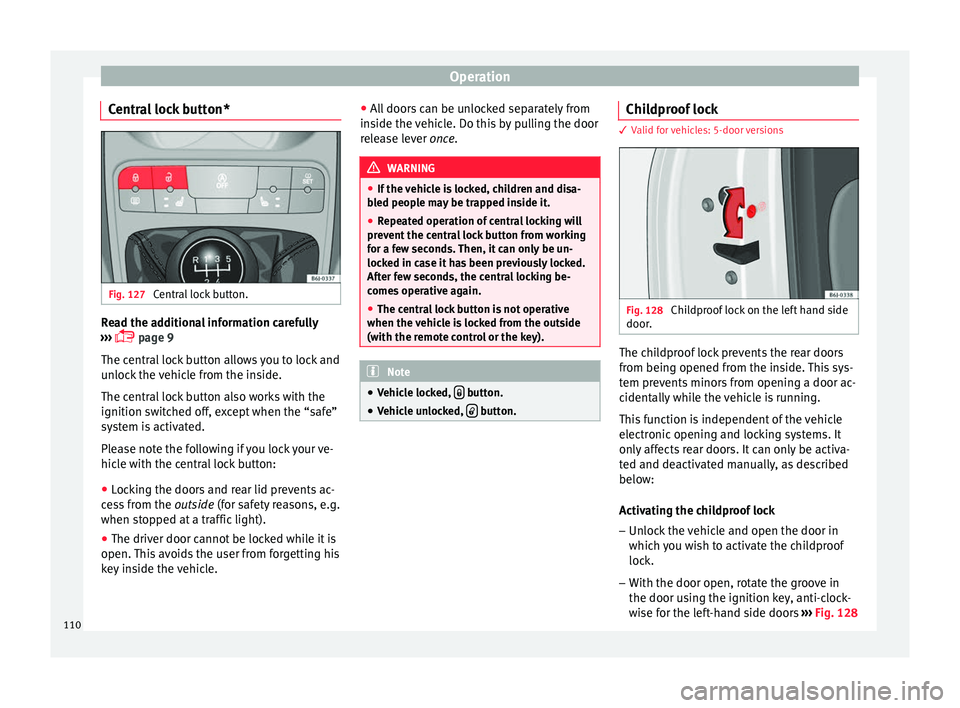

Central lock button* Fig. 127
Central lock button. Read the additional information carefully
› ›
›
 p
age 9
The central lock button allows you to lock and
unlock the vehicle from the inside.
The central lock button also works with the
ignition switched off, except when the “safe”
system is activated.
Please note the following if you lock your ve-
hicle with the central lock button:
● Locking the doors and rear lid prevents ac-
cess
from the outside (for safety reasons, e.g.
when stopped at a traffic light).
● The driver door cannot be locked while it is
open. This av
oids the user from forgetting his
key inside the vehicle. ●
All door
s can be unlocked separately from
inside the vehicle. Do this by pulling the door
release lever once. WARNING
● If the v ehic

le is locked, children and disa-
bled people may be trapped inside it.
● Repeated operation of central locking will
prevent the c
entral lock button from working
for a few seconds. Then, it can only be un-
locked in case it has been previously locked.
After few seconds, the central locking be-
comes operative again.
● The central lock button is not operative
when the vehicl
e is locked from the outside
(with the remote control or the key). Note
● Vehicl e loc

ked,  button.
● Vehicle unlocked,  button. Childproof lock
3 Valid for vehicles: 5-door versions
Fig. 128
Childproof lock on the left hand side
door . The childproof lock prevents the rear doors
fr
om bein
g opened fr om the in

side. This sys-
tem prevents minors from opening a door ac-
cidentally while the vehicle is running.
This function is independent of the vehicle
electronic opening and locking systems. It
only affects rear doors. It can only be activa-
ted and deactivated manually, as described
below:
Activating the childproof lock
– Unlock the vehicle and open the door in
which you w

ish to activate the childproof
lock.
– With the door open, rotate the groove in
the door using the ignition k

ey, anti-clock-
wise for the left-hand side doors ››› Fig. 128
110

Opening and closing
and clockwise for the right-hand side
door s.
D eactiv
ating the childproof lock
– Unlock the vehicle and open the door
whose chil

dproof lock you want to deacti-
vate.
– With the door open, rotate the groove in
the door using the ignition k

ey, anti-clock-
wise for the right-hand side doors, and
clockwise for the left-hand side doors
››› Fig. 128.
Once the childproof lock is activated, the
door can only be opened from the outside.
The childproof lock can be activated or deac-
tivated by inserting the key in the groove

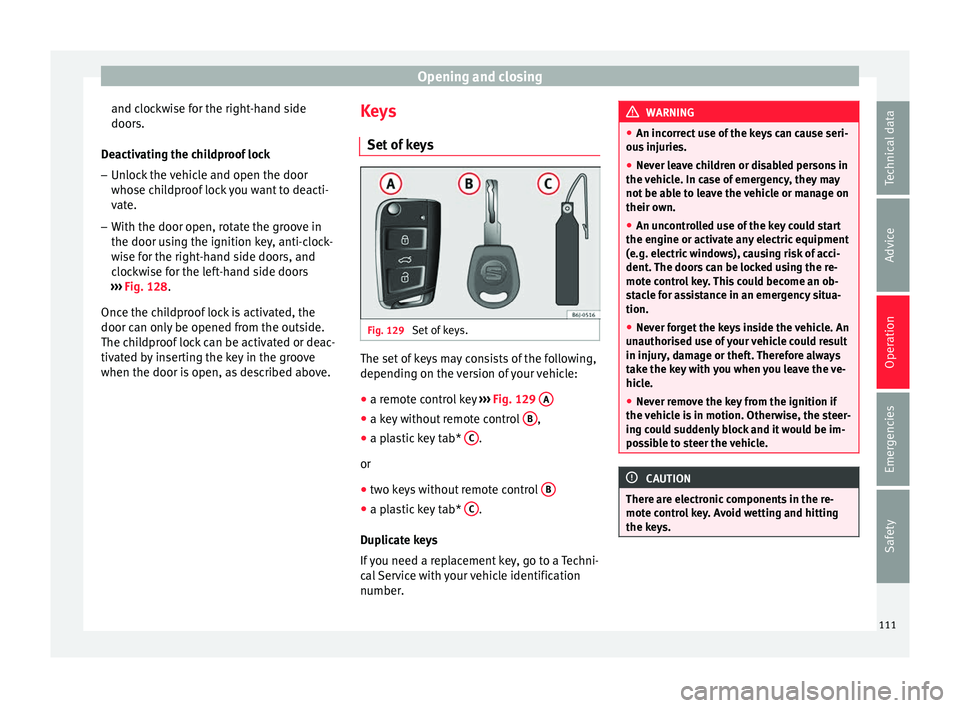

when the door is open, as described above. Keys
Set of key
s Fig. 129
Set of keys. The set of keys may consists of the following,
dependin
g on the
ver

sion of your vehicle:
● a remote control key ››› Fig. 129
A ●
a key without remote control B ,
● a plastic key tab* C .
or
● two keys without remote control B ●
a plastic key tab* C .
D up
licat

e keys
If you need a replacement key, go to a Techni-
cal Service with your vehicle identification
number. WARNING
● An incorrect u

se of the keys can cause seri-
ous injuries.
● Never leave children or disabled persons in
the vehicl
e. In case of emergency, they may
not be able to leave the vehicle or manage on
their own.
● An uncontrolled use of the key could start
the engine or activate an
y electric equipment
(e.g. electric windows), causing risk of acci-
dent. The doors can be locked using the re-
mote control key. This could become an ob-
stacle for assistance in an emergency situa-
tion.
● Never forget the keys inside the vehicle. An
unauthorised u
se of your vehicle could result
in injury, damage or theft. Therefore always
take the key with you when you leave the ve-
hicle.
● Never remove the key from the ignition if
the vehicl
e is in motion. Otherwise, the steer-
ing could suddenly block and it would be im-
possible to steer the vehicle. CAUTION
There are electronic components in the re-
mote contr o

l key. Avoid wetting and hitting
the keys. 111
Technical data
Advice
Operation
Emergencies
Safety

Operation

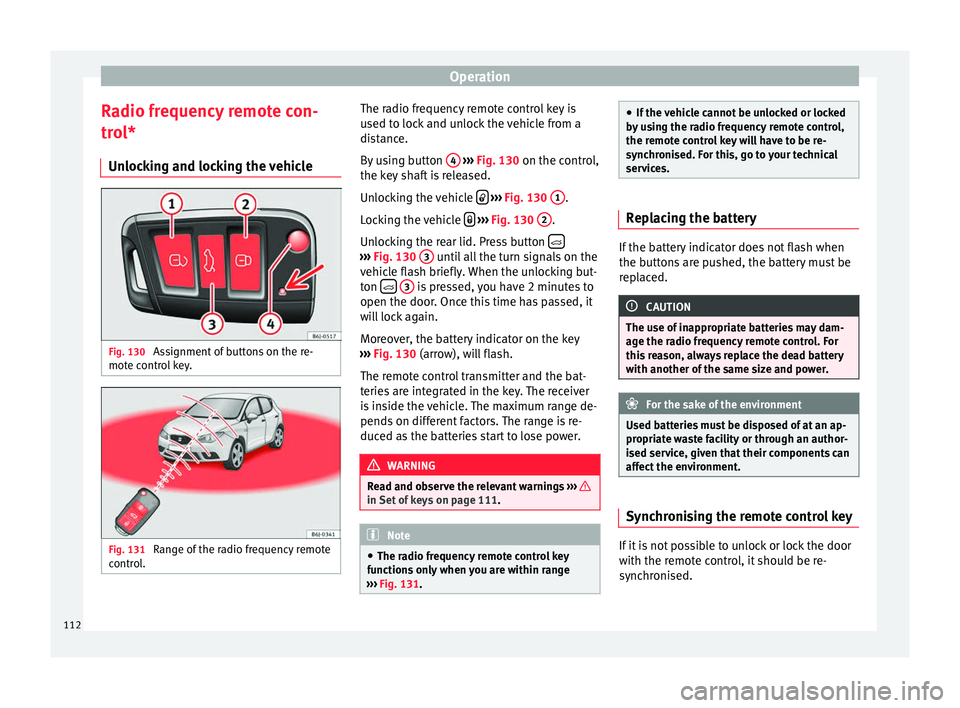

Radio frequency remote con-
tr o
l*
Un loc
king and locking the vehicle Fig. 130
Assignment of buttons on the re-
mot e c
ontr o

l key. Fig. 131
Range of the radio frequency remote
c ontr
ol

. The radio frequency remote control key is
u
sed t
o lock

and unlock the vehicle from a
distance.
By using button 4
› ››
Fig. 130
on the c ontr

ol,
the key shaft is released.
Unlocking the vehicle 
› ››
Fig. 130
1 .
L oc
kin

g the vehicle 
› ››
Fig. 130
2 .
Un loc
kin

g the rear lid. Press button  ›››
Fig. 130 3 until all the turn signals on the
v ehic
le fl

ash briefly. When the unlocking but-
ton 
3 is pressed, you have 2 minutes to
open the door . Onc
e this

time has passed, it
will lock again.
Moreover, the battery indicator on the key
››› Fig. 130 (arrow), will flash.
The remote control transmitter and the bat-
teries are integrated in the key. The receiver
is inside the vehicle. The maximum range de-
pends on different factors. The range is re-
duced as the batteries start to lose power. WARNING
Read and observe the relevant warnings ››› in Set of keys on page 111.
Note
● The radio fr equency

remote control key
functions only when you are within range
››› Fig. 131. ●
If the v ehic

le cannot be unlocked or locked
by using the radio frequency remote control,
the remote control key will have to be re-
synchronised. For this, go to your technical
services. Replacing the battery
If the battery indicator does not flash when
the button
s

are pushed, the battery must be
replaced. CAUTION
The use of inappropriate batteries may dam-
age the ra dio fr

equency remote control. For
this reason, always replace the dead battery
with another of the same size and power. For the sake of the environment
Used batteries must be disposed of at an ap-
propriat e w

aste facility or through an author-
ised service, given that their components can
affect the environment. Synchronising the remote control key
If it is not possible to unlock or lock the door
w
ith the r
emote c

ontrol, it should be re-
synchronised.
112

Opening and closing

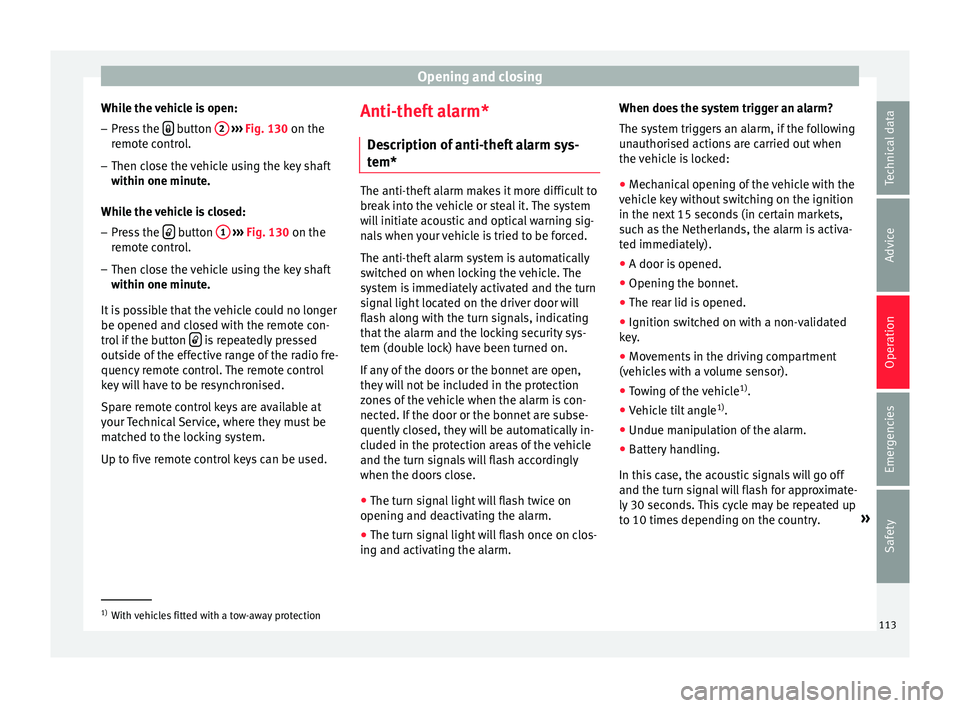

While the vehicle is open:
– Press the  button
2
› ››
Fig. 130
on the
r emot
e control.
– Then close the vehicle using the key shaft
within one minute.
Whil

e the vehicle is closed:
– Press the  button
1
› ››
Fig. 130
on the
r emot

e control.
– Then close the vehicle using the key shaft
within one minute.
It i

s possible that the vehicle could no longer
be opened and closed with the remote con-
trol if the button  is repeatedly pressed
outs ide of
the eff ectiv

e range of the radio fre-
quency remote control. The remote control
key will have to be resynchronised.
Spare remote control keys are available at
your Technical Service, where they must be
matched to the locking system.
Up to five remote control keys can be used. Anti-theft alarm*
Desc
ription of anti-theft alarm sys-
tem* The anti-theft alarm makes it more difficult to
break
int

o the vehicle or steal it. The system
will initiate acoustic and optical warning sig-
nals when your vehicle is tried to be forced.
The anti-theft alarm system is automatically
switched on when locking the vehicle. The
system is immediately activated and the turn
signal light located on the driver door will
flash along with the turn signals, indicating
that the alarm and the locking security sys-
tem (double lock) have been turned on.
If any of the doors or the bonnet are open,
they will not be included in the protection
zones of the vehicle when the alarm is con-
nected. If the door or the bonnet are subse-
quently closed, they will be automatically in-
cluded in the protection areas of the vehicle
and the turn signals will flash accordingly
when the doors close.
● The turn signal light will flash twice on
opening and deactiv atin

g the alarm.
● The turn signal light will flash once on clos-
ing and activating the al
arm. When does the system trigger an alarm?
The system trig

gers an alarm, if the following
unauthorised actions are carried out when
the vehicle is locked:
● Mechanical opening of the vehicle with the
vehicle k
ey without switching on the ignition
in the next 15 seconds (in certain markets,
such as the Netherlands, the alarm is activa-
ted immediately).
● A door is opened.
● Opening the bonnet.
● The rear lid is opened.
● Ignition switched on with a non-validated
key.
● Mov

ements in the driving compartment
(vehicle
s with a volume sensor).
● Towing of the vehicle 1)
.
● Vehicle tilt angle 1)
.
● Undue manipulation of the alarm.
● Battery handling.
In this ca
se, the acoustic signals will go off
and the turn signal will flash for approximate-
ly 30 seconds. This cycle may be repeated up
to 10 times depending on the country. »1)
With vehicles fitted with a tow-away protection
113
Technical data
Advice
Operation
Emergencies
Safety

Operation

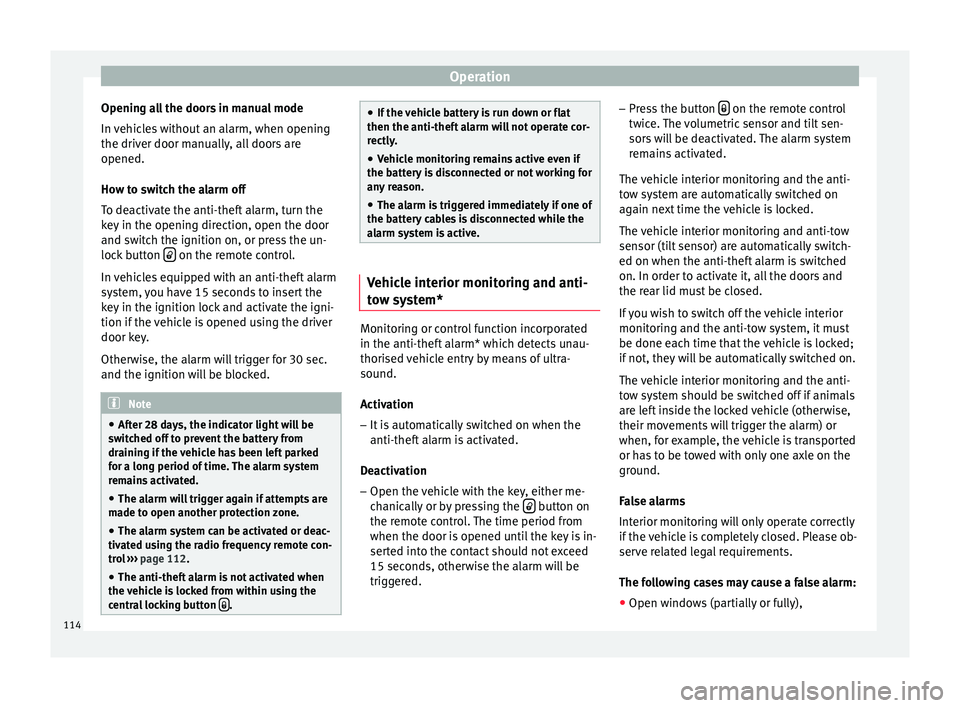

Opening all the doors in manual mode
In v
ehic l
es without an alarm, when opening
the driver door manually, all doors are
opened.
How to switch the alarm off
To deactivate the anti-theft alarm, turn the
key in the opening direction, open the door
and switch the ignition on, or press the un-
lock button  on the remote control.
In v
ehic l

es equipped with an anti-theft alarm
system, you have 15 seconds to insert the
key in the ignition lock and activate the igni-
tion if the vehicle is opened using the driver
door key.
Otherwise, the alarm will trigger for 30 sec.
and the ignition will be blocked. Note
● After 28 d a

ys, the indicator light will be
switched off to prevent the battery from
draining if the vehicle has been left parked
for a long period of time. The alarm system
remains activated.
● The alarm will trigger again if attempts are
made to open another pr
otection zone.
● The alarm system can be activated or deac-
tivated us
ing the radio frequency remote con-
trol ››› page 112.
● The anti-theft alarm is not activated when
the vehicl
e is locked from within using the
central locking button  . ●
If the v ehic

le battery is run down or flat
then the anti-theft alarm will not operate cor-
rectly.
● Vehicle monitoring remains active even if
the battery
is disconnected or not working for
any reason.
● The alarm is triggered immediately if one of
the battery
cables is disconnected while the
alarm system is active. Vehicle interior monitoring and anti-
tow sy
s

tem* Monitoring or control function incorporated
in the anti-thef
t
al arm* whic

h detects unau-
thorised vehicle entry by means of ultra-
sound.
Activation
– It is automatically switched on when the
anti-theft alarm i

s activated.
Deactivation – Open the vehicle with the key, either me-
chanical

ly or by pressing the  button on
the r emot
e contr
ol. The time period from
when the door is opened until the key is in-
serted into the contact should not exceed
15 seconds, otherwise the alarm will be
triggered. –
Press
the button  on the remote control
tw ic
e. The
volumetric sensor and tilt sen-
sors will be deactivated. The alarm system
remains activated.
The vehicle interior monitoring and the anti-
tow system are automatically switched on
again next time the vehicle is locked.
The vehicle interior monitoring and anti-tow
sensor (tilt sensor) are automatically switch-
ed on when the anti-theft alarm is switched
on. In order to activate it, all the doors and
the rear lid must be closed.
If you wish to switch off the vehicle interior
monitoring and the anti-tow system, it must
be done each time that the vehicle is locked;
if not, they will be automatically switched on.
The vehicle interior monitoring and the anti-
tow system should be switched off if animals
are left inside the locked vehicle (otherwise,
their movements will trigger the alarm) or
when, for example, the vehicle is transported
or has to be towed with only one axle on the
ground.
False alarms
Interior monitoring will only operate correctly
if the vehicle is completely closed. Please ob-
serve related legal requirements.
The following cases may cause a false alarm: ● Open windows (partially or fully),
114

Opening and closing

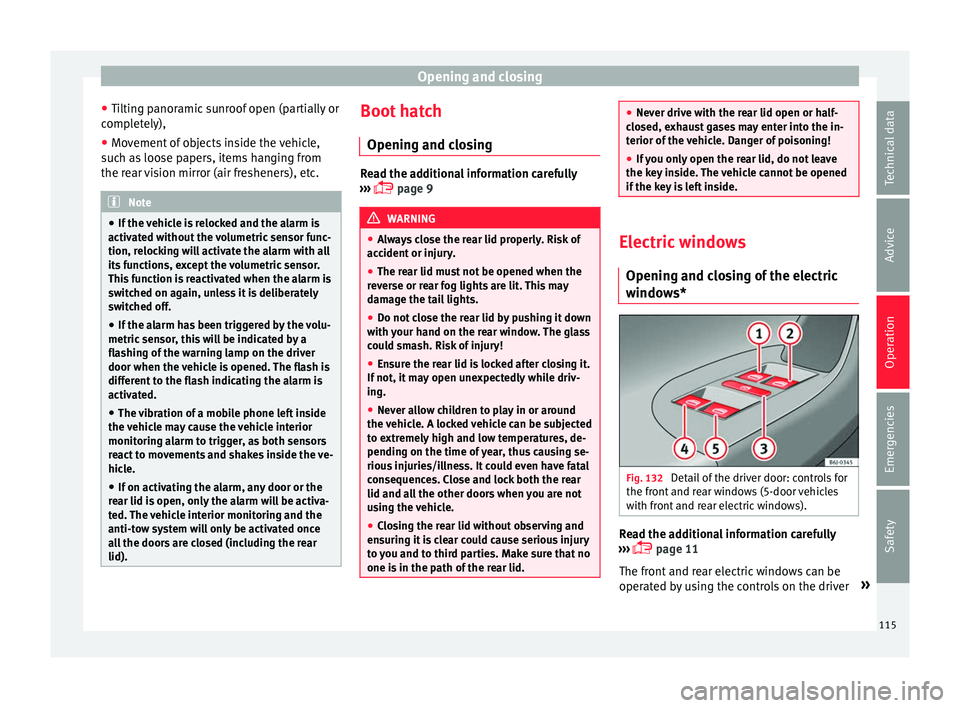

● Tiltin
g panor
amic sunroof open (partially or
completely),
● Movement of objects inside the vehicle,
such as
loose papers, items hanging from
the rear vision mirror (air fresheners), etc. Note
● If the v ehic

le is relocked and the alarm is
activated without the volumetric sensor func-
tion, relocking will activate the alarm with all
its functions, except the volumetric sensor.
This function is reactivated when the alarm is
switched on again, unless it is deliberately
switched off.
● If the alarm has been triggered by the volu-
metric sensor, thi
s will be indicated by a
flashing of the warning lamp on the driver
door when the vehicle is opened. The flash is
different to the flash indicating the alarm is
activated.
● The vibration of a mobile phone left inside
the vehicl
e may cause the vehicle interior
monitoring alarm to trigger, as both sensors
react to movements and shakes inside the ve-
hicle.
● If on activating the alarm, any door or the
rear lid is
open, only the alarm will be activa-
ted. The vehicle interior monitoring and the
anti-tow system will only be activated once
all the doors are closed (including the rear
lid). Boot hatch
Openin g and c
los

ing Read the additional information carefully
›››
 p

age 9 WARNING
● Alwa y

s close the rear lid properly. Risk of
accident or injury.
● The rear lid must not be opened when the
reverse or r
ear fog lights are lit. This may
damage the tail lights.
● Do not close the rear lid by pushing it down
with your h
and on the rear window. The glass
could smash. Risk of injury!
● Ensure the rear lid is locked after closing it.
If not, it ma
y open unexpectedly while driv-
ing.
● Never allow children to play in or around
the vehicl
e. A locked vehicle can be subjected
to extremely high and low temperatures, de-
pending on the time of year, thus causing se-
rious injuries/illness. It could even have fatal
consequences. Close and lock both the rear
lid and all the other doors when you are not
using the vehicle.
● Closing the rear lid without observing and
ensuring it
is clear could cause serious injury
to you and to third parties. Make sure that no
one is in the path of the rear lid. ●
Never drive w ith the r

ear lid open or half-
closed, exhaust gases may enter into the in-
terior of the vehicle. Danger of poisoning!
● If you only open the rear lid, do not leave
the key ins
ide. The vehicle cannot be opened
if the key is left inside. Electric windows
Opening and clo s

ing of the electric
windows* Fig. 132
Detail of the driver door: controls for
the fr ont
and r e

ar windows (5-door vehicles
with front and rear electric windows). Read the additional information carefully
› ›
›
 p

age 11
The front and rear electric windows can be
operated by using the controls on the driver »
115
Technical data
Advice
Operation
Emergencies
Safety

Operation

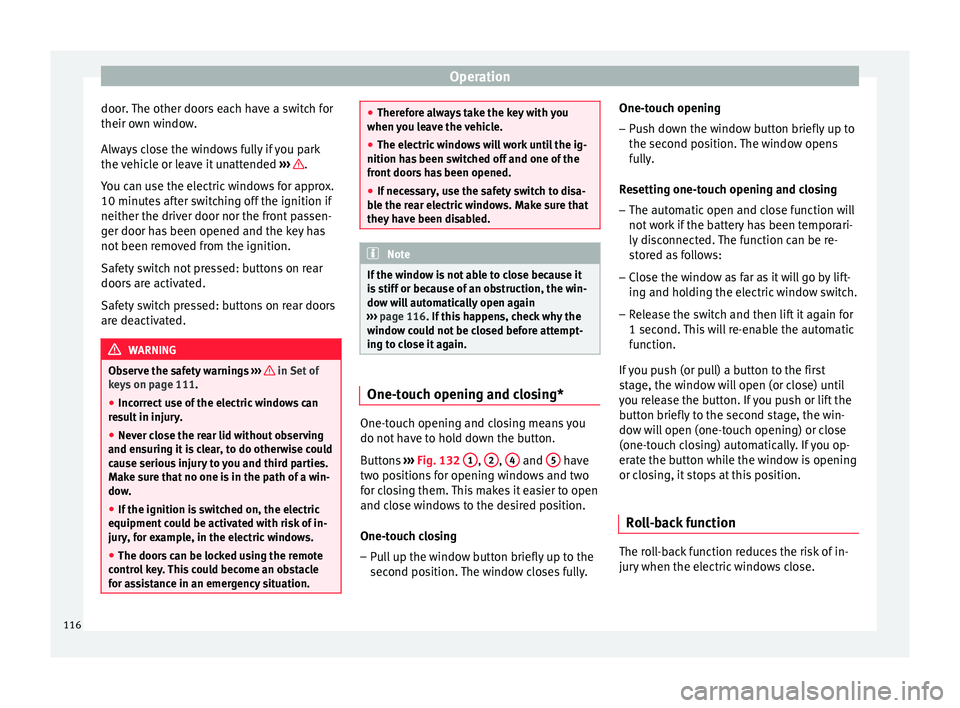

door. The other doors each have a switch for
their o wn w
indow
.
Always close the windows fully if you park
the vehicle or leave it unattended ››› .
Y ou c
an u se the el

ectric windows for approx.
10 minutes after switching off the ignition if
neither the driver door nor the front passen-
ger door has been opened and the key has
not been removed from the ignition.
Safety switch not pressed: buttons on rear
doors are activated.
Safety switch pressed: buttons on rear doors
are deactivated. WARNING
Observe the safety warnings ››› in Set of
keys on p ag

e 111.
● Incorrect use of the electric windows can
resu
lt in injury.
● Never close the rear lid without observing
and ensuring it
is clear, to do otherwise could
cause serious injury to you and third parties.
Make sure that no one is in the path of a win-
dow.
● If the ignition is switched on, the electric
equipment coul
d be activated with risk of in-
jury, for example, in the electric windows.
● The doors can be locked using the remote
control
key. This could become an obstacle
for assistance in an emergency situation. ●
Therefor e a

lways take the key with you
when you leave the vehicle.
● The electric windows will work until the ig-
nition has been sw
itched off and one of the
front doors has been opened.
● If necessary, use the safety switch to disa-
ble the re
ar electric windows. Make sure that
they have been disabled. Note
If the window is not able to close because it
i s s tiff

or because of an obstruction, the win-
dow will automatically open again
››› page 116. If this happens, check why the
window could not be closed before attempt-
ing to close it again. One-touch opening and closing*
One-touch opening and closing means you
do not
h
av e t

o hold down the button.
Buttons ››› Fig. 132 1 ,
2 ,
4 and
5 have
tw o po
sition

s for opening windows and two
for closing them. This makes it easier to open
and close windows to the desired position.
One-touch closing
– Pull up the window button briefly up to the
second position.

The window closes fully. One-touch opening
– Push down the window button briefly up to
the second position.

The window opens
fully.
Resetting one-touch opening and closing
– The automatic open and close function will
not work if

the battery has been temporari-
ly disconnected. The function can be re-
stored as follows:
– Close the window as far as it will go by lift-
ing and holdin

g the electric window switch.
– Release the switch and then lift it again for
1 second. This

will re-enable the automatic
function.
If you push (or pull) a button to the first
stage, the window will open (or close) until
you release the button. If you push or lift the
button briefly to the second stage, the win-
dow will open (one-touch opening) or close
(one-touch closing) automatically. If you op-
erate the button while the window is opening
or closing, it stops at this position.
Roll-back function The roll-back function reduces the risk of in-
jur
y
when the el ectric

windows close.
116

Opening and closing

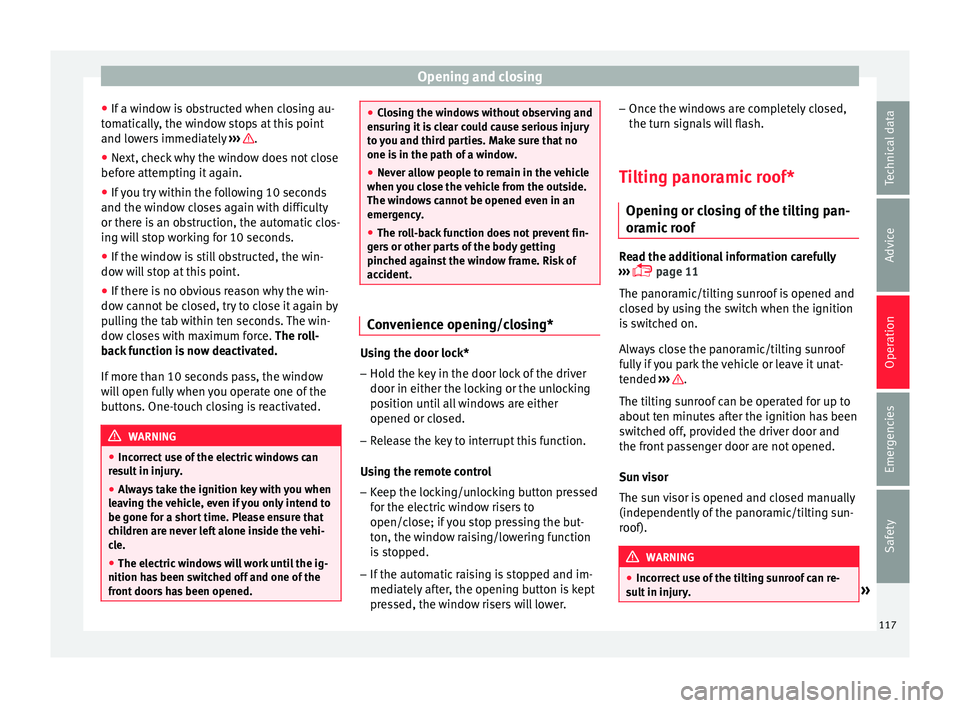

● If a w
indo w i
s obstructed when closing au-
tomatically, the window stops at this point
and lowers immediately ››› .
● Next, check why the window does not close
bef or
e att emptin

g it again.
● If you try within the following 10 seconds
and the window clo
ses again with difficulty
or there is an obstruction, the automatic clos-
ing will stop working for 10 seconds.
● If the window is still obstructed, the win-
dow wil
l stop at this point.
● If there is no obvious reason why the win-
dow cannot be c
losed, try to close it again by
pulling the tab within ten seconds. The win-
dow closes with maximum force. The roll-
back function is now deactivated.
If more than 10 seconds pass, the window
will open fully when you operate one of the
buttons. One-touch closing is reactivated. WARNING
● Incorrect u

se of the electric windows can
result in injury.
● Always take the ignition key with you when
leavin
g the vehicle, even if you only intend to
be gone for a short time. Please ensure that
children are never left alone inside the vehi-
cle.
● The electric windows will work until the ig-
nition has been sw
itched off and one of the
front doors has been opened. ●
Clos in

g the windows without observing and
ensuring it is clear could cause serious injury
to you and third parties. Make sure that no
one is in the path of a window.
● Never allow people to remain in the vehicle
when you clo
se the vehicle from the outside.
The windows cannot be opened even in an
emergency.
● The roll-back function does not prevent fin-
gers or other p
arts of the body getting
pinched against the window frame. Risk of
accident. Convenience opening/closing*
Using the door lock*
– Hold the key in the door lock of the driver
door in either the loc k
in g or the u

nlocking
position until all windows are either
opened or closed.
– Release the key to interrupt this function.
Using the r
emote control
– Keep the locking/unlocking button pressed
for the electric w

indow risers to
open/close; if you stop pressing the but-
ton, the window raising/lowering function
is stopped.
– If the automatic raising is stopped and im-
mediately af

ter, the opening button is kept
pressed, the window risers will lower. –
Once the window
s are completely closed,
the turn signals will flash.
Tilting panoramic roof* Opening or clos
ing of the tilting pan-
oramic roof Read the additional information carefully
›››
 p

age 11
The panoramic/tilting sunroof is opened and
closed by using the switch when the ignition
is switched on.
Always close the panoramic/tilting sunroof
fully if you park the vehicle or leave it unat-
tended ››› .
The ti ltin
g su

nroof can be operated for up to
about ten minutes after the ignition has been
switched off, provided the driver door and
the front passenger door are not opened.
Sun visor
The sun visor is opened and closed manually
(independently of the panoramic/tilting sun-
roof). WARNING
● Incorrect u

se of the tilting sunroof can re-
sult in injury. » 117
Technical data
Advice
Operation
Emergencies
Safety

Operation
●

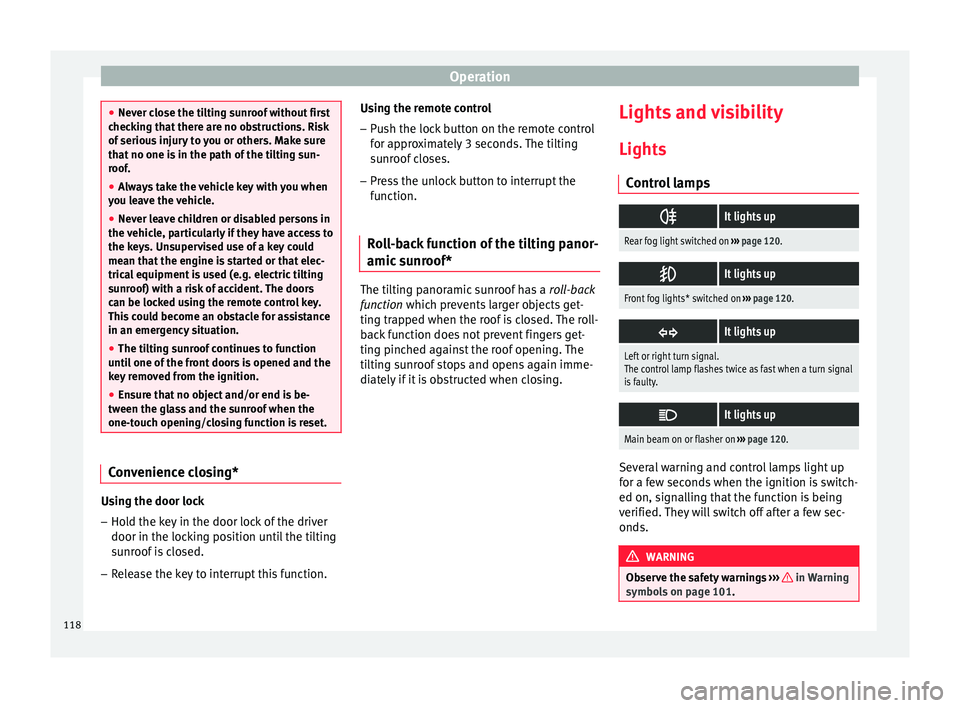

Never clo se the ti
lting sunroof without first
checking that there are no obstructions. Risk
of serious injury to you or others. Make sure
that no one is in the path of the tilting sun-
roof.
● Always take the vehicle key with you when
you leav
e the vehicle.
● Never leave children or disabled persons in
the vehicl
e, particularly if they have access to
the keys. Unsupervised use of a key could
mean that the engine is started or that elec-
trical equipment is used (e.g. electric tilting
sunroof) with a risk of accident. The doors
can be locked using the remote control key.
This could become an obstacle for assistance
in an emergency situation.
● The tilting sunroof continues to function
until one of
the front doors is opened and the
key removed from the ignition.
● Ensure that no object and/or end is be-
tween the glas
s and the sunroof when the
one-touch opening/closing function is reset. Convenience closing*
Using the door lock
– Hold the key in the door lock of the driver
door in the loc k
in g po

sition until the tilting
sunroof is closed.
– Release the key to interrupt this function. Using the remote control
– Push the lock button on the remote control
for appro

ximately 3 seconds. The tilting
sunroof closes.
– Press the unlock button to interrupt the
function.
Ro

ll-back function of the tilting panor-
amic sunr
oof* The tilting panoramic sunroof has a
ro
ll

-back
function which prevents larger objects get-
ting trapped when the roof is closed. The roll-
back function does not prevent fingers get-
ting pinched against the roof opening. The
tilting sunroof stops and opens again imme-
diately if it is obstructed when closing. Lights and visibility
Light s
C ontr o

l lamps 
It lights up
Rear fog light switched on
››› page 120. 
It lights up
Front fog lights* switched on
››› page 120. 
It lights up
Left or right turn signal.
The control lamp flashes twice as fast when a turn signal
is faulty.

It lights up
Main beam on or flasher on
››› page 120. Several warning and control lamps light up
f
or a f
ew sec ond

s when the ignition is switch-
ed on, signalling that the function is being
verified. They will switch off after a few sec-
onds. WARNING
Observe the safety warnings ››› in Warning
symbols on p ag

e 101. 118
