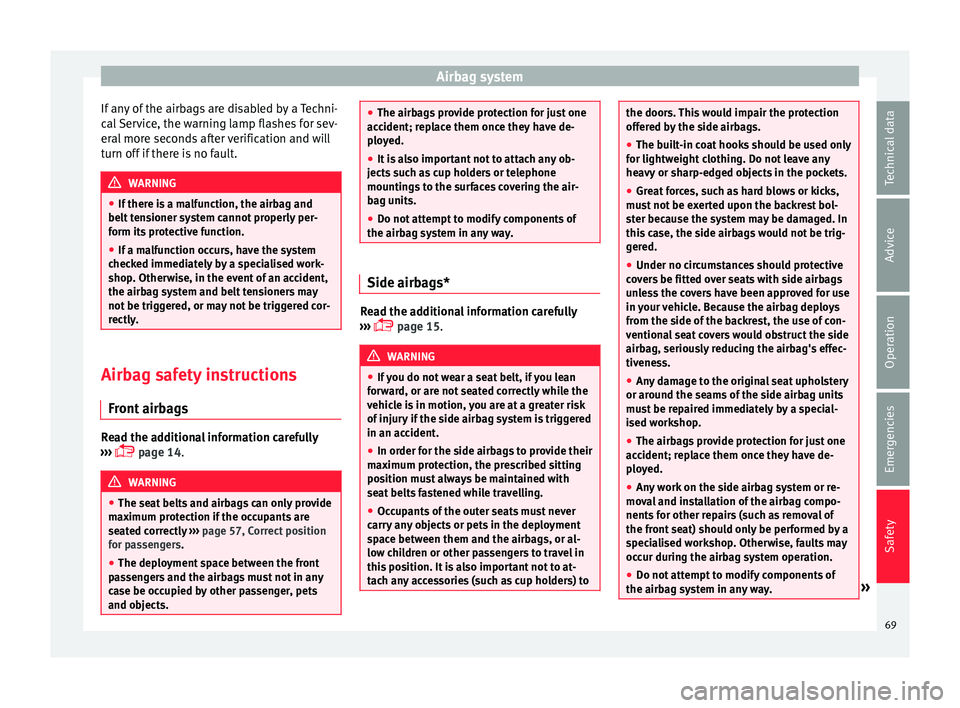

Page 71 of 252

Airbag system
If any of the airbags are disabled by a Techni-
c al
Ser
vice, the warning lamp flashes for sev-
eral more seconds after verification and will
turn off if there is no fault. WARNING
● If there i s
a malfunction, the airbag and
belt tensioner system cannot properly per-
form its protective function.
● If a malfunction occurs, have the system
checked immedi
ately by a specialised work-
shop. Otherwise, in the event of an accident,
the airbag system and belt tensioners may
not be triggered, or may not be triggered cor-
rectly. Airbag safety instructions
Fr ont
airb ag
sRead the additional information carefully
› ›
›
p
age 14. WARNING
● The seat belt s
and airbags can only provide
maximum protection if the occupants are
seated correctly ››› page 57, Correct position
for passengers.
● The deployment space between the front
passen
gers and the airbags must not in any
case be occupied by other passenger, pets
and objects. ●
The airbags pr
ovide protection for just one
accident; replace them once they have de-
ployed.
● It is also important not to attach any ob-
jects s
uch as cup holders or telephone
mountings to the surfaces covering the air-
bag units.
● Do not attempt to modify components of
the airbag syst
em in any way. Side airbags*
Read the additional information carefully
› ›
›
p
age 15. WARNING
● If y ou do not
wear a seat belt, if you lean
forward, or are not seated correctly while the
vehicle is in motion, you are at a greater risk
of injury if the side airbag system is triggered
in an accident.
● In order for the side airbags to provide their
maximum prot
ection, the prescribed sitting
position must always be maintained with
seat belts fastened while travelling.
● Occupants of the outer seats must never
carry an
y objects or pets in the deployment
space between them and the airbags, or al-
low children or other passengers to travel in
this position. It is also important not to at-
tach any accessories (such as cup holders) to the doors. This would impair the protection
offered b
y
the side airbags.
● The built-in coat hooks should be used only
for lightweight c
lothing. Do not leave any
heavy or sharp-edged objects in the pockets.
● Great forces, such as hard blows or kicks,
must not
be exerted upon the backrest bol-
ster because the system may be damaged. In
this case, the side airbags would not be trig-
gered.
● Under no circumstances should protective
cover
s be fitted over seats with side airbags
unless the covers have been approved for use
in your vehicle. Because the airbag deploys
from the side of the backrest, the use of con-
ventional seat covers would obstruct the side
airbag, seriously reducing the airbag's effec-
tiveness.
● Any damage to the original seat upholstery
or around the seams
of the side airbag units
must be repaired immediately by a special-
ised workshop.
● The airbags provide protection for just one
accident; rep
lace them once they have de-
ployed.
● Any work on the side airbag system or re-
moval
and installation of the airbag compo-
nents for other repairs (such as removal of
the front seat) should only be performed by a
specialised workshop. Otherwise, faults may
occur during the airbag system operation.
● Do not attempt to modify components of
the airbag syst
em in any way. » 69
Technical data
Advice
Operation
Emergencies
Safety

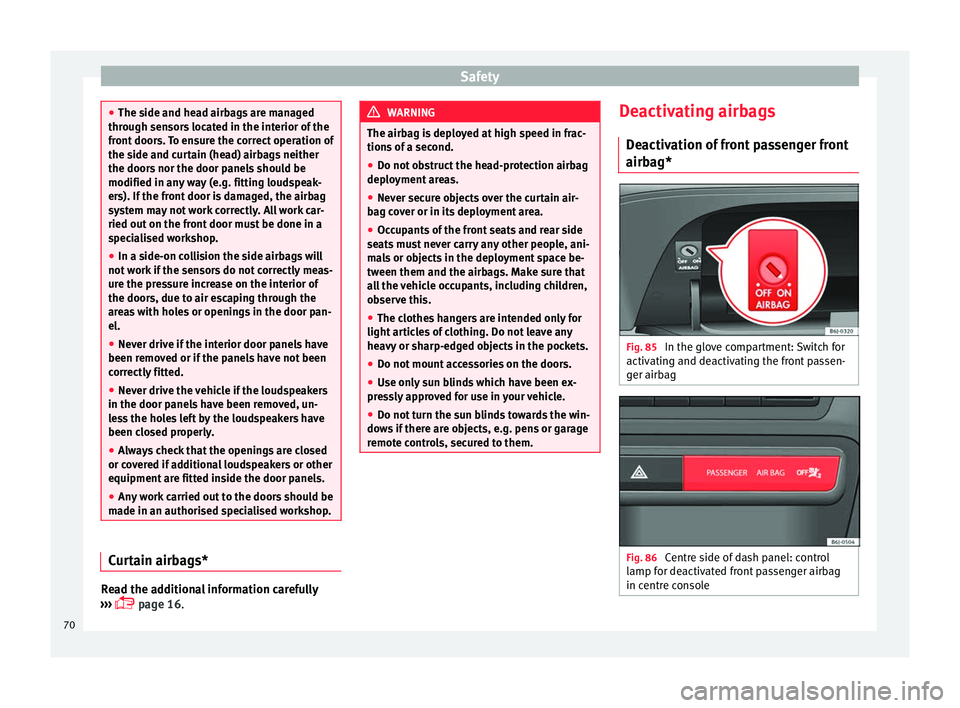

Page 72 of 252

Safety
●
The side and hea d airb
ags are managed
through sensors located in the interior of the
front doors. To ensure the correct operation of
the side and curtain (head) airbags neither
the doors nor the door panels should be
modified in any way (e.g. fitting loudspeak-
ers). If the front door is damaged, the airbag
system may not work correctly. All work car-
ried out on the front door must be done in a
specialised workshop.
● In a side-on collision the side airbags will
not work if
the sensors do not correctly meas-
ure the pressure increase on the interior of
the doors, due to air escaping through the
areas with holes or openings in the door pan-
el.
● Never drive if the interior door panels have
been removed or if
the panels have not been
correctly fitted.
● Never drive the vehicle if the loudspeakers
in the door panels h
ave been removed, un-
less the holes left by the loudspeakers have
been closed properly.
● Always check that the openings are closed
or cover
ed if additional loudspeakers or other
equipment are fitted inside the door panels.
● Any work carried out to the doors should be
made in an authorised s
pecialised workshop.Curtain airbags*
Read the additional information carefully
› ›
›
p
age 16. WARNING
The airbag is deployed at high speed in frac-
tions of a sec
ond.
● Do not obstruct the head-protection airbag
deployment ar
eas.
● Never secure objects over the curtain air-
bag cov
er or in its deployment area.
● Occupants of the front seats and rear side
seats mu
st never carry any other people, ani-
mals or objects in the deployment space be-
tween them and the airbags. Make sure that
all the vehicle occupants, including children,
observe this.
● The clothes hangers are intended only for
light articl
es of clothing. Do not leave any
heavy or sharp-edged objects in the pockets.
● Do not mount accessories on the doors.
● Use only sun blinds which have been ex-
press
ly approved for use in your vehicle.
● Do not turn the sun blinds towards the win-
dows if
there are objects, e.g. pens or garage
remote controls, secured to them. Deactivating airbags
D e
activ ation of
front passenger front
airbag* Fig. 85
In the glove compartment: Switch for
activ atin
g and de activ
ating the front passen-
ger airbag Fig. 86
Centre side of dash panel: control
l amp f
or deactiv
ated front passenger airbag
in centre console 70

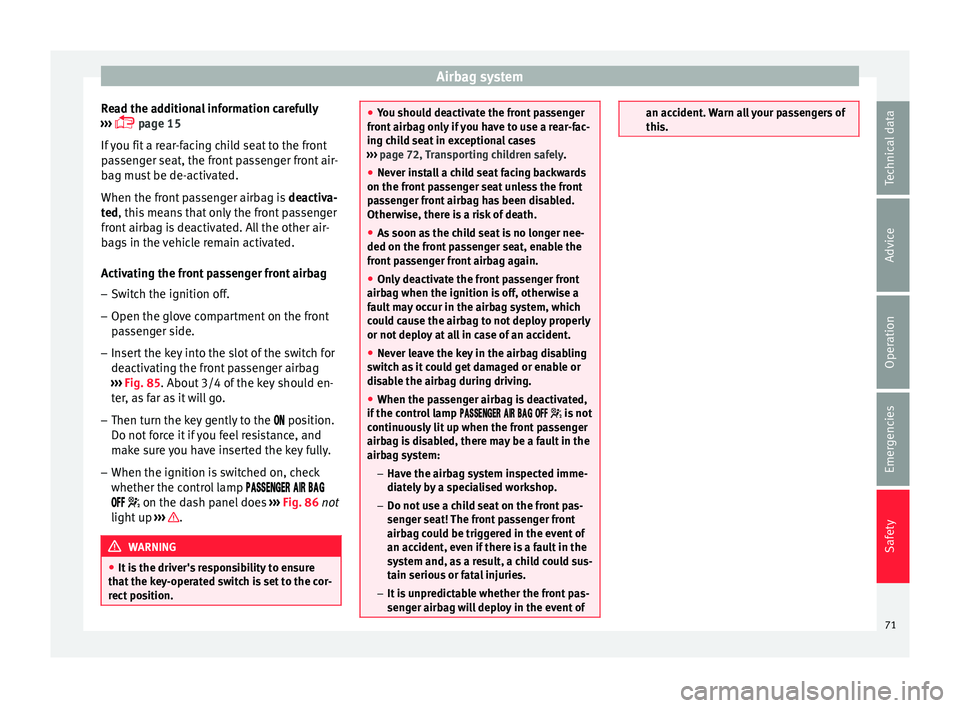

Page 73 of 252

Airbag system
Read the additional information carefully
› ›
›
p
age 15
If you fit a rear-facing child seat to the front
passenger seat, the front passenger front air-
bag must be de-activated.
When the front passenger airbag is deactiva-
ted, this means that only the front passenger
front airbag is deactivated. All the other air-
bags in the vehicle remain activated.
Activating the front passenger front airbag
– Switch the ignition off.
– Open the glove compartment on the front
passen
ger side.
– Insert the key into the slot of the switch for
deactivating the fr
ont passenger airbag
››› Fig. 85. About 3/4 of the key should en-
ter, as far as it will go.
– Then turn the key gently to the position.
Do not f
orce it if you feel resistance, and
make sure you have inserted the key fully.
– When the ignition is switched on, check
whether the control
lamp
on the dash panel does ››› Fig. 86 not
light up ››› .
WARNING
● It is the driv
er's responsibility to ensure
that the key-operated switch is set to the cor-
rect position. ●
You shoul d de
activate the front passenger
front airbag only if you have to use a rear-fac-
ing child seat in exceptional cases
››› page 72, Transporting children safely.
● Never install a child seat facing backwards
on the front pa
ssenger seat unless the front
passenger front airbag has been disabled.
Otherwise, there is a risk of death.
● As soon as the child seat is no longer nee-
ded on the front pa
ssenger seat, enable the
front passenger front airbag again.
● Only deactivate the front passenger front
airbag when the ignition is off
, otherwise a
fault may occur in the airbag system, which
could cause the airbag to not deploy properly
or not deploy at all in case of an accident.
● Never leave the key in the airbag disabling
switch a
s it could get damaged or enable or
disable the airbag during driving.
● When the passenger airbag is deactivated,
if the contro
l lamp is not
continuously lit up when the front passenger
airbag is disabled, there may be a fault in the
airbag system:
–Have the airbag system inspected imme-
diately by a specialised workshop.
– Do not use a child seat on the front pas-
senger seat! The front passenger front
airbag could be triggered in the event of
an accident, even if there is a fault in the
system and, as a result, a child could sus-
tain serious or fatal injuries.
– It is unpredictable whether the front pas-
senger airbag will deploy in the event of an accident. Warn all your passengers of
this.
71
Technical data
Advice
Operation
Emergencies
Safety

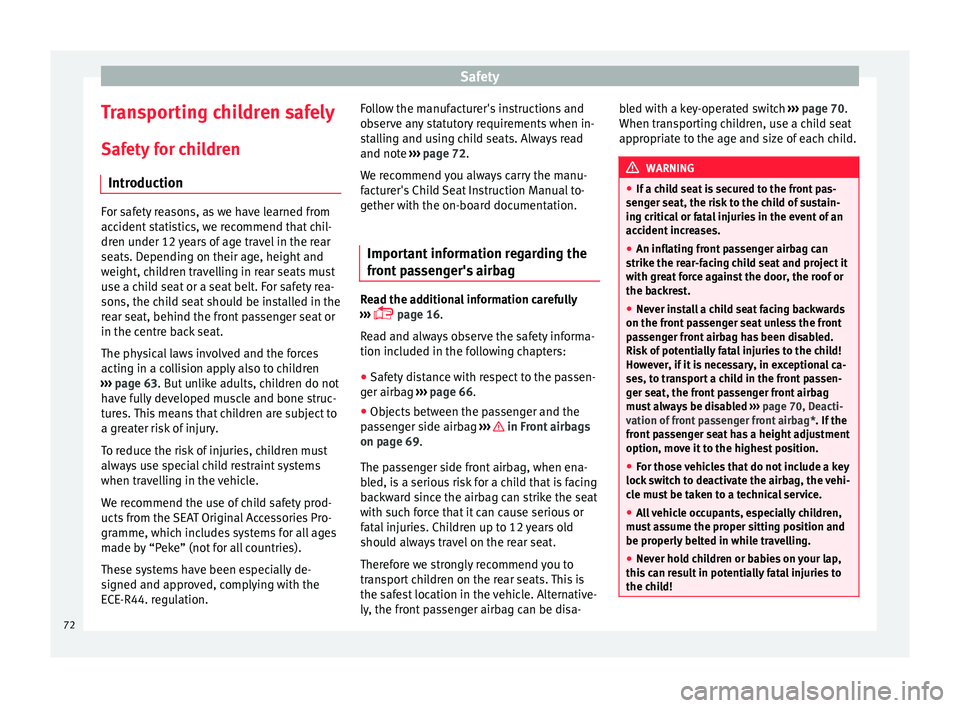

Page 74 of 252

Safety
Transporting children safely Saf ety
for c
hildren
Introduction For safety reasons, as we have learned from
accident
s
tatistics, we recommend that chil-
dren under 12 years of age travel in the rear
seats. Depending on their age, height and
weight, children travelling in rear seats must
use a child seat or a seat belt. For safety rea-
sons, the child seat should be installed in the
rear seat, behind the front passenger seat or
in the centre back seat.
The physical laws involved and the forces
acting in a collision apply also to children
››› page 63. But unlike adults, children do not
have fully developed muscle and bone struc-
tures. This means that children are subject to
a greater risk of injury.
To reduce the risk of injuries, children must
always use special child restraint systems
when travelling in the vehicle.
We recommend the use of child safety prod-
ucts from the SEAT Original Accessories Pro-
gramme, which includes systems for all ages
made by “Peke” (not for all countries).
These systems have been especially de-
signed and approved, complying with the
ECE-R44. regulation. Follow the manufacturer's instructions and
obser
v
e any statutory requirements when in-
stalling and using child seats. Always read
and note ››› page 72.
We recommend you always carry the manu-
facturer's Child Seat Instruction Manual to-
gether with the on-board documentation.
Important information regarding the
front pa
ssenger's airbag Read the additional information carefully
› ›
›
p
age 16.
Read and always observe the safety informa-
tion included in the following chapters:
● Safety distance with respect to the passen-
ger airbag ››
› page 66.
● Objects between the passenger and the
passen
ger side airbag ››› in Front airbags
on p ag
e 69 .
The p
assenger side front airbag, when ena-
bled, is a serious risk for a child that is facing
backward since the airbag can strike the seat
with such force that it can cause serious or
fatal injuries. Children up to 12 years old
should always travel on the rear seat.
Therefore we strongly recommend you to
transport children on the rear seats. This is
the safest location in the vehicle. Alternative-
ly, the front passenger airbag can be disa- bled with a key-operated switch
››› p
age 70.
When transporting children, use a child seat
appropriate to the age and size of each child. WARNING
● If a chi l
d seat is secured to the front pas-
senger seat, the risk to the child of sustain-
ing critical or fatal injuries in the event of an
accident increases.
● An inflating front passenger airbag can
strike the re
ar-facing child seat and project it
with great force against the door, the roof or
the backrest.
● Never install a child seat facing backwards
on the front pa
ssenger seat unless the front
passenger front airbag has been disabled.
Risk of potentially fatal injuries to the child!
However, if it is necessary, in exceptional ca-
ses, to transport a child in the front passen-
ger seat, the front passenger front airbag
must always be disabled ››› page 70, Deacti-
vation of front passenger front airbag*. If the
front passenger seat has a height adjustment
option, move it to the highest position.
● For those vehicles that do not include a key
lock swit
ch to deactivate the airbag, the vehi-
cle must be taken to a technical service.
● All vehicle occupants, especially children,
must a
ssume the proper sitting position and
be properly belted in while travelling.
● Never hold children or babies on your lap,
this can r
esult in potentially fatal injuries to
the child! 72
Page 75 of 252

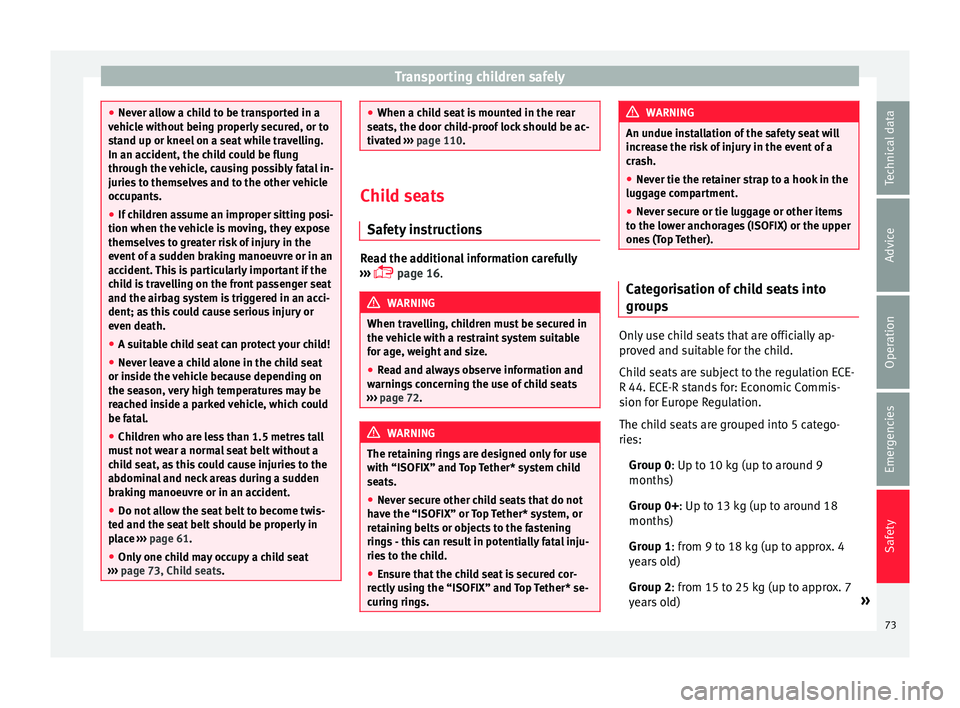

Transporting children safely
●
Never al lo
w a child to be transported in a
vehicle without being properly secured, or to
stand up or kneel on a seat while travelling.
In an accident, the child could be flung
through the vehicle, causing possibly fatal in-
juries to themselves and to the other vehicle
occupants.
● If children assume an improper sitting posi-
tion when the vehicl
e is moving, they expose
themselves to greater risk of injury in the
event of a sudden braking manoeuvre or in an
accident. This is particularly important if the
child is travelling on the front passenger seat
and the airbag system is triggered in an acci-
dent; as this could cause serious injury or
even death.
● A suitable child seat can protect your child!
● Never leave a child alone in the child seat
or inside the v
ehicle because depending on
the season, very high temperatures may be
reached inside a parked vehicle, which could
be fatal.
● Children who are less than 1.5 metres tall
must not
wear a normal seat belt without a
child seat, as this could cause injuries to the
abdominal and neck areas during a sudden
braking manoeuvre or in an accident.
● Do not allow the seat belt to become twis-
ted and the seat belt
should be properly in
place ››› page 61.
● Only one child may occupy a child seat
››› p
age 73, Child seats. ●
When a chil d se
at is mounted in the rear
seats, the door child-proof lock should be ac-
tivated ››› page 110. Child seats
Safety in s
tructions Read the additional information carefully
›››
p
age 16. WARNING
When travelling, children must be secured in
the vehic l
e with a restraint system suitable
for age, weight and size.
● Read and always observe information and
warnings
concerning the use of child seats
››› page 72. WARNING
The retaining rings are designed only for use
with “ISOFIX” and Top T
ether* system child
seats.
● Never secure other child seats that do not
have the “ISOFIX” or Top
Tether* system, or
retaining belts or objects to the fastening
rings - this can result in potentially fatal inju-
ries to the child.
● Ensure that the child seat is secured cor-
rectly us
ing the “ISOFIX” and Top Tether* se-
curing rings. WARNING
An undue installation of the safety seat will
incre a
se the risk of injury in the event of a
crash.
● Never tie the retainer strap to a hook in the
luggage c
ompartment.
● Never secure or tie luggage or other items
to the lower anc
horages (ISOFIX) or the upper
ones (Top Tether). Categorisation of child seats into
gr
oup
s Only use child seats that are officially ap-
pr
o
ved and s
uitable for the child.
Child seats are subject to the regulation ECE-
R 44. ECE-R stands for: Economic Commis-
sion for Europe Regulation.
The child seats are grouped into 5 catego-
ries:
Group 0: Up to 10 kg (up to around 9
months)
Group 0+: Up to 13 kg (up to around 18
months)
Group 1: from 9 to 18 kg (up to approx. 4
years old)
Group 2: from 15 to 25 kg (up to approx. 7
years old) »
73
Technical data
Advice
Operation
Emergencies
Safety
Page 76 of 252

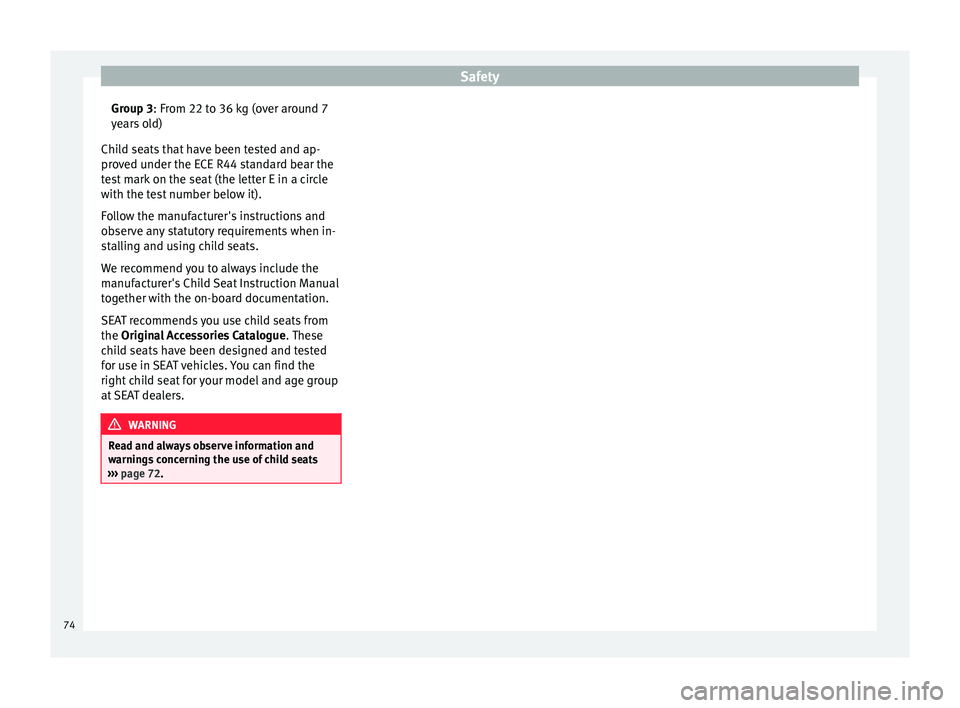

Safety
Group 3: Fr om 22 to 36 kg (over around 7
y e ar
s old)
Child seats that have been tested and ap-
proved under the ECE R44 standard bear the
test mark on the seat (the letter E in a circle
with the test number below it).
Follow the manufacturer's instructions and
observe any statutory requirements when in-
stalling and using child seats.
We recommend you to always include the
manufacturer's Child Seat Instruction Manual
together with the on-board documentation.
SEAT recommends you use child seats from
the Original Accessories Catalogue . These
child seats have been designed and tested
for use in SEAT vehicles. You can find the
right child seat for your model and age group
at SEAT dealers. WARNING
Read and always observe information and
warning s
concerning the use of child seats
››› page 72.74
Page 77 of 252

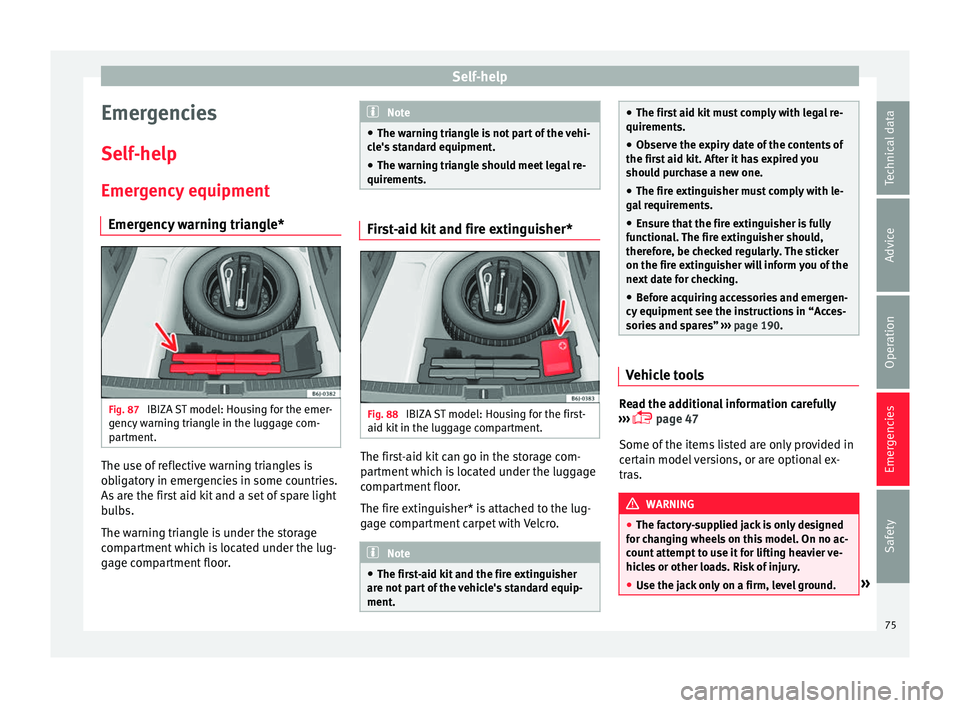

Self-help
Emergencies
Self -help
Emer gency
equipment
Emergency warning triangle* Fig. 87
IBIZA ST model: Housing for the emer-
g ency
warnin
g triangle in the luggage com-
partment. The use of reflective warning triangles is
o
b
lig at
ory in emergencies in some countries.
As are the first aid kit and a set of spare light
bulbs.
The warning triangle is under the storage
compartment which is located under the lug-
gage compartment floor. Note
● The warning tri an
gle is not part of the vehi-
cle's standard equipment.
● The warning triangle should meet legal re-
quirements. First-aid kit and fire extinguisher*
Fig. 88
IBIZA ST model: Housing for the first-
aid k it
in the lug g
age compartment. The first-aid kit can go in the storage com-
p
ar
tment whic
h is located under the luggage
compartment floor.
The fire extinguisher* is attached to the lug-
gage compartment carpet with Velcro. Note
● The first -
aid kit and the fire extinguisher
are not part of the vehicle's standard equip-
ment. ●
The first aid k
it must comply with legal re-
quirements.
● Observe the expiry date of the contents of
the first aid k
it. After it has expired you
should purchase a new one.
● The fire extinguisher must comply with le-
gal r
equirements.
● Ensure that the fire extinguisher is fully
functiona
l. The fire extinguisher should,
therefore, be checked regularly. The sticker
on the fire extinguisher will inform you of the
next date for checking.
● Before acquiring accessories and emergen-
cy equipment see the ins
tructions in “Acces-
sories and spares” ››› page 190. Vehicle tools
Read the additional information carefully
› ›
›
p
age 47
Some of the items listed are only provided in
certain model versions, or are optional ex-
tras. WARNING
● The factor y
-supplied jack is only designed
for changing wheels on this model. On no ac-
count attempt to use it for lifting heavier ve-
hicles or other loads. Risk of injury.
● Use the jack only on a firm, level ground. » 75
Technical data
Advice
Operation
Emergencies
Safety
Page 78 of 252

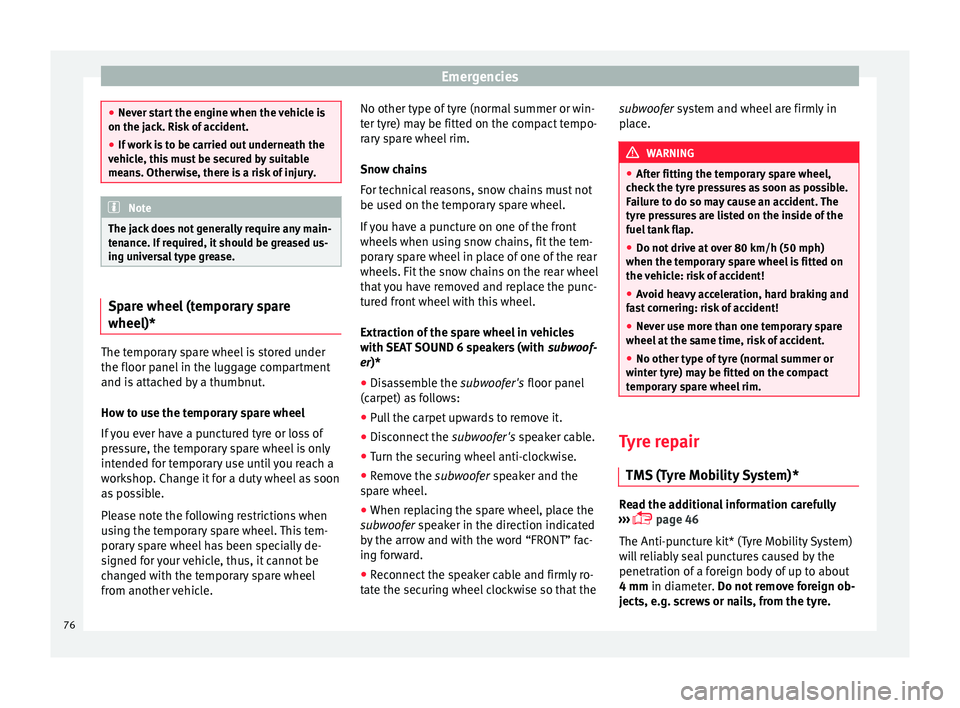

Emergencies
●
Never st ar
t the engine when the vehicle is
on the jack. Risk of accident.
● If work is to be carried out underneath the
vehicle, thi
s must be secured by suitable
means. Otherwise, there is a risk of injury. Note
The jack does not generally require any main-
t enanc e. If
required, it should be greased us-
ing universal type grease. Spare wheel (temporary spare
wheel)*
The temporary spare wheel is stored under
the floor p
anel
in the lug g
age compartment
and is attached by a thumbnut.
How to use the temporary spare wheel
If you ever have a punctured tyre or loss of
pressure, the temporary spare wheel is only
intended for temporary use until you reach a
workshop. Change it for a duty wheel as soon
as possible.
Please note the following restrictions when
using the temporary spare wheel. This tem-
porary spare wheel has been specially de-
signed for your vehicle, thus, it cannot be
changed with the temporary spare wheel
from another vehicle. No other type of tyre (normal summer or win-
ter tyre) m
ay be fitted on the compact tempo-
rary spare wheel rim.
Snow chains
For technical reasons, snow chains must not
be used on the temporary spare wheel.
If you have a puncture on one of the front
wheels when using snow chains, fit the tem-
porary spare wheel in place of one of the rear
wheels. Fit the snow chains on the rear wheel
that you have removed and replace the punc-
tured front wheel with this wheel.
Extraction of the spare wheel in vehicles
with SEAT SOUND 6 speakers (with subwoof-
er)*
● Disassemble the subwoofer's floor p
anel
(carpet) as follows:
● Pull the carpet upwards to remove it.
● Disconnect the subwoofer's s
peaker cable.
● Turn the securing wheel anti-clockwise.
● Remove the subwoofer s
peaker and the
spare wheel.
● When replacing the spare wheel, place the
subwoofer s
peaker in the direction indicated
by the arrow and with the word “FRONT” fac-
ing forward.
● Reconnect the speaker cable and firmly ro-
tate the sec urin
g wheel clockwise so that the subwoofer syst
em and wheel
are firmly in
place. WARNING
● After fittin g the t
emporary spare wheel,
check the tyre pressures as soon as possible.
Failure to do so may cause an accident. The
tyre pressures are listed on the inside of the
fuel tank flap.
● Do not drive at over 80 km/h (50 mph)
when the temporary
spare wheel is fitted on
the vehicle: risk of accident!
● Avoid heavy acceleration, hard braking and
fast
cornering: risk of accident!
● Never use more than one temporary spare
wheel at the same time, ri
sk of accident.
● No other type of tyre (normal summer or
winter tyr
e) may be fitted on the compact
temporary spare wheel rim. Tyre repair
TM S (T
y
re Mobility System)* Read the additional information carefully
› ›
›
p
age 46
The Anti-puncture kit* (Tyre Mobility System)
will reliably seal punctures caused by the
penetration of a foreign body of up to about
4 mm in diameter. Do not remove foreign ob-
jects, e.g. screws or nails, from the tyre.
76
Page 79 of 252

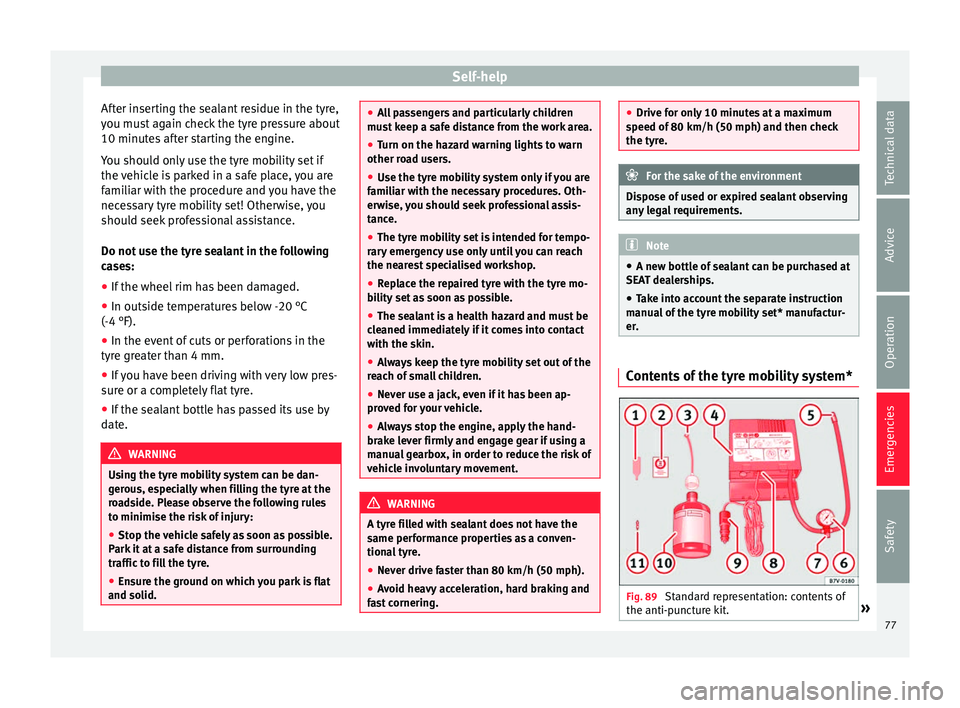

Self-help
After inserting the sealant residue in the tyre,
y ou mu
st
again check the tyre pressure about
10 minutes after starting the engine.
You should only use the tyre mobility set if
the vehicle is parked in a safe place, you are
familiar with the procedure and you have the
necessary tyre mobility set! Otherwise, you
should seek professional assistance.
Do not use the tyre sealant in the following
cases:
● If the wheel rim has been damaged.
● In outside temperatures below -20 °C
(-4 °F).
● In the event of cuts or perforations in the
tyre gre
ater than 4 mm.
● If you have been driving with very low pres-
sure or a comp
letely flat tyre.
● If the sealant bottle has passed its use by
date. WARNING
Using the tyre mobility system can be dan-
gerou s, e
specially when filling the tyre at the
roadside. Please observe the following rules
to minimise the risk of injury:
● Stop the vehicle safely as soon as possible.
Park it at
a safe distance from surrounding
traffic to fill the tyre.
● Ensure the ground on which you park is flat
and solid. ●
All p
assengers and particularly children
must keep a safe distance from the work area.
● Turn on the hazard warning lights to warn
other road u
sers.
● Use the tyre mobility system only if you are
familiar w
ith the necessary procedures. Oth-
erwise, you should seek professional assis-
tance.
● The tyre mobility set is intended for tempo-
rary emer
gency use only until you can reach
the nearest specialised workshop.
● Replace the repaired tyre with the tyre mo-
bility set
as soon as possible.
● The sealant is a health hazard and must be
cleaned immedi
ately if it comes into contact
with the skin.
● Always keep the tyre mobility set out of the
reach of
small children.
● Never use a jack, even if it has been ap-
proved f
or your vehicle.
● Always stop the engine, apply the hand-
brake lev
er firmly and engage gear if using a
manual gearbox, in order to reduce the risk of
vehicle involuntary movement. WARNING
A tyre filled with sealant does not have the
same perf orm
ance properties as a conven-
tional tyre.
● Never drive faster than 80 km/h (50 mph).
● Avoid heavy acceleration, hard braking and
fast
cornering. ●
Drive for on ly
10 minutes at a maximum
speed of 80 km/h (50 mph) and then check
the tyre. For the sake of the environment
Dispose of used or expired sealant observing
an y le
gal requirements. Note
● A new bottle of se a
lant can be purchased at
SEAT dealerships.
● Take into account the separate instruction
manual of
the tyre mobility set* manufactur-
er. Contents of the tyre mobility system*
Fig. 89
Standard representation: contents of
the anti-p u
nct ur
e kit. » 77
Technical data
Advice
Operation
Emergencies
Safety
Page 80 of 252

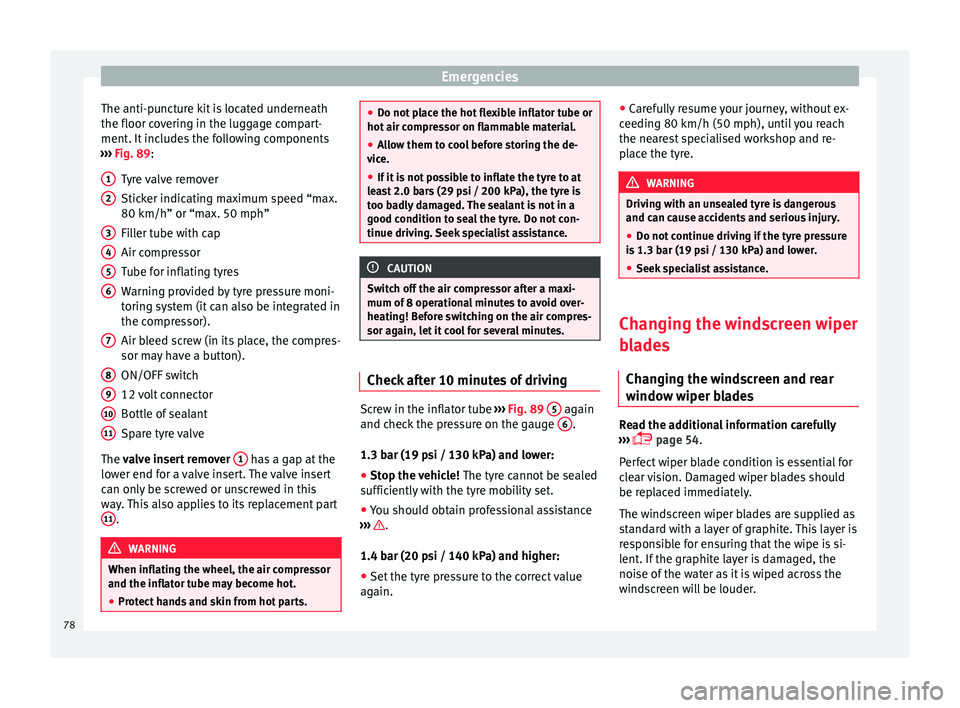

Emergencies
The anti-puncture kit is located underneath
the floor c o
verin
g in the luggage compart-
ment. It includes the following components
››› Fig. 89:
Tyre valve remover
Sticker indicating maximum speed “max.
80 km/h” or “max. 50 mph”
Filler tube with cap
Air compressor
Tube for inflating tyres
Warning provided by tyre pressure moni-
toring system (it can also be integrated in
the compressor).
Air bleed screw (in its place, the compres-
sor may have a button).
ON/OFF switch
12 volt connector
Bottle of sealant
Spare tyre valve
The valve insert remover 1 has a gap at the
lo w
er end f or a
valve insert. The valve insert
can only be screwed or unscrewed in this
way. This also applies to its replacement part 11 .
WARNING
When inflating the wheel, the air compressor
and the inflator t ube m
ay become hot.
● Protect hands and skin from hot parts. 1
2
3
4
5
6
7
8
9
10
11 ●
Do not pl ac
e the hot flexible inflator tube or
hot air compressor on flammable material.
● Allow them to cool before storing the de-
vice.
● If it
is not possible to inflate the tyre to at
leas
t 2.0 bars (29 psi / 200 kPa), the tyre is
too badly damaged. The sealant is not in a
good condition to seal the tyre. Do not con-
tinue driving. Seek specialist assistance. CAUTION
Switch off the air compressor after a maxi-
mum of 8 operation a
l minutes to avoid over-
heating! Before switching on the air compres-
sor again, let it cool for several minutes. Check after 10 minutes of driving
Screw in the inflator tube
››
›
Fig. 89
5 again
and c hec
k the pr
essure on the gauge 6 .
1.3 b ar (19 p
si / 130 kP
a) and lower:
● Stop the vehicle! The tyre cannot
be sealed
sufficiently with the tyre mobility set.
● You should obtain professional assistance
››› .
1.4 b ar (20 p
si / 140 kP
a) and higher:
● Set the tyre pressure to the correct value
again. ●
Carefu
lly resume your journey, without ex-
ceeding 80 km/h (50 mph), until you reach
the nearest specialised workshop and re-
place the tyre. WARNING
Driving with an unsealed tyre is dangerous
and can cau se ac
cidents and serious injury.
● Do not continue driving if the tyre pressure
is 1.3 b
ar (19 psi / 130 kPa) and lower.
● Seek specialist assistance. Changing the windscreen wiper
b
l
a de
s
Changing the windscreen and rear
window wiper blades Read the additional information carefully
› ›
›
p
age 54.
Perfect wiper blade condition is essential for
clear vision. Damaged wiper blades should
be replaced immediately.
The windscreen wiper blades are supplied as
standard with a layer of graphite. This layer is
responsible for ensuring that the wipe is si-
lent. If the graphite layer is damaged, the
noise of the water as it is wiped across the
windscreen will be louder.
78
