Seat Ibiza ST 2016 Owners Manual

Fuses and bulbs

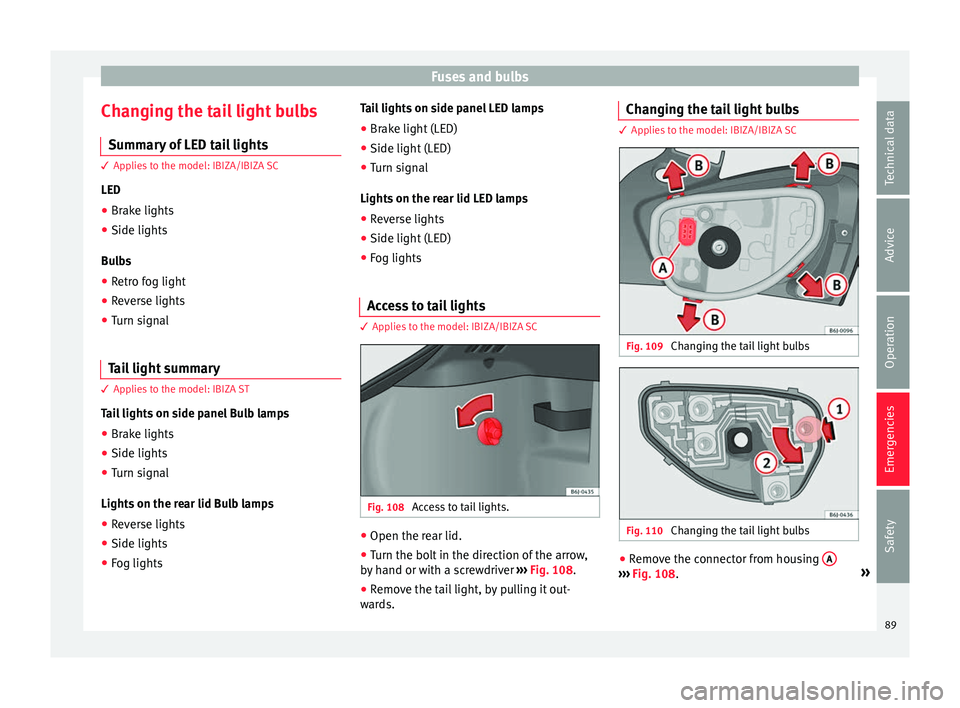

Changing the tail light bulbs S umm
ary
of LED tail lights3 Applies to the model: IBIZA/IBIZA SC
LED
● Brak e lights
● Side lights
B

ulb
s
● Retro fog light
● Reverse lights
● Turn signal
Tail light summary 3 Applies to the model: IBIZA ST
T ai

l lights on side panel Bulb lamps
● Brake lights
● Side lights
● Turn signal
Lights on the r e

ar lid Bulb lamps
● Reverse lights
● Side lights
● Fog lights Tail lights on side panel LED lamps
●
Brake light (LED)
● Side light (LED)
● Turn signal
Lights on the re
ar lid LED lamps
● Reverse lights
● Side light (LED)
● Fog lights
Access to tail lights 3 Applies to the model: IBIZA/IBIZA SC
Fig. 108
Access to tail lights. ●
Open the rear lid.
● Turn the bolt in the direction of the arrow,
b y
h and or w

ith a screwdriver ››› Fig. 108.
● Remove the tail light, by pulling it out-
wards. Ch

anging the tail light bulbs 3 Applies to the model: IBIZA/IBIZA SC
Fig. 109
Changing the tail light bulbs Fig. 110
Changing the tail light bulbs ●
Remove the connector from housing A ›››
Fig. 108. »
89
Technical data
Advice
Operation
Emergencies
Safety

Emergencies

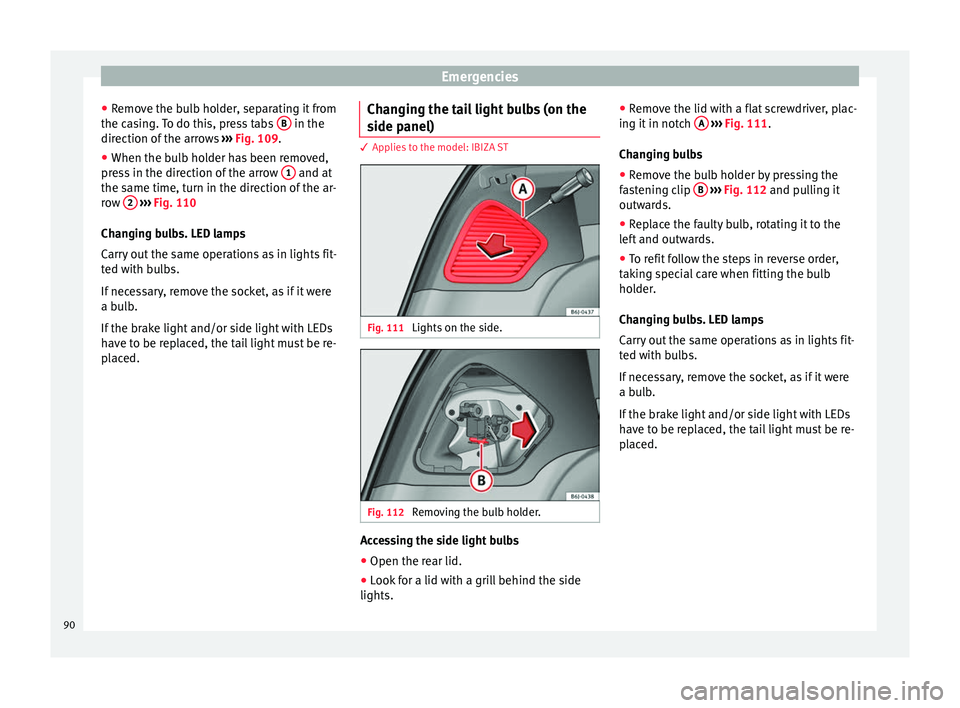

● Remo
ve the b
ulb holder, separating it from
the casing. To do this, press tabs B in the
dir ection of
the arro
ws ››› Fig. 109.
● When the bulb holder has been removed,
press
in the direction of the arrow 1 and at
the s ame time, t
urn in the dir ection of
the ar-
row 2
› ››
Fig. 110
Ch angin

g bulbs. LED lamps
Carry out the same operations as in lights fit-
ted with bulbs.
If necessary, remove the socket, as if it were
a bulb.
If the brake light and/or side light with LEDs
have to be replaced, the tail light must be re-
placed. Changing the tail light bulbs (on the
side panel) 3 Applies to the model: IBIZA ST
Fig. 111
Lights on the side. Fig. 112
Removing the bulb holder. Accessing the side light bulbs
● Open the rear lid.
● Look for a lid with a grill behind the side
lights. ●
Remo
ve the lid w

ith a flat screwdriver, plac-
ing it in notch A
› ››
Fig. 111
.
Ch an
ging bulbs
● Remove the bulb holder by pressing the
fast
ening clip B
› ››
Fig. 112
and pu
lling it
outwards.
● Replace the faulty bulb, rotating it to the
left and outw
ards.
● To refit follow the steps in reverse order,
taking s
pecial care when fitting the bulb
holder.
Changing bulbs. LED lamps
Carry out the same operations as in lights fit-
ted with bulbs.
If necessary, remove the socket, as if it were
a bulb.
If the brake light and/or side light with LEDs
have to be replaced, the tail light must be re-
placed.
90

Fuses and bulbs

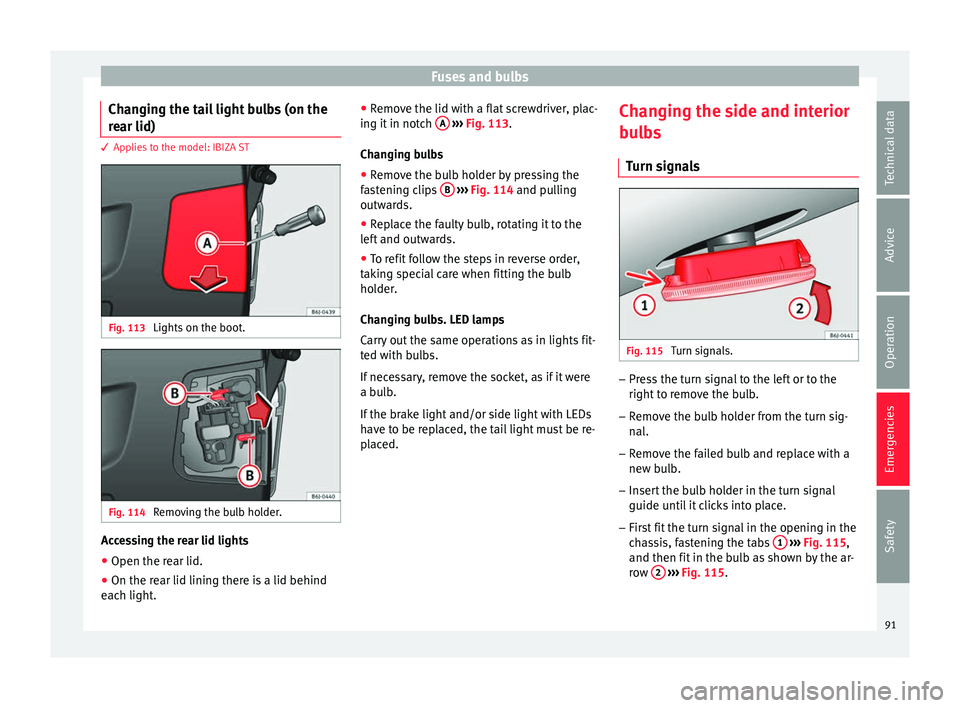

Changing the tail light bulbs (on the
r e
ar lid) 3 Applies to the model: IBIZA ST
Fig. 113
Lights on the boot. Fig. 114
Removing the bulb holder. Accessing the rear lid lights
● Open the rear lid.
● On the rear lid lining there is a lid behind
e ac
h light . ●
R emove the lid w

ith a flat screwdriver, plac-
ing it in notch A
› ››
Fig. 113
.
Ch an
ging bulbs
● Remove the bulb holder by pressing the
fast
ening clips B
› ››
Fig. 114
and pu
lling
outwards.
● Replace the faulty bulb, rotating it to the
left and outw
ards.
● To refit follow the steps in reverse order,
taking s
pecial care when fitting the bulb
holder.
Changing bulbs. LED lamps
Carry out the same operations as in lights fit-
ted with bulbs.
If necessary, remove the socket, as if it were
a bulb.
If the brake light and/or side light with LEDs
have to be replaced, the tail light must be re-
placed. Changing the side and interior
bulb

s
Turn signals Fig. 115
Turn signals. –
Press the turn signal to the left or to the
right t
o r emo

ve the bulb.
– Remove the bulb holder from the turn sig-
nal.
– Remo

ve the failed bulb and replace with a
new bulb
.
– Insert the bulb holder in the turn signal
guide until it

clicks into place.
– First fit the turn signal in the opening in the
chas

sis, fastening the tabs 1
› ›
› Fig. 115 ,
and then fit
in the bulb as shown by the ar-
row 2
› ›
› Fig. 115 .
91
Technical data
Advice
Operation
Emergencies
Safety

Emergencies

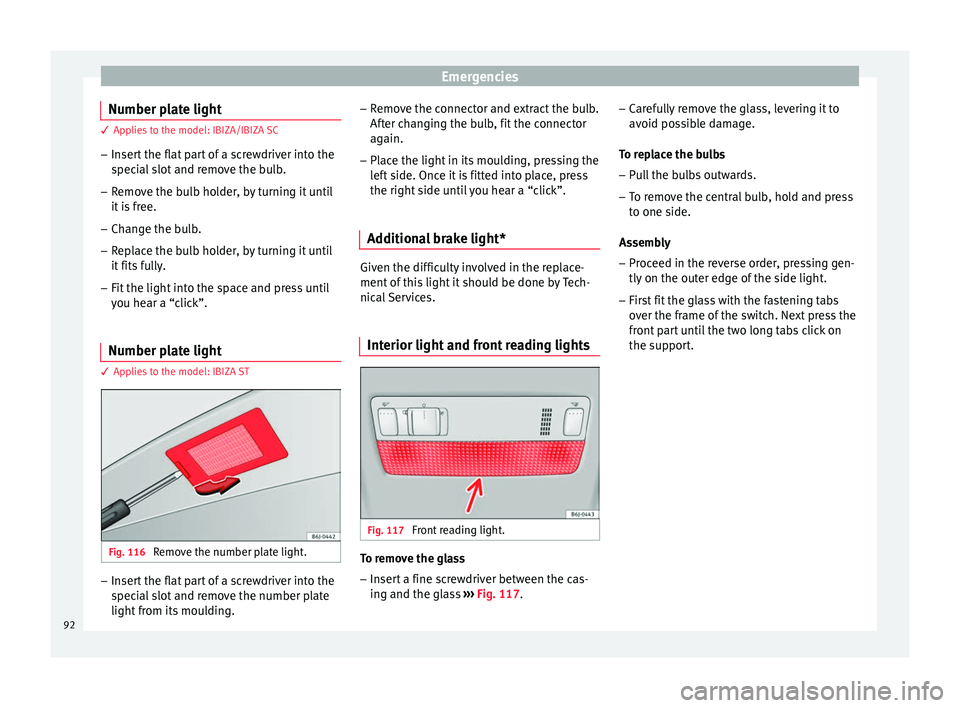

Number plate light 3 Applies to the model: IBIZA/IBIZA SC
– Inser t
the flat part of a screwdriver into the
special
slot and remove the bulb.
– Remove the bulb holder, by turning it until
it is fr

ee.
– Change the bulb.
– Replace the bulb holder, by turning it until
it fits fu

lly.
– Fit the light into the space and press until
you hear a “c lic

k”.
Number plate light 3 Applies to the model: IBIZA ST
Fig. 116
Remove the number plate light. –
Insert the flat part of a screwdriver into the
spec
ial

slot and remove the number plate
light from its moulding. –
Remove the c
onnector and extract the bulb.
After changing the bulb, fit the connector
again.
– Place the light in its moulding, pressing the
left s

ide. Once it is fitted into place, press
the right side until you hear a “click”.
Additional brake light* Given the difficulty involved in the replace-
ment of thi
s

light it should be done by Tech-
nical Services.
Interior light and front reading lights Fig. 117
Front reading light. To remove the glass
– Insert a fine screwdriver between the cas-
ing and the gl
as

s ››› Fig. 117. –
Carefu
lly remove the glass, levering it to
avoid possible damage.
To replace the bulbs
– Pull the bulbs outwards.
– To remove the central bulb, hold and press
to one side.
Assemb

ly
– Proceed in the reverse order, pressing gen-
tly on the outer edge of

the side light.
– First fit the glass with the fastening tabs
over the frame of

the switch. Next press the
front part until the two long tabs click on
the support.
92

Fuses and bulbs

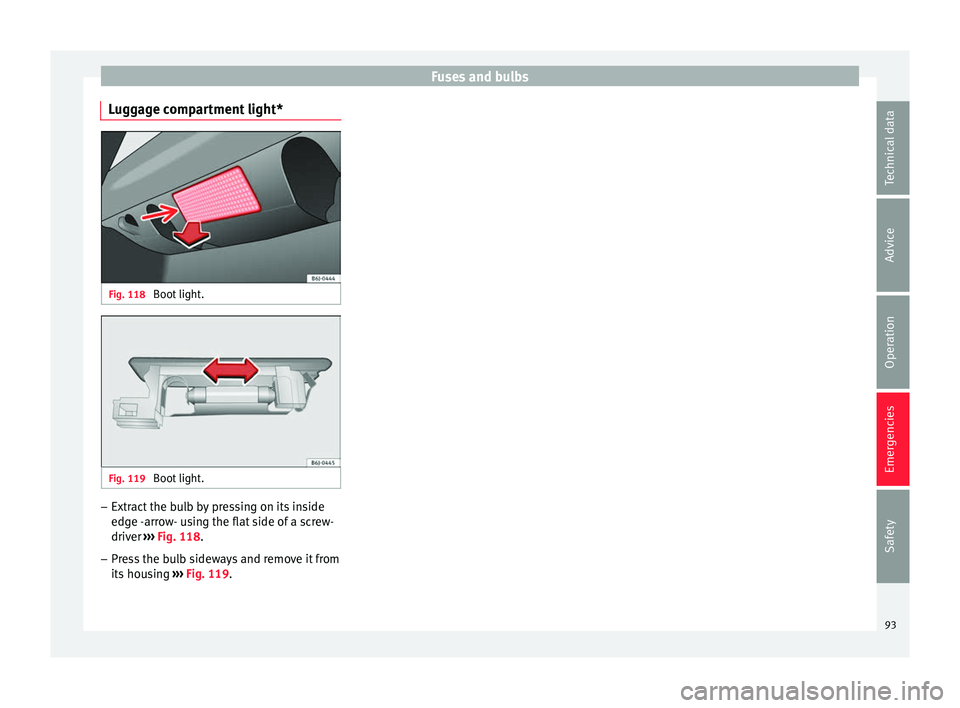

Luggage compartment light* Fig. 118
Boot light. Fig. 119
Boot light. –
Extract the bulb by pressing on its inside
edg e -
arr o
w- using the flat side of a screw-
driver ››› Fig. 118.
– Press the bulb sideways and remove it from
its housin

g ››› Fig. 119.
93
Technical data
Advice
Operation
Emergencies
Safety

Operation

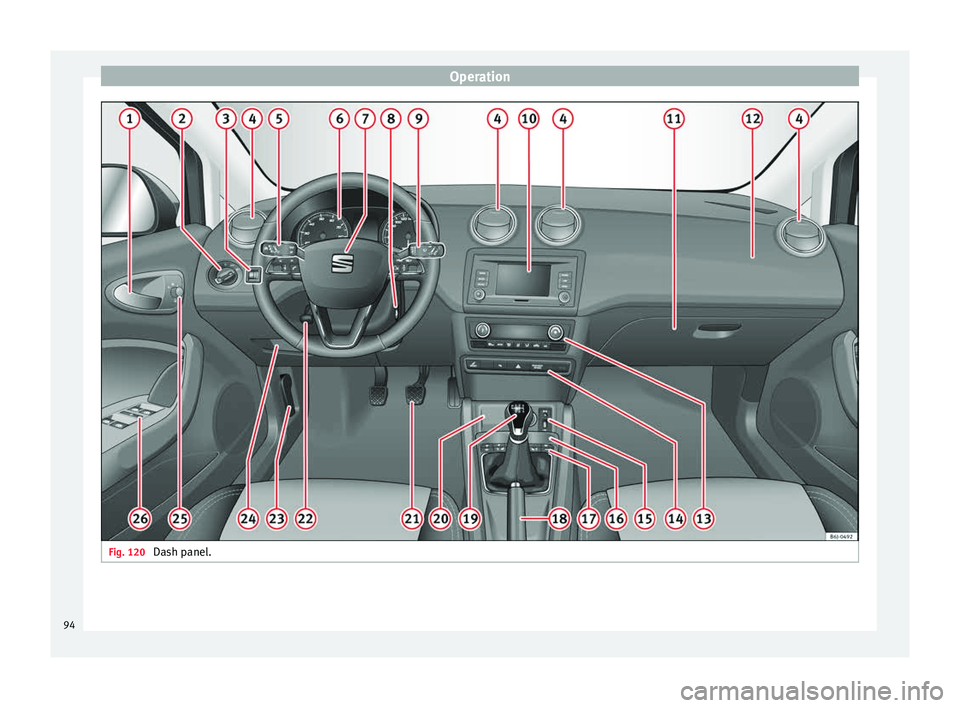

Fig. 120
Dash panel.94

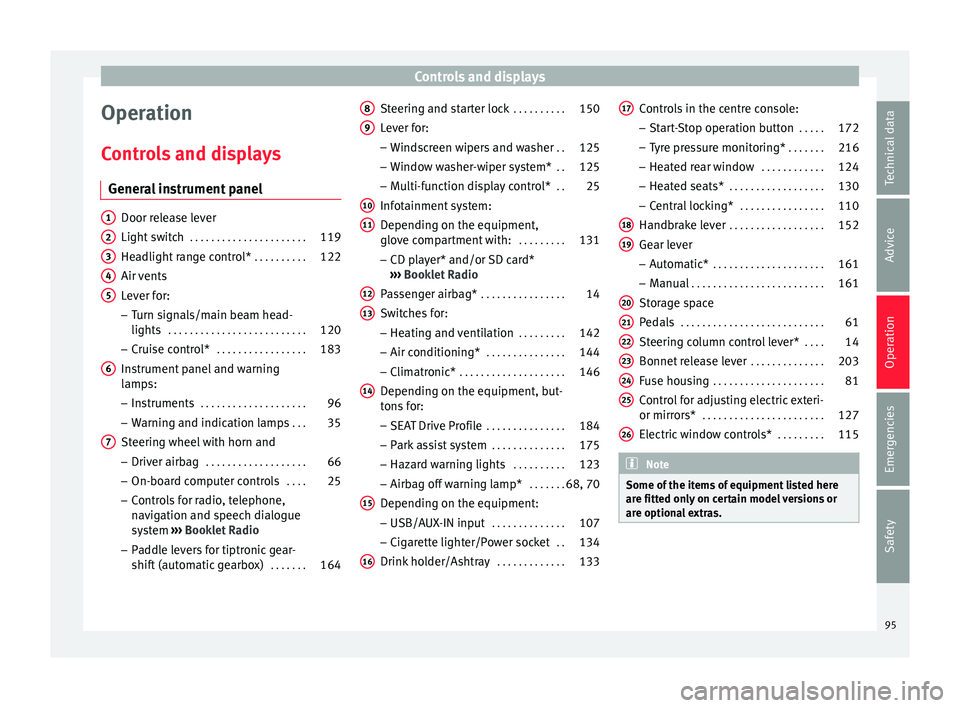

Controls and displays
Operation
C ontr
ol
s and displays
General instrument panel Door release lever
Light swit
c

h . . . . . . . . . . . . . . . . . . . . . . 119
Headlight range control* . . . . . . . . . .122
Air vents
Lever for:
– T

urn signals/main beam head-
lights . . . . . . . . . . . . . . . . . . . . . . . . . . 120
– Cruise c ontr

ol* . . . . . . . . . . . . . . . . . 183
Instrument panel and warning
lamps:
– Ins

truments . . . . . . . . . . . . . . . . . . . . 96
– Warning and indic ation l

amps . . . 35
Steering wheel with horn and – Driver airbag . . . . . . . . . . . . . . . . . . . 66
– On-board comp
uter controls . . . .25
– Control
s for radio, telephone,
navigation and speech dialogue
system ›››
Booklet Radio
– Paddle levers for tiptronic gear-
shift (automatic gearbox) . . . . . . .164
1 2
3
4
5
6
7 Steering and starter lock
. . . . . . . . . .150
Lever for: – Wind
sc

reen wipers and washer . .125
– Window wa
sher-wiper system* . .125
– Multi-fu
nction display control* . .25
Infotainment system:
Depending on the equipment,
glov

e compartment with: . . . . . . . . .131
– CD play
er* and/or SD card*
››› Booklet Radio
Passenger airbag* . . . . . . . . . . . . . . . . 14
Switches for:
– Heating and v

entilation . . . . . . . . . 142
– Air conditioning* . . . . . . . . . . . . . . . 144
– Clim

atronic* . . . . . . . . . . . . . . . . . . . . 146
D

epending on the equipment, but-
tons f

or:
– SEAT Drive Profile . . . . . . . . . . . . . . . 184
– Park a s

sist system . . . . . . . . . . . . . . 175
– Hazard warnin
g lights . . . . . . . . . . 123
– Airbag off warnin
g lamp* . . . . . . .68, 70
Depending on the equipment:
– USB/AUX-IN inp ut . . . . . . . . . . . . . . 107
– C

igar ett

e lighter/Power socket . .134
Drink holder/Ashtray . . . . . . . . . . . . .133
8 9
10
11
12
13
14
15
16 Controls in the centre console:
– St ar
t-

Stop operation button . . . . .172
– Tyre pr
essure monitoring* . . . . . . .216
– Heated re
ar window . . . . . . . . . . . . 124
– Heated seats* . . . . . . . . . . . . . . . . . . 130
– C

entral loc
king* . . . . . . . . . . . . . . . . 110
Handbrake lever . . . . . . . . . . . . . . . . . . 152
Gear lever – Automatic* . . . . . . . . . . . . . . . . . . . . . 161
– Manual . . . . . . . . . . . . . . . . . . . . . . . . . 161
St

orag
e space
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
St

eering column control lever* . . . .14
Bonnet release lever . . . . . . . . . . . . . .203
Fuse housing . . . . . . . . . . . . . . . . . . . . . 81
Control for adjusting electric exteri-
or mirrors* . . . . . . . . . . . . . . . . . . . . . . . 127
Electric

window controls* . . . . . . . . .115 Note
Some of the items of equipment listed here
are fitted on ly

on certain model versions or
are optional extras. 17
18
19
20
21
22
23
24
25
26
95
Technical data
Advice
Operation
Emergencies
Safety

Operation

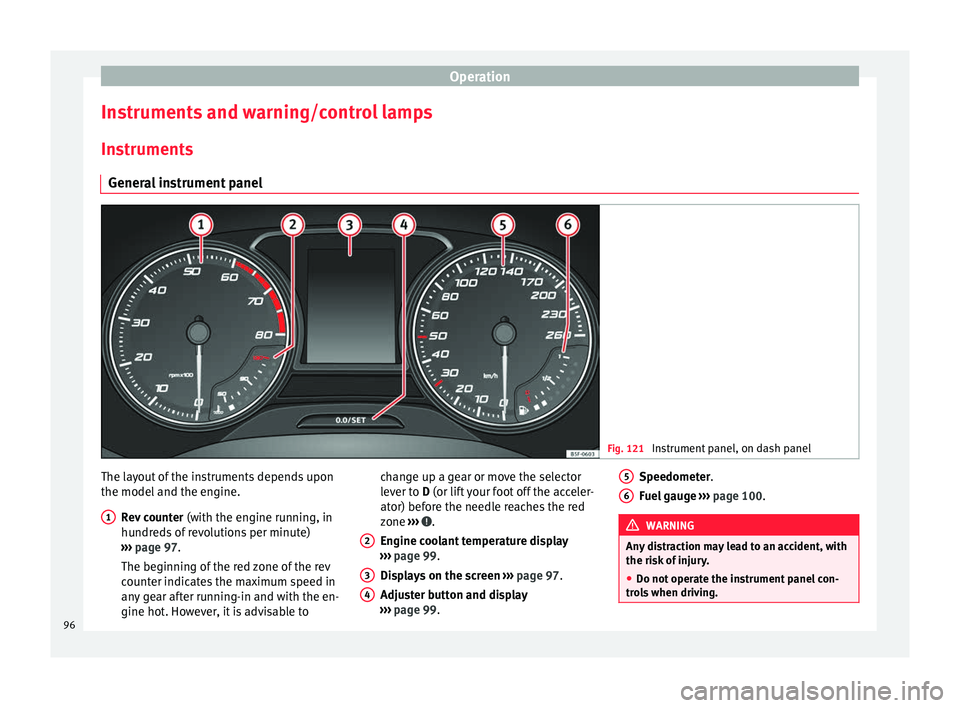

Instruments and warning/control lamps
In s
trument s
Gener
al instrument panel Fig. 121
Instrument panel, on dash panel The layout of the instruments depends upon
the model
and the en
gine.
R ev

counter (with the engine running, in
hundreds of revolutions per minute)
››› page 97.
The beginning of the red zone of the rev
counter indicates the maximum speed in
any gear after running-in and with the en-
gine hot. However, it is advisable to
1 change up a gear or move the selector
l
ev
er t o
D (or lift your foot off the acceler-
ator) before the needle reaches the red
zone ››› .
En gine c
ool

ant temperature display
››› page 99.
Displays on the screen ››› page 97.
Adjuster button and display
››› page 99.
2 3
4 Speedometer.
F
uel
gaug

e ››› page 100. WARNING
Any distraction may lead to an accident, with
the risk of injur

y.
● Do not operate the instrument panel con-
trols
when driving. 5
6
96

Instruments and warning/control lamps

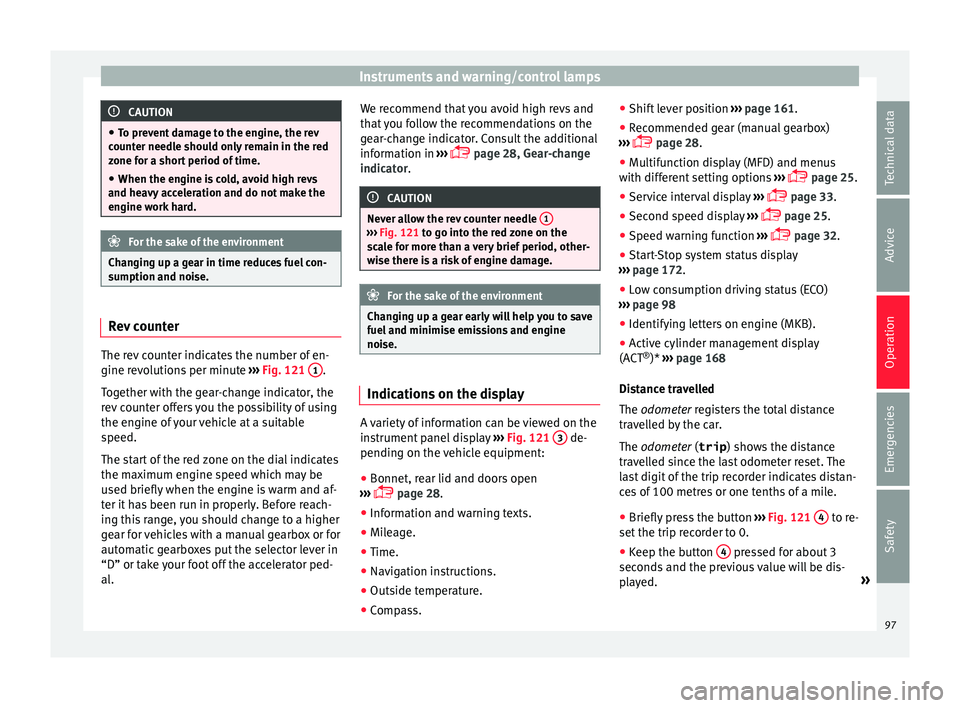

CAUTION
● To prev ent
damage to the engine, the rev
counter needle should only remain in the red
zone for a short period of time.
● When the engine is cold, avoid high revs
and heavy acc
eleration and do not make the
engine work hard. For the sake of the environment
Changing up a gear in time reduces fuel con-
sumption and noise. Rev counter
The rev counter indicates the number of en-
gine r
ev
olution

s per minute ›››
Fig. 121 1 .
T og
ether w ith the g
ear-change indicator, the
rev counter offers you the possibility of using
the engine of your vehicle at a suitable
speed.
The start of the red zone on the dial indicates
the maximum engine speed which may be
used briefly when the engine is warm and af-
ter it has been run in properly. Before reach-
ing this range, you should change to a higher
gear for vehicles with a manual gearbox or for
automatic gearboxes put the selector lever in
“D” or take your foot off the accelerator ped-
al. We recommend that you avoid high revs and
that y

ou follow the recommendations on the
gear-change indicator. Consult the additional
information in ›››
 page 28, Gear-change
indicator. CAUTION
Never allow the rev counter needle 1 ›››
Fig. 121 to go int o the r
ed zone on the
scale for more than a very brief period, other-
wise there is a risk of engine damage. For the sake of the environment
Changing up a gear early will help you to save
fuel and minimi se emi

ssions and engine
noise. Indications on the display
A variety of information can be viewed on the
in
s
trument p

anel display ›››
Fig. 121 3 de-
pendin g on the
vehic
le equipment:
● Bonnet, rear lid and doors open
›››  p

age 28.
● Information and warning texts.
● Mileage.
● Time.
● Navigation instructions.
● Outside temperature.
● Compass. ●
Shift lev
er position ››› page 161.
● Recommended gear (manual gearbox)
›››  p

age 28.
● Multifunction display (MFD) and menus
with different
setting options ›››
 page 25.
● Service interval display ›››
 p

age 33.
● Second speed display ›››
 p

age 25.
● Speed warning function ›››
 p

age 32.
● Start-Stop system status display
››› p

age 172.
● Low consumption driving status (ECO)
››› p

age 98
● Identifying letters on engine (MKB).
● Active cylinder management display
(ACT ®
)* ›››

page 168
Distance travelled
The odometer registers the total distance
travelled by the car.
The odometer (trip ) shows the distance
travelled since the last odometer reset. The
last digit of the trip recorder indicates distan-
ces of 100 metres or one tenths of a mile.
● Briefly press the button ››› Fig. 121
4 to re-
set the trip r
ecor
der to 0.
● Keep the button 4 pressed for about 3
sec ond
s and the pr

evious value will be dis-
played. »
97
Technical data
Advice
Operation
Emergencies
Safety

Operation

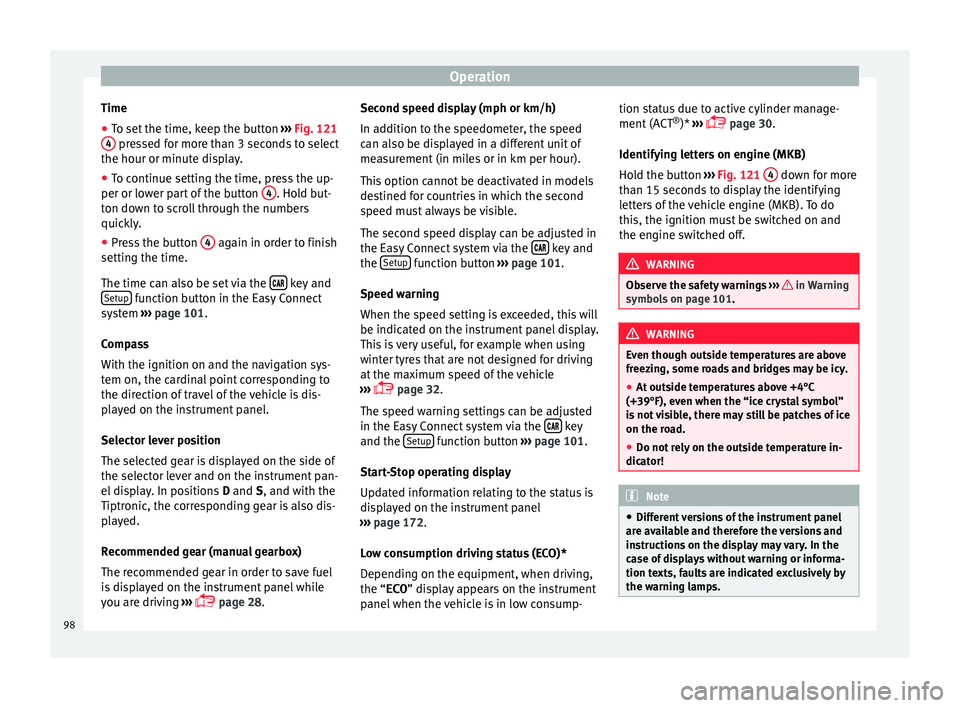

Time
● To set the time, keep the button ››
›
Fig. 121
4 pressed for more than 3 seconds to select
the hour or minut e di
sp
lay.
● To continue setting the time, press the up-
per or lower par
t of the button 4 . Hold but-
t on do
wn to s
croll through the numbers
quickly.
● Press the button 4 again in order to finish
settin g the time.
The time c an also be set

via the  key and
Set up function button in the Easy Connect
sy s
tem
›

›› page 101.
Compass
With the ignition on and the navigation sys-
tem on, the cardinal point corresponding to
the direction of travel of the vehicle is dis-
played on the instrument panel.
Selector lever position
The selected gear is displayed on the side of
the selector lever and on the instrument pan-
el display. In positions D and S, and with the
Tiptronic, the corresponding gear is also dis-
played.
Recommended gear (manual gearbox)
The recommended gear in order to save fuel
is displayed on the instrument panel while
you are driving ›››
 page 28. Second speed display (mph or km/h)
In addition to the s

peedometer, the speed
can also be displayed in a different unit of
measurement (in miles or in km per hour).
This option cannot be deactivated in models
destined for countries in which the second
speed must always be visible.
The second speed display can be adjusted in
the Easy Connect system via the  key and
the Set
up function button
››
›
p
age 101.
Speed warning
When the speed setting is exceeded, this will
be indicated on the instrument panel display.
This is very useful, for example when using
winter tyres that are not designed for driving
at the maximum speed of the vehicle
›››  page 32.
The speed warning settings can be adjusted
in the Easy Connect system via the  key
and the Set
up function button
››
›
p
age 101.
Start-Stop operating display
Updated information relating to the status is
displayed on the instrument panel
››› page 172.
Low consumption driving status (ECO)*
Depending on the equipment, when driving,
the “ECO ” display appears on the instrument
panel when the vehicle is in low consump- tion status due to active cylinder manage-
ment (ACT
®
)* ›

››  page 30.
Identifying letters on engine (MKB)
Hold the button ››› Fig. 121 4 down for more
th an 15 sec
onds

to display the identifying
letters of the vehicle engine (MKB). To do
this, the ignition must be switched on and
the engine switched off. WARNING
Observe the safety warnings ››› in Warning
symbols on p ag

e 101. WARNING
Even though outside temperatures are above
freezin g, some r

oads and bridges may be icy.
● At outside temperatures above +4°C
(+39°F), even when the “ice cr
ystal symbol”
is not visible, there may still be patches of ice
on the road.
● Do not rely on the outside temperature in-
dicator! Note
● Different

versions of the instrument panel
are available and therefore the versions and
instructions on the display may vary. In the
case of displays without warning or informa-
tion texts, faults are indicated exclusively by
the warning lamps. 98
