Seat Toledo 2005 COMMUNICATION SYSTEM

Communication
10Controlling hands-free system from the steering wheel and multi-function lever
The hands-free system may be operated from the multi-func-
tion wheel and lever
As well as using the speech control, it is possible to us e the functions of the
hands-free system from the controls on the steering whee l and from the
multi-function lever.
When the connection is established between your mob ile telephone and
hands-free device, the phonebook in your SIM card is down loaded to the
hands-free device.
Depending on the version, when the connection is established between your
mobile telephone and the hands free device, the phonebook in th e telephone
is downloaded to the hands free device as well a s lost calls, received calls
and last calls. From this moment, the phone book of the te lephone as well as
lost calls, received calls and last calls are available on t he screen of the
vehicle instrument panel.
By holding in the rocker switch ⇒fig. 7 on the multi-function lever or a
brief press on the button “answer” on the steering wh eel controls, the
telephone menu appears on the instru ment panel screen, containing the
different telephone options: PHONE BOOK, LOST CA LLS, RECEIVED CALLS,
LAST CALLS. Depending on the version, the SIM card p hone book will appear
⇒ fig. 8
Fig. 7 Windscreen wiper
and washer lever: Button
A and rocker switch BFig. 8 Agenda menu
depending on version
AB

Comunica ingles Seite 10 Montag, 23. Mai 2005 1 :49 13

Communication11
Operating instructions
For example: Last calls / received callsUsing the rocker switch it is possible to move to th e options. The desired
option may be selected by pressing on the button “a nswer” on the steering wheel controls or the button
⇒page 10, fig. 7 on the multi-func-
tion lever.
Once selected on the menu:
Using the rocker switch ⇒page 10, fig. 7 it is possible to move through
all the names in the phone book, last calls, received call s or lost calls
(depending on the phone book only ve rsion). A call may be made to the
selected number, by pressing the key “Answer” on th e steering wheel
controls or by selecting the op tion on the instrument panel.
An incoming call may be accepted using the “Answer” key on the controls
on the steering wheel or even using the key ⇒page 10, fig. 7 on the
multi-function lever.
If the number from which the incoming call is associated with a name in the
existing phone book then the name and the number from the phone book will
be displayed on th e instrument panel.
Fig. 9 Example of the last
call on the instrument
panelFig. 10 Example of a
received call on the instru-
ment panel
AB

AA
AB


AA
Comunica ingles Seite 11 Montag, 23. Mai 2005 1 :49 13

Communication
12Information on the instrument panel display
The hands-free system uses the screen on the instrument
panel to display information.
– To access the phone book ⇒fig. 11 . First, access the telephone
menu ⇒page 10, fig. 8 , by pressing the key “answer” . To
move through the menu, use the rocker switch and sel ect
using the key or press “answer” . Select phone book.
Once selected, the operation is the same for selecting a name.
– For an incoming call the display indicates ⇒fig. 12 . To accept
the call press or select “Accept” with the rocker switch .
WARNING
•
The use of an integrated exterior antenna is recommended; this should
be installed professionally for telecommunications equipment, for
example, mobile telephones, specifically with the vehicle oc cupants in
mind.
•
The exterior antenna diverts the electromagnetic fields o ut of the
vehicle and reduces the field intensity inside the vehicle in comparison to
systems without an exterior antenna.
•
The use of the exterior antenna will avoid any of the re lated health risks
presently under scientific discussion.
•
The investigations have concluded that under unfavo rable conditions,
the use of a mobile phone inside the vehicle without an exterior antenna
may exceed international health risk limits.
•
The use of an exterior antenna may be ineffective for diver sion of elec-
tromagnetic fields to the exterior of th e vehicle if the installation has not
been completed correctly.
Fig. 11 Phone book on
the instrument panelFig. 12 Incoming call
displayed on the instru-
ment panel

AB
AA

AB
Comunica ingles Seite 12 Montag, 23. Mai 2005 1 :49 13

Communication13
Operating instructions
Dialogue
The speech control system can be activated via the “Talk” key
on the phone adapter or the ke y on the multi-function wheel.In this manual, Dialogue is defined as the time in which the speech control
system may receive vocal commands and provide a ssistance for completion
of different functions in case the user is hesitant a nd unsure how to proceed.
The system also responds by vocal messages. The d ialogue is activated and
deactivated by pressing the “talk button” .
If a call is received then the dialogue is interrupted immedi ately. The call may
be accepted by pressing the key “answer” on th e multi-function steering
wheel.
Assistance from the system
If a command is not recognised by the system, it w ill answer with the cue
and the command can then be given once again clearly. After a
third failure the system will answer with and the dialogue will be
ended. Note the following to ensure that you are properly under
stood:
•
Speak in a normal tone and without pauses or exaggerated pronuncia-
tion.
•
Avoid poor articulation of words.
•
Keep the doors, windows and sun roof closed if poss ible to avoid back-
ground noises that might affect the system.
•
Keep the air vents directed away from the microphone (located on the
interior light).
•
At high speeds, you might need to speak louder to drown out background
noises.
•
Avoid other noises in th e vehicle during a dialogue (e.g. other passengers
speaking in the vehicle).
•
Avoid speaking when the system is saying a cue.
•
The hands-free microphone is directed towards the dri ver, therefore, only
the driver should try to operate the system.
•
To make a call when there is heavy background noise w e recommend
using the speech controlled telephone book instead of speaking individual
digits. This will help avoid mistakes when specifying teleph one numbers.
Controlling the hands-free unit by voice
The hands-free functions are also operated via voice commands.Help commands
The system confirms acceptance of speech commands verbally and guides
you through the dialogue if necessary.

Speech command
Effect
HELP
Following this command the system announces poss ible orders
Comunica ingles Seite 13 Montag, 23. Mai 2005 1:49 13

Communication

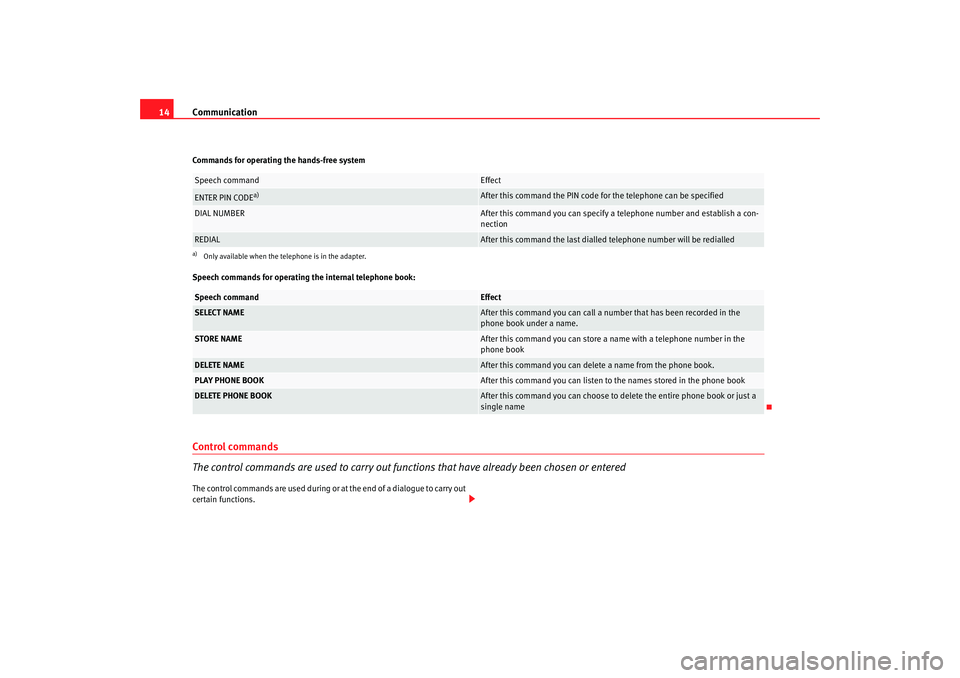

14Commands for operating the hands-free system
Speech commands for operating the internal telephone book:Control commands
The control commands are used to carry out functions that have already be en chosen or enteredThe control commands are used during or at the end of a dialogue to carry out
certain functions.Speech command
Effect
ENTER PIN CODE
a)
a)Only available when the telephone is in the adapter .
After this command the PIN code for the telephone ca n be specified
DIAL NUMBER
After this command you can specify a telephone number and e stablish a con-
nection
REDIAL
After this command the last dialled telephone number will be redialled
Speech command
Effect
SELECT NAME
After this command you can call a number that has been r ecorded in the
phone book under a name.
STORE NAME
After this command you can store a name with a telephone numbe r in the
phone book
DELETE NAME
After this command you can delete a name from the ph one book.
PLAY PHONE BOOK
After this command you can listen to the names stored i n the phone book
DELETE PHONE BOOK
After this command you can choose to delete the entire phone book or just a
single name
Comunica ingles Seite 14 Montag, 23. Mai 2005 1 :49 13

Communication15
Operating instructionsPossible commands
PIN code input
A PIN code must be entered before you can use the telephone system.– Press the talk button .
– After the acoustic tone give the command
ENTER PIN.You can specify your PIN code after giving the command.
It is only possible to enter the PIN code when:•
the ignition and
•
the mobile phone are switched on.
•
the phone is in the mobile phone adapter. You can specify the digits from
zero to nine . After each block of digits you
specify (separated by a brief pause) the system will repe at the digits.
The system can only recognise single digi ts (two, three, etc.), and not combi-
nations of digits (e.g. twenty-three).Speech command
Effect
DIAL
Telephone number already entered is dialled.
STORE
The name and telephone number will be stored in the int ernal phone book or
the entered PIN code will be stored.
CANCEL
Cancels a running dialogue.
REPEAT
The specified name or all of the digits specified up to this point will be
repeated. The system will then give the cue so that you can
specify additional digits or commands.
CORRECTION
The specified name or the last entered block of digits will be deleted. The sys-
tem will then give the cue so that you can specify additional
digits or commands.
ERASE
All specified digits will be deleted. The system will th en give the cue number is deleted. The number, please?> so that you can specify new digits or
commands.

Comunica ingles Seite 15 Montag, 23. Mai 2005 1 :49 13

Communication
16Example for entering a PIN code
A running dialogue can be cancelled at any time w ith a press of the talk
button .
Note
•
If the PIN code is more than 8 digits long, the system w ill decline and give
the cue .
•
If the specified PIN code is incorrect, the system will decline and give the
cue .
•
If the wrong PIN code is entered three times, the SIM c ard will be blocked.
The SIM card can be unblocked with the PUK (persona l unblock key). The
personal unblock key (PUK) can only be entered via the phone keypad and
not via the speech control system .Speech command
Condition
System cue
Effect
ENTER PIN CODE
The SIM card is installed, the tele-
phone is on and fitted to the adapter.

Dialogue
for example, ZERO, ONE, TWO, THREE

Dialogue
If no command is specified, the system responds afte r about 5 seconds with the next cue.No command
back, delete, or specify additional
digits>
Dialogue
STORE

DialogueEnd of dialogue

Comunica ingles Seite 16 Montag, 23. Mai 2005 1:49 13

Communication17
Operating instructions
Dial number
A telephone number can be vocally specified to the system and then dialle d.– Press the talk button . Activation of the system is confirmed
with by a tone.
– After the tone, say the command DIAL NUMBER .After this command the system will then request that y ou specify a telephone
number. A connection will then be established to t he specified number. The
telephone number can be specified all at once, i n blocks of digits (separated
by a brief pause), or as single digi ts. You can specify the digits from zero to nine
. After each block of digits you specify (separated by a brief pause) the
system will repeat the digits. The system can only reco gnise single digits
(two, three, etc.), and not combinat ions of digits (e.g. twenty-three).
Notes on specifying telephone numbers:
•
If the telephone number has more than 20 digits, the s ystem will decline
and give the cue .
•
A Plus (+) can also be placed ahead of the 20 digits.
Example for entering a telephone number:
A running dialogue can be cancelled at any time with a p ress of the talk
button .

Speech command
Condition
System cue
Effect
DIAL NUMBER
Phone switched on

Dialogue
for example, ZERO, SEVEN, THREE,
ONE

Dialogue
If no command is specified, the system responds afte r about 5 seconds with the next cue.No command
correct or specify additional digits>
Dialogue
THREE, NINE, TWO

Dialogue
DIAL

Dialogue -The telephone number
0731492 will be dialledEnd of dialogue

Comunica ingles Seite 17 Montag, 23. Mai 2005 1:49 13

Communication
18Redial– Press the talk button .
– After the tone, say the command REDIAL.
After giving the command the last number dialled via th e hands-free system
will be dialled again.
Example for the REDIAL command:
A running dialogue can be cancelled at any time wit h a press of the talk
button .
To record names in the phone book
You can store names along with a telephone number in the internal telephone book.– Press the talk button . The beep tone indicates that the
system is ready.
– After the tone, say the command STORE NAME.After giving the command the system will request you to specify a name and
telephone number to store in the internal telephone book. The telephone book has enough memory for 50 names and numbers. Y
ou can specify the
digits from zero to nine .
The telephone number can be specified all at once, in bloc ks of digits (sepa-
rated by a brief pause), or as single digits. After each block of digits you
specify (separated by a brief pause) the system will r epeat the digits. The
system can only recognise single digits (two, three, etc.) , and not combina-
tions of digits (e.g. twenty-three).
Say STORE to store the entry into the telephone book.

Speech command
Condition
System cue
Effect
REDIAL
Phone switched on

DialogueEnd of dialogue


Speech command
Condition
System cue
Effect
STORE NAME
Telephone book is not full

Dialogue
COMPANY XYZ

Dialogue
Comunica ingles Seite 18 Montag, 23. Mai 2005 1 :49 13

Communication19
Operating instructionsA running dialogue can be cancelled at any time with
a press of the talk
button .
Note
•
If the telephone number has more than 20 digits, the sy stem will decline
and give the cue .
•
A Plus (+) can also be placed ahead of the 20 digits.
•
Say the command Delete or Back to delete or correct the corresponding
block of digits.
•
Say Repeat to have all the digits that have been recognised up to that
point repeated.
•
If two or more names sound alike, it is better to save the n ames including
the first name or some other distinguishing entry .
•
A running dialogue can be cancelled at any time with a press of the talk
button .
•
The telephone book works only in conjunction with the h ands-free speech
control system; the entries are not stored on the phone 's SIM card.COMPANY XYZ

Dialogue
ZERO, ONE, TWO, THREE

Dialogue
FOUR, FIVE, SIX

Dialogue
If no command is specified, the system responds after about 5 seconds with the next cue.No command
back, delete, or specify additional
digits>
Dialogue
STORE

Dialogue - The name COMPANY XYZ
with the telephone number 0123456
will be storedEnd of dialogue

Comunica ingles Seite 19 Montag, 23. Mai 2005 1:49 13
