engine Seat Toledo 2012 Owner's manual

Table of Contents
Manual structure . . . . . . . . . . . . . . . . . . . . 5
Content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Safety First . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . . . 7
Sitting position for vehicle occupants . . . . . . . . . 10
Pedal area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Storing objects . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . . . 20
Why wear seat belts? . . . . . . . . . . . . . . . . . . . . . . 22
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Seat belt tensioners . . . . . . . . . . . . . . . . . . . . . . . 30
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . . . 31
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Side airbags* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Deactivating airbags . . . . . . . . . . . . . . . . . . . . . . . 43
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . . . 45
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Securing child seats . . . . . . . . . . . . . . . . . . . . . . . 50 Operating instructions
. . . . . . . . . . . . . 53
Controls and displays . . . . . . . . . . . . . . . . . . . . . . 53
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Instruments and warning lamps . . . . . . . . . . . . . 55
Multi-function display* (on board computer) . . . 59
MAXI DOT* (Informative display) . . . . . . . . . . . . . 62
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Steering wheel controls . . . . . . . . . . . . . . . . . . . . 74
Multimedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Opening and closing . . . . . . . . . . . . . . . . . . . . . . 81
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Central locking system . . . . . . . . . . . . . . . . . . . . . 83
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . . 88
Vehicle interior monitoring and tow-away
protection system . . . . . . . . . . . . . . . . . . . . . . . . . 89
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Opening and closing electric windows . . . . . . . . 92
Lights and visibility . . . . . . . . . . . . . . . . . . . . . . . . 94
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Windscreen wipers and windscreen washers . . . 103
Rear vision mirrors . . . . . . . . . . . . . . . . . . . . . . . . 106
Seats and storage . . . . . . . . . . . . . . . . . . . . . . . . . 107
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Luggage compartment . . . . . . . . . . . . . . . . . . . . . 112
Roof carrier* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Drink holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Cigarette lighter, 12V power socket . . . . . . . . . . . 118 Storage compartment . . . . . . . . . . . . . . . . . . . . . . 120
Coat hooks* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Heating and air conditioning . . . . . . . . . . . . . . . 125
Heating and air conditioning . . . . . . . . . . . . . . . . 125
Air vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Air conditioning (manual)* . . . . . . . . . . . . . . . . . . 129
Climatronic* (automatic air conditioning) . . . . . . 132
Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Starting and stopping the engine . . . . . . . . . . . . 136
Brakes and brake servo systems . . . . . . . . . . . . . 139
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . 143
Foot pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Parking aid* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
START-STOP* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Practical Tips . . . . . . . . . . . . . . . . . . . . . . . . . 153
Driving and the environment . . . . . . . . . . . . . . . 153
The first 1500 km (900 miles) . . . . . . . . . . . . . . . 153
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . 154
Economical and ecological driving . . . . . . . . . . . 154
Environmental compatibility . . . . . . . . . . . . . . . . 158
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Preventing damage to the vehicle . . . . . . . . . . . . 159
Driving through water . . . . . . . . . . . . . . . . . . . . . . 159
Driving the vehicle with a trailer . . . . . . . . . . . . 161
Driving the vehicle with a trailer . . . . . . . . . . . . . 161
Care of the vehicle and cleaning . . . . . . . . . . . . 164
Care of the vehicle . . . . . . . . . . . . . . . . . . . . . . . . 164
3
Table of Contents

Checking and refilling levels . . . . . . . . . . . . . . . 171
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Engine compartment . . . . . . . . . . . . . . . . . . . . . . 173
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Windscreen washer . . . . . . . . . . . . . . . . . . . . . . . . 182
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Wheels and tyres . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Accessories, modifications and spare parts . 195
General notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Modifications and effects of the airbag system . 196
Self-help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
First-aid kit and warning triangle . . . . . . . . . . . . . 197
Fire extinguisher . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Vehicle tool kit* . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . 198
Tyre repair kit* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Towing the vehicle . . . . . . . . . . . . . . . . . . . . . . . . 207
Fuses and bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Changing front fog light bulbs . . . . . . . . . . . . . . . 219
Changing bulbs for rear lights (in side panel) . . 220
Changing rear lights (in rear lid) . . . . . . . . . . . . . 223
Changing bulb for the number plate light . . . . . . 225
Technical specifications . . . . . . . . . . . . 226
Description of the data . . . . . . . . . . . . . . . . . . . . 226
Important information . . . . . . . . . . . . . . . . . . . . . 226
Information on fuel consumption . . . . . . . . . . . . 228 Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Checking fluid levels . . . . . . . . . . . . . . . . . . . . . . . 231
Petrol engine 1.2 55 kW (75 PS) . . . . . . . . . . . . . 232
Petrol engine 1.2 TSI 63 kW (85 PS) . . . . . . . . . . 233
Petrol engine 1.2 77 kW (105 PS) with/without
Start-Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Petrol engine 1.4 90 kW (122 PS) Automatic . . . 235
Diesel engine 1.6 CR 77 kW (105 PS) with/
without Start-Stop . . . . . . . . . . . . . . . . . . . . . . . . . 236
Dimensions and capacities . . . . . . . . . . . . . . . . . 237
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
4Table of Contents

55
Controls and displays
Instruments and warning lamps
General instrument panel – summary
Fig. 31 General instrument panel Rev counter ⇒ page 55
Digital display:
– with trip counter
⇒ page 57
– with service interval display
⇒ page 57
– with digital clock
⇒ page 58
– with multifunction display
⇒ page 59
– with informative digital display
⇒ page 62
Speedometer ⇒ page 56
Coolant temperature indicator ⇒ page 56
1
2
34
Control for selecting the mode:
–
adjust hours/minutes
– activate/deactivate according to speed in mph or km/h respectively
– service intervals – show the days and kilometres (miles) remaining
Switch for:
– delete trip counter
– reset the service intervals
– adjust hours/minutes
– activate/deactivate the selected mode
Fuel reserve indicator ⇒ page 56
WARNING
● Always keep your attention on driving! As the driver, you have the full
responsibility for the safety of traffic.
● Never use the instrument panel controls when the vehicle is in mo-
tion. Do so only when the vehicle is stopped!

Rev counter
The red part of the rev counter scale 1 ⇒ Fig. 31 ⇒ 
page 55 marks the zone
where the engine control unit begins to limit the engine speed. The engine
control unit is responsible for reducing the revs to a safe limit.
Before the needle reaches the red zone change up into a higher gear, or
move the selector lever of the automatic gearbox to D.
In order to drive at an optimum RPM, respect the gear change indications
⇒ page 58. 
5
6
7
Safety FirstOperating instructionsPractical TipsTechnical specifications

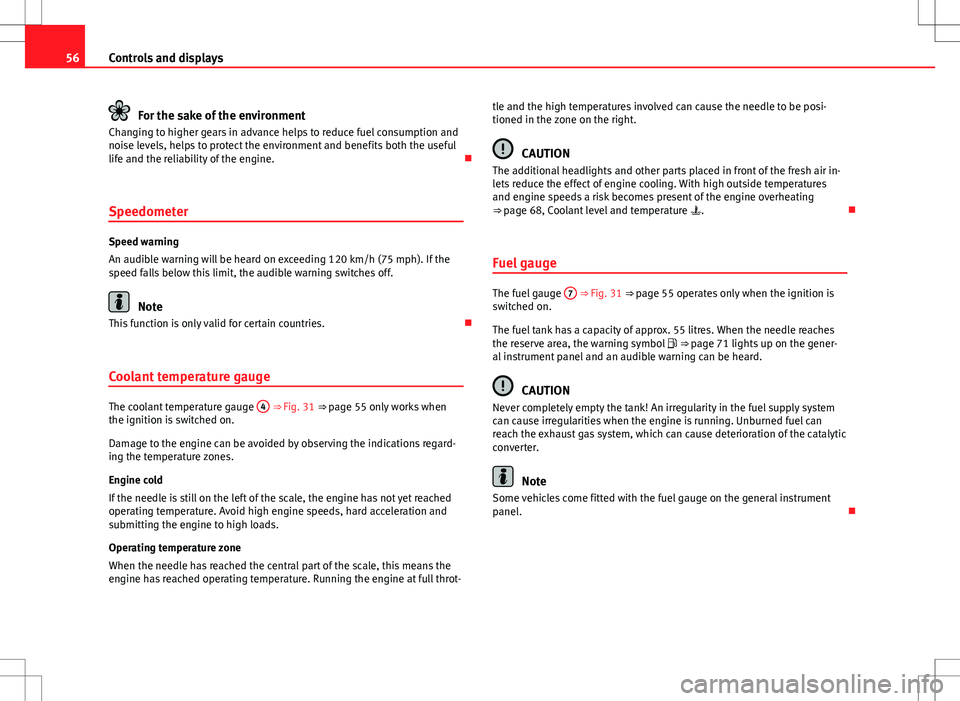

56Controls and displays
For the sake of the environment
Changing to higher gears in advance helps to reduce fuel consumption and
noise levels, helps to protect the environment and benefits both the useful
life and the reliability of the engine. 
Speedometer
Speed warning
An audible warning will be heard on exceeding 120 km/h (75 mph). If the
speed falls below this limit, the audible warning switches off.
Note
This function is only valid for certain countries. 
Coolant temperature gauge
The coolant temperature gauge 4
⇒  Fig. 31
⇒ page 55 only works when
the ignition is switched on.
Damage to the engine can be avoided by observing the indications regard-
ing the temperature zones.
Engine cold
If the needle is still on the left of the scale, the engine has not yet reached
operating temperature. Avoid high engine speeds, hard acceleration and
submitting the engine to high loads.
Operating temperature zone
When the needle has reached the central part of the scale, this means the
engine has reached operating temperature. Running the engine at full throt- tle and the high temperatures involved can cause the needle to be posi-
tioned in the zone on the right.
CAUTION
The additional headlights and other parts placed in front of the fresh air in-
lets reduce the effect of engine cooling. With high outside temperatures
and engine speeds a risk becomes present of the engine overheating
⇒  page 68, Coolant level and temperature . 
Fuel gauge
The fuel gauge 7 ⇒ Fig. 31 ⇒ 
page 55 operates only when the ignition is
switched on.
The fuel tank has a capacity of approx. 55 litres. When the needle reaches
the reserve area, the warning symbol  ⇒ page 71 lights up on the gener-
al instrument panel and an audible warning can be heard.
CAUTION
Never completely empty the tank! An irregularity in the fuel supply system
can cause irregularities when the engine is running. Unburned fuel can
reach the exhaust gas system, which can cause deterioration of the catalytic
converter.
Note
Some vehicles come fitted with the fuel gauge on the general instrument
panel. 

64Controls and displays
When exceeding the maximum speed the following is shown on the display: Winter tyres max speed … km/h … (mph)
Units
The units of measure for temperature, consumption and journey distances
can be set here.
Second speed
The second speed can be activated/deactivated in mph or km/h respective-
ly here.
Inspection Service
Here you can choose to display the kilometres (miles) and days remaining
until the next service, and reset the service interval display.
Factory settings
Select Factory setting to reset the values of the informative display to their
factory settings. 
Door, rear lid or bonnet open indicator
If at least one of the doors, rear lid or bonnet is open, a symbol is shown on
the informative display indicating that the door, rear lid or bonnet con-
cerned is open.
An audible warning is also given simultaneously if the vehicle is being driv-
en at a speed of above 6 km/h (4 mph). Auto-check system
Vehicle status
When the ignition is switched on, some vehicle functions such as the condi-
tion of its systems are automatically checked.
The warning messages about eventual faults in addition to other informa-
tion is displayed on the informative display. This information is displayed
together with their respective symbols on the informative display or by
warning lamps that light up on the general instrument panel
⇒ page 65.
The option, Vehicle status, appears in the menu when at least one warning
message is present. The first of the warnings given is displayed upon se-
lecting this option. If there is more than one message present, this is dis-
played on the screen, i.e. 1/3. This means that the warning currently dis- played is the first of a total of three.
Warning symbols
The engine oil pressure is too low⇒ page 67
Automatic gearbox overheated clutches⇒ page 64
Engine oil level,
engine oil sensor faulty⇒ page 67
Engine oil pressure fault⇒ page 65
Automatic gearbox overheated clutches 
If the symbol  appears on the informative display, the temperature of the
automatic gearbox clutches has reached an unacceptable level.
The informative display indicates:
Gearbox overheated. Stop! Instruction Manual! 

65
Controls and displays
Stop the vehicle in this case, stop the engine and wait until the symbol 
has switched off. Danger of damage to the gearbox! You can continue driv-
ing once the symbol is switched off.
Engine oil pressure fault 
If the symbol  appears on the informative display, the vehicle must be im-
mediately taken to a specialised service. Information regarding the maxi-
mum engine speed is displayed together with this symbol.
WARNING
If the vehicle has to be stopped for technical reasons, park it a safe dis-
tance away from moving traffic, switch off the engine and turn on the
hazard warning lights ⇒ page 98.
Note
● If a warning appears on the informative display it must be confirmed by
pressing the button, B
⇒ Fig. 35 ⇒ 
page 63 before proceeding to the main
menu.
● The symbols are displayed again until the fault is corrected. After the
first time a symbol is displayed they reappear, but without a message for
the driver. 
Control lamps Summary
The control lamps indicate certain functions or faults accompanied by an
audible warning.
When the ignition is switched on some of the warning lamps light up for
several seconds for the purpose of the control systems of the vehicle. These warning lamps must switch off several seconds after the ignition is switched
on.
Handbrake⇒ page 66
Brake system⇒ page 66
Fasten your seat belt⇒ page 67
Alternator⇒ page 67
Door open⇒ page 67
Engine oil (red or yellow colour)⇒ page 67
Coolant temperature/level (red or blue colour)⇒ page 68
Power steering⇒ page 69
Electronic stability control (ESC)⇒ page 69
Traction control system (ASR)⇒ page 69
Anti-lock brake system (ABS)⇒ page 70
Rear fog light⇒ page 70
Bulb fault⇒ page 70
Emission control system⇒ page 70
Glow plug system (diesel engines)⇒ page 70

Safety FirstOperating instructionsPractical TipsTechnical specifications

66Controls and displays
Engine electronics control (petrol engines)⇒ page 71
Particulate filter (diesel engines)⇒ page 71
Fuel reserve⇒ page 71
Airbag system⇒ page 72
Tyre pressure⇒ page 72
Liquid level in the window washer system⇒ page 73

Turn signals (left/right)⇒ page 73
Fog lights⇒ page 73
Cruise speed⇒ page 73
Selector lever lock⇒ page 73
Main beams⇒ page 73
WARNING
● Failure to observe control lamps and warning messages can result in
serious personal injuries or damage to your vehicle.
● The engine compartment is a dangerous area! Carrying out work in
the engine compartment, i.e. checking and filling service liquids, can
lead to injury, scalding, burns and fires. Therefore the corresponding
warnings must always be observed ⇒ page 173, Engine compartment.
Handbrake 
If the
 warning lamp lights up, the handbrake is applied. Additionally,
driving the vehicle at speeds exceeding 6 km/h (4 mph) for at least 3 sec-
onds produces an audible warning.
The informative display indicates:
Release the handbrake! 
Brake system 
The warning lamp  lights up if the brake fluid level falls too low or if there
is a fault in the ABS system.
The informative display indicates:
Brake fluid Instruction Manual!
Stop the vehicle, switch off the engine and check the level of the brake fluid
⇒ page 181
WARNING
● If the vehicle has to be stopped for technical reasons, park it a safe
distance away from moving traffic, switch off the engine and turn on the
hazard warning lights ⇒ page 98.
● The following indications must be taken into account when opening
the engine compartment to check the brake fluid ⇒ page 173, Engine
compartment. 

67
Controls and displays
WARNING (Continued)
● If the warning lamp  lights up together with the warning lamp 
⇒ page 70, Anti-lock system (ABS) ,  , Stop the vehicle! Seek pro-
fessional help.
● A fault in the brake system or in the Anti-lock brake system (ABS) can
lead to longer braking distances – Risk of accident!

Fastening seat belts 
After switching on the ignition, the warning lamp  lights up to instruct the
driver or front passenger to fasten their seat belt. The warning lamp switch-
ed off when the driver or front passenger fastens their seat belt.
While driving at a speed in excess of 20 km/h (12 mph), and if the driver or
front passenger does not have their seat belt fastened an audible warning
is given and the control lamp  lights up.
If the driver or front passenger does not fasten their seat belt during the fol-
lowing 90 seconds the audible warning switches off while the warning lamp
 will remain up. 
Alternator 
If the control lamp  is lit up while the engine is running, the battery is not
charging.
Seek professional help. Have the car's electrical equipment inspected.
WARNING
If the vehicle has to be stopped for technical reasons, park it a safe dis-
tance away from moving traffic, switch off the engine and turn on the
hazard warning lights ⇒ page 98, Hazard warning light switch.
CAUTION
Additionally, if the warning lamp  lights up while driving, the warning
lamp  also lights up (cooling system fault). Stop the vehicle and switch off
the engine – Risk of engine damage! 
Door open 
If the control lamp,  lights up, one of the doors, the rear lid or the bonnet
is open.
WARNING
If the vehicle has to be stopped for technical reasons, park it a safe dis-
tance away from moving traffic, switch off the engine and turn on the
hazard warning lights ⇒ page 98.

Engine oil 
The control lamp
 flashes red (oil pressure low)
The informative display indicates:
Oil pressure. Switch off the engine! Instruction Manual!
Stop the vehicle, switch off the engine and check the engine oil level
⇒  page 177 
Safety FirstOperating instructionsPractical TipsTechnical specifications

68Controls and displays
If the symbol flashes although the oil level is correct,  do not drive on. Do
not even run the engine at idle speed!
Seek professional help.
The control lamp  lights up yellow (insufficient oil level)
The informative display indicates:
Check the oil level!
Stop the vehicle, switch off the engine and check the engine oil level
⇒ page 177
If the bonnet remains open for more than 30 seconds, the warning lamp
switches off. If the engine oil is not refilled, the warning lamp lights up
again after 100 km (62 miles).
The control lamp  flashes yellow (oil level sensor faulty)
The informative display indicates:
Oil sensor. Workshop!
If the engine oil level sensor is faulty, The warning lamp  flashes various
times after the ignition is switched on and an audible warning is given.
Seek professional help.
WARNING
If the vehicle has to be stopped for technical reasons, park it a safe dis-
tance away from moving traffic, switch off the engine and turn on the
hazard warning lights ⇒ page 98.
Coolant level and temperature

If the warning lamp  (blue) is lit up, the engine has not yet reached its op-
erating temperature 1)
. Avoid high engine speeds, hard acceleration and
submitting the engine to high loads.
If the warning lamp  (red) is lit up or flashing, the coolant temperature is
too high or its level is too low.
The informative display indicates:
Check coolant! Instruction Manual!
Stop the vehicle, switch off the engine, check the coolant level ⇒ page 179
and refill if necessary ⇒ page 180.
If the coolant is situated in the prescribed area, the high temperature may
be due to a fault in the cooling system fan. Check the radiator fan fuse and
replace it if necessary ⇒ page 214, Changing fuses in the engine compart-
ment.
If the warning lamp  (red) remains lit up, despite both the coolant level
and the radiator fan fuse being in correct condition,  stop the vehicle!
Seek professional help. 
1)
This does not apply to vehicles equipped with an informative display.

69
Controls and displays
WARNING
● If the vehicle has to be stopped for technical reasons, park it a safe
distance away from moving traffic, switch off the engine and turn on the
hazard warning lights ⇒ page 98.
● Take care when opening the coolant reservoir. When the engine is
warm or hot, the system is pressurised – Danger of burns! Wait for the
engine to cool before opening the cover.
● Do not touch the fan. The fan can switch on automatically regardless
of whether the ignition is switched on.

Power steering 
If the warning lamp,  is lit up there is a fault in the power steering.
The power steering system functions with reduced power steering effect.
Seek professional help. 
Stability Control (ESC) 
If the control lamp  flashes, the ESC is working.
If the warning lamp  lights up on ignition the ESC system may have
switched off due to technical reasons. Turn off the ignition and turn it on
again. Upon switching on the ignition again, if the warning lamp has switch-
ed off, this means the ESC is functioning correctly again.
If the warning lamp,  is lit up there is a fault in the ESC.
The informative display indicates: Report No.: Stability control (ESC) or
Report No.: Traction control system (ASR)
Seek professional help.
Further information ⇒ page 141, Stability system (ESC).
Note
If the battery is disconnected and connected again, the yellow warning
lamp  lights up when the ignition is switched on. This warning lamp must
switch off after covering a short distance. 
Traction control system (ASR) 
If the control lamp  flashes, the ASR is working.
If the warning lamp  lights up on ignition the ASR system may have
switched off due to technical reasons. Turn off the ignition and turn it on
again. Upon switching on the ignition again, if the warning lamp has switch-
ed off, this means the ASR is functioning correctly again.
If the warning lamp,  remains lit up there is a fault in the ASR.
The informative display indicates: Report No.: Traction control system (ASR)
Seek professional help.
Further information ⇒ page 142, Traction control system (ASR). 
Safety FirstOperating instructionsPractical TipsTechnical specifications
