C - Parking and daytime running light
Changing the bulb for the front turn signal light›
Turn the bulb holder
A
» Fig. 127 anti-clockwise up to the stop and remove.
›
Push the faulty bulb into the holder, turn in anti-clockwise up to the stop and
remove.
›
Insert a new bulb into the socket and turn clockwise to the stop.
›
Insert the lamp holder with the new bulb into the headlamp and turn it clock-
wise until it stops.
Replacing the bulb for low beam and main beam
›
Remove the connector on the bulb
B
» Fig. 127 .
›
Remove the rubber cover.
›
Press the circlip
D
in the direction of the headlamp and then unhook in the di-
rection of the arrow.
›
Remove the light bulb and insert a new light bulb in such a way that the fixing lugs of the light bulb socket fit into the recesses at the headlight.
Installation is carried out in the reverse order.
Replacing the bulb for the front parking light and daylight running light
›
Turn the bulb holder
C
» Fig. 127 up to the stop in an anti-clockwise direction
and remove.
›
Remove the faulty bulb from the socket.
›
Insert a new bulb into the socket.
›
Insert the lamp holder with the new bulb into the headlamp and turn it clock-
wise until it stops.
Replacing the bulb for the side turn signal lights
Fig. 128
Left side of the vehicle: Replacing the bulb for the turn signal light
First read and observe the introductory information and safety warn-
ings on page 157.›
Slide the direction indicator light in the direction of
1
» Fig. 128 (on the right
side of the vehicle mirror).
›
Pry the flashing light from the body in the direction of arrow
2
(on the right
side of the vehicle mirror).
›
Remove the bulb holder
3
in the direction of arrow.
›
Remove the faulty bulb from the socket.
›
Insert a new bulb into the socket.
›
Replace the bulb holder.
›
Set the side repeater turn signal light with the side facing the rear of the vehi- cle in the body and lightly press it until the spring on the other side of the side
repeater turn signal light latches.
Replacing the bulb for the fog light
Fig. 129
Changing light bulbs for fog lights
First read and observe the introductory information and safety warn- ings
on page 157.
›
Use the on board tool to remove screws
A
» Fig. 129 from the wheel well.
›
Unscrew rivet
B
with a flat, blunt object such as a coin.
›
Push the battery cover in the direction of the arrow .
›
Remove connector
C
.
›
Turn the connector with the bulb in an anti-clockwise direction up to the stop
and remove .
›
Turn the connector with the new bulb into the headlight and turn in a clockwise
direction as far as the stop.
›
Attach the connector until it clicks firmly into place.
158Do-it-yourself
Page 162 of 176

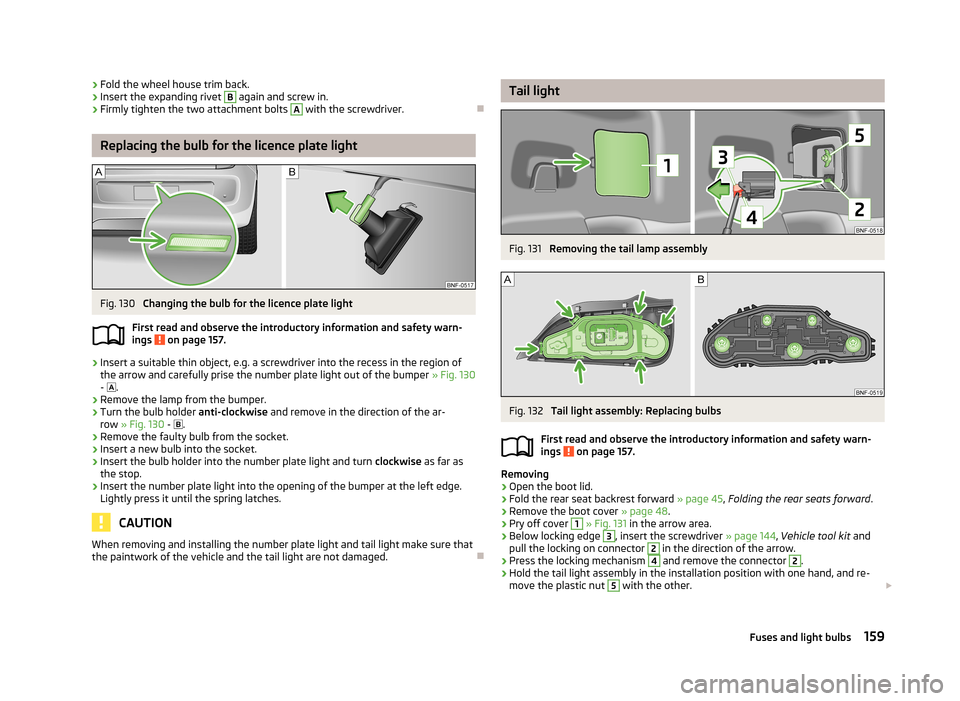

›Fold the wheel house trim back.›Insert the expanding rivet B again and screw in.›
Firmly tighten the two attachment bolts
A
with the screwdriver.
Replacing the bulb for the licence plate light
Fig. 130
Changing the bulb for the licence plate light
First read and observe the introductory information and safety warn- ings
on page 157.
›
Insert a suitable thin object, e.g. a screwdriver into the recess in the region of the arrow and carefully prise the number plate light out of the bumper » Fig. 130
-
.
›
Remove the lamp from the bumper.
›
Turn the bulb holder anti-clockwise and remove in the direction of the ar-
row » Fig. 130 -
.
›
Remove the faulty bulb from the socket.
›
Insert a new bulb into the socket.
›
Insert the bulb holder into the number plate light and turn clockwise as far as
the stop.
›
Insert the number plate light into the opening of the bumper at the left edge.
Lightly press it until the spring latches.
CAUTION
When removing and installing the number plate light and tail light make sure that
the paintwork of the vehicle and the tail light are not damaged.
Tail lightFig. 131
Removing the tail lamp assembly
Fig. 132
Tail light assembly: Replacing bulbs
First read and observe the introductory information and safety warn-
ings
on page 157.
Removing
›
Open the boot lid.
›
Fold the rear seat backrest forward » page 45, Folding the rear seats forward .
›
Remove the boot cover » page 48.
›
Pry off cover
1
» Fig. 131 in the arrow area.
›
Below locking edge
3
, insert the screwdriver » page 144, Vehicle tool kit and
pull the locking on connector
2
in the direction of the arrow.
›
Press the locking mechanism
4
and remove the connector
2
.
›
Hold the tail light assembly in the installation position with one hand, and re- move the plastic nut
5
with the other.
159Fuses and light bulbs
Page 163 of 176

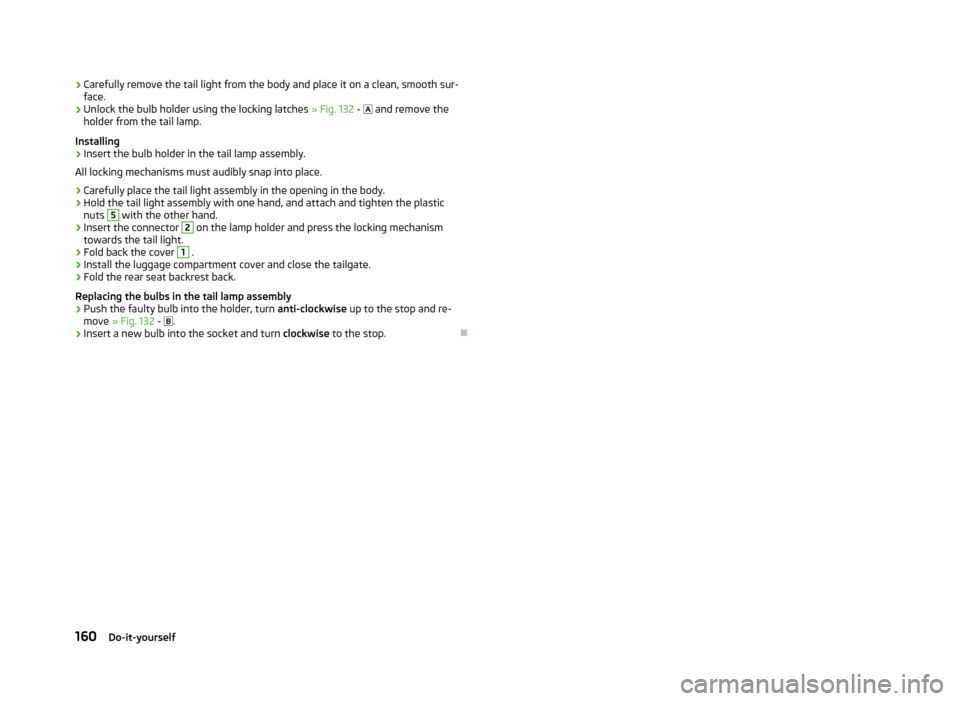

›Carefully remove the tail light from the body and place it on a clean, smooth sur-
face.›
Unlock the bulb holder using the locking latches » Fig. 132 - and remove the
holder from the tail lamp.
Installing
›
Insert the bulb holder in the tail lamp assembly.
All locking mechanisms must audibly snap into place.
›
Carefully place the tail light assembly in the opening in the body.
›
Hold the tail light assembly with one hand, and attach and tighten the plastic nuts
5
with the other hand.
›
Insert the connector
2
on the lamp holder and press the locking mechanism
towards the tail light.
›
Fold back the cover
1
.
›
Install the luggage compartment cover and close the tailgate.
›
Fold the rear seat backrest back.
Replacing the bulbs in the tail lamp assembly
›
Push the faulty bulb into the holder, turn anti-clockwise up to the stop and re-
move » Fig. 132 -
.
›
Insert a new bulb into the socket and turn clockwise to the stop.
160Do-it-yourself
Page 164 of 176

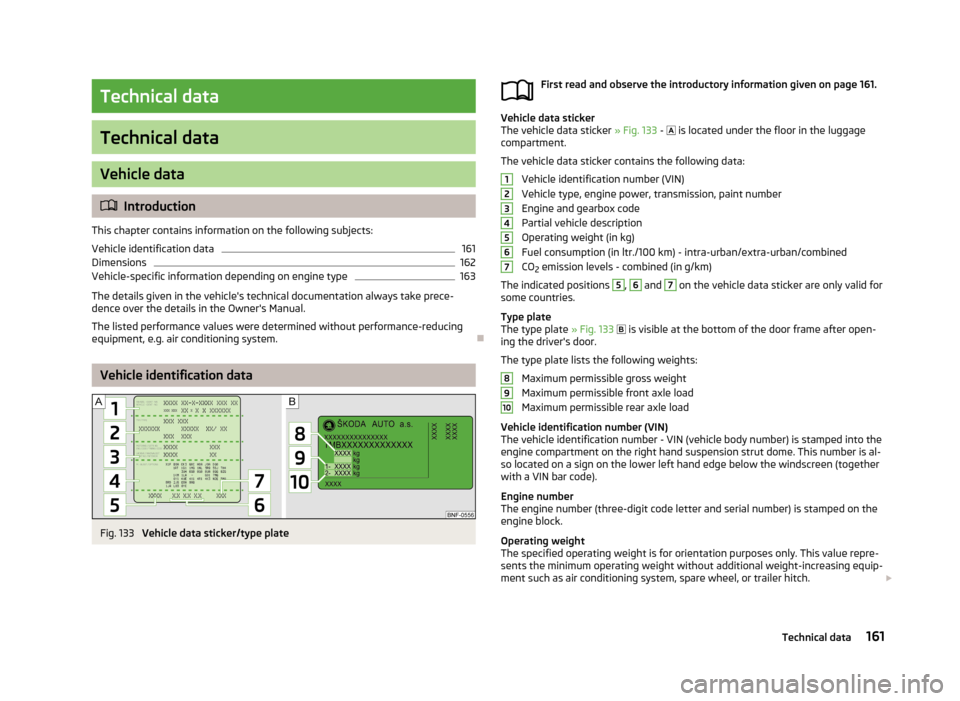

Technical data
Technical data
Vehicle data
Introduction
This chapter contains information on the following subjects:
Vehicle identification data
161
Dimensions
162
Vehicle-specific information depending on engine type
163
The details given in the vehicle's technical documentation always take prece-
dence over the details in the Owner's Manual.
The listed performance values were determined without performance-reducing
equipment, e.g. air conditioning system.
Vehicle identification data
Fig. 133
Vehicle data sticker/type plate
First read and observe the introductory information given on page 161.
Vehicle data sticker
The vehicle data sticker » Fig. 133 - is located under the floor in the luggage
compartment.
The vehicle data sticker contains the following data: Vehicle identification number (VIN)
Vehicle type, engine power, transmission, paint number
Engine and gearbox code
Partial vehicle description
Operating weight (in kg) Fuel consumption (in ltr./100 km) - intra-urban/extra-urban/combinedCO 2 emission levels - combined (in g/km)
The indicated positions
5
,
6
and
7
on the vehicle data sticker are only valid for
some countries.
Type plate
The type plate » Fig. 133
is visible at the bottom of the door frame after open-
ing the driver's door.
The type plate lists the following weights: Maximum permissible gross weight
Maximum permissible front axle load
Maximum permissible rear axle load
Vehicle identification number (VIN)
The vehicle identification number - VIN (vehicle body number) is stamped into the
engine compartment on the right hand suspension strut dome. This number is al-
so located on a sign on the lower left hand edge below the windscreen (together
with a VIN bar code).
Engine number
The engine number (three-digit code letter and serial number) is stamped on the
engine block.
Operating weight
The specified operating weight is for orientation purposes only. This value repre- sents the minimum operating weight without additional weight-increasing equip-ment such as air conditioning system, spare wheel, or trailer hitch.
12345678910161Technical data
Page 165 of 176
The operating weight also contains the weight of the driver (75 kg), the weight ofthe operating fluids, the tool kit, and a fuel tank filled to 90 % capacity.
It is possible to calculate the approximate loading capacity from the differencebetween the permissible total weight and the operating weight »
.
The payload consists of the following components: › Passengers
› All items of luggage and other loads
› Roof load including roof rack system
› Equipment not included in the operating weight.
Fuel consumption and CO 2 emissions according to ECE standards and EU
directives
The measurement of the intra-urban cycle begins with a cold start of the engine.
Afterwards standard urban driving is simulated.
In the extra-urban driving cycle, the vehicle is accelerated and decelerated in all gears, corresponding to daily routine driving conditions. The driving speed variesbetween 0 and 120 km/h.
The calculation of the combined fuel consumption considers a weighting of about 37 % for the intra-urban cycle and 63 % for the extra-urban cycle.
WARNINGDo not exceed the specified maximum permissible weights – risk of accident
and damage!
Note
■ If required, you can find out the precise weight of your vehicle at a specialist ga-
rage.■
The fuel consumption and emission values have been determined in accordance
with rules and under conditions set out by legal or technical requirements for de-
termining operational and technical data for motor vehicles.
■
Depending on the range of equipment, style of driving, traffic situation, weather
influences and vehicle condition, consumption values may deviate from the indi-
cated values.
Dimensions
First read and observe the introductory information given on page 161.
Vehicle dimensions (mm)
Length3563Width1641/1645 a)Width including exterior mirror1910Height1478/1463 b)
/1480 c)Clearance136/121 b)
/134 c)Wheel base2420/2421 c)Track gauge front/rear1428/1424a)
Valid for vehicles with rear side doors.
b)
Applies to vehicles with a Green-tec package.
c)
Valid for vehicles with CNG operation.
162Technical data
Page 166 of 176

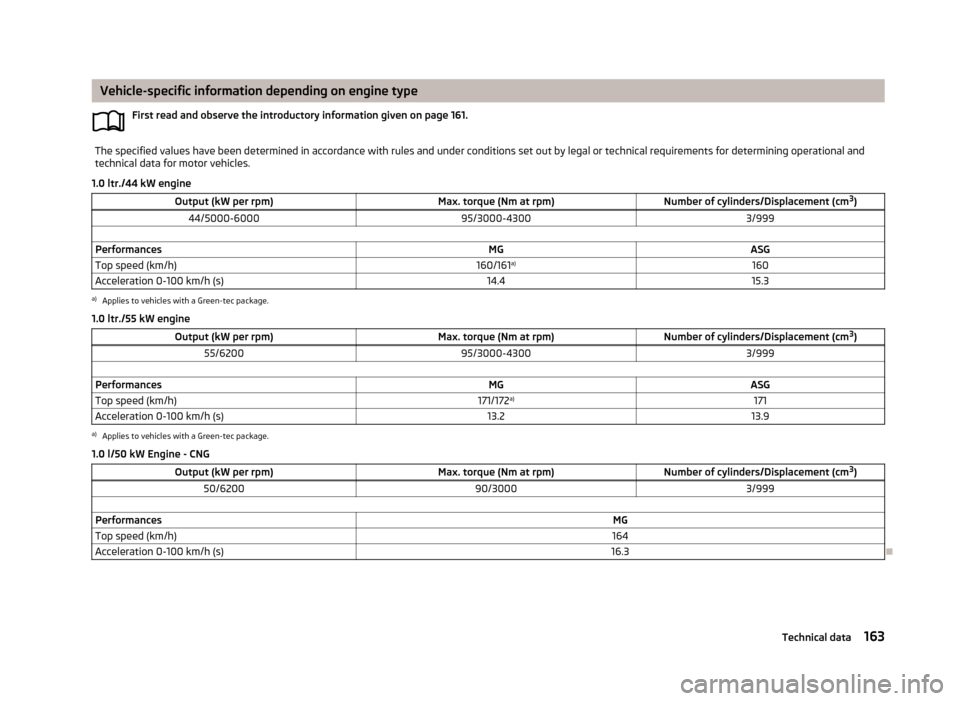

Vehicle-specific information depending on engine typeFirst read and observe the introductory information given on page 161.The specified values have been determined in accordance with rules and under conditions set out by legal or technical requirements for determining operational and
technical data for motor vehicles.
1.0 ltr./44 kW engine
Output (kW per rpm)Max. torque (Nm at rpm)Number of cylinders/Displacement (cm 3
)44/5000-600095/3000-43003/999 PerformancesMGASGTop speed (km/h)160/161 a)160Acceleration 0-100 km/h (s)14.415.3a)
Applies to vehicles with a Green-tec package.
1.0 ltr./55 kW engine
Output (kW per rpm)Max. torque (Nm at rpm)Number of cylinders/Displacement (cm 3
)55/620095/3000-43003/999 PerformancesMGASGTop speed (km/h)171/172 a)171Acceleration 0-100 km/h (s)13.213.9a)
Applies to vehicles with a Green-tec package.
1.0 l/50 kW Engine - CNG
Output (kW per rpm)Max. torque (Nm at rpm)Number of cylinders/Displacement (cm 3
)50/620090/30003/999 PerformancesMGTop speed (km/h)164Acceleration 0-100 km/h (s)16.3
163Technical data
Page 167 of 176

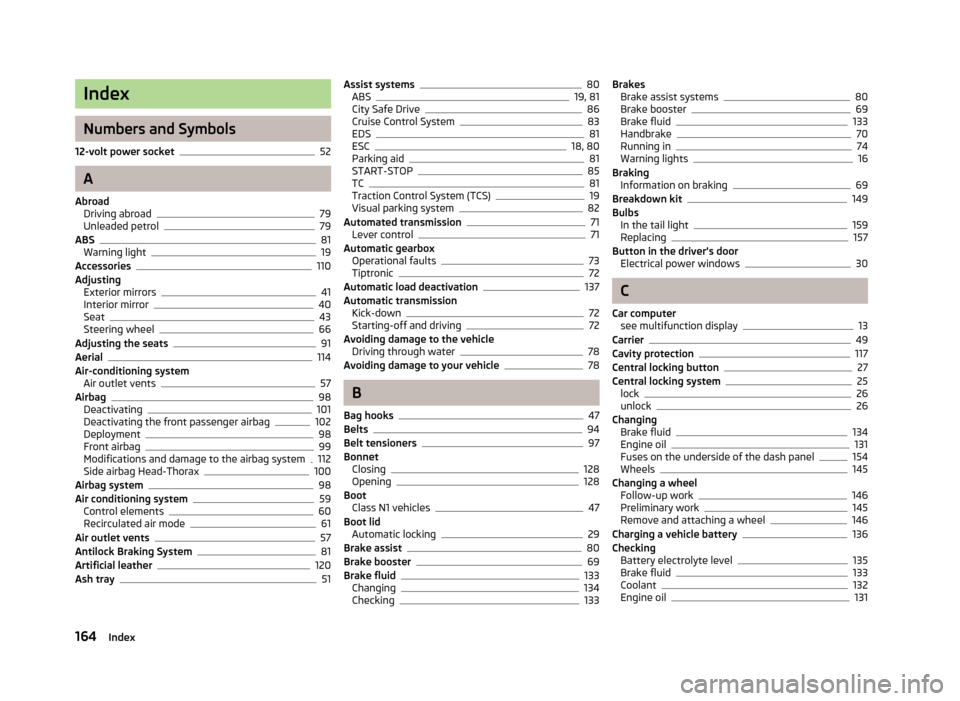

Index
Numbers and Symbols
12-volt power socket
52
A
Abroad Driving abroad
79
Unleaded petrol79
ABS81
Warning light19
Accessories110
Adjusting Exterior mirrors
41
Interior mirror40
Seat43
Steering wheel66
Adjusting the seats91
Aerial114
Air-conditioning system Air outlet vents
57
Airbag98
Deactivating101
Deactivating the front passenger airbag102
Deployment98
Front airbag99
Modifications and damage to the airbag system112
Side airbag Head-Thorax100
Airbag system98
Air conditioning system59
Control elements60
Recirculated air mode61
Air outlet vents57
Antilock Braking System81
Artificial leather120
Ash tray51
Assist systems80
ABS19, 81
City Safe Drive86
Cruise Control System83
EDS81
ESC18, 80
Parking aid81
START-STOP85
TC81
Traction Control System (TCS)19
Visual parking system82
Automated transmission71
Lever control71
Automatic gearbox Operational faults
73
Tiptronic72
Automatic load deactivation137
Automatic transmission Kick-down
72
Starting-off and driving72
Avoiding damage to the vehicle Driving through water
78
Avoiding damage to your vehicle78
B
Bag hooks
47
Belts94
Belt tensioners97
Bonnet Closing
128
Opening128
Boot Class N1 vehicles
47
Boot lid Automatic locking
29
Brake assist80
Brake booster69
Brake fluid133
Changing134
Checking133
Brakes Brake assist systems80
Brake booster69
Brake fluid133
Handbrake70
Running in74
Warning lights16
Braking Information on braking
69
Breakdown kit149
Bulbs In the tail light
159
Replacing157
Button in the driver's door Electrical power windows
30
C
Car computer see multifunction display
13
Carrier49
Cavity protection117
Central locking button27
Central locking system25
lock26
unlock26
Changing Brake fluid
134
Engine oil131
Fuses on the underside of the dash panel154
Wheels145
Changing a wheel Follow-up work
146
Preliminary work145
Remove and attaching a wheel146
Charging a vehicle battery136
Checking Battery electrolyte level
135
Brake fluid133
Coolant132
Engine oil131
164Index
Page 168 of 176
Oil level131
Windscreen washer fluid129
Children and safety103
Child safety Side airbag
104
Child safety lock23
Child seat Classification
105
ISOFIX106
on the front passenger seat104
TOP TETHER107
Use of child seats105
Use of ISOFIX child seats106
Chrome parts refer to Taking care of your vehicle
116
Cigarette lighter52
City Safe Drive86
Warning light21
Cleaning108
Alcantara120
Artificial leather120
cloths120
Covers of electrically heated seats120
Headlight lenses117
Natural leather119
Plastic parts116
Wheels118
Clock14
Clothes hooks53
CNG123
Checking125
Fuel gauge11
Labels126
Natural gas as fuel125
Quality126
Refuelling124
Safe fuel126
Switching from CNG to petrol mode125
Cockpit 12-volt power socket
52
Ash tray51
Cigarette lighter52
Cup holder51
General view9
Light36, 37
Storage compartments53
Compartments53
Compressed natural gas See CNG
123
Computer see multifunction display
13
Coolant132
Checking132
Replenishing133
Warning light18
Correct seated position91
Driver92
Front passenger92
Instructions92
Rear seats92
Counter for distance driven12
Cruise Control System83
Cup holder51
D
DAY LIGHT Daytime running light
34
Daytime running light34
Deactivating an airbag101
Decorative films116
Defrosting rear window37
Delayed locking of the boot lid see Boot lid
29
Digital clock14
Dipstick131
Disconnecting and reconnecting vehicle battery
137
Display Service interval
12
Distance driven12
Door Child safety lock23
Closing24
Opening24
Door opening lever locking of
24
Door opening leverl unlocking of
24
Doors Emergency locking
25
Driving Abroad
79
Driving through water on streets78
Emissions161
Fuel consumption161
Trailer operation113
Driving economically Economical gear changing
75
Driving through water78
E
Economical and environmentally friendly driving
74
Economical driving Ballast
76
Driving at full throttle75
Idling75
Looking ahead75
Regular maintenance76
Saving energy77
Short distances76
Tyre inflation pressure76
EDS81
Electrical power windows Button in the driver's door
30
Electronic Differential Lock81
Electronic immobilizer68
Emergency Changing a wheel
145
Hazard warning light system36
jump-starting151
165Index
Page 169 of 176

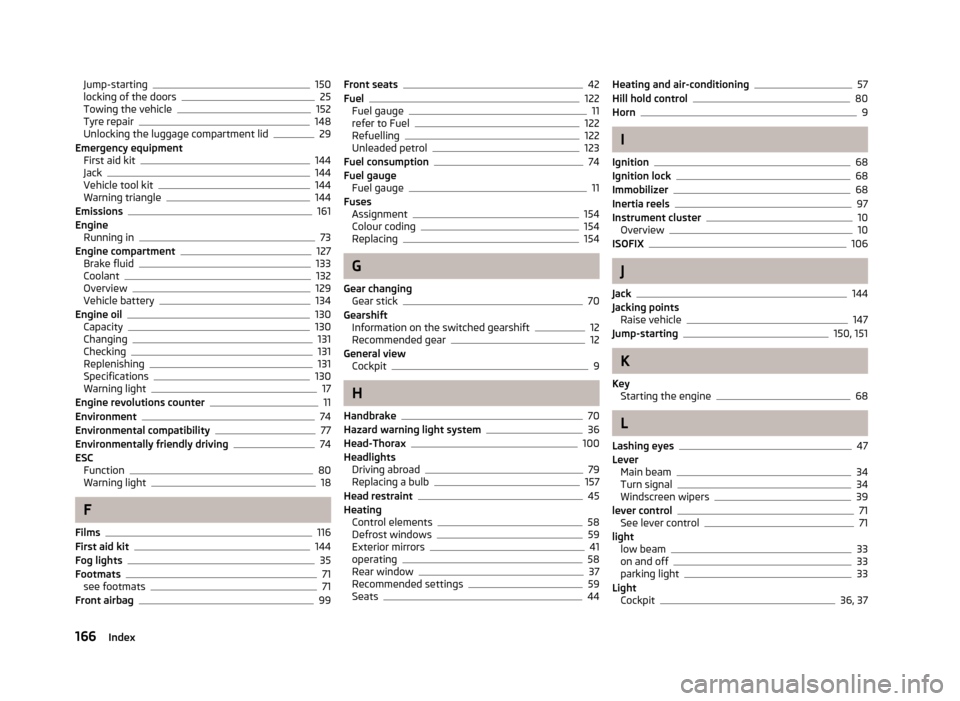

Jump-starting150
locking of the doors25
Towing the vehicle152
Tyre repair148
Unlocking the luggage compartment lid29
Emergency equipment First aid kit
144
Jack144
Vehicle tool kit144
Warning triangle144
Emissions161
Engine Running in
73
Engine compartment127
Brake fluid133
Coolant132
Overview129
Vehicle battery134
Engine oil130
Capacity130
Changing131
Checking131
Replenishing131
Specifications130
Warning light17
Engine revolutions counter11
Environment74
Environmental compatibility77
Environmentally friendly driving74
ESC Function
80
Warning light18
F
Films
116
First aid kit144
Fog lights35
Footmats71
see footmats71
Front airbag99
Front seats42
Fuel122
Fuel gauge11
refer to Fuel122
Refuelling122
Unleaded petrol123
Fuel consumption74
Fuel gauge Fuel gauge
11
Fuses Assignment
154
Colour coding154
Replacing154
G
Gear changing Gear stick
70
Gearshift Information on the switched gearshift
12
Recommended gear12
General view Cockpit
9
H
Handbrake
70
Hazard warning light system36
Head-Thorax100
Headlights Driving abroad
79
Replacing a bulb157
Head restraint45
Heating Control elements
58
Defrost windows59
Exterior mirrors41
operating58
Rear window37
Recommended settings59
Seats44
Heating and air-conditioning57
Hill hold control80
Horn9
I
Ignition
68
Ignition lock68
Immobilizer68
Inertia reels97
Instrument cluster10
Overview10
ISOFIX106
J
Jack
144
Jacking points Raise vehicle
147
Jump-starting150, 151
K
Key Starting the engine
68
L
Lashing eyes
47
Lever Main beam
34
Turn signal34
Windscreen wipers39
lever control71
See lever control71
light low beam
33
on and off33
parking light33
Light Cockpit
36, 37
166Index
Page 170 of 176

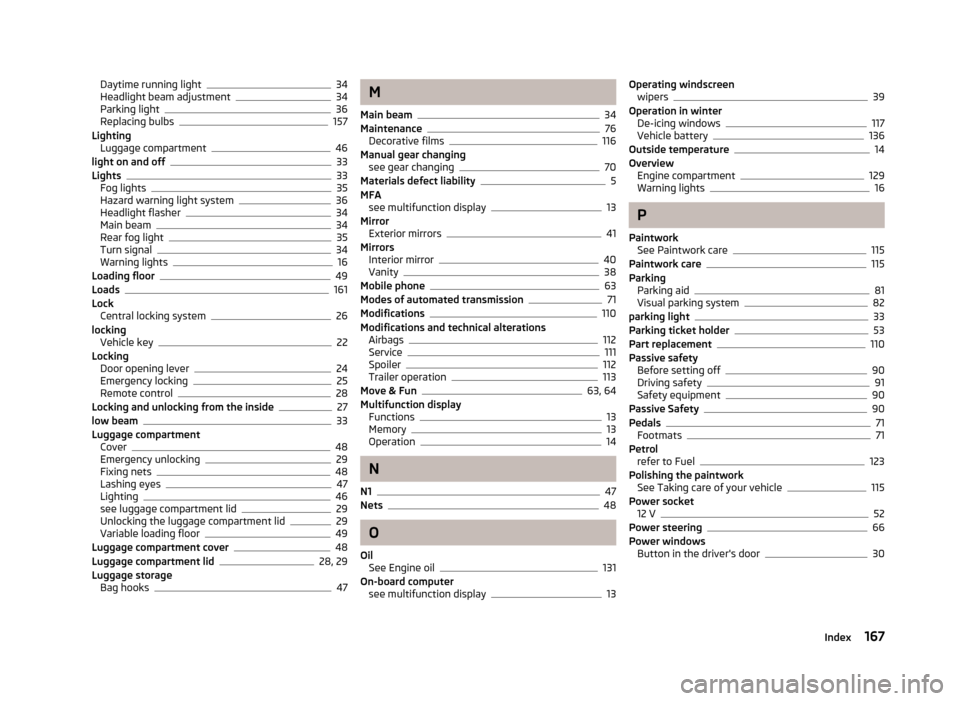

Daytime running light34
Headlight beam adjustment34
Parking light36
Replacing bulbs157
Lighting Luggage compartment
46
light on and off33
Lights33
Fog lights35
Hazard warning light system36
Headlight flasher34
Main beam34
Rear fog light35
Turn signal34
Warning lights16
Loading floor49
Loads161
Lock Central locking system
26
locking Vehicle key
22
Locking Door opening lever
24
Emergency locking25
Remote control28
Locking and unlocking from the inside27
low beam33
Luggage compartment Cover
48
Emergency unlocking29
Fixing nets48
Lashing eyes47
Lighting46
see luggage compartment lid29
Unlocking the luggage compartment lid29
Variable loading floor49
Luggage compartment cover48
Luggage compartment lid28, 29
Luggage storage Bag hooks
47
M
Main beam
34
Maintenance76
Decorative films116
Manual gear changing see gear changing
70
Materials defect liability5
MFA see multifunction display
13
Mirror Exterior mirrors
41
Mirrors Interior mirror
40
Vanity38
Mobile phone63
Modes of automated transmission71
Modifications110
Modifications and technical alterations Airbags
112
Service111
Spoiler112
Trailer operation113
Move & Fun63, 64
Multifunction display Functions
13
Memory13
Operation14
N
N1
47
Nets48
O
Oil See Engine oil
131
On-board computer see multifunction display
13
Operating windscreenwipers39
Operation in winter De-icing windows
117
Vehicle battery136
Outside temperature14
Overview Engine compartment
129
Warning lights16
P
Paintwork See Paintwork care
115
Paintwork care115
Parking Parking aid
81
Visual parking system82
parking light33
Parking ticket holder53
Part replacement110
Passive safety Before setting off
90
Driving safety91
Safety equipment90
Passive Safety90
Pedals71
Footmats71
Petrol refer to Fuel
123
Polishing the paintwork See Taking care of your vehicle
115
Power socket 12 V
52
Power steering66
Power windows Button in the driver's door
30
167Index
