SKODA OCTAVIA 2008 2.G / (1Z) Bolero Car Radio Manual
Manufacturer: SKODA, Model Year: 2008, Model line: OCTAVIA, Model: SKODA OCTAVIA 2008 2.G / (1Z)Pages: 25, PDF Size: 0.94 MB
Page 21 of 25

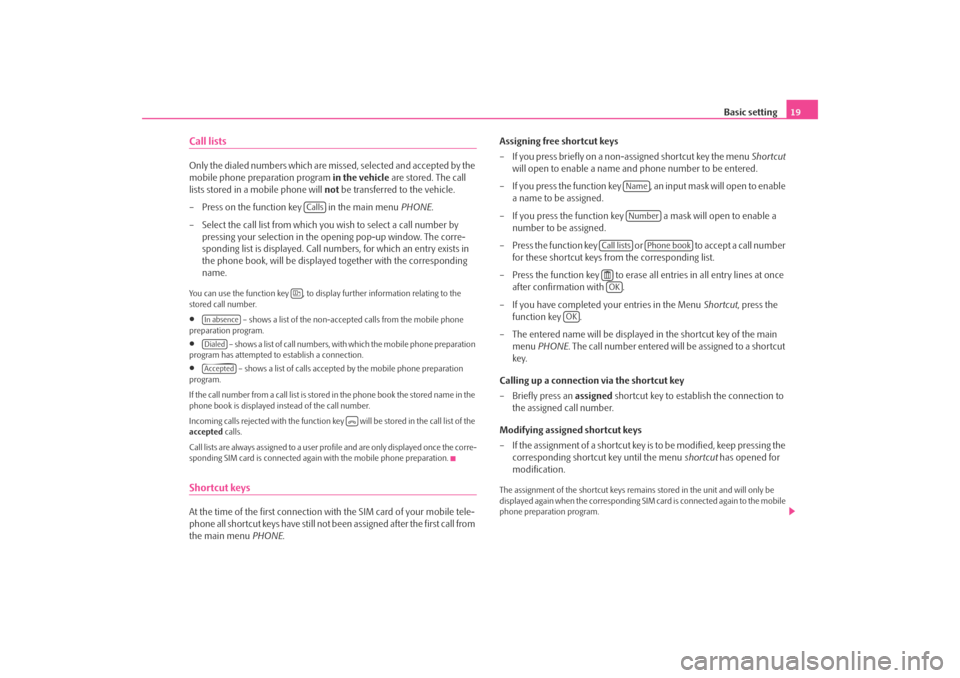

Basic setting19
Call listsOnly the dialed numbers which are missed, selected and accepted by the
mobile phone preparation program in the vehicle are stored. The call
lists stored in a mobile phone will not be transferred to the vehicle.
– Press on the function key in the main menu PHONE.
– Select the call list from which yo u wish to select a call number by
pressing your selection in the opening pop-up window. The corre-
sponding list is displayed. Call num bers, for which an entry exists in
the phone book, will be displayed together with the corresponding
name.You can use the function key , to displa y further information relating to the
stored call number.•
– shows a list of the non-accept ed calls from the mobile phone
preparation program.
•
– shows a list of call numbers, with which the mobile phone preparation
program has attempted to establish a connection.
•
– shows a list of calls accepted by the mobile phone preparation
program.
If the call number from a call list is stored in the phone book the stored name in the
phone book is displayed instead of the call number.
Incoming calls rejected with the function key will be stored in the call list of the
accepted calls.
Cal l li sts a re alwa ys a ss igne d to a us er pr ofile and are only displayed once the corre-
sponding SIM card is connected again with the mobile phone preparation.
Shortcut keysAt the time of the first connection with the SIM card of your mobile tele-
phone all shortcut keys have still not been assigned after the first call from
the main menu PHONE. Assigning free shortcut keys
– If you press briefly on a non-assigned shortcut key the menu
Shortcut
will open to enable a name and phone number to be entered.
– If you press the function key , an input mask will open to enable a name to be assigned.
– If you press the function key a mask will open to enable a number to be assigned.
– P re s s t h e f u n c t i o n ke y o r t o a c c e p t a c a l l n u m b e r
for these shortcut keys from the corresponding list.
– Press the function key to erase all entries in all entry lines at once after confirmation with .
– If you have completed your entries in the Menu Shortcut, press the
function key .
– The entered name will be displayed in the shortcut key of the main menu PHONE . The call number entered will be assigned to a shortcut
key.
Calling up a connection via the shortcut key
– Briefly press an assigned shortcut key to establish the connection to
the assigned call number.
Modifying assigned shortcut keys
– If the assignment of a shortcut key is to be modified, keep pressing the corresponding shortcut key until the menu shortcut has opened for
modification.
The assignment of the shortcut keys remains stored in the unit and will only be
displayed again when the corresponding SIM card is connected again to the mobile
phone preparation program.
Calls
In absenceDialedAccepted
NameNumber
Call lists
Phone book
OK
OK
s3d0.3.book Page 19 Monday, August 11, 2008 12:49 PM
Page 22 of 25
Basic setting
20Shortcut key
The shortcut key has not yet been assigned a call number in the
factory, as this depends upon the corresponding mobile phone company and
country. The name for this shortcut key ha s, however, been specified and cannot be
changed. You should now store your mail box number so that you can quickly check
your voice mail.
Editing field: further input possibilities
– changes from upper case to lower case and vice versa.
– opens the editing field for the entry of digits and special characters. The
button changes to . Press on , to chan ge again to the letter editing field.
– space key for inputting spaces.
or – moves the cursor in the entry line to the left or right. – deletes characters in the entry line from right to left, starting from the position
of the cursor.Phone conversationIf you have started the process of connecting to a call number or
accepted a call, the main menu PHONE will change to the display Phone
conversation .
Incoming phone call
– An incoming phone call will be indicated on the display by “ Incoming
call” followed by the call number of the caller. If the number of the
caller is stored in the phone book, the name of the caller will be
displayed instead of the call number.
– Press the function key to accept the call.
– Press the function key to reject the call. During a phone conversation
– If you press the function key during a phone conversation the
current conversation will be switched to “mute” (Display: “ Call is
held ”). This means that the connection remains intact while the audio
transmission is interrupted.
– If you press the function key , again the conversation can be continued.
– If you press the function key , during a phone conversation, the connection to the current call number will be terminated and the unit
will change to the main menu PHONE.
Carrying out an additional phone conversation
– Press on the function key during a phone conversation to put the
current conversation on “hold” as described above.
– Select a new call number or select a stored call number.
– If you are holding an additional co nversation, you can switch between
both parties (“alternate”).
“Call waiting” and changing be tween two parties (Alternate)
– If you are called while holding a conversation, the number and the name of the caller will appear below the current conversation on the
display (Function: “Call waiting”).
– Press on the function key in the line “ Incoming call” to reject the
second call.
– Press on the function key in the line “ Incoming call” to accept the
second call. The connection to the first party will be interrupted but
not broken (Display: “ Call is held”).
– If you press the function key in the line “ call is held”, the conver-
sation with this party will continue and the other party will be “put on
hold”. In this way you can alternate between two parties.
Voice mailboxVoice mail box
A-Z
A-Z
s3d0.3.book Page 20 Monday, August 11, 2008 12:49 PM
Page 23 of 25

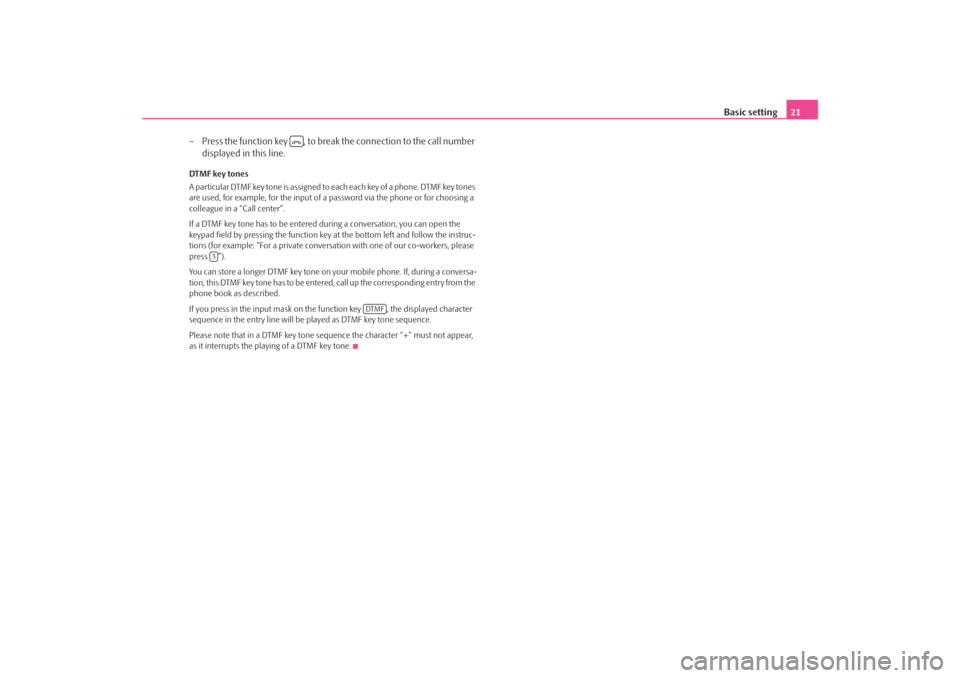

Basic setting21
– Press the function key , to brea k the connection to the call number
displayed in this line.
DTMF key tones
A particular DTMF key tone is assigned to each each key of a phone. DTMF key tones
are used, for example, for the input of a password via the phone or for choosing a
colleague in a “Call center”.
If a DTMF key tone has to be entered during a conversation, you can open the
keypad field by pressing the function key at the bottom left and follow the instruc-
tions (for example: “For a private conversa tion with one of our co-workers, please
press ”).
You can store a longer DTMF key tone on yo ur mobile phone. If, during a conversa-
tion, this DTMF key tone has to be entered, call up the corresponding entry from the
phone book as described.
If you press in the input mask on the function key , the displayed character
sequence in the entry line will be played as DTMF key tone sequence.
Please note that in a DTMF key tone se quence the character “+” must not appear,
as it interrupts the playing of a DTMF key tone.
3
DTMF
s3d0.3.book Page 21 Monday, August 11, 2008 12:49 PM
Page 24 of 25
\b
\f
\f
\f
\f
\f
\f
\f
\f\f
\f
\
\f
\f\
\
\f!
"
#\f
\f\f
\
\f
\f
\
\f\f\
\f
\f
\
\f
\
\f\b
\
\b
$\f
\f\
\f
\f
\f
\
\f
\f
\f
\f
%
& '\b\b()
Bolero.indd 2
Bolero.indd 2 9.9.2008 10:54:57
9.9.2008 10:54:57
© ŠKODA AUTO a.s. 2008
Page 25 of 25
SIMPLY CLEVER
www.skoda-auto.com
Autorádio Bolero
Octavia anglicky 11.08
1Z0 035 156 F
S00.5610.57.20
1Z0 012 095 BMŠkodaOctavia
CAR RADIO BOLERO
Bolero.indd 1
Bolero.indd 19.9.2008 10:54:55
9.9.2008 10:54:55
