Airbag system
180
•Any work on the side airbag system including removing and installing
system components be cause of other repair work (e.g. removing seats) must
only be carried out by a specialist garage.

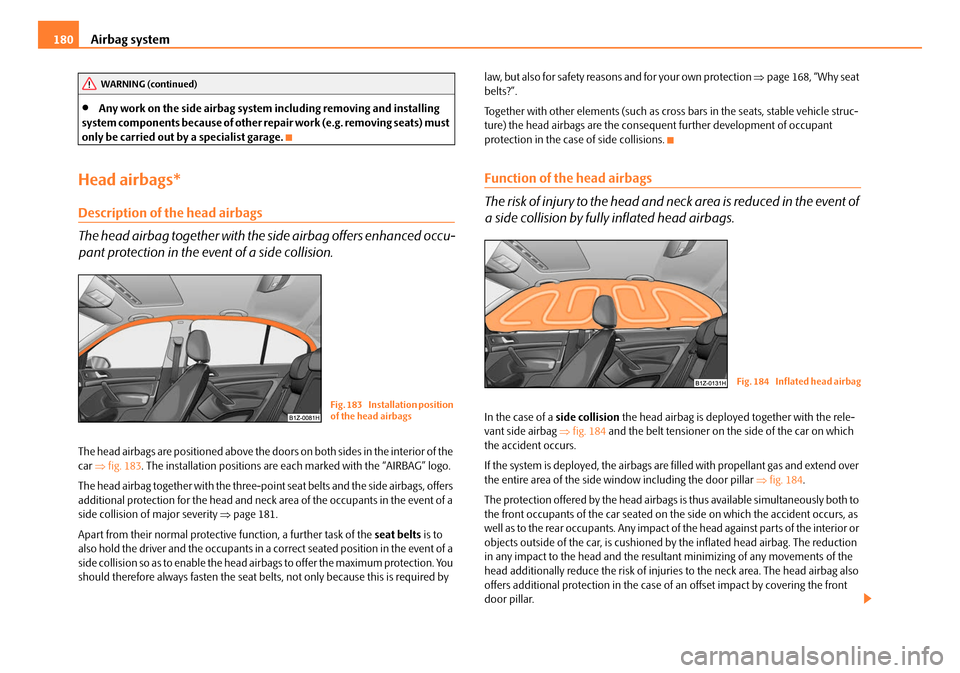

Head airbags*
Description of the head airbags
The head airbag together with the side airbag offers enhanced occu-
pant protection in the event of a side collision.
The head airbags are positioned above the d oors on both sides in the interior of the
car ⇒fig. 183 . The installation positions are each marked with the “AIRBAG” logo.
The head airbag together with the three-point seat belts and the side airbags, offers
additional protection for the head and neck area of the occupants in the event of a
side collision of major severity ⇒page 181.
Apart from their normal protective function, a further task of the seat belts is to
also hold the driver and the occupants in a correct seated position in the event of a
side collision so as to enable the head airbags to offer the maximum protection. You
should therefore always fasten the seat belt s, not only because this is required by law, but also for safety reasons and for your own protection
⇒page 168, “Why seat
belts?”.
Together with other elements (such as cros s bars in the seats, stable vehicle struc-
ture) the head airbags are the conseque nt further development of occupant
protection in the case of side collisions.
Function of the head airbags
The risk of injury to the head and ne ck area is reduced in the event of
a side collision by fully inflated head airbags.
In the case of a side collision the head airbag is deployed together with the rele-
vant side airbag ⇒ fig. 184 and the belt tensioner on th e side of the car on which
the accident occurs.
If the system is deployed, the airbags are filled with propellant gas and extend over
the entire area of the side window including the door pillar ⇒fig. 184 .
The protection offered by the head airbags is thus available simultaneously both to
the front occupants of the car seated on th e side on which the accident occurs, as
well as to the rear occupants. Any impact of the head against par ts of the interior or
objects outside of the car, is cushioned by the inflated head airbag. The reduction
in any impact to the head and the result ant minimizing of any movements of the
head additionally reduce the risk of injuries to the neck area. The head airbag also
offers additional protection in the case of an offset impact by covering the front
door pillar.
WARNING (continued)
Fig. 183 Installation position
of the head airbags
Fig. 184 Inflated head airbag
20A5Facelift.book Page 180 Saturday, September 6, 2008 2:13 PM

Airbag system181
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
In certain accident si
tuations, the front, side and he ad airbag are simultaneously
deployed.
The airbags inflate in fractions of a second and at a high speed in order to be able
to offer that additional protection in th e event of an accident. A grey white, non
harmful gas is released when airbag is inflated. This is perfectly normal and is not
an indication of a fire in the vehicle.
Important safety information on the head airbag
Correct use of the airbag system considerably reduces the risk of
injury!
WARNING
•It is essential to always switch off ⇒page 181, “Deactivating an airbag”
the front passenger airbag when attach ing a child safety seat on the front
passenger seat where the child is seated with its back facing in direction of
travel (in some countries also when the ch ild is facing the direction of travel).
If this is not done, there is a risk of the child suffering severe or even fatal
injuries if the front passenger airbag is deployed. In certain countries
national legal provisions also requir e that the side or head passenger
airbags be deactivated. When transporting a child on the front passenger
seat, please comply with the appropri ate national regulations regarding the
use of child safety seats.
•There must not be any objects in the deployment area of the head
airbags which might prevent the ai rbags from inflating properly.
•Only hang light items of clothing on the clothes hooks to the vehicle.
Never leave any heavy or sharp-edged objects in the pockets of the items of
clothing. In addition, it is not permitted to use clothes hangers for hanging
up items of clothing.
•The airbag control unit operates together with the sensors, which are
attached in the front doors. For this reason no adjustments must be carried
out at the doors as well as at the door panels (for example additional instal-
lation of loudspeakers). Resulting dama ges can have a negative affect on the
operation of the airbag system. All work on the front doors and their panels
must only be carried ou t by a specialist garage.
•There must not be any other persons (e.g. children) or animals between
the car occupant and the deployment ar ea of the head airbag. In addition,
none of the occupants should lean their head out of the window when
driving, or extend their arms and hands out of the window.
•The sun visors must not be swivelled to the side windows into the
deployment area of the head airbags if any objects, such as ball-point pens
etc. are attached to them. This might resu lt in injuries to the occupants if the
head airbag is deployed.
•Installing impermissible accessories in the area of the head airbags may
considerably impair the protection offered by the head airbag in the event of
it being deployed. When the deployed he ad airbag is inflated, parts of the
accessories fitted may in certain circum stances be thrown into the interior
of the car and cause injuries to the occupants ⇒page 243, “Accessories,
changes and replacement of parts”.
•Any work on the head airbag system including installing and removing
system components because of other repair work (e.g. removing headliner)
must only be carried out by a specialist garage.
Deactivating an airbag
Deactivating airbags
If any airbags have been deactivated, switch them on again as soon
as possible so that they are able to again provide their proper protec-
tion.
There is the technical means installed within your vehicle to switch off the front,
side* or head airbag* (take out of commission).
This is why you should have the deacti vation of the airbags carried out by a
specialist garage.
On vehicles equipped with the switch for de activation of the airbags, you can deac-
tivate the front and side passenger airbag by means of this switch ⇒page 182.
WARNING (continued)
20A5Facelift.book Page 181 Saturday, September 6, 2008 2:13 PM

Airbag system
182
Deactivation of airbags is envisaged only for particular instances, such as if:
•you must in exceptional cases use a child seat on the front passenger seat
where the child has its back to the directio n of travel of the vehicle (in some coun-
tries this must be in the direction of trav el due to other legal regulations applying)
⇒ page 184, “Important safety information regarding the use of child safety seats”
•you are not able to maintain the distance of at least 25 cm between middle of
steering wheel and chest, despite the driver seat being correctly adjusted,
•special attachments are required in the area of the steering wheel because of a
physical disability,
•you have installed other seats (e.g. orthopaedic seats without side airbags).
Monitoring the airbag system
The functionality of the airbag system is also monitored electronically, when one
airbag has been switched off
If the airbag was switched off using diagnostic equipment:
•The warning light for the airbag system lights up for 4 seconds after switching
on the ignition and then flashes for 12 seconds afterwards in 2 second intervals.
Front passenger airbags sw itched off using the switch for front passenger
airbags* in stowage compartmen t on the front passenger side:
•The airbag warning light comes on in the instrument cluster for about 4 seconds
each time the igniti on is switched on.
•Switching off airbags is indicated in the middle of the dash panel by the lighting
up of the indicator light   ⇒ fig. 186 .
Note
Your Škoda Service Partner will be able to advise you whether national legislation in
your country allows airbags in your vehicle to be deactivated, and which ones.
Switch for the front passenger airbag*
The front passenger airbag is deactivated with the switch.
Deactivating an airbag
– Switch off the ignition.
– Turn the slot of the airbag switch using the key in the position ( OFF)
⇒ fig. 185 .
– Check whether the airbag indicator light
  in the middle of
the dash panel lights up ⇒fig. 186 when the ignition is turned on.
Fig. 185 Storage compart-
ment: Switch for the front
passenger airbag
Fig. 186 Indicator light for
the front passenger airbag
A2
20A5Facelift.book Page 182 Saturday, September 6, 2008 2:13 PM

Airbag system183
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Switching on an airbag
– Switch off the ignition.
– Turn the slot of the airbag switch using the key in the position ( ON)
⇒ page 182, fig. 185 .
– Check whether the airbag indicator light
  in the middle of
the dash panel lights up ⇒page 182, fig. 186 when the ignition is
turned on.
The airbags should only be switched off under exceptional circumstances
⇒ page 181.
Indicator light
  (airbag switched off)
The airbag indicator light is located in the middle of the dash panel ⇒page 182,
fig. 186 .
If the front passenger airbag is switched off, the airbag warning light comes on
about 4 seconds after the ig nition is switched on.
There is a system fault present in the airbag switch off ⇒ if the indicator light
flashes. Please have the car inspected i mmediately by a specialist garage.
WARNING
•The driver is responsible for whether the airbag is switched on or
switched off.
•Only switch off the airbag when the ig nition is switched off! Otherwise a
fault can occur in the system for the airbag deactivation.
•If the warning light   (airbag switched off) flashes:
− Front passenger airbag is not deploy ed in the event of an accident!
− It is also important to have the system inspected without delay by a
specialist garage.
A1
20A5Facelift.book Page 183 Saturday, September 6, 2008 2:13 PM

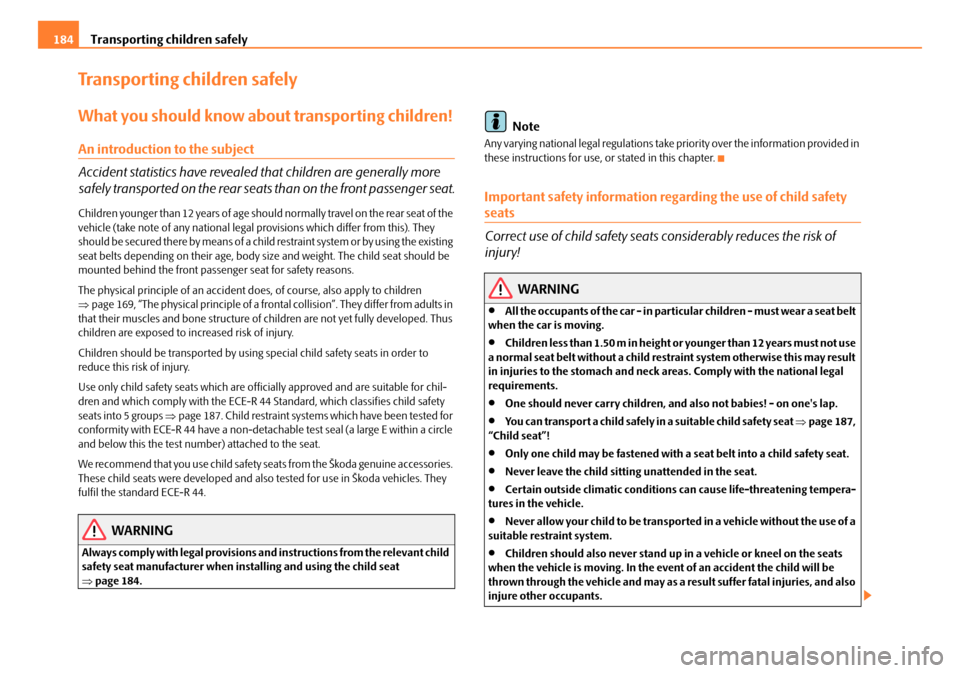

Transporting children safely
184
Transporting children safely
What you should know about transporting children!
An introduction to the subject
Accident statistics have revealed that children are generally more
safely transported on the rear seat s than on the front passenger seat.
Children younger than 12 years of age should normally travel on the rear seat of the
vehicle (take note of any national legal pr ovisions which differ from this). They
should be secured there by means of a child restraint system or by using the existing
seat belts depending on their age, body si ze and weight. The child seat should be
mounted behind the front passen ger seat for safety reasons.
The physical principle of an accident does, of course, also apply to children
⇒ page 169, “The physical principle of a frontal collision”. They differ from adults in
that their muscles and bone structure of ch ildren are not yet fully developed. Thus
children are exposed to increased risk of injury.
Children should be transported by using special child safety seats in order to
reduce this risk of injury.
Use only child safety seats which are offici ally approved and are suitable for chil-
dren and which comply with the ECE-R 44 Standard, which classifies child safety
seats into 5 groups ⇒page 187. Child restraint systems which have been tested for
conformity with ECE-R 44 have a non-detachable test seal (a large E within a circle
and below this the test number) attached to the seat.
We recommend that you use child safety seats from the Škoda genuine accessories.
These child seats were developed and also tested for use in Škoda vehicles. They
fulfil the standard ECE-R 44.
WARNING
Always comply with legal provisions and instructions from the relevant child
safety seat manufacturer when in stalling and using the child seat
⇒ page 184.
Note
Any varying national legal regulations take priority over the information provided in
these instructions for use, or stated in this chapter.
Important safety information regarding the use of child safety
seats
Correct use of child safety seats considerably reduces the risk of
injury!
WARNING
•All the occupants of the car - in particul ar children - must wear a seat belt
when the car is moving.
•Children less than 1.50 m in height or younger than 12 years must not use
a normal seat belt without a child restraint system otherwise this may result
in injuries to the stomach and neck areas. Comply with the national legal
requirements.
•One should never carry children, an d also not babies! - on one's lap.
•You can transport a child safely in a suitable child safety seat ⇒page 187,
“Child seat”!
•Only one child may be fastened with a seat belt into a child safety seat.
•Never leave the child sitting unattended in the seat.
•Certain outside climatic conditions can cause life-threatening tempera-
tures in the vehicle.
•Never allow your child to be transported in a vehicle without the use of a
suitable restraint system.
•Children should also never stand up in a vehicle or kneel on the seats
when the vehicle is moving. In the even t of an accident the child will be
thrown through the vehicle and may as a result suffer fatal injuries, and also
injure other occupants.
20A5Facelift.book Page 184 Saturday, September 6, 2008 2:13 PM

Transporting children safely185
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
•Children are exposed to an increased risk of injury in the event of an acci-
dent if they lean forward or adopt an incorrect seated position when the
vehicle is moving. This particularly applies to children who are transported
on the front passenger seat if the airbag system deploys in the event of an
accident. This can result in severe or even fatal injuries.
•It is important that the belt webbing is properly routed if the seat belts
are to offer their maximum protection ⇒page 170, “How are seat belts
correctly fastened?”. Pay particular attention to the information provided by
the manufacturer of the child safety seat regarding correct routing of the
belt. Seat belts which are not correctl y adjusted can themselves cause inju-
ries even in minor accidents.
•Safety belts must be checked to ensure that they are running properly.
One should also ensure th at the belt is not damaged by sharp-edged fittings.
•It is essential to always switch off ⇒page 182 the front passenger airbag
when attaching a child safety seat on the front passenger seat where the
child is seated with its back facing in direction of travel (in some countries
also when the child is facing the direction of travel). If this is not done, there
is a risk of the child suffering severe or even fatal injuries if the front
passenger airbag is deployed. In certai n countries national legal provisions
also require that the side and head airbags be deactivated. When trans-
porting a child on the front passenger seat, please comply with the appro-
priate national regulations regarding the use of child safety seats.
Use of child safety seats on the front passenger seat
Child safety seats should always be attached to the rear seats.
We recommend, for safety reasons, that you always mount a child restraint systems
on the rear seats whenever possible. If you still decide, however, to use a child
safety seat on the front passenger seat then you must pay attention to the following
warnings in connection with the use of th e airbag system on the front passenger
seat.
WARNING
•Warning - particular hazard! Never use a child safety seat on the front
passenger seat in which the child is seated with its back facing the direction
of travel. This child safety seat is positioned in the deployment area of the
front passenger airbag. The airbag may cause the child severe, or even fatal
injuries, in the event of it being deployed.
•This is also clearly stated on the sticker which is located on the centre
column of the body on the front passenger side ⇒fig. 187 . The sticker is
visible upon opening the front passenger door. For so me countries, the
sticker is also affixed to the sun visor of the front passenger.
•It is essential to always switch off ⇒page 181, “Deactivating an airbag”
the front passenger airbag when attaching a child safety seat on the front
passenger seat where the child is seated with its back facing in direction of
travel (in some countries al so when the child is facing the direction of travel).
WARNING (continued)
Fig. 187 Sticker on the centre
column of the body on the
front passenger side.
20A5Facelift.book Page 185 Saturday, September 6, 2008 2:13 PM

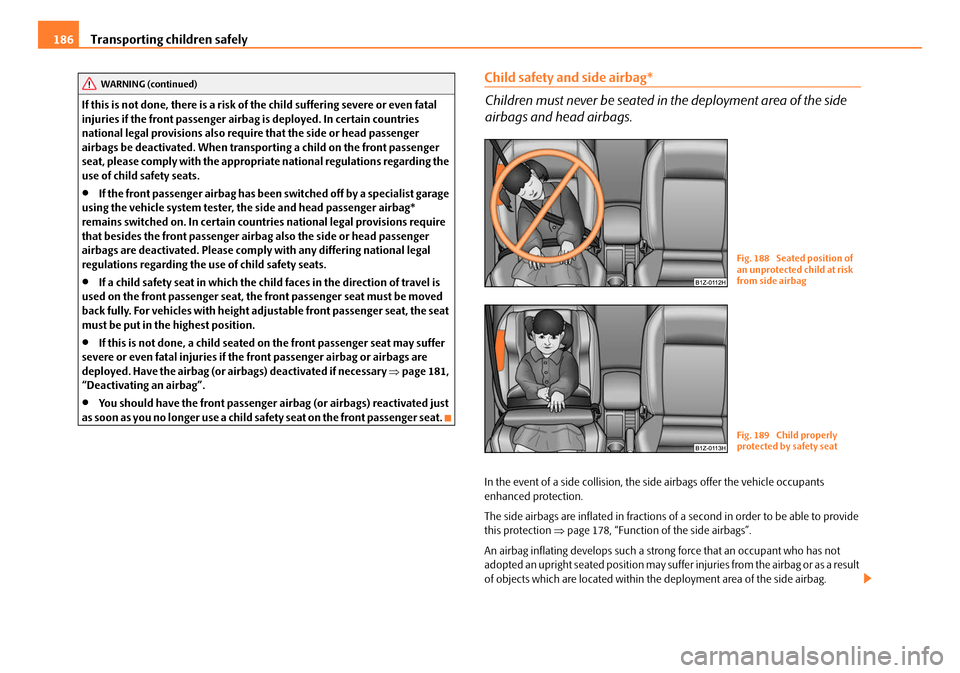

Transporting children safely
186
If this is not done, there is a risk of the child suffering severe or even fatal
injuries if the front passenger airbag is deployed. In certain countries
national legal provisions also requir e that the side or head passenger
airbags be deactivated. When transporting a child on the front passenger
seat, please comply with the appropri ate national regulations regarding the
use of child safety seats.
•If the front passenger airbag has been switched off by a specialist garage
using the vehicle system tester, the side and head passenger airbag*
remains switched on. In certain countries national legal provisions require
that besides the front passenger airbag also the side or head passenger
airbags are deactivated. Please comply with any differing national legal
regulations regarding the use of child safety seats.
•If a child safety seat in which the child faces in the direction of travel is
used on the front passenger seat, the front passenger seat must be moved
back fully. For vehicles with height adjustable front passenger seat, the seat
must be put in the highest position.
•If this is not done, a child seated on the front passenger seat may suffer
severe or even fatal injuries if the front passenger airbag or airbags are
deployed. Have the airbag (or ai rbags) deactivated if necessary ⇒page 181,
“Deactivating an airbag”.
•You should have the front passenger airbag (or airbags) reactivated just
as soon as you no longer use a child sa fety seat on the front passenger seat.
Child safety and side airbag*
Children must never be seated in the deployment area of the side
airbags and head airbags.
In the event of a side collision, the si de airbags offer the vehicle occupants
enhanced protection.
The side airbags are inflated in fractions of a second in order to be able to provide
this protection ⇒page 178, “Function of the side airbags”.
An airbag inflating develops such a strong force that an occupant who has not
adopted an upright seated position may suffer injuries from the airbag or as a result
of objects which are located within the deployment area of the side airbag.
WARNING (continued)
Fig. 188 Seated position of
an unprotected child at risk
from side airbag
Fig. 189 Child properly
protected by safety seat
20A5Facelift.book Page 186 Saturday, September 6, 2008 2:13 PM

Transporting children safely187
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
This applies particularly to children if they are not transported in accordance
with legal requirements.
The child is protected when seated in a child safety seat matching its age. Adequate
room is available between the child and the
deployment area of the side airbag and
head airbag. The airbag offers optimal protection.
WARNING
•It is essential to always switch off ⇒page 181 the front passenger airbag
when attaching a child safety seat on the front passenger seat where the
child is seated with its back facing in direction of travel (in some countries
also when the child is facing the direction of travel). If this is not done, there
is a risk of the child suffering severe or even fatal injuries if the front
passenger airbag is deployed. In certai n countries national legal provisions
also require that the side and head airbags be deactivated. When trans-
porting a child on the front passenger seat, please comply with the appro-
priate national regulations regarding the use of child safety seats.
•When transporting a child on the front passenger seat, please comply
with the appropriate national regulations regarding the use of child safety
seats.
•Children must never be seated with th eir head in the deployment area of
the side airbag - risk of injury!
•Do not place any objects within the deployment area of the side airbag -
risk of injury!
Child seat
Classification of ch ild seats into groups
Only child safety seats which have an official approval and are suit-
able for the child, may be used.
ECE-R 44 standard applies to child safety seats. ECE-R means: Economic Commis-
sion of Europe - Regulation. Child safety seats which have been tested for conformity with ECE-R 44 have a non-
detachable test seal (a large E within
a circle and below this the test number)
attached to the seat.
Child safety seats are classified in 5 groups:
Children of more than 150 cm in height may use the seat belts fitted to the vehicle
without a seat bolster.
Use of child safety seats
An overview of the usefulness of child seats on each of the seats according to the
EG guidelines 77/541 and ECE 44 standard:
Universal category - seat is suitable for all approved types of child safety seats.
The seat can be fitted with fixing eyes for the “ ISOFIX*”system.
The divided rear seat - seat can be fi tted with fixing eyes for the system “To p
Te t h e r *” ⇒ page 191.
GroupWeight
00 - 10 kg⇒ page 188
0+up to 13 kg⇒page 188
19 - 18 kg⇒page 188
215 - 25 kg⇒page 189
322 - 36 kg⇒page 189
Child seat
groupsFront passenger seatRear seat outsideRear seat middle
0
0+
1
2 and 3
AUA+AUA+ATAU
AUA+AUA+ATAU
AUA+AUA+ATAU
AUAUAU
AU
A+
AT
20A5Facelift.book Page 187 Saturday, September 6, 2008 2:13 PM

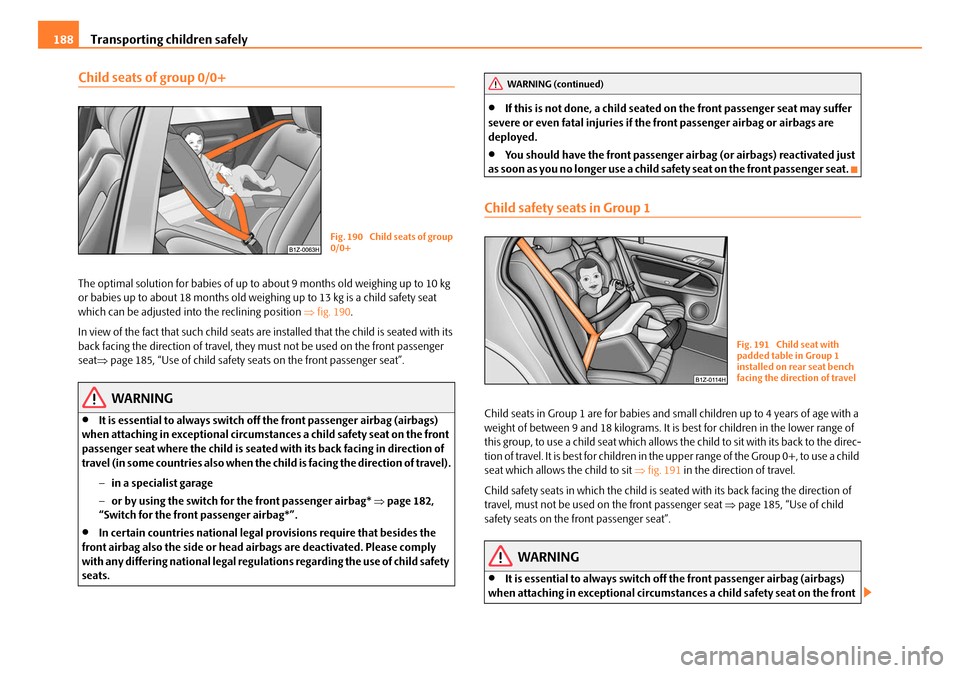

Transporting children safely
188
Child seats of group 0/0+
The optimal solution for babi es of up to about 9 months old weighing up to 10 kg
or babies up to about 18 months old weighi ng up to 13 kg is a child safety seat
which can be adjusted into the reclining position ⇒fig. 190 .
In view of the fact that such child seats are installed that the child is seated with its
back facing the direction of travel, they must not be used on the front passenger
seat ⇒page 185, “Use of child safety seats on the front passenger seat”.
WARNING
•It is essential to always switch off the front passenger airbag (airbags)
when attaching in exceptional circumstances a child safety seat on the front
passenger seat where the child is seated with its back facing in direction of
travel (in some countries also when the child is facing the direction of travel).
− in a specialist garage
− or by using the switch for the front passenger airbag* ⇒page 182,
“Switch for the front passenger airbag*”.
•In certain countries national legal provisions require that besides the
front airbag also the side or head ai rbags are deactivated. Please comply
with any differing national legal regula tions regarding the use of child safety
seats.
•If this is not done, a child seated on the front passenger seat may suffer
severe or even fatal injuries if the front passenger airbag or airbags are
deployed.
•You should have the front passenger airbag (or airbags) reactivated just
as soon as you no longer use a child sa fety seat on the front passenger seat.
Child safety seats in Group 1
Child seats in Group 1 are for babies and small children up to 4 years of age with a
weight of between 9 and 18 kilograms. It is best for children in the lower range of
this group, to use a child seat which allows the child to sit with its back to the direc-
tion of travel. It is best for children in the upper range of the Group 0+, to use a child
seat which allows the child to sit ⇒fig. 191 in the direction of travel.
Child safety seats in which the child is seated with its back facing the direction of
travel, must not be used on the front passenger seat ⇒page 185, “Use of child
safety seats on the front passenger seat”.
WARNING
•It is essential to always switch off the front passenger airbag (airbags)
when attaching in exceptional circumstan ces a child safety seat on the front
Fig. 190 Child seats of group
0/0+
WARNING (continued)
Fig. 191 Child seat with
padded table in Group 1
installed on rear seat bench
facing the direction of travel
20A5Facelift.book Page 188 Saturday, September 6, 2008 2:13 PM

Transporting children safely189
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
passenger seat where the child is seated
with its back facing in direction of
travel (in some countries also when the child is facing the direction of travel).
−in a specialist garage
− or by using the switch for the front passenger airbag* ⇒page 182,
“Switch for the front passenger airbag*”.
•In certain countries national legal provisions require that besides the
front airbag also the side or head ai rbags are deactivated. Please comply
with any differing national legal regula tions regarding the use of child safety
seats.
•If this is not done, a child seated on the front passenger seat may suffer
severe or even fatal injuries if the front passenger airbag or airbags are
deployed.
•You should have the front passenger airbag (or airbags) reactivated just
as soon as you no longer use a child sa fety seat on the front passenger seat.
Child safety seats in Group 2
For children up to about 7 years of age weighing between 15 and 25 kg the optimal
solution is a child safety seat in comb ination with the three-point seat belt
⇒ fig. 192 .
WARNING
•When transporting a child on the fr ont passenger seat, please comply
with the appropriate national regulati ons regarding the use of child safety
seats. If required, the airb ag has to be deactivated,
− in a specialist garage
− or by using the switch for the front passenger airbag* ⇒page 182,
“Switch for the front passenger airbag*”.
•The shoulder part of the seat belt must run approximately across the
middle of the shoulder and fit snugly agai nst the chest. It must on no account
run across the neck. The lap part of the seat belt must run across the pelvis
and fits snugly; it must not run over the belly. Tighten the belt webbing over
your hip if necessary.
•Please comply with any differing nati onal legal regulations regarding the
use of child safety seats.
Child safety seats in Group 3
For children of about 7 years of age weighing between 22 and 36 kg and of a height
of less than 150 cm, the optimal solution is a child safety seat (seat bolster) in
combination with the three-point seat belt ⇒fig. 193 .
WARNING (continued)
Fig. 192 Child seat in Group
2 installed on the rear seat
facing the direction of travelFig. 193 Child seat in Group
3 installed on the rear seat
facing the direction of travel
20A5Facelift.book Page 189 Saturday, September 6, 2008 2:13 PM
