Communication
150
After giving this command, the last numbe r selected via voice input is selected
again.
Example of redial
You can interrupt the dialogue at any time by pressing the PTT button or with the
voice command CANCEL.
Phone voice phonebook*
Store name
– Press the PTT button.
– Give the command SAVE/STORE NAMES/NAME/NUMBER after the
signal tone.
After giving this command, the system re quests the entry of a name and a tele-
phone number which should be stored in the phone voice phonebook. In the
phone voice phonebook up to 50 entries can be stored.
The telephone number can be entered as an interconnected spoken row of digits
(complete number), in the form of order of digits (separation through a brief voice
pause) or through individually spoken digits. After each order of digits (separation
through brief voice pause) the detected digits are repeated.
The digits zero to nine are permitted. The system detects no continuous digit
combinations such as twenty-three, but only individually spoken digits (two, three).
If you enter more than 20 di gits, the system announces: “ The number is too long”.
Additionally a Plus (+) has to be entered in front of the 20 digits.
The stored entry is shown on the information display* with an asterisk in front of
the name.
For similar names additional information (e.g. first names) should be stored. Example for storing in th
e phone voice phonebook
You can interrupt the dialogue at any time by pressing the PTT button or with the
voice command CANCEL.Select name
– Press the PTT button.
– Give the command DIAL/SELECT NAMES/NAME after the signal
tone.
After giving this command, there is the possibility to select a stored entry out of the
phone voice phonebook.
Voice commandAnnouncement
REDIAL“ The number is being dialed ”.
Voice commandAnnouncement
SAVE/STORE
NAMES/NAME/NUMBER“The name please ”.
COMPANY XYZ“Please repeat the name ”.
COMPANY XYZ“The number please ”.
ZERO ONE TWO THREE“Zero One Two Three ”.
FOUR FIVE SIX“Four Five Six ”.
If no entry is put in, the following anno uncement is made after about 5 seconds.
“Possible commands are: store, repeat, correct,
delete or more digits ”.
STORE“The name COMPANY XYZ is stored ”.
20A5Facelift.book Page 150 Saturday, September 6, 2008 2:13 PM
Page 152 of 304
Communication151
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data

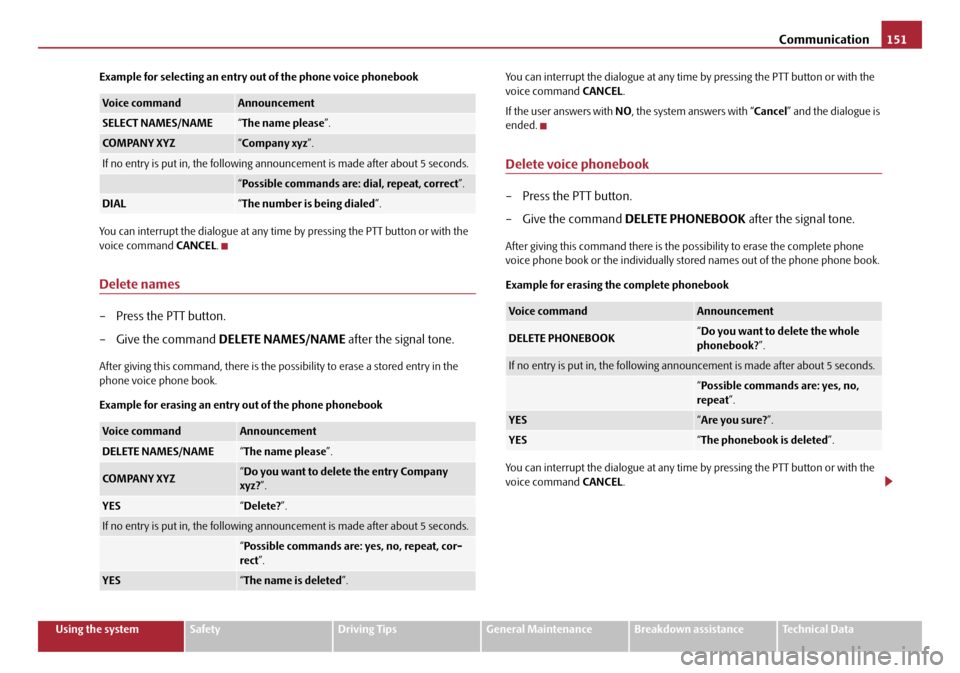

Example for selecting an entry out of the phone voice phonebook
You can interrupt the dialogue at any time
by pressing the PTT button or with the
voice command CANCEL.
Delete names
– Press the PTT button.
– Give the command DELETE NAMES/NAME after the signal tone.
After giving this command, there is the possibility to erase a stored entry in the
phone voice phone book.
Example for erasing an entry out of the phone phonebook You can interrupt the dialogue at any time
by pressing the PTT button or with the
voice command CANCEL.
If the user answers with NO, the system answers with “ Cancel” and the dialogue is
ended.
Delete voice phonebook
– Press the PTT button.
– Give the command DELETE PHONEBOOK after the signal tone.
After giving this command there is the possibility to erase the complete phone
voice phone book or the individually st ored names out of the phone phone book.
Example for erasing the complete phonebook
You can interrupt the dialogue at any time by pressing the PTT button or with the
voice command CANCEL.
Voice commandAnnouncement
SELECT NAMES/NAME“The name please ”.
CO M PA N Y X Y Z“Company xyz ”.
If no entry is put in, the following anno uncement is made after about 5 seconds.
“Possible commands are: dial, repeat, correct”.
DIAL“The number is being dialed ”.
Voice commandAnnouncement
DELETE NAMES/NAME“The name please ”.
CO M PA N Y X Y Z“Do you want to delete the entry Company
xyz?”.
YES“ Delete? ”.
If no entry is put in, the following anno uncement is made after about 5 seconds.
“Possible commands are: yes, no, repeat, cor-
rect ”.
YES“The name is deleted ”.
Voice commandAnnouncement
DELETE PHONEBOOK“Do you want to delete the whole
phonebook? ”.
If no entry is put in, the following anno uncement is made after about 5 seconds.
“Possible commands are: yes, no,
repeat ”.
YES“Are you sure? ”.
YES“The phonebook is deleted ”.
20A5Facelift.book Page 151 Saturday, September 6, 2008 2:13 PM
Page 153 of 304
Communication
152
Example for erasing individual names out of the phone phonebook
As long as the phonebook is read out, ot her entries can be erased by pressing the
PTT button.
You can end the dialogue at an y time with the voice command CANCEL.
Listening-in to the phonebook
– Press the PTT button.
– Give the command LISTEN TO/PLAY PHONEBOOK after the signal
tone.
After giving this command th e phone voice phone book is read out by the system.
By pressing the PTT button when announcin g the desired name, the corresponding
telephone number is being dialed; the system answers: “ The number is being
dialed ”.
Universal telephone preinstallation GSM III*
Introduction
This enables you to make full use of the advantages of a normal carphone (“hands-
free system” using a microphone integrated in the vehicle, optimal transmission of
signals using an external aerial etc.). The equipment includes also the voice control.
The telephone is connected using the rSAP profile - Remote SIM access profile
(telecommunication of the SIM data) by means of Bluetooth
® technology, if your
telephone supports this profile. The equi pment includes the following functions:
•Display of the SMS text in the information display.
•Free talking in the vehicle interior.
•MUTE signal to the radio.
•Voice control (with the set-up possibility for “short and long dialogue”,
depending on the user's knowledge of the operating structure).
•Convenience mode with the multifunction steering wheel and the display in the
information display.
•Handsfree-system.

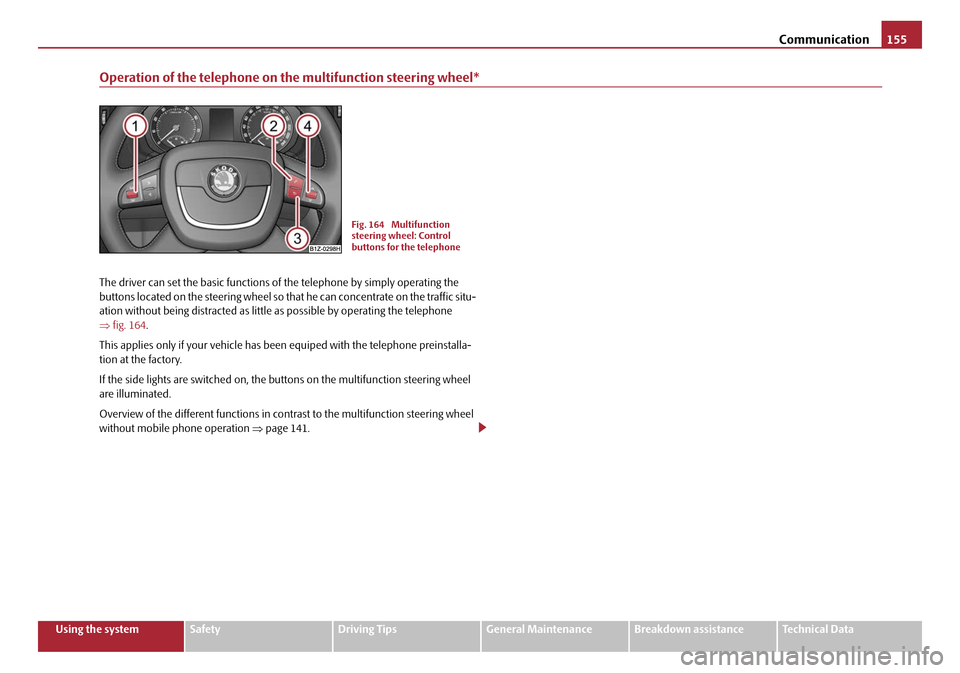

The voice control of the telephone is activated by pressing the button PTT on the
multifunction steering wheel ⇒page 155, fig. 164 .
A phone phonebook is part of the univers al telephone preinstallation GSM III with
voice control. In the phone phonebook there are 1000 free memory locations avail-
able. This phone phonebook is independen t of the appliance used for the mobile
phone.
Furthermore the volume can be changed individually at any time with the button
for setting the radio* or on vehicles fitte d with multifunction steering wheel* with
function buttons on the steering wheel.
Dialogue
The period, in which the telephone system is ready to receive voice commands and
carry out the voice commands, is called DIALOGUE. The system gives audible feed-
back and guides you if necessary through the relevant functions. You can start or
end the dialogue at any time by pressing the PTT button.
Voice commandAnnouncement
DELETE PHONEBOOK“ Do you want to delete the whole
phonebook? ”
If no entry is put in, the following a nnouncement is made after about 5 seconds.
“Possible commands are: yes, no,
repeat ”.
NOThe phonebook is read out.
When announcing the entry to be
erased, press the PTT button.“Do you want to delete (name)? ”
If no entry is put in, the following a nnouncement is made after about 5 seconds.
“Possible commands are: yes, no ”.
YES“The name is deleted ”.
Continue reading out the phone book.
20A5Facelift.book Page 152 Saturday, September 6, 2008 2:13 PM
Page 154 of 304
Communication153
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
The dialogue is always automatically ended after carrying out an operation, e.g.
after erasing the name from the phonebook.
The dialogue of the incoming call is i
mmediately interrupted and you can accept
the call by pressing the button
.
If a voice command is not detected, the system answers with “ Sorry?” and a new
entry can be performed. After the 2nd error the system repeats the aid. After the 3rd
error the answer “ Cancel” is given and the dialogue is ended.
Optimum understanding of the voice commands depends on the following
factors:
•Speak with a normal tone of voice wi thout intonation and excessive voice
pauses.
•Avoid insufficient articulation.
•Close the doors, windows and sliding roof, in order to reduce or stop disturbing
exterior noise.
•It is recommended to speak louder at hi gher speeds, so that the tone of your
voice is louder than the increased surrounding noise.
•During the dialogue avoid additional nois e in the vehicle, e.g. simultaneously
talking occupants.
•Do not speak, if the system makes an announcement.
•The microphone for voice control is in serted in the moulded headliner and
directed to the driver and front passenger. Therefore the driver and the front
passenger can operate the equipment.
WARNING
Pay attention primarily to the traffic situation! As the driver you are fully
responsible for road safety. Use the telephone system only to such an extent,
so that you are in full control of your vehicle at any time.
Note
•Please contact your Škoda Service Partner if there are any points which are not
clear.
•Please also refer to the additional instructions ⇒page 160.
Bluetooth®
The equipment enables the wireless connection to the control unit of a
telephone with Bluetooth® function which supports the rSAP profile.
Process of connection
– Switch on the ignition.
– If you have not switched on Bluetooth
® on your telephone, switch it
on.
– For certain mobile phones it is necessary to switch on first the rSAP
function.
–Press the button
on the multifunction st eering wheel and select
device search . The system searches mobile devices and shows these
in the information display*.
– Select your telephone in the information display by turning the hand- wheel and select it by pressing the handwheel.
– Within 30 seconds enter in your telephone the 16 digit PIN of your
control unit, which is indicated in your information display* and
confirm it according to the instructions on the display of your tele-
phone.
– If your SIM card is blocked by a PIN code, enter the PIN of the SIM card of your telephone. The telephone connects to the control unit (during
the first connection you can only se lect in the information display*
and when the vehicle is stationary, if the PIN should be stored).
– For the first storage of a new user follow the instructions in the infor- mation display.
– To download the telephone book and the indentification data of the SIM card into the new control unit, confirm again the command rSAP
in your mobile phone. The sy stem reads the telephone book.
20A5Facelift.book Page 153 Saturday, September 6, 2008 2:13 PM
Page 155 of 304
Communication
154
If you do not want to confirm the command rSAP during each connection of the
telephone to the control unit, then you mu st carry out in the menu of the mobile
phone an authorization using the control unit.
The telephone deregisters from the GSM network and only the control unit ensures
the communication with the network. In the telephone only the interface for Blue-
tooth
® remains active. In this case, you can only select to separate from the device,
switch off the Bluetooth® connection or the number of the emergency call 112.
If the PIN was stored, an automatic selection and connection of the telephone take
place the next time the ignition is swit ched. Check on your mobile phone if the
automatic connection was established.
Connection terminated
The connection of the handsfree-system is terminated by means of Bluetooth
®:
•When removing the key from the ignition lock (during a telephone call, the
connection is disconnected).
•By switching off the Bluetooth® in the mobile phone.
•By selecting “separate telephone” in the menu of the mobile phone.
On vehicles which are fitted out with radio or navigation at the factory, it is possible
to terminate the telephone call after remo ving the key from the ignition lock by
pressing the icon on the touch-screen of the radio
18) or the navigation, see oper-
ating instructions for radio or for navigation.
WARNING
•Pay attention primarily to the traffic situation! As the driver you are fully
responsible for road safety. Use the tele phone system only to such an extent,
so that you are in full control of your vehicle at any time - risk of accident!
•In the event of air transport, the Bluetooth® function of the handsfree-
system must be switched off by a specialist garage!
Note
•In the memory of the control unit, up to three users can be stored, whereby the
handsfree-system can only communicate actively with one user. In the case of
mutual connection with a fourth mobile phone, you must erase one user.
•Not valid for all mobile phones which enable a communication via Bluetooth®.
You can ask at a Škoda Service Partner if your telephone is compatible with the
universal telephone preinstallation GSM II.
•If the telephone book of the mobile ph one contains more than 1 000 entries,
the system announces a failure while loading the telephone book .
•When connecting to the control unit, follow the instructions on your mobile
phone.
•Note that the range of the Bluetooth® connection to the handsfree-system is
optimized in the vehicle interior. The rang e is dependent on local factors, e.g.
obstacles between the devices and interferences with other devices.
18)Does not apply for Radio Swing.
20A5Facelift.book Page 154 Saturday, September 6, 2008 2:13 PM
Page 156 of 304
Communication155
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Operation of the telephone on the multifunction steering wheel*
The driver can set the basic functions of the telephone by simply operating the
buttons located on the steering wheel so that he can concentrate on the traffic situ-
ation without being distracted as little as possible by operating the telephone
⇒ fig. 164 .
This applies only if your vehicle has b een equiped with the telephone preinstalla-
tion at the factory.
If the side lights are switched on, the buttons on the multifunction steering wheel
are illuminated.
Overview of the different functions in cont rast to the multifunction steering wheel
without mobile phone operation ⇒page 141.
Fig. 164 Multifunction
steering wheel: Control
buttons for the telephone
20A5Facelift.book Page 155 Saturday, September 6, 2008 2:13 PM
Page 157 of 304
Communication
156
The buttons operate the functions for the operating mode of the current
telephone.
ButtonActionOperation
press brieflyActivation and deactivation of the voice control°
(Button PTT - Push to talk)
press button for a long
period of time
turn upwardsIncrease volume
turn downwardsDecrease volume
press brieflyAccept call, terminate call, entry in the main menu of the telephone, list of selected numbers
press button for a long
timeReject call, list of the last calls, entry in the main menu of the telephone, list of selected numbers
press brieflyReach one level higher in the menu (accordi ng to the current position in the menu)
press button for a long
timeReturn in the main menu of the information display
press briefly
Confirm menu selection press button for a long period of time
turn upwardsThe last chosen menu selection, name
turn downwardsThe next menu selection, name
quickly turn upwardsTo the previous initial letter in the telephone book
quickly turn downwardsTo the next initial letter in the telephone book
A1
A1
A1
A1
A2
A2
A3
A3
A4
A4
A4
A4
A4
A4
20A5Facelift.book Page 156 Saturday, September 6, 2008 2:13 PM
Page 158 of 304
Communication157
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Operate telephone in the information display*
If you select the menu point Te l e p h o n e on the information display with the aid of
the handwheel , you can change to the following menus:
„Phone book
„Dial number
„Call register
„Voice mailbox
„Messages
„Bluetooth
„Settings
„Back
Phone book
In the menu point Phone book is the list of the loaded contacts from the telephone
memory and the SIM card of the mobile phone. In the phone phonebook there are
1000 free memory locations available.
Dial number
In the menu point Dial number, you can write any telephone number. Select in
sequence the desired digits with the ai d of the handwheel and confirm it by
pressing the handwheel. Yo u can select the numbers 0 - 9, the symbols *, # and the
functions Delete, Call, Cancel . Call register
In the menu point
Call register, you can select the following menu points:
„Missed calls
„Received calls
„Last calls
„Delete lists
Voice mailbox
In the menu point Voice mailbox there is a list of messages from the missed calls.
Messages
In the menu point Messages there is a list of received text messages.
Bluetooth
In the menu Bluetooth you can select the following menu points:
„User - the overview of the stored users
„New user - Search for users who are in the reception range
„Visibility - Switching on the visibility of the telephone unit for other devices
„Extras
„Headset
„Modem
„Phone name - the possibility to change the name of the telephone unit (pre-
set SKODA-rSAP)
Settings
In the menu Settings you can select the following menu points:
„Phone book
„Update
„Select memory
„SIM & phone (SIM & Mobile phone)
„SIM card
„Mobile phone
Fig. 165 Information
display: Menu telephone
A4
20A5Facelift.book Page 157 Saturday, September 6, 2008 2:13 PM
Page 159 of 304
Communication
158
„List
„Surname
„First name
„Own no. send - the possibility to suppress one's own number on the unit called
„Signal settings
„Ring tone
„Volume
„Phone settings
„Select operator
„Automatic
„Manual
„Off time
„+ 5 Minutes
„- 5 Minutes
„GPRS - Setting of the access point of the user
„Switch off ph. - switching off the telephone unit (telephone remains
connected)
Back
Return in the main menu of the information display.
Voice commands
Voice commands for operating the telephone control unit Other possible commands
Phone voice phonebook*
Store name
– Press the button .
Voice commandActivity
HELPAfter this command the system repeats all possible
commands.
LO N G D I A LO G U EHelp is not reduced (suitable for beginners).
SHORT DIALOGUEHelp is clearly reduced (good operating knowledge
provided).
CALL NAMEAfter this command a name can be entered which
establishes a connection to
the requested partner
⇒ page 159.
DIAL NUMBERAfter this command a phone number can be entered
which establishes a connection to the requested
party.
REDIALAfter this command the system selects the last
selected number.
Voice commandActivity
CALLS (SELECT)The telephone number is selected.
REPEATThe entered name or the digits are repeated. Then
the system requests with voice response “ please
proceed ” the entry of further digits or commands.
BACK
The entered name or the last entered order of digits is
erased. Previously entered groups of digits are
repeated. Then the system requests with voice
response “ and proceed? ” the entry of further digits
or commands.
DELETEAll entered digits are erased.
CANCELThe dialogue is ended.
Voice commandActivity
20A5Facelift.book Page 158 Saturday, September 6, 2008 2:13 PM

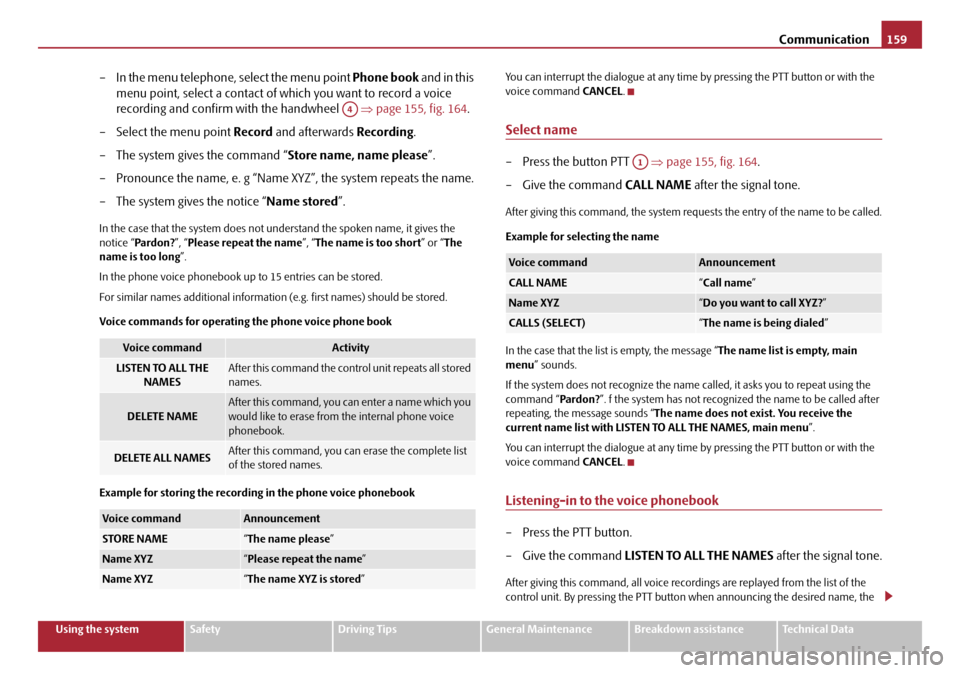

Page 160 of 304
Communication159
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
– In the menu telephone, select the menu point Phone book and in this
menu point, select a contact of which you want to record a voice
recording and confirm with the handwheel ⇒page 155, fig. 164 .
– Select the menu point Record and afterwards Recording.
– The system gives the command “ Store name, name please”.
– Pronounce the name, e. g “Name XYZ ”, the system repeats the name.
– The system gives the notice “ Name stored”.
In the case that the system does not und erstand the spoken name, it gives the
notice “ Pardon? ”, “Please repeat the name ”, “The name is too short ” or “The
name is too long ”.
In the phone voice phonebook up to 15 entries can be stored.
For similar names additional information (e.g. first names) should be stored.
Voice commands for operating the phone voice phone book
Example for storing the recording in the phone voice phonebook You can interrupt the dialogue at any time
by pressing the PTT button or with the
voice command CANCEL.
Select name
–Press the button PTT ⇒page 155, fig. 164 .
– Give the command CALL NAME after the signal tone.
After giving this command, the system reques ts the entry of the name to be called.
Example for selecting the name
In the case that the list is empty, the message “ The name list is empty, main
menu ” sounds.
If the system does not recognize the name called, it asks you to repeat using the
command “ Pardon?”. f the system has not recognized the name to be called after
repeating, the message sounds “ The name does not exist. You receive the
current name list with LISTEN TO ALL THE NAMES, main menu ”.
You can interrupt the dialogue at any time by pressing the PTT button or with the
voice command CANCEL.
Listening-in to the voice phonebook
– Press the PTT button.
– Give the command LISTEN TO ALL THE NAMES after the signal tone.
After giving this command, all voice record ings are replayed from the list of the
control unit. By pressing the PTT button when announcing the desired name, the
Voice commandActivity
LISTEN TO ALL THE
NAMESAfter this command the cont rol unit repeats all stored
names.
DELETE NAMEAfter this command, you can enter a name which you
would like to erase from the internal phone voice
phonebook.
DELETE ALL NAMESAfter this command, you can erase the complete list
of the stored names.
Voice commandAnnouncement
STORE NAME“ The name please ”
Name XYZ“Please repeat the name ”
Name XYZ“The name XYZ is stored ”
A4
Voice commandAnnouncement
CALL NAME“Call name ”
Name XYZ“Do you want to call XYZ? ”
CALLS (SELECT)“The name is being dialed ”
A1
20A5Facelift.book Page 159 Saturday, September 6, 2008 2:13 PM
