Lights and Visibility
61
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The function Coming Home is controlled wi
th the light sensor in the mount of the
interior rear mirror. If the light intensity is higher than the set value of the light sensor, the Coming Home Function is not switched on after switching off the igni-tion.
Note
•
If the Coming Home Function is switch
ed on constantly, the battery will be
heavily discharged particular
ly in short-haul traffic.
•
The switching on of the described lights
should only be undertaken in accord-
ance with the legal requirements.•
You can change the illumination period
for the Coming Home Function by
means of the information display*.Leaving Home FunctionThis function makes it possible to switch on the lights when approaching the vehicle. Switching on Leaving Home Function – Unlock the vehicle with the radio remote control - the lights come on.Depending on equipment fitted the function Leaving Home switches on the following lights:•
Parking lights,
•
Low beam,
•
Entry lighting in the exterior mirrors,
•
Licence plate light.
Leaving Home Function The function Leaving Home is controlled wi
th the light sensor in the mount of the
interior rear mirror. If the light intensity is higher than the set value of the light sensor, the Leaving Home Function is not
switched on after unlocking the vehicle
with the radio remote control.
After unlocking the vehicle with the radio re
mote control, the lights come on for 10
seconds. The Leaving Home Function is also switched off after the ignition is switched on and after locking the vehicle. If no door is opened within 30 seconds,
the lights go out and the vehicle is locked
automatically.
Note
•
If the Leaving Home Function is switch
ed on constantly, the battery will be
heavily discharged particular
ly in short-haul traffic.
•
The switching on of the described lights
should only be und
ertaken in accord-
ance with the legal requirements.•
You can change the illumination period
for the Leaving Home Function by
means of the information display*.To u r i s t l i g h t *This mode makes it possible to drive in
countries with opposing traffic system,
driving on the left/right, without dazzling the oncoming vehicles. When the mode “tourist light” is active, the side to side swivel of the headlights is deactivated. The mode “tourist light” is activated / deac
tivated via the information display* in the
menu: „
SETUP (Settings)
„
Tra v e l m o d e „
Off
„
On
se0.1.book Page 61 Friday, April 10, 2009 3:19 PM
Page 64 of 304
Lights and Visibility
63
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Instrument lighting*
You can adjust the brightness of the instrument lighting.Instrument lighting – Switch on the light. – Turn the control dial
⇒
fig. 57
to the desired intensity of the instru-
ment lighting.
For the information display*
⇒page 26 the intensity of the lighting is automatically
set. It is only possible to adjust the inst
rument lighting with the control dial if the
light intensity drops below the set value of the light sensor.
Headlamp range adjustment
Once the low beam is switched on
you can then adapt the range of
the headlights to the
load of the vehicle.
– Turn the control dial
⇒
fig. 58
until you have adjusted the low beam
so that oncoming traffic is not dazzled.
Settings The positions correspond approximat
ely to the following vehicle loads:
Front seats occupied, luggage compartment empty. All seats occupied, lugga
ge compartment empty.
All seats occupied, luggage compartment laden.Driver seat occupied, lu
ggage compartment laden.
Caution
Set the headlight beam adjustment in su
ch a way as to avoid dazzling oncoming
traffic.
Note
Headlights fitted with Xenon bulbs* adap
t automatically to the load and driving
state of the vehicle (e.g. accelerating, braking) when the ignition is switched on and
Fig. 57 Dash panel: Instru- ment lighting
Fig. 58 Dash panel: Lights and Visibility
A-A1A2A3
se0.1.book Page 63 Friday, April 10, 2009 3:19 PM
Page 66 of 304
Lights and Visibility
65
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Headlight flasher
– Pull the lever towards the steering wheel (spring-tensioned position)
- the main beam and warning light
in the instrument cluster come
on.
Parking light
– Switch off the ignition. – Push the lever up or down - the ri
ght-hand or left-hand parking light
is switched on.
Information concerning the function of the lights.•
The
turn signal system
only operates when the ignition is switched on. The
corresponding indicator light
or in the instrument cluster also flashes.
•
The turn signal is automatically cancelled after negotiating a curve.
•
The indicator light flashes at twice its normal
ra te if a bulb of the turn s ignal lig ht
fails.•
The side light and rear light on the appropriate side of the vehicle are switched
on when the
parking light
is selected. The parking light only operates if the ignition
is switched off.
Caution
Use main beam or the headlight flasher only
if this does not risk dazzling other road
users.
Note
•
If you have switched on the right or left
turn signal light and you switch off the
ignition, the parking light is
not automatically switched on.
•
Use only in accordance with the legal
requirements the described lighting and
signal systems.
Interior lightingvehicle interior lighting front and rear*The same principles apply for the lighti
ng of the front and rear part of the
vehicle. Switching the interior light on – Press the switch to the left, the symbol
⇒
fig. 61
appears.
Switching the interior light off – Press the switch into the middle position
O.
– On the version without reading lights press the switch to the right,
the symbol
O appears.
Door contact setting – Press the switch to the right, the symbol
appears.
– On the version without reading lights press the switch into the
middle position
.
Fig. 61 Detail of the head- liner: Front and rear interior lighting
AAAA
AA
AA
AA
se0.1.book Page 65 Friday, April 10, 2009 3:19 PM
Page 68 of 304
Lights and Visibility
67
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
If a door, the bonnet or the boot lid re
mains open, the light goes out within 2
minutes if the ignition is switched off.
WARNING
If the entry light comes on, do not touch its cover - risk of burns!VisibilityRear window heater– You can switch the rear window heater on or off by pressing the switch
⇒
fig. 63
- the indicator light in the
switch comes on or goes out.
The rear window heater only oper
ates when the engine is running.
The rear window heater
switches
off automatically after 10 minutes.
For the sake of the environment
As soon as the window is de-iced or free from mist, the heating should be switched off. The reduced current consumption will have a favourable effect on fuel economy
⇒page 205, “Saving electricity”.
Note
•
The position and the shape of the switch can differ depending on equipment
installed in the vehicle.•
If the on-board voltage drops, the rear
window heater
is switched off automat-
ically, in order to provide sufficient electrical energy for the engine control.Sun visorsYou can pull the sun visor for the driver or
front passenger out of the fixture and
swivel it toward the door in the direction of the arrow
⇒fig. 64
.
Fig. 63 Switch for rear window heater
Fig. 64 Sun visor: swivelling outFig. 65 Double sun visorA1
se0.1.book Page 67 Friday, April 10, 2009 3:19 PM
Page 70 of 304
Lights and Visibility
69
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Windshield wiper and wash systemWindshield wiper You can operate the windscreen wipers and automatic wipe/wash using the windscreen wiper lever.The windscreen wiper lever
⇒
fig. 68
has the following positions:
Finger-operated wiping – If you wish to wipe the windscreen only
briefly
, push the lever into the
sprung position . If you hold the le
ver in the lower position for more
than 1 second, the wiper wipes faster.
Intermittent wiping – Position the lever up into position . – Set with the switch the desired break between the individual wiper
strokes
Slow wipe – Position the lever up into position .
Fa s t w ip e – Position the lever up into position . Automatic wipe/wash for windscreen – Pull the lever towards the steering
wheel into sprung position , the
wash system sprays immediately, the windscreen wiper starts wiping a little later. The wash system and the windscreen wiper operate simultaneously at a speed of more than 120 km/h.
– Release the lever. The windscreen wash system stops and the wiper
continues for another 3 - 4 wiper strokes (depending on the period of spraying of the windscreen). At a speed of more than 2 km/h, the wiper wipes once again* 5 seconds after the last wiper stroke in order to wipe the last drops from the windscreen. This function can be acti-vated/deactivated by a specialist garage.
Rain sensor* – Move the lever into position . – You can set the sensitivity of the sensor individually with switch . Wiping the rear window pane* – Push the lever away from the steering wheel into position - the
widescreen wiper will operate every 6 seconds.
Automatic wipe/wash for the rear window pane* – Press the lever from the steering wheel forward into the sprung posi-
tion , the wash system sprays immediately, the windscreen wiper starts wiping a little later. As long as you hold the lever in this position, the wiper operates as well as the wash system.
– Letting go of the lever will cause the windscreen wash system to stop
and the wiper to continue for another 2 - 3 wiper strokes (depending on the period of spraying of the windscreen).
The lever will stay in
position after releasing it
.
Fig. 68 Windscreen wiper lever
A4
A1
AA
A2
A3
A5
A1
AA
A6
A7
A6
se0.1.book Page 69 Friday, April 10, 2009 3:19 PM
Page 72 of 304
Lights and Visibility
71
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The headlight washer nozzles are moved forward out of the bumper by the water pressure for cleaning the headlights. You should remove stubborn dirt (such
as insect residues) from the headlight
lenses at regular intervals, for example when refuelling. Please refer to the following guidelines
⇒page 214, “The headlight lenses”.
You should remove any snow from the fixt
ures of the washer nozzles and clear ice
in winter with a de-icing spray in order to
ensure proper operation of the cleaning
system.Replacing wiper blades fo
r the windscreen wipers
One cannot fold out the wiper arms in the rest position from the wind- screen. Before replacing the wiper
arms you must put them into the
service position. Service position for changing wiper blades – Close the bonnet. – Switch the ignition on and then again off. – Then press the windscreen wiper lever in the position
⇒
page 69,
fig. 68
within 20 seconds - the wiper ar
ms move into the service posi-
tion.
Taking off the wiper blade – Fold windscreen wiper arm out from
the windscreen and position the
wiper blade at right angles to the wiper arm
⇒
.
– Take off the wiper blade in direction of arrow
⇒
fig. 69
⇒
.
Attaching a wiper blade – Push the new wiper blade over the wiper arm and turn the wiper blade
into the vertical position.
– Check whether the wiper blade is correctly attached.– Fold the windscreen wiper arms onto the window and switch on the
ignition. By pressing the window wi
per lever into the sprung position
⇒
fig. 69
or when driving at a speed greater than 4 km/h, the wind-
screen wiper arms move back into the rest position.
Wiper blades in proper condition are esse
ntial to obtain good visibility. Wiper
blades should not be allowed to become
dirtied by dust, insect remains and
preserving wax. Juddering or smearing of the wiper blades
could then be due to wax residues left
on the windscreen by vehicle washing in
automatic vehicle wash systems. It is
therefore important to
degrease
the lips of the wiper blades after every pass
through an
automatic vehicle wash system
.
WARNING
•
The ignition must not be switched on if the front windscreen wiper arms
are folded out. The wiper blades would move back into their rest position and while doing so damage th
e paintwork of the bonnet.
•
If the windscreen wipers are handled carelessly, there is a risk of damage
to the windscreen.•
You should clean the wiper blades regularly with a windscreen cleaner in
order to avoid any smears. Clean a wiper blade with a sponge or cloth if it is very dirty, for example from insect residues.
Fig. 69 Wiper blade for the windscreen wiper
A4
A4
se0.1.book Page 71 Friday, April 10, 2009 3:19 PM
Page 74 of 304
Lights and Visibility
73
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Note
•
Automatic mirror dimming operates only pr
operly if the sun screen* for the rear
window in the housing on the luggage comp
artment cover is not in use or the light
striking the interior rear-view mirror is not affected by other objects.•
Do not affix any stickers in front of the light sensor, so that you do not impair the
automatic dimming function or put it out of operation.•
If you switch off the automatic dimming interior rear-view mirror, also the exte-
rior mirror dimming is switched off.Exterior mirror You can adjust the exterior mirrors electrically*.The exterior mirror heater only oper
ates when the engine is running and
up to an outside temperature of +20 °C. Heating of the external mirror – Turn the rotary knob to position
⇒
fig. 72
.
Adjusting left and right exterior mirrors simultaneously – Turn the rotary knob to position
. The movement of the mirror surface
is identical to the movement of the rotary knob.
Adjusting the right-hand exterior mirror – Turn the rotary knob to position
. The movement of the mirror
surface is identical to the movement of the rotary knob.
Switching off operating control – Turn the rotary knob to position
.
Folding in both exterior mirrors* – Turn the rotary knob to position
.
Lowerable exterior mirror* with the aid of the key for remote control – If all the windows are closed, press the unlock button on the radio
remote control
⇒
page 50, fig. 47
for approx. 2 seconds.
Tilting surface of front pa
ssenger exterior mirror*
When the rotary knob is in position
⇒fig. 72
and the reverse gear is engaged, the
s ur fa ce o f t h e m i rro r t i l ts d o w n s l i g h t l y. T h i s p ro v i d e s a n a i d i n s e e i n g th e ke r b o f t h e pavement when parking the car. The mirror returns into its initial position, after the rotary knob is moved out of the position
and put into another position or if
the speed is more than 15 km/h.
Memory for exterior mirrors* On vehicles fitted with a memory for the driver seat, the relevant setting of the exte- rior mirror is also stored automatica
lly when the seat position is stored
⇒page 76.
WARNING
•
Convex (curved outward) or spherical (differently curved) exterior
mirrors increase the vision field. Th
ey do, however, make objects appear
smaller in the mirror. These mirrors are
only of limited use, therefore, for
estimating distances to the following vehicles.•
Use whenever possible the interior rear mirror, for estimating the
distances to the following vehicles.
Fig. 72 Inner part of door: Rotary knob
A3
se0.1.book Page 73 Friday, April 10, 2009 3:19 PM
Page 76 of 304

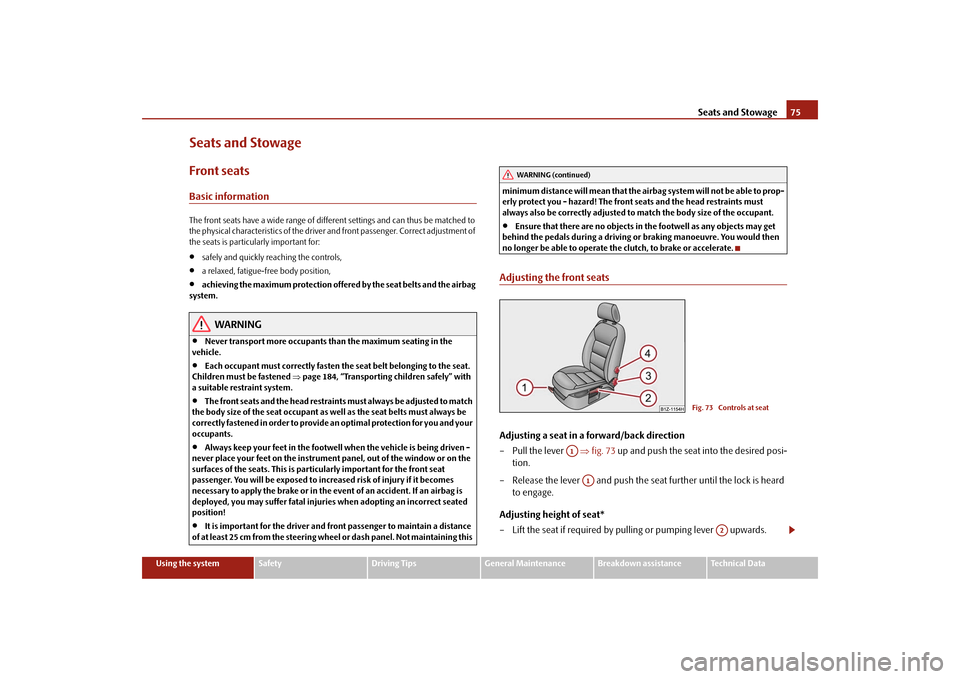

Seats and Stowage
75
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Seats and StowageFront seatsBasic informationThe front seats have a wide range of differ
ent settings and can thus be matched to
the physical characteristics of the driver
and front passenger. Correct adjustment of
the seats is particularly important for:•
safely and quickly reaching the controls,
•
a relaxed, fatigue-free body position,
•
achieving the maximum protection offere
d by the seat belts and the airbag
system.
WARNING
•
Never transport more occupants than the maximum seating in the
vehicle.•
Each occupant must correctly fasten the seat belt belonging to the seat.
Children must be fastened
⇒page 184, “Transporting children safely” with
a suitable restraint system.•
The front seats and the head restraints must always be adjusted to match
the body size of the seat occupant as well as the seat belts must always be correctly fastened in order to provide an optimal protection for you and your occupants.•
Always keep your feet in the footwell
when the vehicle is being driven -
never place your feet on the instrument panel, out of the window or on the surfaces of the seats. This is particularly important for the front seat passenger. You will be exposed to increa
sed risk of injury if it becomes
necessary to apply the brake or in the ev
ent of an accident.
If an airbag is
deployed, you may suffer fatal injuries
when adopting an incorrect seated
position!•
It is important for the driver and front passenger to maintain a distance
of at least 25 cm from the steering wheel or dash panel. Not maintaining this
minimum distance will mean that the airb
ag system will not be able to prop-
erly protect you - hazard! The front seats and the head restraints must always also be correctly adjusted to match the body size of the occupant.•
Ensure that there are no objects in the footwell as any objects may get
behind the pedals during a driving or
braking manoeuvre. You would then
no longer be able to operate the clutch, to brake or accelerate.Adjusting the front seatsAdjusting a seat in a forward/back direction –Pull the lever
⇒
fig. 73
up and push the seat into the desired posi-
tion.
– Release the lever and push the seat further until the lock is heard
to engage.
Adjusting height of seat* – Lift the seat if required by pulling or pumping lever upwards.
WARNING (continued)
Fig. 73 Controls at seat
A1
A1
A2
se0.1.book Page 75 Friday, April 10, 2009 3:19 PM
Page 78 of 304
Seats and Stowage
77
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Adjust the angle of the seat – Press the switch at the front
⇒
page 76, fig. 75
or at the back
⇒
page 76, fig. 75
.
Adjusting the seat backrest – Press the switch
⇒
page 76, fig. 74
in the direction of the desired
setting.
Adjusting lumbar support – Press the switch front
⇒
page 76, fig. 74
in order to enlarge the
curvature of the lumbar support.
– Press the switch rear in order to reduce the curvature of the lumbar
support.
– Press the switch top in order to adjust the curvature of the lumbar
support higher.
– Press the switch bottom in order to adjust the curvature of the
lumbar support lower.
Switch is operated in order to move the seat up/down and forward/back, while switch is operated in order to move the seat backrest forward or back.
WARNING
•
Only adjust the driver seat when the ve
hicle is stationary - risk of injury!
•
Caution when adjusting the seat! You ma
y suffer injuries or bruises as a
result of adjusting the seat without paying proper attention.•
In view of the fact that the seats can
also be adjusted when the ignition is
switched off (even when ignition key withdrawn), you should never leave children unattended in the vehicle.•
The seat backrests must not be angled too far back when driving other-
wise this will affect proper operation of the seat belts and of the airbag system - risk of injury!
Note
If the movement of the seat is inadverten
tly interrupted during an adjustment, once
again press the switch in th
e appropriate direction and
continue with the adjust-
ment of the seat to the end.Storing settingStoring seat and exterior mirror settings for driving forward – Switch on the ignition. – Adjust the seat
⇒
page 76.
– Adjust both exterior mirrors
⇒
page 73.
–Press button
SET
⇒
fig. 76
.
– Press one of the memory buttons within 10 seconds after pressing
the button
SET
- an acknowledgement signal confirms that the seat
setting is stored.
Storing exterior mirror setting for reversing* – Switch on the ignition. – Turn the exterior mirror control to position
⇒
page 73.
AA
A2
A3
ABACACACAC
AAAB
Fig. 76 Driver seat: Memory buttons and SET button
AA
AB
se0.1.book Page 77 Friday, April 10, 2009 3:19 PM
Page 80 of 304
Seats and Stowage
79
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Retrieving settings with remote control – If the driver door is closed and the ignition is switched off, briefly press
the unlock button of the radio remote control
⇒
page 50 and then
open the driver door.
– The seat and exterior mirrors now move automatically into the stored
positions.
Retrieving setting of exterior mirror for reversing* – Turn the rotary knob for the exterior mirror setting into the position
⇒
page 73 before engaging the reverse gear.
The mirror returns into its initial position,
after the rotary knob is moved out of the
position
and put into another position or if the speed is more than 15 km/h.
Emergency Off You can interrupt the setting operation at any time, if you operate any button of the driver seat.
Note
If in the stored position the inclination an
gle of the seat backrest is more than 102°
in relation to the seat cushion, the seat backrest remains in this position, after reaching this angle, when
retrieving the setting by briefly pressing the memory
button. In order to achieve the stored setting, it is necessary to press the memory button again and hold it pressed until the seat is in the stored position.
Head restraintsBest protection is achieved if the top edge of the head restraint is at the same level as the uppe
r part of your head.
Adjusting the height of a head restraint – Grasp the side of the head restraint with both hands and push it in
upward direction as desired
⇒
fig. 77
.
– Move the head restraint downward
s if required by pressing and
holding the safety button with one hand
⇒
fig. 78
and by pressing
with the other hand the head restraint downwards.
Fig. 77 Adjusting head restraintFig. 78 Removing a head restraint
se0.1.book Page 79 Friday, April 10, 2009 3:19 PM
