If the rear seats are occupied, the rear head restraint must not be in the
lower position.Rear seatsFolding the rear seats forwards
To enlarge the luggage compartment, the rear seats can be folded forwards, if necessary remove the se
at cushions. The rear seats can be
folded forward individually on ve
hicles with divided rear seats*.
Folding seats forwards – Before folding the rear seats forwards, you must adapt the position of
the front seats in such a way that
they are not damaged when the rear
seats are folded forwards.
– Pull up the seat cushion in direction of arrow and fold forwards in
direction of arrow
⇒
fig. 80
.
– Press the unlocking knob and fold the seat backrest forwards
⇒
fig. 81
.
If the front seats are too far back, we
recommend that you have the rear head
restraints removed before the seat backrests are folded forward. Store the removed head restraints in such a way that they cannot be damaged or soiled. Please refer to the guidelines
⇒page 84.
Move seats into th
e initial position
WARNING (continued)
Fig. 80 Folding the seat cushion forwardsFig. 81 Unlock the seat back-rest
A1
A2
AA
Fig. 82 Lock the seat back-rest
se0.1.book Page 81 Friday, April 10, 2009 3:19 PM

Seats and Stowage
83
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Rear seat armrest*– You can fold down the armrest at
the loop to enhance occupant
comfort
⇒
page 83, fig. 84
.
Seat heaters*
You can electrically heat the seat ba
ckrests and the surfaces of the front
seats and the two outer rear seats. – You can switch on and regulate the
seat heating of the driver or front
passenger seat by pressing the surfac
e of the regulator at the point at
which the symbol is located
 ⇒
fig. 85
.
– You can switch on and adjust the heat
ers of the left or right rear seats
by pressing the regulator
 ⇒
fig. 86
.
– With one press, you can switch the
heating to highest intensity which
is indicated by the lighting up of the three warning lights in the switch.
– With repeated pressing of the switch, the intensity of the heating is
down-regulated up to the switch-off. The intensity of the heating is indicated by the number of illuminated warning lights in the switch.
WARNING
If you have a subdued pain and/or te
mperature sensitivity, e.g. through
medication, paralysis or because of ch
ronic illness (e.g. diabetes), we
recommend not to use the seat heating. This can lead to burns on the back, the posterior and the
legs which are difficult to he
al. If the seat heating is
used, we recommend to make regular breaks in your journey when driving long distances, so that in specific cases as mentioned above the body can
Fig. 84 Rear seats: ArmrestFig. 85 Dash panel: Regu- lator for front seat heating
Fig. 86 Centre console at rear: Regulator for heating the rear seats
se0.1.book Page 83 Friday, April 10, 2009 3:19 PM

Seats and Stowage
85
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
•
Loose objects in the passenger compartment can be thrown forward
during a sudden manoeuvre or in case
of an accident and can injure the
occupants or other oncoming traffic. This risk is still increased, if the objects which are flying around are hit by a depl
oyed airbag. In this case, the objects
which are thrown back can injure the occupants - hazard.•
Please note that the handling properti
es of your vehicle may be affected
when transporting heavy objects as a result of the displacement of the centre of gravity. The speed and style
of driving must be adjusted accord-
ingly.•
The items carried in the luggage compar
tment should be stowed in such
a way that no objects are
able to slip forw
ard if there are any sudden driving
or braking manoeuvres undertaken - risk of injury!•
Never drive with the boot lid fully opened or slightly ajar otherwise
exhaust gases may get into the interior of the vehicle - risk of poisoning!•
On no account exceed the permissi
ble axle loads and the permissible
gross weight of the vehi
cle - risk of accident!
•
Never transport occupants in the luggage compartment!Caution
Please ensure that the heating elements of the rear window heater are not damaged as a result of objects sliding in this area.
Note
Tyre pressure must be adjusted to the load
⇒page 238.
Lashing eyesEyes are located on the sides of the lugg
age compartment for lashing the goods to
be loaded. You can also attach a floor fixing net*
to these eyes for lashing small objects.
The floor fixing net* together with the
installation instruction are stowed in a
container under the floor co
vering of the luggage comp
artment behind the spare
wheel.
WARNING (continued)
Fig. 87 Luggage compart- ment: Lashing eyes (Octavia)Fig. 88 Luggage compart-ment: Lashing eyes (Combi)
se0.1.book Page 85 Friday, April 10, 2009 3:19 PM

Seats and Stowage
87
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Fixing nets - Net programme Combi*Fixing examples of the
fixing net as pocket
⇒fig. 91
and as division of the luggage
compartment
⇒fig. 92
.
The fixing net is stowed
in a storage compartment behind the spare wheel under
the floor covering of the luggage compartment.
WARNING
The whole strength of the net makes it possible to load the pocket with objects of up to 1,5 kg in weight. Heavy objects are not secured sufficiently - risk of injury and net damage!
Caution
Do not place any objects with sharp edge
s in the nets - risk of net damage.
Folding double hooks* (Octavia)Folding double hooks for attaching small it
ems of luggage, such as bags etc. are
provided on one or both sides of th
e luggage compartment depending on the
equipment installed in the vehicle
⇒fig. 93
.
An item of luggage weighing up to 5 kg can be attached to each side of the double hook.
Fig. 91 Fixing net: PocketFig. 92 Fixing net: Division of the luggage compartment
Fig. 93 Luggage compart-ment: Folding double hooks
se0.1.book Page 87 Friday, April 10, 2009 3:19 PM

Seats and Stowage
89
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
WARNING
•
In the storage net you must only stow objects (up to a total weight of 1.5
kg). Heavy objects are not secured sufficiently - risk of injury!•
No objects with sharp edges should
be stowed in the luggage net,
because they can damage the luggage net.Luggage compartment cover* (Octavia) You can use the luggage compartment cover behind the head restraints for storing
light and soft items.
The luggage compartment cover can be
removed as required if one must
transport bulky goods. – Unhook the support stra
ps on the boot lid
⇒
fig. 98
.
– Place the cover on the side supports. – Pull the cover out of the holder horizontally to the rear. – Install again by pushing the luggage
compartment cover forwards into
the holder and hanging the suppo
rt straps on the boot lid.
You can stow the removed luggage compartment cover behind the rear seat back- rest.
WARNING
No objects should be placed on the
luggage compartment cover, the vehicle
occupants could be endangered if th
ere is sudden braking or the vehicle
collides with something.
Caution
Please ensure that the heating elements of the rear window heater are not damaged as a result of obje
cts placed in this area.
Note
Opening the tailgate also lifts up the luggage compartment cover.Foldable luggage compartment cover (Combi)
Fig. 98 Removing the luggage compartment coverA1
A2
A2
A1
Fig. 99 Luggage compart-ment: Foldable luggage compartment cover
se0.1.book Page 89 Friday, April 10, 2009 3:19 PM

Seats and Stowage
91
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
WARNING
Pay attention when installing the variab
le loading floor that the carrier rail
and the variable loading floor are correc
tly fastened. If this is not the case,
there is risk of injury for the occupants.
Note
The maximum load of the variable loading floor is 75°kg.Divide the luggage compartmen
t with variable loading floor*
The luggage compartment can be divided with the variable loading floor. – Lift up the part with the holder and secure it by sliding it into the
grooves
⇒
fig. 103
.
Net partition (Combi)*Use the net partition behind the rear seatsPulling out – Fold down the storage compartment cover behind the rear seats
⇒
fig. 104
.
– Pull the net partition at the bracket out of the housing in direc-
tion of the holders
⇒
fig. 105
.
– Insert the cross rod into one of the mounts and push the cross rod
forward.
Fig. 103 Luggage compart- ment: Separation of the luggage compartment
Fig. 104 Folding down the storage compartment coverFig. 105 Unrolling net parti-tion
AA
AB
AC
AC
se0.1.book Page 91 Friday, April 10, 2009 3:19 PM

Seats and Stowage
93
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
WARNING
•
The belt locks and the belts must be in their original position after folding
back the seat cushions and the seat backrests - they must be ready to use.•
The seat backrests must be securely interlocked in position so that no
objects in the luggage compartment can
slide forward if there is sudden
braking - risk of injury!•
Pay attention that the rear seat backrest is correctly interlocked. It is only
then that the three-point seat belt for the middle seat can reliably fulfil its function.•
First check for yourself that the cross road is inserted into the mounts
in the front position!Removing and installing net partition housingRemoving – Fold the rear seats forwards
⇒
page 81
– Open the right rear door. – Push the net partition housing
⇒
fig. 107
in the direction of arrow
and take it out of the mounts of the rear seats in the direction of
arrow .
Installing – Position the net partition housing into the mounts of the rear seat
backrests.
– Push the net partition housing in
the opposite direction of arrow
as far as the stop.
– Fold the rear seats back into its original position.The roof rack*DescriptionPay attention to the following points if yo
u wish to transport luggage or other items
on the roof of your vehicle:•
A special roof luggage rack system was
developed for the vehicle, that is why
you should only use a roof luggage rack
which has been released for use by Škoda
Auto.•
The base carrier is the basis for a comple
te roof luggage rack system. Separate
additional holders are required for safety reasons for transporting luggage, bikes, surfboards, skis and boats.•
The basic version of the roof luggage rack system and further components are
obtainable as accessories from the authorised Škoda Service Partners.
Caution
•
If you use other roof rack sy
stems or if the roof bars are not properly fitted, then
any damage which may result to your ca
r is not covered by the warranty agree-
ments. It is therefore essential to pay attention to the fitting instructions supplied with the roof luggage rack system.•
On models fitted with a power sliding/tilting roof, ensure that the opened
sliding/tilting roof does not strike any items of luggage transported on the roof.•
Ensure that the opened boot lid does not collide with the roof load.
AC
Fig. 107 Rear seats: Net partition housing
AA
A1
A2
A1
se0.1.book Page 93 Friday, April 10, 2009 3:19 PM

Seats and Stowage
95
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Cup holderCup holder in front centre consoleYou can place two cups or beve
rage cans into the recesses
⇒fig. 109
.
WARNING
•
Do not place any hot beverages into th
e cup holder. If the vehicle moves,
the hot beverages may spill - risk of scalding!•
Do not use any cups or beakers which
are made of brittle material (e.g.
glass, porcelain). You might be injured
by them in the event of an accident.
Caution
Do not open the beverages in the cup holder while driving. They may spill when braking and while doing so damage the vehicle.
Cup holder in rear centre console*– Press on the panel in the area
⇒
fig. 110
- the cup holder comes
out.
– Pull the cup holder ou
t as far as the stop.
– Adjust the cup holder by moving the locking plate .
WARNING
•
Do not place any hot beverages into
the cup holder while the car is
moving. The hot beverages may spill - risk of scalding!•
Do not use any cups or beakers which are made of brittle material (e.g.
glass, porcelain). You might be injured
by them in the event of an accident.
Fig. 109 Front centre console: Cup holder
Fig. 110 Centre console at rear: Cup holder
AA
AB
se0.1.book Page 95 Friday, April 10, 2009 3:19 PM

Seats and Stowage
97
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

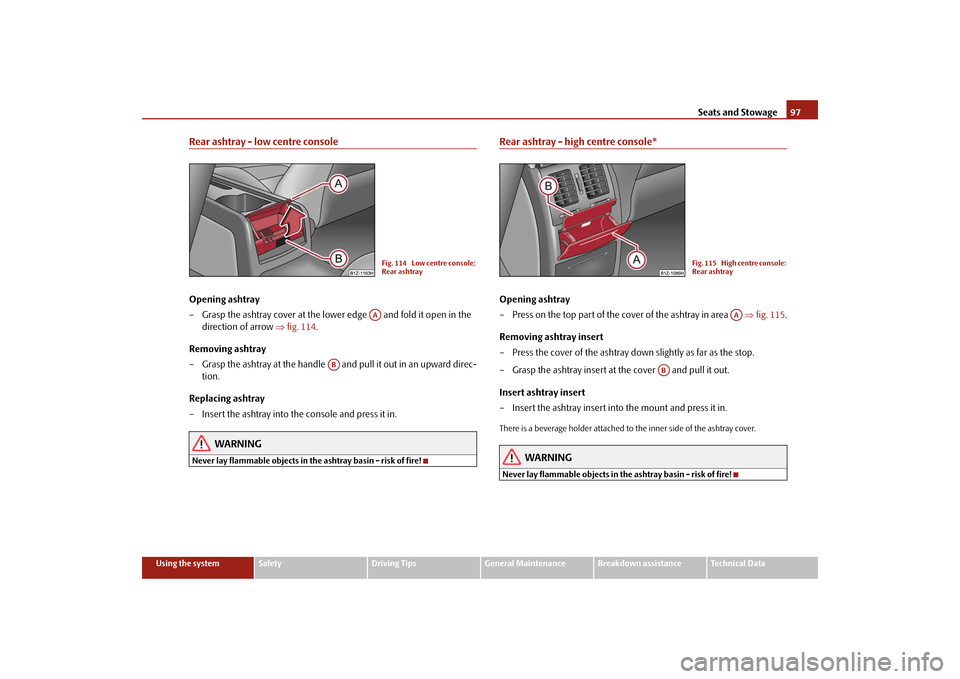

Rear ashtray - low centre consoleOpening ashtray – Grasp the ashtray cover at the lower edge and fold it open in the
direction of arrow
⇒
fig. 114
.
Removing ashtray – Grasp the ashtray at the handle and pull it out in an upward direc-
tion.
Replacing ashtray – Insert the ashtray into the console and press it in.
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!
Rear ashtray - high centre console*Opening ashtray– Press on the top part of the cover of the ashtray in area
⇒
fig. 115
.
Removing ashtray insert – Press the cover of the ashtray down slightly as far as the stop. – Grasp the ashtray insert at the cover and pull it out. Insert ashtray insert – Insert the ashtray insert into the mount and press it in.There is a beverage holder attached to
the inner side of the ashtray cover.
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!
Fig. 114 Low centre console: Rear ashtray
AA
AB
Fig. 115 High centre console: Rear ashtray
AA
AB
se0.1.book Page 97 Friday, April 10, 2009 3:19 PM

Seats and Stowage
99
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
– Connect the plug of the electr
ical appliance to the socket.
You can only use the power socket for the
connection of approved electrical acces-
sories with a power uptake up to 180 watts
. The vehicle battery will be discharged
in the process if the engine is stationary. The same remarks apply here as for
⇒page 98.
Further information
⇒page 244, “Accessorie
s, changes and replacement of
parts”.Storage compartmentsOverviewYou will find the following storage facilities in your vehicle:
WARNING
•
Please do not place anything on top of the dash panel. Such objects
might slide or fall down when driving
(when accelerating or cornering) and
may distract you from concentrating on the traffic situation - risk of acci- dent!•
Ensure that when driving no objects from the centre console of from
other storage possibilities may get into the footwell of the driver. You would then no longer be able to apply the br
akes, operate the clutch or accelerator
- risk of accident!Storage compartment on the front passenger sideOpening and closing the storage compartment on the front passenger side – Press the handle of the lid
⇒
fig. 118
- the lid folds down.
– Raise the lid and press it until the catch is heard to engage.
Storage compartment on the front passenger side
⇒ page 99
Storage compartment on the driver's side
⇒page 100
Storage compartment on the dash panel*
⇒page 101
Storage compartment in front centre console*
⇒page 101
Storage compartment for spectacles*
⇒page 102
Storage compartment in the front doors
⇒page 102
Storage compartment below front passenger seat*
⇒page 103
Front seat armrest with storage compartment*
⇒page 103
Rear armrest with storage compartment*
⇒page 104
Storage compartment in rear centre console*
⇒page 104
Seat backrest with opening for skis*
⇒page 105
Through-loading bag*
⇒page 105
Side compartment*
⇒page 106
Storage compartment behind the rear seats* (Combi)
⇒page 107
Clothes hooks*
⇒page 107
Fig. 118 Dash panel: Storage compartment on the front passenger side
se0.1.book Page 99 Friday, April 10, 2009 3:19 PM
