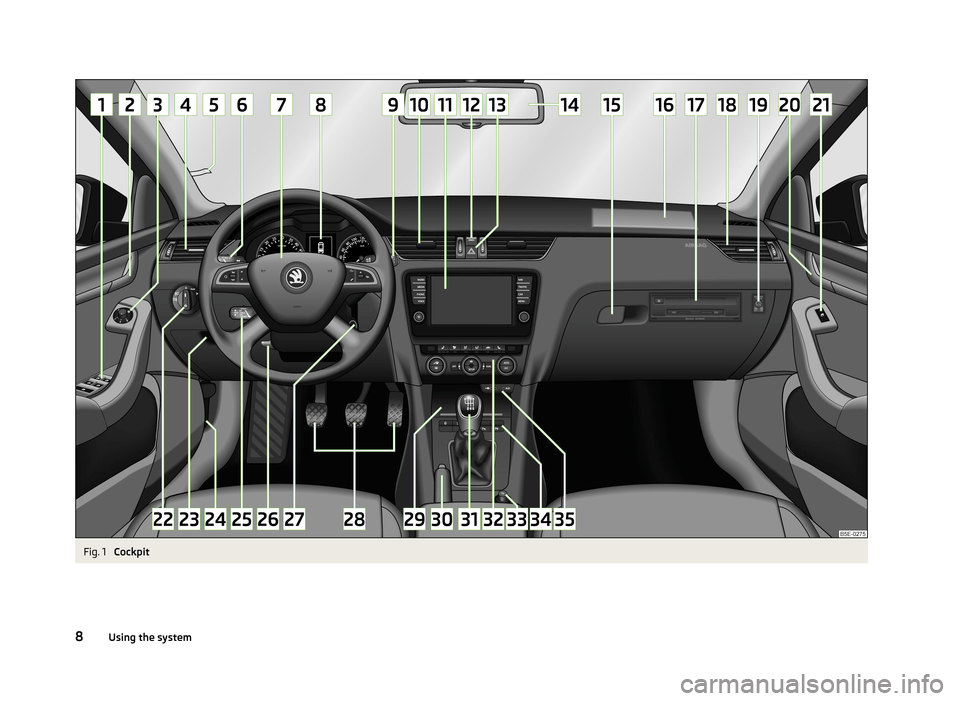

Fig. 1
Cockpit
8Using the system
Page 12 of 287
Using the system
Cockpit
OverviewElectrical power windows
47
Door opening lever
40
Electric exterior mirror adjustment
69
Air outlet vent
107
Parking ticket holder
80
Operating lever:
› Turn signal light, headlight and parking light, headlight flasher
56
›
Speed regulating system
146
›Activating the menu item wizard
32
Steering wheel:
› With horn
› With driver’s front airbag
187
›
with buttons for the operation of the information system
26
›With buttons for the Infotainment Control
» Infotainment Man-
ual , chapter Device Operation
Instrument cluster
11
Operating lever:
› Windscreen wiper and wash system
65
›Multifunction display
29
›
Information system
32
Air outlets in the central part of the dash panel
107
Infotainment
» owner's manual for the Infotainment radio or navi-
gation
Warning light for the deactivated front seat passenger airbag
191
Button for hazard warning light system
61
Interior rear-view mirror
69
Storage compartment on the front passenger side
87
Front passenger airbag
18712345678910111213141516CD/DVD drive and memory card slot (in the passenger-side storage compartment) » owner's manual for the Infotainment radio and/or
navigation
Air outlet vent107
Key switch for switching off the front passenger airbag (in front passenger storage compartment)
191
Door opening lever
40
Power window in the front passenger door
48
Light switch
55
Storage compartment on the driver's side
80
Fuse box (behind the storage compartment on the driver's side)
252
Bonnet release lever
217
Operating lever for adaptive cruise control
151
Lever for adjusting the steering wheel
118
Ignition lock
120
Pedals
126
Storage compartment / Phone box » Infotainment Manual , chap-
ter Phone box
Handbrake lever
125
Depending on equipment fitted:
› Gearshift lever (manual gearbox)
126
›
Selector lever (automatic gearbox)
127
Depending on equipment fitted:
› Operating controls for the heating
108
›
Operating controls for the air conditioning system
110
›Operating controls for Climatronic
112
Depending on equipment fitted:
› 12-Volt power socket
84
›
Cigarette lighter
83
Bar with keys depending on the equipment fitted:
›
Central locking system
39
›
START STOP
158
›
Traction control TCS
138
›
Electronic Stability Control ESC
137
›
Selection of driving mode
161
›
Park Assist
142
1718192021222324252627282930313233349Cockpit
Page 13 of 287
›
Parking aid140›
Tyre inflation pressure calibration231
Depending on equipment fitted:
› USB/AUX input
» Infotainment Manual , chapter USB/AUX In-
puts
› MEDIA IN input
» Infotainment Manual , chapter MEDIA IN input

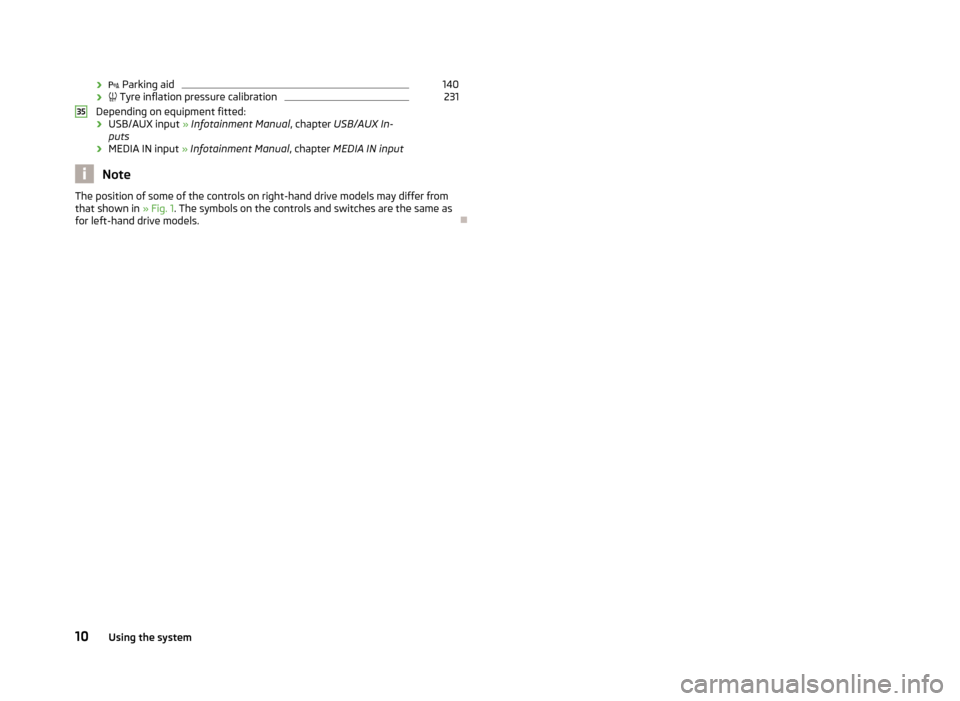

Note
The position of some of the controls on right-hand drive models may differ from
that shown in » Fig. 1. The symbols on the controls and switches are the same as
for left-hand drive models.3510Using the system
Page 14 of 287
Instruments and warning lights
Instrument cluster
Introduction
This chapter contains information on the following subjects:
Overview
11
Revolutions counter
12
Display
12
Speedometer
12
Coolant temperature gauge
13
Fuel gauge
13
Counter for distance driven
14
14
Viewing the charge level vehicle battery
14
Auto-check control
14
Component protection
If the message SAFE CP appears in the instrument cluster display, the component
protection for the instrument cluster is active. Further information » page 202,
Component protection .
Fault display
If there is a fault in the instrument cluster, the following message will appear in
the display.
Error: instrument cluster. Workshop!COMBIINSTRUM_ WORKSHOP
Seek help from a specialist garage.
WARNING■ Concentrate fully at all times on your driving! As the driver you are fully re-
sponsible for road safety.■
Never operate the button
6
in the instrument cluster » Fig. 2 on page 11
while driving, only when the vehicle is stationary!
Overview
Fig. 2
Instrument cluster
First read and observe the introductory information and safety warn-
ings
on page 11.
Revolutions counter with warning lights » page 12
Display » page 12
› With counter for distance driven
» page 14
› With service interval display
» page 33
› With digital clock
» page 14
› With information system
» page 26
› With control symbols
» page 21
Speedometer 1)
with warning lights » page 12
Coolant temperature gauge » page 13
12341)
During the journey, the speed can be displayed in a different unit (mph or km/h) in addition to the
tachometer display.
11Instruments and warning lights
Page 15 of 287
Bar with warning lights » page 15
Button for:
› Set hours/minutes
» page 14
› Displaying the distance and days until the next service interval
» page 33
› Resetting Service Interval Display
» page 33
› Reset daily trip counter
» page 14
› Charge level indicator
» page 14
Fuel gauge » page 13
Revolutions counter
First read and observe the introductory information and safety warn-ings
on page 11.
The red scale of the revolution counter
1
» Fig. 2 on page 11 indicates the range
in which the system begins to limit the engine speed. The system automatically
restricts the engine speed to a steady limit.
You should shift into the next highest gear before the red scale of the revolution
counter is reached, or select mode D on the automatic gearbox.
Follow the recommended gear to prevent engine speeds that are too high or too
low » page 27 .
Display
Fig. 3
Display types
567First read and observe the introductory information and safety warn-
ings on page 11.
The instrument cluster can have one of the following types of display » Fig. 3.
Segment display
MAXI DOT display.
Note
Depending on vehicle equipment, the MAXI DOT display can be either monochro- matic “(black and white)” or color.
Speedometer
First read and observe the introductory information and safety warn-
ings
on page 11.
Warning against excessive speeds
An audible warning signal will sound when the vehicle speed exceeds 120 km/h 1)
.
The audible warning signal is switched off when the vehicle speed falls below
120 km/h.
1)
This function only applies to certain countries.
12Using the system
Page 16 of 287

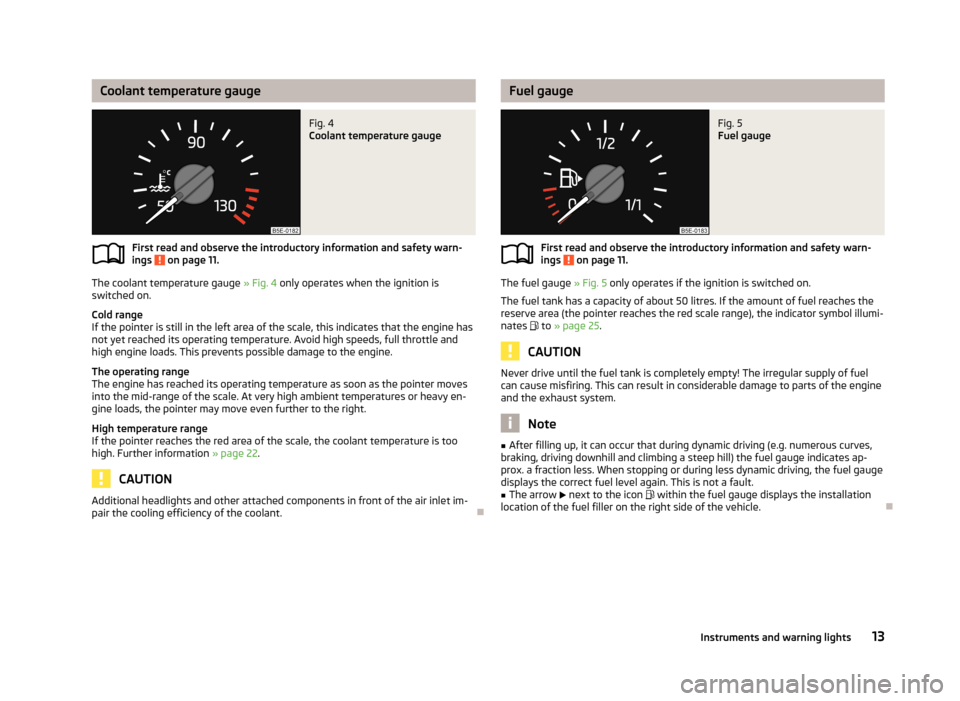

Coolant temperature gaugeFig. 4
Coolant temperature gauge
First read and observe the introductory information and safety warn-
ings on page 11.
The coolant temperature gauge » Fig. 4 only operates when the ignition is
switched on.
Cold range
If the pointer is still in the left area of the scale, this indicates that the engine has
not yet reached its operating temperature. Avoid high speeds, full throttle and
high engine loads. This prevents possible damage to the engine.
The operating range
The engine has reached its operating temperature as soon as the pointer moves into the mid-range of the scale. At very high ambient temperatures or heavy en-
gine loads, the pointer may move even further to the right.
High temperature range
If the pointer reaches the red area of the scale, the coolant temperature is too high. Further information » page 22.
CAUTION
Additional headlights and other attached components in front of the air inlet im-
pair the cooling efficiency of the coolant.
Fuel gaugeFig. 5
Fuel gauge
First read and observe the introductory information and safety warn-
ings on page 11.
The fuel gauge » Fig. 5 only operates if the ignition is switched on.
The fuel tank has a capacity of about 50 litres. If the amount of fuel reaches the reserve area (the pointer reaches the red scale range), the indicator symbol illumi-
nates
to » page 25 .
CAUTION
Never drive until the fuel tank is completely empty! The irregular supply of fuel
can cause misfiring. This can result in considerable damage to parts of the engine
and the exhaust system.
Note
■ After filling up, it can occur that during dynamic driving (e.g. numerous curves,
braking, driving downhill and climbing a steep hill) the fuel gauge indicates ap-
prox. a fraction less. When stopping or during less dynamic driving, the fuel gauge displays the correct fuel level again. This is not a fault.■
The arrow next to the icon within the fuel gauge displays the installation
location of the fuel filler on the right side of the vehicle.
13Instruments and warning lights
Page 17 of 287

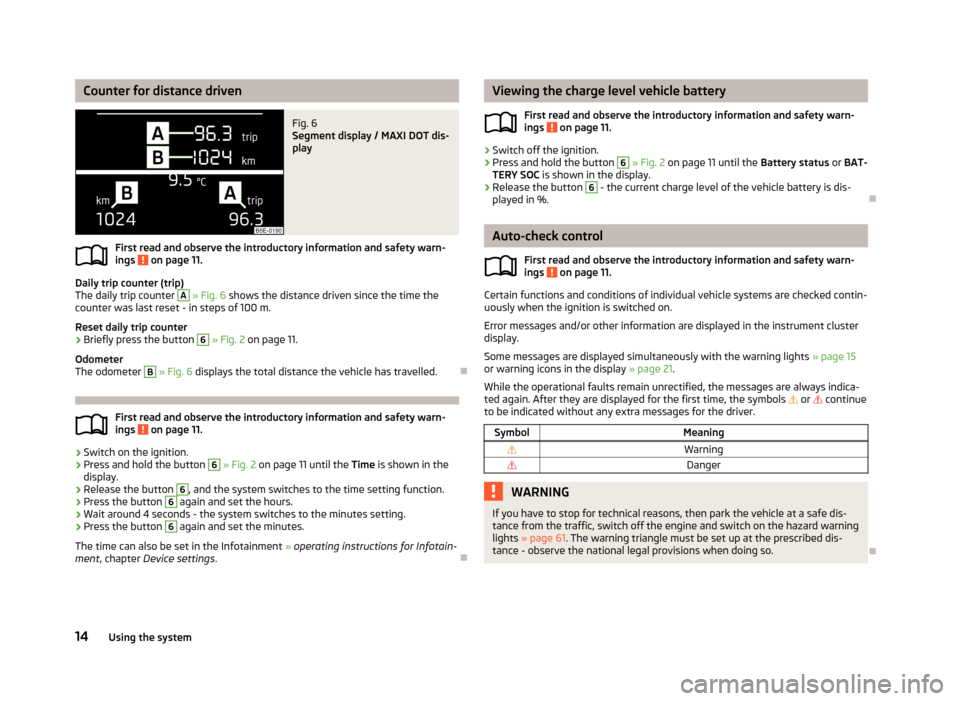

Counter for distance drivenFig. 6
Segment display / MAXI DOT dis-
play
First read and observe the introductory information and safety warn-
ings on page 11.
Daily trip counter (trip)
The daily trip counter
A
» Fig. 6 shows the distance driven since the time the
counter was last reset - in steps of 100 m.
Reset daily trip counter
›
Briefly press the button
6
» Fig. 2 on page 11.
Odometer
The odometer
B
» Fig. 6 displays the total distance the vehicle has travelled.
First read and observe the introductory information and safety warn-
ings on page 11.
›
Switch on the ignition.
›
Press and hold the button
6
» Fig. 2 on page 11 until the Time is shown in the
display.
›
Release the button
6
, and the system switches to the time setting function.
›
Press the button
6
again and set the hours.
›
Wait around 4 seconds - the system switches to the minutes setting.
›
Press the button
6
again and set the minutes.
The time can also be set in the Infotainment » operating instructions for Infotain-
ment , chapter Device settings .
Viewing the charge level vehicle battery
First read and observe the introductory information and safety warn-ings
on page 11.
›
Switch off the ignition.
›
Press and hold the button
6
» Fig. 2 on page 11 until the Battery status or BAT-
TERY SOC is shown in the display.
›
Release the button
6
- the current charge level of the vehicle battery is dis-
played in %.
Auto-check control
First read and observe the introductory information and safety warn-ings
on page 11.
Certain functions and conditions of individual vehicle systems are checked contin-
uously when the ignition is switched on.
Error messages and/or other information are displayed in the instrument clusterdisplay.
Some messages are displayed simultaneously with the warning lights » page 15
or warning icons in the display » page 21.
While the operational faults remain unrectified, the messages are always indica-
ted again. After they are displayed for the first time, the symbols
or
continue
to be indicated without any extra messages for the driver.
SymbolMeaningWarningDangerWARNINGIf you have to stop for technical reasons, then park the vehicle at a safe dis-
tance from the traffic, switch off the engine and switch on the hazard warning
lights » page 61 . The warning triangle must be set up at the prescribed dis-
tance - observe the national legal provisions when doing so.
14Using the system
Page 18 of 287

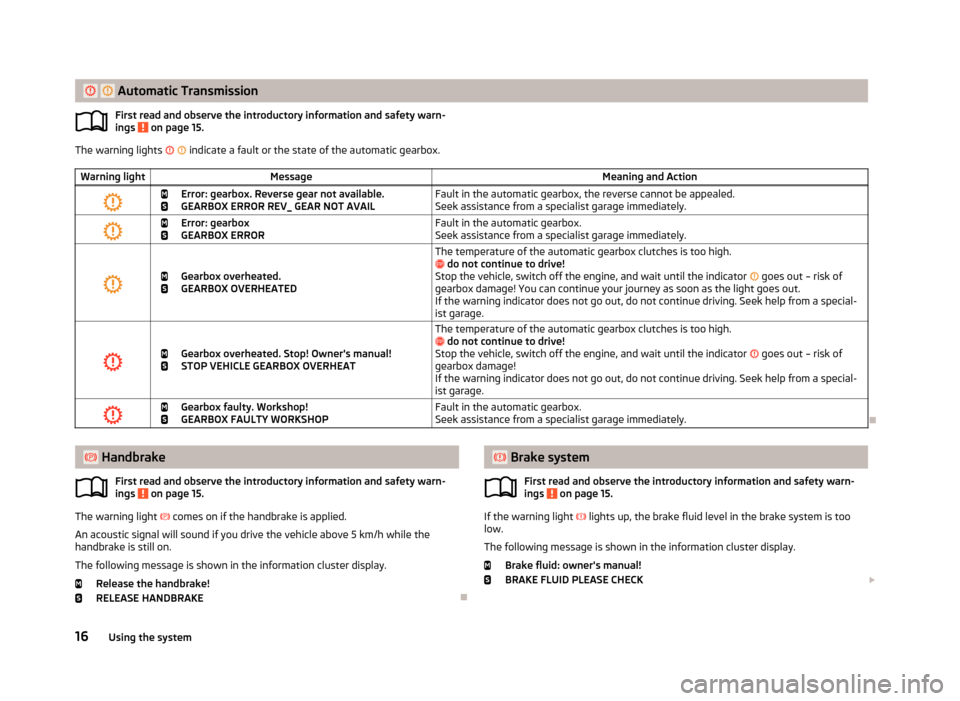

Warning lights
Introduction
This chapter contains information on the following subjects:
Automatic Transmission
16
Handbrake
16
Brake system
16
Seat belt warning light
17
Power steering
17
Traction Control System (ASR)
17
Traction control system (TCS) off
18
Electronic Stability Control (ESC)
18
Antilock brake system (ABS)
18
Rear fog light
19
Exhaust inspection system
19
Glow plug system (diesel engine)
19
Engine performance check (petrol engine)
19
Security Systems
19
Tyre inflation pressure
20
Brake linings
20
Lane following system (Lane Assist)
20
Turn signal system
20
Trailer turn signal lights
20
Fog lights
21
Cruise control system
21
Selector lever lock
21
Main beam
21
The warning lights indicate certain functions or faults.
Some warning lights can be accompanied by acoustic signals and messages in the
display of the instrument cluster.
After switching on the ignition, some warning lights illuminate briefly as a func-
tion test.
If the tested systems are OK, the corresponding warning lights go out a few sec-
onds after switching on the ignition.
The condition of some features and systems is shown by the warning icons on
the display » page 21.
The warning lights are at the following locations in the instrument cluster » Fig. 2
on page 11.
› Revolutions counter 1
›Speedometer
3
›Bar with warning lights
5WARNING■
Ignoring illuminated warning lights and related messages or instructions in
the display of the instrument cluster may lead to serious personal injury or
damage to the vehicle.■
If you have to stop for technical reasons, then park the vehicle at a safe dis-
tance from the traffic, switch off the engine and activate the hazard warning
light system » page 61. The warning triangle must be set up at the prescri-
bed distance - observe the national legal provisions when doing so.
■
The engine compartment of your car is a hazardous area. While working in
the engine compartment, be sure to observe the following warn- ings » page 215 , Engine compartment .
15Instruments and warning lights
Page 19 of 287
Automatic TransmissionFirst read and observe the introductory information and safety warn-
ings on page 15.
The warning lights indicate a fault or the state of the automatic gearbox.
Warning lightMessageMeaning and Action
Error: gearbox. Reverse gear not available.
GEARBOX ERROR REV_ GEAR NOT AVAILFault in the automatic gearbox, the reverse cannot be appealed. Seek assistance from a specialist garage immediately.
Error: gearbox
GEARBOX ERRORFault in the automatic gearbox.
Seek assistance from a specialist garage immediately.
Gearbox overheated.
GEARBOX OVERHEATED
The temperature of the automatic gearbox clutches is too high.
do not continue to drive!
Stop the vehicle, switch off the engine, and wait until the indicator goes out – risk of
gearbox damage! You can continue your journey as soon as the light goes out.
If the warning indicator does not go out, do not continue driving. Seek help from a special- ist garage.
Gearbox overheated. Stop! Owner's manual!
STOP VEHICLE GEARBOX OVERHEAT
The temperature of the automatic gearbox clutches is too high.
do not continue to drive!
Stop the vehicle, switch off the engine, and wait until the indicator goes out – risk of
gearbox damage!
If the warning indicator does not go out, do not continue driving. Seek help from a special- ist garage.
Gearbox faulty. Workshop!
GEARBOX FAULTY WORKSHOPFault in the automatic gearbox.
Seek assistance from a specialist garage immediately.
Handbrake
First read and observe the introductory information and safety warn-
ings
on page 15.
The warning light comes on if the handbrake is applied.
An acoustic signal will sound if you drive the vehicle above 5 km/h while the
handbrake is still on.
The following message is shown in the information cluster display. Release the handbrake!
RELEASE HANDBRAKE
Brake system
First read and observe the introductory information and safety warn-
ings
on page 15.
If the warning light lights up, the brake fluid level in the brake system is too
low.
The following message is shown in the information cluster display. Brake fluid: owner's manual!
BRAKE FLUID PLEASE CHECK
16Using the system
Page 20 of 287
Stop the vehicle, switch off the engine, and check the level of the brake flu-
id » page 223 » .
If the warning light lights up together with the warning light , there is a
problem with the ABS.WARNING■ If you have to stop for technical reasons, then park the vehicle at a safe dis-
tance from the traffic, switch off the engine and switch on the hazard warning lights » page 61 . The warning triangle must be set up at the prescribed dis-
tance - observe the national legal provisions when doing so.■
If the warning light is displayed simultaneously with warning light
» page 18 , Antilock brake system (ABS) , do not continue your jour-
ney! Seek help from a specialist garage.
■
A fault to the braking system can increase the vehicle's braking distance -
risk of accident!
Seat belt warning light
First read and observe the introductory information and safety warn-ings
on page 15.
The warning light
comes on after the ignition is switched on as a reminder for
the driver and front passenger to fasten the seat belt.
The warning light
goes out if the driver or front passenger has fastened their
seat belt.
If the driver or front passenger has not fastened their seat belt and the vehicle
speed is more than 30 km/h, the warning light
flashes and you will hear an
acoustic signal.
If the seat belt is not fastened by the driver or front passenger during the next
approx. 2 seconds, the warning signal is deactivated and the warning light
lights up permanently.
Further information » page 180, Seat belts .
Power steering
First read and observe the introductory information and safety warn-
ings
on page 15.
If the warning light lights up, this indicates a partial failure of the power steer-
ing and the steering forces can be greater. Seek assistance from a specialist ga-
rage immediately.
If the warning light lights up, this indicates a complete failure of the power
steering and the steering assist has failed (significantly higher steering forces).
Seek assistance from a specialist garage immediately.
Further information » page 119, Power steering .
Note
If the vehicle's battery has been disconnected and reconnected, the warning light
comes on after switching on the ignition. The warning light should go out after
driving a short distance. If, after starting the engine again and a short drive, the
yellow warning light does not go out, there is a fault in the system. Seek assis-
tance from a specialist garage immediately.
Traction Control System (ASR)
First read and observe the introductory information and safety warn-
ings
on page 15.
If your vehicle is equipped with the ESC system, the TCS is part of the
ESC » page 137 .
The warning light flashes
to show that the ASR is currently operating.
If the warning light
illuminates , there is a fault in the ASR.
The following message is shown in the information cluster display. Error: traction control
ASR ERROR
Seek assistance from a specialist garage immediately. If the warning light
comes on after starting the engine, the TCS may be switch-
ed off for technical reasons.
› Switch the ignition off and on again.
17Instruments and warning lights
