Seats and Stowage
90
– Close the lid in direction of arrow 2.
– Press on the button marked “PUSH” ⇒page 89, fig. 77
and push the folding box into the secured middle position.
– Once again press on the button marked “PUSH” and push the folding box carefully into the secured position against the
partition of the luggage compartment in direction of arrow
(ready position). If correctly locked, the button marked “PUSH” is moved back into its initial position.
You can leave the folding box in the ready position for use, or lower it into
the transport position ⇒page 87.
Caution
•The parts of the folding box can be damaged if handled roughly or in
an unprofessional way.
•First check for yourself whether the cover for the through-loading bag*
is closed before you lower the folding box into the ready position on the
partition of the luggage compartment ⇒page 83.
The roof luggage rack system
Description
Pay attention to the following points if you wish to transport luggage or
other items on the roof of your vehicle:
•Your car has streamlined rain channels integrated into the roof. For
this reason, it is not possible to use conventional roof racks. We therefore recommend that you only use base roof bars from the Škoda Genuine
Accessories.
•These base roof bars are the supporting elements for a complete roof
bar system. Separate additional components are required for safety
reasons for transporting luggage, bikes, surfboards, skis and boats. All
these system components are available from Škoda Dealers.
Caution
•If you use other roof rack systems or if the roof bars are not properly
fitted, then any damage which may result to your car is not covered by the
warranty agreements. It is therefore essential to pay attention to the fitting
instructions supplied with the roof luggage rack system.
•On models fitted with a power sliding/tilting roof, ensure that the
opened sliding/tilting roof does not strike any items of luggage transported
on the roof.
For the sake of the environment
The increased aerodynamic drag results in a higher fuel consumption.
One should therefore take off the roof bar system after use.
AB
AB
A3
AB

Seats and Stowage91
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Attachment points
Installing
When fitting on the feet of the roof bars, ensure that they are positioned
exactly between the arrow markings in the sealing strip on the roof
⇒fig. 78 . The markings are visible only when the doors are open.
Roof load
Distribute weight evenly over the roof luggage rack system. The maximum
permissible roof load (including roof rack system) of 100 kg and the
maximum permissible total weight of the vehicle should not be exceeded.
You cannot make full use of the permissible roof load if you use a roof
luggage rack system with a lower load carrying capacity. The load trans-
ported on the roof luggage rack system must not exceed the weight limit
which is stated in the fitting instructions.
WARNING
•The items which you transport on the roof bar system must be
reliably attached - risk of accident!
•You must on no account exceed the permissible roof load, the
permissible axle loads and the permissible gross weight of your
vehicle - risk of accident!
•Please note that the handling properties of your vehicle change
when you transport heavy or bulky items on the roof bar system as
a result of the displacement of the centre of gravity and the
increased wind attack area - risk of accident! You must absolutely
adapt your style of driving and the speed of the vehicle to the
specific circumstances.
Fig. 78 Attachment
points for roof bars

Seats and Stowage
92
Drinks can holder
Drinks can holder in centre console
You can place two cups or beverage cans into the recesses ⇒fig. 79 .
WARNING
•Do not place any hot beverages into the can holder while the car
is moving. The hot beverages may spill - risk of scalding!
•Do not use any cups or beakers which are made of hard or brittle
material (e.g. glass, porcelain). You might be injured by them in the
event of an accident!
Drinks can holder in armrest of the rear seats
The drinks can holder is provided in the stowage compartment.
Access to drinks can holder
– Raise the cover of the armrest.
– You can take off the drinks can holder. Unlock it ⇒fig. 80 and
attach it to the cover of the armrest.
Only place cans into the drinks can holder which are held tight in the
holder.
It is possible to place up to two beverage cans in the drinks can holder of
the armrest.
Fig. 79 Centre
console: Drinks can
holder
Fig. 80 Drinks can
holder in rear armrest

Seats and Stowage93
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
WARNING
•Do not place any hot beverages into the can holder while the car
is moving. The hot beverages may spill - risk of scalding!
•Do not use any cups or beakers which are made of hard or brittle
material (e.g. glass, porcelain). You might be injured by them in the
event of an accident!
Ashtray
Ashtray at the front
Opening ashtray
– Press on the bottom part of the cover of the ashtray - refer to ⇒ fig. 81. Removing the ashtray insert
– Grasp the ashtray insert ⇒
fig. 81 at the side recesses and
pull it out.
Replacing the ashtray insert
– Press the ashtray insert into the mount.
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!
Ashtray at the rear*
Opening ashtray
– Press on the top part of the cover of the ashtray.
Fig. 81 Centre
console: opened
ashtray
AA
AB
Fig. 82 Ashtray at the
rear

Seats and Stowage
94
Removing the ashtray insert
– Press the cover of the ashtray down slightly as far as the stop.
– Grasp the ashtray insert and pull it out at an angle of about 45°.
Replacing the ashtray insert
– Position the ashtray insert at an angle of about 45° and press it into the mount as far the stop.
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!
Ashtray in the armrest*
Ashtray located in the armrest of the rear right door
Opening ashtray
– Press on the middle part of the cover of the ashtray.
Removing the ashtray insert
– Press on the top part of the opened ashtray in position , the ashtray insert is raised ⇒fig. 83 .
Replacing the ashtray insert
– Press the ashtray insert into the armrest.
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!
Fig. 83 Ashtray in the
armrest of the rear right
door
AA
AB

Seats and Stowage95
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Cigarette lighters and power sockets
Cigarette lighter
You can also use the socket on the cigarette lighter for
other electrical appliances.
Using the cigarette lighter
– Press on the bottom part of the cover of the ashtray - refer to
⇒ fig. 84.
– Press in the button of the cigarette lighter (see arrow).
– Wait until the button jumps forward.
– Remove the cigarette lighter immediately and use it.
– Insert the cigarette lighter again into the socket. Using the power socket
– Take out the cigarette lighter.
– Insert the plug of the electrical appliance into the socket of the
cigarette lighter.
The 12 volt power socket can also be used to supply power to electrical
accessories with a power uptake up to 100 watts.
WARNING
•Take care when using the cigarette lighter! Not paying proper
attention or incorrect use the cigarette lighter in an uncontrolled
manner may result in burns.
•The cigarette lighter and the power socket also operates when
the ignition is switched off or the ignition key withdrawn. This is
why you should never leave children unattended in the vehicle!
Caution
Only use matching plugs, which fulfils the DIN - ISO Standard 4165, to
avoid damaging the power sockets.
Note
Connecting electrical components when the engine is not running
will drain the battery of the vehicle - risk of battery draining!
Fig. 84 Centre
console: Cigarette
lighter
AA

Seats and Stowage
96
Cigarette lighter in rear compartment*
Operating and further information regarding the use of the cigarette lighter
⇒page 95.
Power socket in the luggage compartment
– Open the cover of the power socket ⇒fig. 86 .
– Connect the plug of the electrical appliance to the socket.
It fulfils the requirements of DIN standard ISO 4165 and must only be used
for connecting approved electrical accessories with a power uptake of up
to 100 watts. The vehicle battery will be discharged in the process if the
engine is stationary.
Further information concerning use of the power socket ⇒page 233,
“Accessories and replacement parts”.
Fig. 85 Centre
console: Cigarette
lighterFig. 86 Luggage
compartment: Power
socket

Seats and Stowage97
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Storage facilities
An overview
You will find the following storage facilities in your vehicle:
WARNING
•Please do not place anything on top of the dash panel. Such
objects might slide or fall down when driving (when accelerating or
cornering) and may distract you from concentrating on the traffic
situation - risk of accident!
•Ensure that when driving no objects from the centre console of
from other storage possibilities may get into the footwell of the driver. You would then no longer be able to apply the brakes,
operate the clutch or accelerator - risk of accident!
Storage compartment on the front passenger side
The storage compartment on the front passenger side is
lockable* and illuminated.
Opening the storage compartment
– Pull the handle in the lid in direction of arrow
⇒fig. 87 and pull
the lid down.
Closing the stor age compartment
– Raise the lid and press it until the catch is heard to engage.
First-aid box⇒ page 235
Stowage compartment for warning triangle⇒page 235
Storage compartment on the front passenger
side⇒page 97
Storage drawer*⇒page 98
Stowage compartment in centre console⇒page 99
Stowage compartment for spectacles*⇒page 99
Stowage compartment below steering wheel⇒page 100
Stowage compartment in door panel⇒page 100
Stowage compartment for an umbrella*⇒page 101
Armrest with stowage compartment⇒page 102
Rear armrest with stowage compartment*⇒page 103
Clothes hooks⇒page 103
WARNING (continued)
Fig. 87 Dash panel:
Storage compartment

Seats and Stowage

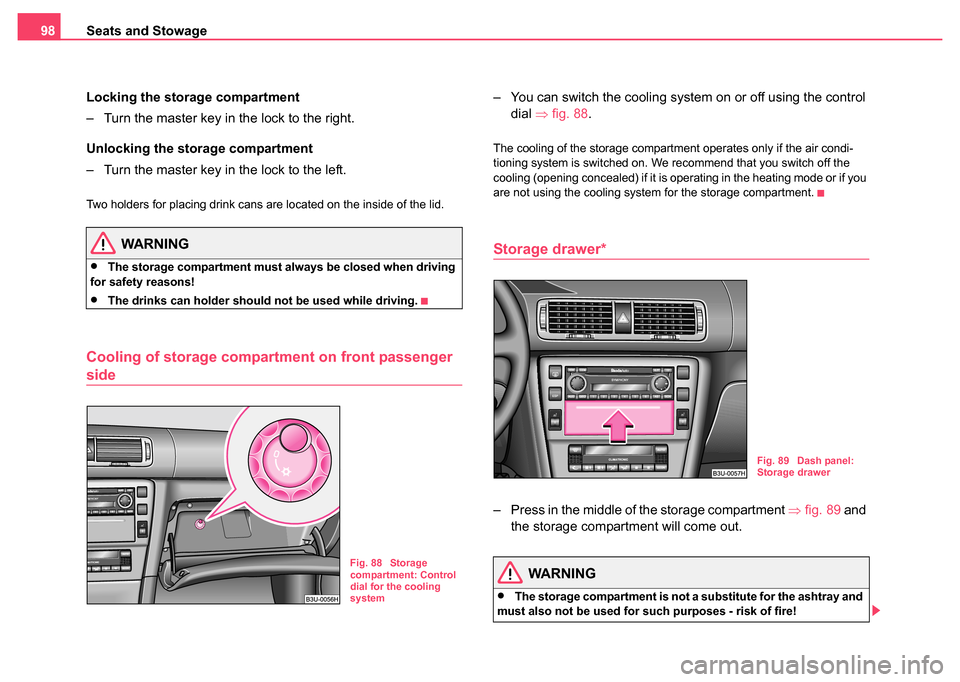

98
Locking the storage compartment
– Turn the master key in the lock to the right.
Unlocking the storage compartment
– Turn the master key in the lock to the left.
Two holders for placing drink cans are located on the inside of the lid.
WARNING
•The storage compartment must always be closed when driving
for safety reasons!
•The drinks can holder should not be used while driving.
Cooling of storage compar tment on front passenger
side
– You can switch the cooling system on or off using the control
dial ⇒fig. 88 .
The cooling of the storage compartment operates only if the air condi-
tioning system is switched on. We recommend that you switch off the
cooling (opening concealed) if it is operating in the heating mode or if you
are not using the cooling system for the storage compartment.
Storage drawer*
– Press in the middle of the storage compartment ⇒fig. 89 and
the storage compartment will come out.
WARNING
•The storage compartment is not a substitute for the ashtray and
must also not be used for such purposes - risk of fire!
Fig. 88 Storage
compartment: Control
dial for the cooling
system
Fig. 89 Dash panel:
Storage drawer

Seats and Stowage99
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
•The storage compartment must always be closed when driving
for safety reasons!
Stowage compartment in centre console
Opening
– Press on the top part of the cover in direction of arrow. The drawer will come out.
Pulling out compartment
– Press the compartment in the opening direction as far as the stop. Grasp the compartment at the sides and pull it up and
out. Inserting compartment
– Insert the compartment back into its mount and close the
cover.
WARNING
•The storage compartment is not a substitute for the ashtray and
must also not be used for such purposes - risk of fire!
•The storage compartment must always be closed when driving
for safety reasons.
Stowage compartment for spectacles*
The stowage compartment is located above the front left window.
WARNING (continued)
Fig. 90 Centre
console: Storage
compartment
Fig. 91 Stowage
compartment for spec-
tacles
