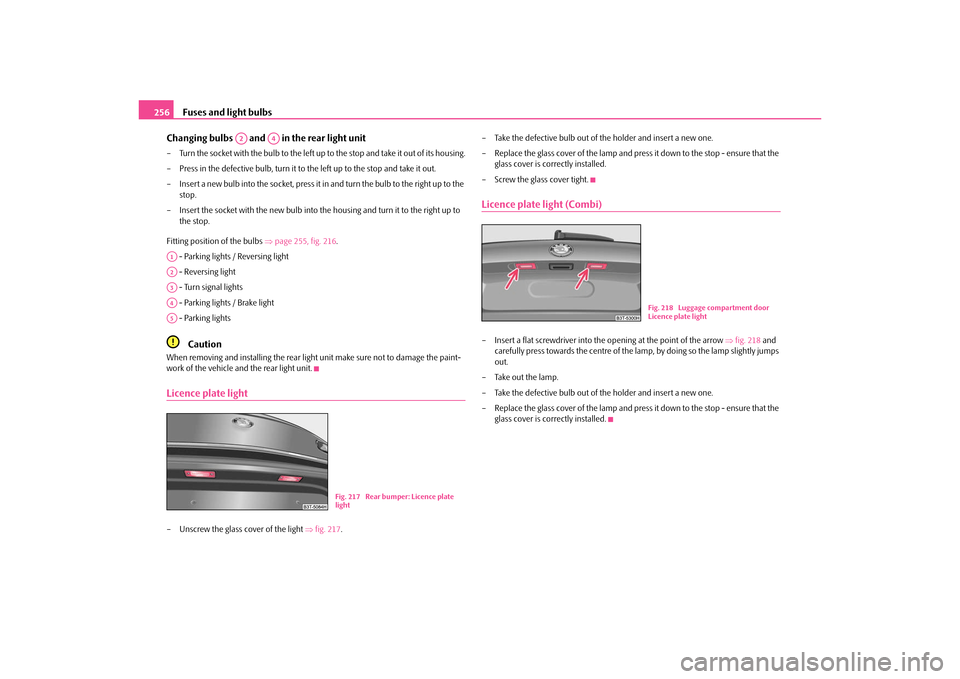

Fuses and light bulbs
256
Changing bulbs and in the rear light unit
– Turn the socket with the bulb to the left up to the stop and take it out of its housing.
– Press in the defective bulb, turn it to the left up to the stop and take it out.
– Insert a new bulb into the socket, press it in and turn the bulb to the right up to the
stop.
– Insert the socket with the new bulb into the housing and turn it to the right up to the stop.
Fitting position of the bulbs page 255, fig. 216.
- Parking lights / Reversing light
- Reversing light
- Turn signal lights
- Parking lights / Brake light
- Parking lights
Caution
When removing and installing the rear ligh t unit make sure not to damage the paint-
work of the vehicle and the rear light unit.Licence plate light– Unscrew the glass cover of the light fig. 217 . – Take the defective bulb out of the holder and insert a new one.
– Replace the glass cover of the lamp and press it down to the stop - ensure that the
glass cover is correctly installed.
– Screw the glass cover tight.
Licence plate light (Combi)– Insert a flat screwdriver into the opening at the point of the arrow fig. 218 and
carefully press towards the centre of the lamp, by doing so the lamp slightly jumps
out.
– Take out the lamp.
– Take the defective bulb out of the holder and insert a new one.
– Replace the glass cover of the lamp and press it down to the stop - ensure that the glass cover is correctly installed.
A2
A4
A1A2A3A4A5
Fig. 217 Rear bumper: Licence plate
light
Fig. 218 Luggage compartment door
Licence plate light
s3fg.2.book Page 256 Friday, April 30, 2010 12:17 PM
Page 278 of 287
Index277
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Index
AAbroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Active driver-steering recommendation . . . . . . . 189
Adaptive headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Adjusting seats . . . . . . . . . . . . . . . . . . . . . . . . . . 80, 162 electrically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Adjusting the steering wheel . . . . . . . . . . . . . . . . . . 121
AHL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . 111 Recirculated air mode . . . . . . . . . . . . . . . . . . . . 113
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170 Deployment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Head airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Knee airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Alternator Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Antilock brake system . . . . . . . . . . . . . . . . . . . . . . . . 191
Antilock brake system (ABS) Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Anti-theft alarm system . . . . . . . . . . . . . . . . . . . . . . . . 50
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Assigning the remote control key to the memory buttons
82
Auto Check Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Auto Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Automatic driving lamp control . . . . . . . . . . . . . . . . 61
Automatic gearbox Emergency programme . . . . . . . . . . . . . . . . . . . 140
Automatic gearbox DSG . . . . . . . . . . . . . . . . . . . . . . 136 Kickdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Selector lever-emergency unlocking . . . . . . . 140
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Automatic rear window wiper (Combi) . . . . . . . . . . 75
Automatic seat adjustment . . . . . . . . . . . . . . . . . . . . 82
Automatic vehicle wash systems . . . . . . . . . . . . . . 205
Automatic wiper/washer system . . . . . . . . . . . . . . . 73
AUX-IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Avoiding damage to your vehicle . . . . . . . . . . . . . . 200
BBattery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36, 222 change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Charge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Inspecting the electrolyte level . . . . . . . . . . . . . 225
Operation in winter . . . . . . . . . . . . . . . . . . . . . . . 225
Before setting off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Belt Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 215
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Boot lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Brake Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Brake Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Brake booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Brake pads Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Bulbs Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Button for the central locking system . . . . . . . . . . . 42
Button in the driver's door Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
CCar state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . . . 196
CD changer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Central locking system . . . . . . . . . . . . . . . . . . . . . . . . . 38
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
s3fg.2.book Page 277 Friday, April 30, 2010 12:17 PM
Page 279 of 287
Index
278
Changing the engine oil . . . . . . . . . . . . . . . . . . . . . . 218
Changing wheels around . . . . . . . . . . . . . . . . . . . . . 230
Charging the battery . . . . . . . . . . . . . . . . . . . . . . . . . 225
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Check engine oil level . . . . . . . . . . . . . . . . . . . . . . . . 217
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180 Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Child safety seat on the front passenger seat . . . . . . . . . . . . . . . 181
Safety information . . . . . . . . . . . . . . . . . . . . . . . 180
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182 Classification into groups . . . . . . . . . . . . . . . . . 182
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Use of child safety seats . . . . . . . . . . . . . . . . . . 183
Children and safety . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Chrome parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Climatic Air outlet vents . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Climatronic Defrosting windows . . . . . . . . . . . . . . . . . . . . . . 117
Recirculated air mode . . . . . . . . . . . . . . . . . . . . 116
Climatronic (automat ic air conditioning) . . . . . . 114
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Clothes hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Cockpit General view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Compartments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Connection to the internet . . . . . . . . . . . . . . . . . . . 158 Convenience operation . . . . . . . . . . . . . . . . . . . . . . . 54
Converting/masking over headlights . . . . . . . . . . 200
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
replenishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Coolant level Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Coolant quantity Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Coolant temperature gauge . . . . . . . . . . . . . . . . . . . 16
Coolant temperature/coolant level Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Correct seated position . . . . . . . . . . . . . . . . . . . . . . 162
Counter for distance driven . . . . . . . . . . . . . . . . . . . 17
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . 133 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Cup holder front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Ddaylight driving lights . . . . . . . . . . . . . . . . . . . . . . . . . 61
Deactivatingan airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Deactivating an airbag . . . . . . . . . . . . . . . . . . . . . . . 178
Defrosting rear window . . . . . . . . . . . . . . . . . . . . . . . 71
Defrosting windscreen . . . . . . . . . . . . . . . . . . . . . . . . 71
De-icing rear window . . . . . . . . . . . . . . . . . . . . . . . . . 71
De-icing the windows . . . . . . . . . . . . . . . . . . . . . . . . 207
De-icing windscreen . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Description of the operation . . . . . . . . . . . . . . . . . . 45
Detachable towing device . . . . . . . . . . . . . . . . . . . . 204 Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Diesel engines
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . 123
Diesel particle filter . . . . . . . . . . . . . . . . . . . . . . . . . . 193 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Direction indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Distance driven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Door Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Driving economically . . . . . . . . . . . . . . . . . . . . . . . . 196
EEDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Electric boot lid (Combi) - Description . . . . . . . . . . 45
Electric sliding/tilting roof . . . . . . . . . . . . . . . . . . . . . 55
Electrically adjustable exterior mirror . . . . . . . . . . . 77
Electronic Differential Lock . . . . . . . . . . . . . . . . . . . 188
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . . . . . 38
Electronic stability programme . . . . . . . . . . . . . . . 187
Electronic stability programme (ESP) Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Emergency wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Engine starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Engine compartment Safety information . . . . . . . . . . . . . . . . . . . . . . . . 216
s3fg.2.book Page 278 Friday, April 30, 2010 12:17 PM
Page 280 of 287
Index279
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Engine electronics
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
replenishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Engine oil level Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Engine revolutions counter . . . . . . . . . . . . . . . . . . . . 15
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Environmental compatibility . . . . . . . . . . . . . 196, 199
ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Exhaust gas Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Exhaust gas inspection Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Explanations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Exterior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Exterior mirror heater . . . . . . . . . . . . . . . . . . . . . . . . . 77
FFirst-aid box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Fixing net . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64, 253 Indicator light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Fog lights with the function CORNER . . . . . . . . . . . 64
Folding the rear seats forwards (Combi) . . . . . . . . 85
Folding the seat backrest forward . . . . . . . . . . . . . . 85 Front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Front armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Front headlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Diesel fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Fuel consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196 Saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fuel reserve Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Full wheel trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
GGearbox mechanical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
General view Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Glass roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
GSM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145, 152HHandbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Hazard warning light system . . . . . . . . . . . . . . . . . . . 66 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Head airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Head restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 Headlamp range adjustment . . . . . . . . . . . . . . . . . . . 65
Headlight cleaning system . . . . . . . . . . . . . . . . . . . . . 75
Headlight flasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Headlights
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Headlight cleaning system . . . . . . . . . . . . . . . . . . 75
Heated windscreen washer nozzles . . . . . . . . . . . . . 73
Heating Auxiliary heating (auxiliary heating) . . . . . . . . 117
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
IIgnition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Information display . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Instrument lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Interior light Luggage compartment . . . . . . . . . . . . . . . . . . . . . 69
Interior lighting front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Interior monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Intermittent wiping . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
ISOFIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185JJacking points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
s3fg.2.book Page 279 Friday, April 30, 2010 12:17 PM
Page 281 of 287
Index
280
KKESSY system
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . 125
Switching the engine off . . . . . . . . . . . . . . . . . . 125
Switching the ignition off . . . . . . . . . . . . . . . . . 125
Switching the ignition on . . . . . . . . . . . . . . . . . 125
Unlocking and locking the steering . . . . . . . . 125
Unlocking and locking the vehicle . . . . . . . . . . . 40
Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Knee airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173LLashing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Leather care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Lifting jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236, 240
Light automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Lighting of the interior of the vehicle . . . . . . . . . . . . 67
Lights converting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Range adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 65
switching on and off . . . . . . . . . . . . . . . . . . . . . . . 60
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Liquid in reservoir for windscreen washer system Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Locking and unlocking from inside . . . . . . . . . . . . . . 42 Low beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Low beam light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Lugagge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Luggage compartment . . . . . . . . . . . . . . . . . . . . . 44, 87 Automatic foldable luggage compartment cover (Combi) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Fixing of the floor covering . . . . . . . . . . . . . . . . . 90
Foldable luggage compartment cover (Combi) 91
Folding hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Lashing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Removing the variable loading floor . . . . . . . . 92
variable loading floor (Combi) . . . . . . . . . . . . . 92
Luggage compartment light (Combi) Removeable lamp . . . . . . . . . . . . . . . . . . . . . . . . . 70
Luggage rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
MMain beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60, 66 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Manual shifting of gears . . . . . . . . . . . . . . . . . . . . . . 124
MDI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Memory for the on-board computer . . . . . . . . . . . 19
Mobile phone . . . . . . . . . . . . . . . . . . . . . . . . . . . 145, 152 Connection to the hands-fr ee system . . . . . . 152
Connection with the hands-free system . . . . 146
Voice control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Motoring abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Multifunction steering wheel . . . . . . . . . . . . . . . . . 142
Multi-functional indicator . . . . . . . . . . . . . . . . . . . . . 19 Multimedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
NNet partition (Combi) . . . . . . . . . . . . . . . . . . . . . . . . . 95
Note holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99OOil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Oil dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Onboard computer . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Open door Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Opening a single door . . . . . . . . . . . . . . . . . . . . . . . . 38
Opening for skis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Operation in winter Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
De-icing windows . . . . . . . . . . . . . . . . . . . . . . . . 207
Operational faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Outside temperature . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Overview of the engine compartment . . . . . . . . . 217PPaint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Paint damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Panoramic sliding roof (Combi) closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
opening and tilting . . . . . . . . . . . . . . . . . . . . . . . . 57
Sun screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
s3fg.2.book Page 280 Friday, April 30, 2010 12:17 PM
Page 282 of 287
Index281
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Park Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Parking aid
rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
parking aid Front and rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Parking light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Parking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Passive Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Petrol engines Starting the engine . . . . . . . . . . . . . . . . . . . . . . . 123
Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Power socket in the luggage compartment . . . . . 100
Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Button in the driver's door . . . . . . . . . . . . . . . . . 52
Button in the front passenger door and in the rear doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Operational faults . . . . . . . . . . . . . . . . . . . . . . . . . 54
with central locking system . . . . . . . . . . . . . . . . . 54
RRadiator fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Rear armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86, 104
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Rear light unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
Rear light unit (Combi) . . . . . . . . . . . . . . . . . . . . . . . 255 Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Rear window
Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Rear window heater . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Rear-view mirror Exterior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Recharge battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Recommendation for changing gears . . . . . . . . . . . 19
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Synchronisation process . . . . . . . . . . . . . . . . . . . 50
Replacing fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Replacing the wiper blade fo r rear window (Combi) 76
Replacing the wiper blades . . . . . . . . . . . . . . . . . . . . 76
Roof aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Running in the car . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
SSafe securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Safety information Engine compartment . . . . . . . . . . . . . . . . . . . . . 216
Safety wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Saving electrical energy . . . . . . . . . . . . . . . . . . . . . . . 196
Seat belt height adjuster . . . . . . . . . . . . . . . . . . . . . . 167
Seat belt warning light . . . . . . . . . . . . . . . . . . . . . . . . 167
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165, 168 Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
fastening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Height adjustment . . . . . . . . . . . . . . . . . . . . . . . . 167 Safety information . . . . . . . . . . . . . . . . . . . . . . . 166
taking off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Seat heaters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Selector lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Selector lever lock Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Selector lever positions . . . . . . . . . . . . . . . . . . . . . . 137
Selector lever-emergency unl ocking (DSG) . . . . 140
Service Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Service Interval Display . . . . . . . . . . . . . . . . . . . . . . . . 17
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Setting the top position of the lid . . . . . . . . . . . . . . . 45
Shifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Stability system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . 122 after fuel tank has run empty . . . . . . . . . . . . . 123
Diesel engines . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Petrol engines . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Steering active driver-steering recommendation . . . 189
Steering force assistance . . . . . . . . . . . . . . . . . . . . . 192
Storage compartment Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Umbrella . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Storage compartments . . . . . . . . . . . . . . . . . . . . . . 100
Storage facilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
s3fg.2.book Page 281 Friday, April 30, 2010 12:17 PM
Page 283 of 287
Index
282
Sun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Sun screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Switching lights on and off . . . . . . . . . . . . . . . . . . . . . 60
Switching off the engine . . . . . . . . . . . . . . . . . . . . . 123TTaking care of your vehicle . . . . . . . . . . . . . . . . . . . 205
Taking out the lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
TCS
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145, 152
Temperature outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
the first 1 500 kilometres . . . . . . . . . . . . . . . . . . . . . 195
The roof luggage rack system . . . . . . . . . . . . . . . . . . . 97
Thickness of brake pads Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Through-loading bag . . . . . . . . . . . . . . . . . . . . . . . . 106
Tilting roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Tiptronic automatic gearbox DSG . . . . . . . . . . . . . . . . . . 139
Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Top Tether . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Towing device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Towing protection monitoring . . . . . . . . . . . . . . . . . . 51
towing vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Tow-starting and towing vehicle Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . 140
Traction control system . . . . . . . . . . . . . . . . . . . . . . 188 Traction control system (TCS)
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202 General Maintenance . . . . . . . . . . . . . . . . . . . . 202
Transporting children . . . . . . . . . . . . . . . . . . . . . . . . 180
Tread depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Twindoor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Two-way radio systems . . . . . . . . . . . . . . . . . . . . . . 145
Tyre . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Tyre inflation pressure Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Tyre repair kit Tyre repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Tyres Winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
UUnderbody protection . . . . . . . . . . . . . . . . . . . . . . . 209
Unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Uphill Start Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192VVanity mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Ventilation Auxiliary ventilation . . . . . . . . . . . . . . . . . . . . . . 117
Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
WWarning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Warning symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Warning triangle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205 with a high-pressure cleaner . . . . . . . . . . . . . . 206
Washing the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 205
Washing vehicle by hand . . . . . . . . . . . . . . . . . . . . . 206
Wax treatment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Wheel Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Spare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Wheel trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228, 238
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 de-icing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Windscreen Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Windscreen heater . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Windscreen washer nozzles . . . . . . . . . . . . . . . . . . . 73
Windshield washer fluid reservoir . . . . . . . . . . . . . 226 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Windshield washer system . . . . . . . . . . . . . . . . . . . 226
Windshield wiper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Wiper blades Replacing the wiper blades . . . . . . . . . . . . . . . . . 76XXenon headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
s3fg.2.book Page 282 Friday, April 30, 2010 12:17 PM
