technical data SKODA YETI 2009 1.G / 5L Owner's Guide

Unlocking and locking
41
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Indicator light in the driv
er's door on vehicles with anti-theft alarm system
After locking the vehicle the indicator light fl
ashes for 2 seconds fast, then more slowly.
If the vehicle is locked and the safe securing system
⇒page 41 is not operating, the
indicator light in the driver door flashes for
about 2 seconds fast, goes out and starts to
flash slowly after about 30 seconds. If the indicator light first of all flashes fast for about 2 seconds, afterwards lights up for about 30 seconds and then flashes slowly, there is a fault in the system of the central locking or the interior monitor*
⇒page 47. Visit a specialist garage to obtain assist-
ance. Convenience operation of windows One can open and close the electrically powered windows when unlocking and locking the vehicle
⇒page 49.
Opening a single door* This function makes it possible to only unlock the driver's door. The other doors and the fuel filler flap* remain locked and ar
e only unlocked after repetitive unlocking.
If you wish, you can have a sp
ecialist garage activate the function of the single door
opening mode or you can activate it yourself
in the menu of the information display*
⇒ page 24. Automatic locking* All the doors and the boot lid are locked au
tomatically once the car reaches a speed of
about 15 km/h. If the ignition key is withdrawn, the car is
then automatically unlocked again. In addi-
tion, it is possible for the driver to unlock
the car by pressing the central locking button
 ⇒page 40 or by pulling the door opening lever.
If you wish, you can have a sp
ecialist garage activate the function of the single door
opening mode or you can activate it yourself
in the menu of the information display*
⇒ page 24.
WARNING
Locking the doors prevents
involuntary opening in an exceptional situation (an
accident). Locked doors prevent unwanted
entry into the vehicle from outside,
for example at road crossings. Locked do
ors do, however, make it more difficult
for rescuers to get into the vehicle
in an emergency - danger to life!
Note
•
In the event of an accident in which the airbags are deployed, the locked doors are
automatically unlocked in order to enable
rescuers to gain access to the vehicle.
•
Only the front doors can be unlocked and locked using the key if the central locking
system fails. You can lock or unlock ma
nually the other doors and the boot lid.
− Emergency locking of the door
⇒page 43.
− Emergency unlocking of the boot lid
⇒page 44.
Safe securingThe central locking system is equipped with a
safe securing
6) system. Locking the
vehicle from the outside causes
the door locks to be automatically blocked. It is not
possible to open the doors with the door ha
ndle either from the inside or from the
outside. This acts as
an effective deterrent for attemp
ts to break into your vehicle.
You can deactivate the safe securing sy
stem by locking twice within 2°seconds.
If the safe securing system is not operating, the warning light in the driver door flashes for about 2 seconds fast, goes out and starts to flash slowly again after about 30°seconds. The safe securing system is again activate
d the next time the vehicle is unlocked and
locked again. If the vehicle is locked and the safe securi
ng system is deactiva
ted, you can open the
vehicle from the inside by pulling on the door opening lever. The door is unlocked and opened at the same time.6)Only valid for some countries.WARNING (continued)
sgg.6.book Page 41 Thursday, September 24, 2009 2:32 PM

Unlocking and locking
43
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Button for the central locking systemIf the vehicle was not locked from outside,
you can also unlock and lock it with the
rocker switch on the centre consol
e without the ignition switched on.
Locking all doors and the boot lid– Press button
⇒page 43, fig. 34
. The symbol
 in the button comes on.
Unlocking all doors and the boot lid– Press button
⇒page 43, fig. 34
. The symbol
 goes out in the button.
The following applies if
you have locked your vehicle using the button :
•
It is not possible to open the doors or the boot lid from the outside (safety feature,
e.g. when stopping at traffic lights etc.).•
You can unlock the doors individually from the inside and open them by pulling the
door opening lever.•
As long as one door is opened
7), the doors cannot be locked in order to avoid inad-
vertently locking the key in the vehicle.•
In the event of an accident in which the airbags are deployed, the locked doors are
automatically unlocked from the inside in orde
r to enable rescuers to gain access to
the vehicle. By pressing and holding the button or ,
you can conveniently close or open the
windows
⇒page 49.
WARNING
The central locking system al
so operates if the ignition is switched off. All the
doors and the boot lid are locked. Children should never be left unattended in the vehicle since it is difficult to prov
ide assistance from the outside when the
doors are locked. Locked doors make it difficult for rescuers to get into the vehicle in an emergency - hazard!
Note
The door opening lever and the buttons for
the central locking system do not operate
if the safe securing system is activated.Emergency locking of the doorsAll the other doors without locking cylinder
have an emergency locking which is only
visible once the door is opened. The emergenc
y locking must be used in particular if
the vehicle battery fails.Locking– Remove the panel
⇒fig. 35
.
– Insert the key into the slot and turn it
into the horizontal position in the direc-
tion of the arrow (mirror-inverted on the right doors).
– Re-insert the panel.
7)Is not valid for the boot lid.
Fig. 34 Centre console: Buttons for central locking
A1A2
A1
A1
A2
Fig. 35 Rear door: Emergency locking of the door
AA
AB
sgg.6.book Page 43 Thursday, September 24, 2009 2:32 PM

Unlocking and locking
45
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Remote control*DescriptionYou can use the remote control:•
to unlock and lock the car,
•
unlocking boot lid,
•
electrically open and close the windows.
The transmitter with the battery is incorporated in the handle of the remote control key. The receiver is located in the interior of the car. The operating range of the remote control is approx. 10 m. But this range of
the remote control can be reduced if the
batteries are weak. The remote control key has a fold-open key
bit which can be used
for unlocking and
locking the car manually and also for starting the engine. If a lost key is replaced or if the receiver unit has been repaired or a new unit installed, it is then necessary for a specialist garage to adapt the system. Only after this is it possible to again use the remote control.
Note
•
The remote control is automatically deactivated when the ignition is switched on.
•
The operation of the remote control may temporarily be affected by interference
from transmitters close to th
e car and which operate in the same frequency range (e.g.
mobile phone, TV transmitter).•
The battery must be replaced, ideally by a specialist garage, if the central locking or
anti-theft alarm system does react to the remote control at less than 3 metres away.•
If the driver door is opened, the vehi
cle cannot be locked using the remote
control.
Unlocking and locking carUnlocking the vehicle

– Press the button
⇒fig. 38
for about 1 second.
Locking the vehicle

– Press button for about 1 second.Deactivating safe securing system– Press button twice in 2seconds. Further information
⇒page 41.
Boot lid remote release

– Press button for about 2 second. Further information
⇒page 44.
Folding out of the key– Press button .Folding up of the key– Press button and collapse the key bit in the housing. The turn signal lights flash twice as confir
mation that the vehicl
e has been unlocked.
The vehicle will lock again automatically if
you unlock the vehicle using button but
do not open a door or the boot lid within th
e next 30 seconds. This
function is intended
to prevent the car being unlocked unintentionally.
Fig. 38 Remote control key
A1
A3A3A2A4A4
A1
sgg.6.book Page 45 Thursday, September 24, 2009 2:32 PM

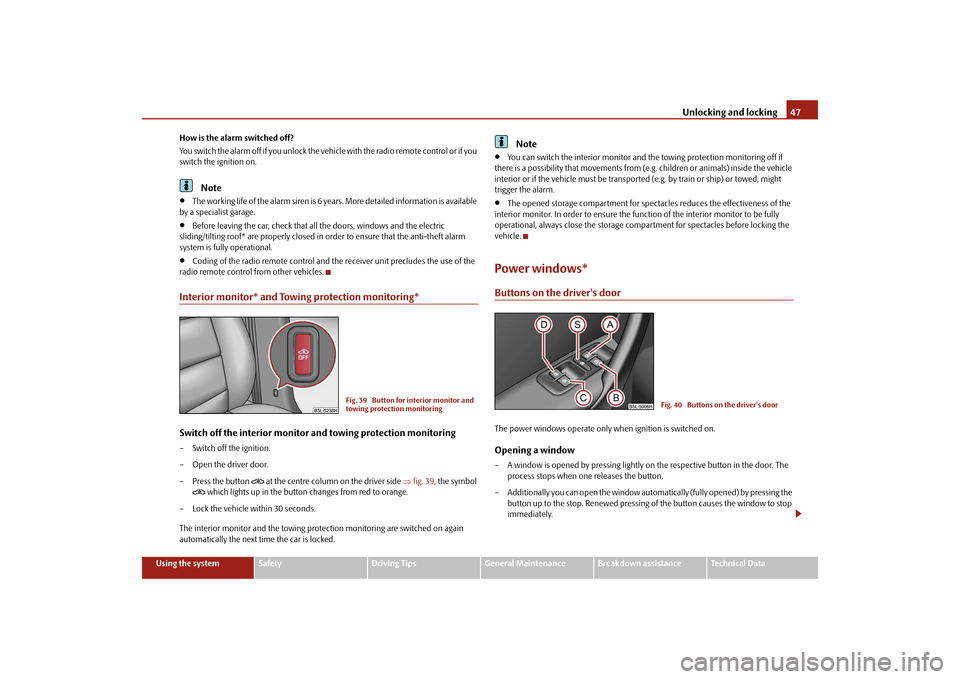

Unlocking and locking
47
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
How is the alarm switched off? You switch the alarm off if you unlock the vehi
cle with the radio remote control or if you
switch the ignition on.
Note
•
The working life of the alarm siren is 6 years. More detailed information is available
by a specialist garage.•
Before leaving the car, check that all the doors, windows and the electric
sliding/tilting roof* are properly closed in order to ensure that the anti-theft alarm system is fully operational.•
Coding of the radio remote control and th
e receiver unit precludes the use of the
radio remote control from other vehicles.Interior monitor* and Towing protection monitoring*Switch off the interior monitor and towing protection monitoring– Switch off the ignition. – Open the driver door.– Press the button

at the centre column on the driver side
⇒fig. 39
, the symbol

which lights up in the button changes from red to orange.
– Lock the vehicle within 30 seconds. The interior monitor and the towing protec
tion monitoring are switched on again
automatically the next time the car is locked.
Note
•
You can switch the interior monitor and th
e towing protection monitoring off if
there is a possibility that movements from (e.g. children or animals) inside the vehicle interior or if the vehicle must be transpor
ted (e.g. by train or ship) or towed, might
trigger the alarm.•
The opened storage compartment for spectacles reduces the effectiveness of the
interior monitor. In order to ensure the func
tion of the interior
monitor to be fully
operational, always close the storage comp
artment for spectacles before locking the
vehicle.Power windows*Buttons on the driver's doorThe power windows operate only when ignition is switched on.Opening a window – A window is opened by pressing lightly on the respective button in the door. The
process stops when one releases the button.
– Additionally you can open the window auto
matically (fully open
ed) by pressing the
button up to the stop. Renewed pressing of
the button causes the window to stop
immediately.
Fig. 39 Button for interior monitor and towing protection monitoring
Fig. 40 Buttons on the driver's door
sgg.6.book Page 47 Thursday, September 24, 2009 2:32 PM

Unlocking and locking
49
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
– Additionally you can open the window automatically (fully opened) by pressing the
button
down
up to the stop. Renewed pressing
of the button causes the window
to stop immediately.
Closing a window– Lightly press the appropriate button
up and hold it until the window has moved
into the desired position.
– Additionally you can close the window auto
matically (fully clos
ed) by pressing the
button
up up to the stop. Renewe
d pressing of the button causes the window to
stop immediately.
WARNING
The system is fitted with a force limiter
⇒page 49. If there is an obstacle, the
closing process is stopped and the window
goes down by several centimeters.
You should then take particular care when closing the windows! You may otherwise suffer severe injuries as a re
sult of getting an arm, for example,
jammed in the window!
Note
•
After switching the ignition off, it is still possible to open or close the windows for a
further 10 minutes. The automatic closin
g and opening functions will not operate
during this time. The power windows are sw
itched off completely once you open the
driver or front passenger door.Force limiter of the power windowsThe electrically operated power windows are fitted with a force limiter. It reduces the risk of bruises or injuries when closing the windows. If there is an obstacle, the closing process is stopped and the window goes down by several centimeters. If the obstacle prevents the window from being closed during the next 10 seconds, the closing process is interrupted once agai
n and the window goes down by several
centimeters.
You must try to close the window once ag
ain within 10 seconds after the window has
gone down twice, even if the obstacle wa
s not yet removed, the closing process is
stopped. During this time it
is not possible to automa
tically close the window. The
force limiter is still switched on. The force limiter is only switched off, if you attempt to close the window within the next 10 seconds -
the window closes now with full strength!
If you wait longer than 10 seconds, th
e force limiter is switched on again.
WARNING
You should take particular care when closing the windows! You may otherwise suffer severe injuries as a result of get
ting an arm, for example, jammed in the
window!Window convenience operationYou can open and close the electrically powered windows as follows when unlocking and locking the vehicle (only close the sliding/tilting roof).Opening a window– Hold the key in the locking cylinder of the
driver's door in the
unlock position or
press the unlock button of the radio re
mote control until all the windows are
opened.
Closing a window– Hold the key in the locking cylinder of the driver's door in the lock position or press
the lock button of the radio remote co
ntrol until all the windows are closed.
You can interrupt the opening or closing
operation of the windows immediately by
releasing the key or the lock button.
WARNING
The system is fitted with a force limiter
⇒page 49. If there is an obstacle, the
closing process is stopped and the window goes down by several centimeters. You should then take particular care when closing the windows! You may
sgg.6.book Page 49 Thursday, September 24, 2009 2:32 PM

Unlocking and locking
51
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Opening and tiltingComfort position– Turn the switch to position
⇒fig. 42
.
Opening fully– Turn the switch to position and hold it in this position (spring-tensioned posi-
tion).
Tilting and closing– Pull up the rear switch
⇒page 50, fig. 42
.
– Press down the switch on the recess and then push it forward in order to close the
sliding/tilting roof.
The wind noise in the comfort position is less than when the roof is fully opened.
Caution
It may be necessary during winter to remo
ve any ice and snow in the area of the
sliding/tilting roof before opening it in order to prevent damaging the opening mechanism.ClosingSliding closed/closing the sliding/tilting roof– Turn the switch to position
⇒page 50, fig. 42
.
Safety closing The sliding/tilting roof is fitted with a force limiter. The sliding/tilting roof stops and moves back several centimetres when it ca
nnot be closed because there is something
in the way (e.g. ice). You can close the sliding/tilting roof completely without force limiter by pressing the sw
itch to the position
⇒page 50, fig. 42
at the front for as
long as it takes for the sliding/
tilting roof to close completely
⇒
.
WARNING
Close the sliding/tilting roof carefully - risk of injury!Convenience operationYou can also close an open sliding/tilting roof from the outside. – Hold the key in the locking cylinder of the driver's door in the lock position or press
the lock button of the remote control
until the sliding/tilting roof is closed.
The closing operation stops when one
releases the key or the lock button.
Note
The force limiter also operates for convenience closing.Emergency operationFig. 43 Detail of the headliner: Points for
positioning screwdriver / opening for positioning
the keyYou can close and/or open the sliding/tiltin
g roof by hand if the system is defect.
– Position the flat blade of a screwdriver carefully against the rear edge of the cover
of the electrical drive at the points of the arrows
⇒fig. 43
.
–Pull the cover down.
ACABAA
AA
A1
sgg.6.book Page 51 Thursday, September 24, 2009 2:32 PM

Lights and Visibility
53
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Lights and VisibilityLightsSwitching lights on and off

Switching on side lights– Turn the light switch into position
.
Switching on the low beam and main beam– Turn the light switch into position
.
– Press the main beam lever forward in order to switch on the main beam
⇒ page 59, fig. 50
.
Switching off lights (except daylight driving lights)– Turn the light switch into position°0. Low beam comes on only if the ignition is
switched on. After switching off the ignition,
the low beam is switched off automatically and only the side lights come on. For vehi- cles which are equipped with the function Coming/Leaving-Home*
⇒page 55, the
side lights also go out. On models fitted with
right-hand steering
the position of certain switches differs
from that shown in
⇒fig. 44
. The symbols which mark the switch positions are iden-
tical, however.
WARNING
Never drive with side lights on - risk of accident! The side lights are not bright enough to light up the road sufficiently in front of you or to be seen by other oncoming traffic. In this case, always switch on the low beam when it is dark or if visibility is poor.
Note
•
An audible warning will sound if you wi
thdraw the ignition key and open the
driver's door when the vehicle lights are still on.•
The acoustic warning signal is switched off over the door contact when the driver's
door is closed (ignition off). The vehicle
can be parked with
the side lights on.
•
If the car is parked for a lengthy period,
we recommend switching off all lights, or
leaving only the parking lights switched on.•
The switching on of the described lights
should only be undertaken in accordance
with the legal requirements.•
If a fault occurs in the light switch
, the low beam comes on automatically.
•
In the event of cool or humid weather cond
itions, the headlights can be misted up
from inside.
− The temperature difference between interior and external area of the headlight lenses is decisive. − When the driving lights are switched on,
the light outlet surfaces are free from
mist after a short period. The headlight lens
es can possibly mist up at the border
areas. − It also concerns reverse light and turn signal lights. − This mist has no influence on th
e life of the lighting system.
Daylight driving lightsIn some countries, the na
tional legal provisions require that the vehicles are equipped
with the function daylight driving lights.
Fig. 44 Dash panel: Light switch
sgg.6.book Page 53 Thursday, September 24, 2009 2:32 PM

Lights and Visibility
55
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Rain lights If you switch on the windscreen wipe in th
e operation rain sensor* for longer than 10
seconds or in the operation permanent wipe (position 2 or 3)
⇒page 63 switching on
for longer than 15 seconds, the side lights
and low beam are switched on automati-
cally. The light switches off if the windscreen wipe is in operation rain sensor* for more than 4 minutes or is not switched
on in the operation permanent wipe.
WARNING
The automatic light control only operat
es as a support. Th
e driver is not
released from his responsibility to inspect the light and if necessary to switch on the light depending on the light conditions. The light sensor cannot detect for example rain or snow. For these conditions we recommend to switch on the low beam
!
Note
•
Do not affix any stickers in front of the light sensor, so that you do not impair its
function or put it out of operation.•
The same principles as for using the automa
tic light control also
apply to the light
which is switched on manually
⇒page 53.
Cornering lights*The cornering lights are used to illuminate
the curves by means of the cone of light
swiveling together with the front headlight with Xenon lights*. This function is active when the speed of the car increases to more than 10km/h. The swiveling function of the headlights ca
n be switched off / on via the menu point
Assistant
in the main menu of the Information display*
⇒page 24.
WARNING
If the cornering ligh
ts are defective, the headlights are automatically lowered to
the emergency position, which prevents a
possible dazzling of oncoming traffic.
Thus the illuminated length of the road is shortened. Drive carefully and have the car inspected immediatel
y by a specialist garage.
Coming Home FunctionThe function makes it possible to switch on the lights in the darkness for a short time after leaving the vehicle.Switching on Coming Home Function– The light switch is in the position automatic driving lamp control

and the low
beam illuminates.
– Switch off the ignition. – After opening the driver's door, the function Coming Home is switched on.– Close all the doors and the boot lid and lo
ck the vehicle. After a short time, switch
all lights off.
Depending on equipment fitted the function Coming Home switches on the following lights:•
Parking lights,
•
Low beam,
•
Entry lighting in the exterior mirrors,
•
Licence plate light.
Coming Home Function The lights go out 10 seconds after cl
osing all the doors and the boot lid.
If a door or the boot lid re
mains open, the lights go out
60 seconds after switching off
the ignition. The function Coming Home is controlled with the light sensor in the mount of the inte- rior rear mirror. If the light intensity is higher than the set value of the light sensor, the Coming Home Function is not switched on after switching off the ignition.
Note
•
If the Coming Home Function is switched
on constantly, the battery will be heavily
discharged particularly in short-haul traffic.•
The switching on of the described lights
should only be undertaken in accordance
with the legal requirements.
sgg.6.book Page 55 Thursday, September 24, 2009 2:32 PM

Lights and Visibility
57
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Switching on the fog lights– First of all turn the light switch into position
 or  ⇒page 56, fig. 46
.
– Pull the light switch into position . The rear fog light warning light
 ⇒page 29 lights up in the instrument cluster when
the fog light is switched off.Fog lights with the function “Corner”* The fog lights with the function “Corner” improve the illumination of areas close to the vehicle when turning, parking etc.The fog lights with the function “Corner” ar
e regulated according to the steering angle
or after switching on the turn signal light
8) in the following circumstances:
•
the vehicle is stationary and the engine
is running or it moves with a speed of
maximum 40 km/h;•
the daylight driving lights are not switched on;
•
the low beam is switched on or th
e light switch is
in the position

and the
intensity of the ambient light causes the low beam to be switched on;•
the fog lights are not switched on;
•
no reverse gear is engaged.Note
If you engage the reverse gear during the
active function “Corne
r”, both fog lights
illuminate.Rear fog light

Switching on the rear fog light– First of all turn the light switch into position
 or  ⇒page 56, fig. 46
.
– Pull the switch into position .
The rear fog light warning light
 ⇒page 29 lights up in the instrument cluster when
the fog light is switched off. Only the rear fog light of the trailer lights
up automatically when you are towing a trailer
using a factory-fitted towing device
which is fitted with the rear fog light.
The rear fog light is located in the rear light array on the driver's side.
Caution
The rear fog light should only be switched on
if visibility is partic
ularly poor (conform
with any varying legal provisions) to avoi
d dazzling vehicles behind your vehicle.
Instrument lighting*

You can adjust the brightness of the instrument lighting.Instrument lighting– Switch on the light. – Turn the control dial
⇒fig. 47
to the desired intensity of the instrument lighting.
For the information display*
⇒page 24 the intensity of the lighting is automatically
set. It is only possible to adjust the instrume
nt lighting with the co
ntrol dial if the light
intensity drops below the set value of the light sensor.
8)If both switch on versions are conflicting, for ex
ample if the steering wheel is turned to the left
and the right turn signal light is switched on, the turn signal light has the higher priority.
A1
A2
Fig. 47 Dash panel:
Instrument lighting
sgg.6.book Page 57 Thursday, September 24, 2009 2:32 PM

Lights and Visibility
59
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The turn signal
  and main beam lever

The parking lights and headlight flas
her are also switched on and off
using the turn signal and main beam lever.The turn signal and main beam le
ver perform the following functions:
Right
 and left
 turn signal light
– Push the lever upwards or downwards
⇒fig. 50
.
– If you only wish to flash three times* (the
so-called convenience turn signal), push
the lever briefly up to the upper or lower pr
essure point and release it. This function
can be activated/deactivated in the information display*
⇒page 24.
– Turn signal for changing lanes - in order to
only flash briefly, move the lever up or
down to the pressure point and hold it in this position.
Main beam

– Switch on the low beam. – Push the lever forwards.– Pull the lever back into the initial positi
on in order to switch the main beam off
again.
Headlight flasher

– Pull on the lever of the steering whee
l (sprung position) -
the main beam and
warning light in the instrument cluster come on.
Parking light

– Switch off the ignition. – Push the lever up or down - the right-hand
or left-hand parking light is switched
on.
Information concerning the function of the lights•
The
turn signal system
only operates when the ignition is switched on. The corre-
sponding indicator light
 or  in the instrument cluster also flashes.
•
The turn signal is automatically cancelled after negotiating a curve.
•
The indicator light flashes at twice its normal
rate if a bulb of the turn signal light
fails.•
The side light and rear light on the appropriate side of the vehicle are switched on
when the
parking light
is selected. The parking light only operates if the ignition is
switched off.
Caution
Use main beam or the headlight flasher only
if this does not risk dazzling other road
users.
Note
•
If you have switched on the right or left turn signal light and you switch off the igni-
tion, the parking light is not automatically switched on.•
Use only in accordance with the legal
requirements the described lighting and
signal systems.
Fig. 50 Turn signal and main beam lever
sgg.6.book Page 59 Thursday, September 24, 2009 2:32 PM
