The load of the occupants is cushioned when plunging into the fully inflated air-
bag and the risk of injury to the entire upper body (chest, stomach and pelvis) is
reduced on the side facing the door.

Important safety information on the side airbag Correct use of the airbag system considerably reduces the risk of
injury! WARNING
● It is essential to always switch off ⇒ page 144 , Deactivating an airbag the
front passenger front airbag when attaching a child safety seat on the front
passenger seat where the child is seated with its back facing in direction of
travel (in some countries also when the child is facing the direction of travel).
If this is not done, there is a risk of the child suffering severe or even fatal in-
juries if the front passenger front airbag is deployed. When transporting a
child on the front passenger seat, please comply with the appropriate national
regulations regarding the use of child safety seats.
● Your head should never be positioned in the deployment area of the side
airbag. You might suffer severe injuries in the event of an accident. This ap-
plies in particular to children who are transported without using a suitable
child safety seat ⇒ page 148, Child safety and side airbag

.
● If children adopt an incorrect seated position when travelling, they may be
exposed to an increased risk of injury in the event of an accident. This can re-
sult in serious injuries ⇒ page 146

, What you should know about transporting
children!.
● There must not be any further persons, animals as well as objects posi-
tioned between the occupants and the deployment area of the airbag. No ac-
cessories, such as a can holder, should be attached to the doors.
● The airbag control unit operates together with the pressure sensors,
which are attached in the front doors. For this reason no adjustments must be
carried out at the doors as well as at the door panels (for example additional
installation of loudspeakers). Resulting damages can have a negative affect
on the operation of the airbag system. All work on the front doors and their
panels must only be carried out by a specialist garage. WARNING (Continued)
● In the event of a side collision, the side airbags will not function properly, if
the sensors cannot measure the increasing air pressure inside the doors, be-
cause the air can escape through large, non-sealed openings in the door pan-
el.
–Never drive with removed inner door panels.
– Never drive, if parts of the inner door panel have been removed and the
remaining openings have not been properly sealed.
– Never drive, if the loudspeakers in the doors have been removed, only if
the loudspeaker openings have been properly sealed.
– Always make sure that the openings are covered or filled, if additional
loudspeakers or other equipment parts are installed in the inner door pan-
els.
– Always work with an authorised ŠKODA Service Partner or have it car-
ried out by a competent specialist workshop.
● Only hang light items of clothing on the clothes hooks to the vehicle. Nev-
er leave any heavy or sharp-edged objects in the pockets of the items of cloth-
ing.
● Ensure that there are no excessive forces, such as violent knocks, kicks
etc., impact on the backrests of the seats otherwise the system may be dam-
aged. The side airbags would not be deployed in such a case!
● Any seat or protective covers which you fit to the driver or front passenger
seats must only be of the type expressly authorized by ŠKODA. In view of the
fact that the airbag inflates out of the backrest of the seat, use of non-ap-
proved seat or protective covers would considerably impair the protective
function of the side airbag.
● Any damage to the original seat covers in the area of the side airbag mod-
ule must be repaired without delay by your specialist garage.
● The airbag modules in the front seats must not display any damage, cracks
or deep scratches. It is not permissible to use force in order to open the mod-
ules.
● Any work on the side airbag system including removing and installing sys-
tem components because of other repair work (e.g. removing seats) must only
be carried out by a specialist garage. 142
Airbag system

If the airbag was switched off using diagnostic equipment:
●
The warning light for the airbag system lights up for 4 seconds after switching
on the ignition and then flashes for 12 seconds afterwards in 2 second intervals.
The following situation applies if the airbag has been switched off using the
switch for the airbag in the storage compartment:
● the airbag indicator light in the instrument cluster comes on for about 4 sec-
onds each time the ignition is switched on;
● switching off the airbag is indicated in the middle of the dash panel by the
lighting up of the yellow indicator light in display  
    ⇒ fig. 129 . Note
Your authorised ŠKODA Service Partner will be able to advise you whether nation-
al legislation in your country allows airbags in your vehicle to be deactivated, and
which ones. 
Switch for the front passenger front airbag Fig. 129 Storage compartment: Switch for the front passenger front airbag/warning light for
a switched off front seat passenger airbag
Only the front passenger front airbag is deactivated with the switch.
Deactivating an airbag
– Switch off the ignition.
– Turn the slot of the airbag switch using the key in the position 2 (
OFF)
⇒  fig. 129 .
– Check whether the airbag indicator light in the display





 in
the middle of the dash panel lights up when the ignition is switched on
⇒  fig. 129 - right. Switching on an airbag
–
Switch off the ignition.
– Turn the slot of the airbag switch using the key in the position 1 (
ON)
⇒ fig. 129 .
– Check whether the airbag indicator light in the display 
     in
the middle of the dash panel lights up when the ignition is switched on
⇒ fig. 129 - right. The warning light   goes out 65 seconds after the ignition
is switched on.
The airbag should only be switched off under exceptional circumstances
⇒ page 144.
Indicator light in display      (airbag switched off)
The airbag indicator light is located in the middle of the dash panel ⇒ fig. 129 -
right.
If the front passenger front airbag is switched off, the warning light comes on
about 4 seconds after the ignition is switched on.
There is a system fault present in the airbag switch off ⇒  if the indicator light
flashes. Please have the car inspected immediately by a specialist garage. WARNING
● The driver is responsible for whether the airbag is switched on or switched
off.
● Only switch off the airbag when the ignition is switched off! Otherwise a
fault can occur in the system for the airbag deactivation.
● If the yellow indicator light in display 
     (airbag switched
off) flashes:
–Front passenger airbag is not deployed in the event of an accident!
– It is also important to have the system inspected without delay by a
specialist garage. 145

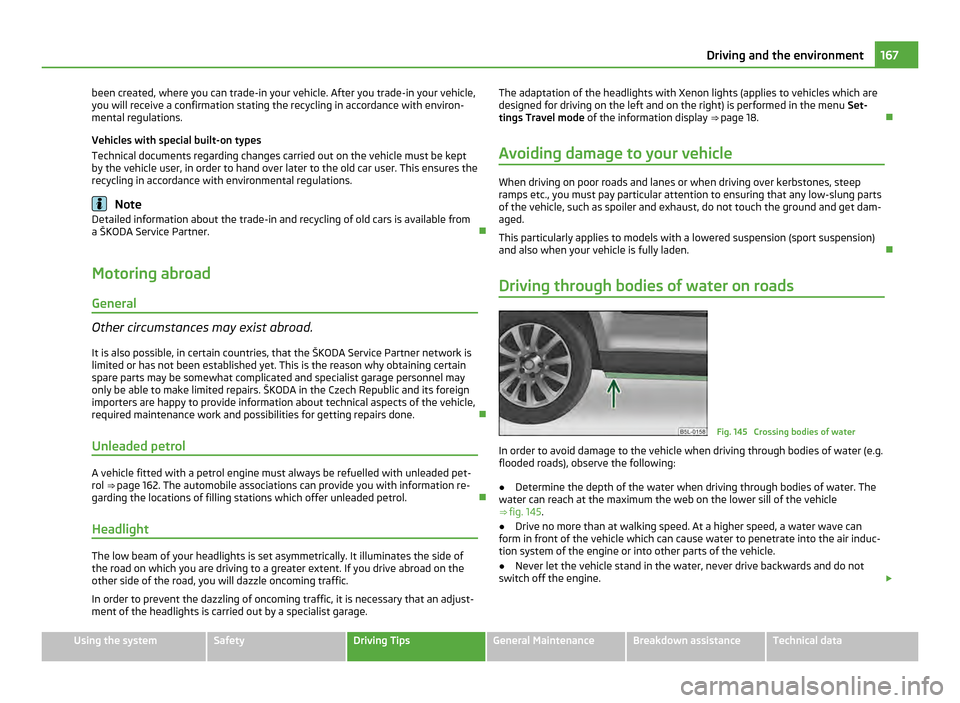

Airbag system Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data

been created, where you can trade-in your vehicle. After you trade-in your vehicle,
you will receive a confirmation stating the recycling in accordance with environ-
mental regulations.
Vehicles with special built-on types
Technical documents regarding changes carried out on the vehicle must be kept
by the vehicle user, in order to hand over later to the old car user. This ensures the
recycling in accordance with environmental regulations. Note
Detailed information about the trade-in and recycling of old cars is available from
a ŠKODA Service Partner. 
Motoring abroad General Other circumstances may exist abroad.
It is also possible, in certain countries, that the ŠKODA Service Partner network is
limited or has not been established yet. This is the reason why obtaining certain
spare parts may be somewhat complicated and specialist garage personnel may
only be able to make limited repairs. ŠKODA in the Czech Republic and its foreign
importers are happy to provide information about technical aspects of the vehicle,
required maintenance work and possibilities for getting repairs done. 
Unleaded petrol A vehicle fitted with a petrol engine must always be refuelled with unleaded pet-
rol
⇒ page 162

. The automobile associations can provide you with information re-
garding the locations of filling stations which offer unleaded petrol. 
Headlight The low beam of your headlights is set asymmetrically. It illuminates the side of
the road on which you are driving to a greater extent. If you drive abroad on the
other side of the road, you will dazzle oncoming traffic.
In order to prevent the dazzling of oncoming traffic, it is necessary that an adjust-
ment of the headlights is carried out by a specialist garage. The adaptation of the headlights with Xenon lights (applies to vehicles which are
designed for driving on the left and on the right) is performed in the menu Set-
tings Travel mode of the information display ⇒ page 18

.
Avoiding damage to your vehicle When driving on poor roads and lanes or when driving over kerbstones, steep
ramps etc., you must pay particular attention to ensuring that any low-slung parts
of the vehicle, such as spoiler and exhaust, do not touch the ground and get dam-
aged.
This particularly applies to models with a lowered suspension (sport suspension)
and also when your vehicle is fully laden. 
Driving through bodies of water on roads Fig. 145 Crossing bodies of water
In order to avoid damage to the vehicle when driving through bodies of water (e.g.
flooded roads), observe the following:
● Determine the depth of the water when driving through bodies of water. The
water can reach at the maximum the web on the lower sill of the vehicle
⇒  fig. 145 .
● Drive no more than at walking speed. At a higher speed, a water wave can
form in front of the vehicle which can cause water to penetrate into the air induc-
tion system of the engine or into other parts of the vehicle.
● Never let the vehicle stand in the water, never drive backwards and do not
switch off the engine. £ 167
Driving and the environment Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data

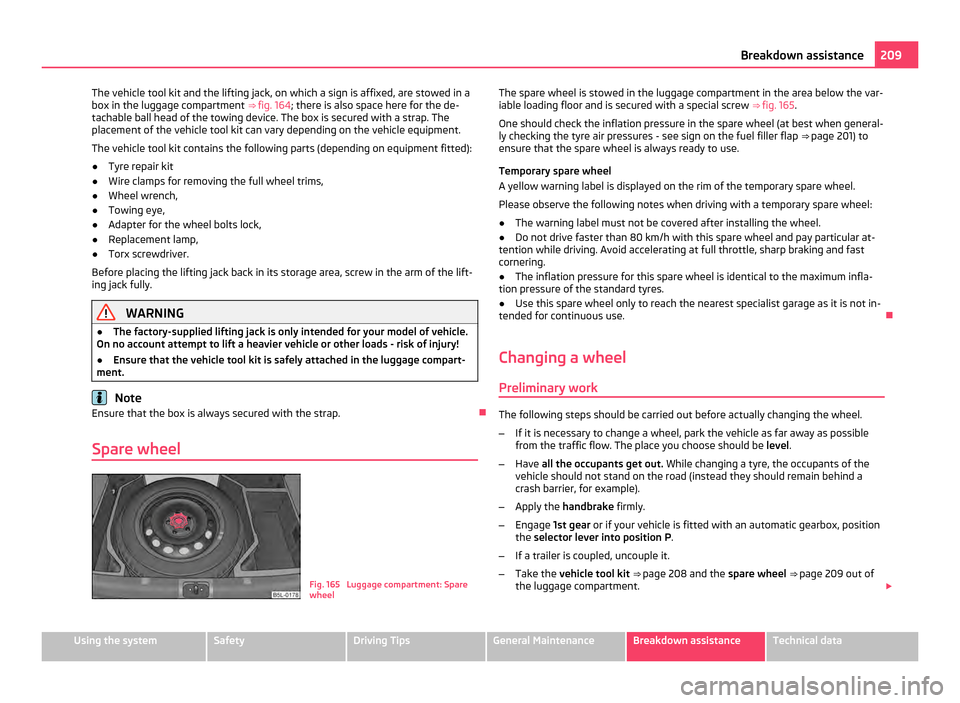

The vehicle tool kit and the lifting jack, on which a sign is affixed, are stowed in a
box in the luggage compartment
⇒
 fig. 164; there is also space here for the de-
tachable ball head of the towing device. The box is secured with a strap. The
placement of the vehicle tool kit can vary depending on the vehicle equipment.
The vehicle tool kit contains the following parts (depending on equipment fitted):
● Tyre repair kit
● Wire clamps for removing the full wheel trims,
● Wheel wrench,
● Towing eye,
● Adapter for the wheel bolts lock,
● Replacement lamp,
● Torx screwdriver.
Before placing the lifting jack back in its storage area, screw in the arm of the lift-
ing jack fully. WARNING
● The factory-supplied lifting jack is only intended for your model of vehicle.
On no account attempt to lift a heavier vehicle or other loads - risk of injury!
● Ensure that the vehicle tool kit is safely attached in the luggage compart-
ment. Note
Ensure that the box is always secured with the strap. 
Spare wheel Fig. 165 Luggage compartment: Spare
wheelThe spare wheel is stowed in the luggage compartment in the area below the var-
iable loading floor and is secured with a special screw
⇒ fig. 165.
One should check the inflation pressure in the spare wheel (at best when general-
ly checking the tyre air pressures - see sign on the fuel filler flap ⇒ page 201) to
ensure that the spare wheel is always ready to use.
Temporary spare wheel
A yellow warning label is displayed on the rim of the temporary spare wheel.
Please observe the following notes when driving with a temporary spare wheel:
● The warning label must not be covered after installing the wheel.
● Do not drive faster than 80 km/h with this spare wheel and pay particular at-
tention while driving. Avoid accelerating at full throttle, sharp braking and fast
cornering.
● The inflation pressure for this spare wheel is identical to the maximum infla-
tion pressure of the standard tyres.
● Use this spare wheel only to reach the nearest specialist garage as it is not in-
tended for continuous use. 
Changing a wheel Preliminary work The following steps should be carried out before actually changing the wheel.
– If it is necessary to change a wheel, park the vehicle as far away as possible
from the traffic flow. The place you choose should be level.
– Have all the occupants get out. While changing a tyre, the occupants of the
vehicle should not stand on the road (instead they should remain behind a
crash barrier, for example).
– Apply the handbrake firmly.
– Engage 1st gear or if your vehicle is fitted with an automatic gearbox, position
the selector lever into position P .
– If a trailer is coupled, uncouple it.
– Take the vehicle tool kit ⇒  page 208
and the spare wheel ⇒ page 209 out of
the luggage compartment. £ 209
Breakdown assistance Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data

Closing the panoramic sliding roof . . . . . . . . . . . . . . 42
Clothes hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Cockpit General view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Compartments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Convenience operation . . . . . . . . . . . . . . . . . . . . . . . . 41
Converting/masking over headlights . . . . . . . . . . 167
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193 replenishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Coolant level Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Coolant quantity Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Coolant temperature/coolant level Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Coolant temperature gauge . . . . . . . . . . . . . . . . . . . . . 11
Cornering lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Correct seated position . . . . . . . . . . . . . . . . . . . . . . . 129
Counter for distance driven . . . . . . . . . . . . . . . . . . . . 12
Cruise control Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . 108
Cup holder front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
D
Dash panel insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Daylight driving lights . . . . . . . . . . . . . . . . . . . . . . . . . 45
De-icing the windows . . . . . . . . . . . . . . . . . . . . . . . . 182
Deactivating an airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Deactivating an airbag . . . . . . . . . . . . . . . . . . . . . . . 144
Defrosting rear window . . . . . . . . . . . . . . . . . . . . . . . 53
Defrosting windscreen . . . . . . . . . . . . . . . . . . . . . . . . 53
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187 Diesel engines
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . 101
Diesel particle filter . . . . . . . . . . . . . . . . . . . . . . . . . . 159 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Direction indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Distance driven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Door Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Driving economically . . . . . . . . . . . . . . . . . . . . . . . . . 163
DVD-preinstallation . . . . . . . . . . . . . . . . . . . . . . . . . . 126
EEDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Electrically adjustable exterior mirror . . . . . . . . . . . 58
Electronic Differential Lock . . . . . . . . . . . . . . . . . . . 154
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . 32
Electronic stability programme . . . . . . . . . . . . . . . . 153
Electronic stability programme (ESP) Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Emergency wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Engine starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Engine compartment Safety information . . . . . . . . . . . . . . . . . . . . . . . . . 190
Engine electronics Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191 change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
replenishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Engine revolutions counter . . . . . . . . . . . . . . . . . . . . . 11
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Environmental compatibility . . . . . . . . . . . . . . 163, 166 ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Exhaust gas Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Exhaust gas inspection Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Explanations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Exterior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Exterior mirror heater . . . . . . . . . . . . . . . . . . . . . . . . . 58
F
Fastening elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
First-aid box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Fixing net . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Indicator light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Fog lights with the function CORNER . . . . . . . . . . . 49
Folding seat backrest of the front passenger seat . .62
Folding seats forwards . . . . . . . . . . . . . . . . . . . . . . . . 67
Folding table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Front armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186 Diesel fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Fuel consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163 Saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Fuel reserve Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Full wheel trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
G
Gearbox mechanical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102 241
Index Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data

General view
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
GSM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
H Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Hazard warning light system . . . . . . . . . . . . . . . . . . . 50 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Head airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Headlight cleaning system . . . . . . . . . . . . . . . . . . . . . 56
Headlight flasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Headlights Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Headlight cleaning system . . . . . . . . . . . . . . . . . . . 56
Head restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Heated windscreen washer nozzles . . . . . . . . . . . . 54
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88 Auxiliary heating (auxiliary heating) . . . . . . . . . . 95
Defrosting windows . . . . . . . . . . . . . . . . . . . . . . . . . 88
Recirculated air mode . . . . . . . . . . . . . . . . . . . . . . . 89
Height adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
I
Ignition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Information display . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Instrument lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Interior light Luggage compartment . . . . . . . . . . . . . . . . . . . . . . . 53
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Interior monitor
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Intermittent wiping . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
JJacking points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
K Knee airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
L Lashing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Leather care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Light automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Lights converting/masking over . . . . . . . . . . . . . . . . . . . . 167
Range adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . 50
switching on and off . . . . . . . . . . . . . . . . . . . . . . . . 45
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Lights and Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Liquid in windshield washer fluid reservoir Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Lock Central locking system . . . . . . . . . . . . . . . . . . . . . . 34
Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31, 33 Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Locking and unlocking from inside . . . . . . . . . . . . . . 35
Low beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Luggage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Luggage compartment . . . . . . . . . . . . . . . . . . . . . 36, 70
Folding hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Lashing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Luggage compartment - variable loading floor 74, 75
M
Main beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45, 51 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Manual shifting of gears . . . . . . . . . . . . . . . . . . . . . . 102
MDI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Memory for the on-board computer . . . . . . . . . . . . . 14
Mobile phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118, 119 Connection with the hands-free system . . . . . . 120
Motoring abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Multi-functional indicator . . . . . . . . . . . . . . . . . . . . . . 14
Multifunction steering wheel . . . . . . . . . . . . . . . . . . 117
Multimedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
N
Note holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
O Off-road . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Off-road driving . . . . . . . . . . . . . . . . . . . . . . 160, 168, 171
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Oil dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Onboard computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Open door Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Opening and closing of the sun screen . . . . . . . . . . 42
Opening and tilting of the panoramic sliding roof 42
Opening a single door . . . . . . . . . . . . . . . . . . . . . . . . . 33 242
Index
