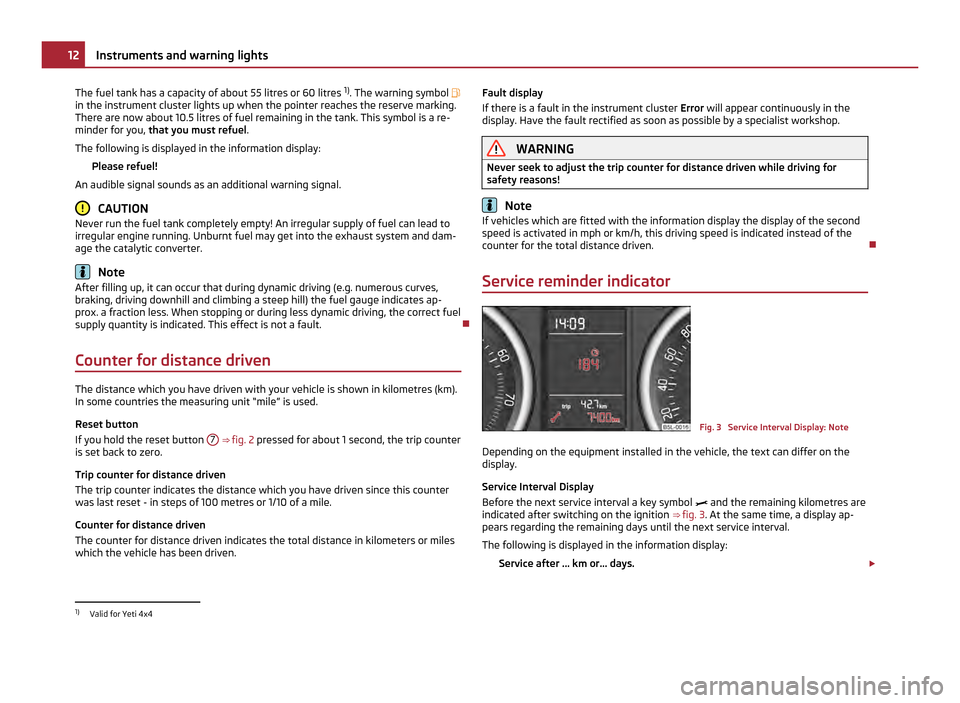

The fuel tank has a capacity of about 55 litres or 60 litres
1)
. The warning symbol
in the instrument cluster lights up when the pointer reaches the reserve marking.
There are now about 10.5 litres of fuel remaining in the tank. This symbol is a re-
minder for you, that you must refuel .
The following is displayed in the information display: Please refuel!
An audible signal sounds as an additional warning signal. CAUTION
Never run the fuel tank completely empty! An irregular supply of fuel can lead to
irregular engine running. Unburnt fuel may get into the exhaust system and dam-
age the catalytic converter. Note
After filling up, it can occur that during dynamic driving (e.g. numerous curves,
braking, driving downhill and climbing a steep hill) the fuel gauge indicates ap-
prox. a fraction less. When stopping or during less dynamic driving, the correct fuel
supply quantity is indicated. This effect is not a fault.
Counter for distance driven The distance which you have driven with your vehicle is shown in kilometres (km).
In some countries the measuring unit
“mile” is used.
Reset button
If you hold the reset button 7
⇒
fig. 2 pressed for about 1 second, the trip counter
is set back to zero.
Trip counter for distance driven
The trip counter indicates the distance which you have driven since this counter
was last reset - in steps of 100 metres or 1/10 of a mile.
Counter for distance driven
The counter for distance driven indicates the total distance in kilometers or miles
which the vehicle has been driven. Fault display
If there is a fault in the instrument cluster
Error will appear continuously in the
display. Have the fault rectified as soon as possible by a specialist workshop. WARNING
Never seek to adjust the trip counter for distance driven while driving for
safety reasons! Note
If vehicles which are fitted with the information display the display of the second
speed is activated in mph or km/h, this driving speed is indicated instead of the
counter for the total distance driven.
Service reminder indicator Fig. 3 Service Interval Display: Note
Depending on the equipment installed in the vehicle, the text can differ on the
display.
Service Interval Display
Before the next service interval a key symbol and the remaining kilometres are
indicated after switching on the ignition ⇒ fig. 3 . At the same time, a display ap-
pears regarding the remaining days until the next service interval.
The following is displayed in the information display:
Service after ... km or... days. £1)
Valid for Yeti 4x4 12
Instruments and warning lights
Page 18 of 252
If the outside temperature drops below +4 °C, a snow flake symbol (warning signal
for ice on the road) appears before the temperature indicator and a warning signal
sounds. After pressing the rocker switch
A at the windshield wiper lever
⇒ fig. 6
or the button C at the multifunction steering wheel
⇒ fig. 6 , the function shown
last is indicated. WARNING
Do not only rely upon the information given on the outside temperature dis-
play that there is no ice on the road. Please note that black ice may also be
present on the road surface even at temperatures around +4
°C – warning,
drive with care!

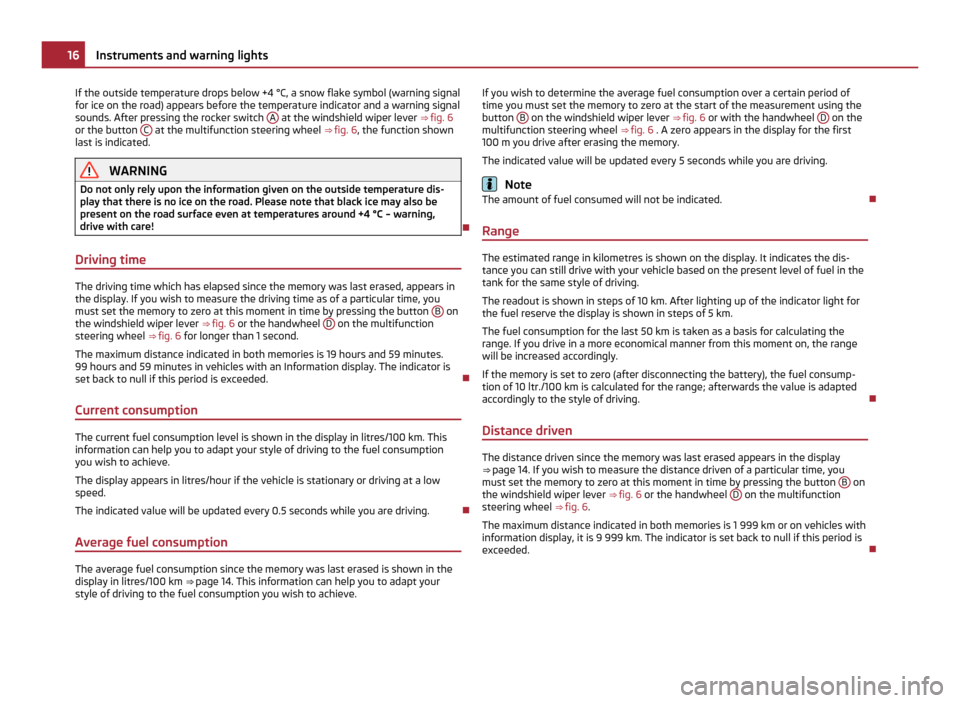

Driving time The driving time which has elapsed since the memory was last erased, appears in
the display. If you wish to measure the driving time as of a particular time, you
must set the memory to zero at this moment in time by pressing the button
B on
the windshield wiper lever ⇒ fig. 6
or the handwheel D on the multifunction
steering wheel ⇒ fig. 6
for longer than 1
second.
The maximum distance indicated in both memories is 19 hours and 59 minutes.
99 hours and 59 minutes in vehicles with an Information display. The indicator is
set back to null if this period is exceeded.
Current consumption The current fuel consumption level is shown in the display in litres/100 km. This
information can help you to adapt your style of driving to the fuel consumption
you wish to achieve.
The display appears in litres/hour if the vehicle is stationary or driving at a low
speed.
The indicated value will be updated every 0.5 seconds while you are driving.
Average fuel consumption The average fuel consumption since the memory was last erased is shown in the
display in litres/100 km
⇒
page 14. This information can help you to adapt your
style of driving to the fuel consumption you wish to achieve. If you wish to determine the average fuel consumption over a certain period of
time you must set the memory to zero at the start of the measurement using the
button
B on the windshield wiper lever
⇒
fig. 6 or with the handwheel D on the
multifunction steering wheel ⇒ fig. 6 . A zero appears in the display for the first
100 m you drive after erasing the memory.
The indicated value will be updated every 5 seconds while you are driving. Note
The amount of fuel consumed will not be indicated.
Range The estimated range in kilometres is shown on the display. It indicates the dis-
tance you can still drive with your vehicle based on the present level of fuel in the
tank for the same style of driving.
The readout is shown in steps of 10 km. After lighting up of the indicator light for
the fuel reserve the display is shown in steps of 5 km.
The fuel consumption for the last 50 km is taken as a basis for calculating the
range. If you drive in a more economical manner from this moment on, the range
will be increased accordingly.
If the memory is set to zero (after disconnecting the battery), the fuel consump-
tion of 10 ltr./100 km is calculated for the range; afterwards the value is adapted
accordingly to the style of driving.
Distance driven The distance driven since the memory was last erased appears in the display
⇒
page 14. If you wish to measure the distance driven of a particular time, you
must set the memory to zero at this moment in time by pressing the button B on
the windshield wiper lever ⇒ fig. 6 or the handwheel D on the multifunction
steering wheel ⇒ fig. 6 .
The maximum distance indicated in both memories is 1
999 km or on vehicles with
information display, it is 9 999 km. The indicator is set back to null if this period is
exceeded. 16
Instruments and warning lights
Page 25 of 252

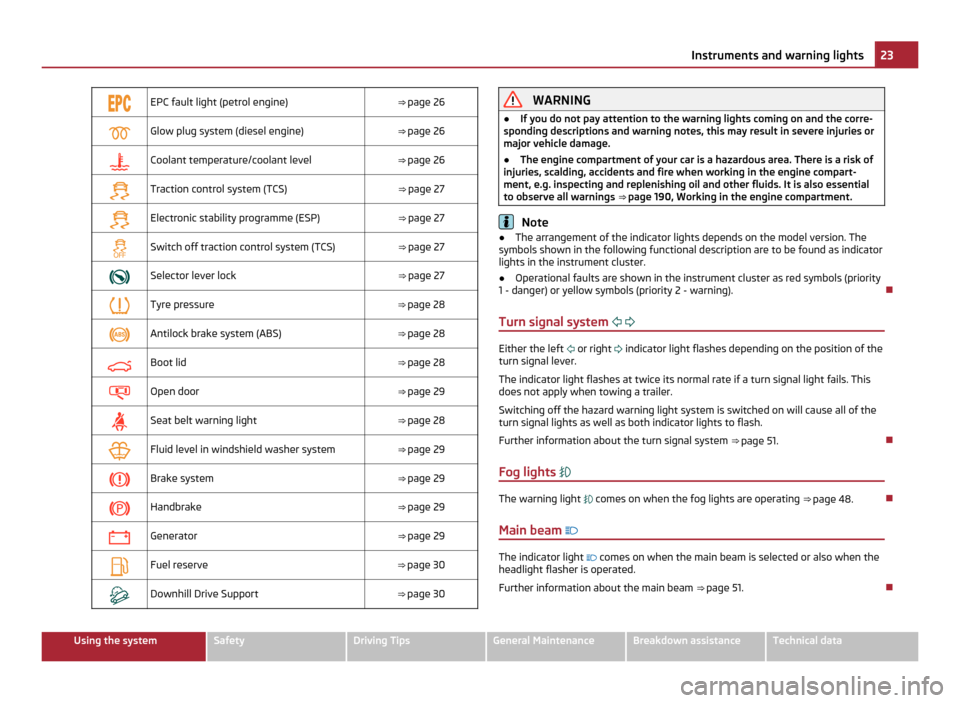

EPC fault light (petrol engine)
⇒ page 26
Glow plug system (diesel engine)
⇒ page 26
Coolant temperature/coolant level
⇒ page 26
Traction control system (TCS)
⇒ page 27
Electronic stability programme (ESP)
⇒ page 27
Switch off traction control system (TCS)
⇒ page 27
Selector lever lock
⇒ page 27
Tyre pressure
⇒ page 28
Antilock brake system (ABS)
⇒ page 28
Boot lid
⇒ page 28
Open door
⇒ page 29
Seat belt warning light
⇒ page 28
Fluid level in windshield washer system
⇒ page 29
Brake system
⇒ page 29
Handbrake
⇒ page 29
Generator
⇒ page 29
Fuel reserve
⇒ page 30
Downhill Drive Support
⇒ page 30 WARNING
● If you do not pay attention to the warning lights coming on and the corre-
sponding descriptions and warning notes, this may result in severe injuries or
major vehicle damage.
● The engine compartment of your car is a hazardous area. There is a risk of
injuries, scalding, accidents and fire when working in the engine compart-
ment, e.g. inspecting and replenishing oil and other fluids. It is also essential
to observe all warnings ⇒
page 190, Working in the engine compartment. Note
● The arrangement of the indicator lights depends on the model version. The
symbols shown in the following functional description are to be found as indicator
lights in the instrument cluster.
● Operational faults are shown in the instrument cluster as red symbols (priority
1 - danger) or yellow symbols (priority 2 - warning).
Turn signal system Either the left
or right
indicator light flashes depending on the position of the
turn signal lever.
The indicator light flashes at twice its normal rate if a turn signal light fails. This
does not apply when towing a trailer.
Switching off the hazard warning light system is switched on will cause all of the
turn signal lights as well as both indicator lights to flash.
Further information about the turn signal system ⇒
page 51.
Fog lights The warning light
comes on when the fog lights are operating
⇒
page 48.
Main beam The indicator light
comes on when the main beam is selected or also when the
headlight flasher is operated.
Further information about the main beam ⇒
page 51. 23
Instruments and warning lights Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data
Page 32 of 252

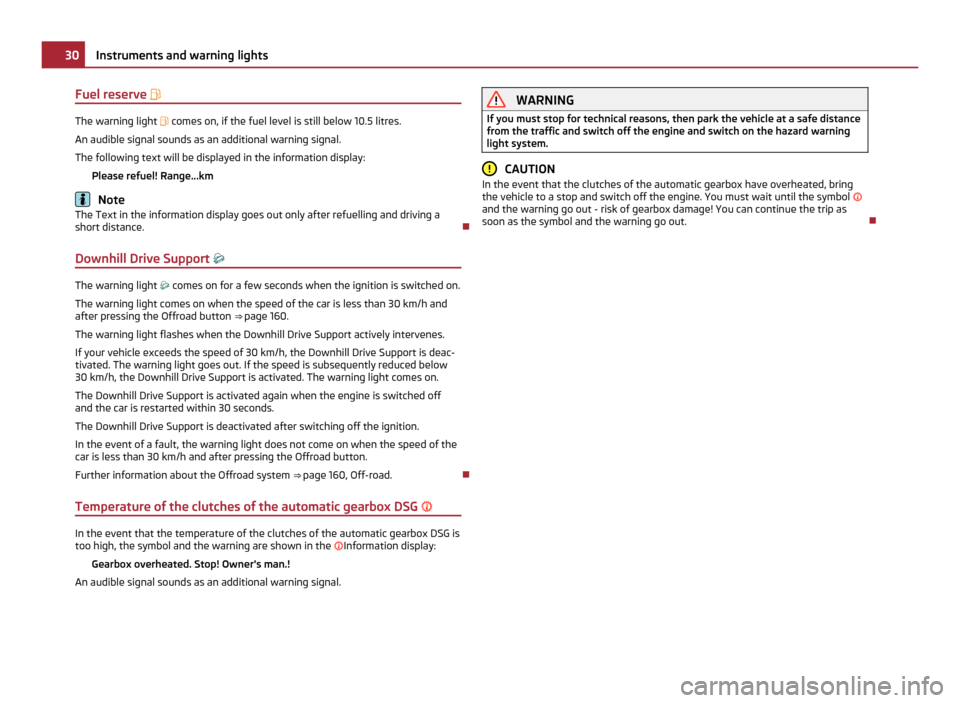

Fuel reserve
The warning light
comes on, if the fuel level is still below 10.5 litres.
An audible signal sounds as an additional warning signal.
The following text will be displayed in the information display: Please refuel! Range...km Note
The Text in the information display goes out only after refuelling and driving a
short distance.
Downhill Drive Support The warning light
comes on for a few seconds when the ignition is switched on.
The warning light comes on when the speed of the car is less than 30 km/h and
after pressing the Offroad button ⇒ page 160
.
The warning light flashes when the Downhill Drive Support actively intervenes.
If your vehicle exceeds the speed of 30 km/h, the Downhill Drive Support is deac-
tivated. The warning light goes out. If the speed is subsequently reduced below
30 km/h, the Downhill Drive Support is activated. The warning light comes on.
The Downhill Drive Support is activated again when the engine is switched off
and the car is restarted within 30 seconds.
The Downhill Drive Support is deactivated after switching off the ignition.
In the event of a fault, the warning light does not come on when the speed of the
car is less than 30 km/h and after pressing the Offroad button.
Further information about the Offroad system ⇒ page 160, Off-road.
Temperature of the clutches of the automatic gearbox DSG In the event that the temperature of the clutches of the automatic gearbox DSG is
too high, the symbol and the warning are shown in the Information display:
Gearbox overheated. Stop! Owner's man.!
An audible signal sounds as an additional warning signal. WARNING
If you must stop for technical reasons, then park the vehicle at a safe distance
from the traffic and switch off the engine and switch on the hazard warning
light system. CAUTION
In the event that the clutches of the automatic gearbox have overheated, bring
the vehicle to a stop and switch off the engine. You must wait until the symbol
and the warning go out - risk of gearbox damage! You can continue the trip as
soon as the symbol and the warning go out. 30
Instruments and warning lights
Page 190 of 252
–

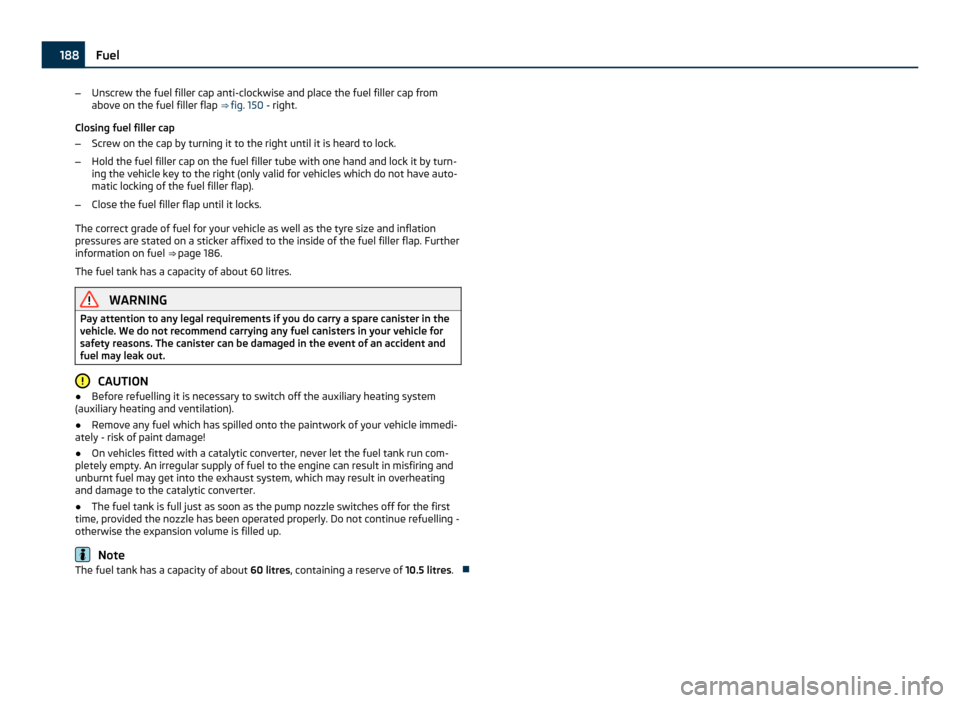

Unscrew the fuel filler cap anti-clockwise and place the fuel filler cap from
above on the fuel filler flap ⇒ fig. 150 - right.
Closing fuel filler cap
– Screw on the cap by turning it to the right until it is heard to lock.
– Hold the fuel filler cap on the fuel filler tube with one hand and lock it by turn-
ing the vehicle key to the right (only valid for vehicles which do not have auto-
matic locking of the fuel filler flap).
– Close the fuel filler flap until it locks.
The correct grade of fuel for your vehicle as well as the tyre size and inflation
pressures are stated on a sticker affixed to the inside of the fuel filler flap. Further
information on fuel ⇒
page 186.
The fuel tank has a capacity of about 60 litres. WARNING
Pay attention to any legal requirements if you do carry a spare canister in the
vehicle. We do not recommend carrying any fuel canisters in your vehicle for
safety reasons. The canister can be damaged in the event of an accident and
fuel may leak out. CAUTION
● Before refuelling it is necessary to switch off the auxiliary heating system
(auxiliary heating and ventilation).
● Remove any fuel which has spilled onto the paintwork of your vehicle immedi-
ately - risk of paint damage!
● On vehicles fitted with a catalytic converter, never let the fuel tank run com-
pletely empty. An irregular supply of fuel to the engine can result in misfiring and
unburnt fuel may get into the exhaust system, which may result in overheating
and damage to the catalytic converter.
● The fuel tank is full just as soon as the pump nozzle switches off for the first
time, provided the nozzle has been operated properly. Do not continue refuelling -
otherwise the expansion volume is filled up. Note
The fuel tank has a capacity of about 60 litres, containing a reserve of 10.5
litres.188
Fuel
Page 243 of 252
Closing the panoramic sliding roof . . . . . . . . . . . . . . 42
Clothes hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Cockpit General view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Compartments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Convenience operation . . . . . . . . . . . . . . . . . . . . . . . . 41
Converting/masking over headlights . . . . . . . . . . 167
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193 replenishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Coolant level Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Coolant quantity Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Coolant temperature/coolant level Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Coolant temperature gauge . . . . . . . . . . . . . . . . . . . . . 11
Cornering lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Correct seated position . . . . . . . . . . . . . . . . . . . . . . . 129
Counter for distance driven . . . . . . . . . . . . . . . . . . . . 12
Cruise control Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . 108
Cup holder front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
D
Dash panel insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Daylight driving lights . . . . . . . . . . . . . . . . . . . . . . . . . 45
De-icing the windows . . . . . . . . . . . . . . . . . . . . . . . . 182
Deactivating an airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Deactivating an airbag . . . . . . . . . . . . . . . . . . . . . . . 144
Defrosting rear window . . . . . . . . . . . . . . . . . . . . . . . 53
Defrosting windscreen . . . . . . . . . . . . . . . . . . . . . . . . 53
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187 Diesel engines
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . 101
Diesel particle filter . . . . . . . . . . . . . . . . . . . . . . . . . . 159 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Direction indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Distance driven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Door Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Driving economically . . . . . . . . . . . . . . . . . . . . . . . . . 163
DVD-preinstallation . . . . . . . . . . . . . . . . . . . . . . . . . . 126
EEDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Electrically adjustable exterior mirror . . . . . . . . . . . 58
Electronic Differential Lock . . . . . . . . . . . . . . . . . . . 154
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . 32
Electronic stability programme . . . . . . . . . . . . . . . . 153
Electronic stability programme (ESP) Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Emergency wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Engine starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Engine compartment Safety information . . . . . . . . . . . . . . . . . . . . . . . . . 190
Engine electronics Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191 change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
replenishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Engine revolutions counter . . . . . . . . . . . . . . . . . . . . . 11
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Environmental compatibility . . . . . . . . . . . . . . 163, 166 ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Exhaust gas Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Exhaust gas inspection Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Explanations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Exterior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Exterior mirror heater . . . . . . . . . . . . . . . . . . . . . . . . . 58
F
Fastening elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
First-aid box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Fixing net . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Indicator light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Fog lights with the function CORNER . . . . . . . . . . . 49
Folding seat backrest of the front passenger seat . .62
Folding seats forwards . . . . . . . . . . . . . . . . . . . . . . . . 67
Folding table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Front armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186 Diesel fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Fuel consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163 Saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Fuel reserve Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Full wheel trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
G
Gearbox mechanical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102 241
Index Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data
Page 250 of 252
ŠKODA pursues a policy of constant product and model development. We trust
that you will understand that changes to models in terms of shape, equipment
and engineering, may be introduced at any time. The information about scope of
delivery, appearance, performances, dimensions, weight, fuel consumption, stand-
ards and functions of the vehicle is only correct at the time of publication. Certain
items of equipment might only be installed later on (information given by your lo-
cal authorised
ŠKODA Service Partner) and only envisaged for particular markets.
It is therefore not possible for legal claims to be made based on the data, illustra-
tions and descriptions contained in this Owner's Manual. Reprinting, reproduction or translation, either in whole or in part, is not permitted
without the written consent of ŠKODA.
ŠKODA expressly reserves all rights relating to copyright laws.
We reserve the right to make changes to this document.
Issued by: ŠKODA AUTO a.s.
© ŠKODA AUTO a.s. 2011
