Page 231 of 266

SKODA YETI 2013 1.G / 5L Owners Manual Negative cable - colour coding in the majority of cases is black.
Jump-starting in vehicles with the START-STOP system
Fig. 180
Engine earth: START-STOP sys-
tem
First read and observe the introdu

Page 232 of 266

SKODA YETI 2013 1.G / 5L Owners Manual Note■We recommend using a tow rope from ŠKODA Original Accessories, which is
available from a ŠKODA Partner.■
Towing another vehicle requires a certain amount of practice. Both drivers
should be

Page 233 of 266

SKODA YETI 2013 1.G / 5L Owners Manual For tightening purposes, we recommend, for example, using the wheel wrench,
towing eye from another vehicle or a similar object that can be pushed through
the eye.›
Unscrew the towing eye against th

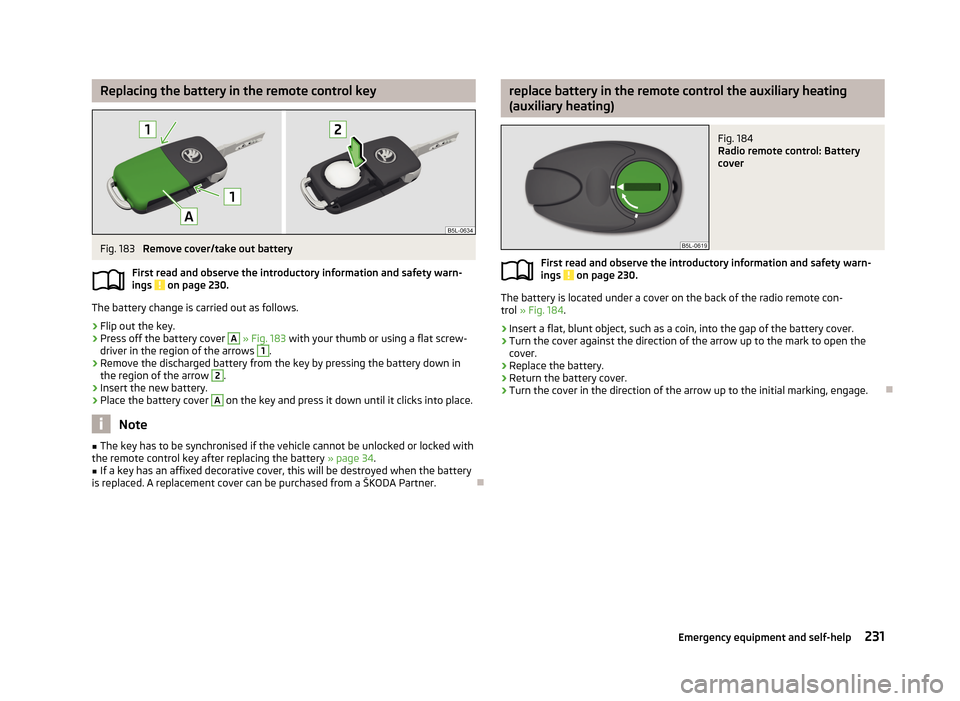

Page 234 of 266

SKODA YETI 2013 1.G / 5L Owners Manual Replacing the battery in the remote control keyFig. 183
Remove cover/take out battery
First read and observe the introductory information and safety warn-
ings
 on page 230.
The battery change is ca

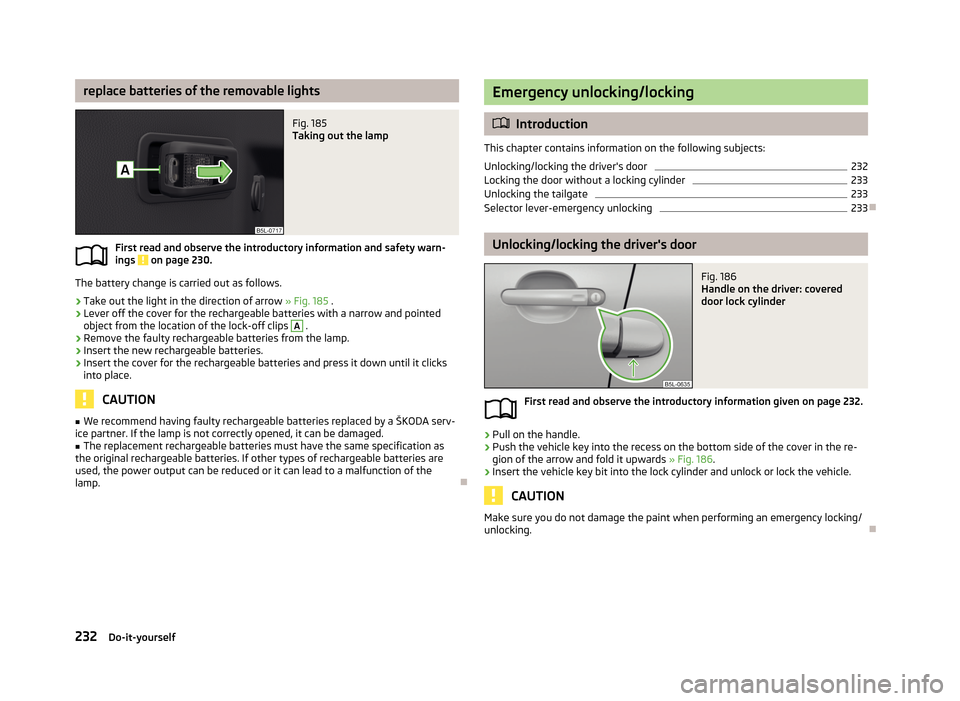

Page 235 of 266

SKODA YETI 2013 1.G / 5L Owners Manual replace batteries of the removable lightsFig. 185
Taking out the lamp
First read and observe the introductory information and safety warn-
ings  on page 230.
The battery change is carried out as foll

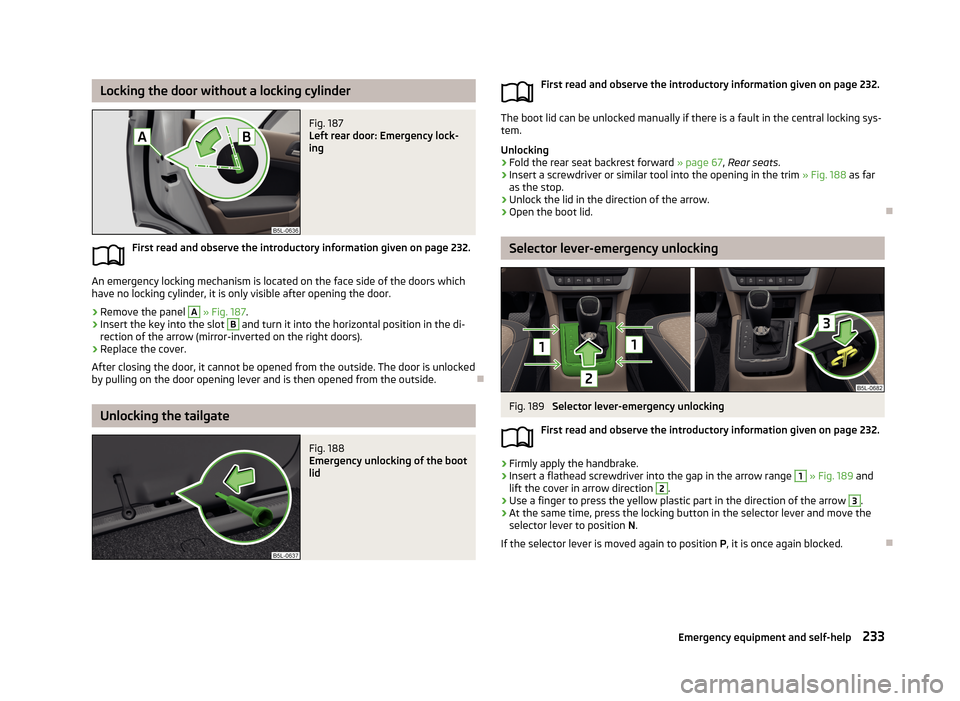

Page 236 of 266

SKODA YETI 2013 1.G / 5L Owners Manual Locking the door without a locking cylinderFig. 187
Left rear door: Emergency lock-
ing
First read and observe the introductory information given on page 232.
An emergency locking mechanism is locate

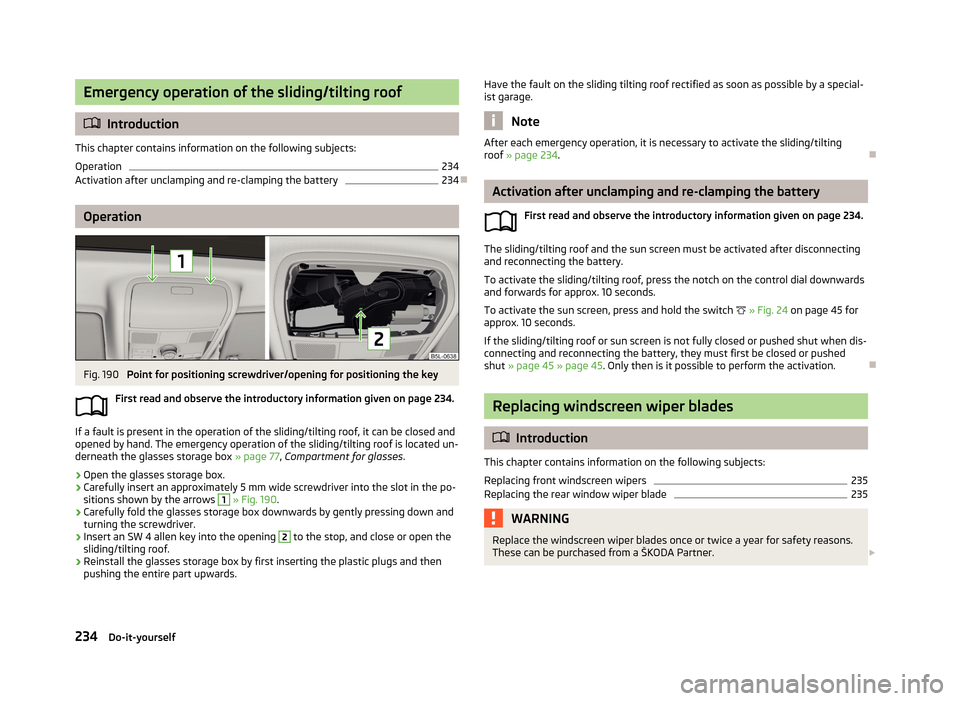

Page 237 of 266

SKODA YETI 2013 1.G / 5L Owners Manual Emergency operation of the sliding/tilting roof
Introduction
This chapter contains information on the following subjects:
Operation
234
Activation after unclamping and re-clamping the battery
234

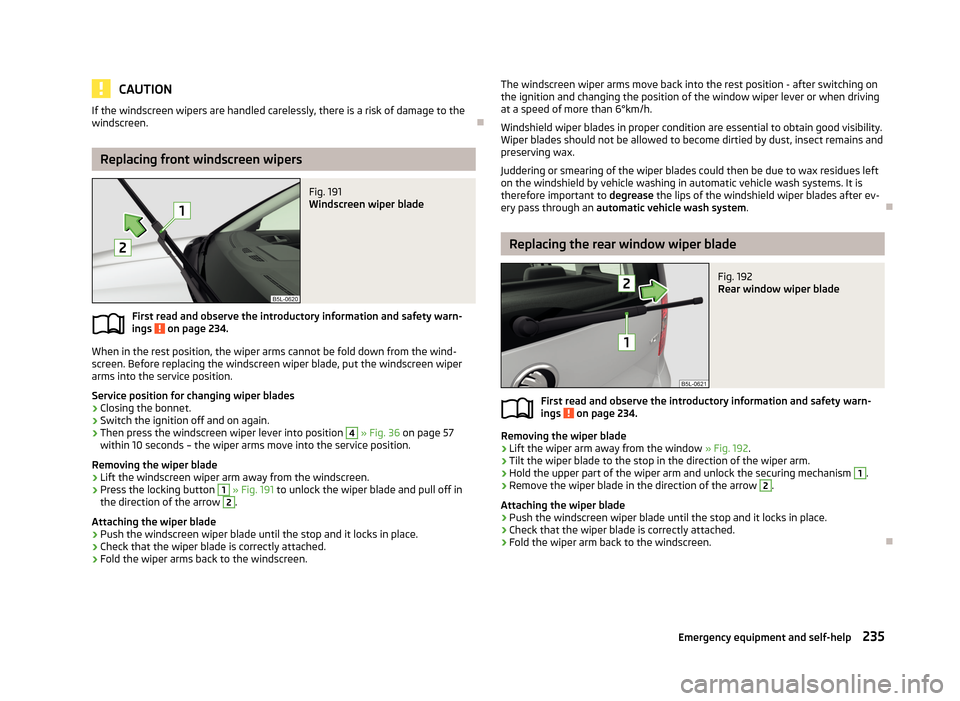

Page 238 of 266

SKODA YETI 2013 1.G / 5L Owners Manual CAUTIONIf the windscreen wipers are handled carelessly, there is a risk of damage to the
windscreen.
Replacing front windscreen wipers
Fig. 191
Windscreen wiper blade
First read and observe the in

Page 239 of 266

SKODA YETI 2013 1.G / 5L Owners Manual Fuses and light bulbs
Fuses
Introduction
This chapter contains information on the following subjects:
Fuses in the dash panel
236
Fuses in the engine compartment
237
Assignment of fuses in the engi

Page 240 of 266

SKODA YETI 2013 1.G / 5L Owners Manual ›Insert a new fuse.›Replace the bracket at the original position.›
Re-insert the cover of the fuse box .
Fuse assignment in the dash panel
No.Power consumer1Heating of the gearbox ventilation (d
