section 2c SSANGYONG KORANDO 1997 Service Repair Manual

INSTRUMENTATION, DRIVER INFORMATION 9E-13
SSANGYONG MY2002
KAA9E130
KAA9E140
KAA9E150
3. Disconnect the electrical connector.
4. Remove the instrument lower cover.
5. Installation should follow the removal procedure
in the reverse order.
INSTRUMENT CLUSTER
Removal and Installation Procedure
1. Remove the instrument cluster trim panel. Refer
to “instrument cluster trim panel” in this section.
2. Remove the instrument cluster mounting screws
3. Disconnect the instrument cluster electrical
connector.
4. Installation should follow the removal procedure
in the reverse order.
KAA9E120
INSTRUMENT LOWER COVER
Removal and Installation Procedure
1. Remove the hood latch release handle. Refer to
“Hood Latch Release Handle” in this section.
2. Remove the screws from the instrument lower
cover.
INSTRUMENT CLUSTER TRIM
PANEL
Removal and Installation Procedure
1. Remove the instrument cluster trim panel with the
screws.
2. Installation should follow the removal procedure
in the reverse order.

SSANGYONG MY2002
9E-14 INSTRUMENTATION, DRIVER INFORMATION
KAA9E170
KAA9E180
KAA9E190
5. Remove the screws and the speedometer/
odometer/trip odometer/tachometer.
6. Installation should follow the removal procedure
in the reverse order.
FUEL GAUGE
Removal and Installation Procedure
1. Disconnect the negative battery cable.
2. Remove the instrument cluster. Refer to
“Instrument Cluster” in this section.
3. Remove the screw of digital clock adjusting knob.
4. Remove the clips down and remove the instrument
cluster lens.
5. Remove the fuel gauge screws and the fuel gauge
from the cluster assembly
6. Installation should follow the removal procedure
in the reverse order.
KAA9E160
SPEEDOMETER/ODOMETER/TRIP
ODOMETER/TACHOMETER
Removal and Installation Procedure
1. Disconnect the negative battery cable.
2. Remove the instrument cluster. Refer to
“Instrument Cluster” in this section.
3. Remove the screw of digital clock adjusting knob.
4. Press the clips down and remove the instrument
cluster lens.

INSTRUMENTATION, DRIVER INFORMATION 9E-15
SSANGYONG MY2002
KAA9E210
KAA9E220
DIGITAL CLOCK
Removal and Installation Procedure
1. Disconnect the negative battery cable.
2. Remove the instrument cluster. Refer to
“Instrument Cluster” in this section.
3. Remove the screw of digital clock adjusting knob.
4. Press the clips down and remove the instrument
cluster lens.
5. Remove the digital clock from the cluster
assembly.
6. Installation should follow the removal procedure
in the reverse order.
KAA9E200
TEMPERATURE GAUGE
Removal and Installation Procedure
1. Disconnect the negative battery cable.
2. Remove the instrument cluster. Refer to
“Instrument Cluster” in this section.
3. Remove the screw of digital clock adjusting knob.
4. Press the clips down and remove the instrument
cluster lens.
5. Remove the screws and the temperature gauge
from the cluster assembly.
6. Installation should follow the removal procedure
in the reverse order.
INSTRUMENT CLUSTER
INDICATOR LAMPS
Removal and Installation Procedure
1. Disconnect the negative battery cable.
2. Remove the instrument cluster. Refer to
“Instrument Cluster” in this section.
3. Remove the defective bulb from the rear of the
cluster.
4. Installation should follow the removal procedure
in the reverse order.

SSANGYONG MY2002
9E-16 INSTRUMENTATION, DRIVER INFORMATION
KAA9E250
KAA9E250
7. Remove the stereo cassette. Refer to Section 9F,
Audio system.
8. Remove the cup holder. Refer to “Cup Holder” in
this section.
9. Remove the side facia panel. Refer to “Side Facia
Panel” in this section.
10. Remove the glove box. Refer to “Glove Box” in
this section.
11. Remove the instrument cluster trim panel. Refer
to “Instrument cluster trim panel” in this section.
12. Remove the instrument cluster. Refer to
“Instrument Cluster” in this section.
13. Remove the screws and the instrument panel side
trim cover.
14. Remove the instrument lower cover with screws.
Refer to “Instrument Lower Cover” in this section.
15. Disconnect the steering column electrical
connector.
KAA9E240
INSTRUMENT PANEL
Removal and Installation Procedure
1. Disconnect the negative battery cable.
2. Remove the instrument panel defroster duct.
3. Remove the floor console. Refer to Section 9G,
Floor Console.
4. Remove the center tray. Refer to “Center tray” in
this section.
5. Remove the center facia. Refer to “Center Facia”
in this section.
6. Remove the automatic temperature control
assembly. Refer to Section 7D, Automatic
Temperature Control Assembly.
KAA9E230

Description and Operation.................................. 9F-2
Speakers............................................................ 9F-2
Mast Antenna..................................................... 9F-2
Tape Player and Cassette Care........................... 9F-2
Components Locator ........................................... 9F-3
Audio System..................................................... 9F-3
Repair Instructions............................................... 9F-4
SECTION 9F
AUDIO SYSTEM
CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless
otherwise noted.
TABLE OF CONTENTS
On-Vehicle Service Unit Repair............................... 9F-4
Stereo Cassette AM/FM Radio............................ 9F-4
Front Door Speakers........................................... 9F-4
Rear Speakers.................................................... 9F-5
Mast Antenna..................................................... 9F-5
Schematic and Routing Diagram....................... 9F-7
Audio System Circuit .......................................... 9F-7

SSANGYONG MY2002

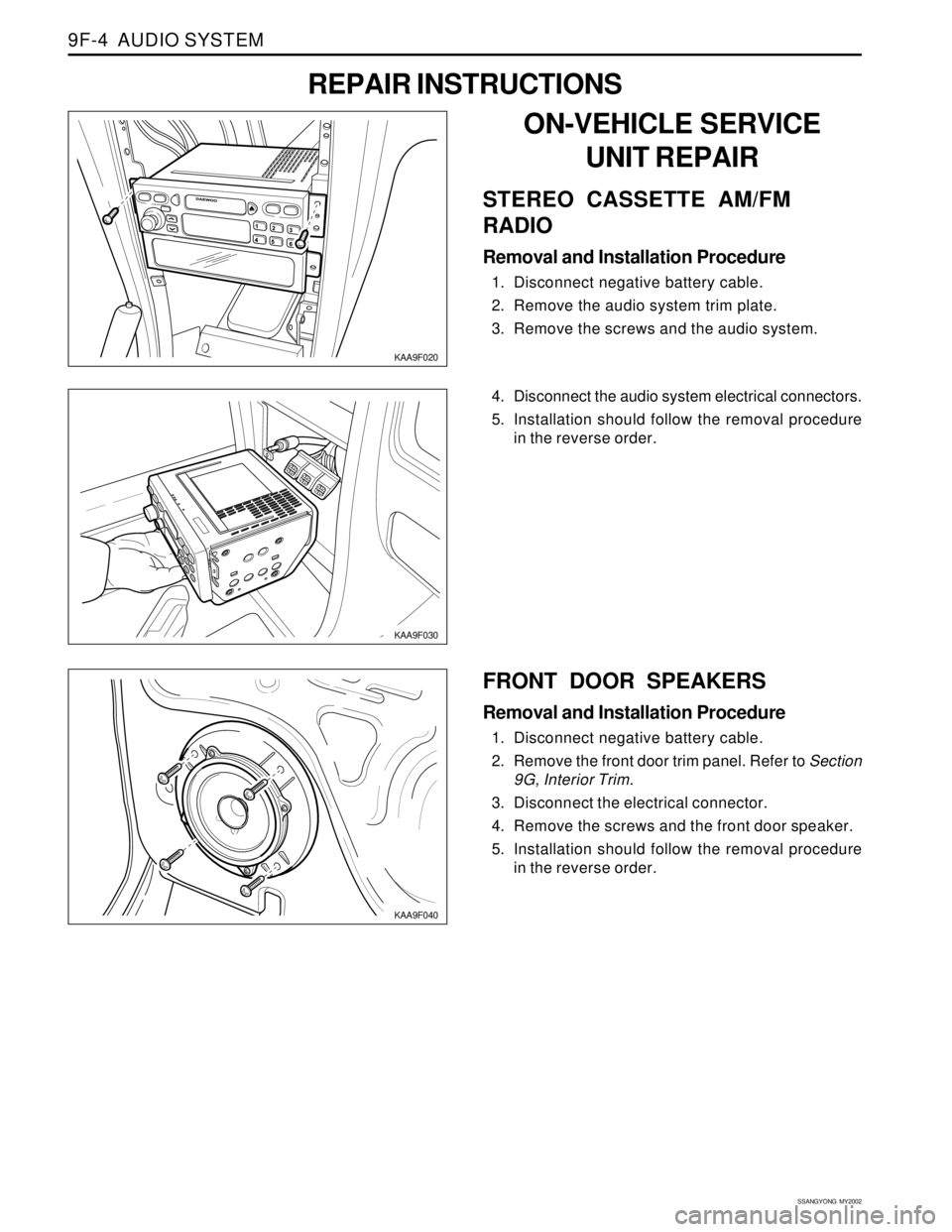

9F-4 AUDIO SYSTEM
KAA9F030
KAA9F040
4. Disconnect the audio system electrical connectors.
5. Installation should follow the removal procedure
in the reverse order.
FRONT DOOR SPEAKERS
Removal and Installation Procedure
1. Disconnect negative battery cable.
2. Remove the front door trim panel. Refer to Section
9G, Interior Trim.
3. Disconnect the electrical connector.
4. Remove the screws and the front door speaker.
5. Installation should follow the removal procedure
in the reverse order.
KAA9F020
ON-VEHICLE SERVICE
UNIT REPAIR
STEREO CASSETTE AM/FM
RADIO
Removal and Installation Procedure
1. Disconnect negative battery cable.
2. Remove the audio system trim plate.
3. Remove the screws and the audio system.
REPAIR INSTRUCTIONS

AUDIO SYSTEM 9F-5
SSANGYONG MY2002
KAA9F060
KAA9F050
MAST ANTENNA
Removal and Installation Procedure
1. Disconnect the negative battery cable.
2. Remove the center high-mounted stop lamp cover
3. Disconnect the CHMSL electrical connector.
4. Remove the screws with the CHMSL.
5. Installation should follow the removal procedure
in the reverse order.
REAR SPEAKERS
Removal and Installation Procedure
1. Disconnect the negative battery cable.
2. Remove the quarter trim panel. Refer to Section
9G, Interior Trim.
3. Installation should follow the removal procedure
in the reverse order.

Description and Operation..................................9G-2
Interior Trim Panels.............................................9G-2
Floor Console.....................................................9G-2
Floor Carpet........................................................9G-2
Components Locator ...........................................9G-3
Interior Trim........................................................9G-3
Repair Instructions...............................................9G-4
On-Vehicle Service Unit Repair...............................9G-4
Door Trim Panel..................................................9G-4
SECTION 9G
INTERIOR TRIM
CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless
otherwise noted.
TABLE OF CONTENTS
A-Pillar Trim Panel...............................................9G-5
Upper Quarter Trim Panel....................................9G-5
Lower Quarter Trim Panel....................................9G-6
Cowl Side Trim Panel ..........................................9G-6
Front Rocker Trim Panel......................................9G-7
Floor Console.....................................................9G-7
Floor Carpet........................................................9G-7
Specifications......................................................9G-9
Fastener Tightening Specifications......................9G-9

SSANGYONG MY2002
9G-6 INTERIOR TRIM


y y
y
KAA9G100
KAA9G090
2. Remove the armrest. Refer to Section 9H “SEATS”.
3. Remove the ashtray and compartment lamp from
lower quarter trim panel.
4. Remove the roof rear trim and back panel cover.
LOWER QUARTER TRIM PANEL
Removal and Installation Procedure
1. Lift up the rear seat from the floor.
KAA9G120
KAA9G110
COWL SIDE TRIM PANEL
Removal and Installation Procedure
1. Remove the cowl side trim panel. Refer to front
rocker trim panel in this section.
2. Remove the cowl side trim panel with the screws.
3. Installation should follow the removal procedure
in the reverse order. 5. Remove the lower quarter trim panel with the
screws.
6. Installation should follow the removal procedure
in the reverse order.

INTERIOR TRIM 9G-7
SSANGYONG MY2002
KAA9G140
KAA9G130
FLOOR CONSOLE
Removal and Installation Procedure
1. Remove the screws.
2. Remove the floor console.
3. Disconnect the electrical connector.
4. Installation should follow the removal procedure
in the reverse order.
FRONT ROCKER TRIM PANEL
Removal and Installation Procedure
1. Remove the screws.
2. Remove the rocker trim panel.
3. Installation should follow the removal procedure
in the reverse order.
KAA9G160
KAA9G150
6. Remove the luggage hook with the mounting
screws.
7. Remove the front seat. Refer to Section 9H, Seats.
FLOOR CARPET
Removal and Installation Procedure
1. Disconnect the negative battery cable.
2. Remove the rear seat. Refer to Section 9H, Seats.
3. Remove the bolts and the left and the right lower
seat belt anchors.
4. Remove the child seat anchor. Refer to Section
9H, Seats.
5. Remove the floor carpet screws.
