8) Key Hole Illumination
When opening the door with IGN OFF, the key hole lamp comes on.
When closing the door, the key hole lamp stays on for 10 seconds and goes off.
When turning the ignition switch to ON position during the operation of key hole illumination, it goes of
f
immediately.
When receiving the door lock signal (entering into theft deterrent mode), the lamp goes off.
The key hole illumination function has a priority over the immobilizer function.
If the communication with the immobilizer is interrupted, the lamp comes on for 11 seconds with the
interval of 0.5s ON/0.5s OFF regardless of the operating conditions of key hole lamp.
When turning the ignition switch to ON position in "Virgin" condition, the lamp comes on for 8 seconds
with the interval of 0.5s ON/0.5s OFF. 1.
2.
3.
4.
5.
6.
(*1) ON: IGN ON
OFF: IGN OFF(*2) Open: driver or passenger door is open
Close: driver and passenger door are closed
Room lamp OFF control ▶
The room lamps stop operating when the BCM enters into the theft deterrent or sleep mode. (This is
to prevent battery discharge if the overhead room lamp and sensor room lamp switch is ON position.)
The room lamps go off automatically 10 minutes after the key is removed. After that, if the door unlock
or all door open signal is received and the key is inserted, the sleep mode is deactivated and the room
lamps operate for another 10 minutes.
The room lamps come on when the key is inserted (BCM without SKM) or the ignition switch is turned
to "ACC" or "ON" position (BCM with SKM) while the room lamps are OFF. 1.
2.
3.

03-358710-01
10) Keyless Entry
Transmitter (REKES key) ▶
When the user operates the switch of the remote control key, the vehicle control messages formatted by
its CPU are sent to the main unit wirelessly. The, the CPU control the vehicle and the main unit controls
the vehicle operation.
Door unlock/panic buttonDoor lock
Door unlock/panic button ▶
Unlocking door and tailgate (briefly press)
If you press this button, it unlocks all doors and the tailgate and deactivates the theft deterrent mode.
When the theft deterrent mode is deactivated, the emergency hazard lights blink once.
If the door, tailgate or engine hood is not opened within 30 seconds after unlocking the door with the
remote control key in theft deterrent mode, the door is locked automatically, hazard warning flasher
blinks twice and buzzer sounds once. (entering into theft deterrent mode)
Panic function (press and hold for more than 2 sec)
When pressing (over 2 sec) the button, the hazard warning flasher blinks and buzzer sounds for
about 30 seconds.
Press the UNLOCK or PANIC button to deactivate this function. 1.
-
-
-
2.
-
-

03-36
Remote door lock ▶
When briefly pressing (below 0.5 sec) the LOCK button on the transmitter, the doors are locked.
The BCM sends the door lock signal immediately after receiving the door lock message from the
transmitter. When door close, hood close and door lock status is detected, it outputs the turn signal
lamp signal.
Only when door close, hood close and door lock conditions are satisfied after door lock is performed,
the turn signal lamp signal is outputted.
The REKES operation is not available when the ignition key is in the key switch. Also, it is not
possible to use the switches on the remote control key for 1 second after removing the ignition key
from the ignition switch to avoid unintended operation.
If any of doors could not be locked when pressing the LOCK switch, the system performs the unlock
operation. 1.
2.
3.
4.
5.
Door lock ▶
Locking door and tailgate (briefly press)
If you press this button, all doors and the tailgate are locked and the theft deterrent mode is
activated.
When the theft deterrent mode is activated, the hazard warning flasher blinks twice. However, when
pressing this button once again within 4 seconds, the hazard warning flasher blinks twice and buzzer
sounds once. 1.
-
-

03-378710-01
Remote door unlock ▶
When briefly pressing (below 2.0 sec) the UNLOCK button on the transmitter, the doors are
unlocked.
The door unlock relay is turned ON for 0.5 seconds when receiving the door unlock message from
the transmitter.
The turn signal lamps blink only when all doors are successfully unlocked.
The REKES operation is not available when the ignition key is in the key switch. Also, it is not
possible to use the switches on the remote control key for 1 second after removing the ignition key
from the ignition switch to avoid unintended operation. 1.
2.
3.
4.
Remote panic ▶
When pressing (over 2.0 sec) the PANIC switch on the transmitter, the panic alarm is activated.
When receiving the panic message from the transmitter, the horn sounds and the turn signal lamps
blink for 30 seconds (Panic alarm). 1.
2.

03-38
After 30 seconds delay auto door lock ▶
If a door or tailgate is not opened within 30 seconds after unlocking the doors with remote control key
in theft deterrent mode, all doors will be automatically locked again (change to theft deterrent mode).
If any door is not opened or the key is not detected within 30 seconds after receiving the unlock
signal, the lock signal is outputted and theft deterrent mode is activated.
When entering into the theft deterrent mode, the turn signal lamps blink twice and the exterior buzzer
sounds once for SKM the lamps blink twice and burglar alarm horn sounds once for REKES. 1.
2.

03-398710-01
11) Door Lock/Unlock Control
The BCM with SKM receives wake-up source for driver door lock/unlock switch, passenger door
lock/unlock switch, rear door (left/right) lock switch, central door lock/unlock switch status through the
electric wire (hardwire).
Door lock/unlock control by door LOCK switch ▶
When moving the driver or passenger door lock (knob) switch to LOCK from UNLOCK position, BCM
sends the LOCK signal for 0.5 seconds.
When moving the driver or passenger door lock (knob) switch to UNLOCK from LOCK position, BCM
(UNLOCK) operation by the door lock (knob) switch is not available when sending the LOCK
(UNLOCK) signal by any other method such as remote control key.
When reconnecting the battery, the door lock (knob) switch is not operational regardless of the door
lock switch positions.
All doors stay unlocked when receiving the door lock signal in 0.5 seconds after closing the doors. 1.
2.
3.
4.
5.The status for key cylinder switch and latch position switch is received through the door lock/unlock
switch.
When door lock signal is outputted due to failure of the door knob switch and door open switch and
automatic unlock signal is transmitted 5 times for 1 minute, BCM forcibly lock the doors without
unlocking.
However, door unlock command works normally and deactivates forcible unlock. -

03-418710-01
Door lock/unlock control by SKM smart key's remote control ▶
If the BCM receives the LOCK command through the BCAN communication (REKES lock signal)
when pressing the door lock switch of the smart key's remote control with IGN OFF or ACC ON, it
sends door lock signal for 0.5 seconds.
If the BCM receives the UNLOCK command through the BCAN communication when pressing the
door unlock switch of the smart key's remote control with IGN OFF or ACC ON, it sends door unlock
signal for 0.5 seconds. 1.
2.

03-42
Lock/unlock control by SKM passive entry ▶
The SKM searches for the verified smart key, sends door lock or unlock signal to the BCM through the
BCAN communication depending on the door status and sends the output for 0.5 seconds when
operating the outside door handle switch with IGN OFF, ACC ON or IGN ON.
(The BCM does not perform door lock if the driver door is unlocked when receiving the outside door
handle switch signal with IGN ON.)
The BCM activates door lock output for 0.5 seconds if the driver door is unlocked after receiving door
lock/unlock command, BCAN signal (outside door handle signal), with IGN OFF or ACC ON. 1.
2.

03-44
Auto door unlock (crash unlock) control ▶
The air bag collision signal input cannot be accepted within 7 seconds after turning the ignition key to
"ON" position.
After the 7 seconds, the air bag signal is activated. If the air bag signal is turned ON (crash) from OFF,
BCM sends the door unlock signal for 5 seconds after 0.04 seconds.
The unlock signal is sent for the remaining of the period even when turning OFF the ignition switch
while receiving the unlock signal due to the crash.
The room lamps come ON when receiving the crash signal. (except when the front room lamp switch
is in OFF position.)
The turn signal lamps also blink when receiving the crash signal.
This function is reset when disconnecting the battery. 1.
2.
3.
4.
5.
6.

03-458710-01

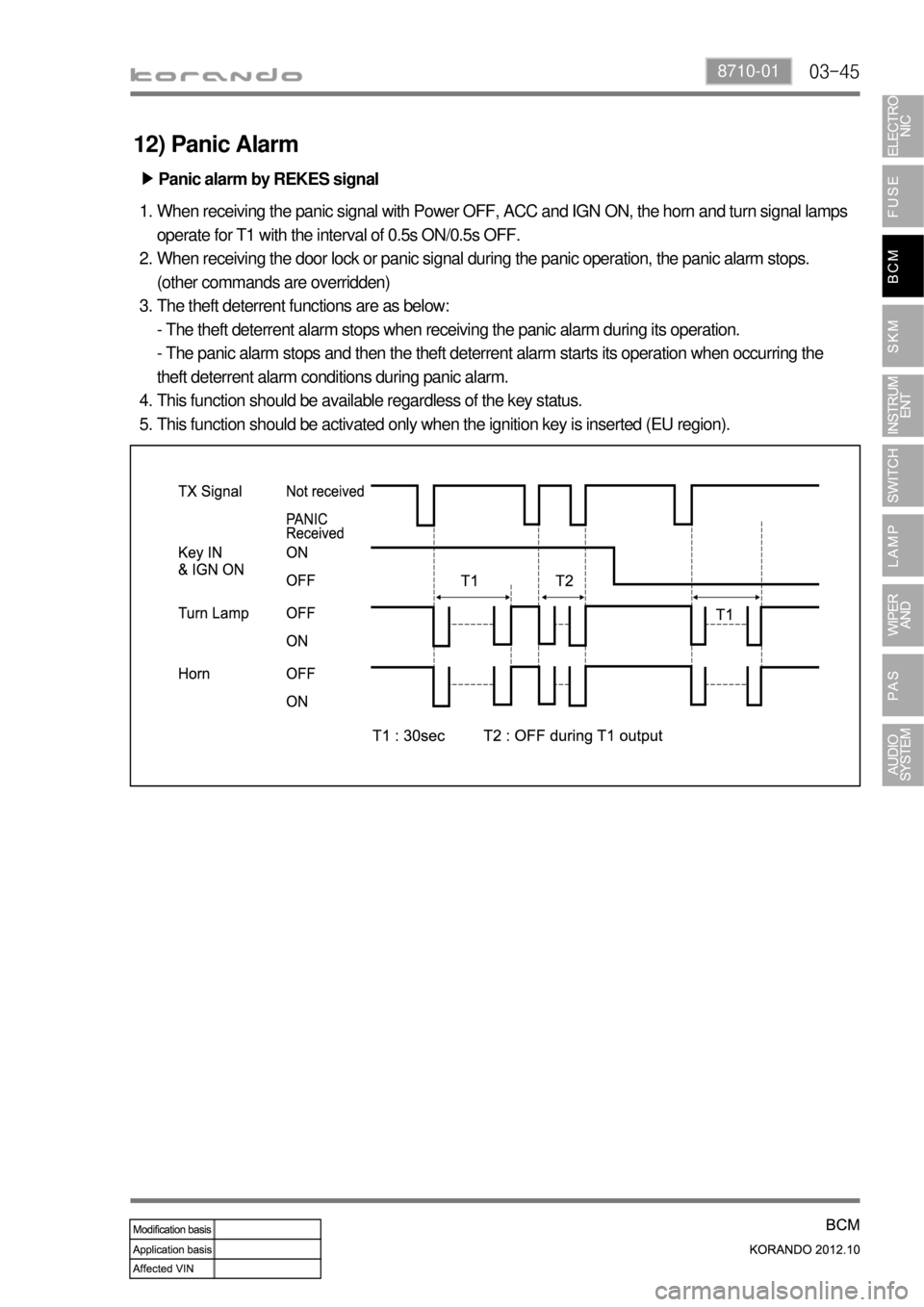

12) Panic Alarm
Panic alarm by REKES signal ▶
When receiving the panic signal with Power OFF, ACC and IGN ON, the horn and turn signal lamps
operate for T1 with the interval of 0.5s ON/0.5s OFF.
When receiving the door lock or panic signal during the panic operation, the panic alarm stops.
(other commands are overridden)
The theft deterrent functions are as below:
- The theft deterrent alarm stops when receiving the panic alarm during its operation.
- The panic alarm stops and then the theft deterrent alarm starts its operation when occurring the
theft deterrent alarm conditions during panic alarm.
This function should be available regardless of the key status.
This function should be activated only when the ignition key is inserted (EU region). 1.
2.
3.
4.
5.
