SSANGYONG KORANDO 2012 Service Manual

08-257810-00
When the parking terminal is shorted to power with IGN2 ON and intermittent wiper switch in "ON"
position, the wiper system sends the signal for current wiping status for 2 seconds. After that, it
sends the current signal for parking status continuously.
* The wiper motor is operated only when there is a request from the rain sensor. 2.
The wiper system sends continuously the signal for current status when the wiper parking terminal
is shorted to ground with IGN2 ON and intermittent wiper switch in "ON" position.
* The wiper motor is operated only when there is a request from the rain sensor. 1.

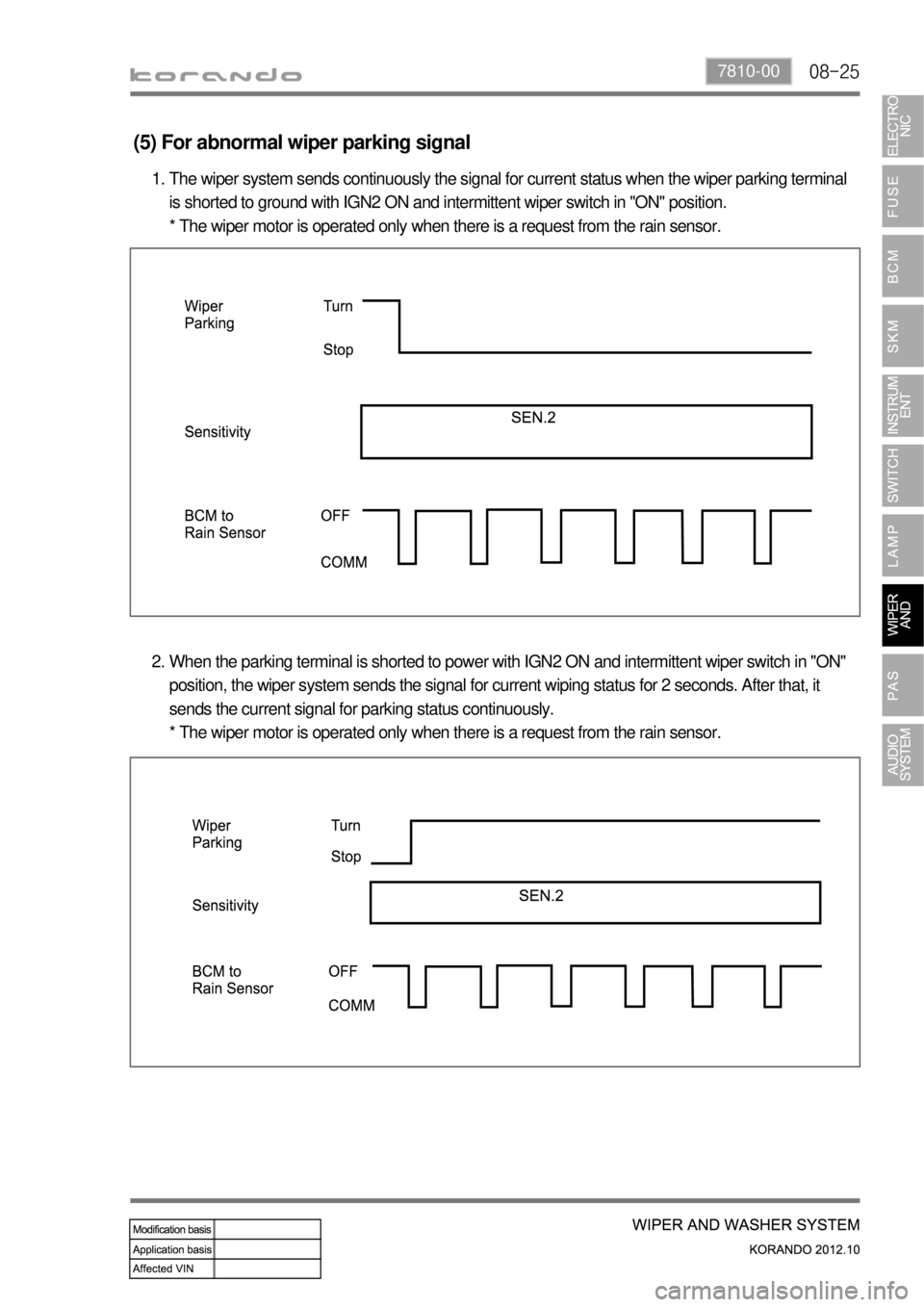

(5) For abnormal wiper parking signal

08-26
When the wiper speed control switch is turned to step 3 from step 4 the wiper motor cycles one time
at low speed, provided that the BCM receives a communication error signal from the rain sensor uni
t
with IGN ON and the INT/AUTO switch ON. 2.
When the wiper speed control switch is turned to step 2 from step 3 the wiper motor cycles one
time at low speed, provided that the BCM receives a faulty sensor signal from the rain sensor unit
with IGN ON and the INT/AUTO switch ON. 1.

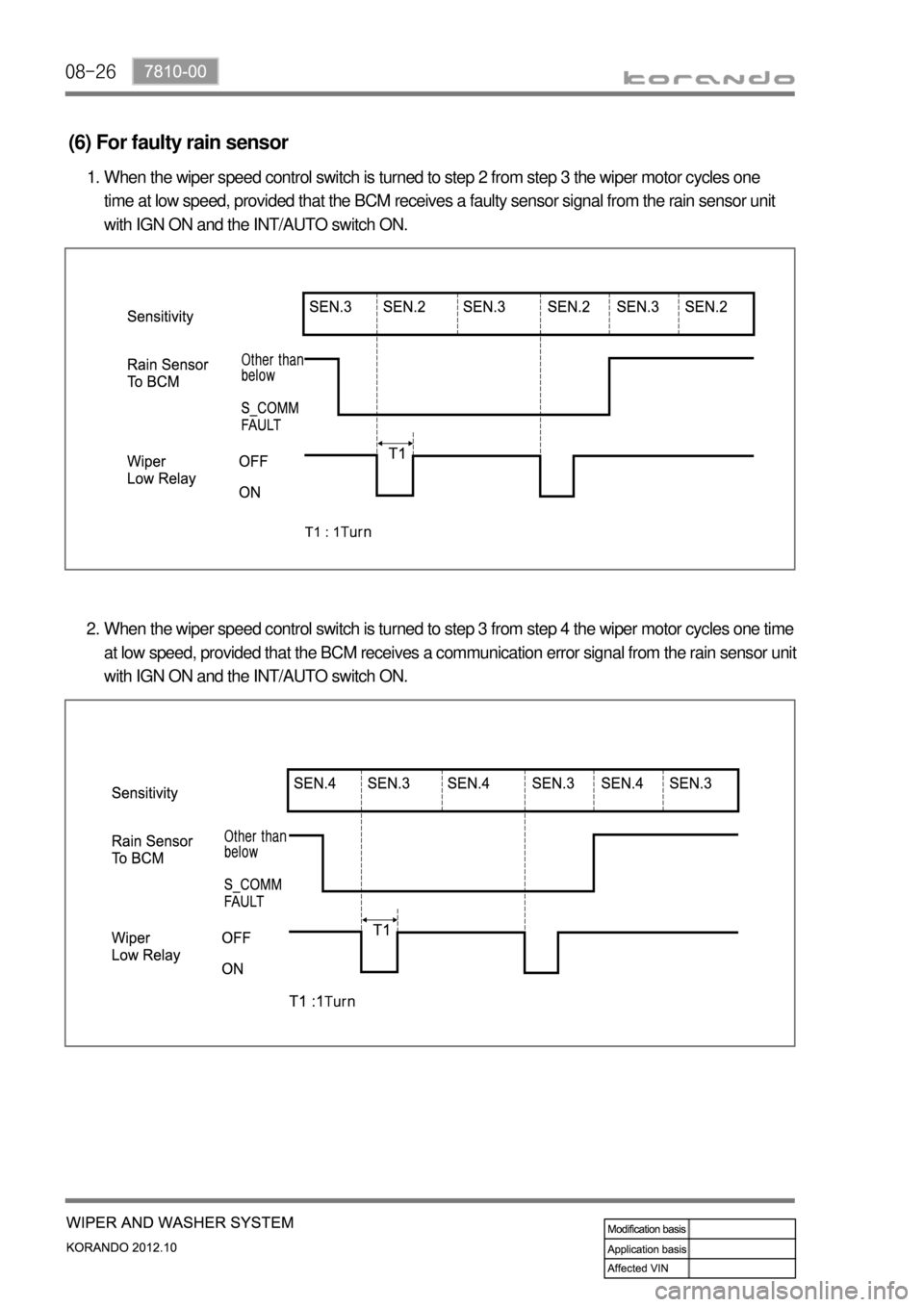

(6) For faulty rain sensor

08-277810-00
For the vehicles without rain sensor, the BCM operates the wiper as follows:
When turning the ignition switch to ON from OFF position with the intermittent wiper switch in "ON"
position, the wipers do not operate.
When turning the wiper switch to ON from OFF position after turning the ignition switch to ON position,
the wipers operate one cycle.
The wiper's operation cycle depends on the vehicle speed (CAN communication with instrument
cluster) and wiping speed the side fascia panel.
<00540047007e0090009700900095008e0047008a00a0008a0093008c00610047005a004700b7004700570055005c0047009a008c008a00550047004f006d0068007a007b00500047009b0096004700580060004700b7004700590047009a008c008a005500
47004f007a00730076007e0050> 1.
2.
3.
(7) Speed sensitive intermittent wiper

08-28

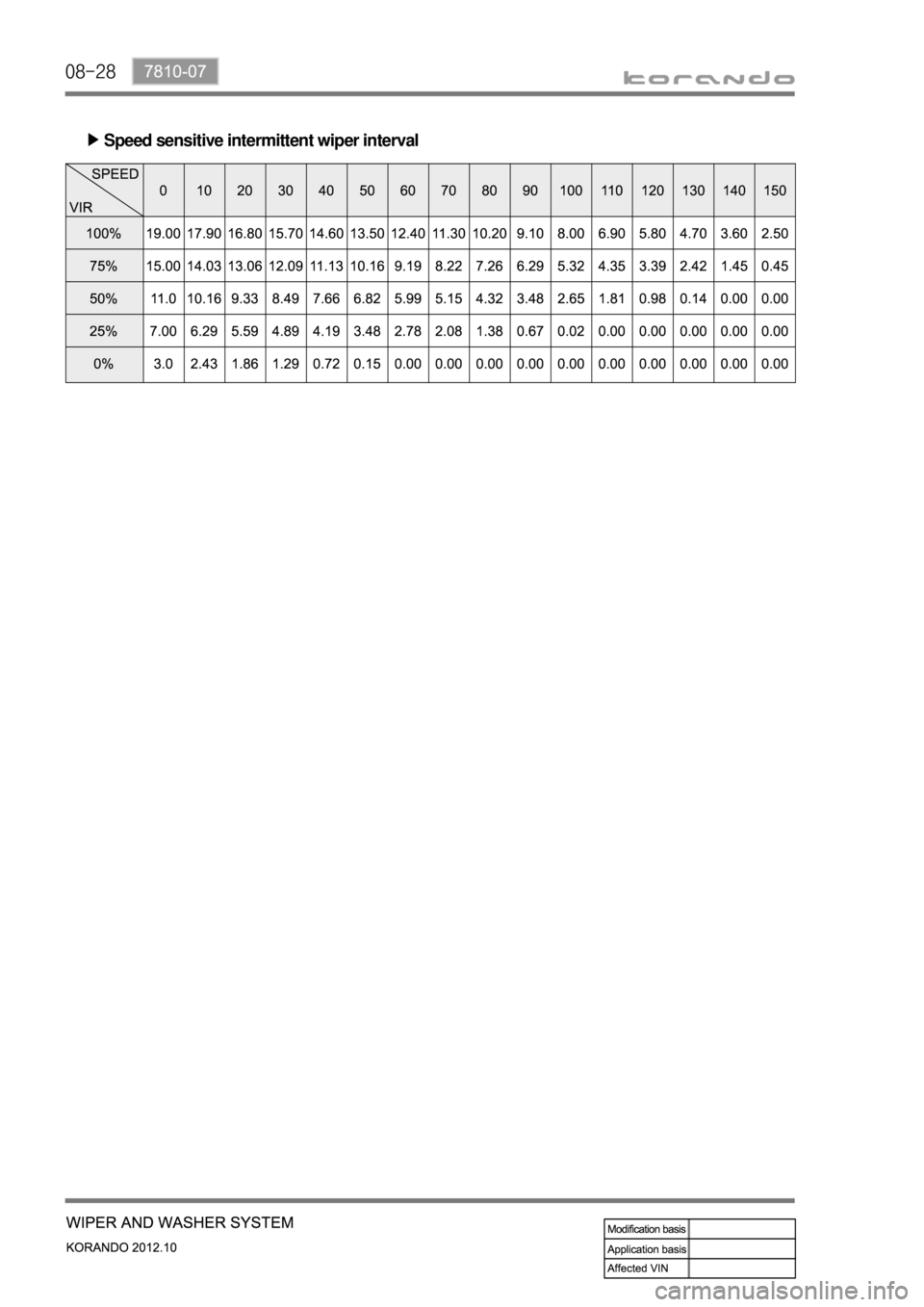

Speed sensitive intermittent wiper interval ▶

09-38790-00
1. SPECIFICATION
Pin No. Specification Pin No. Specification
Rated voltage
DC 12.0 VInsulating resistance No heat & fire due to current
leak
Operating voltage
DC 9.0 V ~ 16.0 V
Max. permissible
currentUnit: 100 mA or less
Operating
temperature-30℃ ~ +80℃
Sensor: 20 mA or less
Storage temperature
-40℃ ~ +85℃
WeightUnit: 75.7 g±5 g
Maximum humidity
95%Sensor: 38.7 g±5 g
2. CAUTIONS
Sensor Cannot Detect ▶
When the sensor is frozen (operate normally when it's thawed)
When the sensor is covered with foreign materials such as snow or condensation
(if the foreign materials are removed, the sensor operates normally.) -
-
Not defective but improperly working ▶
When the sensing portion is frozen (operates normally after thawed)
When reversing on rough roads, gravel roads, hills, or grass.
When receiving other ultrasonic signals (metal sounds or air braking noises from heavy
commercial vehicles).
When there is heavy rainfall or water drops.
When the sensor is covered with snow. -
-
-
-
-
Certain obstacles that sensors cannot detect ▶
Thin and narrow objects, such as wires, ropes, or chains
Cotton, sponge, clothes, snow that absorb ultrasonic waves. -
-
Weak Sensing Scopes ▶
When the ambient temperature is too high or too low.
When a 1 m or less long small object with a diagmeter of 100 mm or less is detected. -
-

09-4

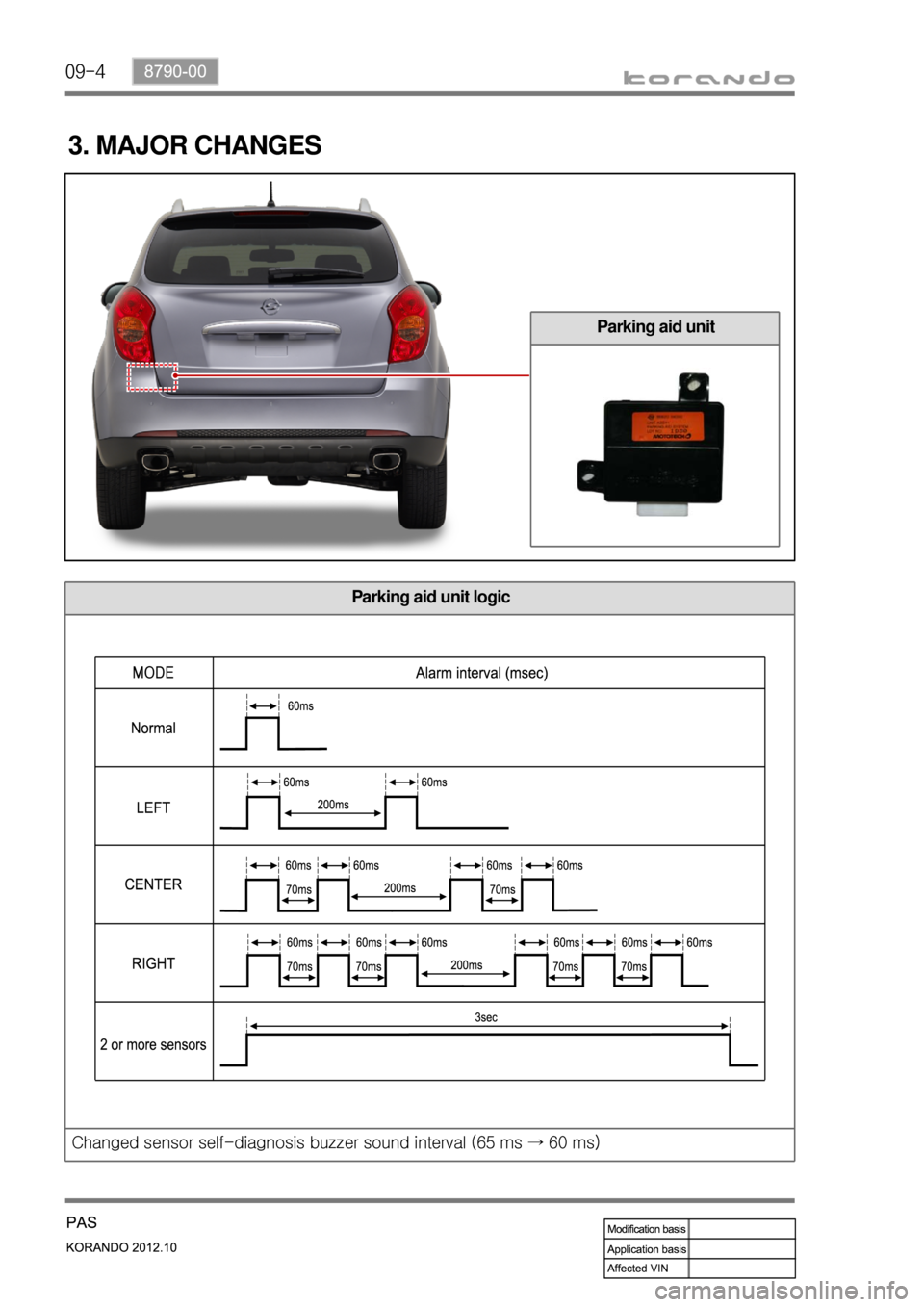

3. MAJOR CHANGES
Parking aid unit
Parking aid unit logic
<006a008f00880095008e008c008b0047009a008c0095009a009600990047009a008c0093008d0054008b00900088008e00950096009a0090009a00470089009c00a100a1008c00990047009a0096009c0095008b004700900095009b008c0099009d008800
930047004f005d005c00470094009a004702e70047005d0057> ms)

09-6
IP display (SVC only)
When the gear selector lever is shifted into “R", the parking aid system is activated and three
sensors in the rear bumper detect the distance to any obstacle. The PAS detects the returning signals
reflected to the obstacles at regular intervals when the vehicle is parked to indicate the display and alarm
for the distance between the obstacles by phase so as to allow the driver easy parking by securing safe
distance.
1. OVERVIEW
Buzzer for PAS
Buzzer sounds using instrument
cluster buzzer
Rearview cameraShift lever

09-78790-00

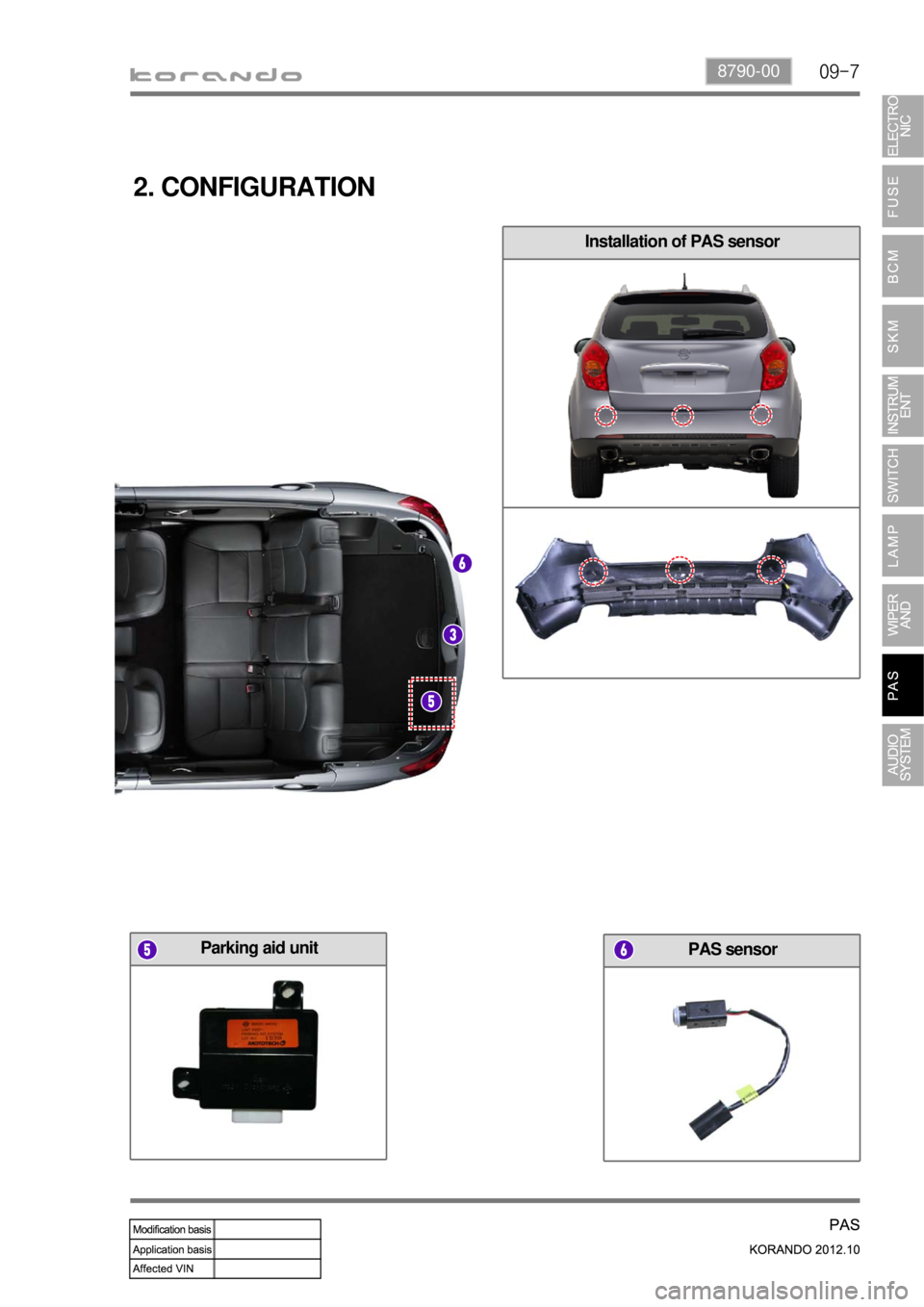

2. CONFIGURATION
Installation of PAS sensor
Parking aid unitPAS sensor

09-8

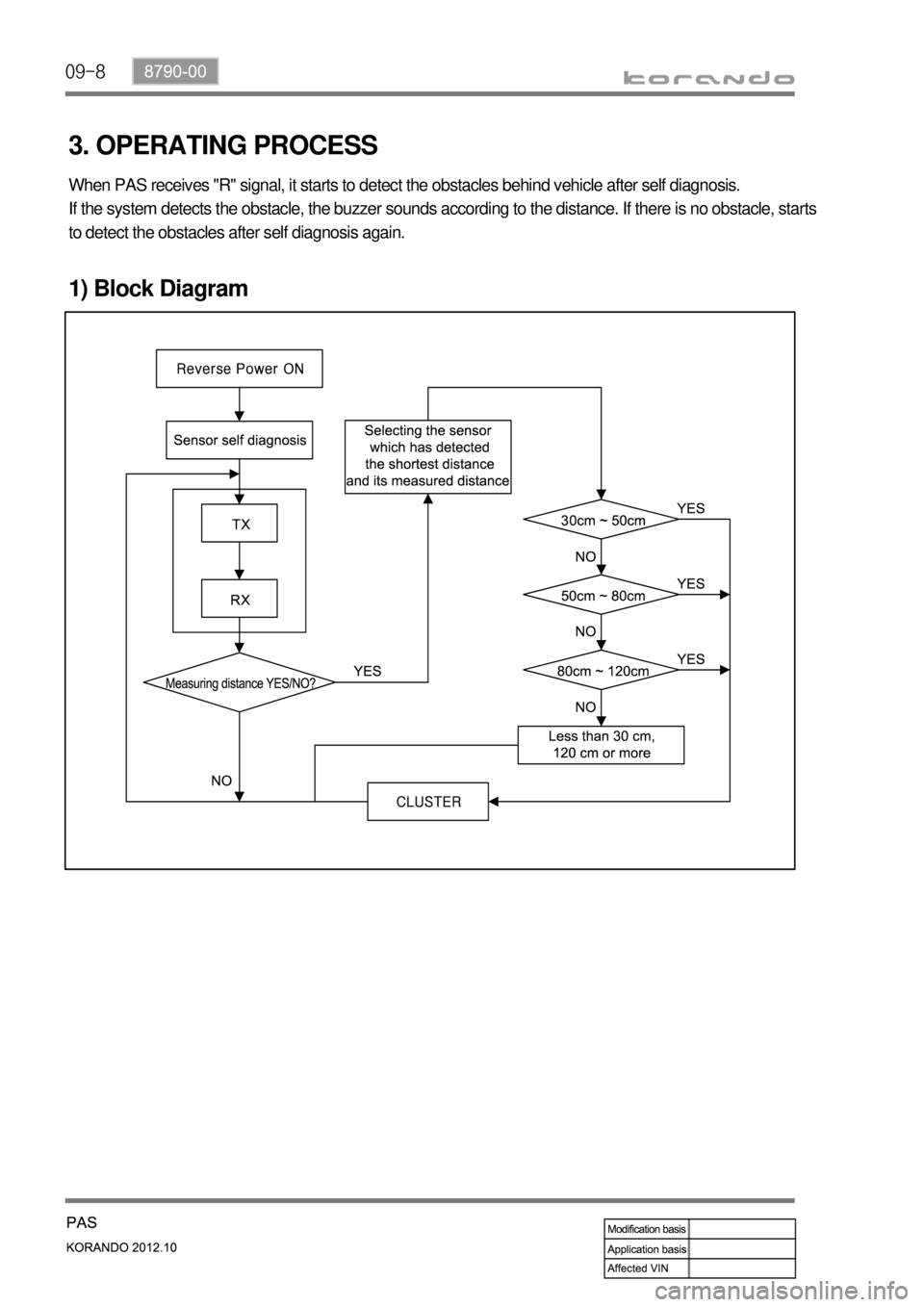

3. OPERATING PROCESS
1) Block Diagram
When PAS receives "R" signal, it starts to detect the obstacles behind vehicle after self diagnosis.
If the system detects the obstacle, the buzzer sounds according to the distance. If there is no obstacle, starts
to detect the obstacles after self diagnosis again.
