2. INPUT SIGNALS
NO Input signal Logic
1 IGN1 ON = Battery voltage (IGN ON or START)
2 IGN2 ON = Battery voltage (IGN ON)
3 Alternator ON = Battery voltage (engine running)
4 Key reminder switch IN = Battery voltage (key inserted)
5 Driver door LOCK detecting switch LOCK = GND, UNLOCK = OPEN
6 Driver door UNLOCK detecting switch LOCK = OPEN, UNLOCK = GND
7 Passenger door LOCK detecting switch LOCK = GND, UNLOCK = OPEN
8 Passenger door UNLOCK detecting
switchLOCK = OPEN, UNLOCK = GND
9 Rear door LOCK detecting switch LOCK = OPEN, UNLOCK = GND
10 Puddle lamp ON = (-) OUTPUT
11 Driver door open switch OPEN = GND, CLOSE = OPEN
12 Passenger door open switch OPEN = GND, CLOSE = OPEN
13 Rear LH door open switch OPEN = GND, CLOSE = OPEN
14 Rear RH door open switch OPEN = GND, CLOSE = OPEN
15 Tailgate switch OPEN = GND, CLOSE = OPEN
16 Hood switch OPEN = GND, CLOSE = OPEN
17 Sunroof switch OPEN = GND, CLOSE = OPEN
18 headlamp switch ON = GND, OFF = OPEN
19 Folding/unfolding switch ON = GND, OFF = OPEN
20 Crash door LOCK/UNLOCK switch ON = GND, OFF = OPEN
21 Crash sensor (air bag) ON = 200 ms Low signal, OFF = OPEN
22 Front defogger (heated wire) switch ON = GND, OFF = OPEN
23 Rear defogger (heated wire) switch ON = GND, OFF = OPEN
24 Wiper switch 1 ON = GND, OFF = OPEN
25 Wiper switch 2 ON = GND, OFF = OPEN
26 Driver seat belt switch Unbuckled = GND, Fastened = OPEN
27 Passenger seat belt switch (only EU) Unbuckled = GND, Fastened = OPEN
28 Rain & AUTO light sensor LIN communication

3. MAJOR FUNCTIONS
Item Functionw/o SKM w/ SKM
1 WIPER CONTROL Wiper MIST and washer coupled wiper O O
AUTO washer coupled wiper operation O O
Rain sensor coupled wiper (LIN) O O
Speed sensitive intermittent wiper O O
Wiper LO/HI control O O
2 Ignition key warning
lampIgnition key reminder warning O X
Ignition key reminder O X
External buzzer control X O
Door LOCK prevention function when a door
is ajarOO
3 Tail lamp control Tail lamp switch ON warning O O
Tail lamp warning display X O
Tail lamp AUTO switching off O O
4 Door ajar warning Door ajar control X O
Door ajar warning O O
5 Seat belt control Seat belt warning O O
Seat belt reminder O O
6 Sunroof warning Sunroof warning O O
Sunroof warning display X O
7 Room lamp control Door coupled room lamp dim control O O
Room lamp AUTO switching off O O
Room lamp control display X O
8 Ignition key hole lamp Ignition key hole lamp control O X
9 Defogger (heated wire)
controlFront defogger (heated wire) control O O
Rear defogger (heated wire) control O O

8710-01
Item Functionw/o
SKMw/ SKM
10 Ignition key remote
control functionTransmitter function O X
Remote control door LOCK O X
Remote control door UNLOCK O X
Remote control panic O X
Remote control escort O X
AUTO door LOCK after 30 seconds O X
11 Door
LOCK/UNLOCK
controlDoor LOCK/UNLOCK control by door knob switch O O
Door LOCK/UNLOCK control by center door LOCK
switchOO
Door LOCK/UNLOCK control by REKES key signal O X
Door LOCK/UNLOCK control by smart key X O
Door LOCK/UNLOCK control by door handle switch
(passive entry)XO
AUTO door LOCK control O O
AUTO UNLOCK upon receiving air bag deployment
signalOO
12 Panic alarm Panic alarm control by REKES key signal O X
Panic alarm control by smart key signal X O
13 Tailgate control Tailgate open control
(for vehicles without SKM)OX
Tailgate open control
(for vehicles with SKM)XO
14 Theft deterrent
alarm controlTheft deterrent alarm control (for vehicles without
SKM)OX
Theft deterrent alarm control (for vehicles with SKM) X O
15 Time lag window
controlTime lag power window control O O

8710-01
4. WITH SKM VS. WITHOUT SKM
BCM (BODY CONTROL MODULE)
BCM (Body Control Module) inputs/outputs data from various switches, sensors, and other modules
through the hard wire and CAN communication, and controls the body and electronic system of the
vehicle.
For the vehicles with SKM, the SKM unit communicates with BCM through B-CAN. It sends the door
LOCK/UNLOCK signal by smart key, theft deterrent mode signal, and passive entry signal, etc. to the
BCM to control each module. The signals for engine running and stopping controls are sent to the EMS
(ECU) through the P-CAN.
For the vehicles without SKM, the BCM receives door LOCK/UNLOCK signal by smart key, theft
deterrent mode signal, and passive entry signal, etc. directly from the modules to control them. The
BCM controls the engine running and stopping by sending the corresponding signals to the EMS (ECU)
after verifying the ignition key. The controls for other modules may vary depending on the vehicle
specifications.

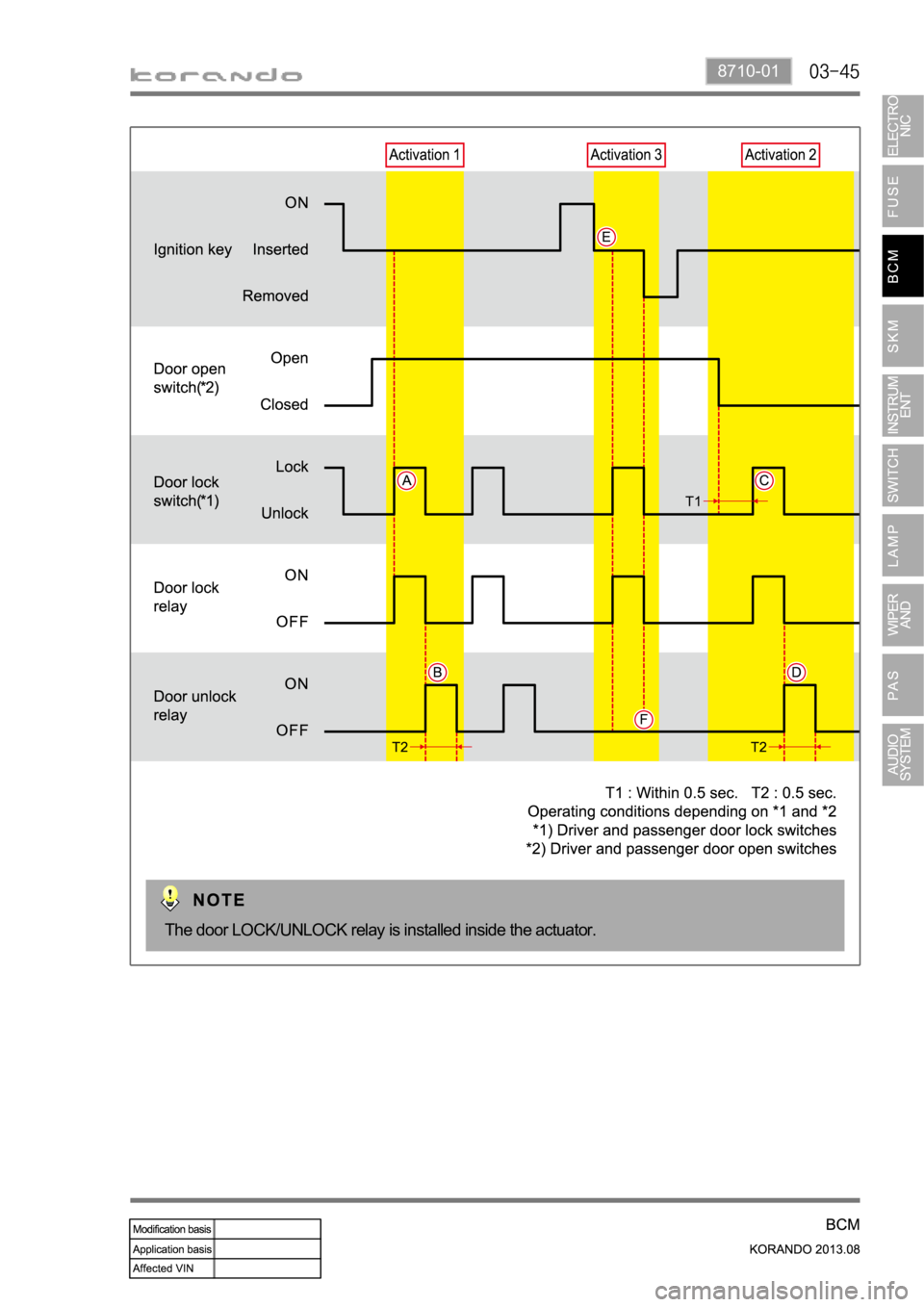

Ignition key reminder operation
The door LOCK switch is in LOCK position after the driver door is opened with the ignition key
inserted.
The UNLOCK signal is output for 0.5 seconds (T2) immediately after the LOCK signal output. A.
B. Operation 1.
The door LOCK switch is in LOCK position within 0.5 seconds (T1) after the door is closed with the
ignition key inserted.
The UNLOCK signal is output for 0.5 seconds (T2) immediately after the LOCK signal output. C.
D. Operation 2.
The door LOCK switch is in LOCK position after the driver door is opened with the ignition key
inserted.
The door UNLOCK signal is not output when the ignition key is removed during the door LOCK
output. E.
F. Operation 3.
Operating process

8710-01
The door LOCK/UNLOCK relay is installed inside the actuator.

All doors LOCK prevention function
When the LOCK signal is input with the doors (driver/passenger/rear) open and the ignition key
removed or IGN ON).
The UNLOCK signal is output for 0.5 seconds (T1) immediately after the LOCK signal output. A.
B. Operation 1.
All doors are closed during the UNLOCK output.
The UNLOCK output continues. C.
D. Operation 2.
When the ignition key is inserted, the ignition key reminder is operated. E. Operation 3.Except tailgate and hood -
Operating process
This function does not work if the vehicle speed is over 10 km/h.

8710-01
The door LOCK/UNLOCK relay is installed inside the actuator.

Door is opened with IGN OFF.
The key hole lamp comes on.
The key hole lamp comes on for 10 seconds (T1) when the door is closed. A.
B.
C. Operation 1.
The ignition is turned ON with the key hole lamp ON.
The key hole lamp goes out. D.
E. Operation 2.
10. KEY HOLE LAMP CONTROL
The key hole lamp goes out when the REKES LOCK signal is received (in theft deterrent
mode).
When the key hole lamp and immobilizer signals are received simultaneously, the immobilizer signal
overrides the key hole lamp signal.
When the immobilizer confirmation is failed, regardless of the key hole lamp operation condition, it
flashes for 11 seconds at intervals of 0.5 sec. ON/0.5 sec. OFF.
When the ignition is turned ON in virgin status, the key hole lamp flashes for 8 seconds at intervals
of 0.5 sec. ON/0.5 sec. OFF. -
-
-
-

Door coupled room lamp control
When all doors are closed with IGN ON, the room lamp goes out immediately. A. Operation 1.
All doors are closed with IGN OFF.
The room lamp stays on for 2 seconds (T1) and then fades out over 3 seconds (T2) and goes off.
- When the ignition is turned ON while the room lamp is fading out, the lamp goes out immediately. B.
C. Operation 2.
When UNLOCK signal by the smart key (REKES key) is received with IGN OFF (ignition key
removed) and all doors closed, the room lamp remains ON for 30 seconds (T3).
When UNLOCK signal is received again while the room lamp is ON, the lamp stays on for 30
seconds more. The room lamp lighting is extended when UNLOCK signal by the REKES key is
received. D.
E. Operation 3.
The room lamp stays on when a door is opened during fading out.
The lamp goes out or fades out when the door is closed. F. Operation 4.
12. ROOM LAMP CONTROL
When the room lamp switch is in the door coupled position and the driver/passenger/rear door is
opened, the room lamp comes on.
The room lamp goes out automatically after 10 minutes of illumination when the ignition is turned OFF
(ignition key is removed) and a door is open.
The sleep mode is deactivated when the door status is changed or UNLOCK signal is received after
automatic switching off. -
-
-
When the open driver/passenger/rear door is closed, the room lamp fades out. When the system
enters the theft deterrent mode, the room lamp goes out immediately.
In puddle lamp coupled room lamp mode, the room lamp comes on when the puddle lamp
operation signal is received. -
-
