ESP SSANGYONG KORANDO 2013 Workshop Manual

8010-01
2) TPMS Mode
(1) Supervision type LCD instrument cluster display
It monitors the tire and warns the driver if there is any abnormality.
The driver can see the current tire pressure by pressing the TRIP switch. -
-
Status Message Operating condition
Impossible to
determine tire
pressure
possible to determine tire pressure correctly
* At initial start, the tire pressure can be displayed
after 10 minutes of driving at speed of 20 km/h or
higher
Correct tire pressure The specified tire pressure is based on a cold tire
with the vehicle unloaded (no occupant); 32 psi at
Lower than minimum
tire pressureCorresponding status lamp comes on if tire
pressure is 24 psi or less
Excessive tire
pressureCorresponding status lamp blinks with shading
reverse at interval of 0.4 seconds if tire pressure is
50 psi or higher
Low tire pressure Corresponding status lamp comes on if tire
pressure is 24 psi or less
Sudden tire pressure
lossCorresponding status lamp blinks with shading
reverse at interval of 0.4 seconds if tire pressure
changes more than 3 psi per 1 minute at speed of 0
km/h or above.
Imbalance between
left and right tire
pressureCorresponding status lamps blink alternately at
interval of 1.0 second if tire pressure differs by more
than 4 psi in the left and right tires while driving for
more than 10 minutes

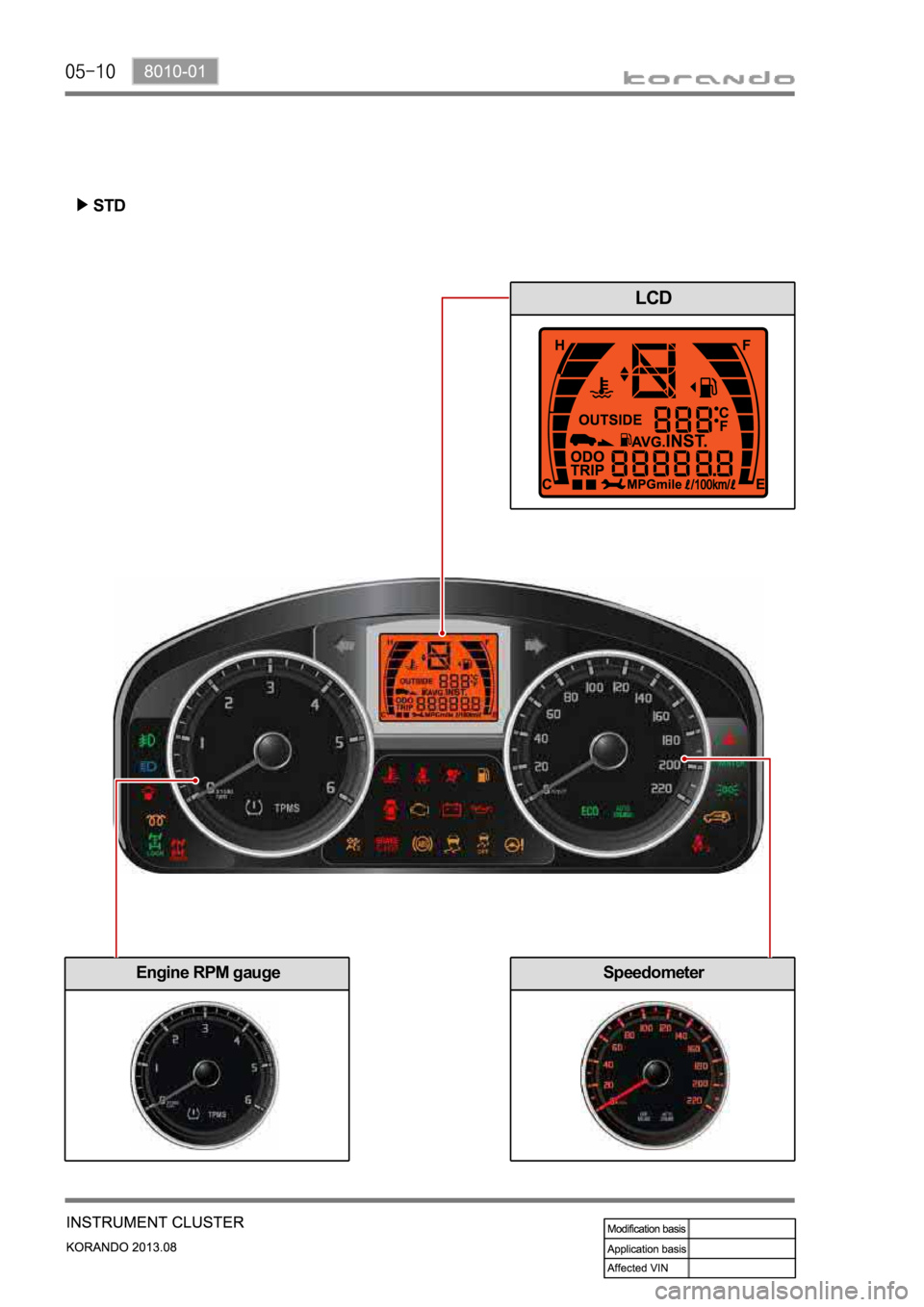

Engine RPM gaugeSpeedometer
STD
LCD

8010-01
Indicator
(amber)
ESP
ESP OFF indicator
Engine check warning lamp
Indicator
(amber)
Indicator
(amber)
Indicator (red)
Battery charge warning lamp
Indicator (red)
Engine oil level warning lamp
This lamp comes on if any sensor or device related to the engine control is
defective.
This lamp comes on when the start switch is ON or when the battery level is
low.
(For EEM, warning lamp is controlled according to CAN signal)
This lamp comes on when the ignition switch is turned to "ON" position,
and then goes off if the engine oil level is normal.
If the engine oil level warning lamp comes on while driving, check the
engine oil level and oil leakage. -
- This indicator comes on when the ESP system is faulty.
This indicator comes on when pressing the ESP OFF switch.

8010-01
The pre-warning of the MICOM control warning is performed 400 ms after turning the ignition switch to
ON position.
IGN ON detecting time: 40~80 ms after turning ignition switch to ON position -
- The pre-warning is performed for 4 seconds after turning the ignition switch to ON position. BCM checks
that the warning lamps (ABS, ESP, ESP OFF, 4WD CHECK, 4WD LOCK) are matched with CAN
signals.
The pre-warning is performed by the variant code.

8010-01
The pre-warning of the MICOM control warning is performed 400 ms after turning the ignition switch
to ON position.
IGN ON detecting time: 40~80 ms after turning ignition switch to ON position -
- The pre-warning is performed for 4 seconds after turning the ignition switch to ON position. BCM checks
that the warning lamps (ABS, ESP, ESP OFF, 4WD CHECK, 4WD LOCK) are matched with CAN
signals.
The pre-warning is performed by the variant code.

Status Message Operating condition
Impossible to
determine tire
pressure
possible to determine tire pressure correctly
* At initial start, the tire pressure can be displayed
after 10 minutes of driving at speed of 20 km/h or
higher
Correct tire pressure The specified tire pressure is based on a cold tire
with the vehicle unloaded (no occupant); 32 psi at
Lower than minimum
tire pressureCorresponding status lamp comes on if tire
pressure is 24 psi or less
Excessive tire
pressureCorresponding status lamp blinks with shading
reverse at interval of 0.4 seconds if tire pressure is
50 psi or higher
Low tire pressure Corresponding status lamp comes on if tire
pressure is 24 psi or less
Sudden tire pressure
lossCorresponding status lamp blinks with shading
reverse at interval of 0.4 seconds if tire pressure
changes more than 3 psi per 1 minute at speed of 0
km/h or above.
Imbalance between
left and right tire
pressureCorresponding status lamps blink alternately at
interval of 1.0 second if tire pressure differs by more
than 4 psi in the left and right tires while driving for
more than 10 minutes
Supervision type
Pressing the TRIP switch at the illumination brightness mode changes the screen to the tire pressure
display mode.
the tire in question blinks then comes on depending on how the abnormality is severe on the display
screen. -
-

8) Buzzer
Specifications
Function Signal
Part name PKM17EPP-2002-B0 (MURATA, Piezoelectric Sound Components)
Permitted input voltage 25 VP-P or less
Operating temperature
Storage temperature
Sound pressure level 70 dB/min (3 Vp-p, 2 kHz, square wave, 10 cm)
Capacitance
Priority of instrument cluster buzzer output
If there are multiple signals at a time, the operation should be completed by the priority.
Priority
ItemBuzzer output
time
Operating condition
ON OFF
1 PAS See PAS
2 ESP 0.1sec 0.1secInstrument cluster buzzer output signal is
received from ABS/ESP
3Engine overheat
warning lamp0.5sec 0.5sec
4Water separator
warning light0.5sec 0.5secWater separator warning light ON with
IGN ON
5 Parking brake 2.8sec 1.5secParking brake applied depending on
vehicle speed

Pin No.Message
Operating condition
Domestic Export
Cruise control This message comes on when the ECO cruise mode
is deactivated.
EMSThis message comes on when the engine is faulty.
LampThis message comes on when the tail lamps are ON
with the ignition in the "OFF" or "ACC" position.
SUNROOF
SYSTEMFor the vehicle with SKM, this message comes on
when the sunroof is open with the ignition in the "OFF"
or "ACC" position. For the vehicle without SKM, this
comes on when the sunroof is open with the ignition in
the "OFF" position and the key removed.
Low fuel level This message comes on when the remaining fuel is
insufficient.
ESP checkThis message comes on when the ESP system is
faulty.
ABS check This message comes on when the ABS system is
faulty.
Engine oil level
checkLCD display shows this message when the engine oil
level is low. Have the system checked at Ssangyong
Authorized Service Center.Pin No. Message Operating condition
Auto cruiseLCD display shows this message when turning on the
cruise control switch with ignition ON or engine
running. This message disappears when activating the
cruise control lever.

Lower main switch
Item Specification
Lower main switch4WD LOCK switch DC 12V - 0.1A
ESP OFF switch DC 12V - 0.1A
Steering wheel heating switch DC 12V - 0.1A
Center fascia switch
Item Specification
Center fascia switchHazard warning flasher switch DC 12V - 0.1A (max. 30 mA)
TRIP/RESET switch DC 12V - 0.1A (max. 30 mA)
Windshield heating switch DC 12V - 0.1A (max. 30 mA)
Rear glass and outside rearview mirror
heating switchDC 12V - 0.1A (max. 30 mA)
Power window main switch
Item Specification
Power window main
switchRated voltage
DC 12 V
Operating voltage DC 9 to 16 V
Rated loadAUTO switch 0.7 A (motor load)
AUTO/MANUAL switch 10 A (motor load)
Window lock switch 10 A (motor load)
Door unlock switch 0.4 A (motor load)
Power window sub switch
Item Specification
Power window sub
switchRated voltage DC 12 V
Operating voltage DC 9 to 16 V
Rated load Manual switch 10 A (motor load)

8510-00
Door lock/unlock switch
Function of door lock/unlock switch
There are 5 actuators in door lock/unlock system (including tailgate). All of them can control the
corresponding door lock and unlock separately. But, the driver door lock switch can control all door
locks. The BCM controls the lock/unlock switch using the door lock/unlock relay. This is a same control
type with Auto door lock function that locks the doors when the vehicle speed exceeds 30 km/h. (see
circuit diagram)
Door lock/unlock relay (integrated in BCM)
Door lock/unlock switch
When the door lock/unlock switch is pressed while all doors including the tailgate are locked, all doors
will be unlocked. When the switch is pressed again, all doors will be locked.
