The ESCL (Electric Steering Column Lock) is a device to lock the steering handle
using an electric signal, not a mechanical type and shows the messages above if the
relevant systems are faulty.
4) ESCL
5) LCD display
Status Old New
LCD display
Bar graph border maintained when adjusting illumination brightness
Average fuel economy and instant fuel economy displayed simultaneously
-
Auto cruise indicator and supervision cluster DOT LCD graphic added for gasoline
engine ? newly adopted ?
-
DOT LCD winter mode deleted

6) TPMS/Global Warning Lamp Added
Status Standard type Supervision type
ECO indicator
Warming up
indicator
Diesel Gasoline
Diesel Gasoline

8010-01
1. OVERVIEW
There are two types in the instrument cluster used for KORANDO C: SVC (super vision) and STD
(standard). While the SVC type has three LCD screens - , and SEG LCD>, the STD type has one LCD screen.
2. LAYOUT
SVC
ODO SEG LCD
GAGE SEG LCDGAGE DOT

Engine RPM gaugeSpeedometer
STD
LCD

8010-01
1) SVC
3. DESCRIPTION OF WARNING LAMPS & INDICATORS

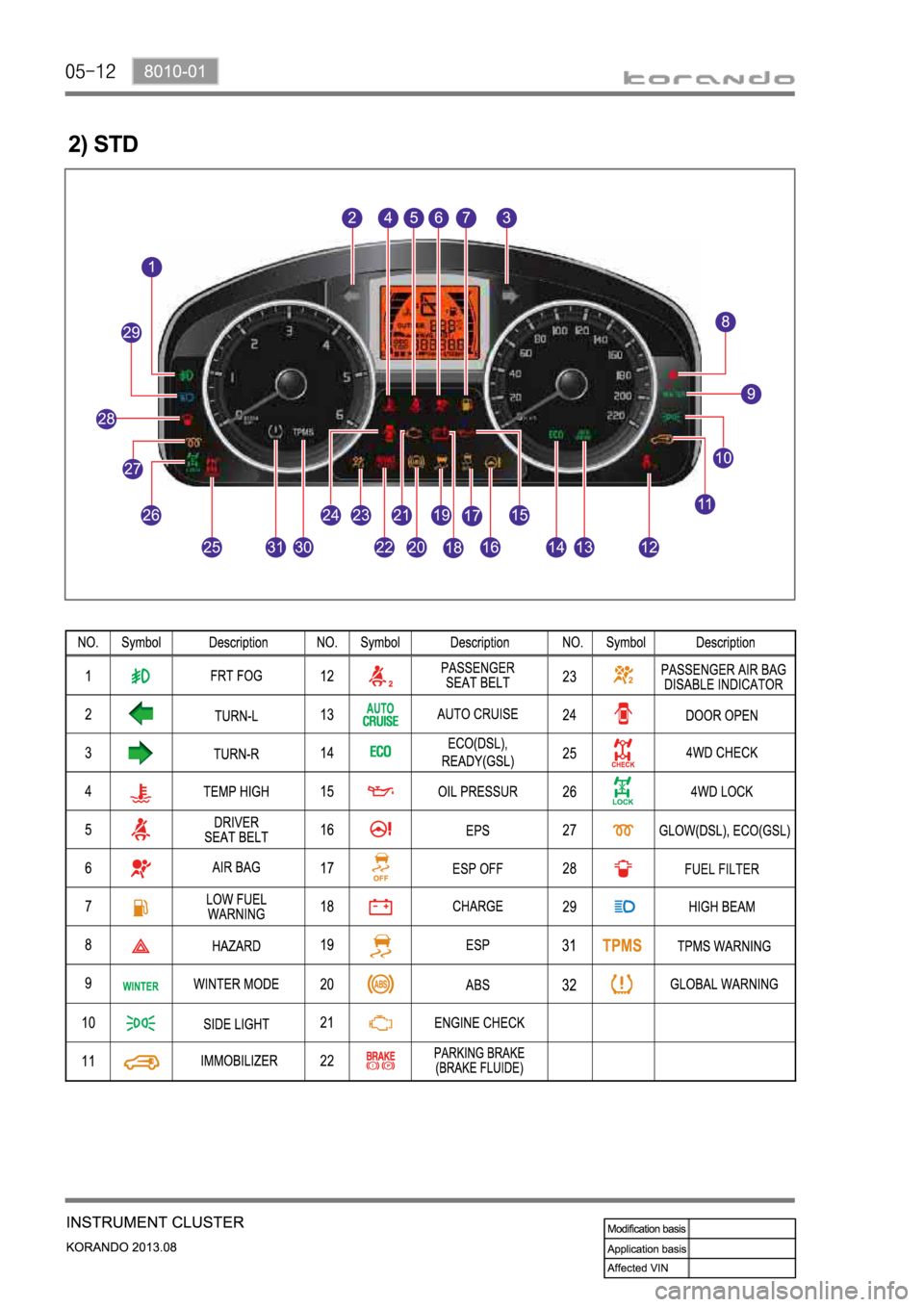

2) STD

8010-01
Indicator
(green)
Headlamp high beam indicator
Front fog lamp indicator
Side light indicator
Indicator
(blue)
Indicator
(green)
Indicator
(amber)
Glow indicator(DSL only)
Indicator
(red)
Fuel filter indicator(DSL only)
This indicator comes on when the tail lamp is switched on.
This indicator comes on when the ignition switch is turned to the "ON"
position and will go off when the glow plugs are sufficiently heated.
This indicator comes on when the water level in the fuel filter exceeds a
certain level. This lamp comes on when the headlamp high beam is operated.
This indicator comes on when the fog lamp switch is operated after the tail
lamps comes on.
3) Details of Warning Lamps and Indicators

Low fuel level warning lamp
Warning lamp
(amber)
Engine overheat warning lamp
Warning lamp
(red)
Door ajar
Warning lamp
(red)
Seat belt reminder
Warning lamp
(red)
Air bag
Warning lamp
(red)
However, the fuel level may change slight depending on vehicle
condition, inclination of the road, etc. Also, it blinks if there is a short or
open circuit between the fuel level sensor and cluster.
interval of 1 second, a message is displayed, the warning sounds once
through the speaker and the buzzer sounds at an interval of 0.5 seconds.
This lamp comes on when any door is open or not closed completely.
(both STD and SVC class)
This lamp comes on when the ignition switch is pressed ON.
It keeps coming on if the driver's seat belt is not fastened.
This lamp comes on when the ignition switch is pressed to the ON mode.
Then, it goes off if the system is normal.
If this lamp stays on while driving, it means that the air bag system is faulty.

8010-01
Indicator
(amber)
ESP
ESP OFF indicator
Engine check warning lamp
Indicator
(amber)
Indicator
(amber)
Indicator (red)
Battery charge warning lamp
Indicator (red)
Engine oil level warning lamp
This lamp comes on if any sensor or device related to the engine control is
defective.
This lamp comes on when the start switch is ON or when the battery level is
low.
(For EEM, warning lamp is controlled according to CAN signal)
This lamp comes on when the ignition switch is turned to "ON" position,
and then goes off if the engine oil level is normal.
If the engine oil level warning lamp comes on while driving, check the
engine oil level and oil leakage. -
- This indicator comes on when the ESP system is faulty.
This indicator comes on when pressing the ESP OFF switch.

Indicator
(amber)
Brake warning lamp (brake fluid)
ABS warning lamp
Passenger air bag disable indicator
Indicator
(red)
Indicator
(amber)
Indicator
(red)
EPS
Indicator
(amber)
Immobilizer indicator
This indicator comes on when the passenger air bag OFF switch is operated.
This indicator comes on the immobilizer (transponder) is not certified. This lamp comes on when the parking brake is applied or the brake fluid
is insufficient.
If this lamp doesn't go off after the parking brake is released, check the
brake fluid level first and then fluid leakage. -
-
This warning light comes on when the ignition switch is turned to ON
and should go out if the system is normal -
This indicator comes on when the EPS system is faulty.
