OM600 ENGINE MECHANICAL 1B3-13
4. Remove the radiator drain cock and drain the coolant.Notice Open the coolant reservoir tank cap.
3. Remove the skid plate.
Installation Notice
Tightening Torque 28 - 47 Nm
5. Remove the drain plug (1) and seal (2) from the cylinder block and drain the coolant completely.
6. After draining, replace the seal and reinstall the drain plug.
Installation Notice
7. Disconnect the lower coolant hose from the radiator.
Tightening Torque 30 Nm
Removal & Installation Procedure
1. Disconnect the negative terminal of battery.
2. Remove the hood.

1B3-14 OM600 ENGINE MECHANICAL9. Loosen the bolt and remove the coolant pipe and cooling fan shroud.
10. Remove the hoses (air intake to intercooler, intercooler to intake duct).
8. Disconnect the upper coolant hose from the radiator.
Tightening Torque 3 -7 Nm
11. Remove the pipes connected to intercooler.

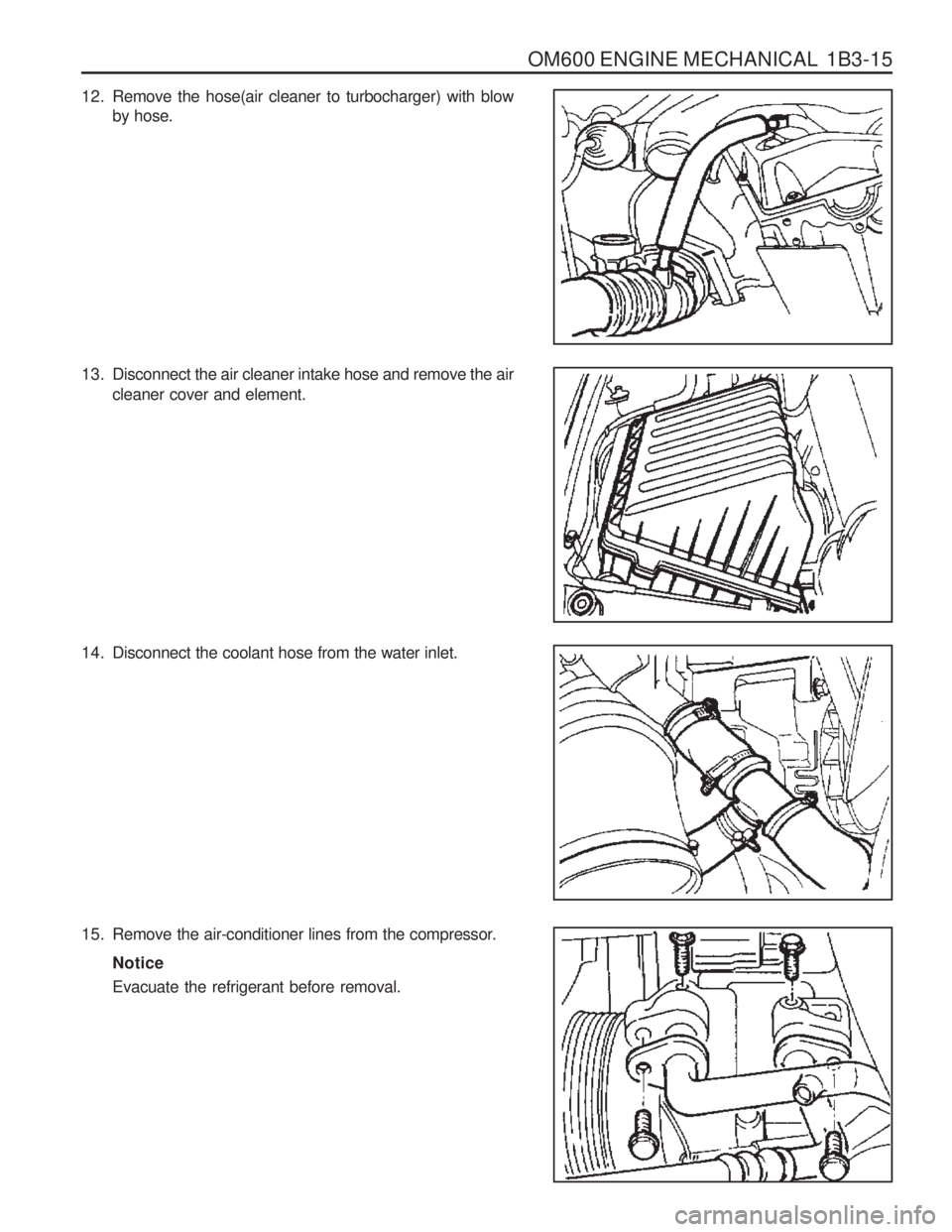

OM600 ENGINE MECHANICAL 1B3-15
15. Remove the air-conditioner lines from the compressor.Notice Evacuate the refrigerant before removal.
12. Remove the hose(air cleaner to turbocharger) with blowby hose.
13. Disconnect the air cleaner intake hose and remove the air cleaner cover and element.
14. Disconnect the coolant hose from the water inlet.

1B3-16 OM600 ENGINE MECHANICAL
16. Remove the power steering pump lines.Notice Completely drain the fluid.
17. Disconnect the fuel feed line with prefilter from the feed pump on injection pump.
18. Vehicle with automatic transmission. Remove the hydraulic lines (19, 20) from oil cooler (2).
19. Disconnect the engine harness.
20. Disconnect the preheating time relay cable.

OM600 ENGINE MECHANICAL 1B3-17
26. Disconnect the starter motor wires and remove the startermotor.
21. Remove the fuel lines from the fuel filter and cover thefilter with plug.
22. Disconnect the brake booster hose from vacuum pump.
23. Disconnect the other vacuum lines.
24. Disconnect the ground cable.
25. Disconnect the alternator wires.

1B3-18 OM600 ENGINE MECHANICAL
27. Disconnect the preheating time relay sensor plug.
28. Disconnect the coolant temperature sensor plug.
29. Disconnect the accelerator cable from the control linkage.Installation Notice
Tightening Torque 8 - 18 Nm
30. Loosen the connection of control pressure cable (an arrow) used in auto transmission.

OM600 ENGINE MECHANICAL 1B3-19
33. Disconnect the exhaust pipe flange from the exhaustmanifold. Installation Notice
35. Remove the shift control cable.
36. Remove the transmission.
Tightening TorqueAxle 70 ~ 80 Nm T/C 81 ~ 89 Nm
Tightening Torque 20 - 34 Nm
31. Separate the exhaust pipe flange from the turbo charger.
Installation Notice
32. Loosen the installing bolt of clutch release cylinder and remove the clutch release cylinder. Installation Notice
Tightening Torque 30 Nm
Tightening Torque 30 Nm
34. Remove the propeller shaft from the transmission. Installation Notice

1B3-20 OM600 ENGINE MECHANICAL
37. Loosen the engine mounting bracket nut.Installation Notice
38. Remove the engine assembly from the vehicle by using a hoist or crane.
39. Installation should follow the removal procedure in the reverse order.
Tightening Torque 50 - 75 Nm

OM600 ENGINE MECHANICAL 1B3-21
POLY V-BELT
1 Nut .............................................................23Nm
2 Tensioning Lever
3 Bolt 4 Spring
5 Tensioning Lever
6 Poly V-Belt

1B3-22 OM600 ENGINE MECHANICALWith Air Conditioner
Removal & Installation Procedure
1. Remove the nut.
2. Push the tensioning lever in direction of arrow with a rod
(F12 ´ 180mm) and pull out the bolt to the rear.
3. Push back the tensioning lever (arrow direction) to release the spring tension and remove the belt.
4. Install the poly V-belt beginning at the tensioning pulley (7). 7 Tensioning Pulley
8 Crankshaft
9 Alternator
10 Coolant Pump 11 Guide Pulley
12 Power Steering Pump
13 Aircon. Compressor
Lengthe of Belt
Length (L)
Without Air Conditioner 2,100 mm 2,040 mm
