SSANGYONG MUSSO 2003 Service Manual

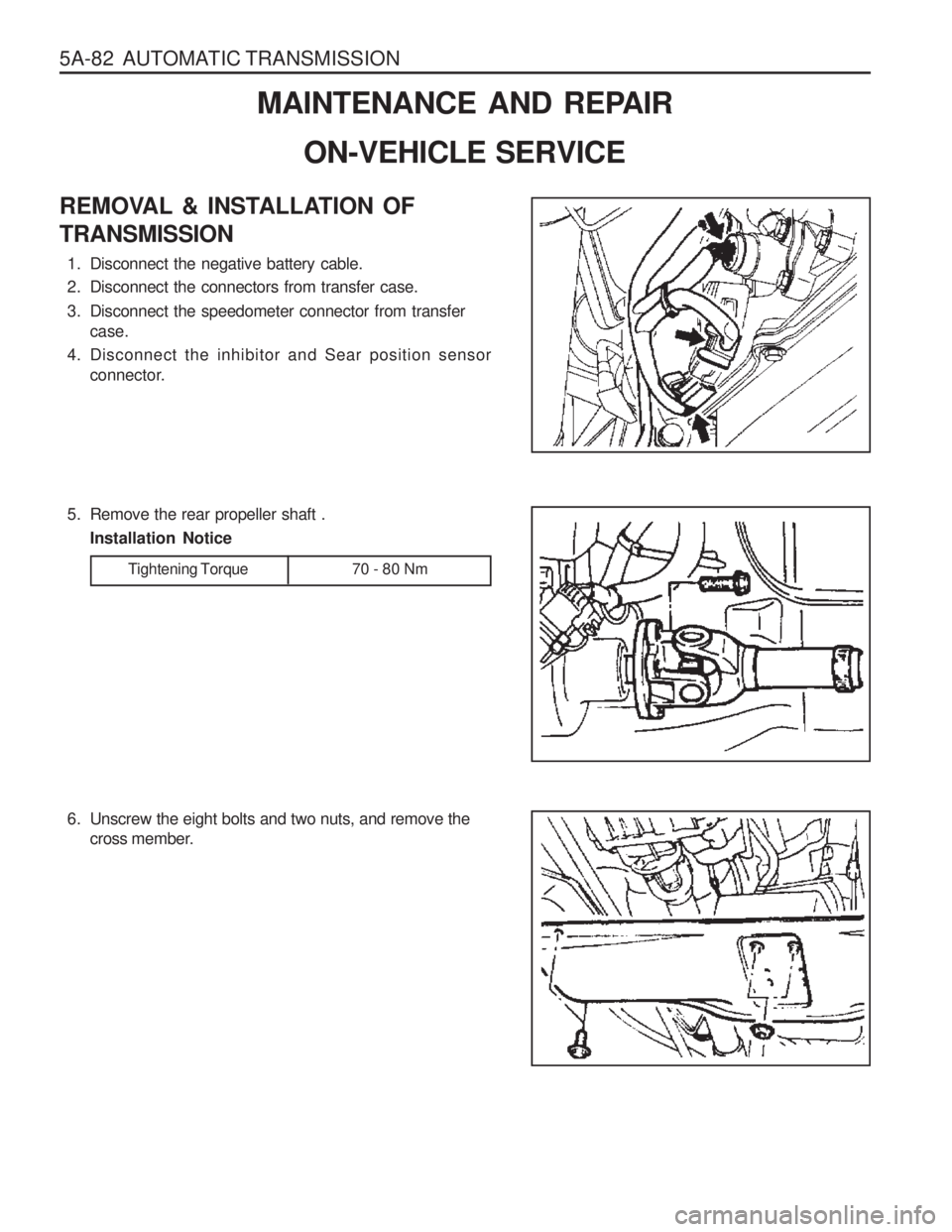

5A-82 AUTOMATIC TRANSMISSIONMAINTENANCE AND REPAIR
ON-VEHICLE SERVICE
Tightening Torque 70 - 80 Nm
5. Remove the rear propeller shaft .
Installation Notice
REMOVAL & INSTALLATION OF TRANSMISSION
1. Disconnect the negative battery cable.
2. Disconnect the connectors from transfer case.
3. Disconnect the speedometer connector from transfer case.
4. Disconnect the inhibitor and Sear position sensor connector.
6. Unscrew the eight bolts and two nuts, and remove the cross member.

AUTOMATIC TRANSMISSION 5A-83
Tightening Torque 70 - 80 Nm
11. Remove the two pipes for oil cooler. Installation Notice
Tightening Torque 24.5 - 34.3 Nm
12. Remove the service hall cover on torque converter.
13. Put the alignment mark for installation, and unscrew the six mounting bolts for torque converter from drive plate through the service hole (arrow) by rotating the engine
and remove the torque converter. Installation Notice
Tightening Torque 42 Nm
7. Remove the rear propeller shaft.
Installation Notice
8. Unscrew the five bolts and remove the transfer case.
9. Disconnect the 10-Pins Plug connector from transmission.
10. Separate the locking clip on shift lever and remove the shift rod.Notice Removal and installation performed when the shift procedure should be lever is in “D” range.
Screw the six bolts mounting the torque converter through the service hole by using a mirror and rotating the engine.

5A-84 AUTOMATIC TRANSMISSION
Tightening Torque 55 - 65 Nm
14. Remover the starter.
15. Unscrew the eight transmission housing bolts and remove
the transmission assembly.Installation Notice Be careful not to drop the torque converter while removing the transmission.
16. Installation should follow the removal procedure in the reverse order.

AUTOMATIC TRANSMISSION 5A-85
UNIT REPAIR
REBUILD WARNINGS
Prior to rebuilding a transmission system, the following warnings are to be noted. Ensure that, before replacing a transmission the cooler
lines are flushed out to remove any debris. This can be
done by applying compressed air to the rear cooler line
forcing oil and any contaminants out of the front cooler line.
The cooler flow should be checked after the transmission
has been fitted. With the front cooler line connected
and the rear line run into a suitable container, measure
the flow over 15 seconds with the vehicle idling in park.
The flow rate should exceed 1 liter in 15 seconds.
Be wary of any situation where water enters the
transmission. This may result in fluid foaming and leaking
through the breather.
Ensure that both earth straps (one at the batted terminal
and one on the vehicle body) are connected in the
vehicle before connecting the positive side of the
battery.
Follow the throttle position calibration procedure in
section 7 of this manual if the powertrain control module
transmission control unit (PCM/TCU) is swapped.
DISASSEMBLY PROCEDURE
Transmission Notice
Remove the inhibitor switch before washing the transmission in solvent or hot wash.
It is assumed that the transmission fluid has been drained when the transmission was removed from the vehicle and that the ‘special tools ’ quoted are available.
The transmission is dismantled in a modular fashion, and the
details of disassembly for each module are given under the
appropriate subject. Refer to table 9.10 in section 9.6 for details
of all sp ecial tools required when performing disassembly
procedures.
Technicians overhauling these transmissions will also require a selection of good quality T orx bit sockets, in particular
numbers 30, 40 and 50, and an 8 mm,10 mm and 12 mm double hex socket.
To disassemble the transmission, proceed as follows:
1. Remove the converter and the converter housing.
2. Mount the transmission on the bench cradle
No.0555-331895.
3. Remove the sump and the sump seal.

5A-86 AUTOMATIC TRANSMISSION
9. Remove the pump to case bolts using a multi-hex 8 mmspanner.
10. Using the pump puller No. 0555-332941, remove the pump.
11. Remove the input shaft, forward clutch cylinder, and the overdrive shaft as an assembly, withdrawing them through the front of the case.
12. Remove the C3 clutch cylinder and sun gears.
13. Remove the fronts band struts. Remove the front band.
14. Remove the two centre support retaining bolts using a T50 Torx bit.
15. Remove the centre support retaining circlip. Notice
Do not hammer the output shaft to remove the centre
support as this will cause permanent damage to the thrust bearing surfaces.
16. Remove the centre support, 1-2 one way clutch, planetary gear set and output shaft as an assembly.
17. Remove the parking rod cam plate. (T40 Torx bit).
18. Remove the rear band struts and remove the band. 4. Detach each end of the filter retaining clip from the valve
body and remove the filter.
5. Detach the wires from each solenoid and lay the wiring to one side.
6. Remove the valve body securing screws and remove the valve body from the case.
7. Remove the front servo cover circlip. Remove the cover and piston.Notice
The plastic servo block is retained by the piston return
spring only.
8. Where fitted, remove the flange yoke, and then remove the extension housing (RWD model).
Remove the adaptor housing (4WD model).

AUTOMATIC TRANSMISSION 5A-87

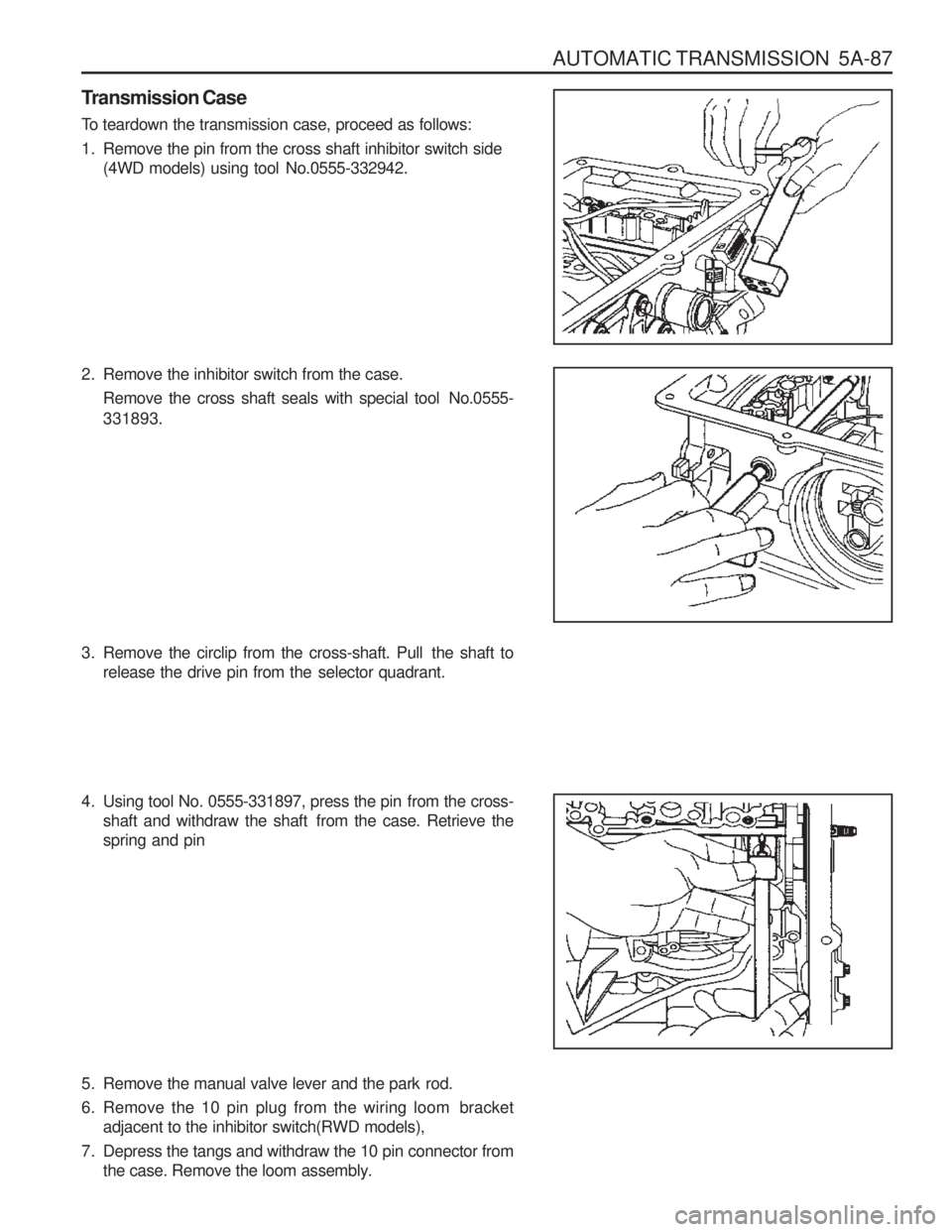

Transmission Case
To teardown the transmission case, proceed as follows:
1. Remove the pin from the cross shaft inhibitor switch side(4WD models) using tool No.0555-332942.
2. Remove the inhibitor switch from the case.
Remove the cross shaft seals with special tool No.0555- 331893.
3. Remove the circlip from the cross-shaft. Pull the shaft to release the drive pin from the selector quadrant.
4. Using tool No. 0555-331897, press the pin from the cross- shaft and withdraw the shaft from the case. Retrieve the spring and pin
5. Remove the manual valve lever and the park rod.
6. Remove the 10 pin plug from the wiring loom bracket adjacent to the inhibitor switch(RWD models),
7. Depress the tangs and withdraw the 10 pin connector from the case. Remove the loom assembly.

5A-88 AUTOMATIC TRANSMISSION
8. Detach the No.7 solenoid wire from the front of the case.
9. Remove the parking pawl pivot pin and the pawl and springfrom the case.
10. Remove the shaft and the rear servo lever.
11. Remove the rear servo cover and piston assembly.
12. Remove the B1R circlip, valve and spring.
13. Remove both band adjustment shims.
14. Inspect the output shaft bushing in the case and replace if necessary.
15. Inspect cooler line fittings and replace as necessary.
16. Inspect the case for damage.
17. To remove the park rod lever: Remove the circlip from the inner end of the pivot shaft and tap the outer end of the
shaft until it moves free from the case, then using a wide
shallow tapered drift as a wedge, drive the pin out fromthe inside of the case and remove the lever and spring. NoticeDo not remove the park rod lever unless absolutely
necessary.

AUTOMATIC TRANSMISSION 5A-89
Forward Clutch Cylinder
To remove the forward clutch cylinder, refer to figure 8.4,
proceed as follows.
1. Place the assembly in a horizontal position.
2. Remove the thrust bearing and adjustment shims from the input shaft.
3. Remove the circlip from the front of the clutch cylinder and remove the input shaft.
4. Remove the overdrive shaft and the C1 clutch hub assembly from the clutch cylinder.
5. Remove the C1 clutch plates from the cylinder.
6. Remove the circlip retaining the C3 clutch hub in the rear of the clutch cylinder and remove the hub.
7. Remove the C2/C4 clutch hub assembly and remove the thrust bearing from the C4 hub.
8. Remove the C2 clutch plates.
9. Invert the clutch cylinder and remove the C4 clutch sleeve, clutch plates and the two wave washers. The 3-4 one way
clutch is located between the C2 and C4 clutch hubs, andthe hubs may be separated by rotating one hub clockwise
and withdrawing it from the other.
Figure 8.4 - Forward Clutch Cylinder Assembly

5A-90 AUTOMATIC TRANSMISSION
10. Remove the thrust block from the C4 clutch cylinder hub.Notice
Make sure that the spring keeper is not caught in the circlip
groove, and that all the spring pressure is released, before
removing the tool.
11. Mount the clutch cylinder on tool No.0555-331899 with the C2/C4 end uppermost and compress the piston return
spring. Remove the spring retaining circlip. Release the
tool and remove the circlip, keeper and spring.
12. Invert the clutch cylinder on the compressor tool and remove the C1 clutch piston return spring in a similar
manner.
13. To remove the clutch pistons from the clutch cylinder, apply
air pressure to the apply ports in the bore of the cylinder.

AUTOMATIC TRANSMISSION 5A-91
C3 Clutch Cylinder
To remove the C3 clutch cylinder, proceed as follows:
1. Remove the forward sun gear and thrust bearing from theC3 clutch cylinder.
2. Remove the nylon thrust bearing, bearing support, needle thrust bearing and thrust block from the clutch cylinder hub.
3. Mount the clutch assembly on tool No.0555-331899 and
compress the piston return spring. Remove the circlip and release the spring. Notice
Make sure that the spring keeper has not been caught in
the circlip groove, and that all spring pressure has been
released, before removing the tool.
4. Remove the tool, circlip, keeper and spring.
5. Remove the sealing rings from the C3 clutch cylinder.
6. Remove the clutch plate retaining circlip and remove the clutch plates.
7. To remove the clutch piston from the clutch cylinder, apply air pressure to the port between the iron sealing rings on
the bearing journals of the cylinder.
8. Remove the reverse sun gear from the cylinder.
