SSANGYONG NEW ACTYON SPORTS 2012 Manual Online

Manufacturer: SSANGYONG, Model Year: 2012, Model line: NEW ACTYON SPORTS, Model: SSANGYONG NEW ACTYON SPORTS 2012
Pages: 828, PDF Size: 91.28 MB
SSANGYONG NEW ACTYON SPORTS 2012 Manual Online NEW ACTYON SPORTS 2012 SSANGYONG SSANGYONG https://www.carmanualsonline.info/img/67/57513/w960_57513-0.png SSANGYONG NEW ACTYON SPORTS 2012 Manual Online
Search: (engine, gas mileage, differential, sport mode, engine coolant, windshield wipers)
Trending: heating, sunroof, weight, clock, wiring, audio, maintenance
Jump to page (1-828):

Page 81 of 828

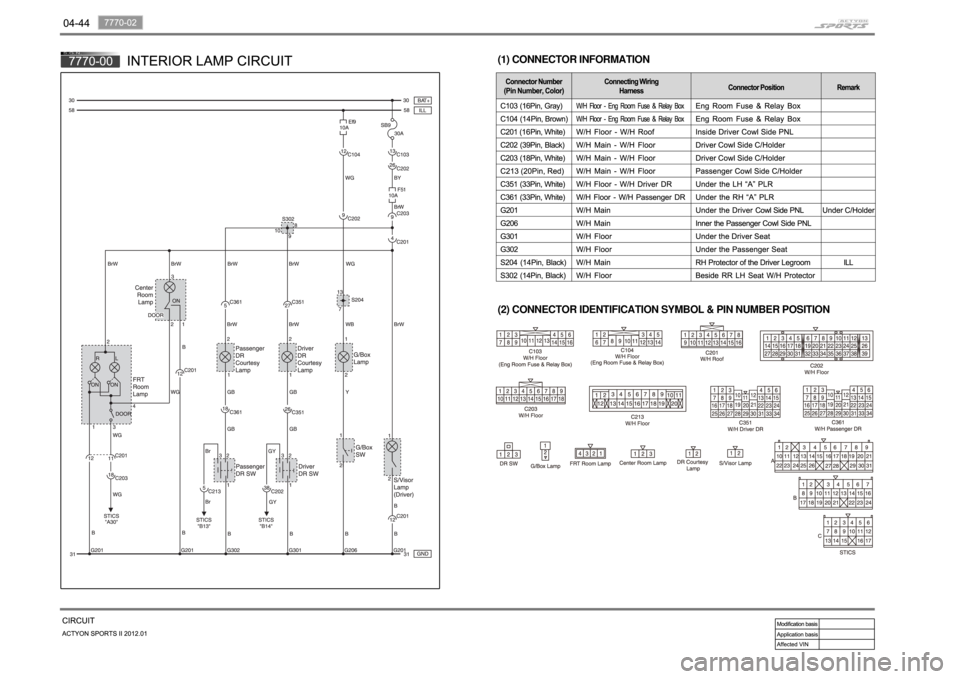

SSANGYONG NEW ACTYON SPORTS 2012 Manual Online (2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION (1) CONNECTOR INFORMATION

Page 82 of 828

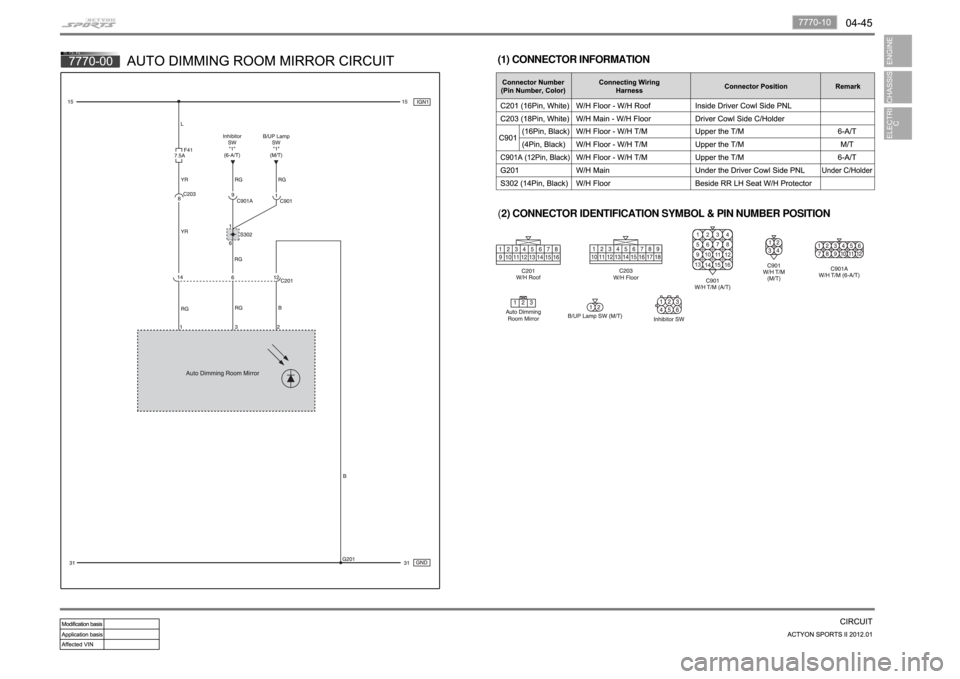

SSANGYONG NEW ACTYON SPORTS 2012 Manual Online (2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION (1) CONNECTOR INFORMATION

Page 83 of 828

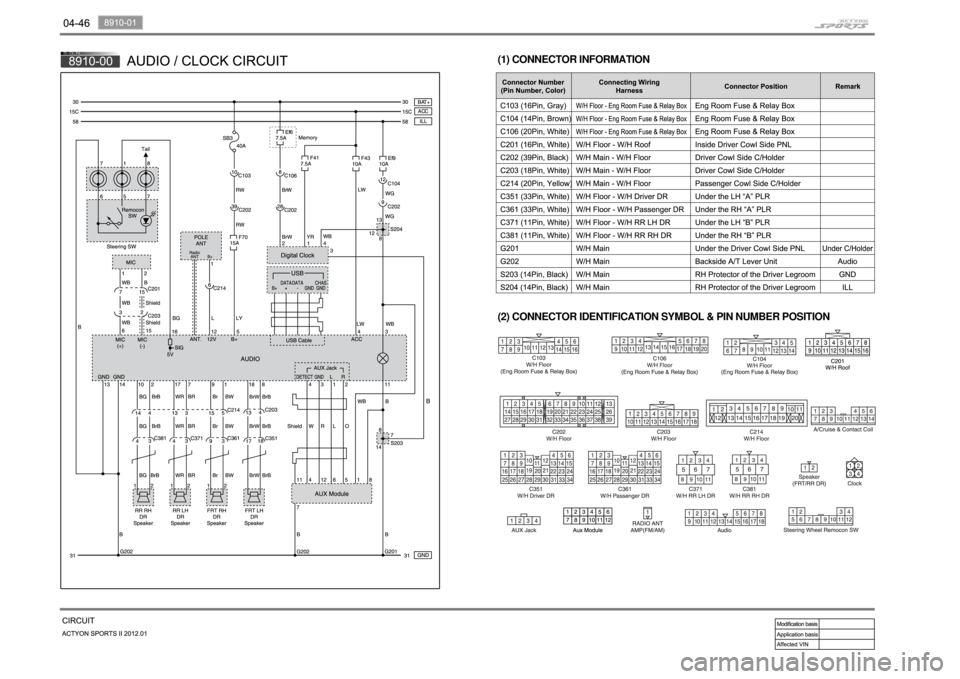

SSANGYONG NEW ACTYON SPORTS 2012 Manual Online (2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION (1) CONNECTOR INFORMATION

Page 84 of 828

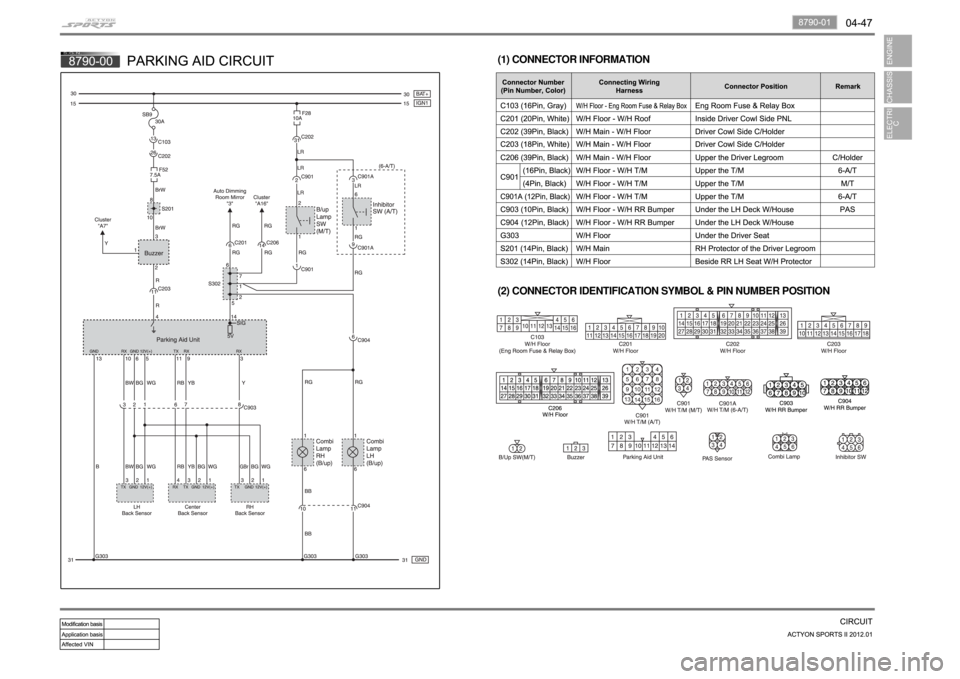

SSANGYONG NEW ACTYON SPORTS 2012 Manual Online (2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION (1) CONNECTOR INFORMATION

Page 85 of 828

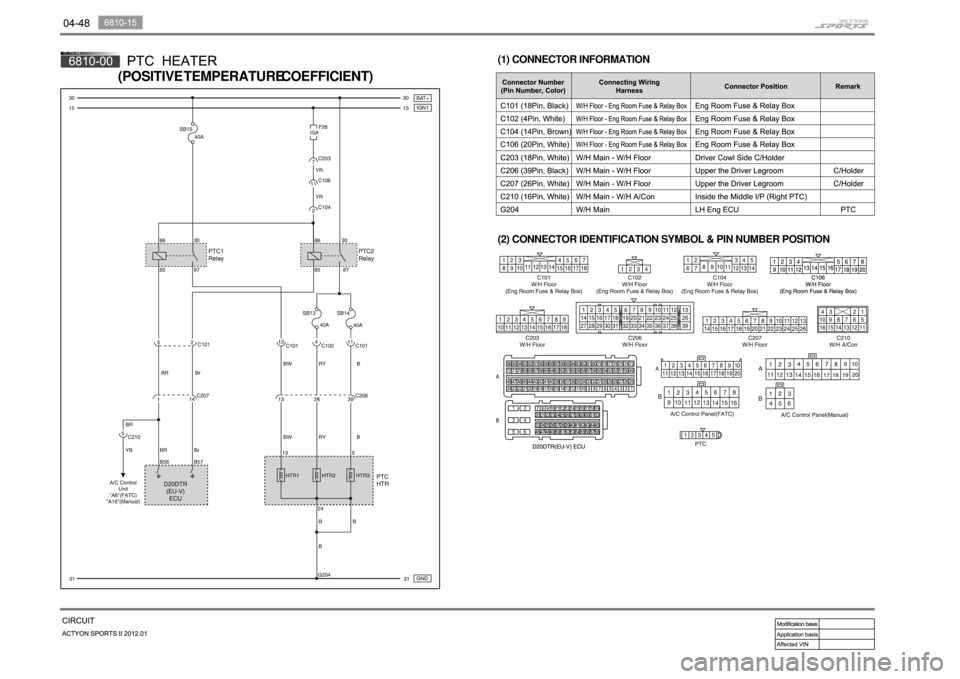

SSANGYONG NEW ACTYON SPORTS 2012 Manual Online (2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION (1) CONNECTOR INFORMATION (POSITIVE TEMPERATURE COEFFICIENT)

Page 86 of 828

SSANGYONG NEW ACTYON SPORTS 2012 Manual Online 1) PWM MOTOR, COMPRESSOR, AIR MIX MOTOR, SUN SENSOR (2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION (1) CONNECTOR INFORMATION

Page 87 of 828

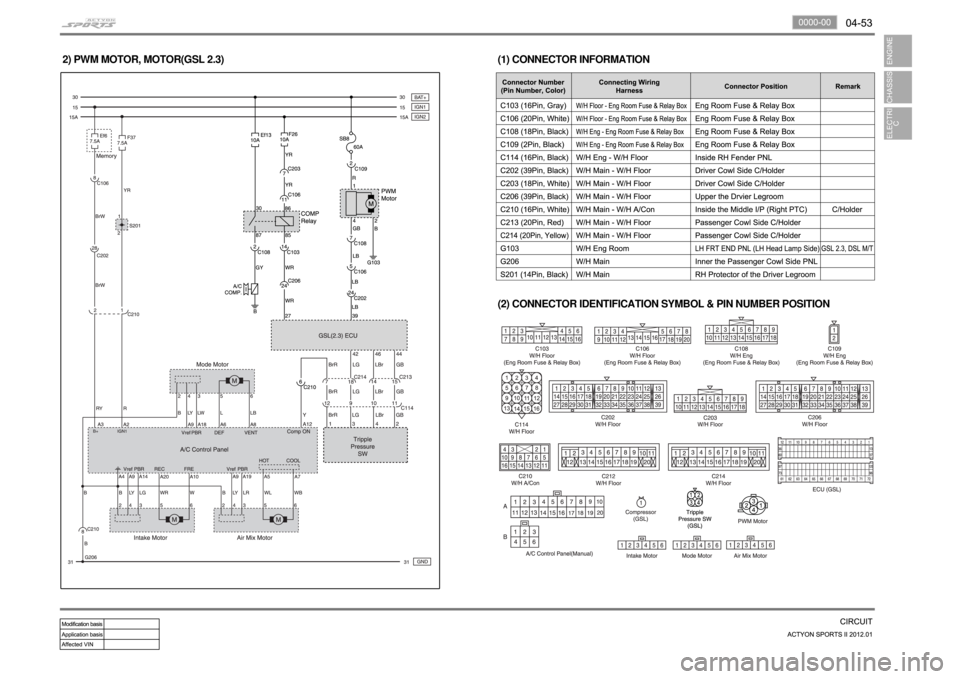

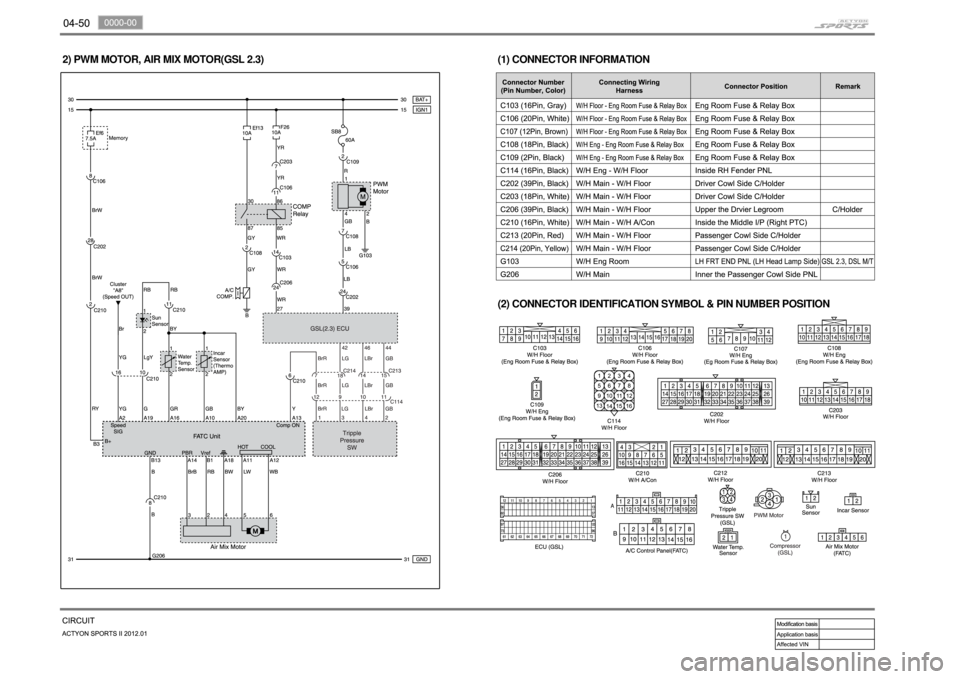

SSANGYONG NEW ACTYON SPORTS 2012 Manual Online 2) PWM MOTOR, AIR MIX MOTOR(GSL 2.3) (1) CONNECTOR INFORMATION (2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Page 88 of 828

SSANGYONG NEW ACTYON SPORTS 2012 Manual Online (2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION (1) CONNECTOR INFORMATION 3) BLOWER, ACTUATOR (MODE, INTAKE), AMBI SENSOR

Page 89 of 828

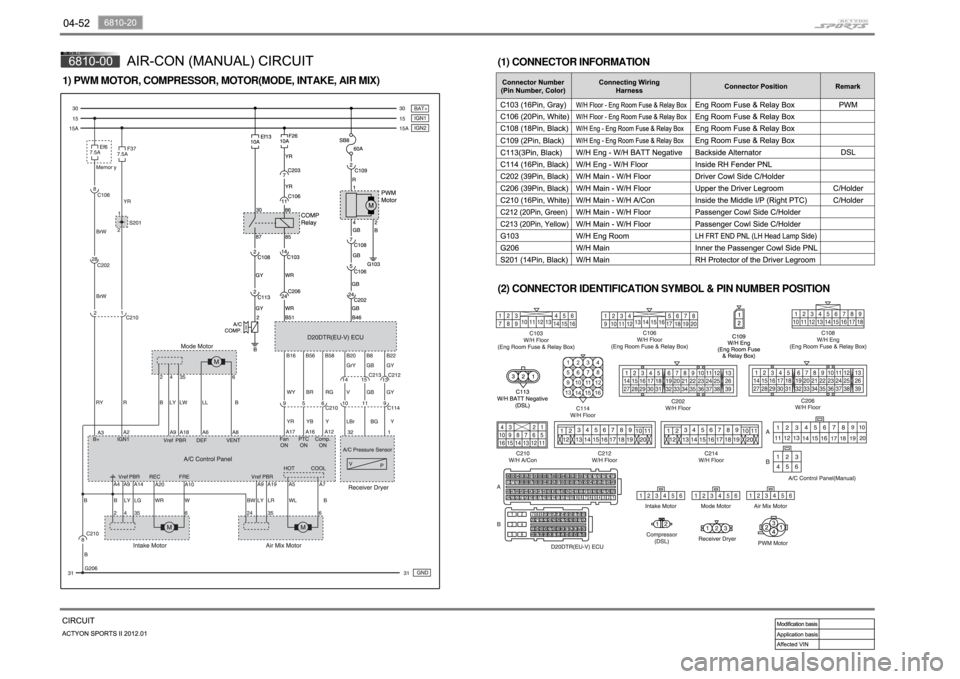

SSANGYONG NEW ACTYON SPORTS 2012 Manual Online 1) PWM MOTOR, COMPRESSOR, MOTOR(MODE, INTAKE, AIR MIX) (2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION (1) CONNECTOR INFORMATION

Page 90 of 828

SSANGYONG NEW ACTYON SPORTS 2012 Manual Online 2) PWM MOTOR, MOTOR(GSL 2.3) (1) CONNECTOR INFORMATION (2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
