0-5
CONNECTOR/GROUND
RODIUS 2006.09
8201-00

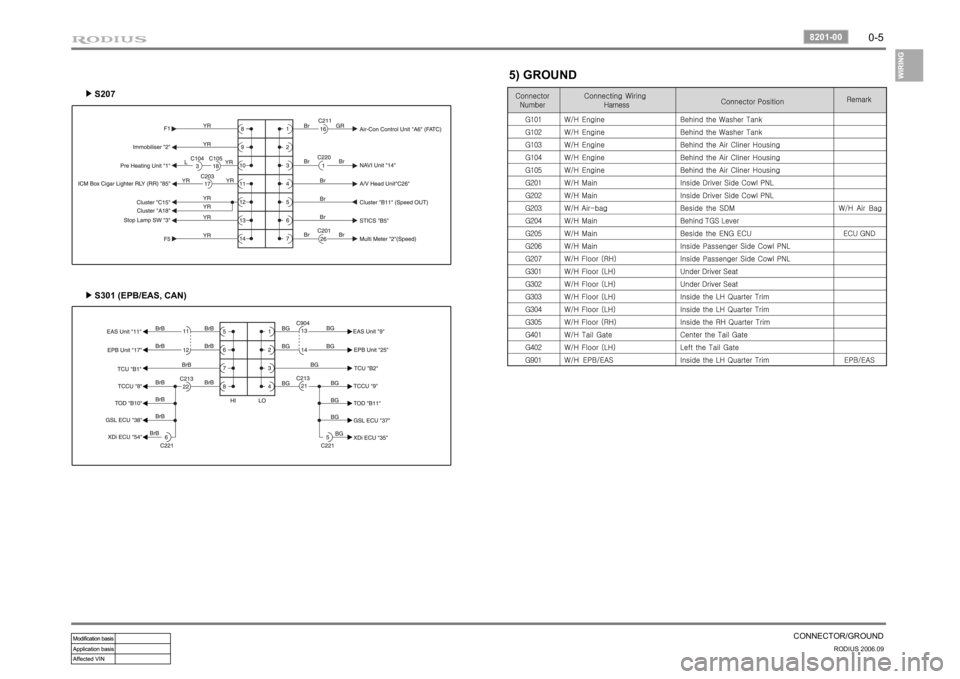

S301 (EPB/EAS, CAN) ▶S207 ▶
5) GROUND

POWER DISTRIBUTION8410-02/8410-05/8410-04
POWER DISTRIBUTION
FUSE/RELAY8410-02 ENGINE ROOM FUSE ＆
RELAY BOX.................................
8410-05 I.P FUSE ＆ ICM BOX
(IP RELAY BOX)...........................ELECTRICITY DIVIDE8210-02 ENG ROOM FUSE BOX...............
8410-04 I.P FUSE BOX..............................3
4
6
10

0-3
POWER DISTRIBUTION
RODIUS 2006.09
8410-02
FUSE ＆ RELAY8410-02
ENGINE ROOM FUSE ＆ RELAY BOX
1) FRONT
2) REAR

0-4RODIUS 2006.09
8410-05
POWER DISTRIBUTION8410-05
I.P FUSE ＆ ICM BOX (IP RELAY BOX)
1) FUSE BOX2) POWER SUPPLY
3) ICM BOX
4) ICM BOX (POWER SUPPLY)(1) C203

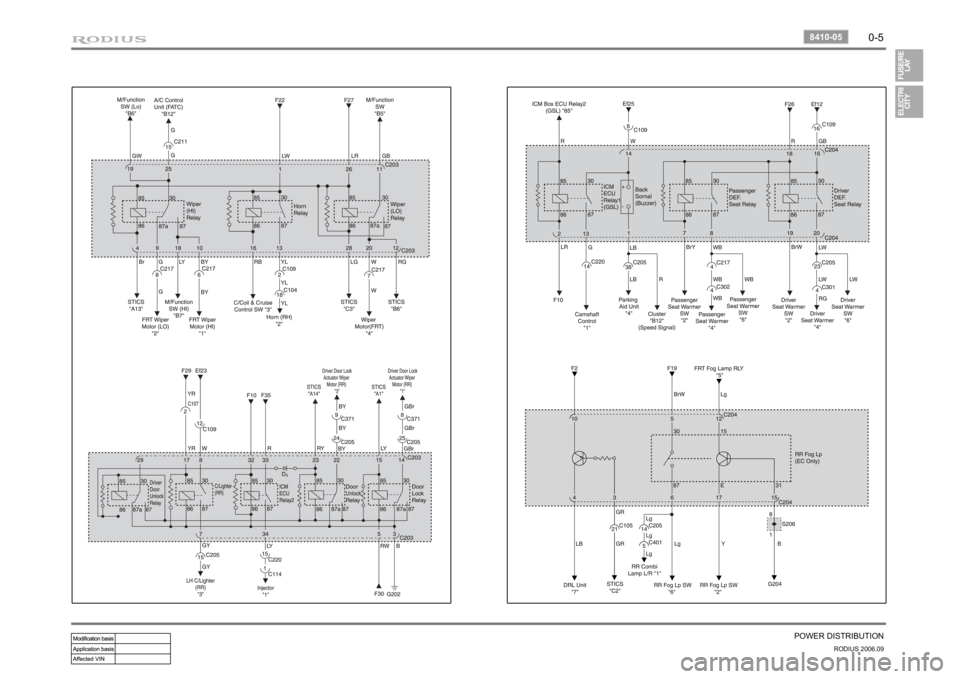

0-5
POWER DISTRIBUTION
RODIUS 2006.09
8410-05

0-6RODIUS 2006.09
8410-02
POWER DISTRIBUTIONELECTRICITY DIVIDE8210-02
ENG ROOM FUSE BOX
(1) SB1 ~ SB5
(2) SB6 ~ SB11

0-7
POWER DISTRIBUTION
RODIUS 2006.09
8410-02

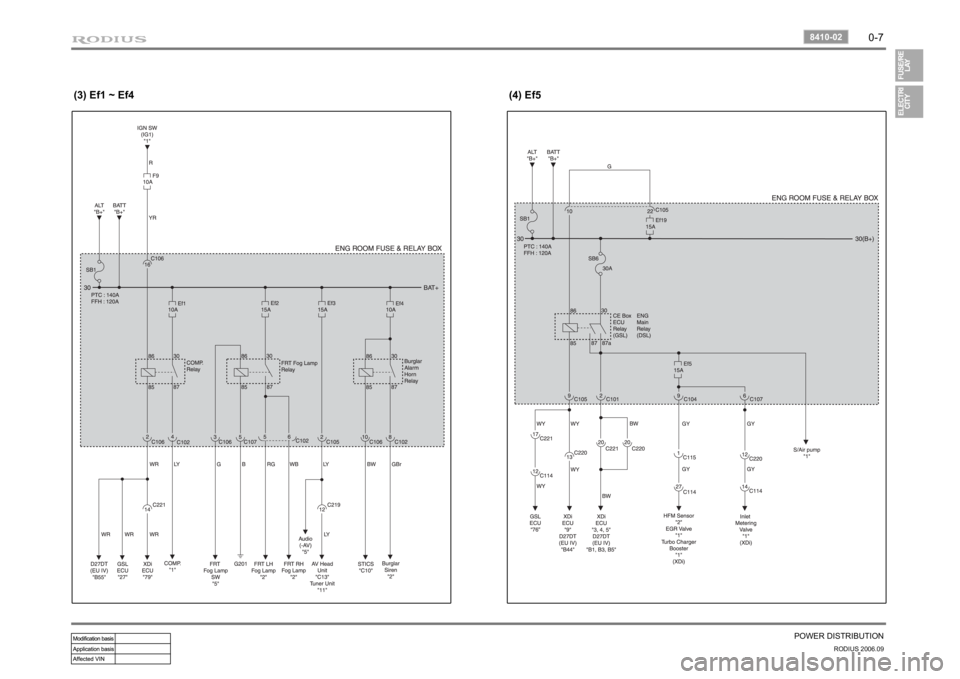

(3) Ef1 ~ Ef4 (4) Ef5

0-8RODIUS 2006.09
8410-02

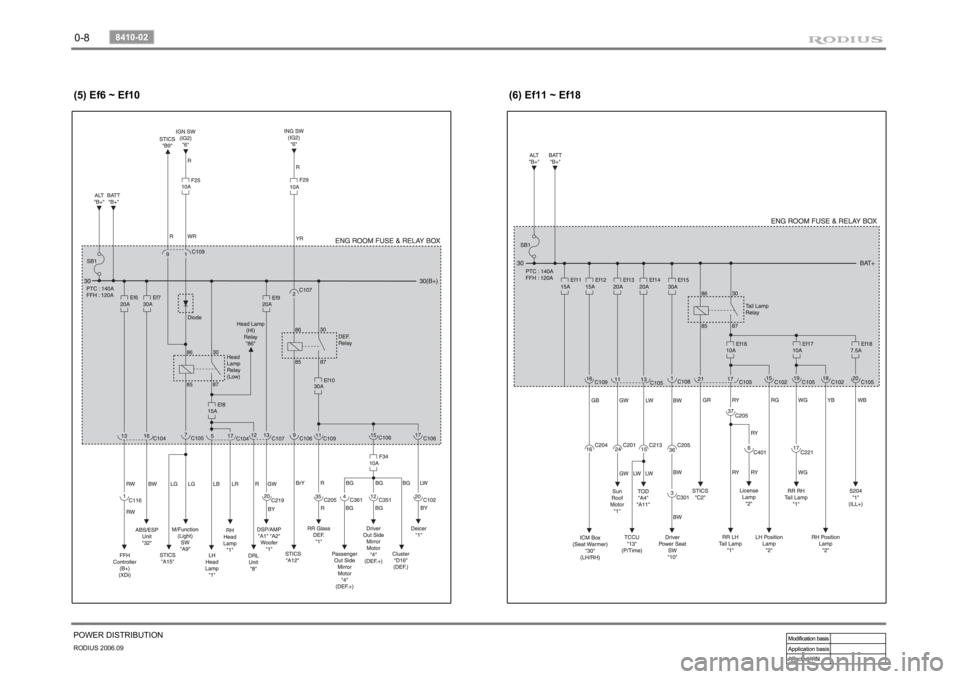

POWER DISTRIBUTION(5) Ef6 ~ Ef10 (6) Ef11 ~ Ef18
