CIRCUIT2) FUEL FILTER WARNING LAMP, IMMOBILIZER, SENSOR
(FUEL PRESSURE, CAM SHAFT, BOOSTER PRESSURE,
CRANK SHAFT, COOLANT/FUEL TEMP.) A/CRUISE SW
CIRCUIT
(2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION (1) CONNECTOR INFORMATION

0-7
CIRCUIT
RODIUS 2006.09
1491-01
3)
(1) CONNECTOR INFORMATION
(2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
INJECTOR, CAN LINE, STOP LAMP SW, SENSOR (A/CON, E-
GAS), CLUTCH SW

0-8RODIUS 2006.09
1491-01
CIRCUIT1491-01
ECU (GSL G32)
1)
(1) CONNECTOR INFORMATION
(2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
IGN COIL, CPS, AIR FLOW SENSOR, THROTTLE SENSOR,
TPS

0-9
CIRCUIT
RODIUS 2006.09
1491-01
2)O₂SENSOR, PEDAL MODULE, CRUISE CONTROL SW, STO
P
LAMP SW
(2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION (1) CONNECTOR INFORMATION

0-10RODIUS 2006.09
1491-01
CIRCUIT3)
(2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION (1) CONNECTOR INFORMATION
INJECTOR, KNOCK SENSOR, IMMOBILIZER, CANISTER
PURGE VALVE

0-11
CIRCUIT
RODIUS 2006.09
8210-01
8210-01
DIAGNOSIS CIRCUIT
2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION 1) CONNECTOR INFORMATION

0-12RODIUS 2006.09
3670-01
CIRCUIT3670-01

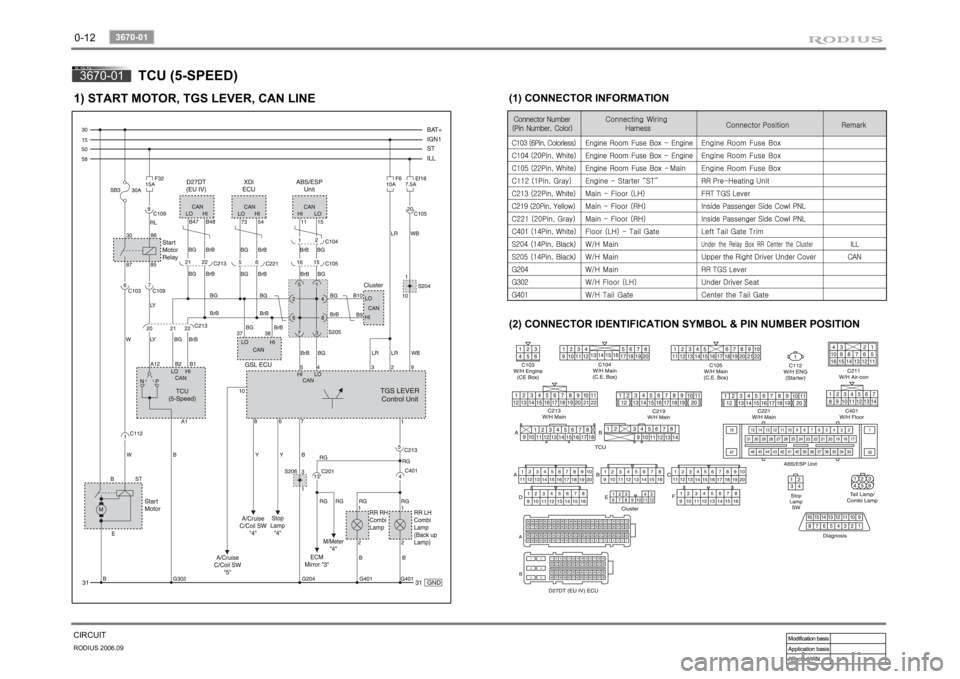

TCU (5-SPEED)
1) START MOTOR, TGS LEVER, CAN LINE
(1) CONNECTOR INFORMATION
(2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

0-13
CIRCUIT
RODIUS 2006.09
3670-01
2) SOLENOID, OIL TEMP SENSOR, SPEED SENSOR (N2, N3)
(1) CONNECTOR INFORMATION
(2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

0-14RODIUS 2006.09
3670-03
CIRCUIT3670-03
TOD
1) CONNECTOR INFORMATION
2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

0-15
CIRCUIT
RODIUS 2006.09
8010-01
8010-01
CLUSTER
1) GAUGE(SPEED, RPM, FUEL, TEMP, WARNING LAMP(4WD, FUEL FILTER, ABS/ESP)
(2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
(1) CONNECTOR INFORMATION
