Page 21 of 465

0-9
POWER DISTRIBUTION
RODIUS 2006.09
8410-02

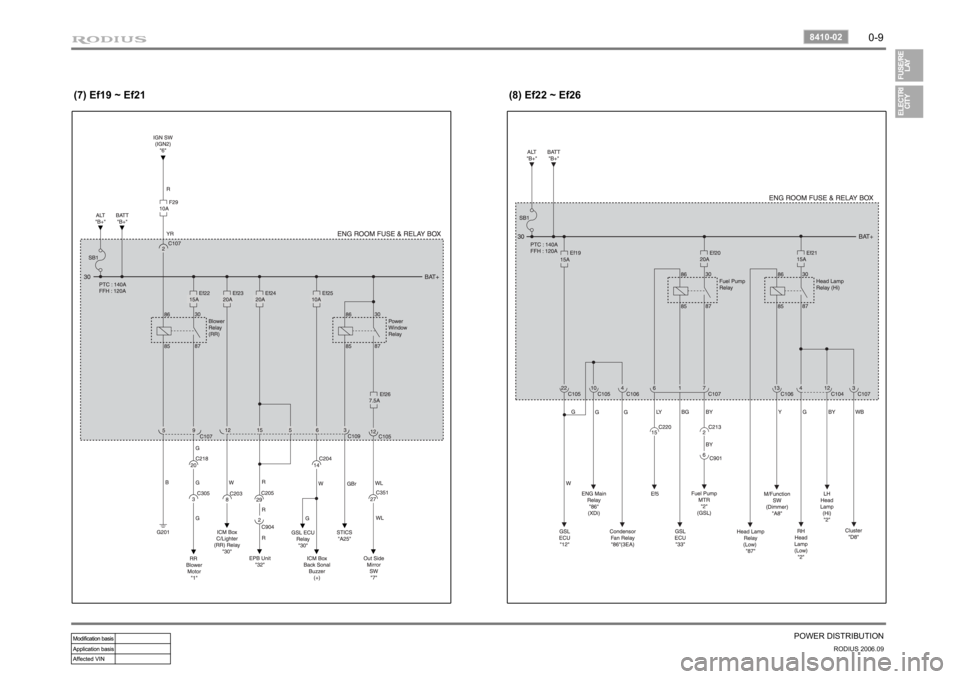

(8) Ef22 ~ Ef26
(7) Ef19 ~ Ef21

Page 22 of 465

0-10RODIUS 2006.09
8410-04
POWER DISTRIBUTION8410-04
I.P FUSE BOX
(1) F1 ~ F5
(2) F6 ~ F12

Page 23 of 465

0-11
POWER DISTRIBUTION
RODIUS 2006.09
8410-04

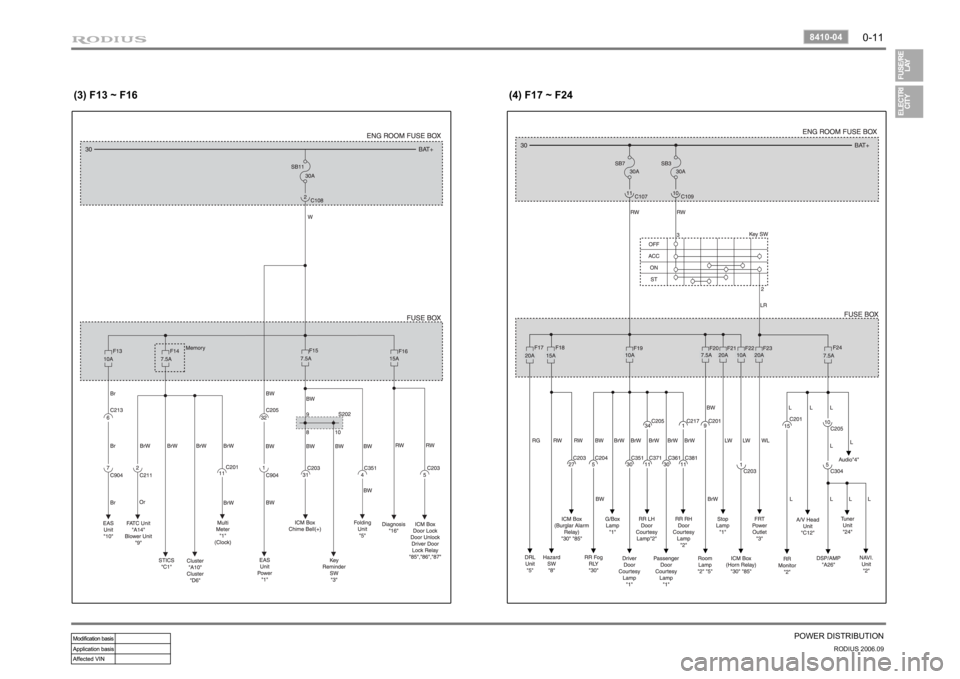

(3) F13 ~ F16 (4) F17 ~ F24

Page 24 of 465

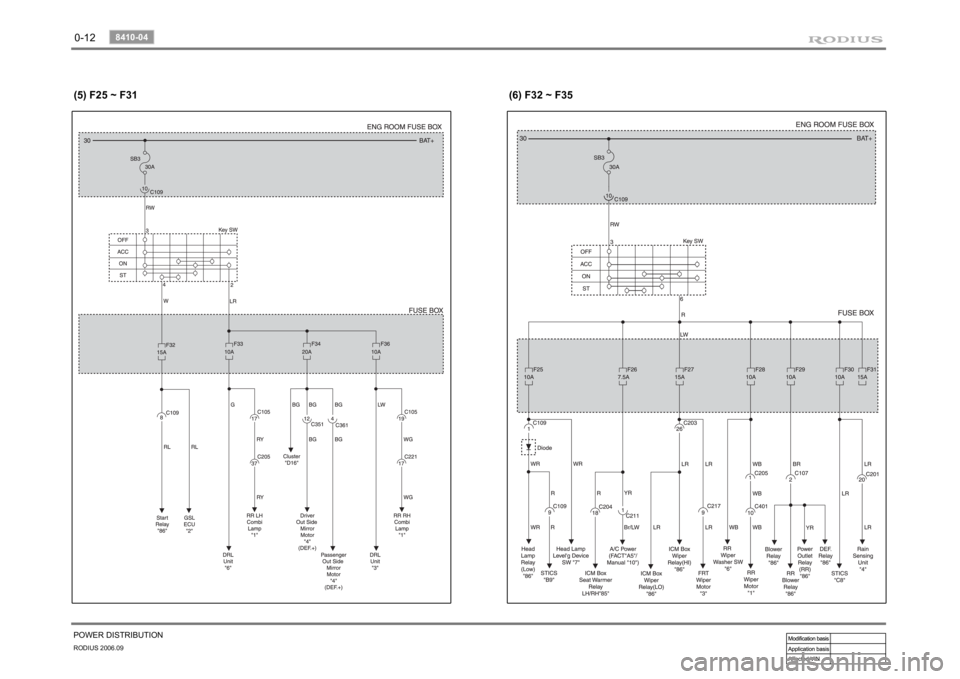

0-12RODIUS 2006.09
8410-04
POWER DISTRIBUTION
(6) F32 ~ F35
(5) F25 ~ F31

Page 25 of 465

Page 26 of 465

SSANGYONG RODIUS 2007 Owners Manual CIRCUIT
1461-01/2820-01/1491-01/1491-01/8210-01/3670-01/3670-03/8010-01/7630-02/8310-01/4810-10/6810-21/6810-30/6810-30
CIRCUIT
ENGINE
CHASSIS3670-01 TCU (5-SPEED)............................
3670-03

CIRCUIT
1461-01/2820-01/1491-01/1491-01/8210-01/3670-01/3670-03/8010-01/7630-02/8310-01/4810-10/6810-21/6810-30/6810-30
CIRCUIT
ENGINE
CHASSIS3670-01 TCU (5-SPEED)............................
3670-03 TOD.............................................
ELECTRIC8010-01 CLUSTER.....................................
7630-02 CIGAR LIGHTER, POWER
OUTLET......................................
8310-01 HEAD LAMP ＆ DRL (DAY TIME
RUNNING LIGHT) UNIT
CIRCUIT.......................................
4810-10 STOP ＆ BACK-UP LAMP
CIRCUIT.......................................
6810-21 PTC HEATER (POSITIVE
TEMPERATURE
COEFFICIENT).............................
6810-30 FATC (FULL AUTO TEMP.
CONTROL) CIRCUIT....................
6810-30 AIR-CON (MANUAL)..................... 12
1415
18
19
20
21
22
25 1461-01 STARTING ＆ CHARGING............
2820-01 PREHEATING UNIT CIRCUIT
(XDi))............................................
1491-01 ECU (ENGINE CONTROL UNIT -
D27DT EU IV)...............................
1491-01 ECU (GSL G32)............................
8210-01 DIAGNOSIS CIRCUIT...................3
4
5
8
11

Page 27 of 465

Page 28 of 465

SSANGYONG RODIUS 2007 Owners Manual 0-3
CIRCUIT
RODIUS 2006.09
1461-01
1461-01

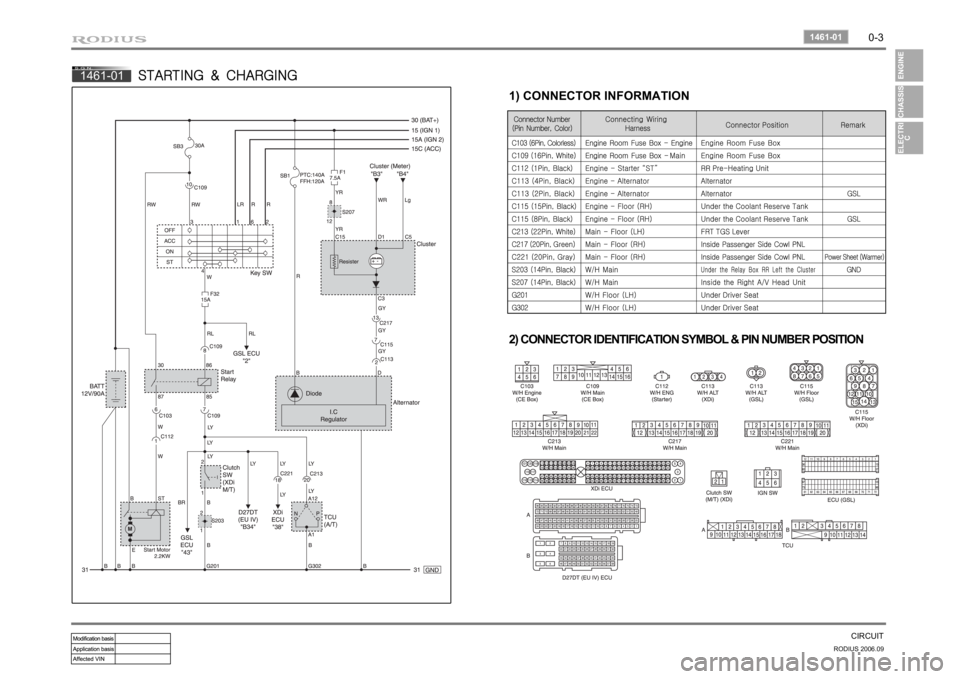

STARTING ＆ CHARGING
1) CONNECTOR INFORMATION
2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

0-3
CIRCUIT
RODIUS 2006.09
1461-01
1461-01
STARTING ＆ CHARGING
1) CONNECTOR INFORMATION
2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Page 29 of 465

SSANGYONG RODIUS 2007 Owners Manual 0-4RODIUS 2006.09
2820-01
CIRCUIT2820-01
PREHEATING UNIT CIRCUIT (XDi)
1) CONNECTOR INFORMATION
2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

0-4RODIUS 2006.09
2820-01
CIRCUIT2820-01
PREHEATING UNIT CIRCUIT (XDi)
1) CONNECTOR INFORMATION
2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Page 30 of 465

SSANGYONG RODIUS 2007 Owners Manual 0-5
CIRCUIT
RODIUS 2006.09
1491-01
1491-01
ECU (ENGINE CONTROL UNIT - D27DT EU IV)
1) ENG MAIN RELAY, PEDAL MODULE, HAN SENSORS, VALVE
(1) CONNECTOR INFORMATION
(2) CONNECTOR IDENTIFICATION SYMBOL &

0-5
CIRCUIT
RODIUS 2006.09
1491-01
1491-01
ECU (ENGINE CONTROL UNIT - D27DT EU IV)
1) ENG MAIN RELAY, PEDAL MODULE, HAN SENSORS, VALVE
(1) CONNECTOR INFORMATION
(2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
