SSANGYONG RODIUS 2007 Service Manual

0-11
AIR BAG SYSTEM
RODIUS 2006.09
8810-01
4. INFLATION OF AIRBAG
<0d960047006d009900960095009b004700680090009900890088008e004700760097008c00990088009b0090009600950047004f006b00990090009d008c009902c5009a004700880095008b004700770088009a009a008c0095008e008c009902c5009a00
50>
The air bag inflates when:
Frontal impact against a solid concrete wall at over 25 km/h or near-frontal impact
within 30 degrees from the center of the vehicle at both corners ·
The air bag can inflate when:
Underbody impact from the road surface; impact against the curb at a very high speed;
dropping impact onto the road surface with a large angle ·
The air bag does not inflate when:
Rollover, side impact or rear impact ·
The air bag seldom inflates when:
Weak impact in which the sensor is unable to detect (under the inflation requirements)
Impact against narrow objects such as a telegraph pole or a tree
The vehicle falls into a drainage or a puddle
The front of the vehicle crashes into high impact point vehicle such as a truck
Impact on the hood by falling stones
The air bag warning lamp is on ·
·
·
·
·
·

0-2
RODIUS 2006.09
7410-01
SEAT
Belt type buckle
Front seat belt
7410-01SEAT
1. SEAT OVERVIEW
Fixed type buckle
Front seat Driver’s
Passenger’s

0-3

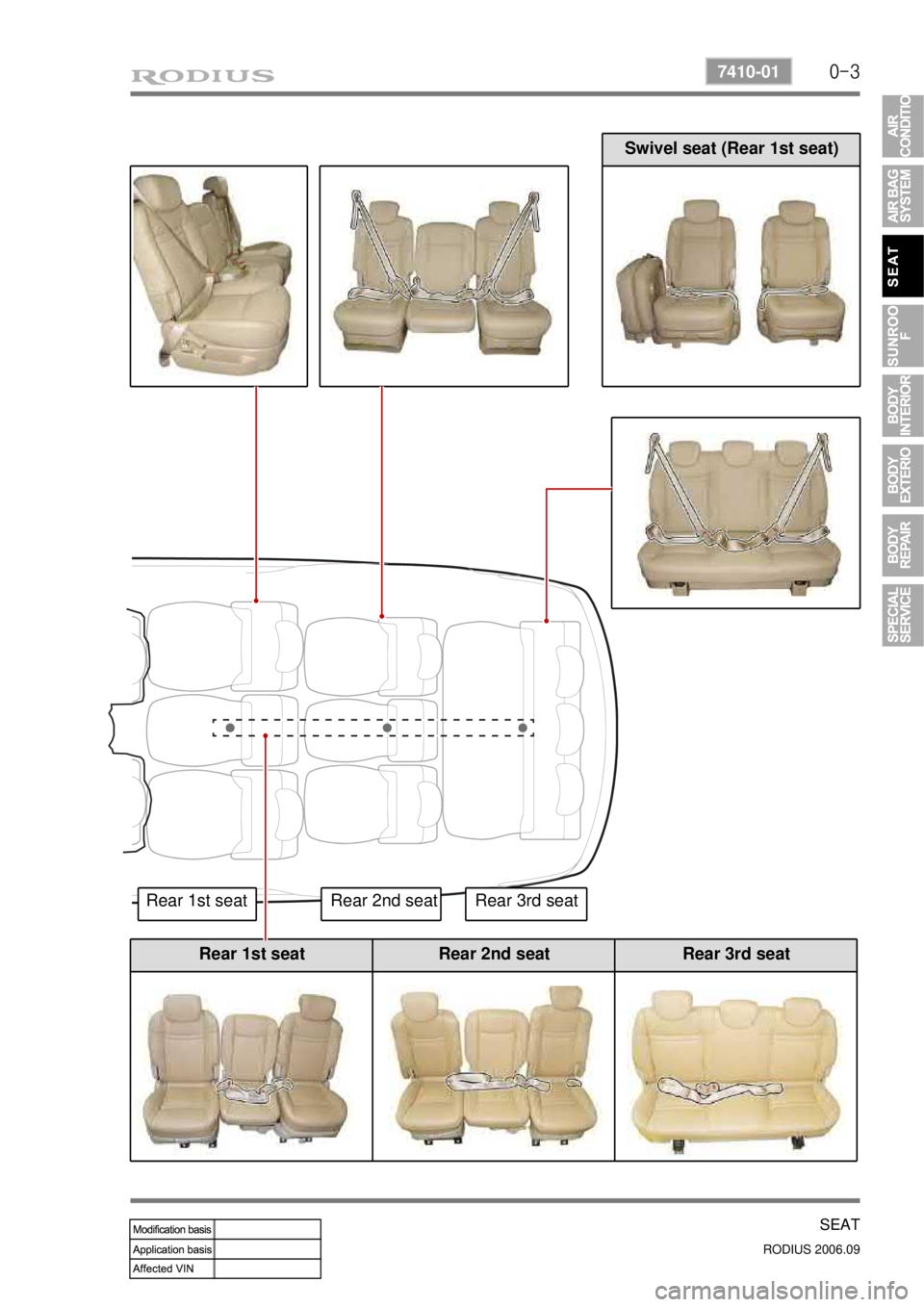

SEAT
RODIUS 2006.09
7410-01
Rear 1st seat Rear 2nd seat Rear 3rd seat
Swivel seat (Rear 1st seat)
Rear 1st seat Rear 2nd seat Rear 3rd seat

0-4
RODIUS 2006.09
7410-01
SEAT
Back flat adjust lever
Seat warmer switch
Sliding adjust lever
Seat control switch
Sliding control
1. COMPONENTS OF SEAT
Seat position control Seat height control Reclining control
Back supporter (Driver’s seat)

0-5

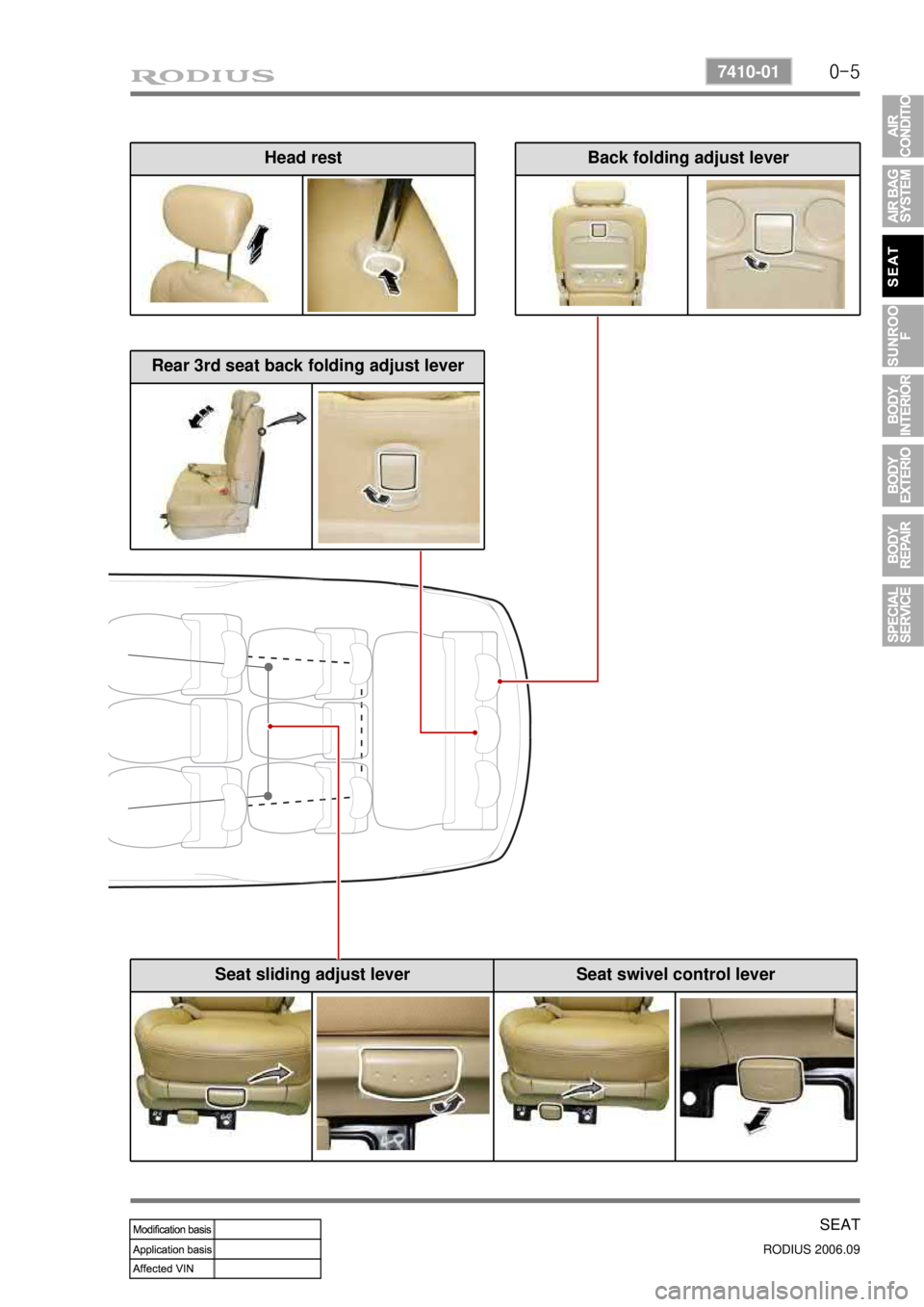

SEAT
RODIUS 2006.09
7410-01
Seat sliding adjust lever Seat swivel control lever
Rear 3rd seat back folding adjust lever
Back folding adjust leverHead rest

0-6
RODIUS 2006.09
7410-01
SEAT
â–¶ Rear 1st row (3 point + 2 point)
â–¶ Rear 2nd row (3 point + 2 point)
â–¶ Rear 3rd row (3 point + 2 point)
â–¶ Front Seat Belt (3 point)
2. COMPONENTS OF SEAT BELT
1) 11 Passengers

0-7
SEAT
RODIUS 2006.09
7410-01
2) 9 Passengers
â–¶ Front Seat Belt (3 point)
â–¶ Rear 1st row (3 point)
â–¶ Rear 2nd row (3 point)
â–¶ Rear 3rd row (3 point + 2 point)

0-8
RODIUS 2006.09
7410-01
SEAT
3) 7 Passengers
â–¶ Front Seat Belt (3 point)
â–¶ Rear 2nd row (3 point + 2 point)
â–¶ Rear 1st row (3 point)

0-9
SEAT
RODIUS 2006.09
7410-01

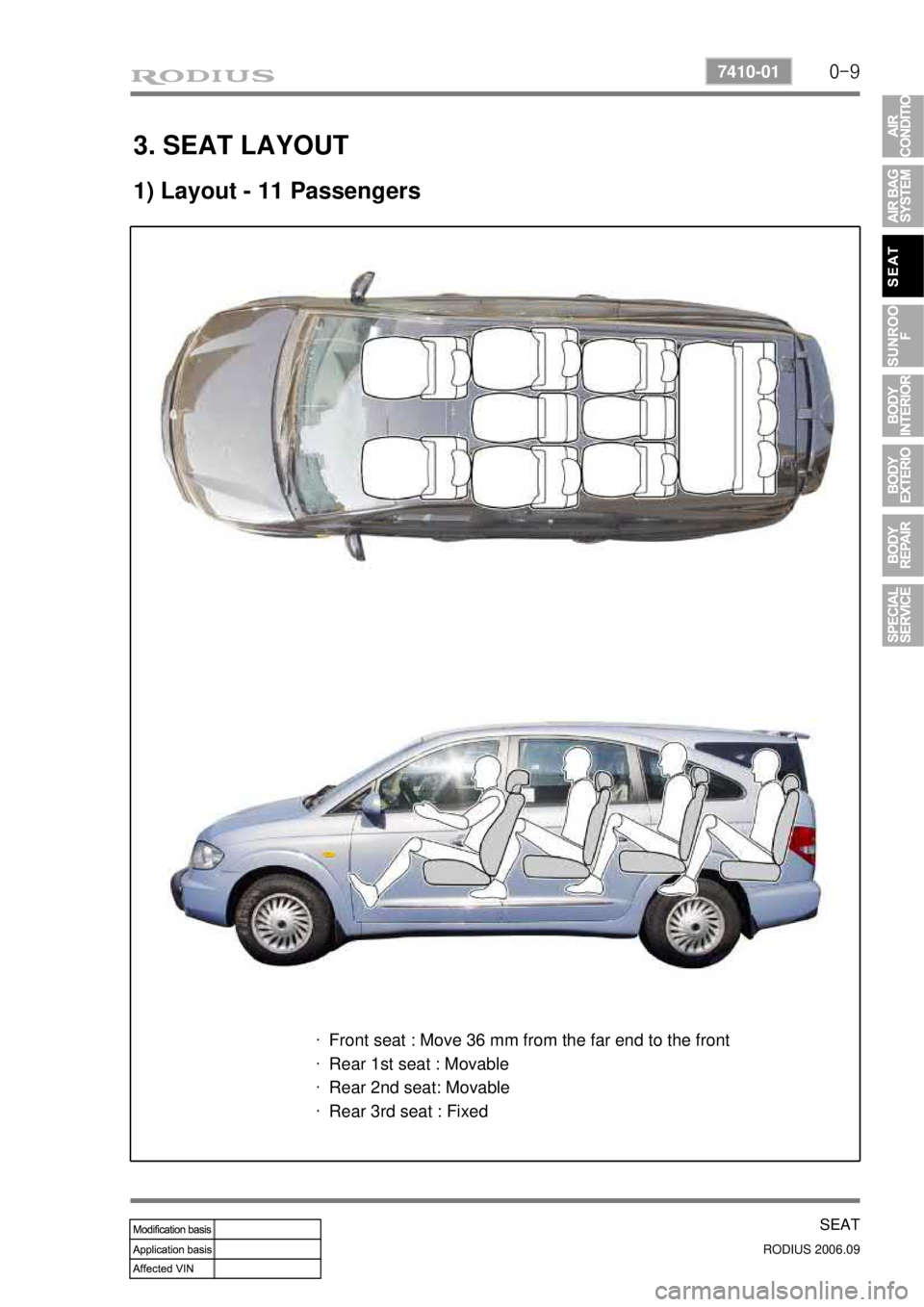

3. SEAT LAYOUT
1) Layout - 11 Passengers
Front seat : Move 36 mm from the far end to the front
Rear 1st seat : Movable
Rear 2nd seat: Movable
Rear 3rd seat : Fixed ·
·
·
·

0-10
RODIUS 2006.09
7410-01
SEAT

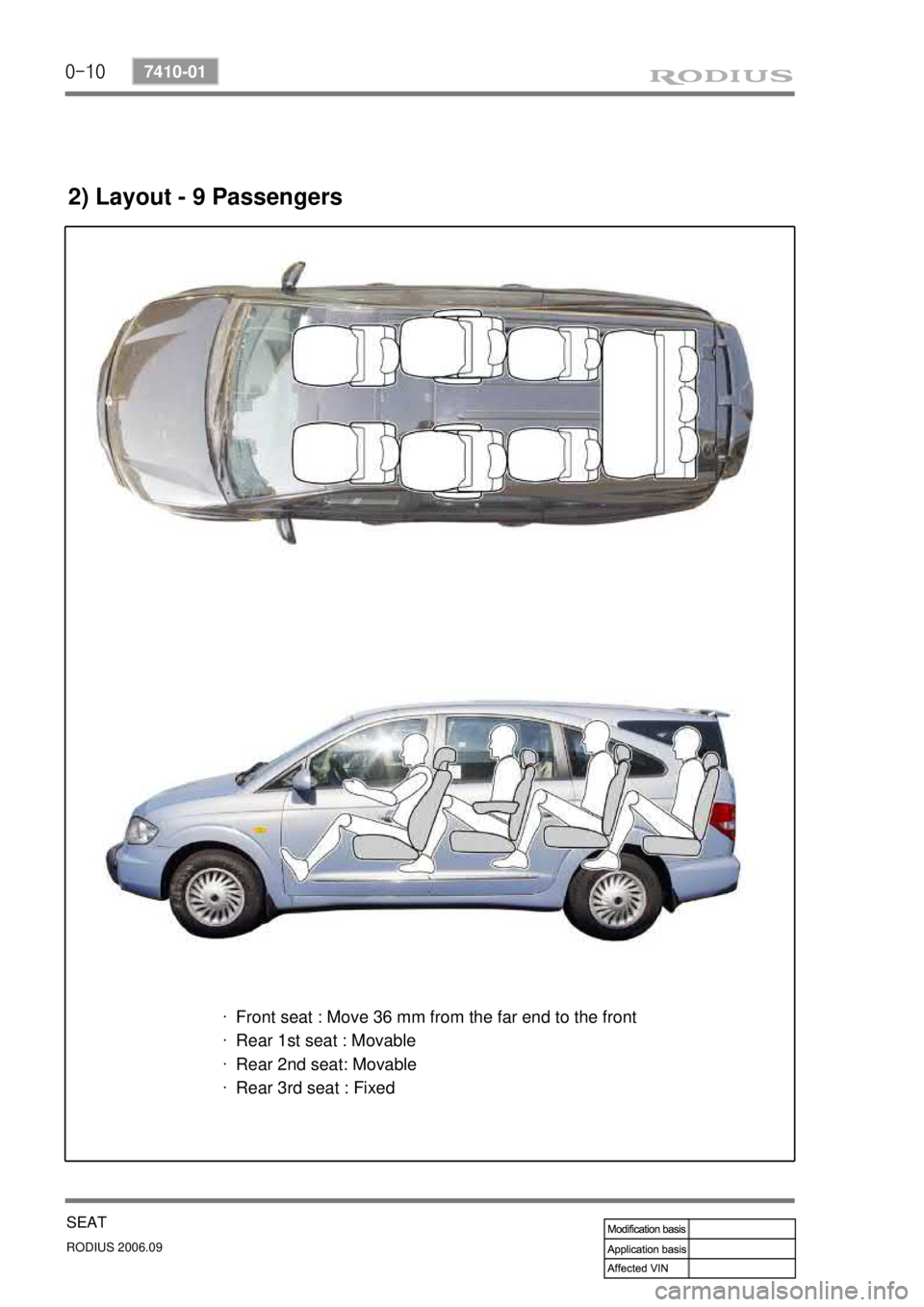

2) Layout - 9 Passengers
Front seat : Move 36 mm from the far end to the front
Rear 1st seat : Movable
Rear 2nd seat: Movable
Rear 3rd seat : Fixed ·
·
·
·
