SUNROOF
RODIUS 2006.09
7340-01

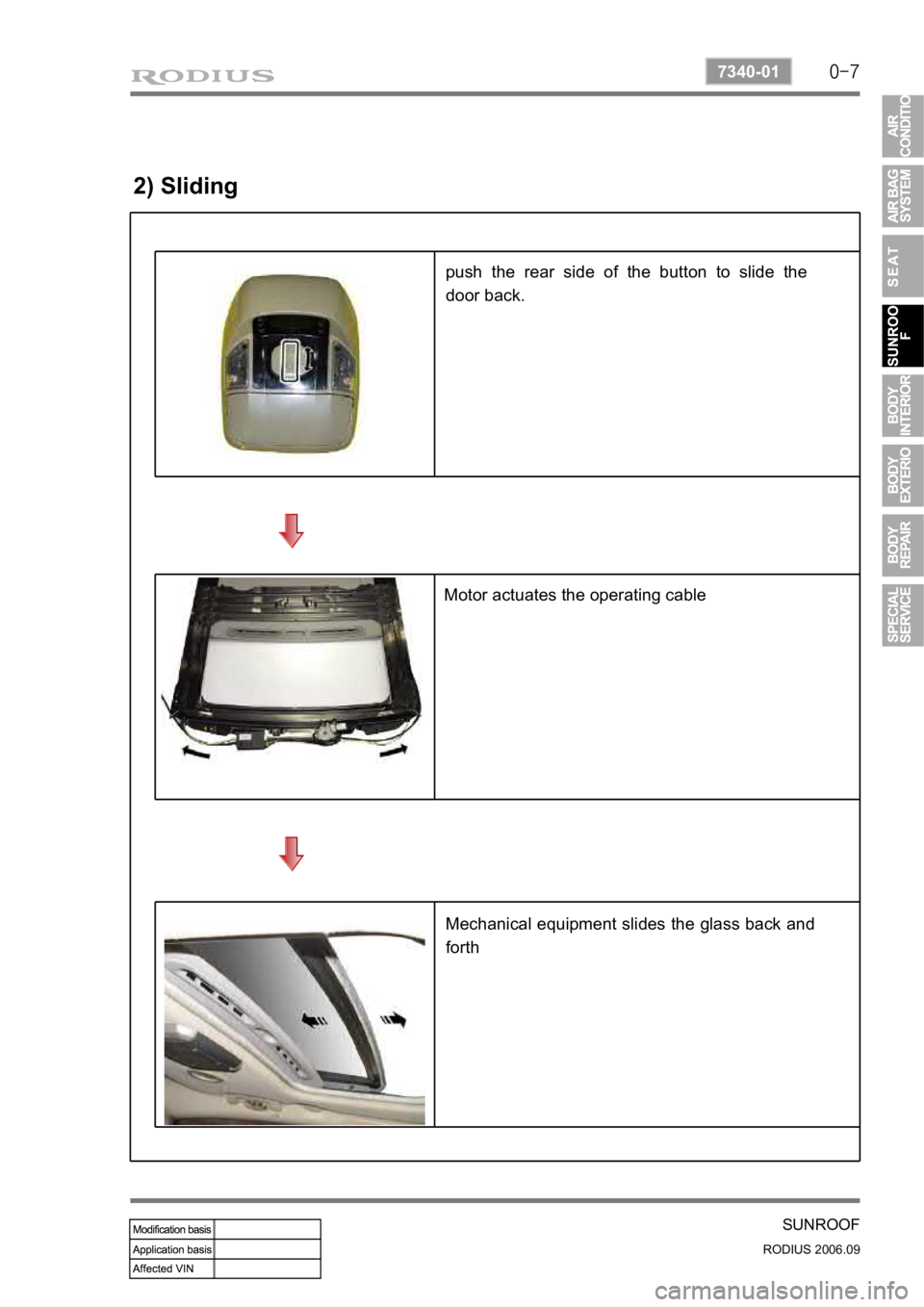

2) Sliding
push the rear side of the button to slide the
door back.
Motor actuates the operating cable
Mechanical equipment slides the glass back and
forth

NO DATA

06-3
BODY EXTERIOR
RODIUS 2006.09
7115-01
7115-01BODY EXTERIOR

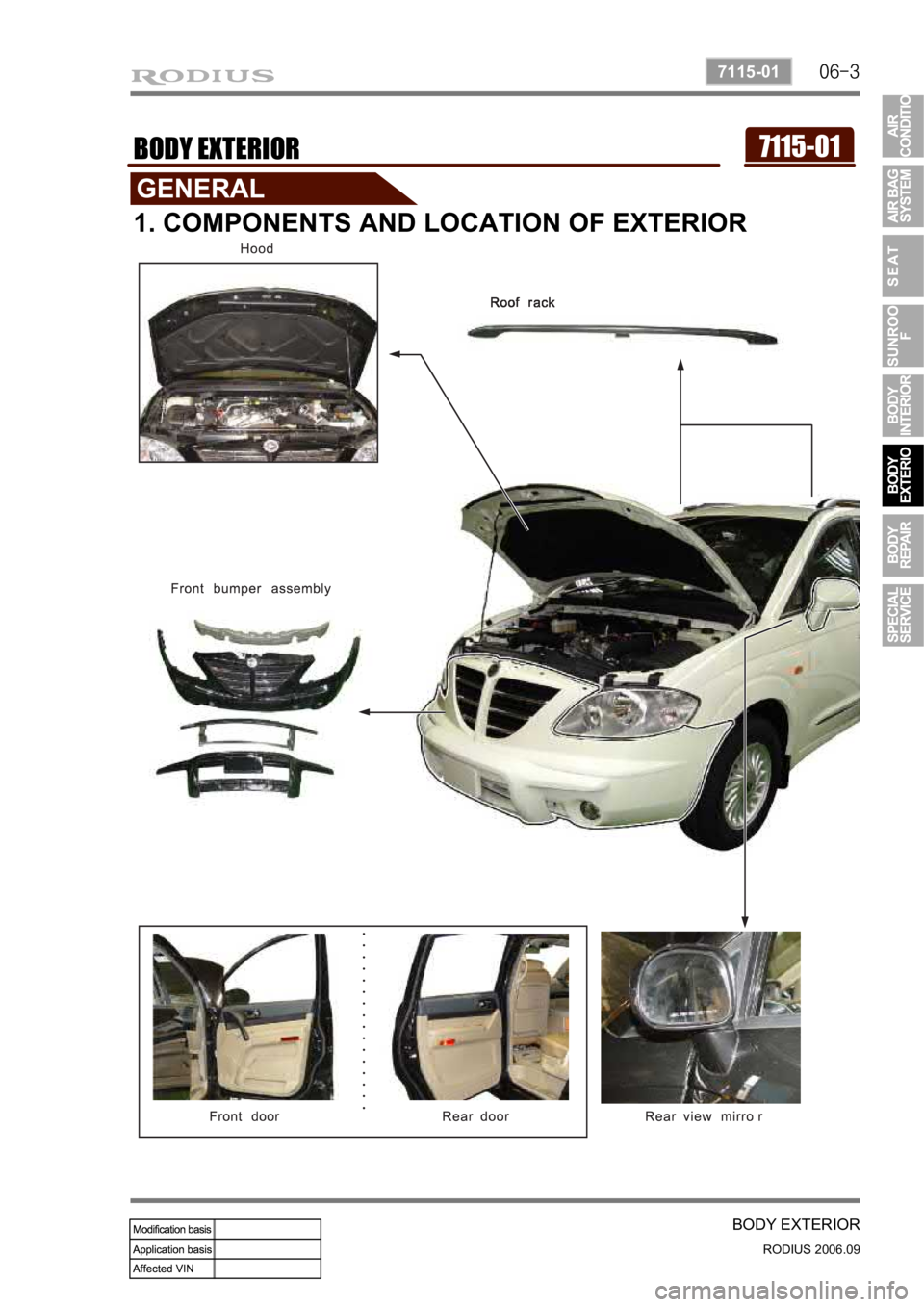

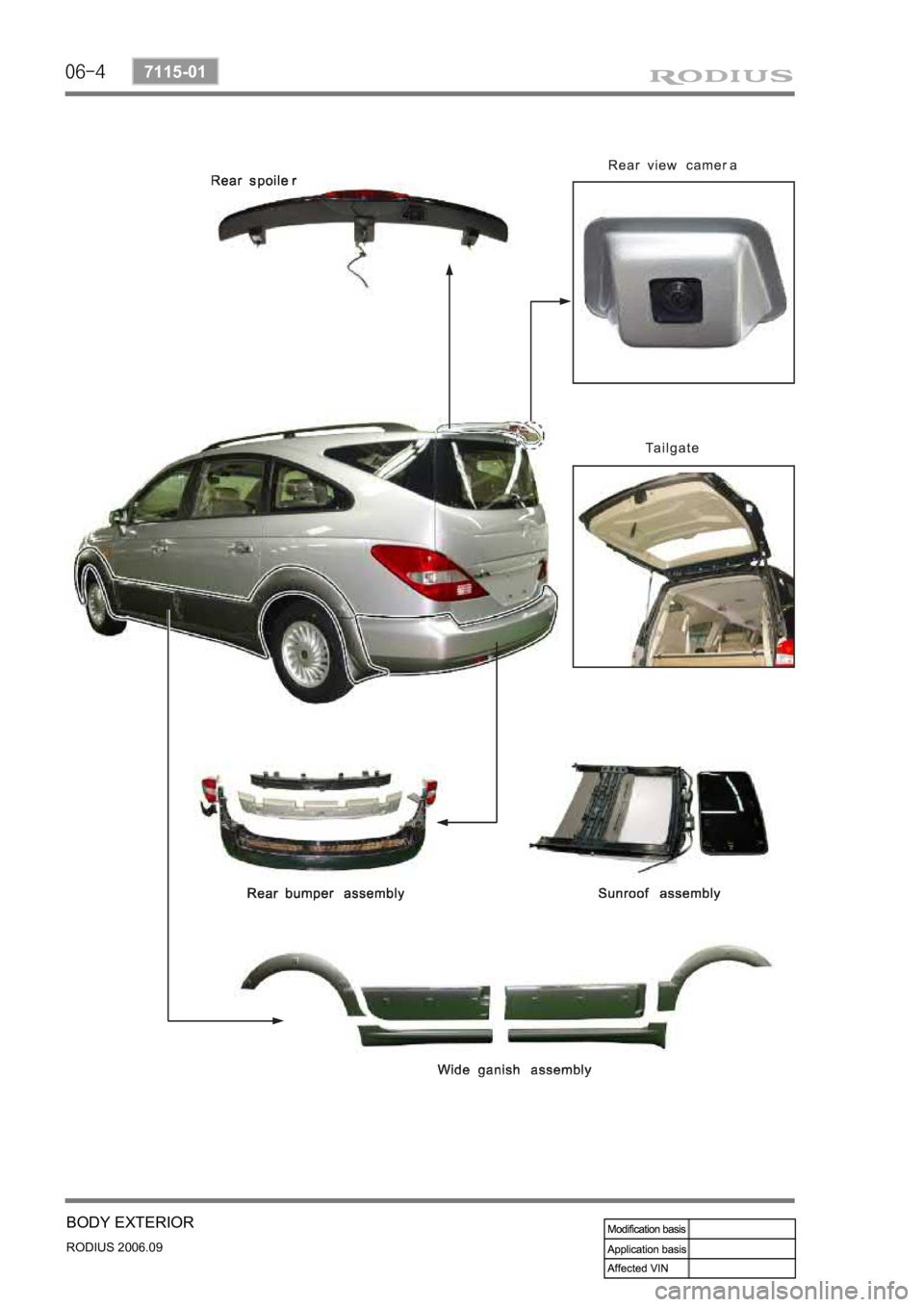

1. COMPONENTS AND LOCATION OF EXTERIOR

06-4
RODIUS 2006.09
7115-01
BODY EXTERIOR

06-5
BODY EXTERIOR
RODIUS 2006.09
7115-01

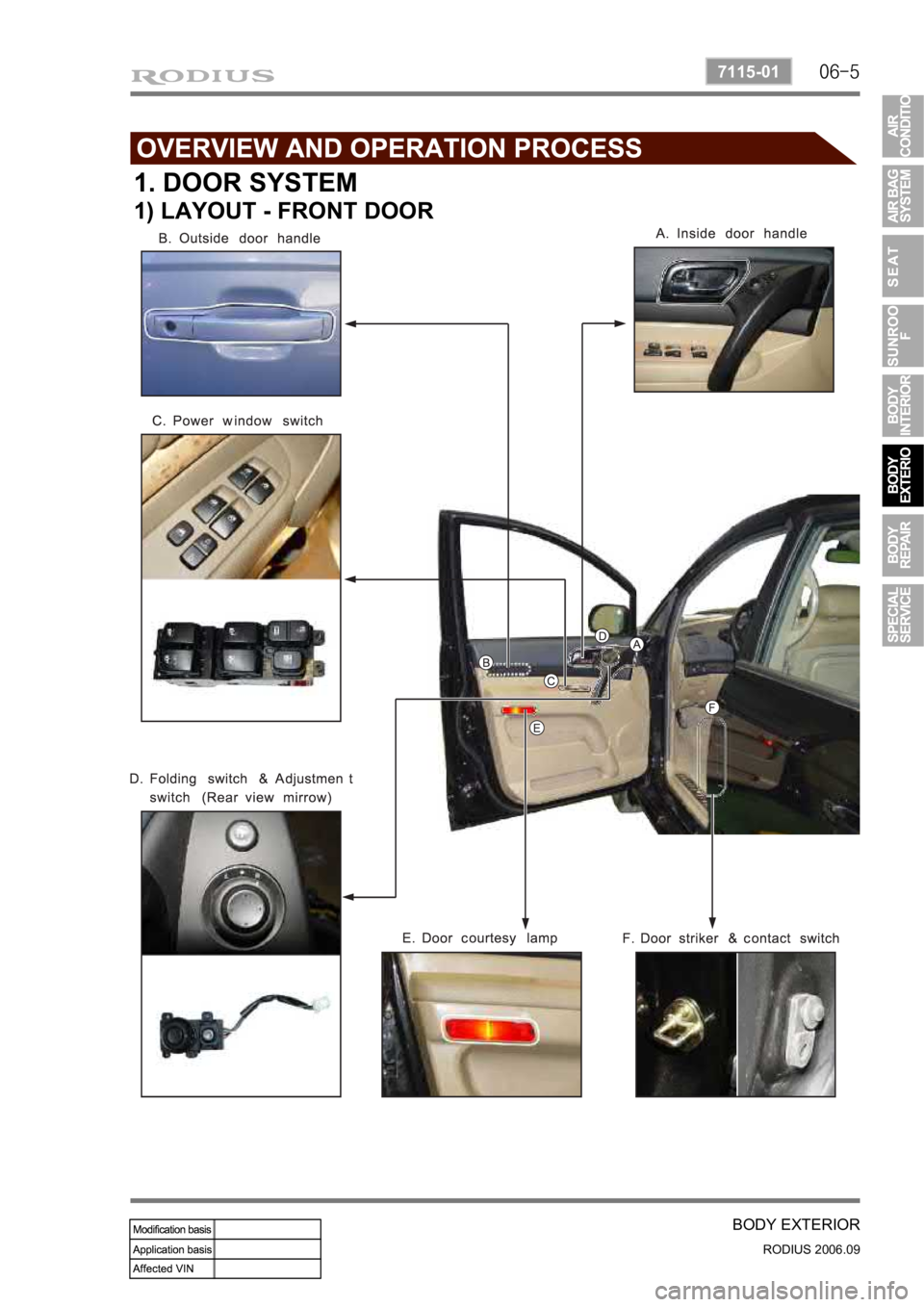

1. DOOR SYSTEM

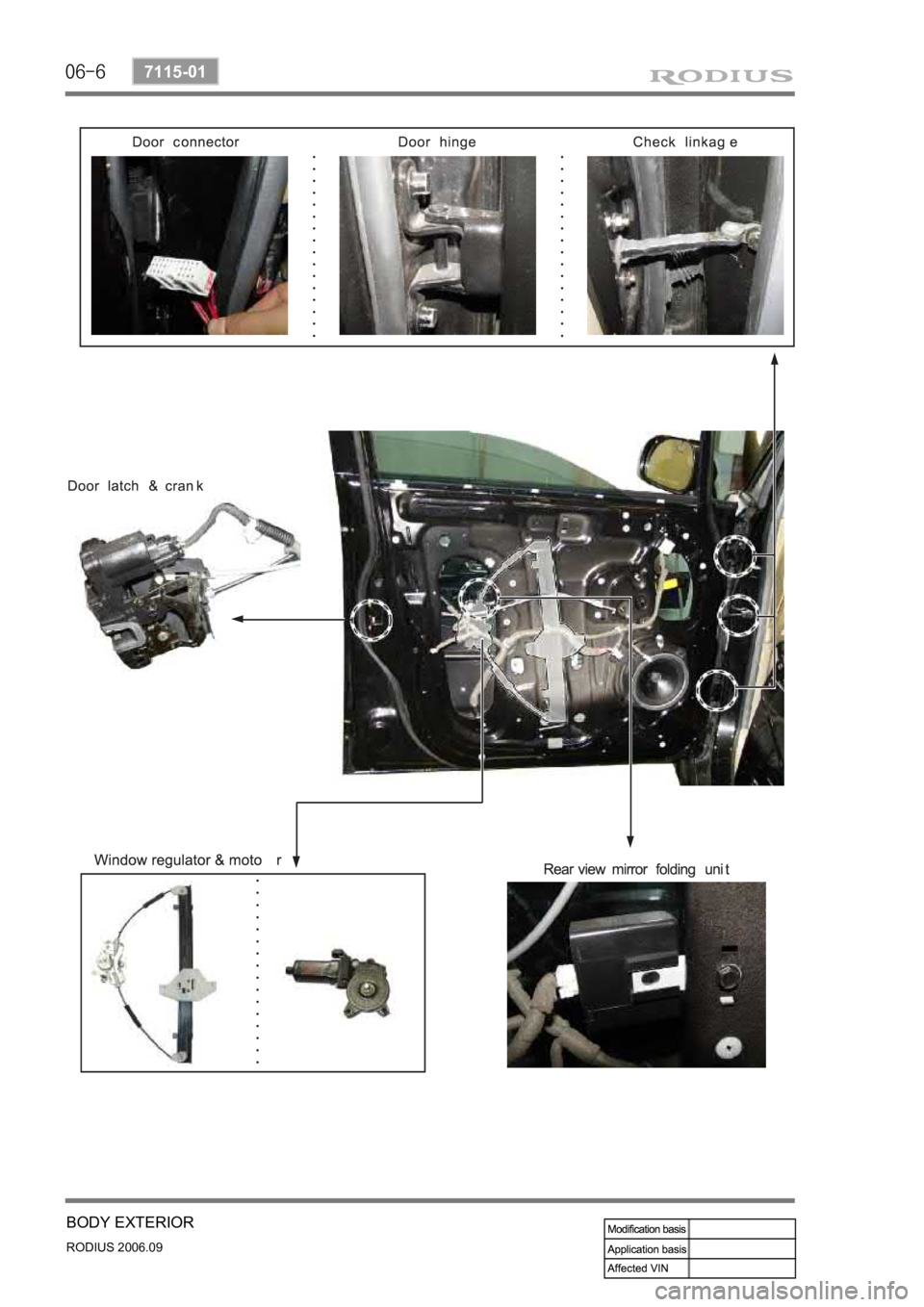

1) LAYOUT - FRONT DOOR

06-6
RODIUS 2006.09
7115-01
BODY EXTERIOR

06-7
BODY EXTERIOR
RODIUS 2006.09
7115-01

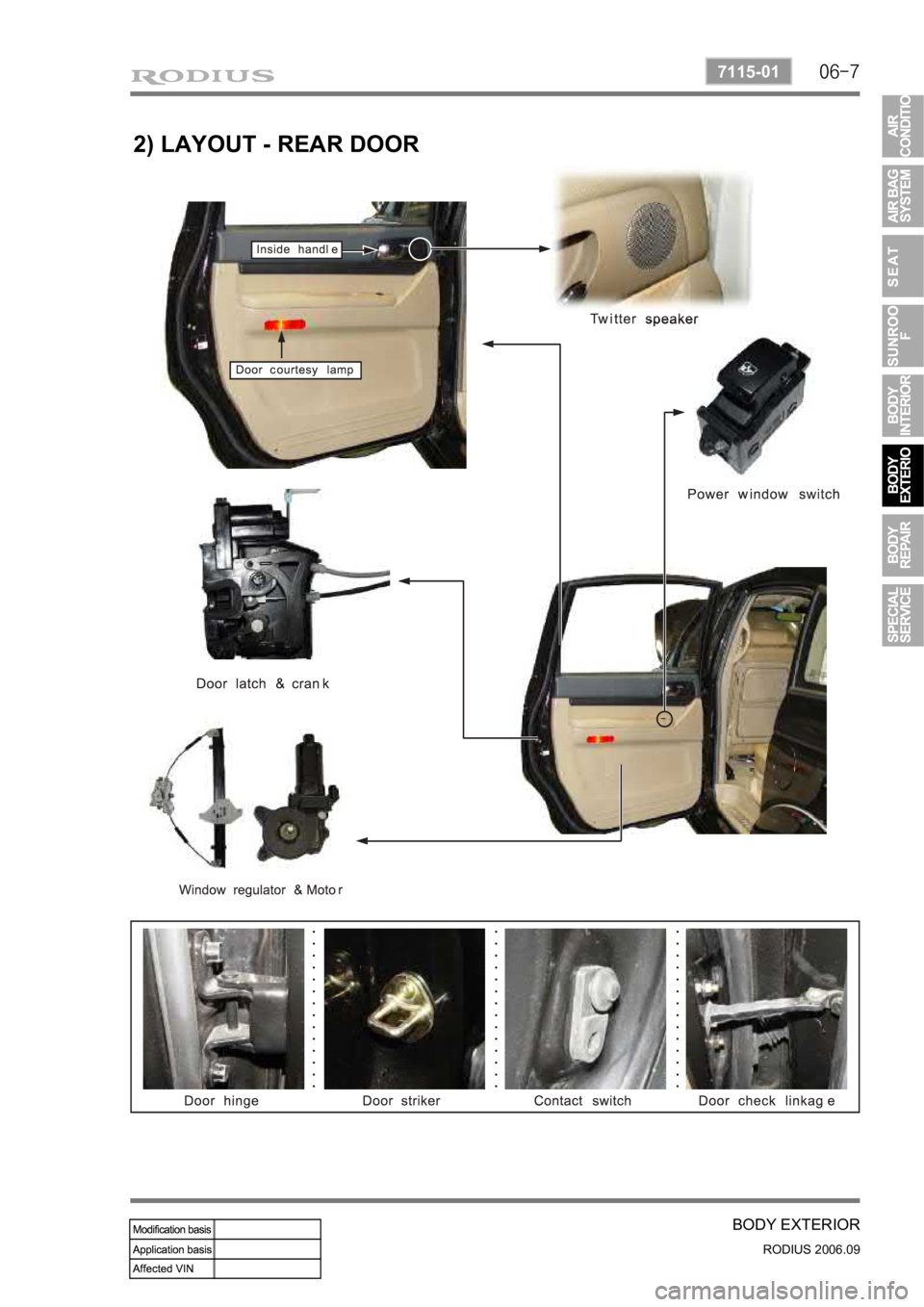

2) LAYOUT - REAR DOOR

06-8
RODIUS 2006.09
7115-01
BODY EXTERIOR

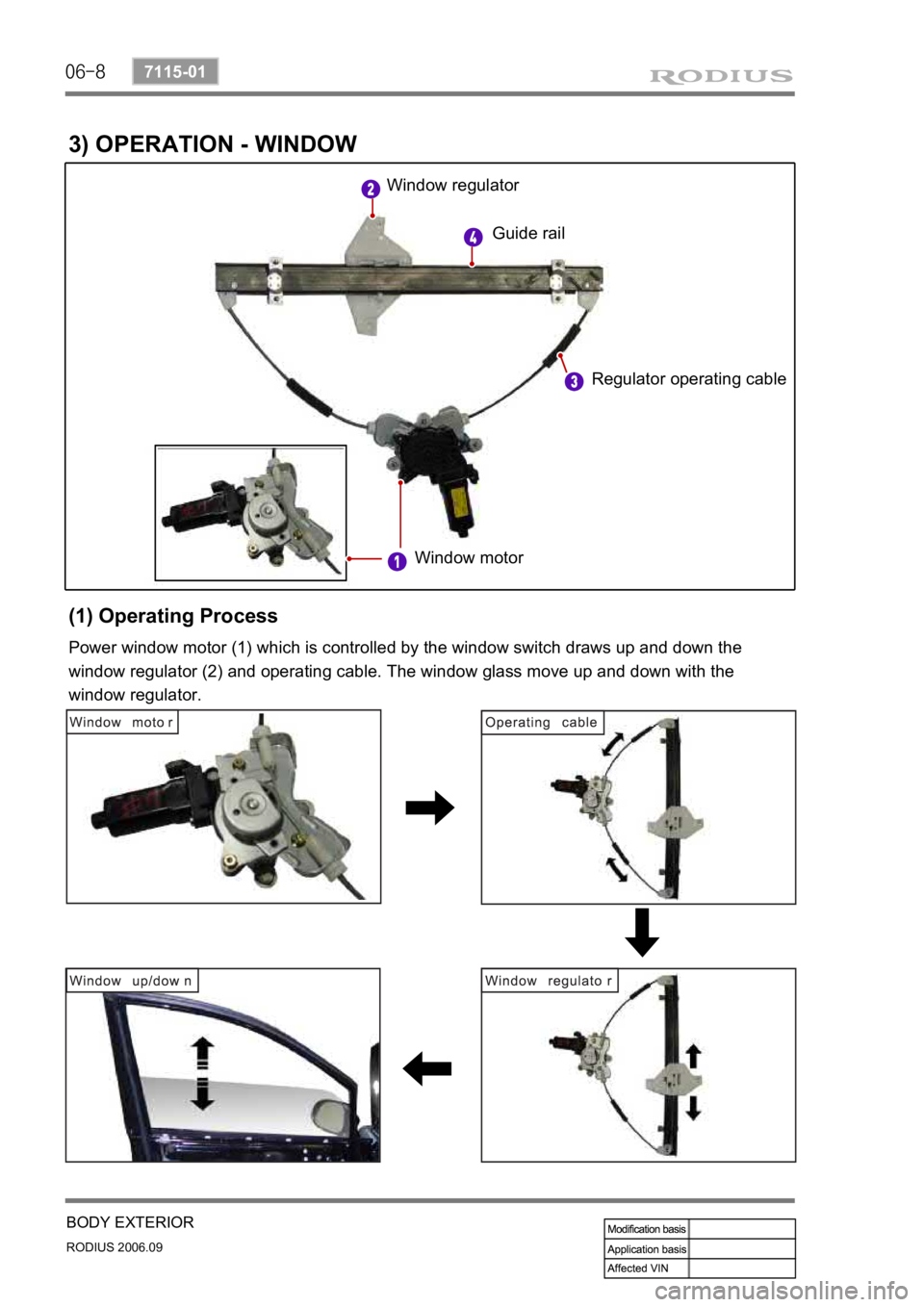

3) OPERATION - WINDOW
(1) Operating Process
Power window motor (1) which is controlled by the window switch draws up and down the
window regulator (2) and operating cable. The window glass move up and down with the
window regulator.Window regulator
Window motorRegulator operating cable Guide rail

06-9
BODY EXTERIOR
RODIUS 2006.09
7115-01

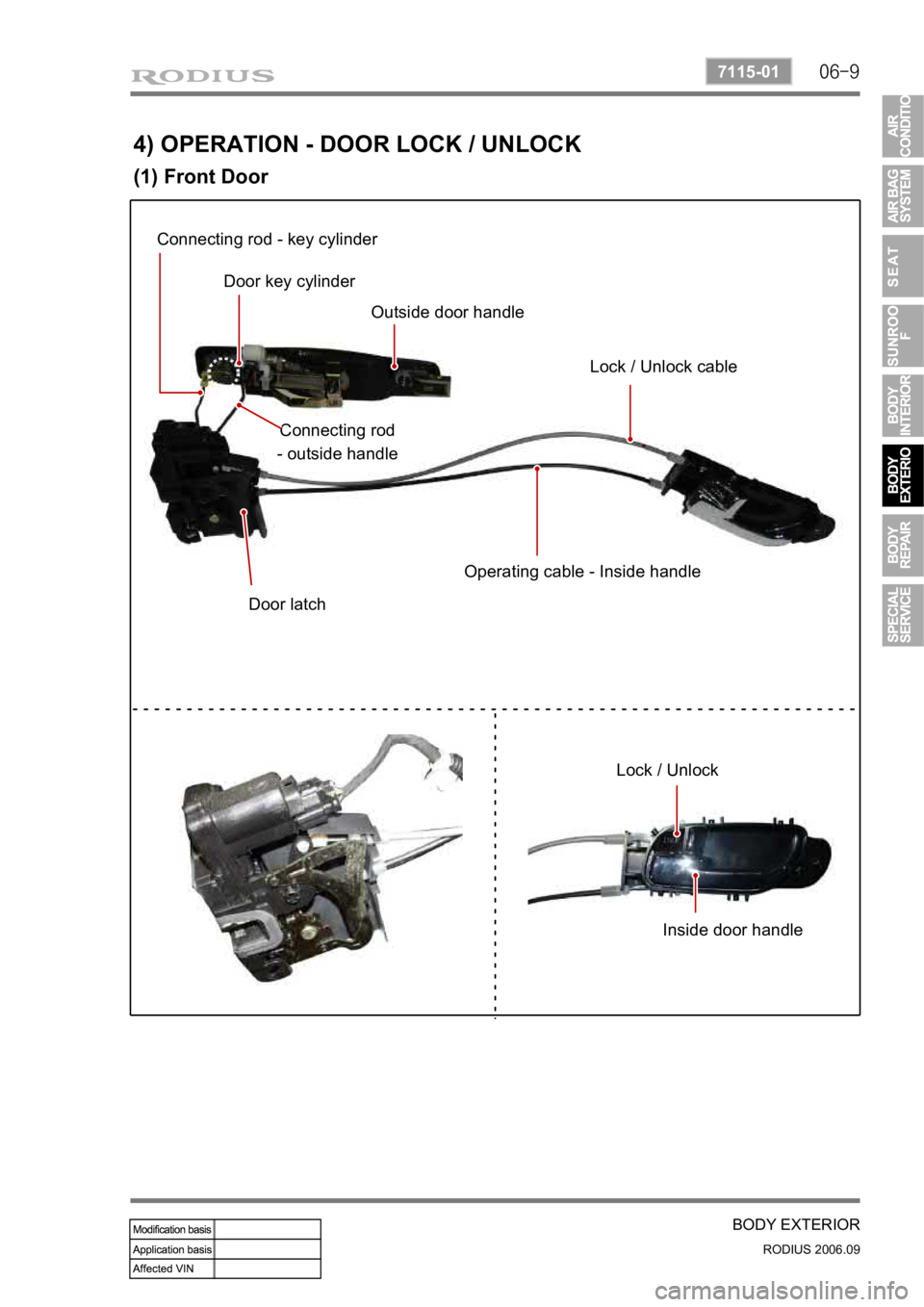

4) OPERATION - DOOR LOCK / UNLOCK
(1) Front Door
Connecting rod - key cylinder Door key cylinder Outside door handle
Lock / Unlock cable
Connecting rod
- outside handle
Door latch Operating cable - Inside handle
Lock / Unlock Inside door handle

06-10
RODIUS 2006.09
7115-01
BODY EXTERIOR

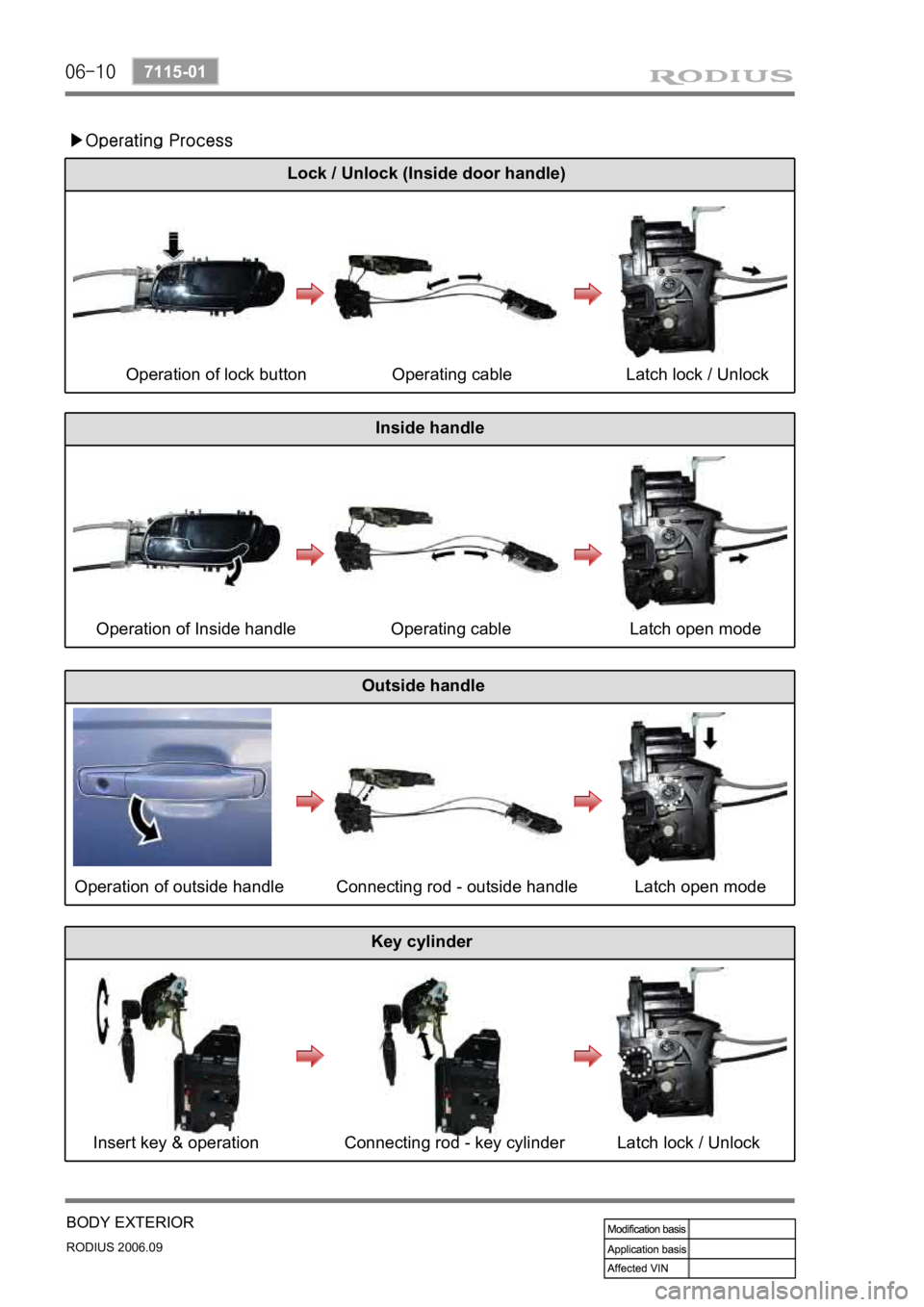

▶Operating Process
Operation of lock button Operating cable Latch lock / Unlock
Operation of Inside handle Operating cable Latch open mode
Operation of outside handle Connecting rod - outside handle Latch open mode Insert key & operation Connecting rod - key cylinder Latch lock / Unlock Lock / Unlock (Inside door handle)
Inside handle
Outside handle Key cylinder
