SSANGYONG RODIUS 2007 Service Manual

0-11
SEAT
RODIUS 2006.09
7410-01

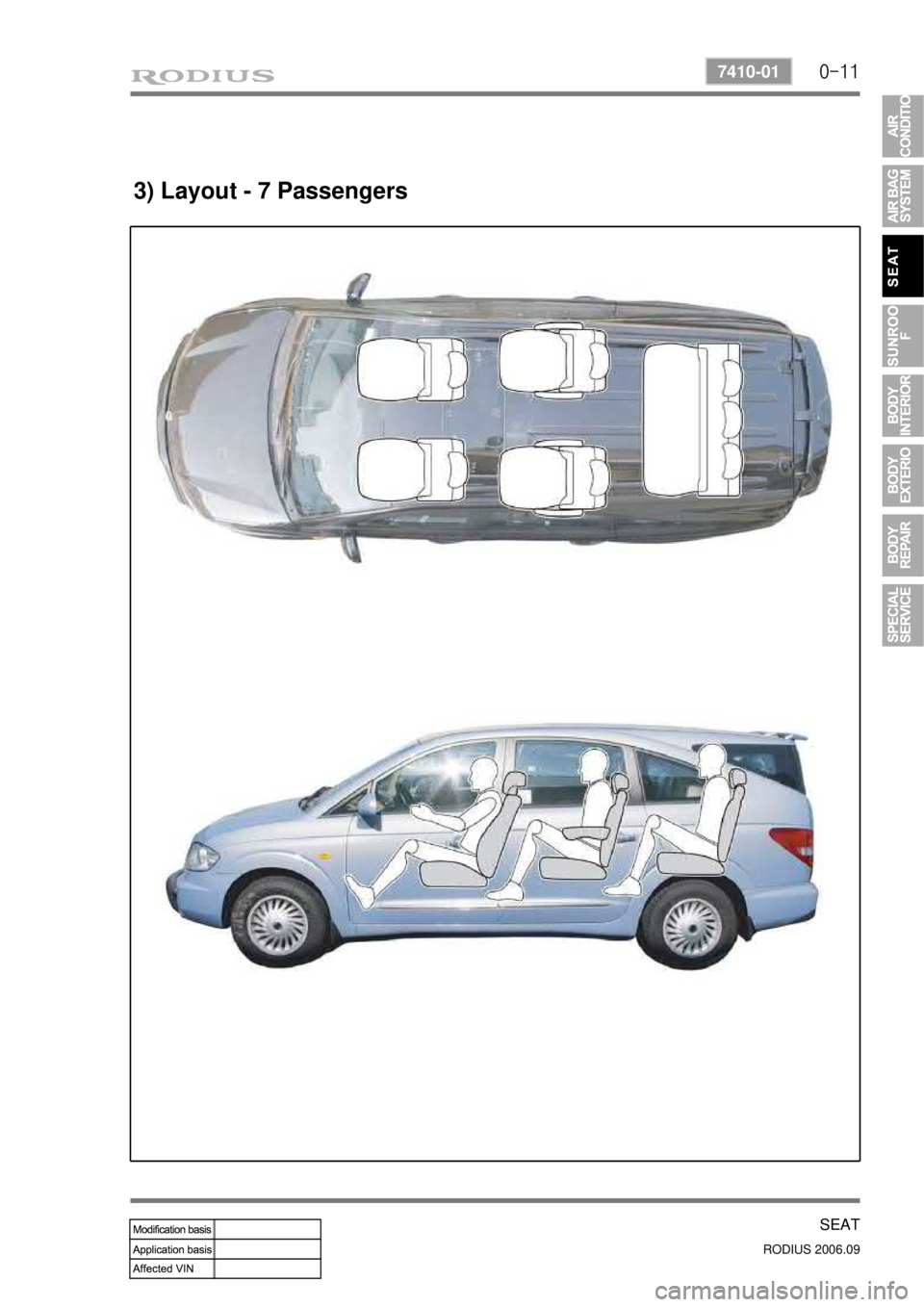

3) Layout - 7 Passengers

0-12
RODIUS 2006.09
7410-01
SEAT

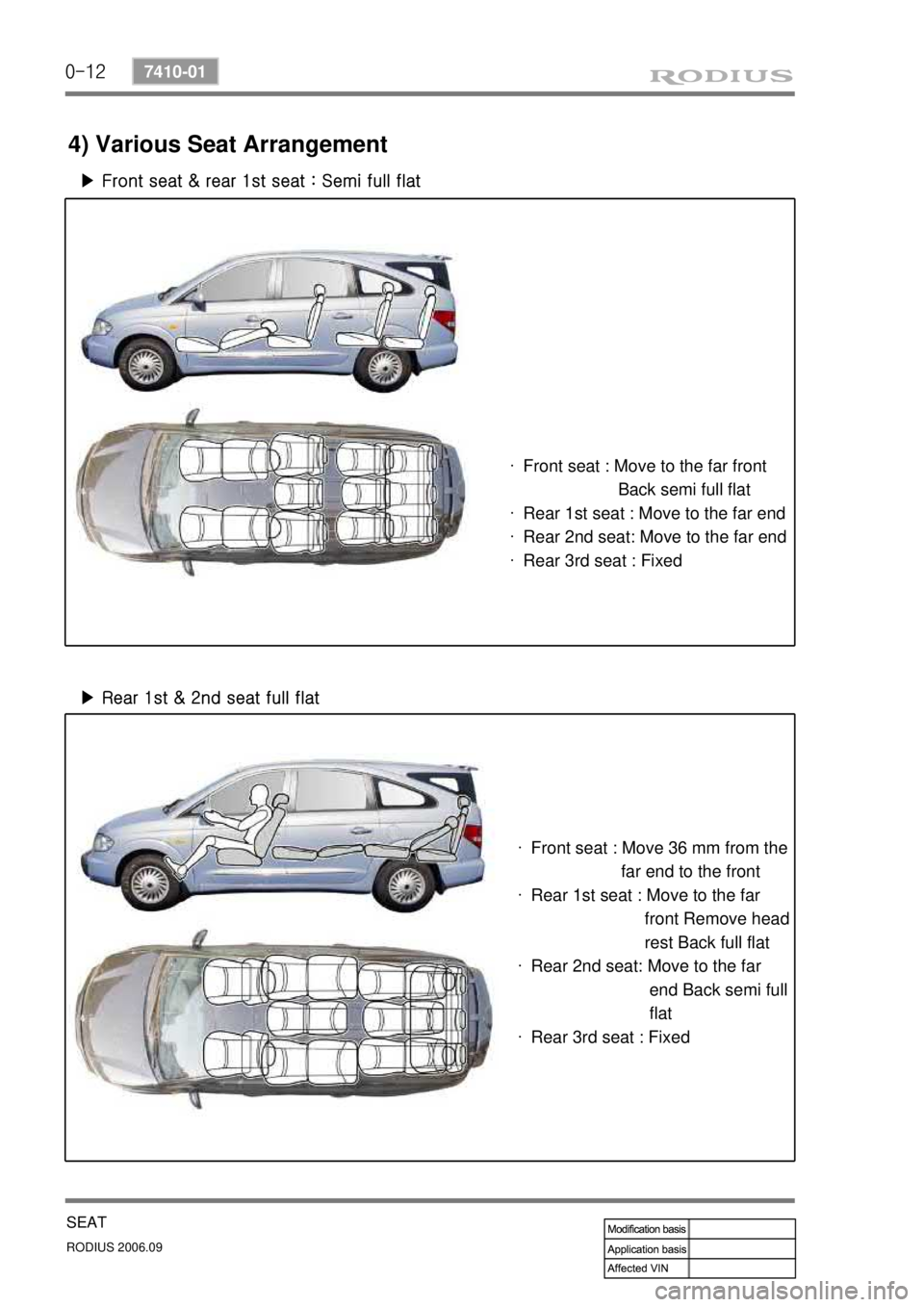

4) Various Seat Arrangement
▶ Front seat & rear 1st seat : Semi full flat
▶ Rear 1st & 2nd seat full flat
Front seat : Move to the far front
Back semi full flat
Rear 1st seat : Move to the far end
Rear 2nd seat: Move to the far end
Rear 3rd seat : Fixed
·
·
·
·
Front seat : Move 36 mm from the
far end to the front
Rear 1st seat : Move to the far
front Remove head
rest Back full flat
Rear 2nd seat: Move to the far
end Back semi full
flat
Rear 3rd seat : Fixed
·
·
·
·

0-13
SEAT
RODIUS 2006.09
7410-01

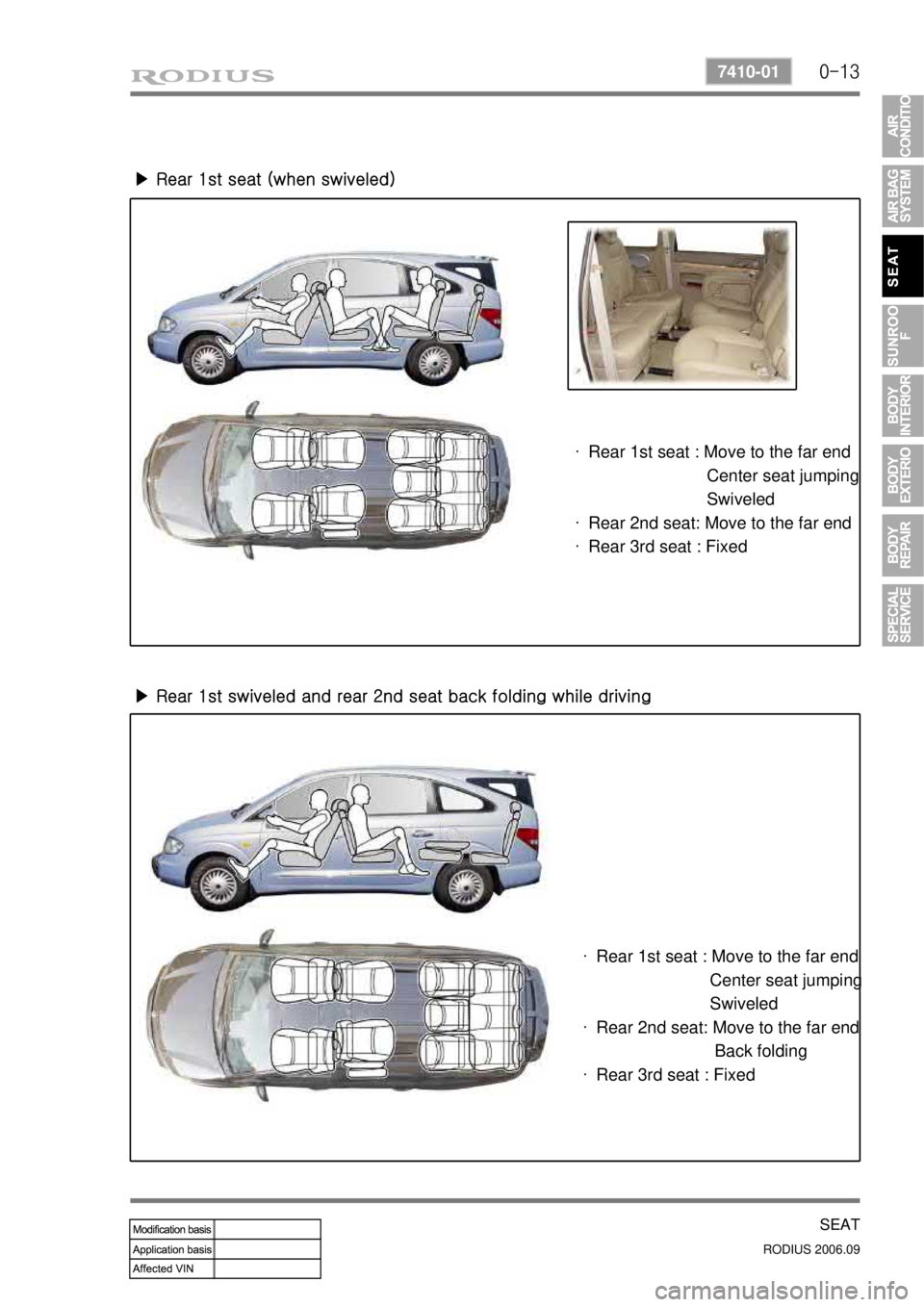

▶ Rear 1st seat (when swiveled)
▶ Rear 1st swiveled and rear 2nd seat back folding while drivin g
Rear 1st seat : Move to the far end
Center seat jumping
Swiveled
Rear 2nd seat: Move to the far end
Rear 3rd seat : Fixed
·
·
·
Rear 1st seat : Move to the far end
Center seat jumping
Swiveled
Rear 2nd seat: Move to the far end
Back folding
Rear 3rd seat : Fixed
·
·
·

0-14
RODIUS 2006.09
7410-01
SEAT

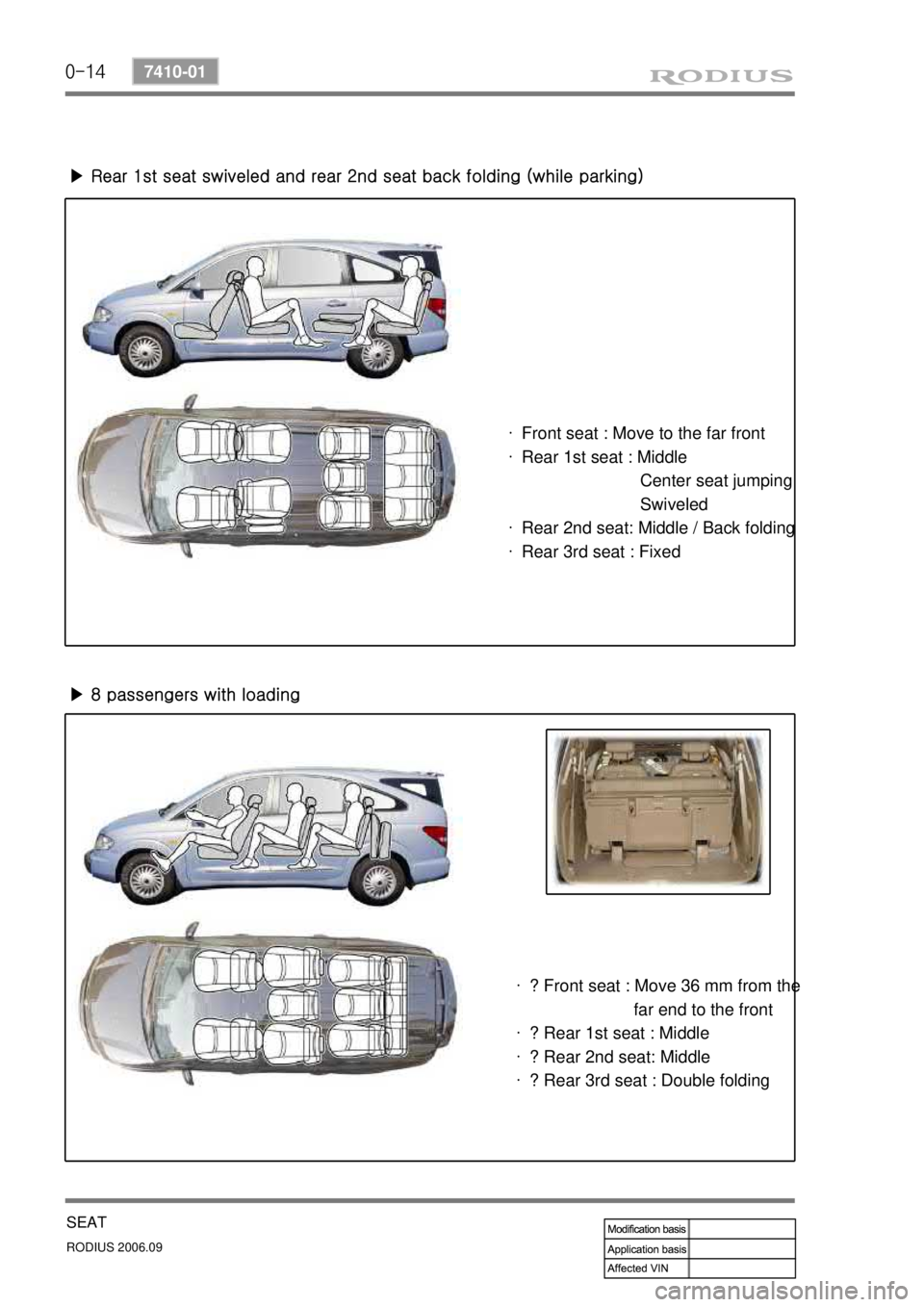

▶ Rear 1st seat swiveled and rear 2nd seat back folding (while parking)
▶ 8 passengers with loading
Front seat : Move to the far front
Rear 1st seat : Middle
Center seat jumping
Swiveled
Rear 2nd seat: Middle / Back folding
Rear 3rd seat : Fixed
·
·
·
·
? Front seat : Move 36 mm from the
far end to the front
? Rear 1st seat : Middle
? Rear 2nd seat: Middle
? Rear 3rd seat : Double folding
·
·
·
·

0-15
SEAT
RODIUS 2006.09
7410-01

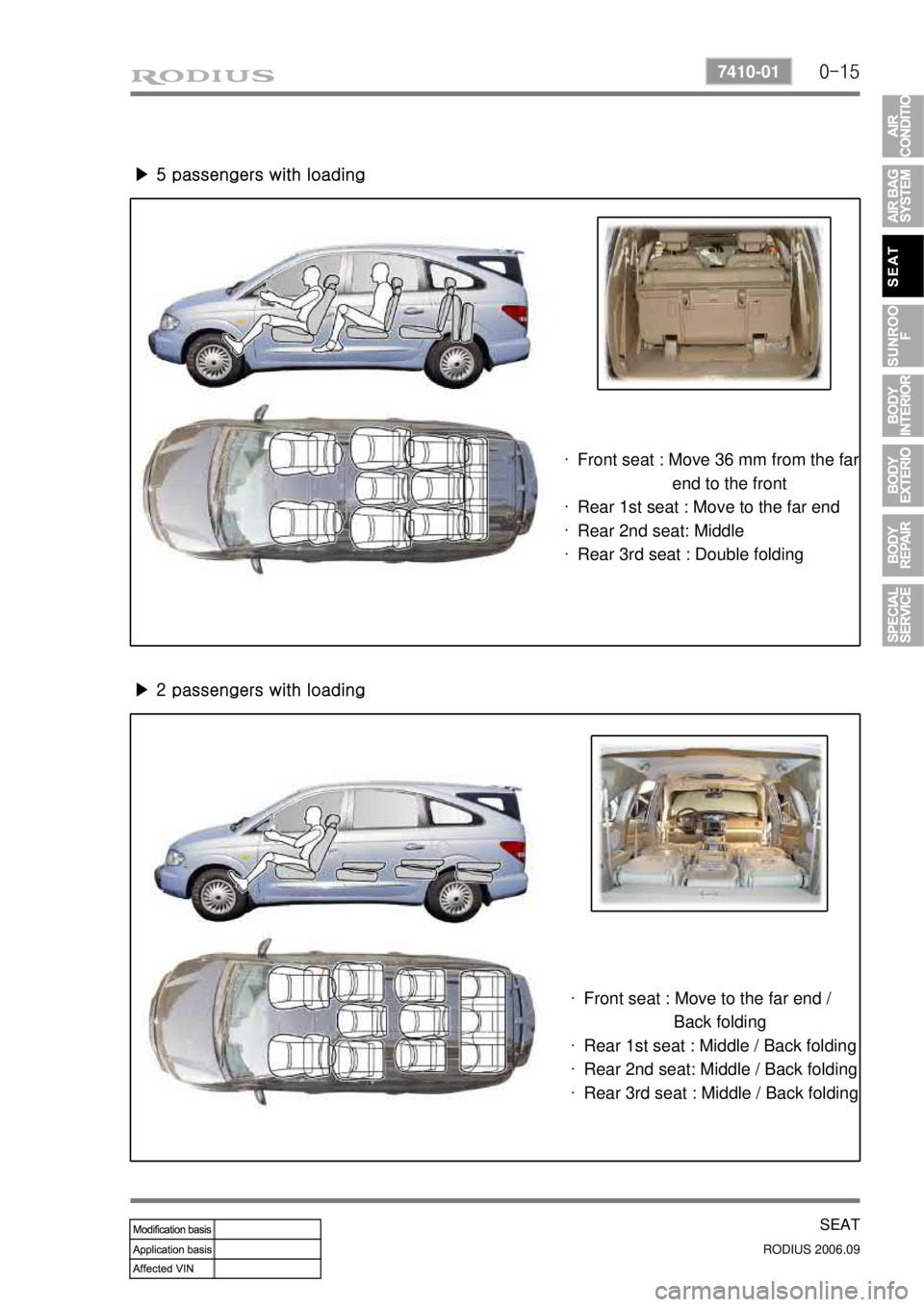

▶ 5 passengers with loading
▶ 2 passengers with loading
Front seat : Move 36 mm from the far
end to the front
Rear 1st seat : Move to the far end
Rear 2nd seat: Middle
Rear 3rd seat : Double folding
·
·
·
·
Front seat : Move to the far end /
Back folding
Rear 1st seat : Middle / Back folding
Rear 2nd seat: Middle / Back folding
Rear 3rd seat : Middle / Back folding
·
·
·
·

0-16
RODIUS 2006.09
7410-01
SEAT

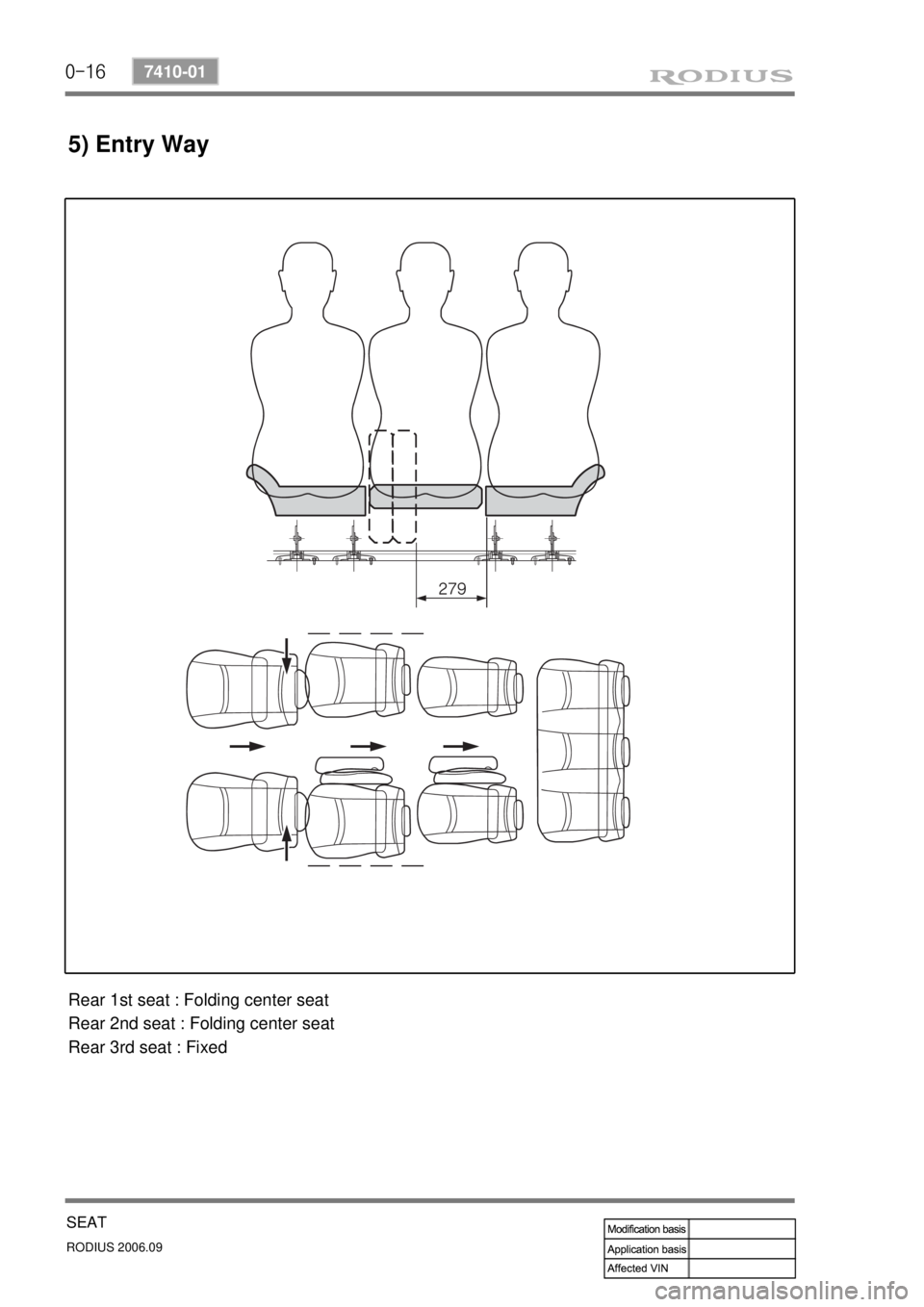

5) Entry Way
Rear 1st seat : Folding center seat
Rear 2nd seat : Folding center seat
Rear 3rd seat : Fixed

0-17
SEAT
RODIUS 2006.09
7410-01

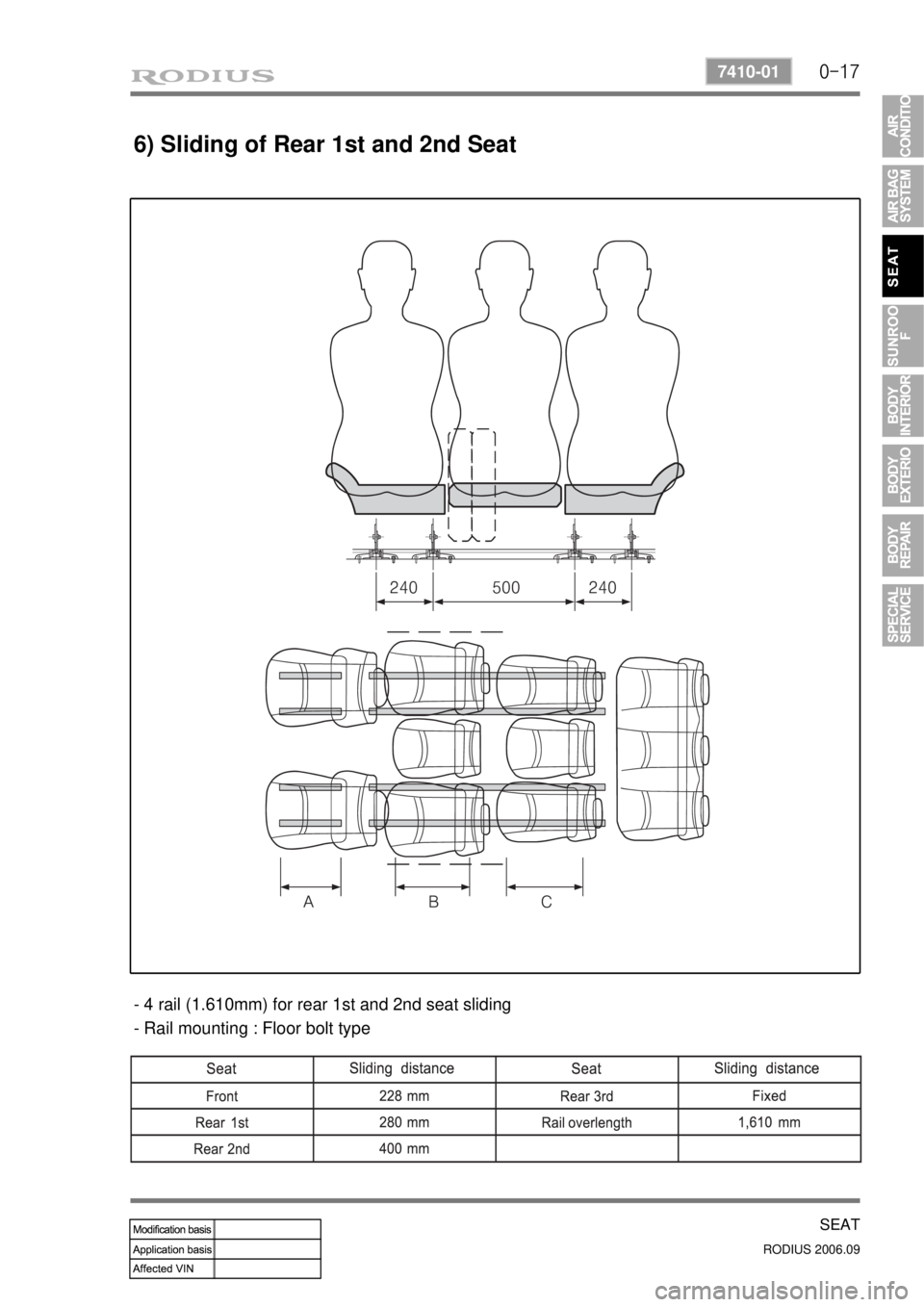

6) Sliding of Rear 1st and 2nd Seat
- 4 rail (1.610mm) for rear 1st and 2nd seat sliding
- Rail mounting : Floor bolt type

0-18
RODIUS 2006.09
7410-01
SEAT

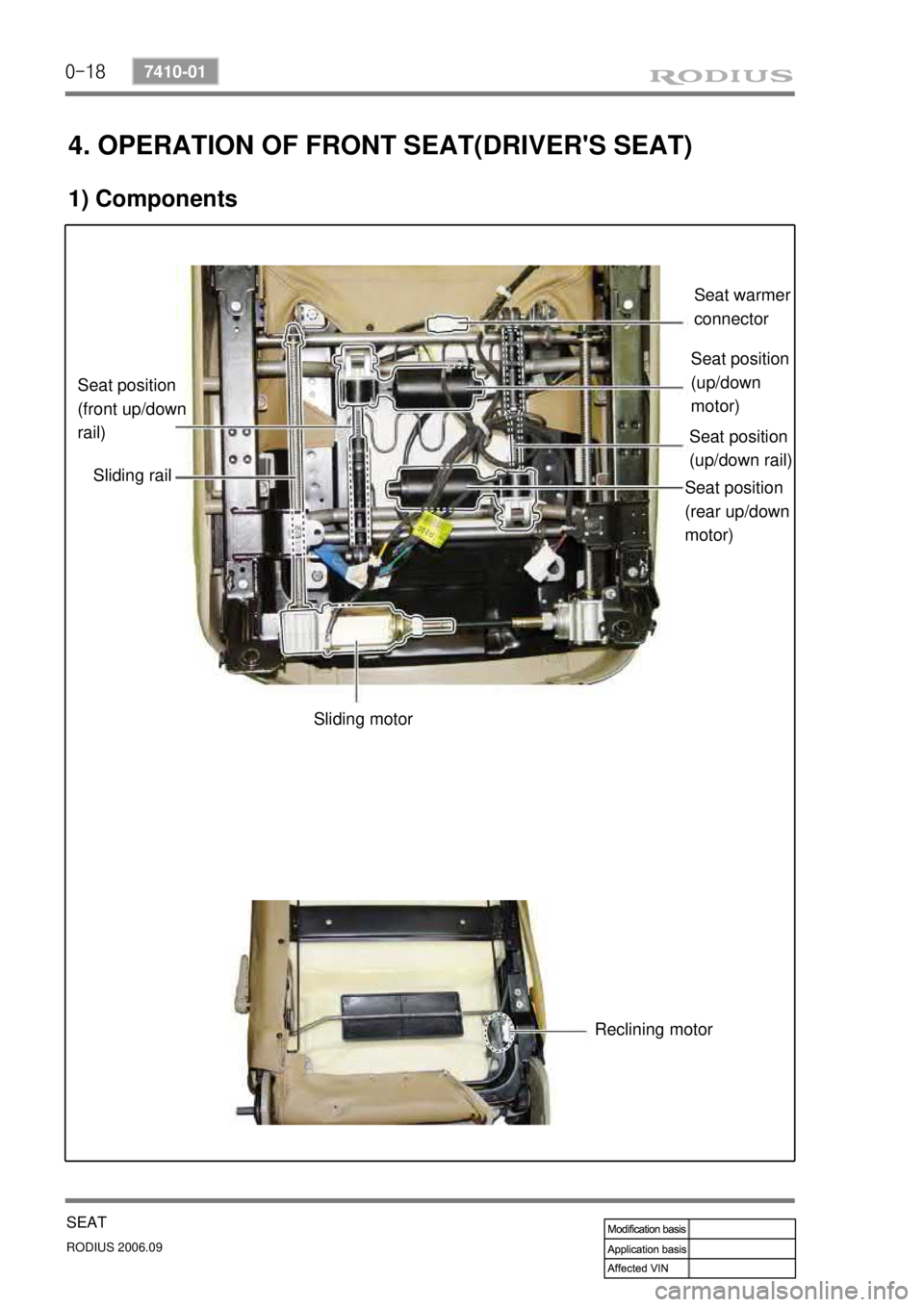

4. OPERATION OF FRONT SEAT(DRIVER'S SEAT)
1) Components
Sliding motor
Sliding rail
Seat position
(front up/down
rail) Seat warmer
connector
Seat position
(up/down
motor)
Seat position
(up/down rail)
Seat position
(rear up/down
motor)
Reclining motor

0-19
SEAT
RODIUS 2006.09
7410-01

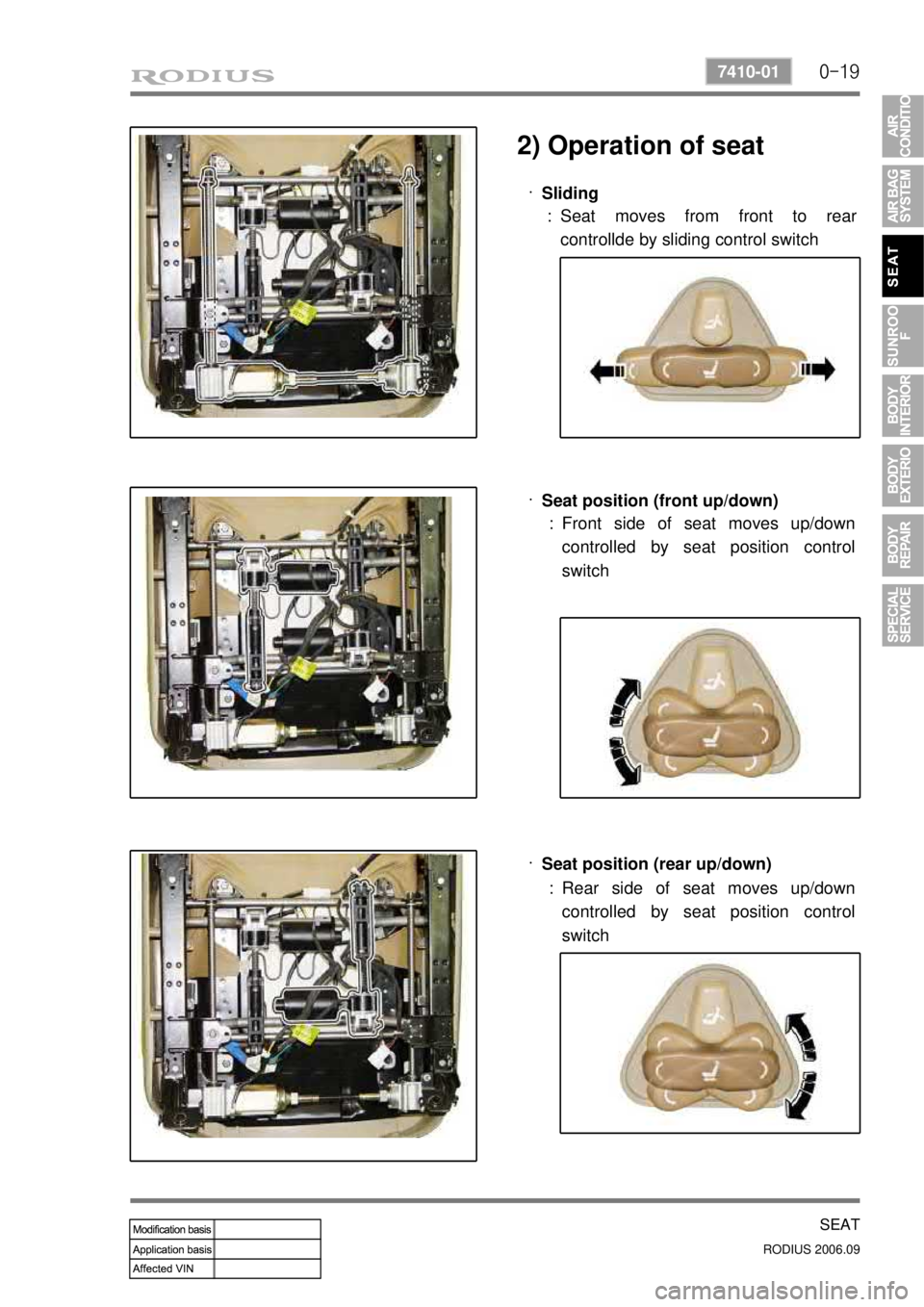

2) Operation of seat
Sliding
·
Seat moves from front to rea
r
controllde by sliding control switch
:
Seat position (front up/down)
·
Front side of seat moves up/down
controlled by seat position control
switch
:
Seat position (rear up/down)
·
Rear side of seat moves up/down
controlled by seat position control
switch
:

0-20
RODIUS 2006.09
7410-01
SEAT
Seat height (up/down)
·
Seat moves up/down controlled by
seat height control switch
:
Reclining
·
Seat back reclining controlled by seat
reclining control switch
:
Seat reclining motor
