SSANGYONG RODIUS 2007 Service Manual

06-11
BODY EXTERIOR
RODIUS 2006.09
7115-01
(2) Rear Door
Outside door handle Connecting rod - Outside handle Rock / Unlock cable
Operating cable - Inside handle
CHILD / SAFETY mode Lock / Unlock
Inside door handle

06-12
RODIUS 2006.09
7115-01
BODY EXTERIOR
▶Operating Process
Lock / Unlock (Inside door handle) Inside handle
CHILD / SAFETY mode
Lock button Operating cable Latch lock / Unlock
Operation of handle Operating cable Open mode - Latch
Safety (FREE) mode Latch & Crank in operation

06-13
BODY EXTERIOR
RODIUS 2006.09
7115-01

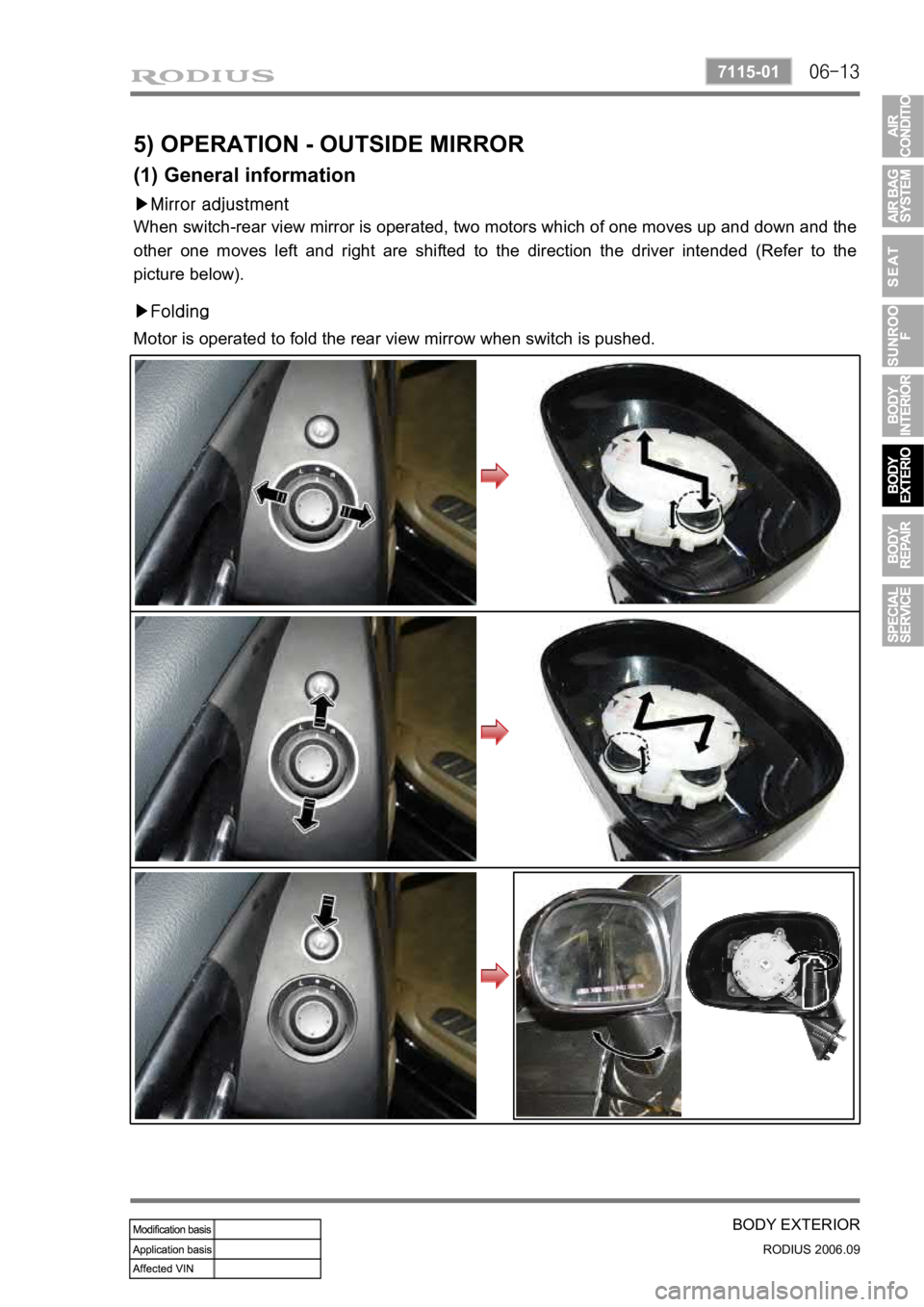

5) OPERATION - OUTSIDE MIRROR
(1) General information
▶Mirror adjustment
When switch-rear view mirror is operated, two motors which of one moves up and down and the
other one moves left and right are shifted to the direction the driver intended (Refer to the
picture below).
▶Folding
Motor is operated to fold the rear view mirrow when switch is pushed.

06-14
RODIUS 2006.09
7115-01
BODY EXTERIOR
2. TAILGATE
1) OPERATION - TAILGATE
Tailgate handle Actuator
Key cylinder
Door latch
Connecting - tailgate handle
Connecting rod - actuator handle Connecting rod - key cylinder

06-15
BODY EXTERIOR
RODIUS 2006.09
7115-01
2) LAYOUT - TAILGATE
Washer nozzle Rear view camera Rear spoiler Wipre & motor Key cylinder

06-16
RODIUS 2006.09
7115-01
BODY EXTERIOR

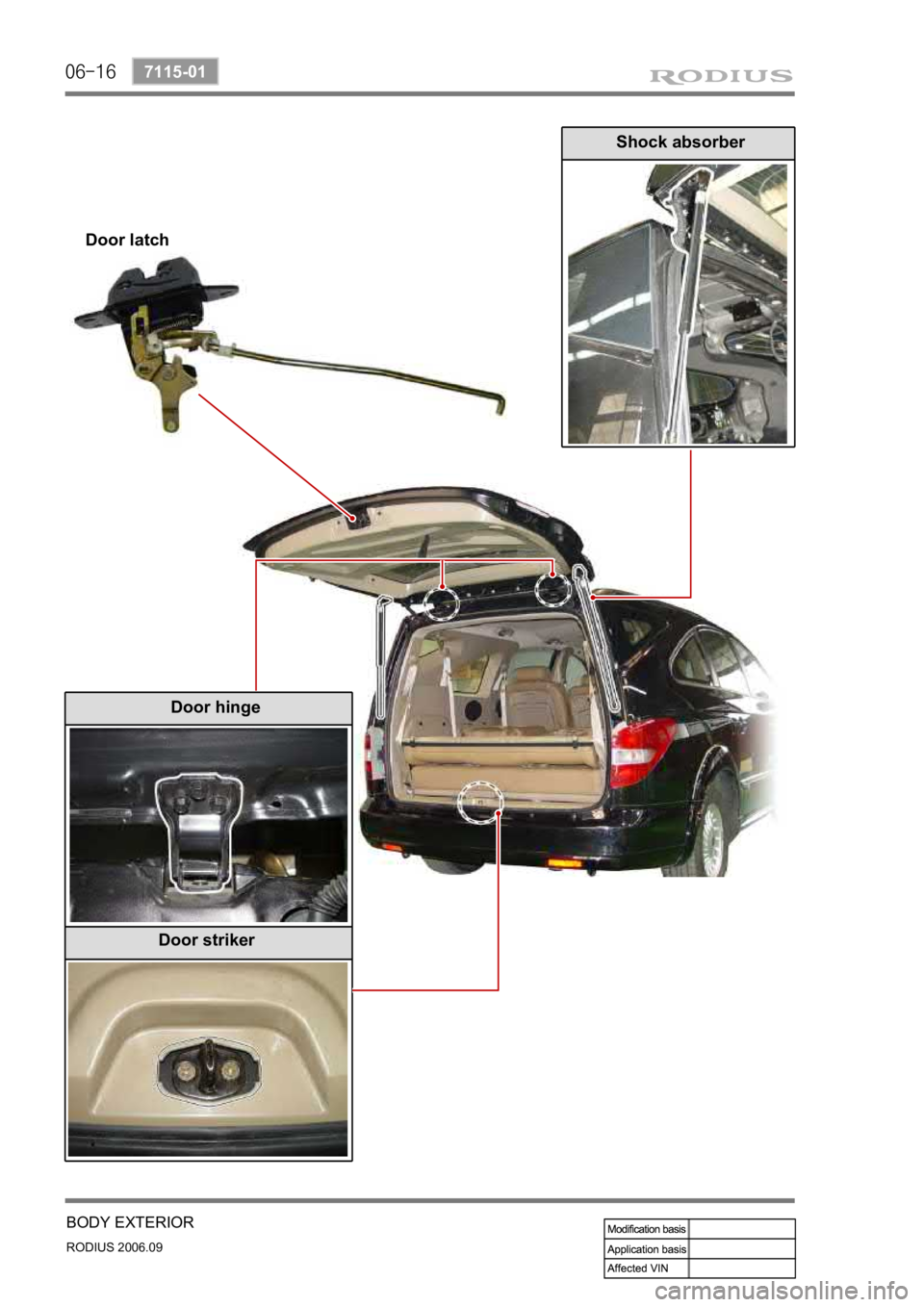

Shock absorber
Door latch
Door hinge
Door striker

06-17
BODY EXTERIOR
RODIUS 2006.09
7115-01

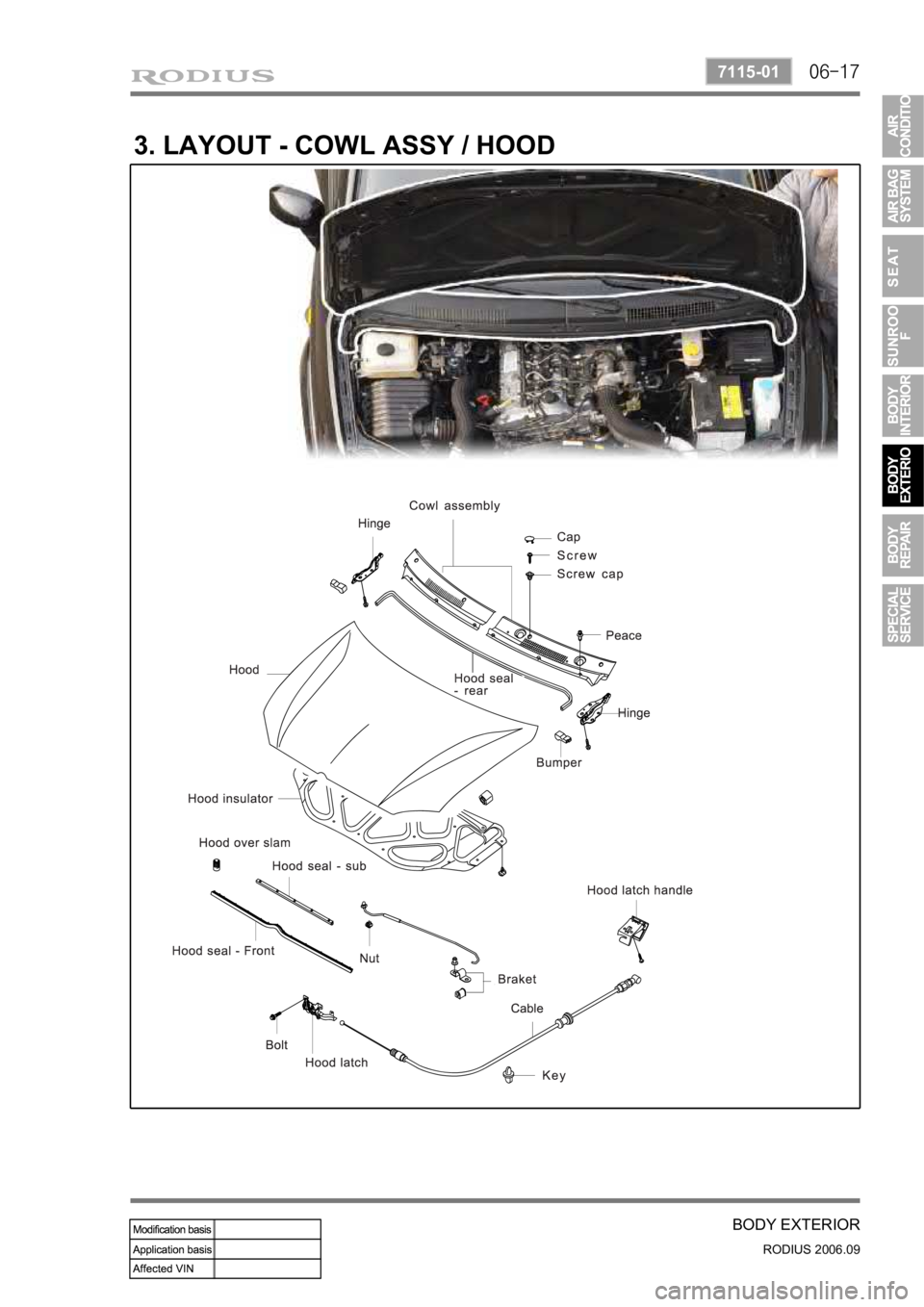

3. LAYOUT - COWL ASSY / HOOD

06-18
RODIUS 2006.09
7115-01
BODY EXTERIOR

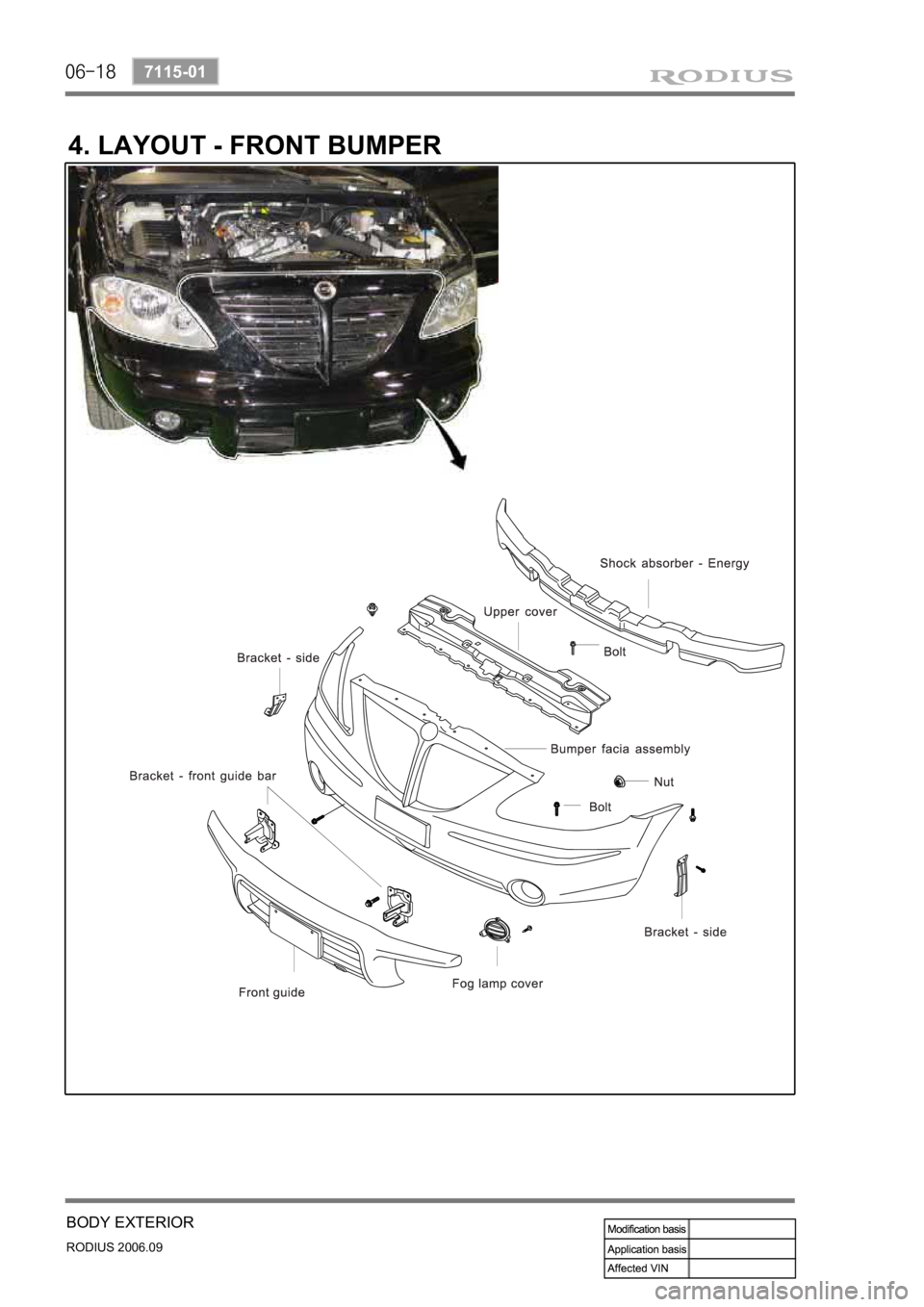

4. LAYOUT - FRONT BUMPER

06-19
BODY EXTERIOR
RODIUS 2006.09
7115-01

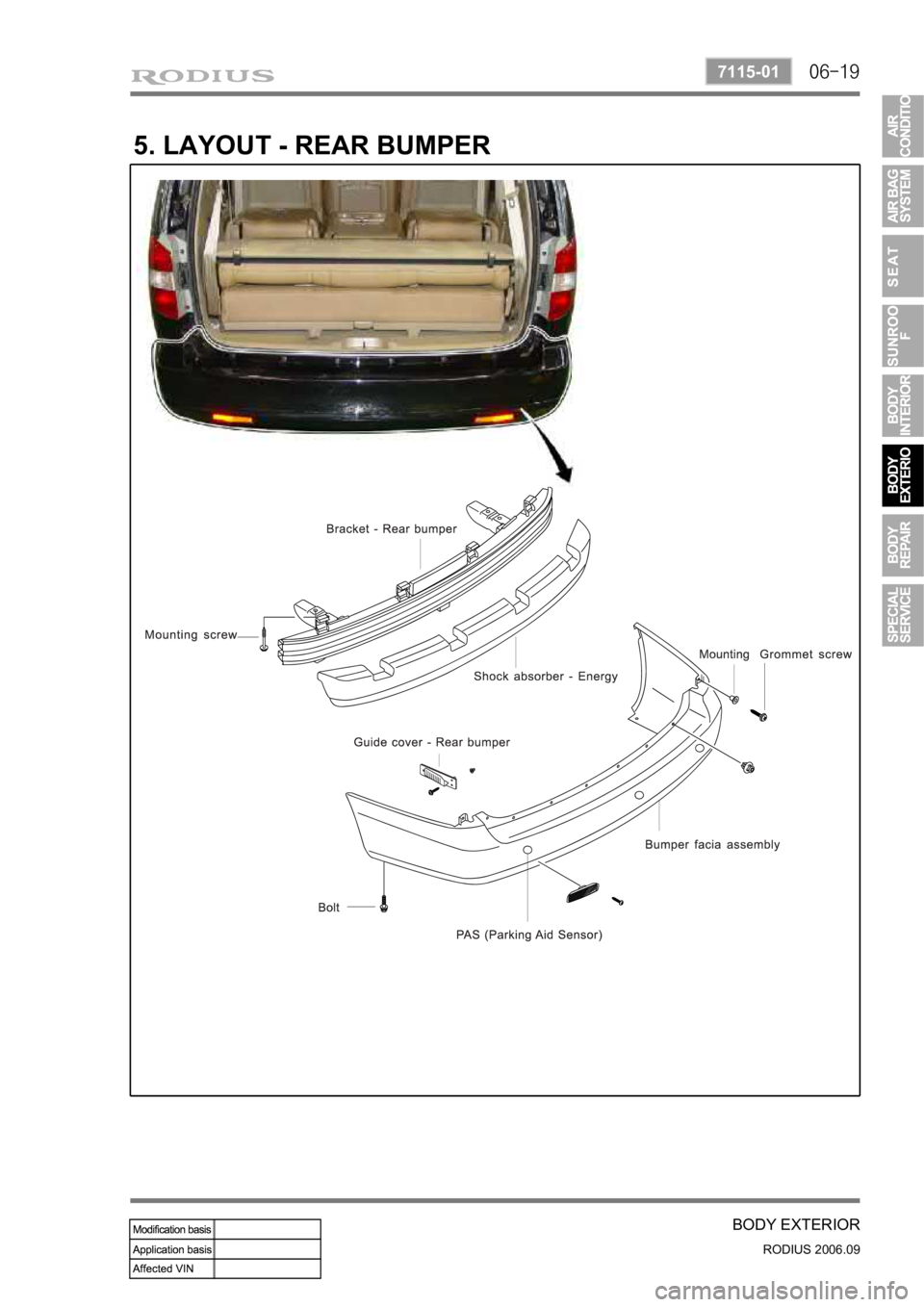

5. LAYOUT - REAR BUMPER

06-20
RODIUS 2006.09
7115-01
BODY EXTERIOR
6. KEY CYLINDER
1) COMPONENTS
Door handle - Front
Key cylinder
Key cylinder - Tailgate
Key cylinder
Door handle - Front Starting key cylinder & key
