SSANGYONG RODIUS 2012 Service Manual

01-6
2) AIR CONDITIONER MODULE WIRING AND LAYOUT
(1) Front Air Conditioner Module
Air source selection
door actuator
Air conditioner
filterEvaporator
Blower motor
Blower high
speed relay
Heater core
Wiring layout
Components

01-76810-30
(2) Rear Air Conditioner Module
Roof air conditioner duct
Blower motor
Evaporator
Mixer door
Heater core
Air mixer door actuator
Rear floor
heater duct
Heater &
air conditioner
pipes
Wiring layout
Components

01-8
2. SYSTEM BLOCK DIAGRAM
A/C compressor OFF conditions ▶
Coolant temperature: over 115℃
Engine speed: over 4,500 rpm for more than 2 seconds
Engine speed: below 650 rpm
Maximum output due to abrupt acceleration
Excessive acceleration
Increased load during engine idling (to prevent the engine from shutting off)
Refrigerant pressure: over 32 bar or below 2 bar
Defects in A/C related system (refrigerant pressure sensor, coolant temperature sensor,
cooling fan) 1.
2.
3.
4.
5.
6.
7.
8.

01-96810-30
3. CIRCUIT DIAGRAM
1) FATC (Full Auto Temperature Control)
D20DTR, PWM Motor, Coolant Fan(SUB) relay ▶

01-10
GSL 3.2, Condenssor Fan Relay ▶

01-116810-30
Front Blower, Motor (Mode, Circulation), In-car Sensor, Ambient/AQS Sensor ▶

01-12
Rear Air Conditioner (Blower, Mode Actuator) ▶

01-136810-30
2) Manual Air Conditioner
D20DTR, Motor (Mode, Intake, Air Mix, PWM) ▶

01-14

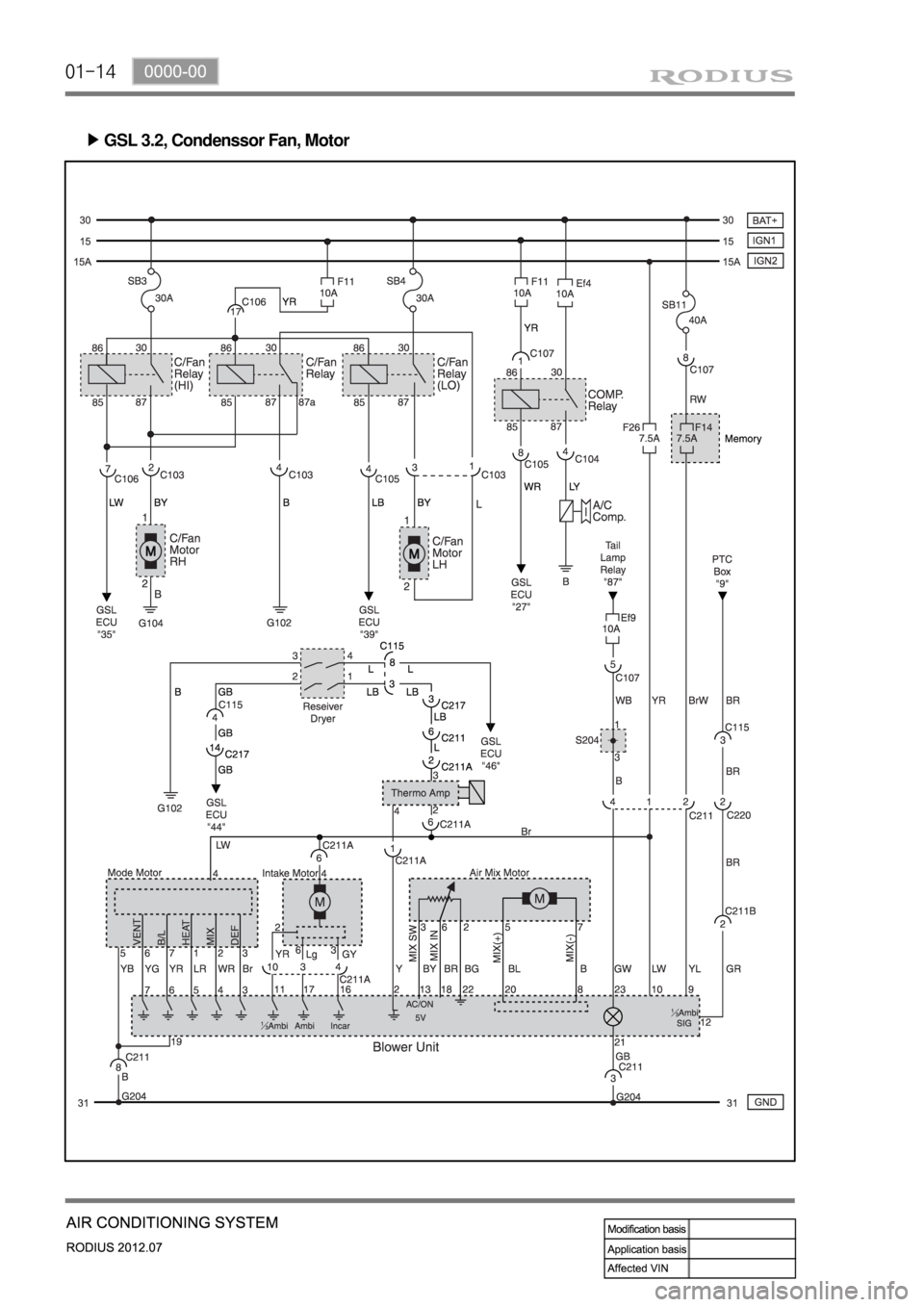

GSL 3.2, Condenssor Fan, Motor ▶

01-156810-30

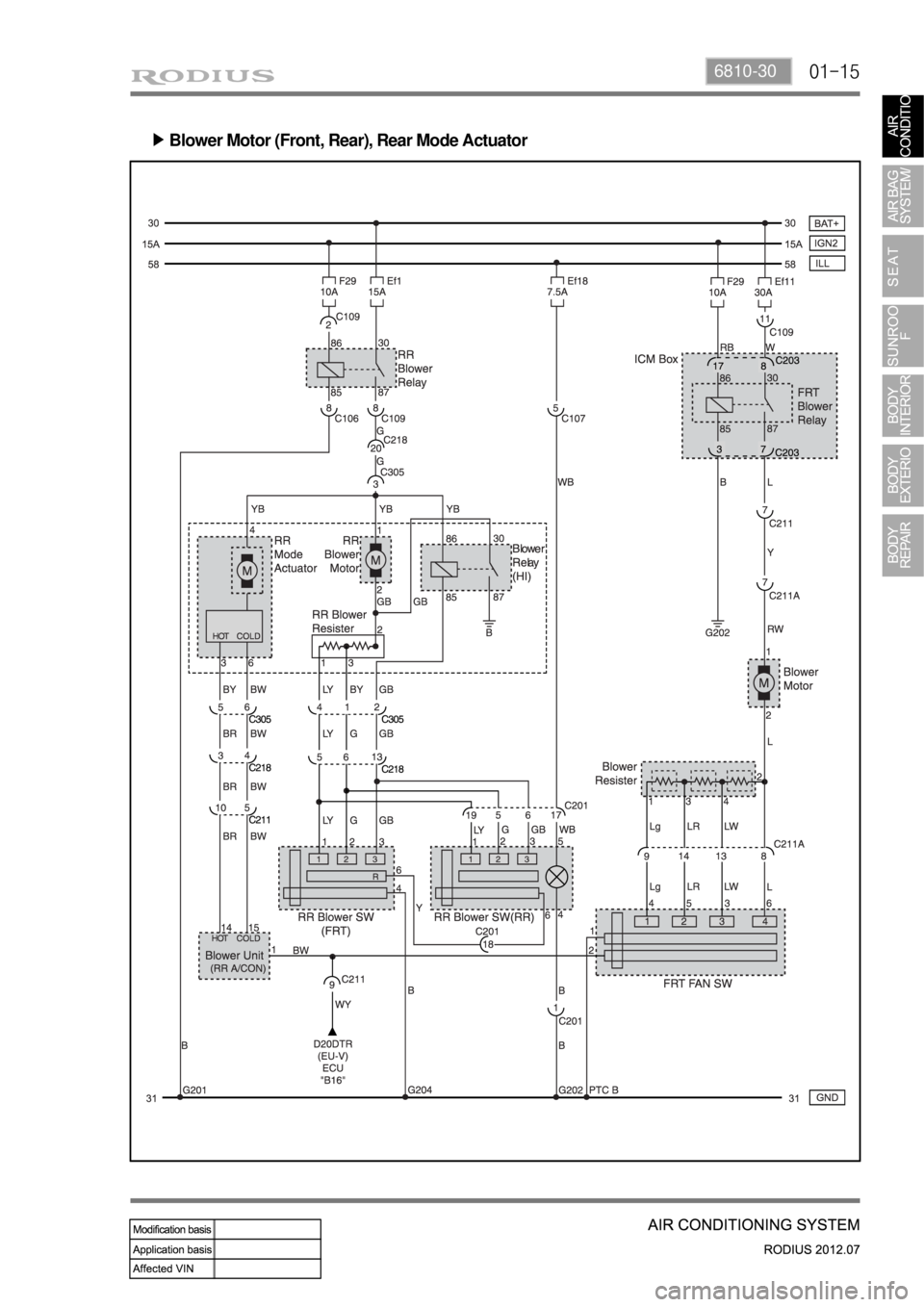

Blower Motor (Front, Rear), Rear Mode Actuator ▶
