SSANGYONG RODIUS 2012 Service Manual

03-37410-01
Seat sliding adjust leverSeat swivel control lever
Rear 3rd Row Seatback Folding Lever
HeadrestBack folding adjust lever

03-4
▶ Rear 1st row (3 point + 2 point)
▶ Rear 2nd row (3 point + 2 point)
▶ Rear 3rd row (3 point + 2 point)
▶ Front Seat Belt (3 point)

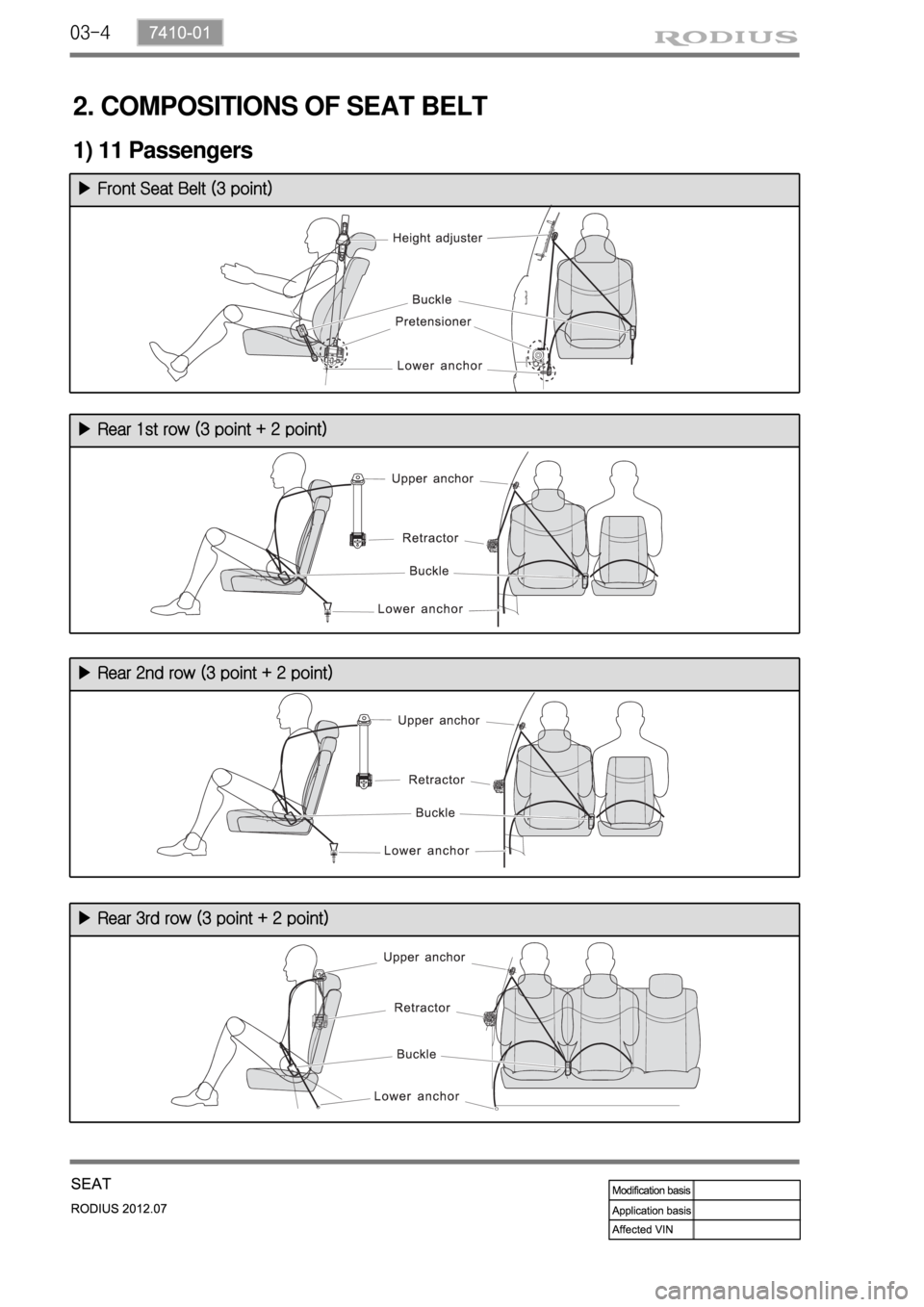

2. COMPOSITIONS OF SEAT BELT
1) 11 Passengers

03-57410-01

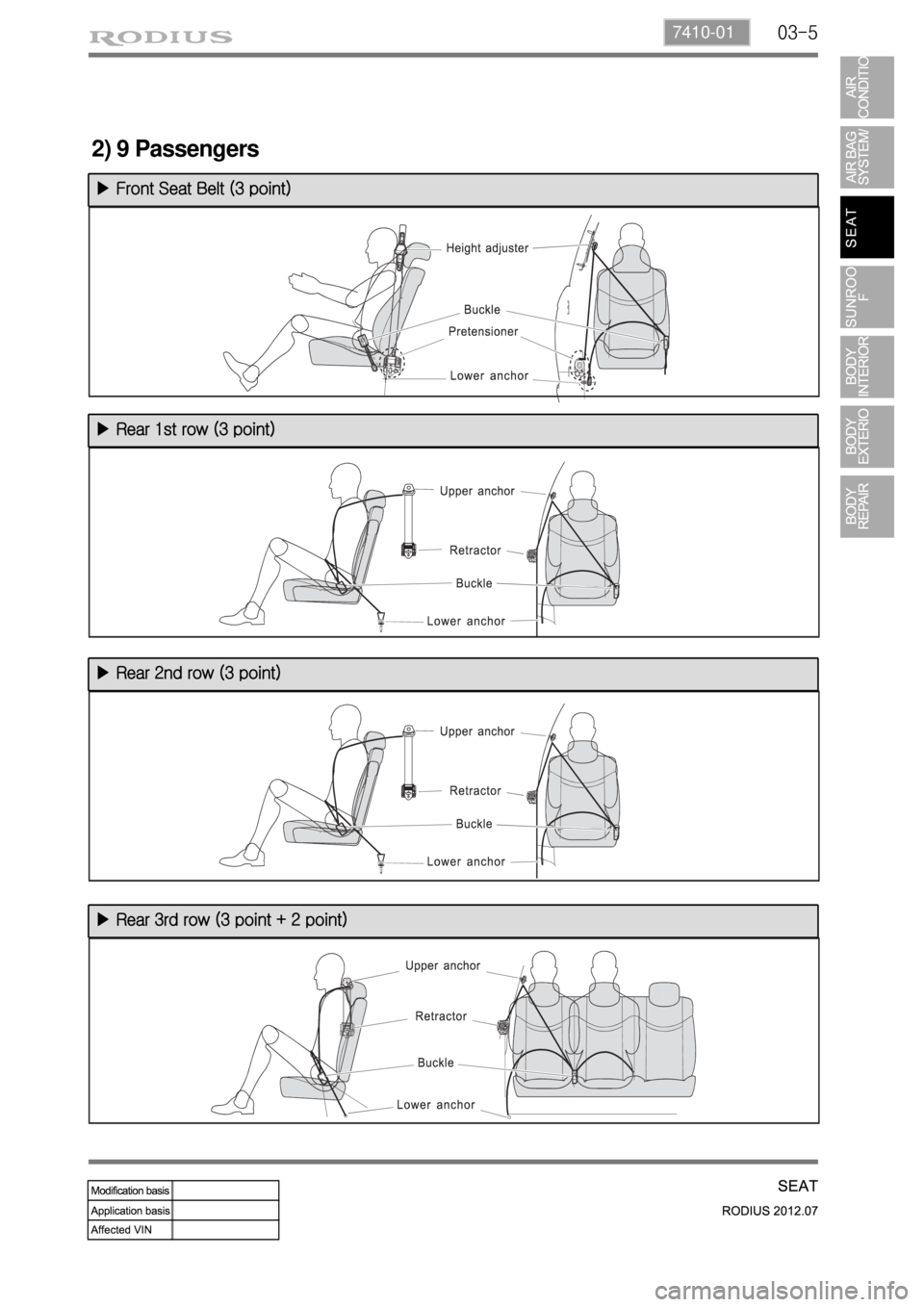

2) 9 Passengers
▶ Front Seat Belt (3 point)
▶ Rear 1st row (3 point)
▶ Rear 2nd row (3 point)
▶ Rear 3rd row (3 point + 2 point)

03-6

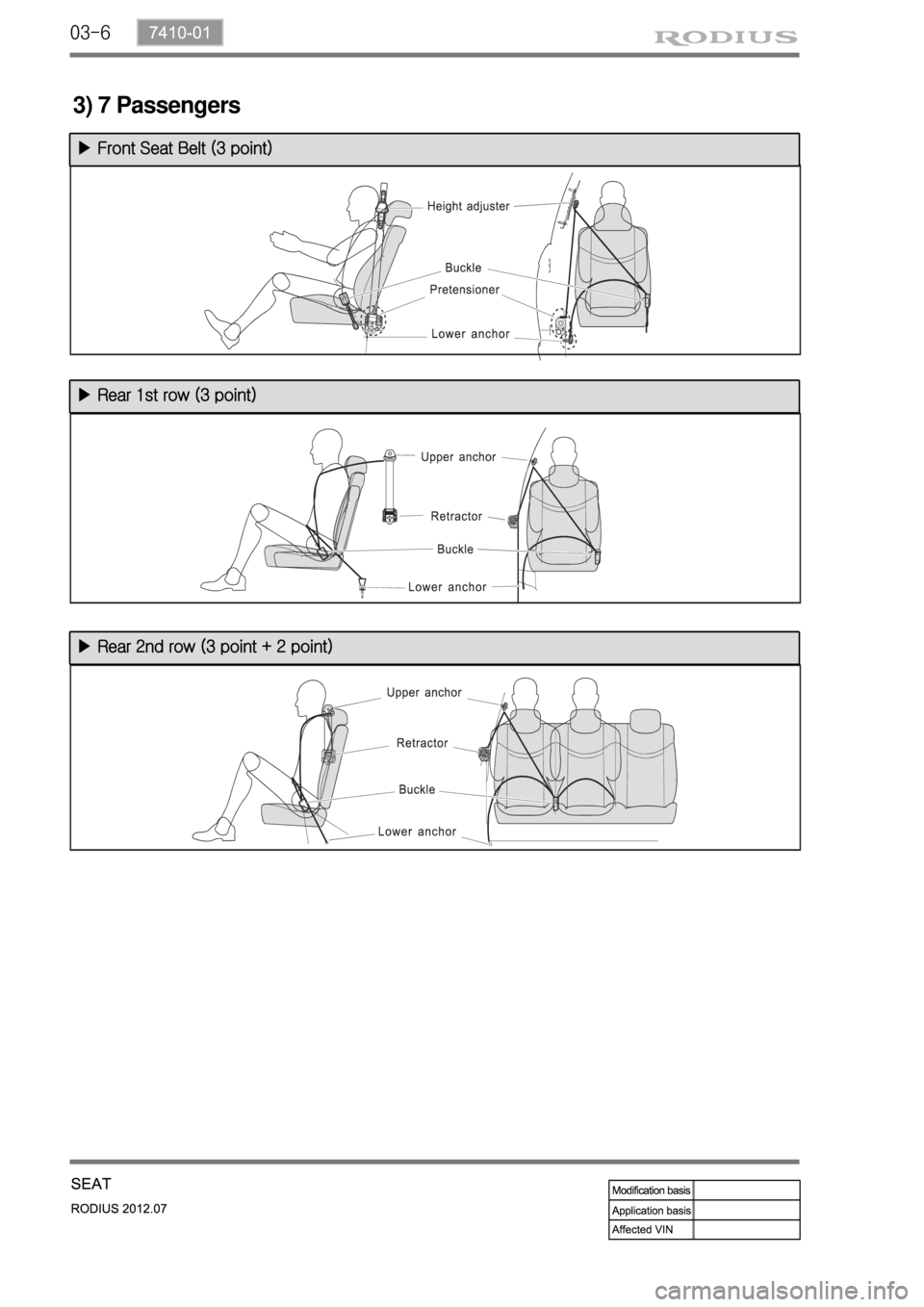

3) 7 Passengers
▶ Front Seat Belt (3 point)
▶ Rear 2nd row (3 point + 2 point)
▶ Rear 1st row (3 point)

03-77410-01

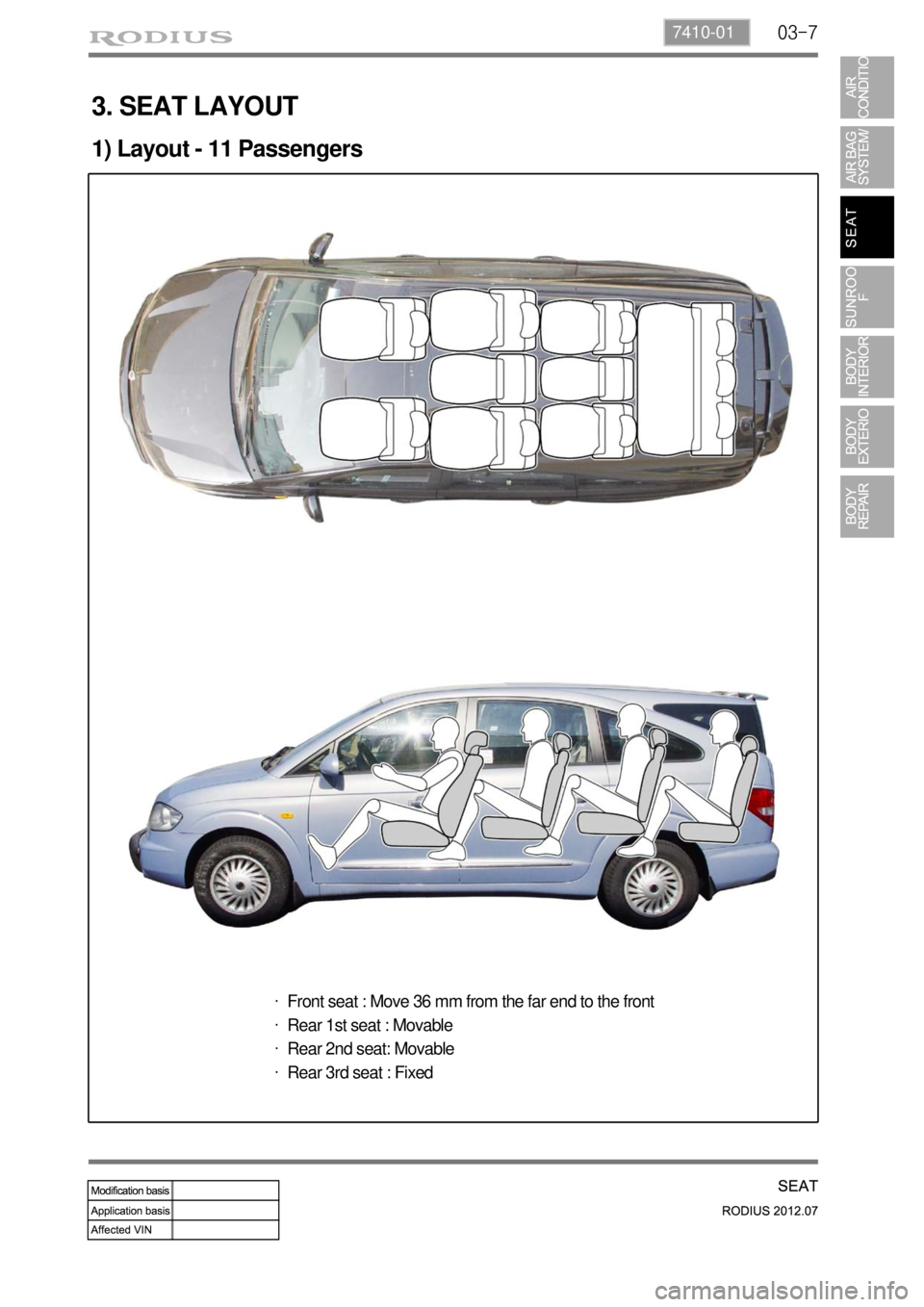

3. SEAT LAYOUT
1) Layout - 11 Passengers
Front seat : Move 36 mm from the far end to the front
Rear 1st seat : Movable
Rear 2nd seat: Movable
Rear 3rd seat : Fixed ·
·
·
·

03-8

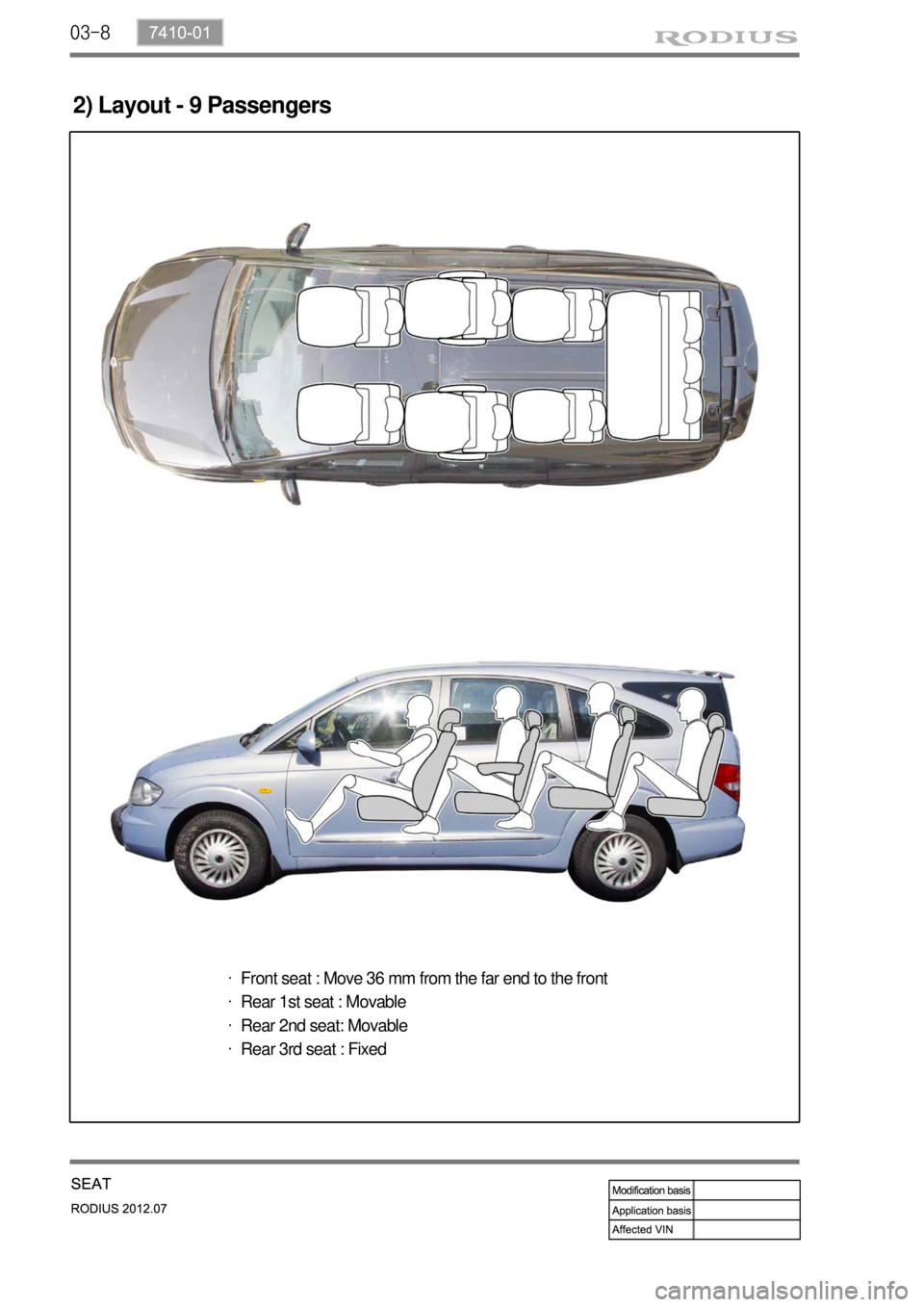

2) Layout - 9 Passengers
Front seat : Move 36 mm from the far end to the front
Rear 1st seat : Movable
Rear 2nd seat: Movable
Rear 3rd seat : Fixed ·
·
·
·

03-97410-01

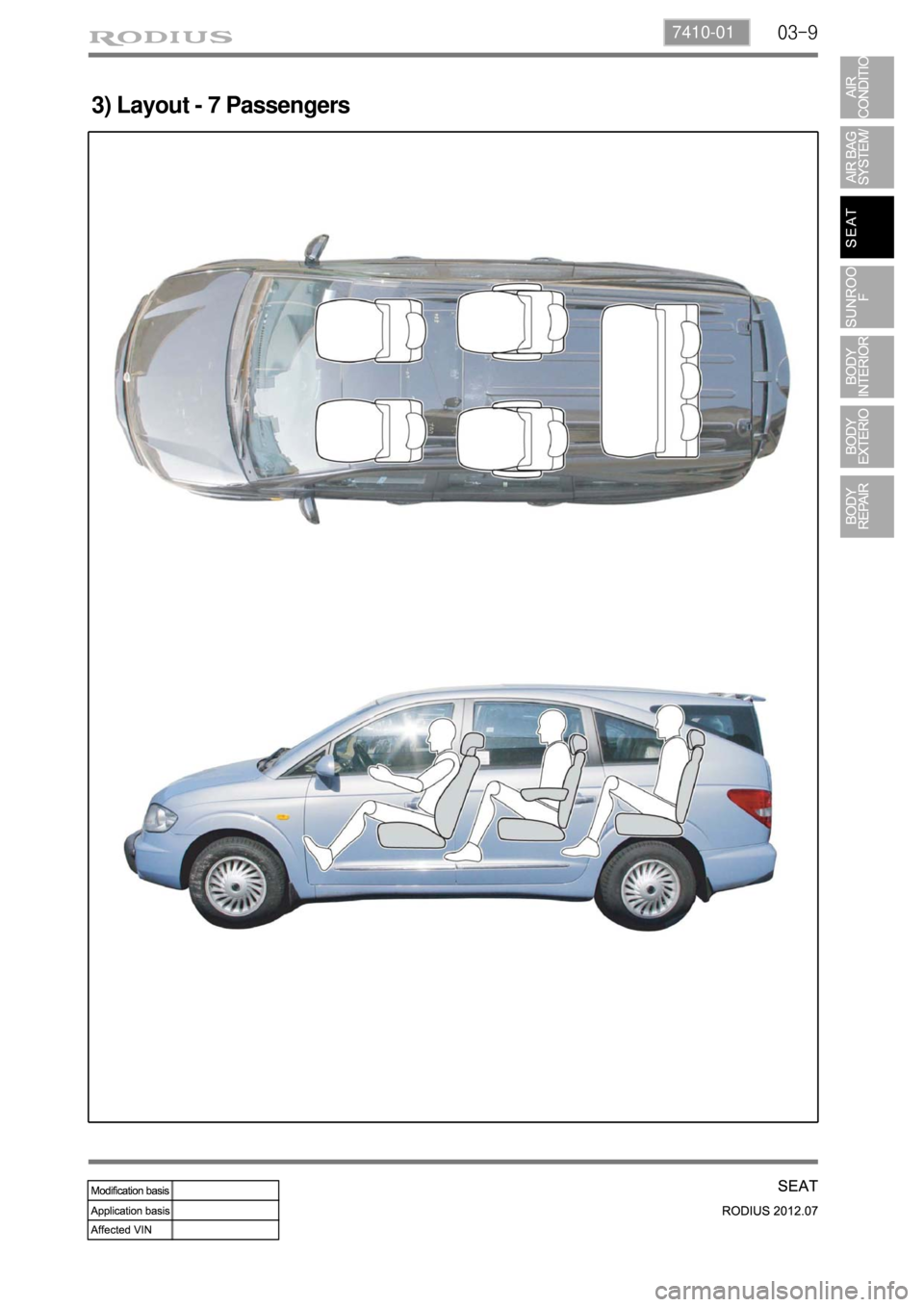

3) Layout - 7 Passengers

03-10

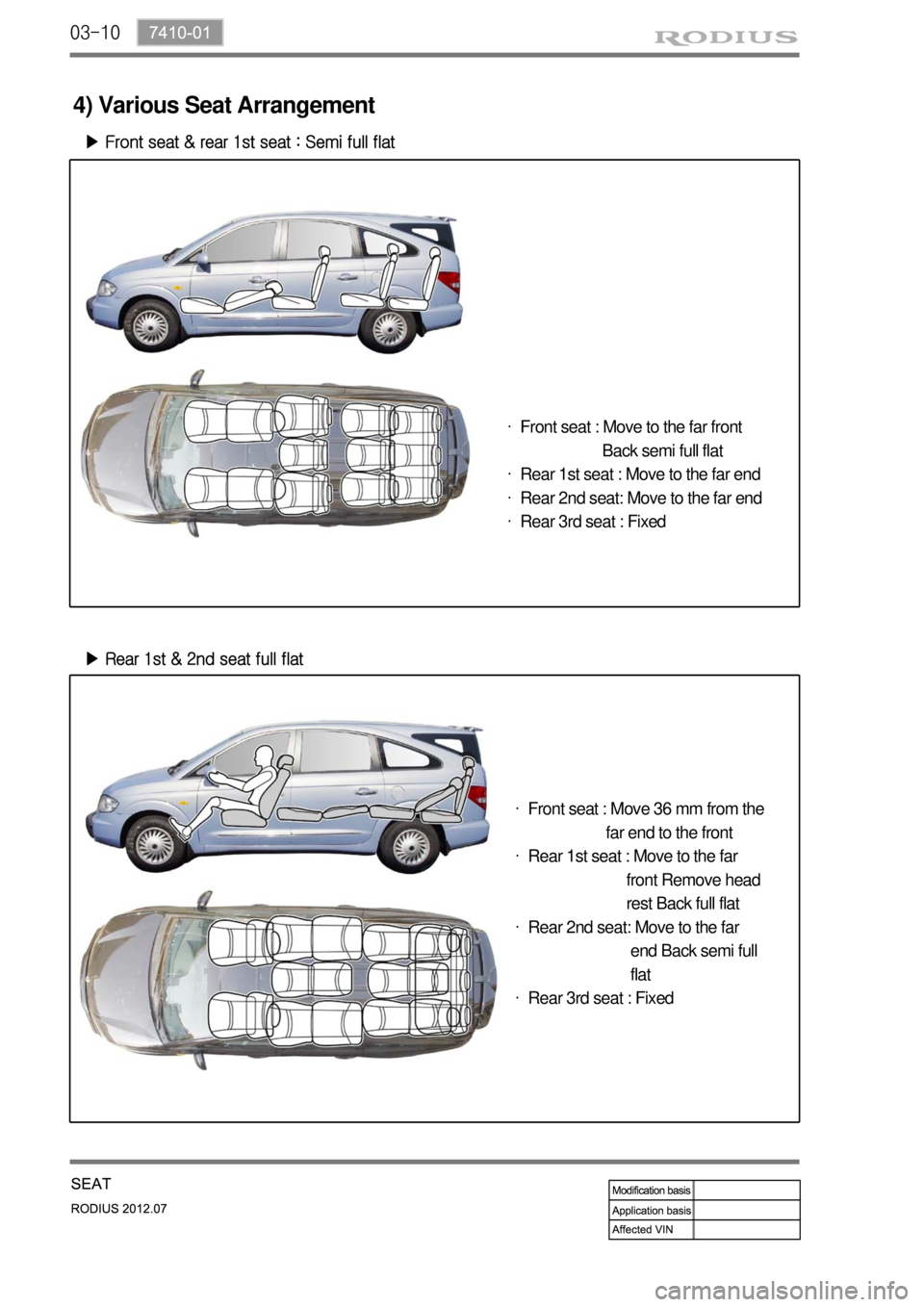

4) Various Seat Arrangement
▶ Front seat & rear 1st seat : Semi full flat
▶ Rear 1st & 2nd seat full flat
Front seat : Move to the far front
Back semi full flat
Rear 1st seat : Move to the far end
Rear 2nd seat: Move to the far end
Rear 3rd seat : Fixed ·
·
·
·
Front seat : Move 36 mm from the
far end to the front
Rear 1st seat : Move to the far
front Remove head
rest Back full flat
Rear 2nd seat: Move to the far
end Back semi full
flat
Rear 3rd seat : Fixed ·
·
·
·

03-117410-01

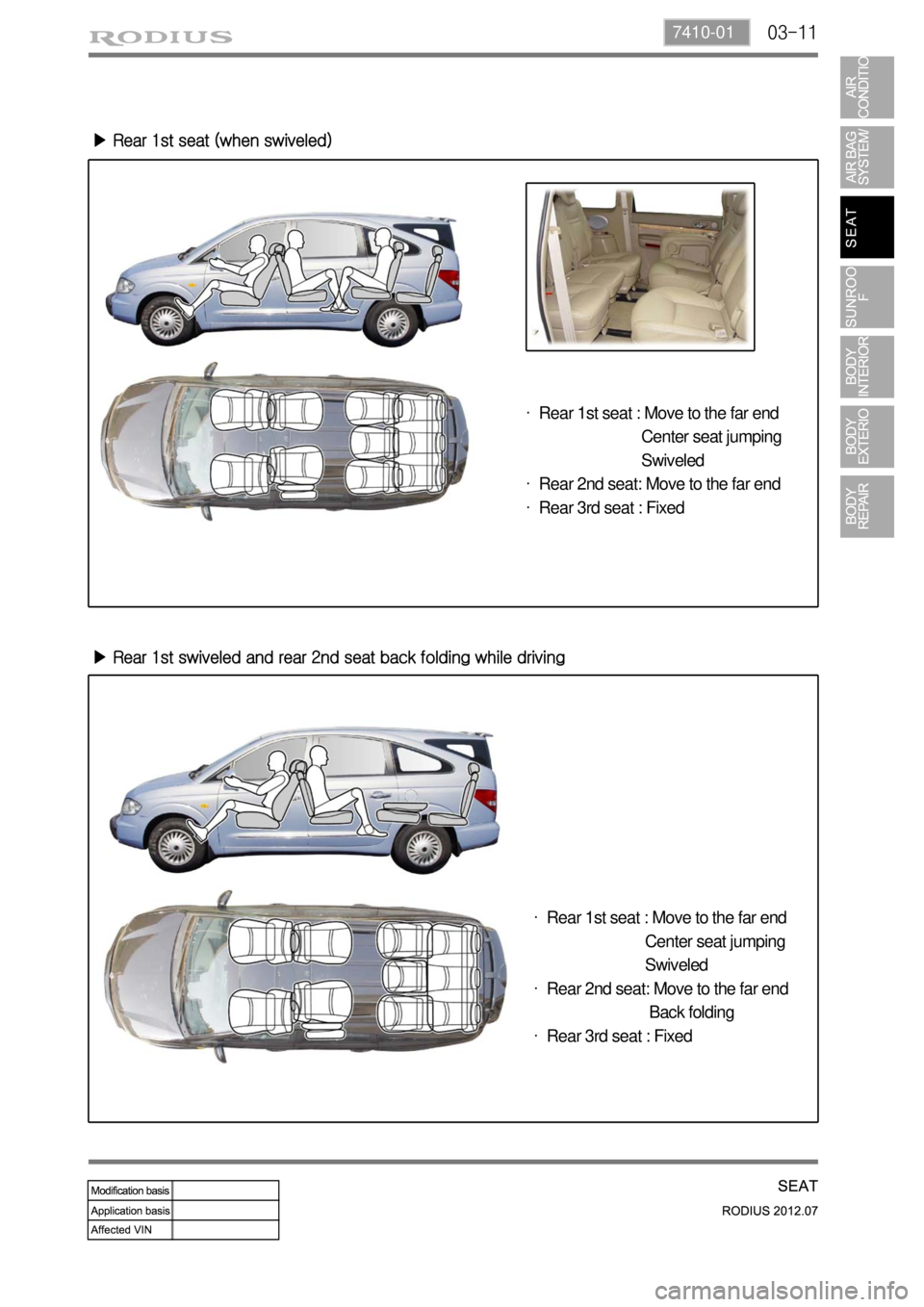

▶ Rear 1st seat (when swiveled)
▶ Rear 1st swiveled and rear 2nd seat back folding while driving
Rear 1st seat : Move to the far end
Center seat jumping
Swiveled
Rear 2nd seat: Move to the far end
Rear 3rd seat : Fixed ·
·
·
Rear 1st seat : Move to the far end
Center seat jumping
Swiveled
Rear 2nd seat: Move to the far end
Back folding
Rear 3rd seat : Fixed ·
·
·

03-12

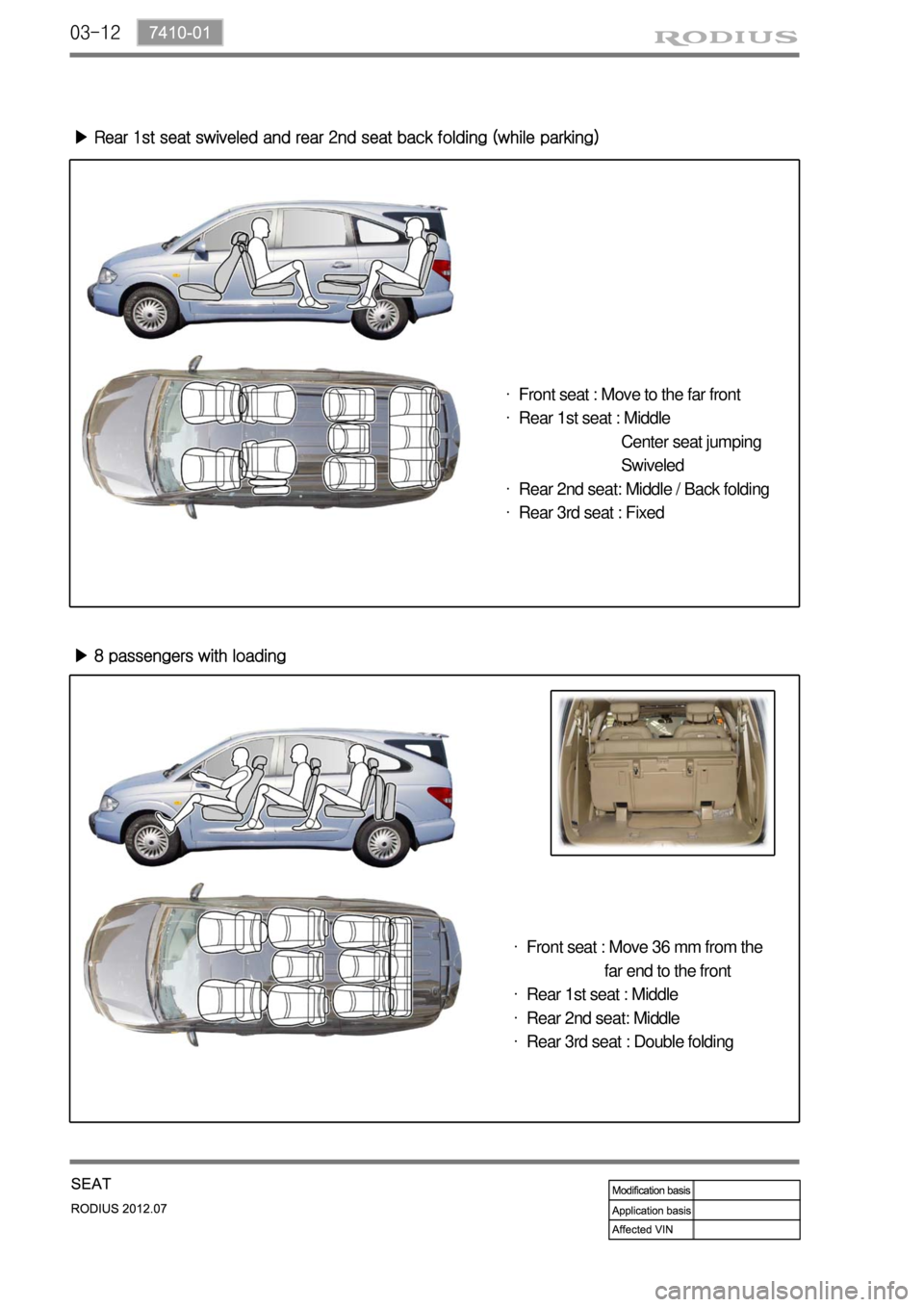

▶ Rear 1st seat swiveled and rear 2nd seat back folding (while parking)
▶ 8 passengers with loading
Front seat : Move to the far front
Rear 1st seat : Middle
Center seat jumping
Swiveled
Rear 2nd seat: Middle / Back folding
Rear 3rd seat : Fixed ·
·
·
·
Front seat : Move 36 mm from the
far end to the front
Rear 1st seat : Middle
Rear 2nd seat: Middle
Rear 3rd seat : Double folding ·
·
·
·
